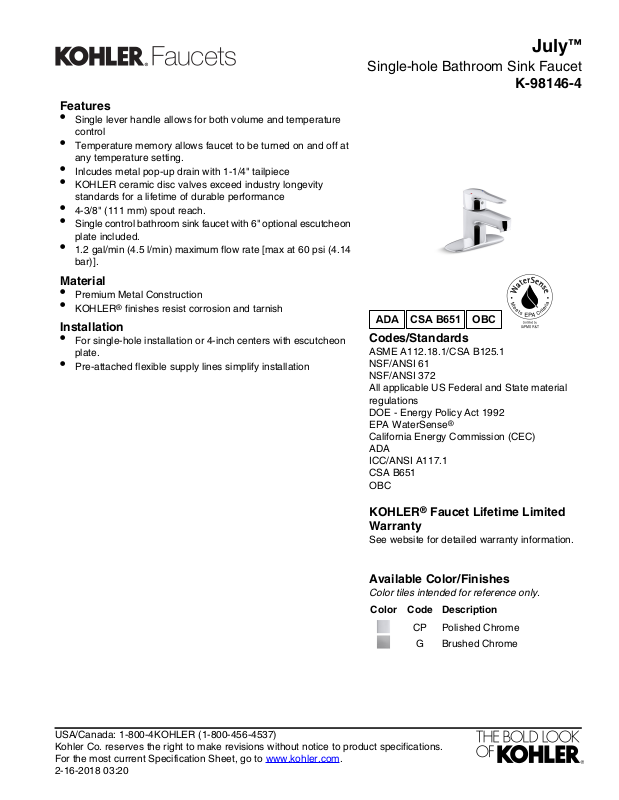

Page 1
Features
CSA B651
OBC
•
Single lever handle allows for both volume and temperature
control
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
Inlcudes metal pop-up drain with 1-1/4" tailpiece
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance
•
4-3/8" (111 mm) spout reach.
•
Single control bathroom sink faucet with 6" optional escutcheon
plate included.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Material
•
Premium Metal Construction
•
KOHLER® finishes resist corrosion and tarnish
Installation
•
For single-hole installation or 4-inch centers with escutcheon
plate.
•
Pre-attached flexible supply lines simplify installation
July
™
Single-hole Bathroom Sink Faucet
K-98146-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Brushed ChromeG
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-16-2018 03:20
Page 2
2-3/16" (56 mm) Max
July
™
Single-hole Bathroom Sink Faucet
K-98146-4
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YESDrain included:
YESDrain tailpiece
included:
Spout:
4-3/8" (111 mm)Spout reach:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-16-2018 03:20
