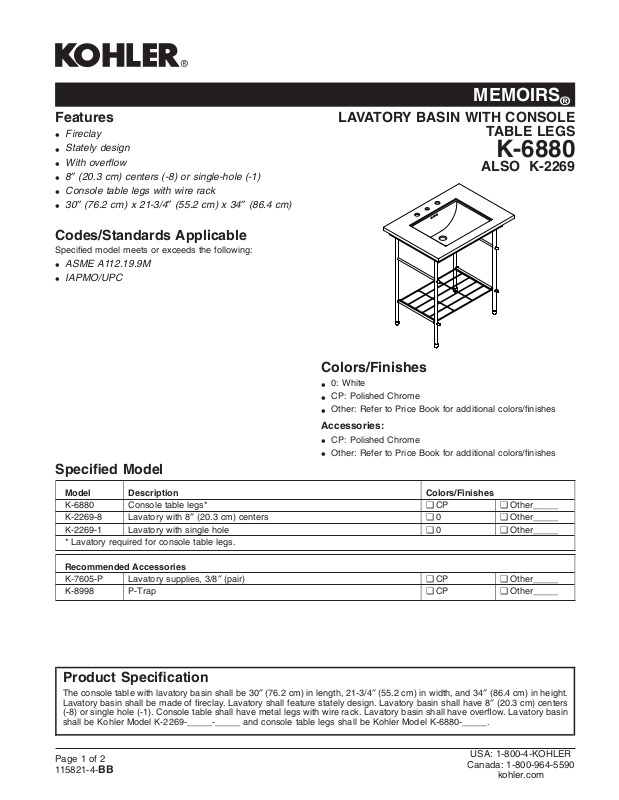

Kohler K6880SN User Manual

MEMOIRS

Features

Fireclay

•

Stately design

•

With overﬂow

• 8″ (20.3 cm) centers (-8) or single-hole (-1)

•

Console table legs with wire rack

• 30″ (76.2 cm) x 21-3/4″ (55.2 cm) x 34″ (86.4 cm)

•

Codes/Standards Applicable

Speciﬁed model meets or exceeds the following:

ASME A112.19.9M

•

IAPMO/UPC

•

Speciﬁed Model

LAVATORY BASIN WITH CONSOLE

TABLE LEGS

K-6880

ALSO K-2269

Colors/Finishes

0: White

•

CP: Polished Chrome

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Accessories:

CP: Polished Chrome

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Model Description Colors/Finishes

K-6880 Console table legs* ❑ CP ❑ Other_____ K-2269-8 Lavatory with 8″ (20.3 cm) centers ❑ 0 ❑ Other_____ K-2269-1 Lavatory with single hole ❑ 0 ❑ Other_____

* Lavatory required for console table legs.

Recommended Accessories

K-7605-P Lavatory supplies, 3/8″ (pair) ❑ CP ❑ Other_____ K-8998 P-Trap ❑ CP ❑ Other_____

Product Speciﬁcation

The console table with lavatory basin shall be 30″ (76.2 cm) in length, 21-3/4″ (55.2 cm) in width, and 34″ (86.4 cm) in height. Lavatory basin shall be made of ﬁreclay. Lavatory shall feature stately design. Lavatory basin shall have 8″ (20.3 cm) centers (-8) or single hole (-1). Console table shall have metal legs with wire rack. Lavatory basin shall have overﬂow. Lavatory basin shall be Kohler Model K-2269-_____-_____ and console table legs shall be Kohler Model K-6880-_____.

Page 1 of 2 115821-4-

USA: 1-800-4-KOHLER

Canada: 1-800-964-5590

kohler.com

MEMOIRS

Technical Information

Fixture*: Basin area 18″ (45.7) x 14″ (35.6 cm) Water depth 5″ (12.7 cm) Drain hole 1-3/4″ (4.4 cm) D. *Approximate measurements for comparison only.

Holes K-2269-1 K-2269-8 Spout 1-3/8″ (3.5 cm) D. 1-3/16″

Faucet NA 1-7/16″

* Approximate measurements for comparison only.

(3 cm) D.

(3.7 cm) D.

Included components: Lavatory accessory pack 52204 Hanger bracket 64839 Wire rack 84739

Installation Notes

Install this product according to the installation guide.

(S) Supply

K-2269-1 = 10" (25.4 cm) K-2269-8 = 14" (35.6 cm)

14-1/4" (36.2 cm)

(S)

3/8" Hot

1-1/4" OD

K-6880 K-2269-1

30" (76.2 cm)

15-1/2" (39.4 cm)

4" (10.2 cm)

23" (58.4 cm)

Finished Wall

2-3/8" (6 cm)

3-11/16" (9.4 cm)

1/2" (1.3 cm) D. Anchor Holes in Lavatory

3/8" Cold

8-1/4" (21 cm)

3-3/4" (9.5 cm)

8-5/8" (21.9 cm)

K-2269-8

4" (10.2 cm)

2-3/8" (6 cm)

21-3/4" (55.2 cm)

Finished Wall

34" (86.4 cm)

15-1/2" (39.4 cm)

Product Diagram

MEMOIRS®LAVATORY BASIN WITH CONSOLE TABLE LEGS Page2of2

115821-4-
