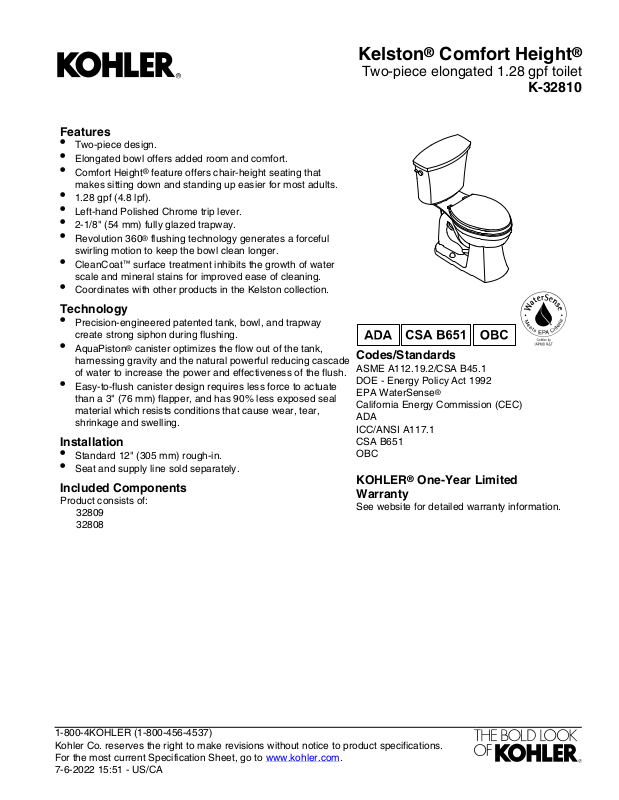

Page 1
Kelston® Comfort Height
Features
•
Two-piece design.
•
Elongated bowl offers added room and comfort.
•
Comfort Height® feature offers chair-height seating that
makes sitting down and standing up easier for most adults.
•
1.28 gpf (4.8 lpf).
•
Left-hand Polished Chrome trip lever.
•
2-1/8" (54 mm) fully glazed trapway.
•
Revolution 360® flushing technology generates a forceful
swirling motion to keep the bowl clean longer.
•
CleanCoat™ surface treatment inhibits the growth of water
scale and mineral stains for improved ease of cleaning.
•
Coordinates with other products in the Kelston collection.
Technology
•
Precision-engineered patented tank, bowl, and trapway
create strong siphon during flushing.
•
AquaPiston® canister optimizes the flow out of the tank,
harnessing gravity and the natural powerful reducing cascade
of water to increase the power and effectiveness of the flush.
•
Easy-to-flush canister design requires less force to actuate
than a 3" (76 mm) flapper, and has 90% less exposed seal
material which resists conditions that cause wear, tear,
shrinkage and swelling.
Installation
•
Standard 12" (305 mm) rough-in.
•
Seat and supply line sold separately.
Included Components
Product consists of:
32809
32808
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Two-piece elongated 1.28 gpf toilet
K-32810
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2022 15:51 - US/CA
Page 2
Kelston® Comfort Height
7/8"
(22 mm)
16-5/8"
(422 mm)
8-7/8"
(225 mm)
29-1/4" (743 mm)
12"
(305 mm)
3-3/4"
(95 mm)
17-5/8"
(448 mm)
31-3/8"
(797 mm)
5"
(127 mm)
3/8 NPT
Supply
L of Outlet
C
3/4"
(19 mm)
4-1/2"
(114 mm)
Do not use a
double sanitary tee.
Use a 45° double
wye fitting.
7-7/8"
(200 mm)
15-11/16"
(398 mm)
10"
(254 mm)
For Back-to-Back Toilet Installations
Front of Bowl
Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Floor
Bowl shape: Elongated
Flush type: AquaPiston, Revolution 360
Trap passageway: 2-1/8" (54 mm)
Water Consumption
Full: 1.28 gpf (4.8 lpf)
Water surface size: 10" x 8" (254 mm x 203 mm)
Rim to water
surface:
6-3/4" (171 mm)
Seat-mounting
holes:
5-1/2" (140 mm)
Fixture Supply Requirements
Min static pressure: 15 psi (103.4 kPa)
Max static pressure: 80 psi (551.6 kPa)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
Two-piece elongated 1.28 gpf toilet
K-32810
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2022 15:51 - US/CA
