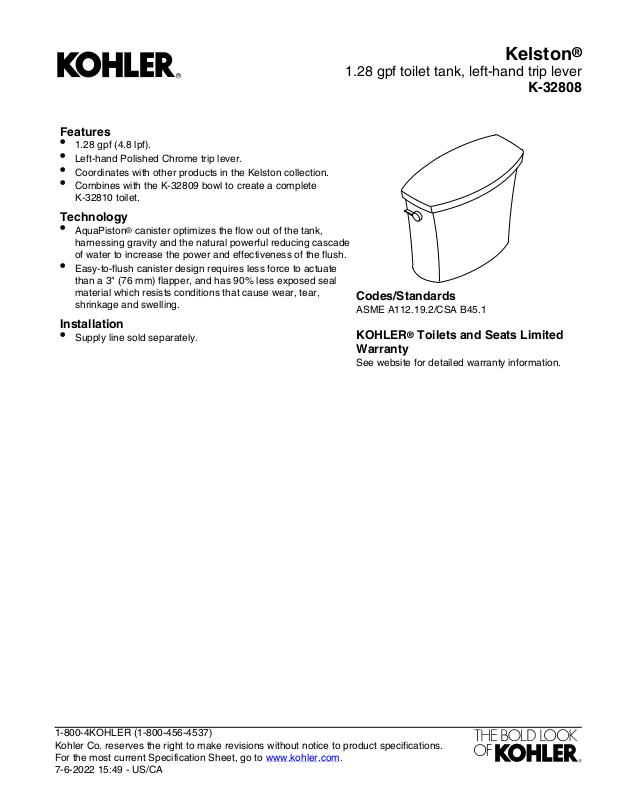

Page 1
Kelston
Features
•
1.28 gpf (4.8 lpf).
•
Left-hand Polished Chrome trip lever.
•
Coordinates with other products in the Kelston collection.
•
Combines with the K-32809 bowl to create a complete
K-32810 toilet.
Technology
•
AquaPiston® canister optimizes the flow out of the tank,
harnessing gravity and the natural powerful reducing cascade
of water to increase the power and effectiveness of the flush.
•
Easy-to-flush canister design requires less force to actuate
than a 3" (76 mm) flapper, and has 90% less exposed seal
material which resists conditions that cause wear, tear,
shrinkage and swelling.
Installation
•
Supply line sold separately.
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® Toilets and Seats Limited
Warranty
See website for detailed warranty information.
®
1.28 gpf toilet tank, left-hand trip lever
K-32808
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2022 15:49 - US/CA
Page 2
Kelston
7-7/16"
(189 mm)
1-9/16"
(40 mm)
12-1/2"
(318 mm)
8-7/8"
(225 mm)
17-5/8" (448 mm)
14-1/16"
(357 mm)
14-5/8" (371 mm)
Technical Information
All product dimensions are nominal.
Toilet type: Bowl-mount
Flush type: AquaPiston
Water Consumption
Full: 1.28 gpf (4.8 lpf)
Fixture Supply Requirements
Min static pressure: 15 psi (103.4 kPa)
Max static pressure: 80 psi (551.6 kPa)
Notes
Install this product according to the installation
instructions.
®
1.28 gpf toilet tank, left-hand trip lever
K-32808
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2022 15:49 - US/CA
