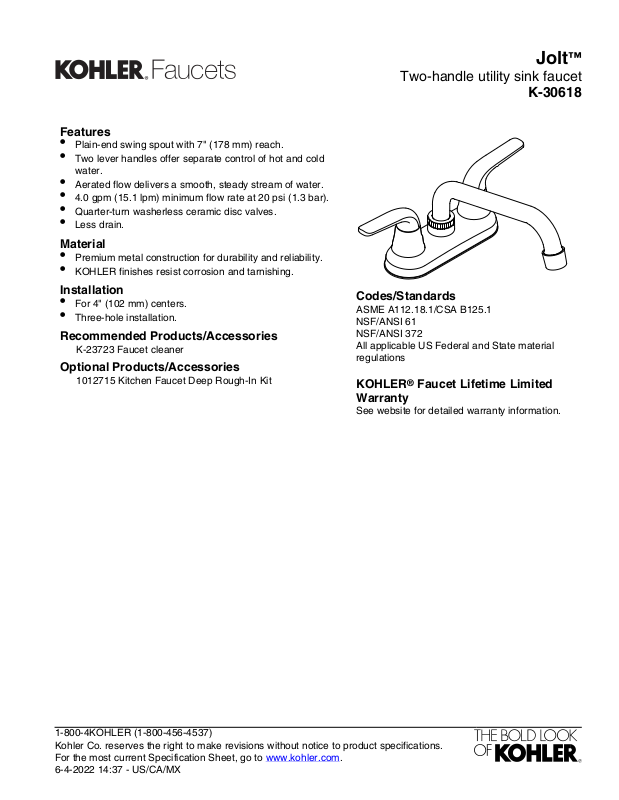

Page 1
Jolt
Features
•
Plain-end swing spout with 7" (178 mm) reach.
•
Two lever handles offer separate control of hot and cold
water.
•
Aerated flow delivers a smooth, steady stream of water.
•
4.0 gpm (15.1 lpm) minimum flow rate at 20 psi (1.3 bar).
•
Quarter-turn washerless ceramic disc valves.
•
Less drain.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For 4" (102 mm) centers.
•
Three-hole installation.
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
1012715 Kitchen Faucet Deep Rough-In Kit
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Two-handle utility sink faucet
K-30618
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
Page 2
Jolt
2-13/16"
(71 mm)
3"
(76 mm)
1-1/2"
(38 mm)
Max
Ø 13/16"
(21 mm)
7" (178 mm)
2-1/8"
(54 mm)
2-1/2"
(64 mm)
3-1/4"
(83 mm)
6-1/16"
(154 mm)
4" (102 mm)
1/2 NPSM
Threaded
Connection
4-3/4"
(121 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Spout:
Spout reach: 7" (178 mm)
Notes
Install this product according to the installation
instructions.
™
Two-handle utility sink faucet
K-30618
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
