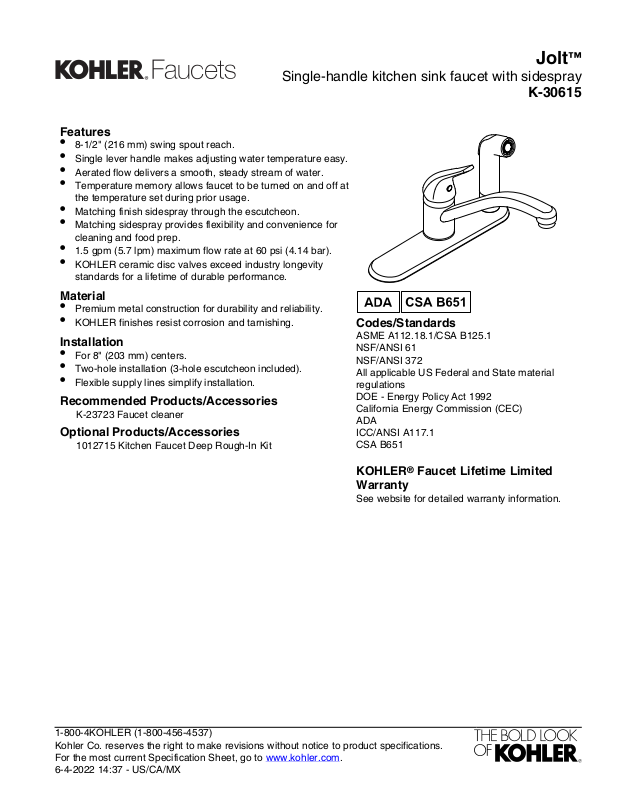

Page 1
Jolt
Features
•
8-1/2" (216 mm) swing spout reach.
•
Single lever handle makes adjusting water temperature easy.
•
Aerated flow delivers a smooth, steady stream of water.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
Matching finish sidespray through the escutcheon.
•
Matching sidespray provides flexibility and convenience for
cleaning and food prep.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For 8" (203 mm) centers.
•
Two-hole installation (3-hole escutcheon included).
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
1012715 Kitchen Faucet Deep Rough-In Kit
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Single-handle kitchen sink faucet with sidespray
K-30615
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
Page 2
Jolt
6-1/2"
(165 mm)
5-1/2"
(140 mm)
3/8"
Compression
Fittings
27-13/16"
(706 mm)
2-5/16"
(59 mm)
Ø 1-5/16"
(33 mm)
2-3/8"
(60 mm)
Max
Ø 1-1/16"
(27 mm)
5-11/16"
(144 mm)
10-1/8"
(257 mm)
7-1/16"
(179 mm)
6-3/8"
(162 mm)
3-3/4"
(95 mm)
Max
8-1/2"
(216 mm)
Technical Information
All product dimensions are nominal.
Sidespray:
Flow rate: 2.2 gal/min (8.3 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: No
Spout:
Spout reach: 8-1/2" (216 mm)
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
™
Single-handle kitchen sink faucet with sidespray
K-30615
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
