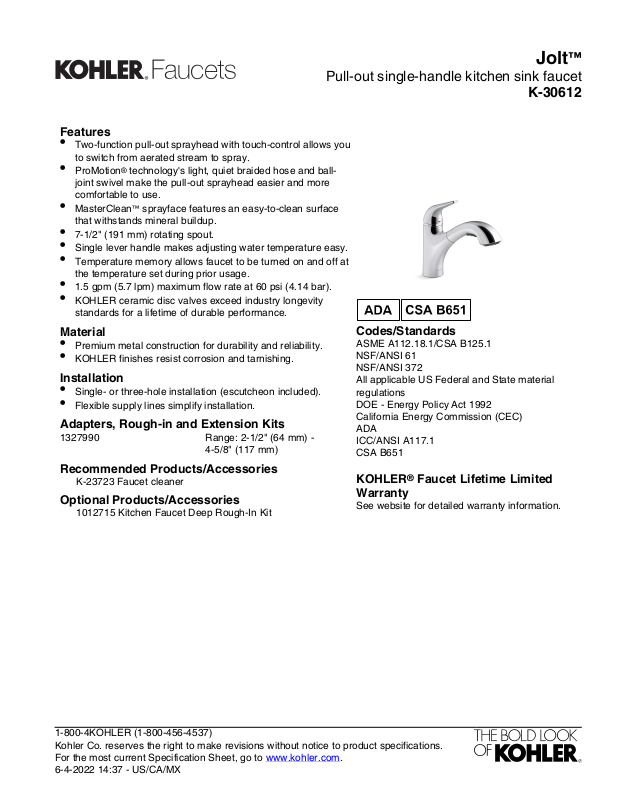

Page 1
Jolt
Features
•
Two-function pull-out sprayhead with touch-control allows you
to switch from aerated stream to spray.
•
ProMotion® technology's light, quiet braided hose and balljoint swivel make the pull-out sprayhead easier and more
comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
7-1/2" (191 mm) rotating spout.
•
Single lever handle makes adjusting water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single- or three-hole installation (escutcheon included).
•
Flexible supply lines simplify installation.
Adapters, Rough-in and Extension Kits
1327990 Range: 2-1/2" (64 mm) -
4-5/8" (117 mm)
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
1012715 Kitchen Faucet Deep Rough-In Kit
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Pull-out single-handle kitchen sink faucet
K-30612
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
Page 2
Jolt
25-1/16"
(637 mm)
3/8"
Compression
Fittings
Ø 2" (51 mm)
Max
2-7/8"
(73 mm)
Max
10-1/2"
(267 mm)
2-1/2"
(64 mm)
8-3/4"
(222 mm)
5-1/2"
(140 mm)
8-13/16"
(224 mm)
9-15/16"
(252 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
™
Pull-out single-handle kitchen sink faucet
K-30612
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:37 - US/CA/MX
