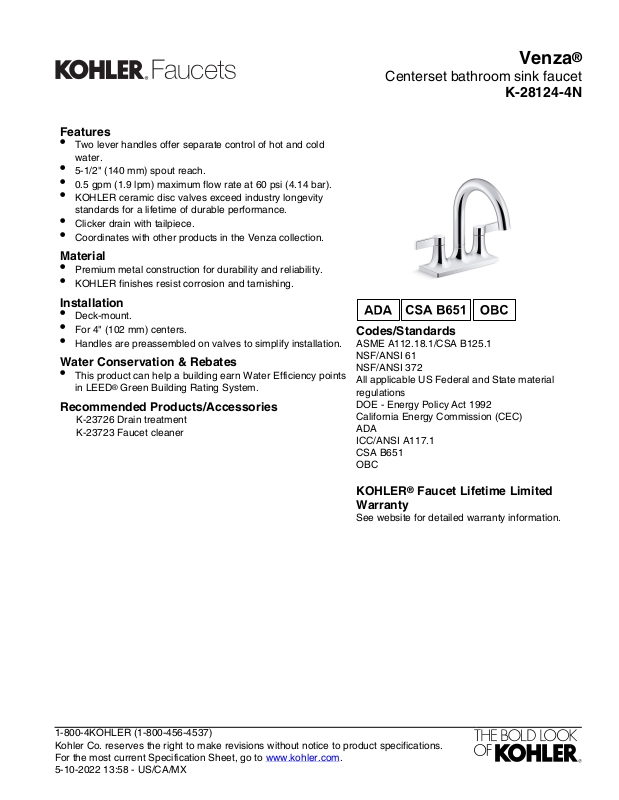

Page 1
Venza
Features
•
Two lever handles offer separate control of hot and cold
water.
•
5-1/2" (140 mm) spout reach.
•
0.5 gpm (1.9 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Clicker drain with tailpiece.
•
Coordinates with other products in the Venza collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
•
For 4" (102 mm) centers.
•
Handles are preassembled on valves to simplify installation.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Centerset bathroom sink faucet
K-28124-4N
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:58 - US/CA/MX
Page 2
Venza
4"
(102 mm)
2-5/16"
(59 mm)
2-3/16"
(56 mm)
2-7/8"
(73 mm)
1-1/2"
(38 mm)
Max
2-1/8"
(54 mm)
Ø 13/16"
(21 mm)
1/2 NPSM
6-3/16"
(157 mm)
5-3/8"
(137 mm)
4-1/4"
(108 mm)
7-9/16"
(192 mm)
2-7/16"
(62 mm)
Ø 2-1/8"
(54 mm)
1-1/4" OD
8-5/16"
(211 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 0.5 gal/min (1.9 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Drain with overflow: Yes
Spout:
Spout reach: 5-1/2" (140 mm)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Centerset bathroom sink faucet
K-28124-4N
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:58 - US/CA/MX
