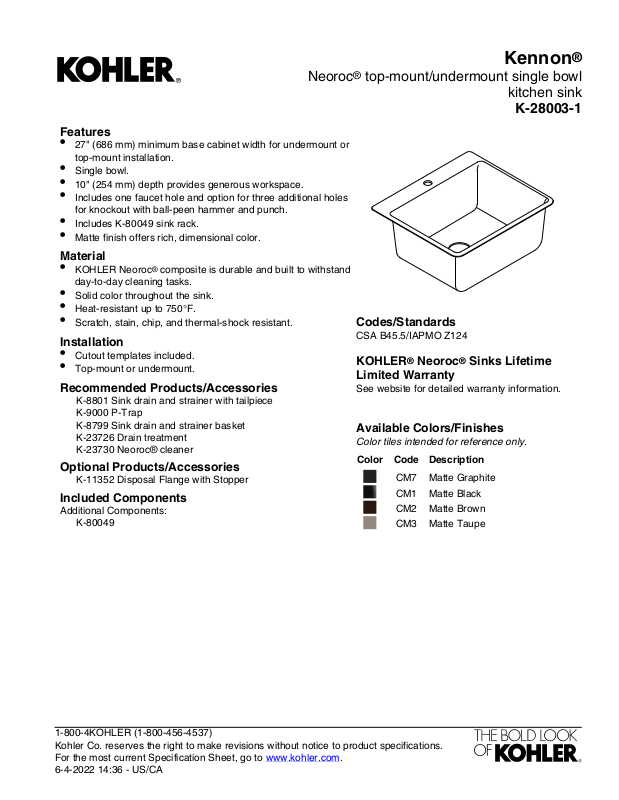

Page 1
Kennon
Features
•
27" (686 mm) minimum base cabinet width for undermount or
top-mount installation.
•
Single bowl.
•
10" (254 mm) depth provides generous workspace.
•
Includes one faucet hole and option for three additional holes
for knockout with ball-peen hammer and punch.
•
Includes K-80049 sink rack.
•
Matte finish offers rich, dimensional color.
Material
•
KOHLER Neoroc® composite is durable and built to withstand
day-to-day cleaning tasks.
•
Solid color throughout the sink.
•
Heat-resistant up to 750°F.
•
Scratch, stain, chip, and thermal-shock resistant.
Installation
•
Cutout templates included.
•
Top-mount or undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-9000 P-Trap
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23730 Neoroc® cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Included Components
Additional Components:
K-80049
Codes/Standards
CSA B45.5/IAPMO Z124
KOHLER® Neoroc® Sinks Lifetime
Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CM7 Matte Graphite
CM1 Matte Black
CM2 Matte Brown
CM3 Matte Taupe
®
Neoroc® top-mount/undermount single bowl
kitchen sink
K-28003-1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:36 - US/CA
Page 2
Kennon
10-1/16"
(256 mm)
2-1/16"
(52 mm)
5/16"
(8 mm)
12-1/2"
(318 mm)
16"
(406 mm)
1-1/2" OD
10-5/8"
(270 mm)
22" (559 mm)
25" (635 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Top-mount, Undermount
Min. base cabinet
width:
27" (686 mm)
Bowl area (Only): Length: 16-15/16" (430 mm)
Width: 22-1/8" (561 mm)
Bowl depth: 10" (254 mm)
Water depth: 10" (254 mm)
Number of deck
holes:
1
Drain hole: 3-7/8" (98 mm)
Template: 1354775-7, required, included
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter
must use the cut-out template provided with the
product, or a current one provided by Kohler
Co. (call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
®
Neoroc® top-mount/undermount single bowl
kitchen sink
K-28003-1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-4-2022 14:36 - US/CA
