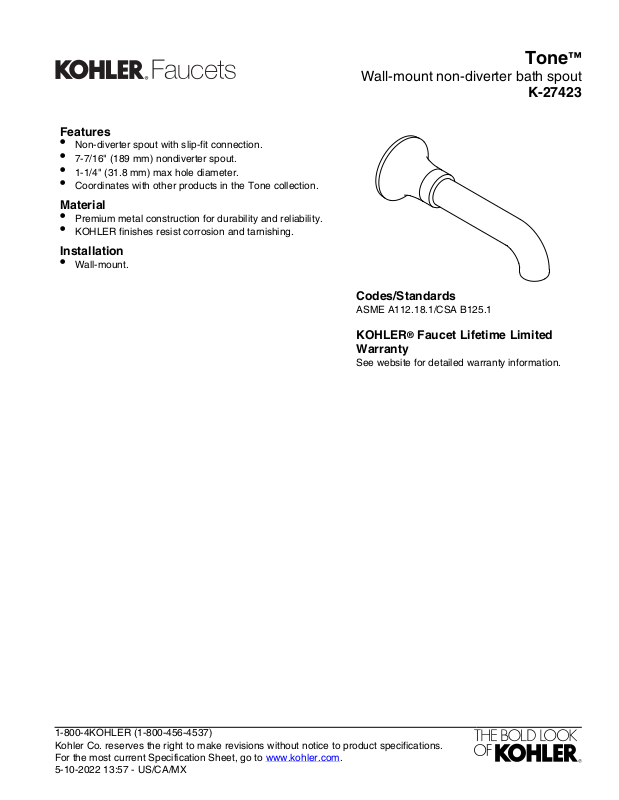

Page 1
Tone
Features
•
Non-diverter spout with slip-fit connection.
•
7-7/16" (189 mm) nondiverter spout.
•
1-1/4" (31.8 mm) max hole diameter.
•
Coordinates with other products in the Tone collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™

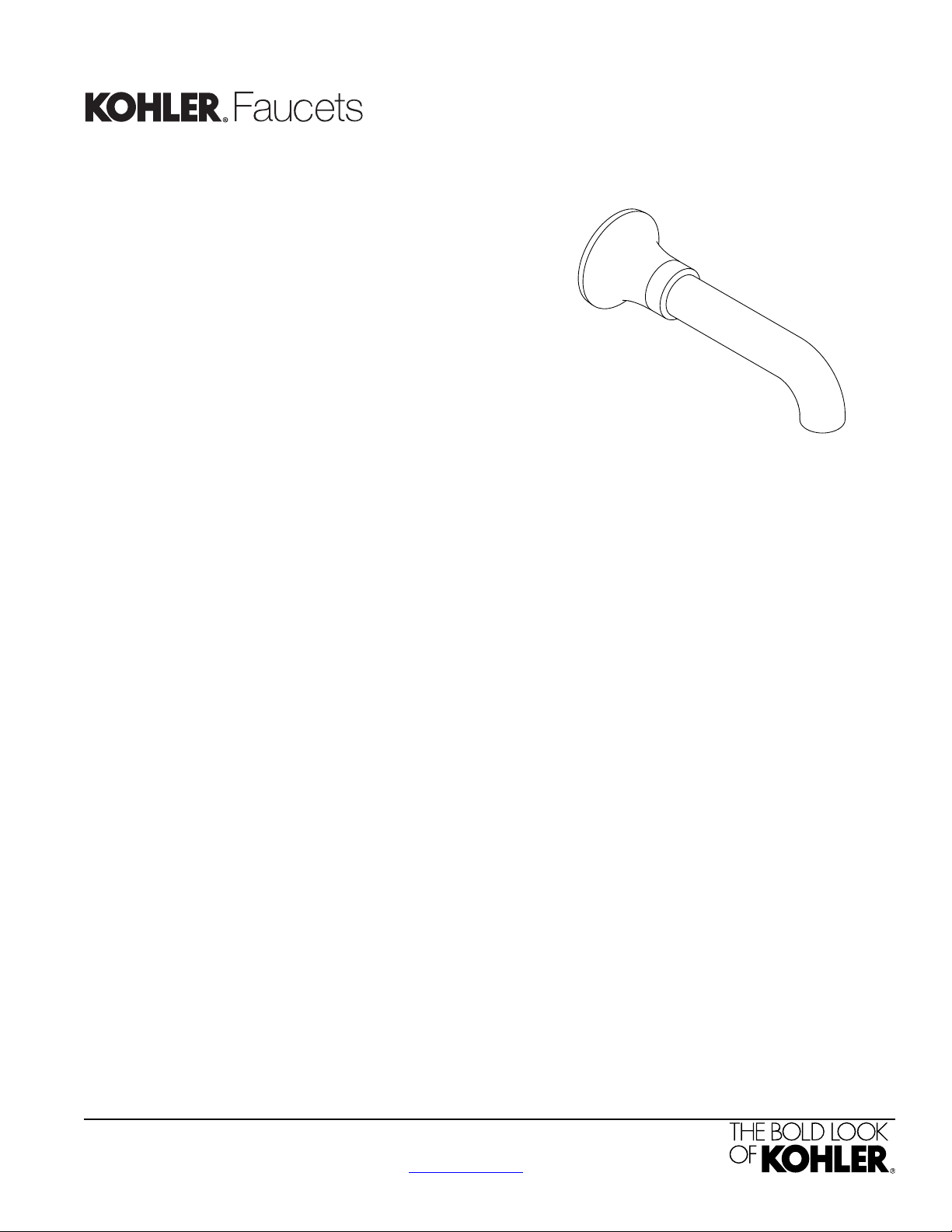

Wall-mount non-diverter bath spout
K-27423
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:57 - US/CA/MX
Page 2
Tone
Ø 2-11/16"
(68 mm)
7-7/16" (189 mm)
Ø 1-1/4" (32 mm)
Max Hole in the Wall.
Supply tube must
be centered in the hole.
Slip-fit Spout:
Extend 5/8" OD tube
4" (102 mm) from finished wall.
Technical Information
All product dimensions are nominal.
Drain included: No
Spout:
Spout reach: 7-7/16" (189 mm)
™
Wall-mount non-diverter bath spout
K-27423
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:57 - US/CA/MX
