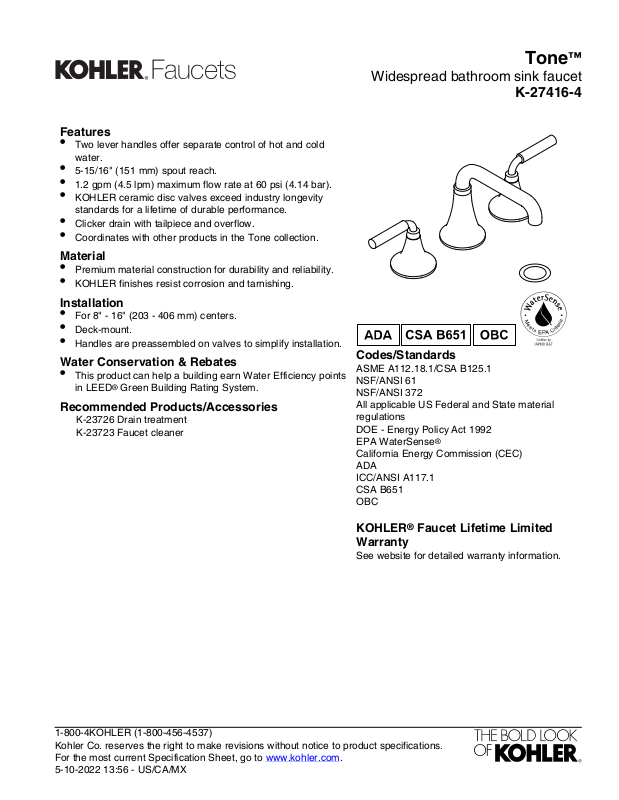

Page 1
Tone
Features
•
Two lever handles offer separate control of hot and cold
water.
•
5-15/16" (151 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Clicker drain with tailpiece and overflow.
•
Coordinates with other products in the Tone collection.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For 8" - 16" (203 - 406 mm) centers.
•
Deck-mount.
•
Handles are preassembled on valves to simplify installation.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Widespread bathroom sink faucet
K-27416-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:56 - US/CA/MX
Page 2
Tone
8" (203 mm) Min
16" (406 mm) Max
5-15/16" (151 mm)
5-9/16"
(141 mm)
4-1/16"
(103 mm)
Ø 1-1/4"
(32 mm)
1/2 NPSM
Threaded Connection
2"
(51 mm)
Max
7-1/16"
(179 mm)
1-1/4" OD
Ø 2-1/8"
(54 mm)
Ø 1-1/4"
(32 mm)
2-7/8"
(73 mm)
3-1/2"
(89 mm)
8-1/2"
(216 mm)
Ø 2-5/8"
(67 mm)
Ø 2-5/8"
(67 mm)
3-7/16"
(87 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Spout:
Spout reach: 5-15/16" (151 mm)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
™
Widespread bathroom sink faucet
K-27416-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:56 - US/CA/MX
