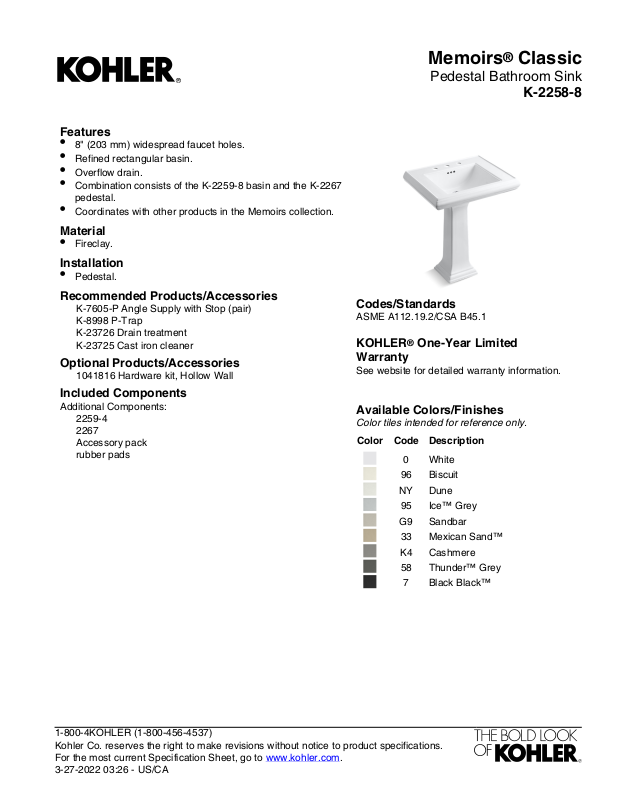

Page 1
Memoirs® Classic
Features
•
8" (203 mm) widespread faucet holes.
•
Refined rectangular basin.
•
Overflow drain.
•
Combination consists of the K-2259-8 basin and the K-2267
pedestal.
•
Coordinates with other products in the Memoirs collection.
Material
•
Fireclay.
Installation
•
Pedestal.
Recommended Products/Accessories
K-7605-P Angle Supply with Stop (pair)
K-8998 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
1041816 Hardware kit, Hollow Wall
Included Components
Additional Components:
2259-4
2267
Accessory pack
rubber pads
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
G9 Sandbar
33 Mexican Sand™
K4 Cashmere
58 Thunder™ Grey
7 Black Black™
Pedestal Bathroom Sink
K-2258-8
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-27-2022 03:26 - US/CA
Page 2
Memoirs® Classic
3-1/4"
(83 mm)
22-3/8" (568 mm)
27-5/16" (694 mm)
1-1/4" OD
3/8" Cold
3/8" Hot
2-3/4"
(70 mm)
9"
(229 mm)
Ø 1/2" (13 mm)
Mounting Hole in
Pedestal
Ø 1/2" (13 mm)
Anchor Holes in Sink
10"
(254 mm)
Pop-up Drain
14-5/8" (371 mm)
Grid Drain
13-3/4" (349 mm)
8-1/4" (210 mm)
Mounting Hole
2-3/8"
(60 mm)
22-1/8"
(562 mm)
35"
(889 mm)
4" (102 mm)
4" (102 mm)
8"
(203 mm)
Finished Wall
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Pedestal
Bowl area (Only): Length: 18" (457 mm)
Width: 15" (381 mm)
Water depth: 5-1/4" (133 mm)
Number of deck
holes:
3
Faucet hole spacing: 8" (203 mm)
Faucet hole(s): 1-1/4" (32 mm)
Drain hole: 1-3/4" (44 mm)
Notes
Install this product according to the installation
instructions.
Pedestal Bathroom Sink
K-2258-8
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-27-2022 03:26 - US/CA
