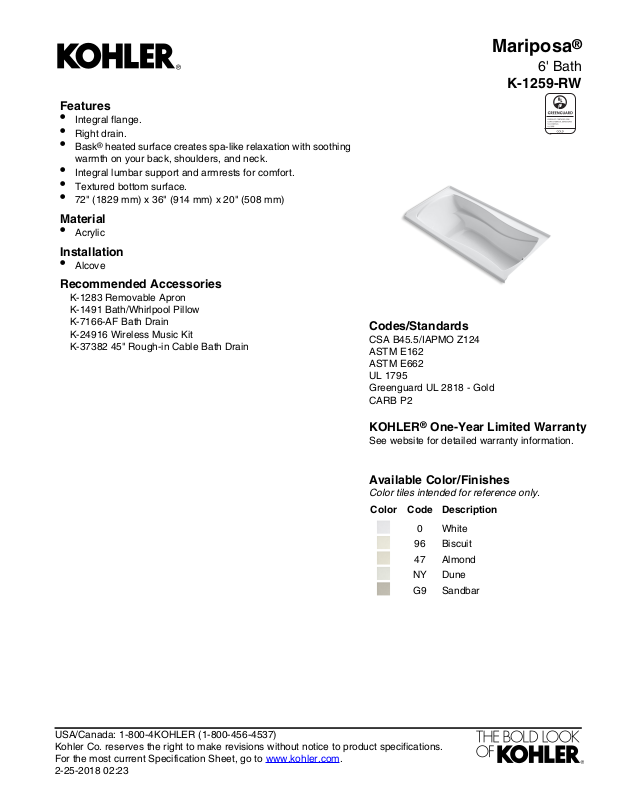

Kohler K1259RW0 Specifications

Features

•

Integral flange.

•

Right drain.

•

Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck.

•

Integral lumbar support and armrests for comfort.

•

Textured bottom surface.

•

72" (1829 mm) x 36" (914 mm) x 20" (508 mm)

Material

•

Acrylic

Installation

•

Alcove

Recommended Accessories

K-1283 Removable Apron K-1491 Bath/Whirlpool Pillow K-7166-AF Bath Drain K-24916 Wireless Music Kit K-37382 45" Rough-in Cable Bath Drain

Codes/Standards

CSA B45.5/IAPMO Z124 ASTM E162 ASTM E662 UL 1795 Greenguard UL 2818 - Gold CARB P2

Mariposa

6' Bath

K-1259-RW

KOHLER® One-Year Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

White0

Biscuit96

Almond47

DuneNY

SandbarG9

USA/Canada: 1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 2-25-2018 02:23

36" (914 mm)

Mariposa

6' Bath

K-1259-RW

Required Electrical Service

One circuit required, protected with Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD).

120 V, 15 AHeated Surface:

Technical Information

All product dimensions are nominal.

3-Wall AlcoveInstallation: RightDrain location: 50" x 24" (1270 mm x 610 mm)Basin area, bottom: 65" x 27" (1651 mm x 686 mm)Basin area, top: 77 lbs (34.9 kg)Weight:

39.1 lbs/ft² (190.9 kg/m²)Minimum floor load: 14" (356 mm)Water depth: 72 gal (272.5 L)Water capacity:

Electrical component

rating:

Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W

2-1/8" (54 mm)Minimum flat for door:

Notes

Measure your actual product for rough-in details.

Install this product according to the installation instructions.

The hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.

If installing a rim-mount faucet, make sure there is no interference above or below the deck before drilling any holes.
