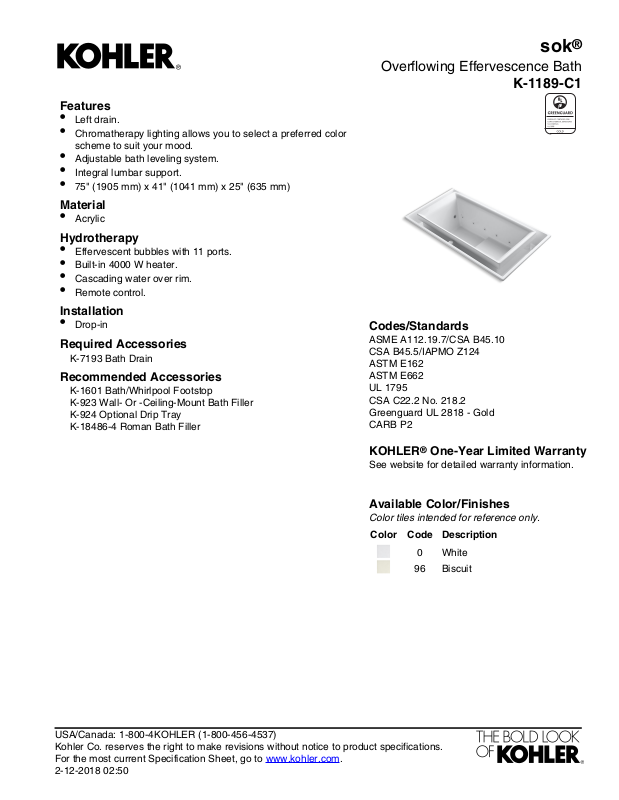

Kohler K1189C10 Specifications
Features
•
Left drain.
•
Chromatherapy lighting allows you to select a preferred color
scheme to suit your mood.
•
Adjustable bath leveling system.
•
Integral lumbar support.
•
75" (1905 mm) x 41" (1041 mm) x 25" (635 mm)
Material
•
Acrylic
Hydrotherapy
•
Effervescent bubbles with 11 ports.
•
Built-in 4000 W heater.
•
Cascading water over rim.
•
Remote control.
Installation
•
Drop-in
Required Accessories
K-7193 Bath Drain
Recommended Accessories
K-1601 Bath/Whirlpool Footstop
K-923 Wall- Or -Ceiling-Mount Bath Filler
K-924 Optional Drip Tray
K-18486-4 Roman Bath Filler
sok
Overflowing Effervescence Bath
K-1189-C1
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Greenguard UL 2818 - Gold
CARB P2
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 02:50
DescriptionCodeColor
White0
Biscuit96
1" (25 mm)
sok
®
Overflowing Effervescence Bath
K-1189-C1
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
240 V, 20 A, 50/60 HzPump:
240 V, 20 A, 50/60 HzHeater:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
LeftDrain location:
45" x 25-1/2" (1143 mm x 648 mm)Basin area, bottom:
61-1/2" x 30-1/4" (1562 mm x 768 mm)Basin area, top:
275 lbs (124.7 kg)Weight:
65 lbs/ft² (317.4 kg/m²)Minimum floor load:
23-1/2" (597 mm)Water depth:
142 gal (537.5 L)Water capacity:
Cutout:
Electrical component
rating:
Drop-in, 73-1/2" x 39-1/2" (1867 mm x
1003 mm)
Pump: 240 V, 17 A, 50/60 Hz
Heater: 240 V, 17 A, 50/60 Hz, 4000 W
VariablePump speed:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Consult local and national codes for minimum air
gap requirements when installing a spout on the
faucet deck.
Unit must be filled through the bathing well.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 02:50
