Kohler K1173VBW0 User Manual

Homeowners Guide

Vibracoustic Bath with Heated Surface

M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page ″Français-1″ Español, página ″Español-1″

1212240-5-B

IMPORTANT INSTRUCTIONS

WARNING: When using electrical products, basic precautions should always be followed, including the following:

WARNING: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault

Circuit-Interrupter (GFCI)*. Grounding is required. The unit should be installed and grounded by a qualiﬁed service representative.

WARNING: Risk of electric shock. A qualiﬁed electrician should route all electrical wiring.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of electric shock. Do not operate electrical powered auxiliary devices near water.

WARNING: Risk of property damage. Building materials and wiring should be routed away from

the heat-producing components of the bath.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before beginning installation.

NOTICE: Follow all plumbing, electrical, and building codes.

*Outside North America, this device may be known as a Residual Current Device (RCD).

Table of Contents

IMPORTANT INSTRUCTIONS ....................................................... 2

Product Identiﬁcation .............................................................. 2

Speciﬁcations ................................................................... 2

Your Vibracoustic Bath ............................................................. 5

User Interface Icons ............................................................... 5

Operating Your Bath ............................................................... 6

Setting Menu .................................................................... 7

Experiences ..................................................................... 8

Chromatherapy (If Equipped) ........................................................ 9

Heated Surface ................................................................. 10

Auxiliary Sound ................................................................. 11

Adjusting Resonance ............................................................. 12

Components ................................................................... 13

Troubleshooting ................................................................. 13

Care and Cleaning ............................................................... 17

Warranty ...................................................................... 17

Product Identiﬁcation

Model # K-_______________________

Please record the model number, copied from the label on the box.

Speciﬁcations

User Interface

Ambient Temperature Max 125°F (51.5°C) Maximum Relative Humidity 100% condensing (External surface only) Interface Cable Length 25’ (7.6 m)

Control Ampliﬁer

Ambient Temperature Greater than 34°F (1°C), Max 104°F (40°C)

1212240-5-B 2 Kohler Co.

Speciﬁcations (cont.)

Maximum Relative Humidity 95% non-condensing Transducer Cable Length 25’ (7.6 m) Chromatherapy Cable Length 25’ (7.6 m) Heated Surface Control Cable Length 25’ (7.6 m) Electrical Service 120 V, 15 A, 60 Hz

Kohler Co. 3 1212240-5-B

Chromatherapy Light

Control Amplifier

User Interface

Heated Surface

(If Equipped)

Transducer

Your Vibracoustic Bath

Your vibracoustic bath is designed to provide a relaxing resonating surround sound experience. The bath is equipped with the following components:

Bath – Allows the bather to relax in comfort while enjoying the vibracoustic experience.

User Interface – Provides convenient control of the unit features, allowing you to select experiences,

regulate resonance intensity, adjust heated surface temperature, and turn the unit ON or OFF. The interface also allows you to adjust chromatherapy lighting (if equipped) and select an auxiliary music source (if connected).

Chromatherapy Lights (if equipped) – Add ambience to your bath with a continuous cycle through eight colors, or you can set the lighting to a speciﬁc color.

Heated Surface – Provides soothing warmth to your back, shoulders, and neck with three temperature settings.

Transducers – Components through which the vibracoustic pulses are transferred to the bath. When the bath is ﬁlled with water, two transducers are positioned above the waterline, and four are located below the waterline.

Control Ampliﬁer – Provides power to the transducers and chromatherapy lighting (if equipped) to create soothing or exhilarating vibracoustic experiences. The control also contains a port to connect an optional auxiliary music source.

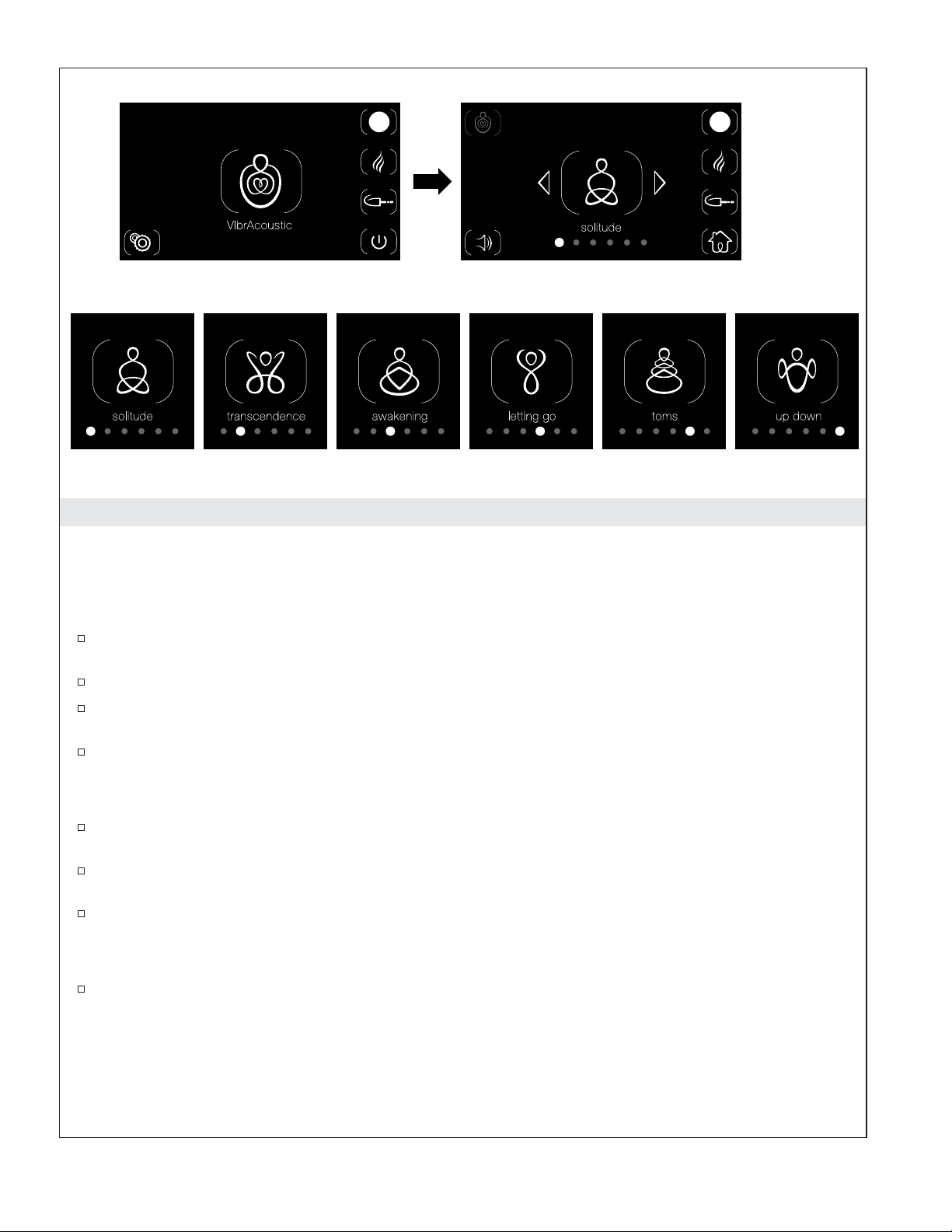

Your bath offers several distinct vibracoustic experiences:

″Awakening,″″Solitude,″″Transcendence,″″Letting Go,″″Toms,″ and ″Up Down″ – six custom experiences combining sound and vibrations designed to relax or invigorate your mind and body.

The sound resonance, lighting color, and lumbar heat can be adjusted for each experience as desired. Refer to the ″Adjusting Resonance,″″Chromatherapy,″ and ″Heated Surface″ sections.

1212240-5-B 4 Kohler Co.

Home

Setting Experience Chromatherapy

Heated

Surface

Intensity Aux

Back Arrow

PlusMinus

Mute

Music

Power OFF

User Interface Icons

[Home] Icon – The main menu that displays when the user interface is powered ON. [Setting] Icon – Allows access to menus for brightness, language and reset. [Experience] Icon – Combination of sound vibrations and original compositions designed to relax

your mind and body. [Chromatherapy] Icon (equipped models only) – Turns chromatherapy lights in the bath ON or

OFF, and allows adjustment of color. [Heated Surface] Icon – Turns heated lumbar support ON or OFF, and controls temperature settings

(low, medium, and high). [Intensity] Icon – Enables adjustment of above water and below water sound resonance for all

experiences. [Aux] Icon – Allows for the selection of music from an external audio device connected via the

“Line In” jack on the control ampliﬁer.

[Back Arrow] Icon – Allows navigation back to the previous screen. Minus [-] Icon – Decreases resonance intensity, heated surface temperature, or interface screen

brightness. Plus [+] Icon – Increases resonance intensity, heated surface temperature, or interface screen

brightness.

[Mute] Icon – Turns sound resonance OFF or ON. [Music] Icon – Turns auxiliary sound ON or OFF. [Power OFF] Icon – Turns the user interface OFF.

Kohler Co. 5 1212240-5-B

Chromatherapy (If Equipped)

Heated Surface

Aux

Power OFF

Home Page

Operating Your Bath

Fill the Bath

To begin using your bath, close the drain, then ﬁll the bath with water. Using your hand, test the water temperature for comfort and safety. Carefully enter the bath.

Turn On the Interface

NOTE: User Interface “Sleep” Mode – To enhance your bathing experience, the interface is programmed to darken after two minutes of inactivity. When in sleep mode, the screen will be blank. To resume normal operation, touch the interface screen.

NOTE: If the interface is not functioning properly, consult the ″Troubleshooting″ section of this guide before calling a qualiﬁed service representative.

Touch the screen to turn on the interface. The KOHLER logo will brieﬂy fade in and out, then the home page will appear.

Navigating the Touch Screen

NOTE: All menu icons displayed on the interface touch screen are enclosed in brackets.

To select a menu option, touch the desired icon. The brackets of the selected icon will illuminate when the icon is touched, then the screen will

change to the selected menu option.

Home Page

The home page displays the [VibrAcoustic] icon. The left side of the screen displays the [Setting] icon.

Baths with chromatherapy (shown): Provide options on the right side of the screen for: [Chromatherapy], [Heated Surface], [Aux], and [Power OFF].

Baths without chromatherapy: Provide options on the right side of the screen for: [Heated Surface], [Aux] and [Power OFF].

1212240-5-B 6 Kohler Co.

setting

brightness

Chromatherapy (If Equipped)

Heated Surface

language

reset

Aux

Home

brightness language

Setting Menu

From the home page, touch the [Setting] icon to access the setting screen. The [Setting] menu contains three options: [Brightness], [Language], and [Reset].

Reset

Screen Brightness

The [Brightness] option controls the intensity of the interface screen. Touch the minus [-] icon to decrease brightness, or the plus [+] icon to increase brightness. To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen. To return to the home page, touch the [Home] icon.

Language

The [Language] menu provides three options: [English], [Francais], or [Espanõl]. Touch the desired language. The chosen language will illuminate, and any screens accessed from

that point forward will display the chosen language. To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen. To return to the home page, touch the [Home] icon.

Reset

The [Reset] option is available to reset the system to factory settings if the user interface is not functioning properly.

NOTE: To reset the control ampliﬁer and maintain user interface custom settings, unplug the ampliﬁer power supply, wait 30 seconds, then plug back in.

NOTE: Resetting the system will return your interface to the original factory default settings.

The reset option resets the user interface as well as the control ampliﬁer. To reset the system, touch the [Reset] option. After several seconds, the system will reboot and the

user interface will return to the home page.

Kohler Co. 7 1212240-5-B

experiences

Home Page

Chromatherapy (If Equipped)

Heated Surface

Aux

Home

Experiences

NOTE: Experience Duration – The unit is designed to run continuously for 2 hours and then shuts down whether it is playing an experience or auxiliary sound. Within this 2 hours, if the user touches the interface screen, the 2-hour timer resets and starts again.

Turn an Experience ON

From the home page, touch the large [VibrAcoustic] icon to access the various experience options. The screen will display an experience icon enclosed in brackets. Touch the icon to begin the experience. The brackets will illuminate while the experience is playing. The experience will play for 2 hours unless the user touches the screen to extend the timer or turns

the power OFF.

Select an Experience

The experiences can be changed by touching the arrows to the right or left of the icon. A different experience can be selected while an experience is currently playing.

The sound resonance and heated surface temperature can be adjusted for each experience as desired. Refer to the ″Adjusting Resonance″ and ″Heated Surface″ sections.

If equipped, the light color can also be adjusted for each experience. Refer to the ″Chromatherapy″ section.

Turn the Experience OFF

Touch the icon to turn OFF the experience.

NOTE: Turning on auxiliary sound will stop any experience that is currently playing. Refer to the ″Auxiliary Sound″ section.

1212240-5-B 8 Kohler Co.

chromatherapy

ChromatherapyExperience

Heated Surface

Aux

Home

chromatherapy chromatherapy chromatherapy

Color Cycling ON Pause Color Chromatherapy OFF

Chromatherapy (If Equipped)

If your vibracoustic bath is equipped with chromatherapy lights, the user interface home page will display a [Chromatherapy] icon in the top right corner of the screen.

Three chromatherapy options are available: continuous cycle through eight light colors, pause on a selected light color, and turn OFF chromatherapy lights. To access these options, touch the [Chromatherapy] icon until the desired setting is reached.

Turn Chromatherapy ON

NOTE: The default chromatherapy setting is a continuous cycle through eight colors of light.

Touch the [Chromatherapy] icon located at the top right of the interface screen to turn the chromatherapy lights ON. The brackets will illuminate, and a dotted arrow will appear inside the icon to indicate that the lights are cycling through all colors.

The chromatherapy lights will continuously cycle through eight colors. One full cycle takes approximately 1 minute.

Pause Chromatherapy Color Cycling

The chromatherapy lights can be set to a speciﬁc color. Touch the [Chromatherapy] icon to pause the chromatherapy cycle. The dotted arrow will disappear

to indicate that the lights are paused on the selected color. During the PAUSE mode, the screen will display right and left arrows. Touch the right or left arrow to toggle through the desired chromatherapy light color.

Turn Chromatherapy OFF

Touch the illuminated [Chromatherapy] icon to turn the chromatherapy lights OFF. The icon and brackets will no longer be illuminated and all arrows will disappear.

Kohler Co. 9 1212240-5-B

Experience

heated surface

Chromatherapy (If Equipped)

Heated Surface

Aux

Home

Low Heat

heated surface heated surface heated surface

Medium Heat High Heat Heat OFF

Heated Surface

NOTICE: The heated surface will remain on until it is manually turned OFF by touching the illuminated [Heated Surface] icon.

Turn Heated Surface ON

NOTE: The heater will turn on at low heat or the last selected temperature setting.

To turn lumbar heat ON, touch the [Heated Surface] icon located on the right side of the interface screen. The icon and brackets will illuminate in the center of the screen.

Adjust Temperature Setting

NOTE: After 60 minutes of inactivity, the heater will automatically reset to low heat if the temperature was set to medium or high.

The [Heated Surface] icon consists of three individual ﬂames. Illumination of one or more ﬂames indicates which temperature setting is activated.

Touch the minus [-] icon to decrease temperature, or the plus [+] icon to increase temperature. The individual ﬂames will illuminate or darken to signify the selected temperature setting.

Low heat: bottom ﬂame is illuminated. Medium heat: bottom and middle ﬂame are illuminated. High heat: all three ﬂames are illuminated.

Turn Heated Surface OFF

Touch the illuminated [Heated Surface] icon to turn the lumbar heat OFF. The icon and brackets will no longer be illuminated and the minus [-] and plus [+] icons will disappear.

1212240-5-B 10 Kohler Co.

Experience

auxaux

Chromatherapy (If Equipped)

Heated Surface

Aux

Intensity

Auxiliary Sound ONAuxiliary Sound OFF

Home

Auxiliary Sound

NOTE: The auxiliary sound option is functional only if a cable connection exists between the control ampliﬁer and an auxiliary sound device.

NOTE: Turning on auxiliary sound will stop any experience that is currently playing.

The auxiliary connection can be used for pairing Bluetooth devices and other audio devices so users can play their own music with the vibracoustic bath.

To access auxiliary sound, touch the [Aux] icon located on the right side of the screen. If an auxiliary sound source is connected, touch the [Music] icon to turn the sound ON. The

brackets surrounding the icon will illuminate when the sound is ON.

NOTE: If sound does not resonate through the transducers when the [Music] icon brackets are illuminated, ensure that the auxiliary device is properly connected and turned ON, and the auxiliary MUTE function is turned OFF.

The resonance intensity of the auxiliary sound can be controlled from the user interface or from the auxiliary sound device. Refer to the ″Adjusting Resonance″ section to adjust auxiliary sound from the user interface.

To turn the auxiliary sound OFF, touch the [Music] icon. The brackets will no longer be brightly illuminated.

Kohler Co. 11 1212240-5-B

intensity

ChromatherapyBack

Heated Surface (If Equipped)

Aux

Mute

intensity

Adjust Resonance Above Water

Adjust Resonance Below Water

Home

intensity

Adjusting Resonance

Your bath is equipped with six transducers. When the bath is ﬁlled with water, two transducers are positioned above the waterline, and four are located below the waterline.

Follow the steps below to adjust transducer intensity.

Resonance Above Water

This function enables the adjustment of the above water sound resonance for all experiences.

While an experience is running, touch the minus [-] or the plus [+] icon above the indicator bars to adjust resonance intensity coming from the transducers located near the top of the bath.

Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.

Resonance Below Water

This function enables the adjustment of the below water sound resonance for all experiences. While an experience is running, touch the minus [-] or the plus [+] icon below the indicator bars to

adjust resonance intensity coming from the transducers located near the bottom of the bath. Touch the minus [-] icon to decrease intensity, or the plus [+] icon to increase intensity.

Mute

This function mutes the combination of sound and vibrations coming from the transducers. Touch the [Mute] icon to turn sound resonance ON or OFF. The icon and brackets will illuminate

when MUTE is ON.

1212240-5-B 12 Kohler Co.

Red LED

User Interface

Heated SurfaceControl AmplifierTransducers

AC Power

Red LED

Control

Junction

Box

Heated Surface

Power Supply

AC Power

Chromatherapy

Experience Data Module Location

Lights

Heated Surface

Chromatherapy

Control

Components Troubleshooting

NOTE: For service parts information, visit your product page at www.kohler.com/serviceparts.

This troubleshooting guide is for general aid only. For service and installation issues or concerns, call 1-800-4KOHLER.

Troubleshooting Table Symptom Probable Cause Recommended Action

1. No sound; no experiences

are functioning.

A. Power to the control ampliﬁer is

off.

B. Control ampliﬁer must be reset. B. If the red LED on the control

C. Experiences data module

connection is loose or damaged.

D. An experience has not been

selected on the user interface.

E. Vibracoustic intensity is muted

on the user interface.

A. Reset the circuit breaker to the

control ampliﬁer, then check the electrical power supply and connections.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

C. Inspect the data module for loose

connection or damage. Secure the connection or replace the module as needed.

D. Select an experience.

E. Touch the [Mute] icon on the user

interface to turn off the mute setting.

Kohler Co. 13 1212240-5-B

Troubleshooting (cont.)

Troubleshooting Table Symptom Probable Cause Recommended Action

2. Music is distorted

(undesirable resonance) when vibracoustic functions are on.

3. User interface does not

light up.

4. User interface lights up

but does not work.

F. User interface cable connections

are loose or damaged.

G. Control ampliﬁer or heated

surface control does not work.

H. User interface does not work. H. Check the user interface. Replace as

A. Intensity setting is too high on

the user interface.

B. Transducers on the back surface

of the bath are in direct contact with framing, joists, or other materials.

C. One or more transducers on the

back surface of the bath are loose.

D. The bath is making direct

contact with framing, joists, or other materials.

A. Power to the control ampliﬁer is

not on.

B. Control ampliﬁer must be reset. B. If the red LED on the control

C. User interface cable connections

are loose or damaged.

D. Control ampliﬁer or heated

surface control does not work.

E. User interface does not work. E. Check the user interface. Replace as

A. Control ampliﬁer must be reset. A. If the red LED on the control

B. User interface cable connections

are loose or damaged.

F. Inspect the cables between the user

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

G. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and/or heated surface control and replace as needed.

needed.

A. Turn down the intensity setting on

the user interface.

B. Remove or reposition any materials

that are making direct contact with the transducers.

C. Rotate the loose transducer(s)

clockwise with your ﬁngers until tight. Do not overtighten.

D. Identify the point of contact and

correct it. The bath must not make contact with any framing or support materials.

A. Reset the circuit breaker to the

control ampliﬁer, then check the electrical power supply and connections.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

C. Inspect the cables between the user

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

D. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and/or heated surface control and replace as needed.

needed.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

B. Inspect the cables between the user

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

1212240-5-B 14 Kohler Co.

Troubleshooting (cont.)

Troubleshooting Table Symptom Probable Cause Recommended Action

5. Auxiliary music does not

work.

C. Control ampliﬁer or heated

surface control does not work.

D. User interface does not work. D. Check the user interface. Replace as

A. Power to the control ampliﬁer is

not on.

B. Control ampliﬁer must be reset. B. If the red LED on the control

C. Auxiliary-in or user interface

cable connections are loose or damaged.

D. Auxiliary music source option is

not selected on the user interface.

E. Vibracoustic sound is muted on

the user interface.

F. Vibracoustic intensity is turned

down on the user interface.

G. Control ampliﬁer or heated

surface control does not work.

H. User interface does not work. H. Check the user interface. Replace as

C. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and/or heated surface control and replace as needed.

needed.

A. Reset the circuit breaker to the

control ampliﬁer, then check the electrical power supply and connections.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

C. Inspect the cables between the user

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

D. Select the auxiliary music option on

the user interface.

E. Touch the [Mute] icon on the user

interface to turn off the mute setting.

F. Turn up the vibracoustic intensity

on the user interface.

G. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and/or heated surface control and replace as needed.

needed.

(Optional) Chromatherapy Troubleshooting Table Symptom Probable Cause Recommended Action

1. Chromatherapy lights do

not work.

Kohler Co. 15 1212240-5-B

A. Power to the control ampliﬁer is

off.

B. Control ampliﬁer must be reset. B. If the red LED on the control

C. Chromatherapy feature has not

been selected on the user interface.

D. Chromatherapy or user interface

cable connections are loose or damaged.

E. Control ampliﬁer does not

work.

A. Reset the circuit breaker to the

control ampliﬁer, then check the electrical power supply and connections.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

C. Select the Chromatherapy feature

on the user interface.

D. Inspect the cables for loose

connections or damage. Secure or replace cables as needed.

E. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and replace as needed.

Troubleshooting (cont.)

(Optional) Chromatherapy Troubleshooting Table Symptom Probable Cause Recommended Action

2. Chromatherapy lights do

not cycle through all colors.

F. User interface does not work. F. Verify that the user interface cable

G. Chromatherapy control does not

work.

A. Control ampliﬁer must be reset. A. If the red LED on the control

B. Chromatherapy or user interface

cable connections are loose or damaged.

C. Control ampliﬁer does not

work.

D. User interface does not work. D. Cycle through the Chromatherapy

E. If none of the recommended

actions correct the problem, contact Kohler Co.

is securely connected to the user interface and the control ampliﬁer terminal. If the connections are good, replace the user interface.

G. Replace the Chromatherapy

control.

ampliﬁer is not blinking, unplug the control ampliﬁer for 30 seconds, then plug in and restart.

B. Inspect the cables for loose

connections or damage. Secure or replace cables as needed.

C. If the red LED on the control

ampliﬁer does not blink following restart, check the control ampliﬁer and replace as needed.

light functions. If the lights do not cycle through all colors and the blue icon on the user interface is not lit, replace the user interface.

E. Contact the Customer Care Center

using the contact information on the back cover.

Heated Surface Troubleshooting Table Symptoms Probable Cause Recommended Action

1. Heated surface does not

turn on.

2. Bath is on, but there is

little or no heat.

A. No power to the power supply. A. Set/reset GFCI or RCD breaker;

B. Heated surface control must be

reset.

C. User interface cable connections

are loose or damaged.

D. Heated surface control does not

work.

E. Power supply does not work. E. Check the power supply. Replace

F. User interface does not work. F. Check the user interface. Replace as

A. Heater cable loose or damaged. A. Inspect the cables between the user

B. Bath heater/insulation loose. B. Secure heater/insulation to bath. C. Heat indicator is set to low heat. C. Press the plus [+] icon to increase

D. Heater does not work. D. Replace the heater.

check wiring and power supply connections.

B. If the red LED on the heated

surface control is not blinking, unplug the control for 30 seconds, then plug in and restart.

C. Inspect the cables between the user

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

D. Check the heated surface control.

Replace as needed.

as needed.

needed.

interface, heated surface control, and control ampliﬁer. Secure connections or replace cables as needed.

temperature.

1212240-5-B 16 Kohler Co.

Troubleshooting (cont.)

Heated Surface Troubleshooting Table Symptoms Probable Cause Recommended Action

E. Temperature sensor does not

work.

E. Replace the heater.

Care and Cleaning

For best results, keep the following in mind when caring for your KOHLER product:

•

Always test your cleaning solution on an inconspicuous area before applying to the entire surface.

•

Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and dry any overspray that lands on nearby surfaces.

•

Do not allow cleaners to soak on surfaces.

•

Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring pad to clean surfaces.

For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care & Cleaning information, call 1-800-456-4537.

Warranty

ONE-YEAR LIMITED WARRANTY

KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year from date of installation.

Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.

To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and 001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from within Canada, or www.mx.kohler.com in Mexico.

IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how

long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you speciﬁc legal rights. You may also have other rights which vary from state/province to state/province.

This is Kohler Co.’s exclusive written warranty.

Warranty

KOHLER®Electronic Faucets, Valves and Controls FIVE-YEAR LIMITED WARRANTY

Kohler Co. warrants that its electronic faucets, valves and controls will be free of defects in material and workmanship during normal residential use for ﬁve years from the date the product is installed. This warranty applies only to electronic faucets, valves and controls installed in the United States of America, Canada and Mexico (″North America″).

If a defect is found in normal residential use, Kohler Co. will, at its election, repair, provide a replacement part or product, or make appropriate adjustment where Kohler Co.’s inspection discloses any such defect. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning

Kohler Co. 17 1212240-5-B

Warranty (cont.)

will void the warranty*. Proof of purchase (original sales receipt) must be provided to Kohler Co. with all warranty claims. Kohler Co. is not responsible for labor charges, installation, or other incidental or consequential costs other than those noted above. In no event shall the liability of Kohler Co. exceed the purchase price of the faucet, valve or control.

If the electronic faucets, valves or controls are used commercially or are installed outside of North America, Kohler Co. warrants that the faucet, valve or control will be free from defects in material and workmanship for one (1) year from the date the product is installed, with all other terms of this warranty applying except duration.

If you believe that you have a warranty claim, contact your Home Center, Dealer, Plumbing Contractor or E-tailer. Please be sure to provide all pertinent information regarding your claim, including a complete description of the problem, the product, model number, the date the product was purchased, from whom the product was purchased and the installation date. Also include your original invoice. For other information, or to obtain the name and address of the service and repair facility nearest you, write Kohler Co., Attn: Customer Care Center, Kohler, Wisconsin 53044 USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and 001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from within Canada, or www.mx.kohler.com in Mexico.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of such damages, so these limitations and exclusions may not apply to you. This warranty gives the consumer speciﬁc legal rights. You may also have other rights that vary from state/province to state/province. This warranty is to the original consumer purchaser only, and excludes product damage due to installation error, product abuse, or product misuse, whether performed by a contractor, service company, or the consumer.

This is Kohler Co.’s exclusive written warranty. *Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or

other products not recommended for chrome. This will void the warranty.

1212240-5-B 18 Kohler Co.

+ 42 hidden pages

Kohler K1173VBW0 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
