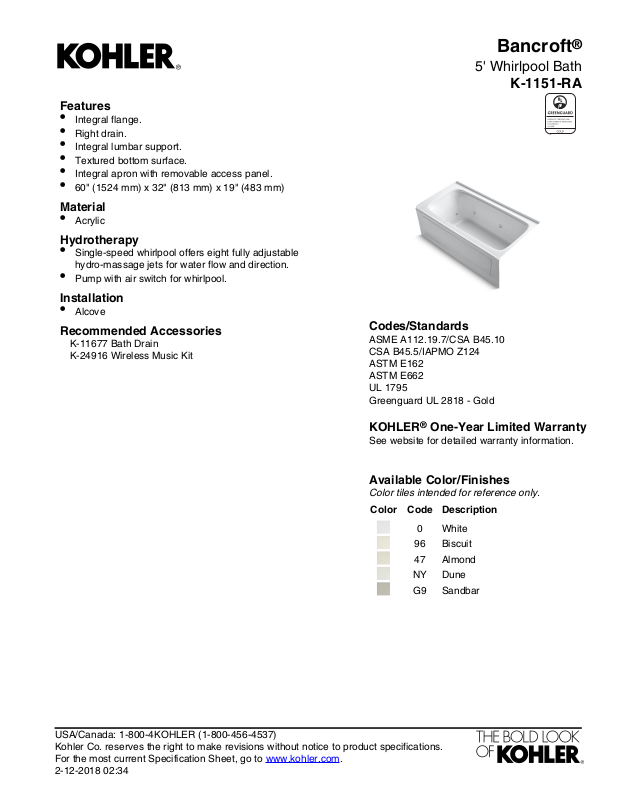

Kohler K1151RAG9 Specifications
Features
•
Integral flange.
•
Right drain.
•
Integral lumbar support.
•
Textured bottom surface.
•
Integral apron with removable access panel.
•
60" (1524 mm) x 32" (813 mm) x 19" (483 mm)
Material
•
Acrylic
Hydrotherapy
•
Single-speed whirlpool offers eight fully adjustable
hydro-massage jets for water flow and direction.
•
Pump with air switch for whirlpool.
Installation
•
Alcove
Recommended Accessories
K-11677 Bath Drain
K-24916 Wireless Music Kit
5' Whirlpool Bath
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
Greenguard UL 2818 - Gold
Bancroft
K-1151-RA
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 02:34
1-1/4"
Bancroft
®
5' Whirlpool Bath
K-1151-RA
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzPump:
Technical Information
All product dimensions are nominal.
rating:
3-Wall AlcoveInstallation:
RightDrain location:
45" x 22" (1143 mm x 559 mm)Basin area, bottom:
54" x 25" (1372 mm x 635 mm)Basin area, top:
135 lbs (61.2 kg)Weight:
50 lbs/ft² (244.1 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
60 gal (227.1 L)Water capacity:
Pump: 120 V, 7 A, 60 HzElectrical component
SinglePump speed:
2" (51 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 02:34
