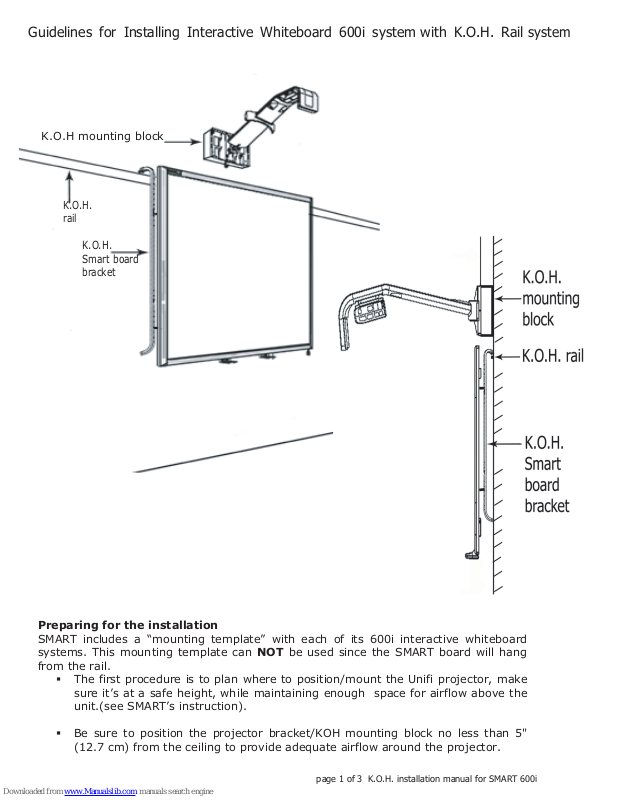

Guidelines for Installing Interactive Whiteboard 600i system with K.O.H. Rail
K.O.H mounting block
K.O.H.
rail
K.O.H.
Smart board
bracket
system
Preparing for the installation
SMART includes a “mounting template” with each of its 600i interactive whiteboard
systems. This mounting template can NOT be used since the SMART board will hang
from the rail.
The first procedure is to plan where to position/mount the Unifi projector, make
Be sure to position the projector bracket/KOH mounting block no less than 5"
sure it’s at a safe height, while maintaining enough space for airflow above the
unit.(see SMART’s instruction).
(12.7 cm) from the ceiling to provide adequate airflow around the projector.
page 1 of 3 K.O.H. installation manual for SMART 600i
f
Guidelines for Installing Interactive Whiteboard 600i system with K.O.H. Rail
Preparing for the installation
Locate a stud near the location where you plan to mount the projector, and
mark it.
Contrary to the regular 600i installation, you should install the SMART board on
the KOH rail system before you mount the projector. Because the distance
between the top of the smart board (top of the frame) to the bottom o
SMART’s “mounting plate” should be 3 ¼”
system
NOTE: To mount the Unifi projector safely on a framed wall, you should attach the
KOH mounting block to a stud with the 2 holes in the center of the block, use toggle
bolts for the other 2 predrilled holes on the side. If the wall doesn’t have a stud in a
suitable location you can glue the Mounting block to the wall, and secure it by
anchoring it to the wall through the 4 predrilled holes with appropriate anchors.
Proceed to Installation
You should install the Smart board on the KOH rail system before you install the KOH
mounting block and projector.
1. Install KOH rail per instructions. (Above the whiteboard/blackboard if that is the
application).
2. Attach brackets to SMART board, and hang it on the rail.
NOTE: The KOH brackets allows for 8 different height settings of the SMART board.

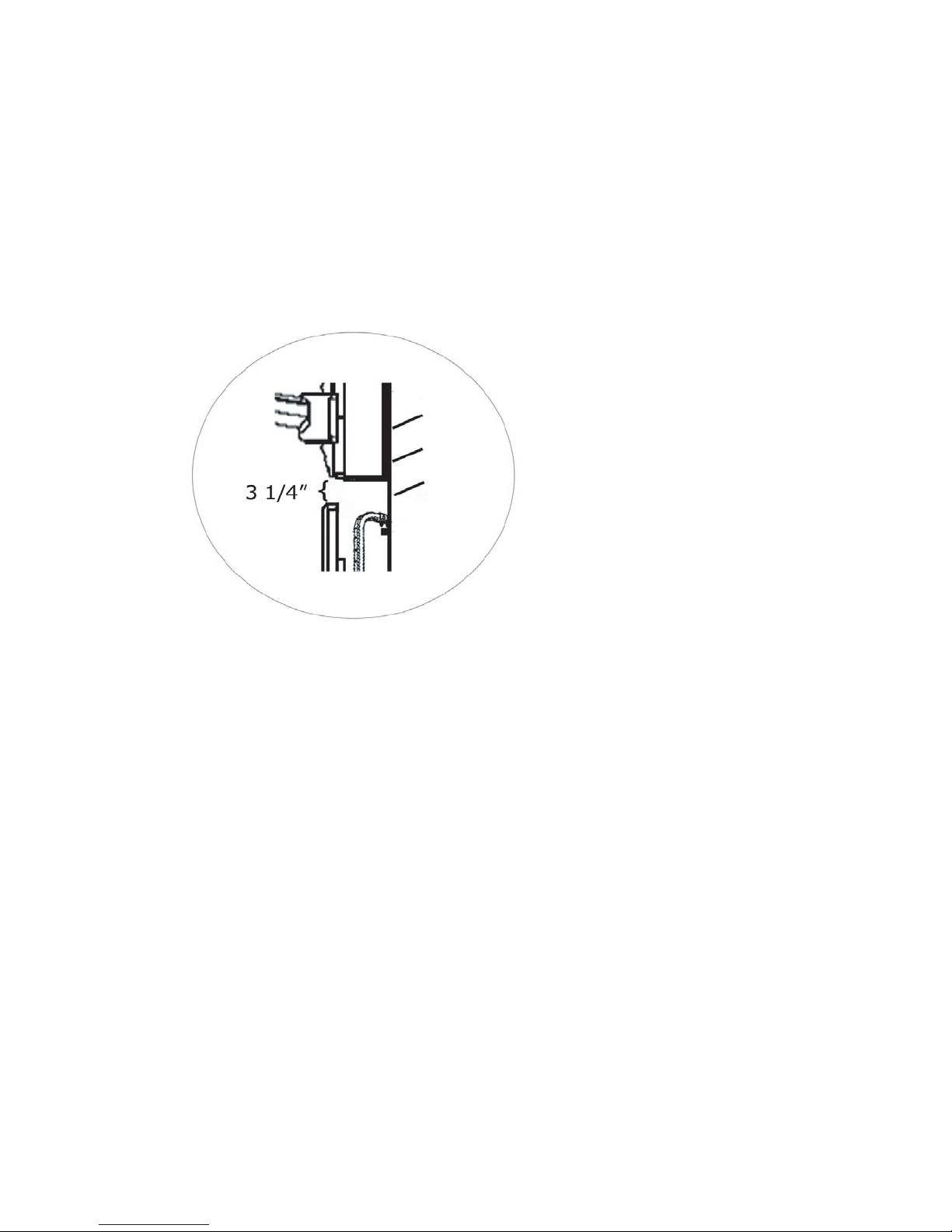

Keep in mind you need 3 ¼” from the top of the SMART board to the bottom of the
projector mount.
page 2 of 3 K.O.H. installation manual for SMART 600i
