Kogan V11 PRO User Manual

V11 PRO CORDLESS 29.6V
STICK VACUUM CLEANER

KAVACSTV11A

SAFETY & WARNINGS

To reduce potential fire risks, electric shock or injury, always observe the basic safety
prevention measures during use, including but not limited to the following:

supply

Power

• This product is powered by a 29.6V DC lithium battery. Do not use any other
model or capacity of the battery. Only use the original battery supplied by Kogan.

• If the battery has any malfunction or abnormality, stop using the product
immediately and contact Kogan.com for replacement.

• Always hold by the power plug when connecting and disconnecting to avoid
damaging the cord.

During use

• Do not use this machine outdoors or in humid areas or grasp it with wet hands.

• If the machine becomes physically damaged, placed outdoors or falls into water,

cease usage immediately and contact Kogan.com.

• To avoid blockages, don’t place large objects into the suction nozzle of the
vacuum cleaner. Keep the suction nozzle away from lint, hair and other objects
that may cause a blockage and frequently clean the appliance.

• To avoid injury, keep your hair, clothes, fingers and other body parts away from the
suction nozzle and movable parts.

• Avoid sucking in any burning or smoking garbage, such as cigarette ends,
matches, soot and other objects.

• Do not use the vacuum cleaner to clean flammable substances or liquids, such as
gasoline or places where there may be gasoline, kerosene, paint, alcohol,
detergent, etc.

• Do not use the vacuum cleaner before installing the filter.

• Turn off the machine before connecting or replacing any accessories.

• Keep the vacuum cleaner indoors and use it in dry rooms only.

• Do not use it for other purposes unless otherwise specified in the manual.

• Do not use the vacuum cleaner as a toy. Children nearby must be supervised.

• Be careful when cleaning the stairs.

• Use the machine correctly according to the manual. Only use accessories

recommended by Kogan.

Speed-adjustment Button

Battery

Lock

Dust Cup

Dust Cup Lock

Aluminium Tube Lock

Machine Body

Aluminium Tube

Floor Brush Lock

Electric Floor Brush with

Release Button of Dust Cup

Battery Pack

Switch Button

OVERVIEW

Plush Roller Bar

INSTALLATION

Electric Brush Installation

• Align the electric main brush to the extension wand connector and push it gently.
It will connect with an audible click.

(To disassemble, press the lock button and detach).

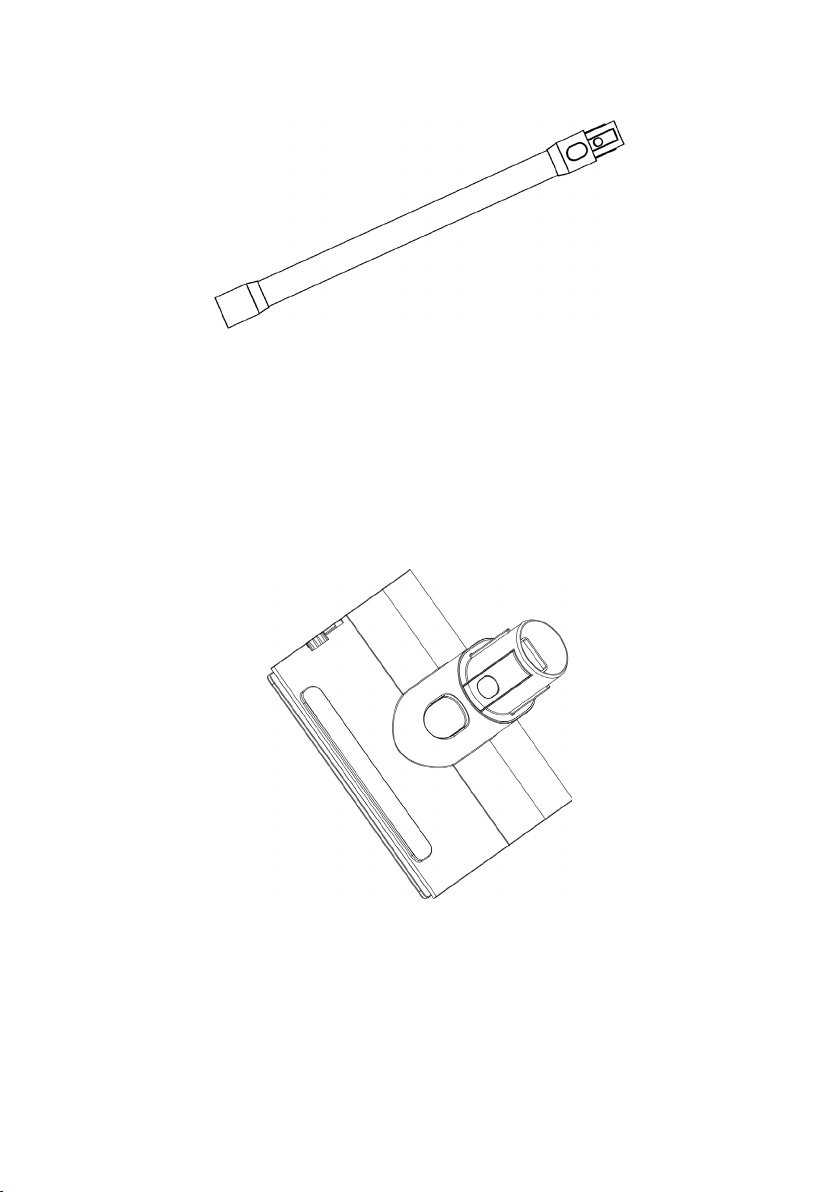

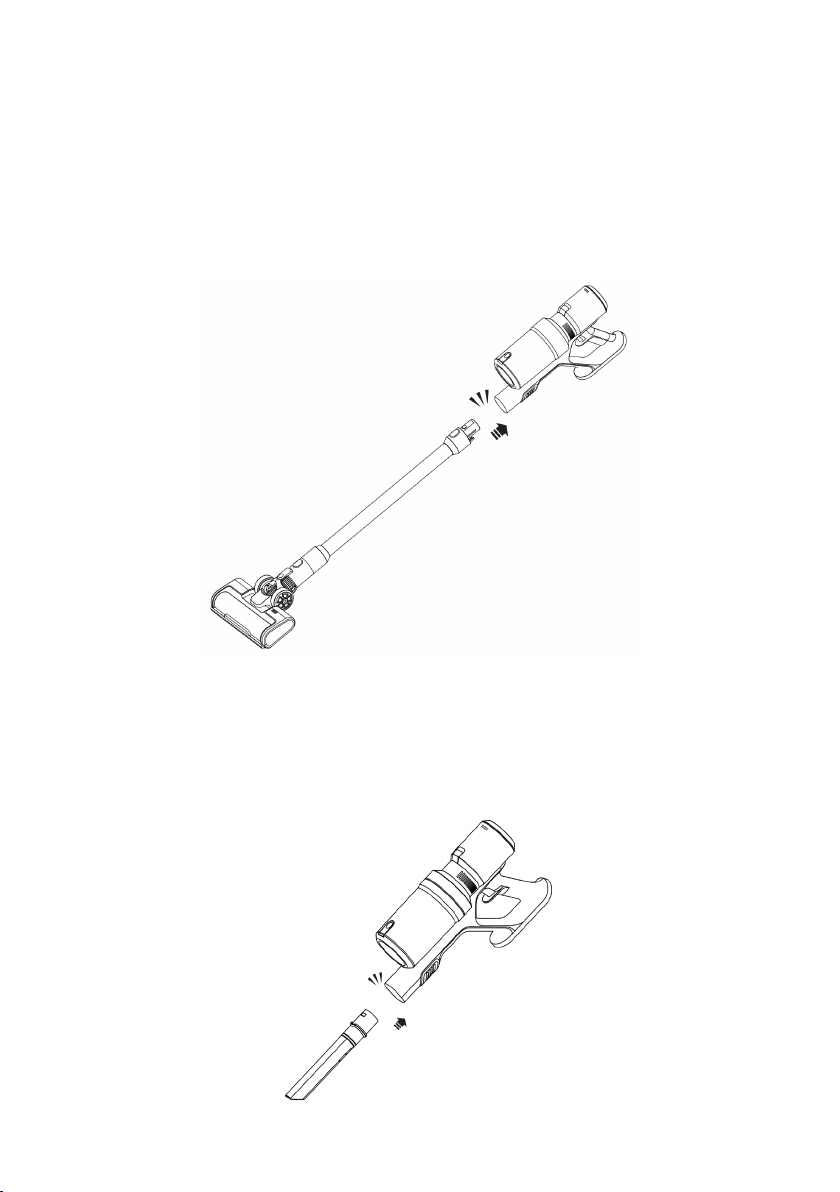

Extension Wand Installation

• Connect as above and the floor brush or other accessories with the other end as
illustrated.

• Alternatively, connect the floor brush to clean hard surfaces such as floor and
ceramic tiles or undercoat carpet.

• Alternatively, connect the crevice nozzle or 2-in-1 bristle brush to clean difficult-to­reach areas such as ceilings, curtains and air conditioning inlets. To disassemble,
press the lock button and detach.

Installation

• Align the crevice nozzle to the machine body connector and push it gently; it will
click into place. To disassemble, press the lock button and detach.

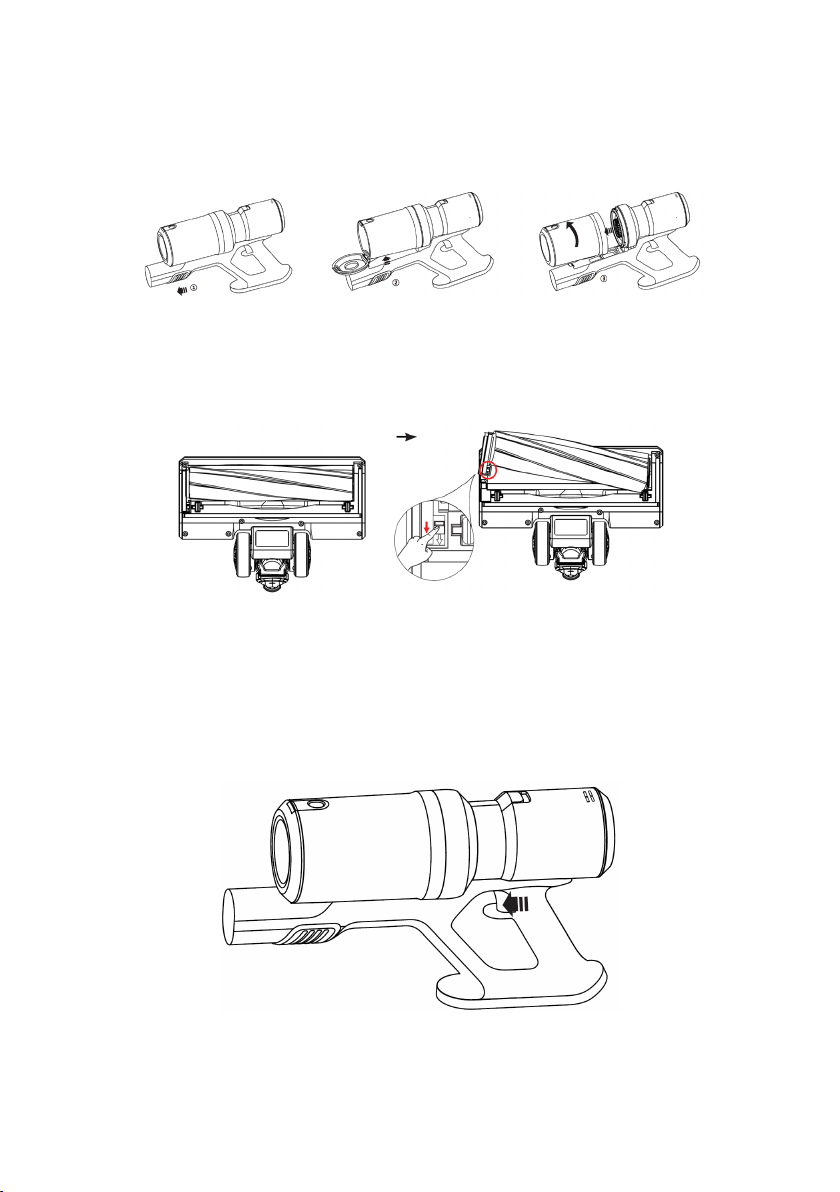

Dust Cup Installation and Removal

• Push the button under the machine body forward and the dust cup assembly will
pop up. Then rotate the dust cup assembly anticlockwise to remove.

Roller Brush Replacement

1. Turning on cleaner

• After installing all parts, turn on the switch button at the handle to start operation.

2. Suction adjustment

Low gear

Middle gear

High gear

Blue

Red

Purple

• Suction power can be set to three levels by pressing the suction adjustment button
on the top of the machine body. There are three LED indicator lights on the button:
the blue indicator light for low, the pink-purple indicator light for medium and the
red indicator for high.

3. Charging and indicator light

• Connect the power adapter with the battery pack and turn on at the outlet to start
charging.

The three indicator lights will flash when the machine is charging and become
solid when it is fully charged.

OPERATION

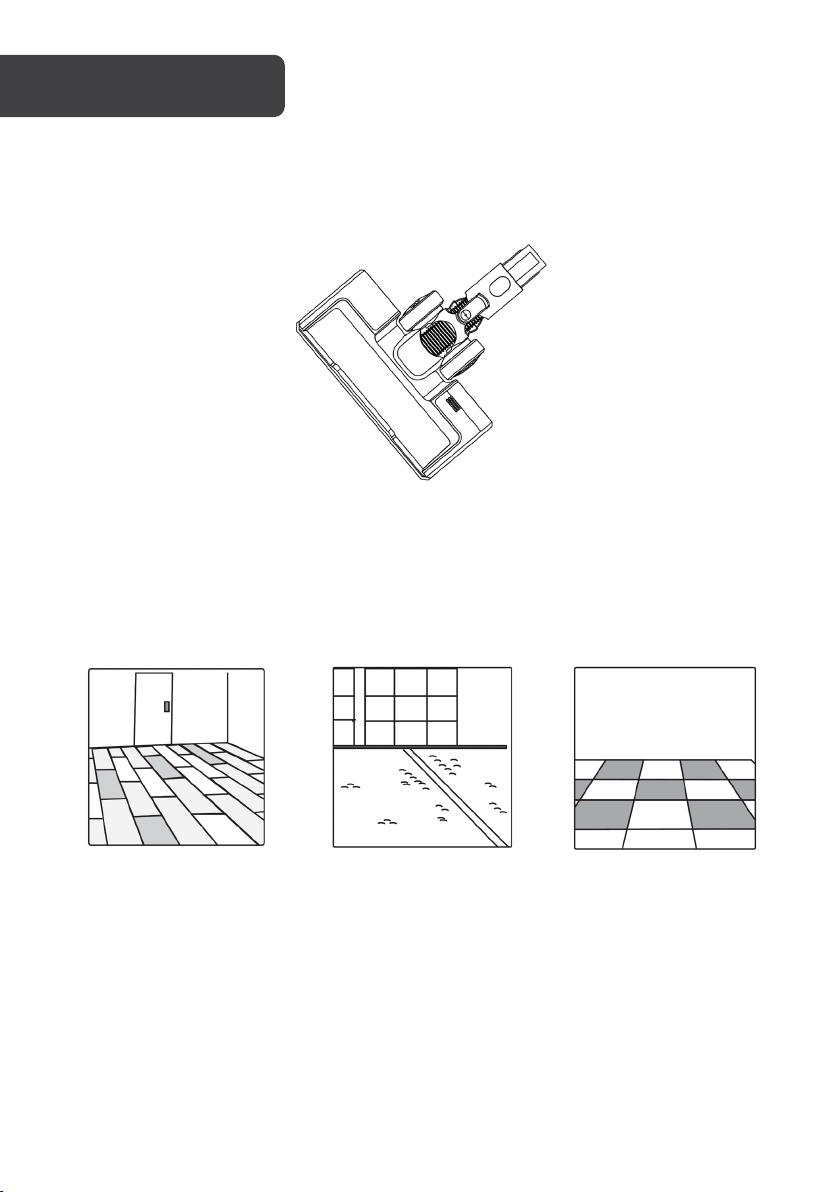

Cleaning

This is suitable for cleaning hard surfaces such as floor and ceramic tiles and the undercoat
carpet.

Example:

Method 1:

• Quickly remove dust thanks to the built-in independent motor and large plush
roller brush rotating at high speed.

• Flexibly and thoroughly clean thanks to the horizontal rotation (270°) and vertical
rotation (90°) of floor brush.

• Clean dark and dead angles such as sofa bottoms due to the front LED light.

Cleaning Method 2:

• Convenient to install, easy for vertical cleaning and easy on the back thanks to the
one-key snap joint.

• Good for cleaning high places such as ceilings, roofs, air conditioners and curtains
due to compatibility with different brush heads.

Cleaning

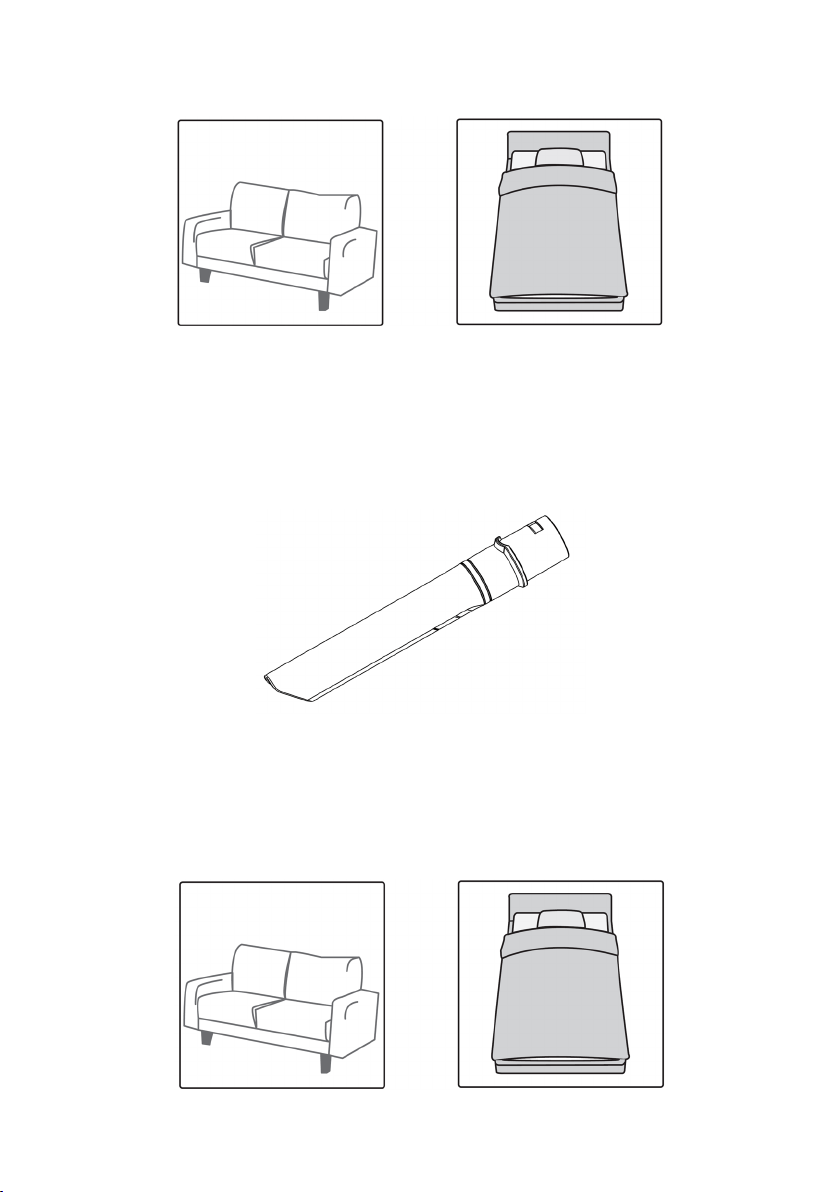

Method 3:

• Suitable for cleaning fabrics such as mattresses and sofas.

Example:

• Driven by its built-in independent motor, the roller can rotate at a high speed and
collect particles such as pollen and hair on bedding, improving sleeping health.

Cleaning Method 4:

This is suitable for cleaning various crevices and narrow areas in the household and car.

Example:

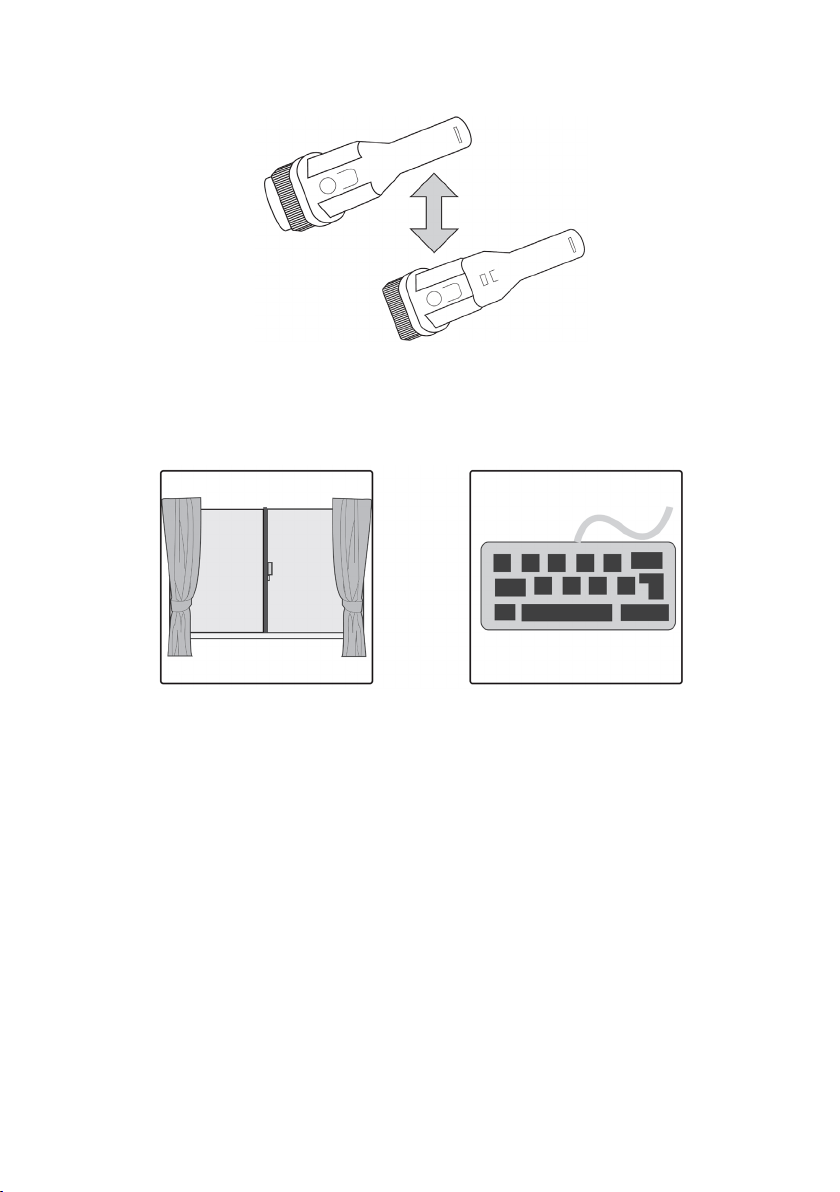

Cleaning Method 5:

• The brush is suitable for cleaning the places such as curtain, car interior and air
conditioner where hair can collect.

• The one-key extensible brush can suck and clean simultaneously and remove dust
efficiently.

• A slim and soft hairbrush can deeply clean the fabrics such as curtains and sofas.

• The fine hairbrush can deeply clean small areas such as computer keyboards.

CLEANING & CARE

use:

During

• Please do not let the unit get too close to hot objects such as heaters and
cigarette butts.

use:

Before

• To prevent damage, remove large and sharp objects from the vicinity. Do not
vacuum any inflammable objects or liquids, such as gasoline, cigarette or alcohol.

storage

Daily

• For long-time storage, store the machine in a cool and dry place and avoid direct
sunlight or humidity.

Emptying and cleaning dust cup:

• Push the button under the machine body forward and the dust cup assembly will
pop open (Refer to the previous installation instructions), allowing dust to be
emptied into a dustbin or a garbage bag.

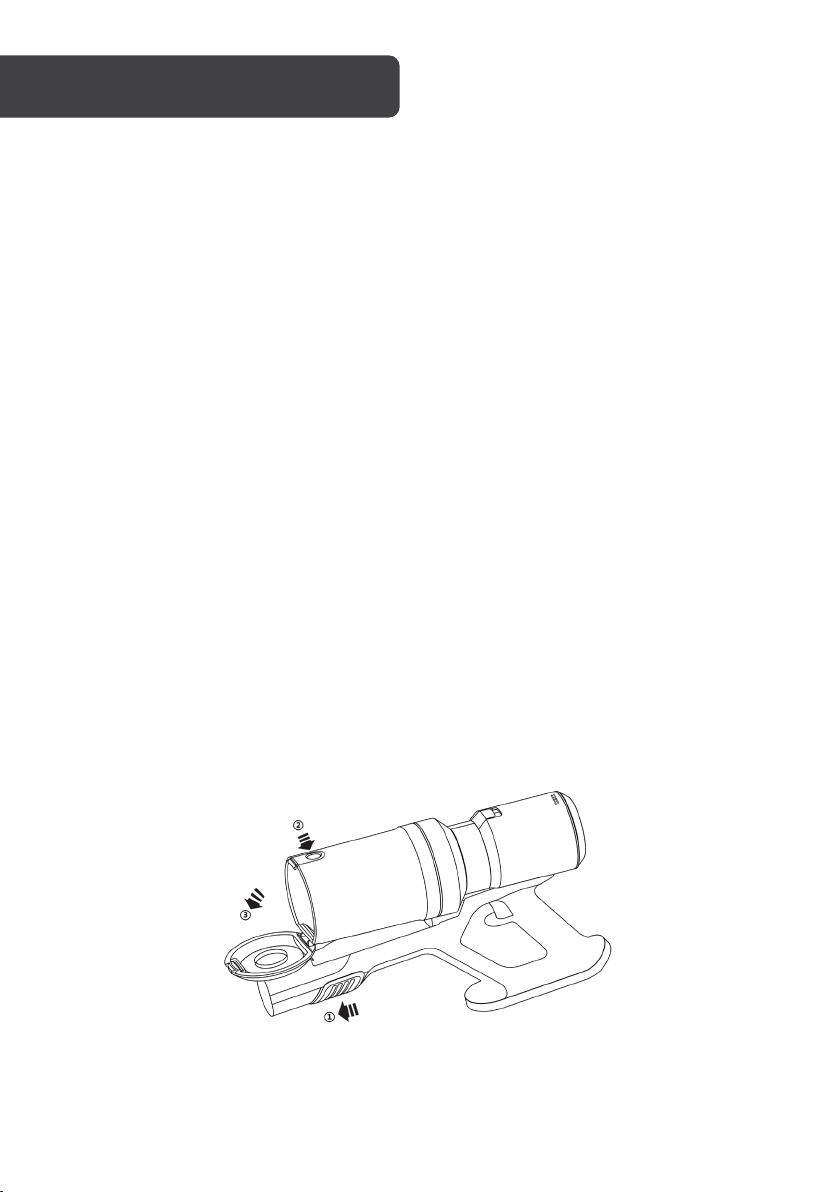

• As illustrated below, press the bottom lock of the dust cup to open the cup cover
and dump the dust.

Replacing/cleaning HEPA filter

Issue

Possible cause

Solution

1

Not turning on

Battery depleted

Check battery and replace
if required

2

Weak suction power

• Dust cup filled with dust

• Clean dust cup

3

Dust leakage

4

No suction after
connecting floor brush

Dust cup filled with dust

Remove dust and clean
dust cup.

• Separate the dust cup from the machine body as per previous installation
instructions.

• Remove the top filter element of dust cup and clean it with a soft hairbrush or put
the cup in warm water for washing. Before next use, ensure the dust cup and filter
element are completely dry.

Notice: Before using, please ensure all filters are installed in the correct position.

TROUBLESHOOTING

• The battery power low

• Connect power adapter

Rated power

400W

Battery configuration

Li-ion 2000mAh 29.6V

Charging time

2~3 hours

Noise level

75dB

Outer dimension

1172 x 256 x 217mm

Weight (Net/Gross Weight)

2.9kg/4.6kg

Capacity of Dust Cup

500ml

Motorised

Mattress Brush

2-in-1 Bristle

Brush

Long Crevice

Nozzle

SPECIFICATIONS

IN THE BOX

Wall Bracket

Charger

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
