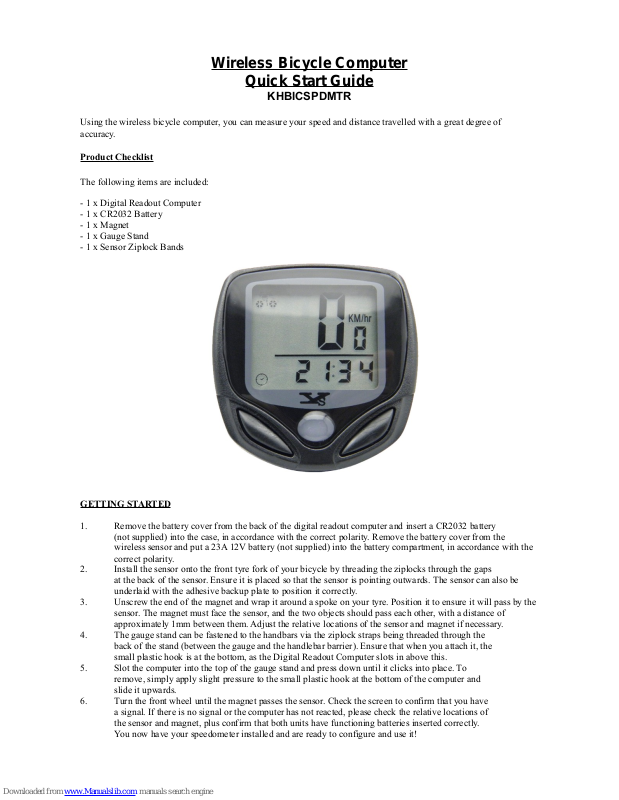

Kogan uick Start GuideKHBICSPDMTR Quick Start Manual

Wireless Bicycle Computer

Quick Start Guide

KHBICSPDMTR

Using the wireless bicycle computer, you can measure your speed and distance travelled with a great degree of
accuracy.

Product Checklist

The following items are included:

- 1 x Digital Readout Computer

- 1 x CR2032 Battery

- 1 x Magnet

- 1 x Gauge Stand

- 1 x Sensor Ziplock Bands

GETTING STARTED

1. Remove the battery cover from the back of the digital readout computer and insert a CR2032 battery
(not supplied) into the case, in accordance with the correct polarity. Remove the battery cover from the
wireless sensor and put a 23A 12V battery (not supplied) into the battery compartment, in accordance with the
correct polarity.

2. Install the sensor onto the front tyre fork of your bicycle by threading the ziplocks through the gaps
at the back of the sensor. Ensure it is placed so that the sensor is pointing outwards. The sensor can also be
underlaid with the adhesive backup plate to position it correctly.

3. Unscrew the end of the magnet and wrap it around a spoke on your tyre. Position it to ensure it will pass by the
sensor. The magnet must face the sensor, and the two objects should pass each other, with a distance of
approximately 1mm between them. Adjust the relative locations of the sensor and magnet if necessary.

4. The gauge stand can be fastened to the handbars via the ziplock straps being threaded through the
back of the stand (between the gauge and the handlebar barrier). Ensure that when you attach it, the
small plastic hook is at the bottom, as the Digital Readout Computer slots in above this.

5. Slot the computer into the top of the gauge stand and press down until it clicks into place. To
remove, simply apply slight pressure to the small plastic hook at the bottom of the computer and
slide it upwards.

6. Turn the front wheel until the magnet passes the sensor. Check the screen to confirm that you have
a signal. If there is no signal or the computer has not reacted, please check the relative locations of
the sensor and magnet, plus confirm that both units have functioning batteries inserted correctly.
You now have your speedometer installed and are ready to configure and use it!

SETTING THE WHEEL CYCLE

Once the battery has been installed, the screen will display '2060', with one of the numbers flashing. Select the exact
cycle of your bike according to the following list. Push the right key to change the number, then press left key to
confirm your selection. Set from right to left; selectable values range from 0mm to 9999mm.

You may make your own measurements using the following method: first, make a mark on the wheel, then push the
bicycle to the end of one full cycle. In doing so, you will be able to measure out the distance between two marks and set
the wheel cycle accordingly. eg. If the measurement is 1.615 m, then input 1615.

Continuing to press the left key will enable the KM／Mile Mode setting.

TIRE SIZE CIRC TIRE SIZE Perimeter

700c x 38mm 2170 26” x 2.125” 2133

700c x 35mm 2205 26” x 2.0” 2114

700c x 28mm 2149 26” x 1.9” 2089

700c x 23mm 2133 26” x 1.75” 2035

700c x 20mm 2114 26” x 1.6” 2051

650c x 20mm 1945 26” x 1.5” 2026

29” x 2.25” 2390 26” x 1.0” 1973

29” x 2.0” 2336 24” x 1.75” 1907

28” x 1.75” 2268 20” x 2.0” 1550

28” x 1.5” 2224 20” x 1.5” 1500

27” x 11/4” 2199 20” x 1.25” 1465

27” x 11/8” 2174 18” x 1.5” 1350

26” x 2.3” 2135 16” x 1.75” 1230

26” x 2.25” 2115 16” x 1.35” 1160

Selecting the KM/hr or M/hr

Press right key to choose KM /hr or Mile/hr mode.

Press the left key to enter into the Maintain Reminder mode.

Maintain Reminder Functions

Press right key to choose KM /hr or Mile/hr mode. Press the left key to enter into

the Maintain Reminder mode. The default value is: 200(KM/M). Press the right

key to select between 200、400、600、800(KM/M). When the numerical value

reaches to the setting value, the spanner sign will be flashing. Press the right key

for 3 seconds to cancel it.

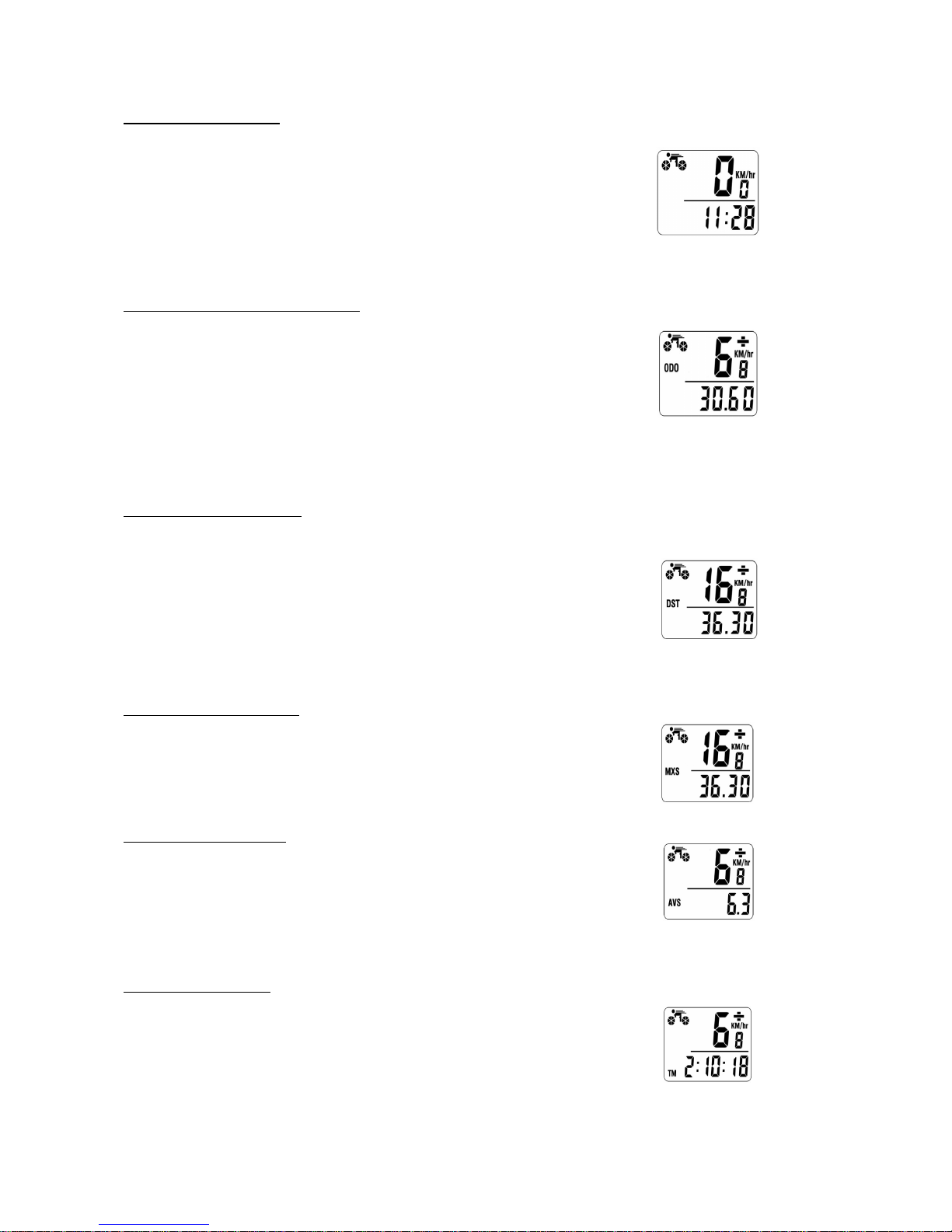

SETTING THE CLOCK

In Clock mode, press the “Left key” for 3 seconds to enter the 12/24 hr time settings.

Press the left key to alternate between 12/24hr time, press the right key to confirm a

selection. When the hour value begins to flash, press the left key to change it, then

press the right key to confirm your selection. Press the right key to enter into the

Odometer mode.

SETTING THE ODO (ODOMETER)

The ODO ranges from 0~99999 (KM/M). It will be automatically cleared when

the value overruns the maximum number. Whilst in the ODO mode, press the left

key for 3 seconds to enter the settings. The default number will be 0000.0. Press

the right key to change the number, then press left button to confirm the selection.

Press the right key to enter into the DST mode.

(DST) DISTANCE OF TRIP

This mode focuses upon recording the distance of a single trip (TM). Distance

records range from 0.001~9999 (KM/Hr). Records will be automatically cleared

when the value overruns the maximum number. Whilst in DST mode, press the

left key for 3 seconds – the DST value will be altered to read ‘0’,as well as the

value of MXS、AVS、TM. Press the right key to enter into（MXS）mode.

(MXS) MAXIMUM SPEED

While in MXS Mode, press the left key for 3 seconds，MXS value will revert
to “0”，as well as the value of DST、AVS、TM. Press the right key to enter
into（AVS）mode.

(AVS) AVERAGE SPEED

While in AVS mode, press the left key for 3 seconds. AVS values will revert to

‘0’, as well as the value of DST、MXS、TM. Press the right key to enter

the（TM）mode.

(TM) ELAPSED TIME

This mode shows the accumulative total time from the last reset time. Records

range from 0:00:00 ~ 99:59:59. Records will revert to “0” when the value overruns

the max number. Meanwhile DST, MAX and AVS records will be cleared too.

While in TM mode, press the left key for 3 seconds. TM records will be cleared ,

as well as DST、MXS、AVS values. Press the right key to enter into (SCAN) Mode.

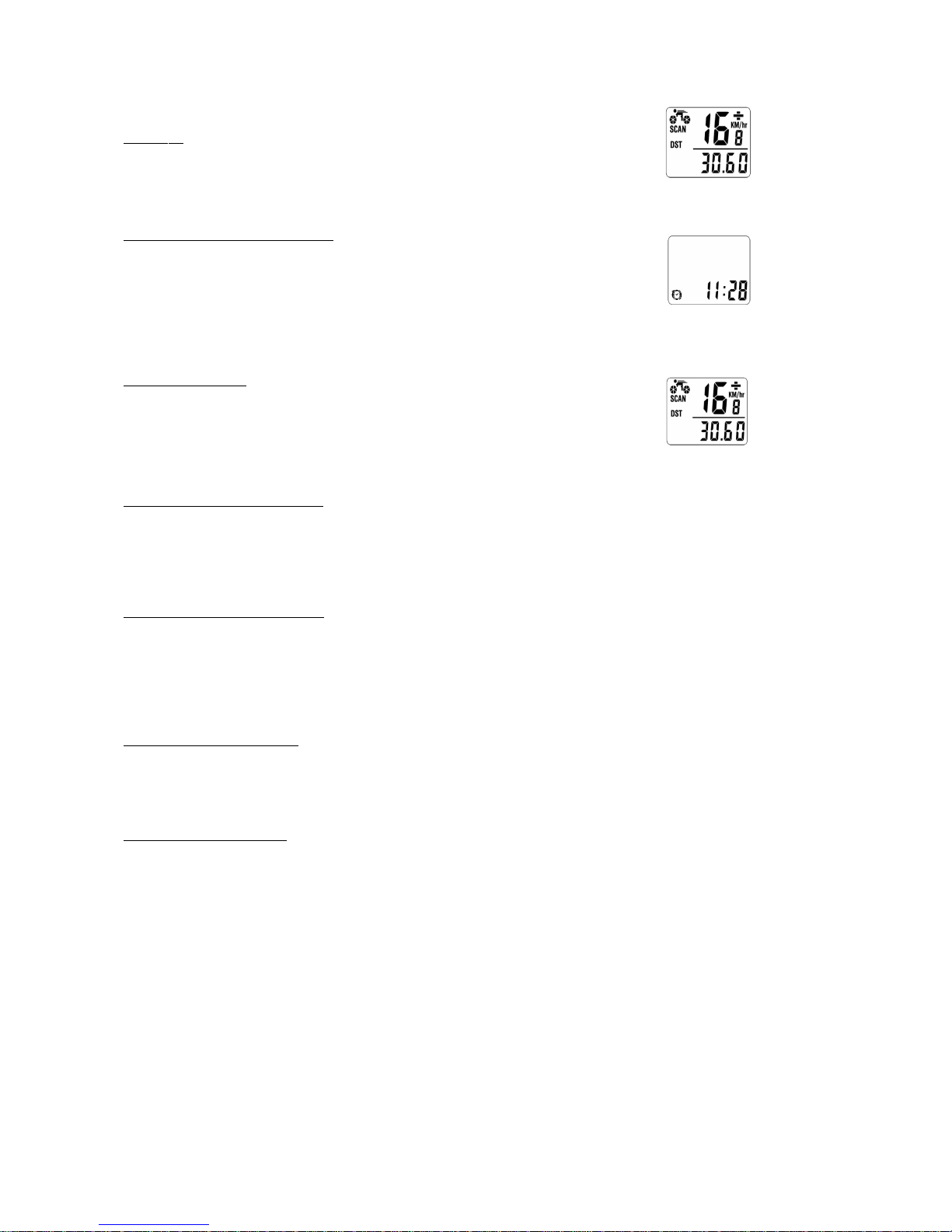

(SCAN ）

In this mode, the screen will display DST、MXS、AVS、TM in sequence.

AUTO OFF – ENERGY SAVING

After 300 seconds no signal input, the computer/the screen will revert to its

'OFF' state with only the clock visible on the display. You may return the device

to normal operation by pressing any key.

CURRENT SPEED

This value will always be displayed on-screen. Speed values will range

from 0~99.9 KM/h(M/h).

“ +” AND “—” COMPARATOR

“+” or “-” will display on the screen in the upper right corner. “+” will indicate when the current speed is higher than
average speed recorded, whereas “-” will indicate when the current speed is slower than average speed recorded

SAMPLING CYCLING MODE

While in any mode, sampling mode will be initiated when you press the left key. The screen will display the time of the
ride (TM). Press the right key to scan the value you have sampled: (DST) - (TM) - (AVS) - (MXS). Press the left key to
exist Sampling mode.

RESET ALL THE VALUES

Press the left and right key simultaneously for three seconds to clear and reset all the values.

USING THE TWO KEYS

Press the right key to select the following: ODO、DST、MXS、AVS、TM、SCAN、Clock.

All of the modes, with the exception of Sampling Mode, do not make use of the left key. When you enter into the

Sampling Mode, it can show several sampled values via use of the right key.

Press the left key again to exit Sampling Mode.

TROUBLESHOOTING

Malfunction Reasons

The speed value won't increase from '0' Incorrect location the installation of Magnet and Sensor.

The numbers displayed are incorrect Incorrect parameters in setup, eg. the perimeter of the bicycle wheel

Slow Reaction The computer is working in temperatures below zero degrees.

Blank Screen

The display has been exposed to extreme sunlight. Attempt to use the

computer in shady environments.

Dark display

The battery has not been installed properly or, alternatively, the battery

has been drained. Please reinstall or replace the battery.

No drawing on screen Remove and replace the battery.

ACCESSORIES

WARNINGS / DISCLAIMERS

- Do not expose this device to extreme moisture or sunlight. Doing so will affect normal operation and, in some

extreme cases, endanger the user.

- Do not disassemble the product.

- Any misuse of the product will void warranty. In the event of product misuse, Kogan will not be responsible for

damage or injury if applicable.

- If you believe the computer has malfunctioned or requires repair, please refrain from attempting to repair it yourself.

Refer all servicing matters to qualified personnel, or contact the Kogan Customer Support Team.
