Kogan RELWN4AMWRA User Manual

8 11 12 13 14

16 17 18

Intended Use

■ This lawn mower is designed for family use of grass and lawn mowing , not for

commercial use.

■ Use the mower as instructed. Do not use mower for purposes not intended.

Safety Notes

Warning! It is important that you read, fully understand and observe the following safety

precautions and warnings. Careless or improper use of the mower may cause serious or fatal injury.

The user is responsible for any accidents involving other people or other people's property.

Explanation of symbols on the lawn mower

General hazard safety alert.

Read instruction manual.

Beware of thrown or flying objects to bystanders.

Keep bystanders a safe distance away from the machine.

Sharp blade(s). Beware of severing toes or fingers.

Switch off, remove battery power plug from battery power socket, before adjusting, cleaning,

performing any maintenance work and before leaving the lawnmower unattended for any period.

1 Safety Button 10 Quick Fold Lever

2 Switch Lever 11 Battery Pack 3 Handle Knob 12 Safety Key

4 Cable Clip 13 Power Cord for Charger 5 Battery Cover 14 Charger

6 Height Adjustment Lever 15 Mulching Insert 7 Upper Push Bar 16 Battery Temperature Indicator 8 Grass Collection Indicator 17 Battery Power Indicator 9 Grass Collection Bag 18 Switch Button for Indicator

Not applicable.

Wait until all machine components have completely stopped before touching them. The blades

continue to rotate after the machine is switched off. A rotating blade can cause serious injury.

Do not mow in the rain. Do not leave the lawn-mower outdoors whilst it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting means.

Only use the battery charger indoors

Battery charger contains a safety transformer

■ Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations

may restrict the age of the operator.

■ Never mow while people (especially children), or pets, are nearby.

■ The operator or user is responsible for accidents or hazards occurring to other people or their property.

■ Do not operate the lawnmower when barefoot or wearing open sandals, always wear substantial footwear

and long trousers.

■ Thoroughly inspect the area where the lawn-mower is to be used and remove all stones, sticks, wires,

bones, children's toys and other foreign objects.

■ Before use, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or

damaged. Replace worn or damaged blades and bolts in order to maximize balance and efficiency.

■ Mow only in daylight or in good artificial light.

■ Avoid operating the lawnmower in wet grass, where feasible.

■ Walk while mowing, never run.

■ Never operate the appliance with defective guards or shields, or without safety devices, for example

deflectors and/or grass catchers in place.

■ Mowing on banks can be dangerous:

– Do not use the mower on a slope steeper than 15º maximum.

– Always be sure of your footing on slopes or wet grass.

– Mow across the face of slopes – never up and down.

– Exercise extreme caution when changing direction on slopes.

■ Use extreme caution when stepping back or pulling the lawnmower towards you.

■ Avoid any mowing where you pull the mower towards you.

■ Stop the blades if the lawnmower has to be tilted for transportation when crossing surfaces other than

grass and when transporting the lawnmower to and from the area to be mowed.

■ Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for

starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which

is away from the operator. Always ensure that both hands are in the operating position before returning the

machine to the ground.

■ Switch on the lawnmower according to instructions and with feet well away from the blades.

■ Do not put hands or feet near or under rotating parts. Keep clear of discharge opening at all times.

■ Never pick up or carry the lawnmower while the motor is running.

Under the following conditions, the unit must be switched off, the safety key must be removed from it’s

socket, and the unit must be brought to a complete standstill:

– leaving the lawnmower

– unblocking a blade

– intending to check, clean or work on the lawnmower

– you have encountered a foreign object, in which case you should check the lawnmower for damage and

carry out any necessary repairs.

– the lawnmower is vibrating heavily (switch off immediately and ascertain the cause).

– you wish to change the settings or carry out cleaning work.

– you wish to check whether the connection cables have become tangled or damaged.

■ Keep all nuts, bolts and screws tight to be sure that the lawnmower is in safe working condition.

■ Check the grass collection bag frequently for wear or deterioration.

■ Replace worn or damaged parts for safety.

■ Ensure replacement parts of the right type are used. Ensure replacement parts fitted are from Kogan.

■ Protect the battery charger from rain and moisture. The penetration of water in a battery charger increases

the risk of electric shock.

■ Recharge only with the charger supplied by the manufacturer. A charger that is suitable for one type of

battery pack may create a risk of fire when used with another battery pack.

■ Do not charge other batteries. The battery charger is suitable only for charging the battery pack of this

lawn mower within the listed voltage range. Otherwise there is risk of danger, fire and explosion.

■ Keep the battery charger clean. Contamination may cause the danger of electric shock.

■ Check the battery charger, cable and plug each time before use. Do not use the battery charger when

defects are detected. Do not open the battery charger yourself and have it repaired only by qualified

Kogan technicians using original spare parts. Damaged battery chargers, cables and plugs increase the

risk of electric shock.

■ Do not operate the battery charger on easily inflammable surfaces (e. g. paper, textiles, etc.) or in

combustible environments. There is danger of fire due to the heating of the battery charger during

charging.

■ Use product only with specifically designated battery packs. Use of any other battery packs may create a

risk of injury and fire.

■ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails,

screws, or other small metal objects that can make a connection from one terminal to another. Shorting

the battery terminals together may cause burns or a fire.

■ Do not open the battery pack yourself. There is danger of a short circuit.

■ Do not short-circuit the battery.

■ Touching electrically conductive parts of battery pack might result in an electric shock, be sure to wear

rubber gloves before inspection or maintenance work.

■ Protect the battery against moisture and water.

■ Store the battery only within a temperature range between –20°C (- 4°F) and +40°C (+104°F). As an

example, do not leave the battery in your car in the summer.

Product Specification

Lawn mower

Model: RELWN4AMWRA

Mains: 36V，4Ah

Charging time: 3-5 hours

Cutting width: 370mm

No load speed: 3000rpm

Cutting system: Rotary blade

Cutting height: 6 settings, 25-75mm

Fabric collection bag capacity: 40L

Battery Pack

Art.No.:BP370

Battery type: Li-ion Battery

Battery Voltage:36V, 4Ah

Assembly

Do not insert the battery or the safety key before the mower is completely assembled.

1. Fasten push bars

Figure 1-2

The push bar is already fully assembled and only needs to be unfolded to the desired position.

First unfold the quick fold lever (Pos. 12) and loosen the handle knob (Pos. 3).

Expand the handle, make sure the upper handle and lower handle match well.

Then screw them tight with the handle knob (Pos. 3) and swing nuts. The swing nuts should be hand

tightened only. Never use a spanner or any other tool to tighten them.

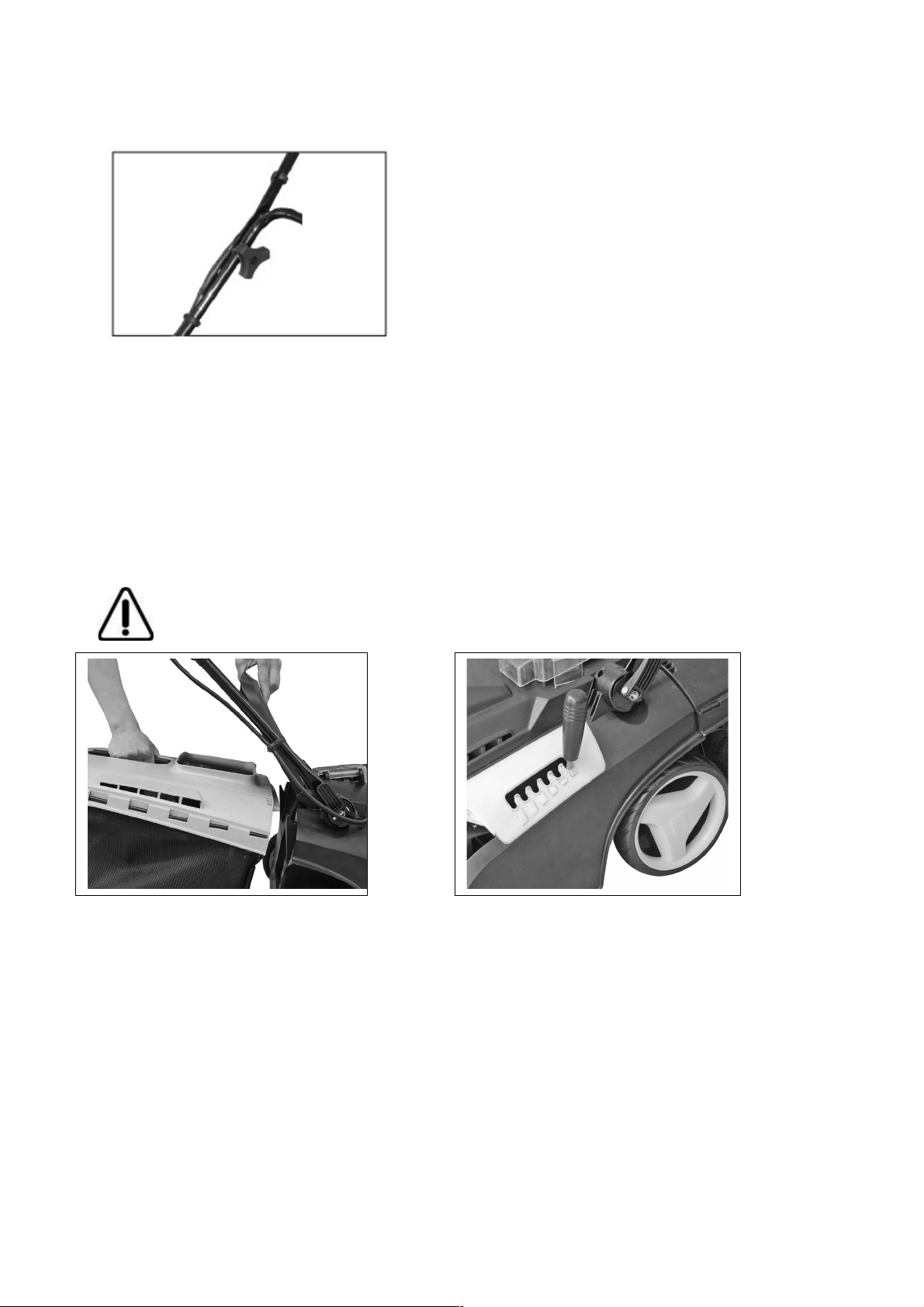

Figure 1 Figure 2

+ 14 hidden pages
