Kogan KGNFHDLED24VBA Instruction Manual

KGN&,>Ϯϰs

USER MANUAL

Contents

Safety Precautions

Power Supply..................................................................................................................................................... 1

Installation......................................................................................................................................................... 2

Use and Maintenance....................................................................................................................................... 3

Important Safety Instructions ............................................................................................................................ 4-5

User Guidance Information

Names of each part(Front View) / Accessories ................................................................................................. 6

Names of each part(Back View) ........................................................................................................................ 7

Remote control .................................................................................................................................................. 8-9

Contents

Basic Operation

Basic Operation ................................................................................................................................................. 10

OSD Menu

1. CHANNEL Menu ........................................................................................................................................... 11-12

2. PICTURE Menu ............................................................................................................................................ 13

3. SOUND Menu ............................................................................................................................................... 14

4. TIMER Menu ................................................................................................................................................. 15

5. OPTION Menu ............................................................................................................................................... 16

6. LOCK Menu ................................................................................................................................................... 17

Multimedia Operation

Multimedia Operation ........................................................................................................................................ 18-20

Recording Operation

Recording Operation ......................................................................................................................................... 21-23

Maintenance and Service

Trouble shooting ............................................................................................................................................... 24

Specifications ................................................................................................................................................... 25

Safety Precautions

Power Supply

Installation

Safety Precautions

Use and Maintenance

Important Safety Instructions

Safety Precautions

Important Safety Instructions

Names of each part

Front View

User Guidance Information

MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. INPUT: Display the input source menu. POWER: Turn on/standby the TV set.

User’s Guide

Mains adapter

Mains cable

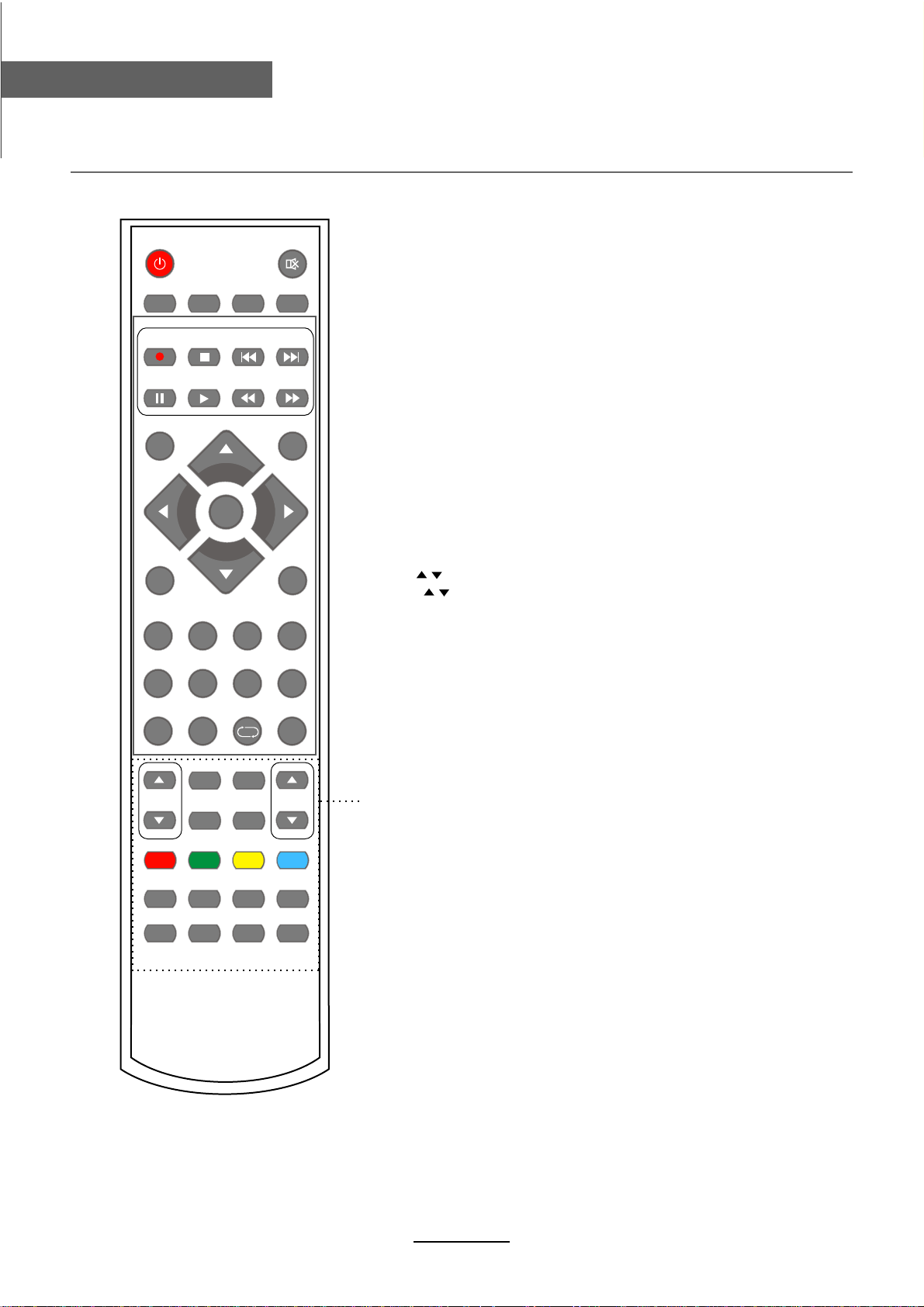

Remote Control

User Guidance Information

Names of each part

Back View

USB

1 2 3

DC POWER

USB

HDMI1/2

YPbPr

PC AUDIO IN

VGA

Coax out

Headphone out

Video

L/R audio in

Remote Control

User Guidance Information

POWER

REC LIST CH/LIST SUBTITLE REPEAT

REC

SOURCE

MUTE

DISPLAY

EXIT

1234

5678

POWER: Turn the TV on/standby. MUTE: Press to mute the sound, press again or press VOL+ to unmute. REC LIST: Record List. CH/LIST: Display the programs list. SUBTITLE: Turn on/off the subtitle display in DTV mode . REPEAT: Repeat playing the title or chapter.

PVR REC : Press to start record the program in DVB mode.

: Stop program. : Previous chapter.

: Next chapter. : Pause program.

: Play program. : Fast reverse.

: Fast forward.

PICTURE EPG

VOL CH

SOUND SLEEP

TV/TXT CANCEL REVEAL NICAM/A2

HOLD SIZE SUBPAGE INDEX

FAV

SCREEN

SOURCE: Press to display the input source menu. DISPLAY: Press to display the current mode’s information. MENU: System setup menu. EXIT: Exit the OSD menu. FAV: Display the favorite program list.

NUMBER BUTTONS Press0-9 to select a TV channel directly when you

are watching TV.

Return to the previous channel viewed.

CURSOR KEYS OK

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

User Guidance Information

Remote Control

POWER

REC LIST CH/LIST SUBTITLE REPEAT

REC

SOURCE

MUTE

DISPLAY

EXIT

1234

5678

PICTURE EPG

VOL CH

SOUND SLEEP

TV/TXT CANCEL REVEAL NICAM/A2

FAV

SCREEN

CH / : Scan through channels. VOL / : Adjust the volume.

PICTURE: Select the picture mode. EPG: To show the Electronic Program Guide during no-menu state only in DTV mode.

SOUND: Select the sound mode. SLEEP: Standby timer. SCREEN: Turn on/off the screen. TV/TXT: Turn off/on the Teletext display. CANCEL: Cancel the Teletext display. REVEAL: Reveal any hidden text. NICAM/A2: TV Nicam/A2 select. HOLD: Hold or carry on the current subpage. SIZE: Press to see top half of page double size, Press again to see the bottom half of page double size. Press again for normal size. SUBPAGE: Press to enter subpages, pressagain to cancel. INDEX: Go to index. Colour buttons:Short cuts-follow the coloured links in the text

HOLD SIZE SUBPAGE INDEX

Basic Operation

Power on/off

1. Connect to the power supply with the power code, and the adapter.

2. -To turn on the TV Press POWER/ button on the TV or remote control.

-To turn off the TV Press POWER/ button on the TV or remote control.

Input Source select

Press SOURCE button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button on remote control to select the input source, press OK button on the remote control to enter.

Note: Before you select the input source, make sure the connections are prepared.

Basic Operation

Input Source

DTV ATV

YPBPR

PC HDMI1 HDMI2

USB

Basic OSD Menu operation

Press MENU button to display the OSD menu as below:

Main menu

CHANNEL PICTURE SOUND TIME OPTION LOCK

Move

Select

Submenu

(Chanel menu for example)

EXIT

Quit

Hint---you should operate the OSD menu according to the hint.

Use / In the submenu, use /

button to select the main menu, and press button to enter the submenu.

Ĥĥ

button to select the function item, press button to adjust/setup,

or press OK button to enter the submenu. * (Press MENU button to return to the upper menu.) * (Press EXIT button to exit the menu display.)

Note1: Only when you input the suitable signal, the relevant items can be activated Note2: Please operating the OSD menu according to hint on the bottom of the banner.

OSD Menu

1. CHANNEL menu

Description

Auto Scan

Press OK button to enter the hint menu, and select the Country and Tune Type mode for the TV, then press OK button to start auto tuning.

DTV Manual Tuning

Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching.

ATV Manual Tuning Press OK button to enter the ATV Manual Tuning menu.

Storage To: Select a position for storing the program. System: Select a TV system for searching. Current CH: Select the channel you want to manual tuning.

Search: Press < / > button to manual search.

Fin-Tune: Press < / > button to fine-tune. Frequency: Display the current frequency.

Note: Press RED button to save all the setups you have changed.

OSD Menu

Programme Edit Press OK button to enter the Program Edit menu as the following picture.

OSD Menu

Rename

Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted. However if you decide not to continue to delete press the menu button to quit. Move: Select an channel, and press YELLOW button, then you can use  and  buttons to change the position of the program, press YELLOW again to confirm the change. Press menu to exit and it will automatically save the current set. Skip: Select a channel and press the BLUE button to label the channel, as long as the channel has a skip label it will be skipped when searching through the channels with the CH+/- buttons. Rename: Select an ATV channel and press the GREEN button to change the name of the channel by  buttons FAV: Select a program, press FAV button to set or delete the program as the favorite channel.

Signal Information

Display the signal information in DTV mode.

Software Update(USB)

Press OK button to enter the menu, and update the software by the USB device.

OSD Menu

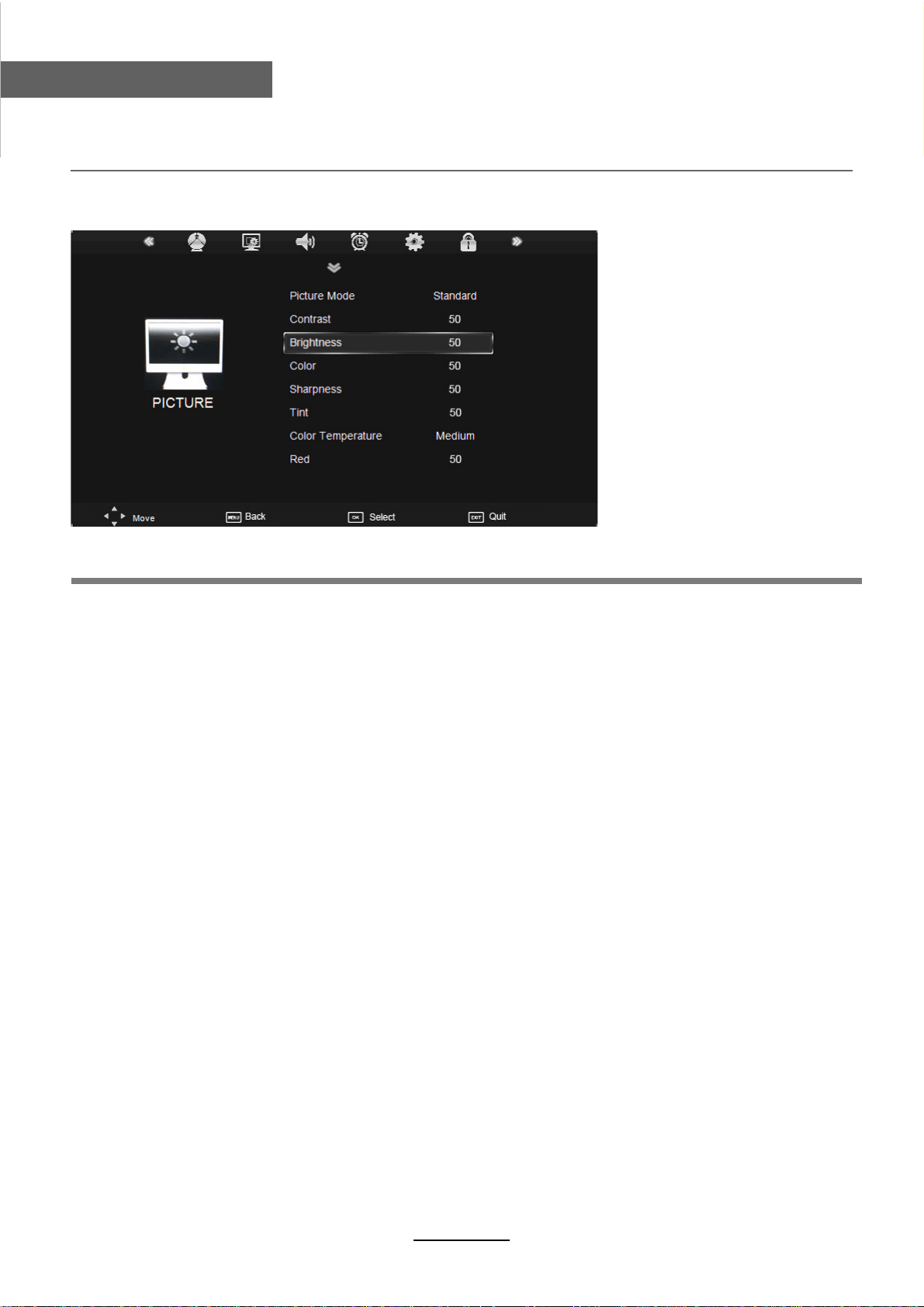

2. PICTURE menu

Description

Picture Mode: Choose from Standard, Dynamic, User and Mild.

Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in

the User mode option in the Picture Mode Settings.

Contrast: Controls the difference between the brightest and darkest regions of the picture.

Brightness: Controls the overall brightness of the picture.

Color: Control the color.

Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.

Tint: Controls the tint ( NTSC mode only).

Color Temperature: Choose from Medium, Cool, User and Warm.

Red: Controls the red colour of the picture.

Green: Controls the green colour of the picture.

Blue: Con trols the blue colour of the picture.

Aspect Ratio: Choose from Auto, 4:3, 16:9, Zoom1, Zoom2, Just Scan and Panorama.

Note: The aspect ratio modes you can select according to the input source.

Noise Reduction: Choose interference noise modes form Off, Low, Middle, High and Default.

Screen(PC mode only): Press OK button to enter the submenu to adjust Horizontal / Vertical

position, Size or Phase of the picture.

OSD Menu

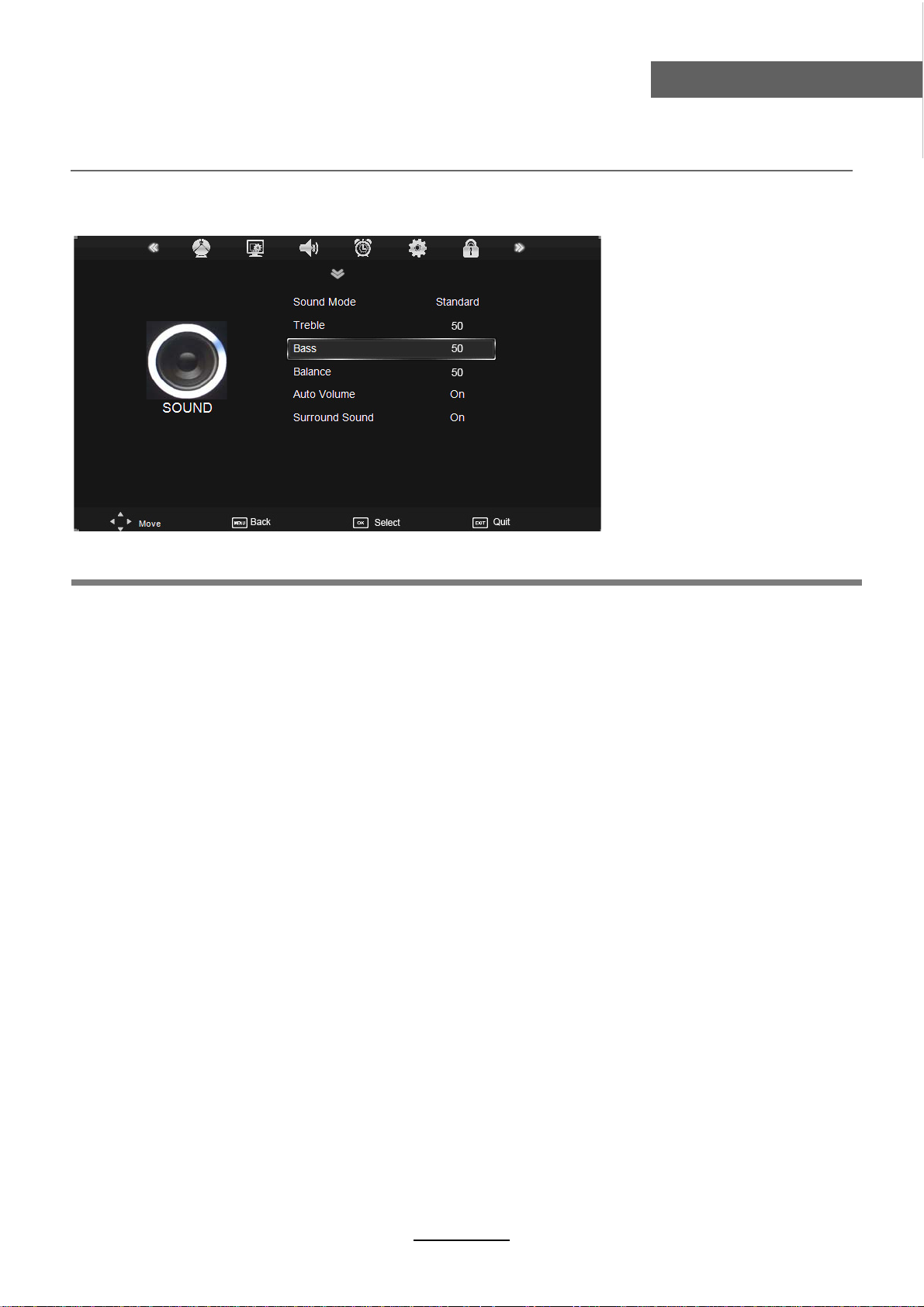

3. SOUND menu

OSD Menu

SPDIF MODE

PCM

Description

Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User.

Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of

higher pitched sounds.

Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of

lower pitched sounds.

Balance: To adjust the balance of the left and right sound track, or turn off the volume of the

left and right sound track.

Auto Volume: Control the volume of the program automatically when you turn on the function

by selecting “On”.

Surround Sound: Turn on/off the surround sound function by selecting “off”/“surround”.

SPDIF MODE: Allows you to select among: Off, PCM and Auto.

OSD Menu

4. TIME menu

Description

Clock: Use the and buttons to select the position, and use the and buttons to set the

time.

Note: User can not change time manually during DTV mode, for time is from signal source

directly.

Off Time: Press OK button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency.

On Time: Press OK button to enter the submenu, you could set the time when the TV set will

be turned on automatically, you could also set the frequency, volume and program.

Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,

120min,180min, 240min and off.

Auto Sleep: Turn on/off the auto standby function.

Time Zone: Allows you to select the time zone.

OSD Menu

5. OPTION menu

OSD Menu

OSD Duration 10s

Country UK

Description

OSD Language: Allows you to select menu language.

Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and

second audio language.

Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and

second subtitle language.

OSD Duration : Allows you to setup the time of the menu display on the screen among: 5s, 10s, 15s, 20s, 25s, 30s, 35s, 40s.

Country: Display the current Country, and you should select the Country when you want to

auto tuning.

Restore Factory Default: Press OK button to restore factory default.

OSD Menu

6. LOCK menu

Description

Lock System: Turn on/off the Lock System function.

Note: You should enter the code to operate the menu.(original code is 0000)

Set Password: Set pin code. If the Pin code has been changed you must enter the present

code.

New : Enter the new password.

Confirm: Enter the new password.

Block Program: Lock the channel, you have to enter the code to view the channel. Use

and buttons to select the channel, and press the GREEN button on the remote control to

lock the channel or canel.

Parental Guidance: Allows you to select the Parental Guidance mode.

Multimedia Operation

Basic Operation

1). Press the SOURCE button on the remote control to display the input source menu, select USB source by the / buttons, and press OK button to enter the Multimedia menu seen below.

Input Source

DTV

ATV

YPBPR

PC HDMI1 HDMI2

USB

Select

Move

Select

EXIT

Quit

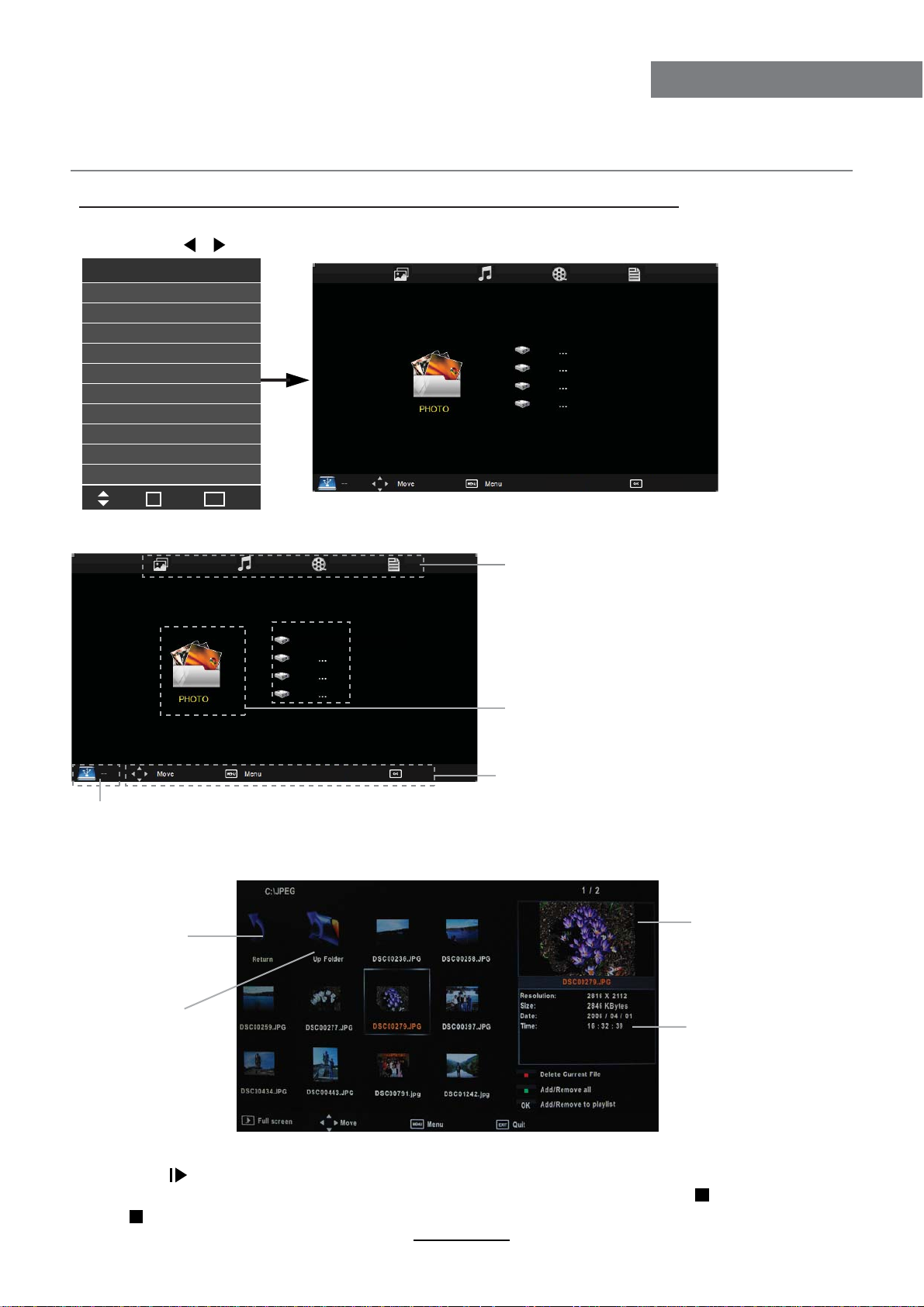

2). Insert USB device, you will find the name of the device display on the screen.

MAINS MENU PHOTO MUSIC MOVIE TEXT

Disk C:

USB device list

MAINS MENU PHOTO MUSIC MOVIE TEXT

Select

Hints for operation

Hints and informations of USB device

3). Press ˘/˚ button to select the kind of the files in the device you want to program from PHOTO, MUSIC, MOVIE and TEXT. Press Ī/ī button to select the device and press OK button to enter.

Return to

Preview

device list

Up Folder

Informations

Press ˘/˚ / Ī/ī buttons to move , and press OK button to select the file or unfold the folder, Then press button to program the files (be signed) you select or the files in the fold you select, You can display the option table on the bottom of the screen by OK button, press button to hide. Press button to stop and exit the full screen program.

Multimedia Operation

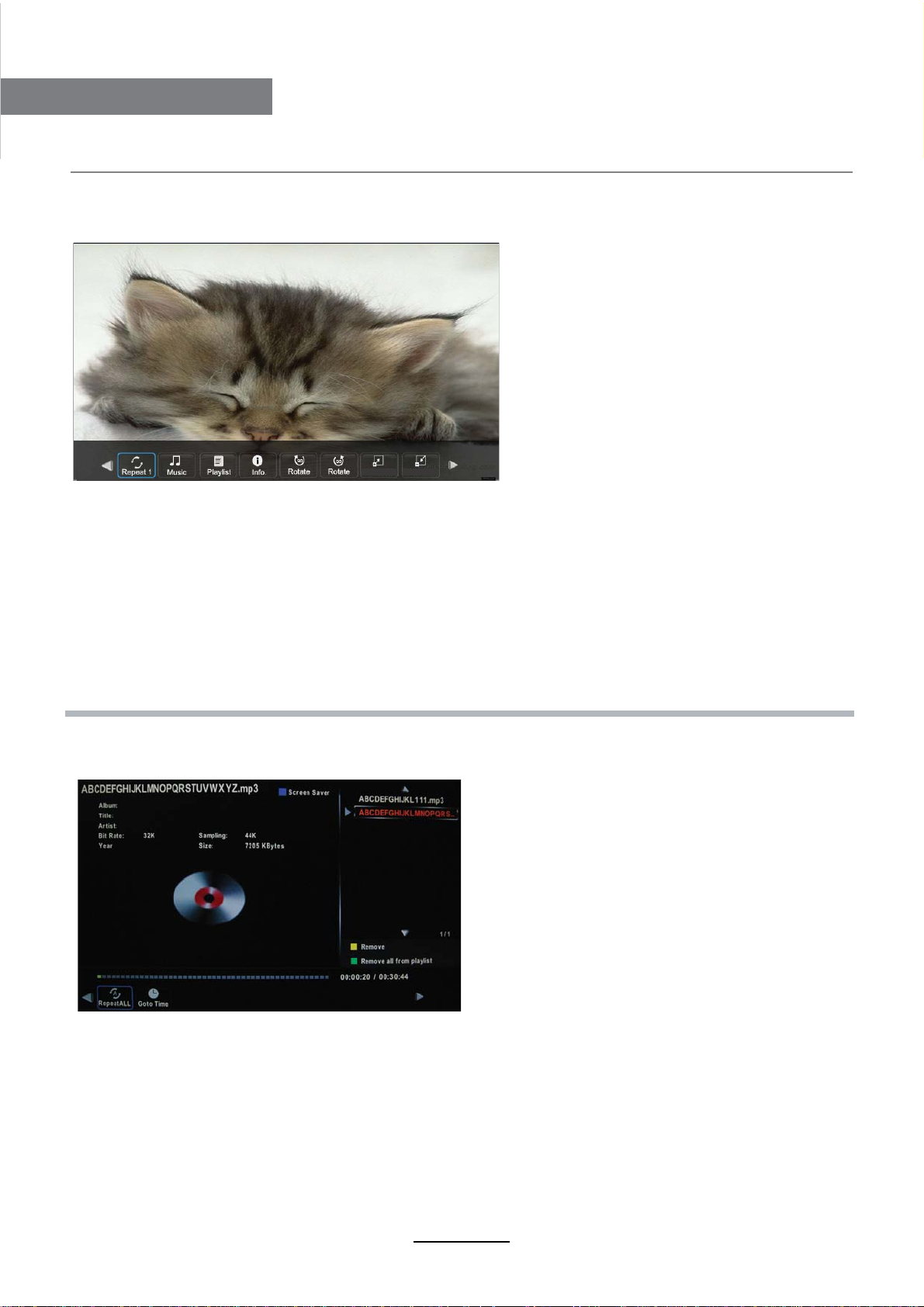

1. Photo

Play the photo

ZOOM IN

ZOOM OUT

Press ˘/˚ button to select the option on the table, and press OK button to change.

Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed). Playlist: Display the playlist on the screen, and you can select the photo by ĩĪbutton, and press OK button to program. Press

˘/˚ button to return to the options table.

Info: Display the information of the photo. Rotate: Rotate the photo clockwise/counterclockwise. Zoom Out/In: Zoom out/in the photo. Move View: Move the photo in Zoom in mode.

2. Music

Play the music

Press ˘/˚ button to select the option on the table, and press OK button to change. Press ĩĪ button to select the music, and press OK button to program.

Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Search: Program the music form the time you set. Press OK button to display the time table, and select the position by

˘/˚/ ĩĪ button,

set the time by the number buttons, select “OK” and press OK button to search. Screen Saver: Press BLUE button to enter the Screen Saver mode, press again to exit.

Multimedia Operation

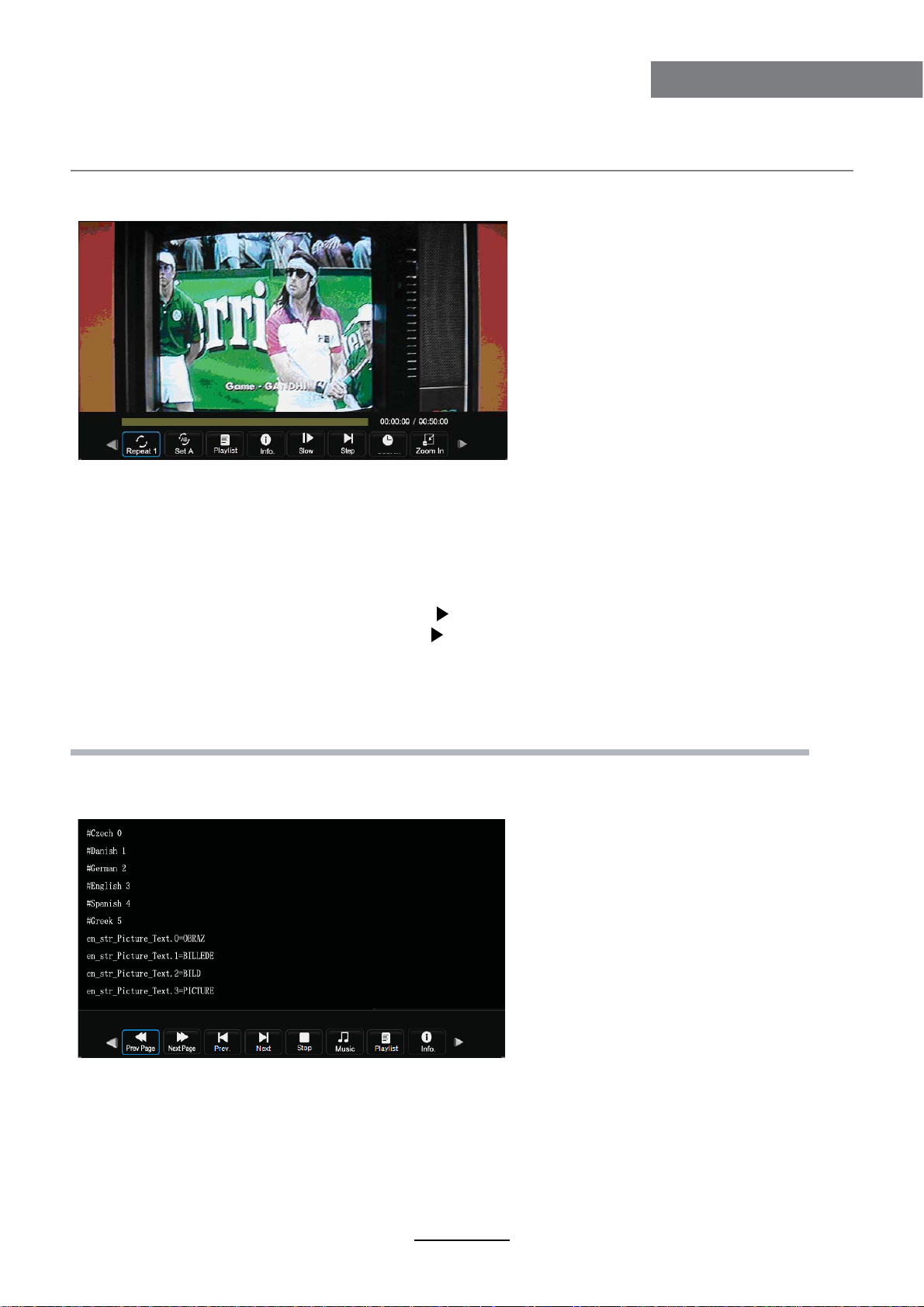

3. Movie

Play the movie

GOTO Time

Press ˘/˚ button to select the option on the table, and press OK button to change.

Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. Playlist: Display the playlist on the screen. Info: Display the information of the movie. Slow: Play the programs at slow speed, press /play button to cancel. Step: Step the programs by OK button, press /play button to cancel. Goto Time : Program the movie form the time you set. Zoom out/in: Zoom out/in the movie screen. Aspect Ratio: Select the aspect ratio of the screen display. Move View: Move the photo in Zoom in mode.

4. Text

Play the text

Press ˘/˚ button to select the option on the table, and press OK button to change.

Prev/Next page: Turn to previous/next page of the text. Prev./Next: Turn to previous/next file. Stop: Stop auto turning pages. Music: Play/pause the music program. Playlist: Display the playlist on the screen. Info: Display the information of the text.

Recording Operation

PVR settings

Press the MENU button, and select CHANNEL menu.

Recording Timer

1). Recorded List

2). Recording Timer

Recording Timer

Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program.

INFO: Display the information of the program you recorded. RED button: Delete the program you select.

Set the Recording Timer

The TV will record the program automatically according to your settings.

TITLE: Display the name of the recording program. MODE: Select the record mode. Start Time: Set the start recording time. End Time: Set the end recording time.

Press OK button to save the setting and exit the menu.

Recording Operation

3). Schedule List

Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control.

Recording Operation

4). PVR File System

Setup the PVR File system before you start recording.

Select Disk: Select the device for the Record files. Check PVR File System USB Disc: Display the USB state. Format: Format the USB device for PVR operating. Time Shift Size: Display the size of the USB device (The device has been formated). Speed: Display the speed of the USB device (The device has been formated).

Recording Operation

5) Record Start

When you finish the settings above, you could start recording by select Record Start in the menu and press OK button in DTV mode. (You can also start recording by press the button on the remote control)

Record buttons

Recording: Press to enter the recording mode. PAUSE: Press to enter the timeshift mode.

Recording list: Press to display the recording list. Stop: Press to stop recording.

Recording menu

When you press REC button, the screen will display the recording menu as below:

Full mode

Simple mode

Note: a. You could change the mode of Recording menu by Exit button. b. Press STOP button to exit the recording mode. c. Press PLAY button to play the program you are recording from the beginning. d. Press Recording list button to display the Recorder list, and you could play the program you selected. The recording will be going on, and the Recording menu will display when you exit the Recorder list.

Timeshift

Press PAUSE button to enter the Timeshift mode, and the picture will be paused, the recording will begin.

Note: a. You could change the mode of Timeshift menu by Exit button. b. Press STOP button to exit the Timeshift mode. c. Press PLAY button to play the program you are recording from the beginning.

Playback

The current state of the program

The current time

The process of the program

A-B mark

The name and number of the program

Maintenance and Service

Trouble shooting

Do not use other functions that are not mentioned in this user’s manual. In case a problem occurs with your TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center.

The screen does not appear.

noitcAmelborP

Is the power plug pulled out? Insert the power plug.

Press the power button of the remote control.

The screen appears too slowly after the power is turned on.

Screen is too bright or too dark. Perform brightness adjustment or Contrast adjustment.

Screen is too large or too small. Adjust the screen size.

Stripes appear on the screen

and it shakes.

The screen does not move. Press the PAUSE button. Check if the Pause button is pressed on

Screen appears, Voice is not heard

Remote control does not work

This problem occurs for a brief time in the process of

image elimination processing in order to hide temporary screen noise

that occurs when the power is turned on. But if the screen does not

come after 1 minute contact your dealer or an authorized service

center.

Stop using wireless telephones, hair driers and electric drills.

external equipment.

1. Press the "MUTE"button.

2. Increase the sound level by pressing volume adjustment button.

3. Check if sound terminal of external input is connected properly.

4. Check if audio cables are connected properly.

5. Select and check the other input.

If the sound still does not work and the other channels are the same after you have done as the above, contact your dealer or an authorized service center.

1. Check if main power is On.

2. Check that the batteries of the remote controller were loaded properly.

3. Check to see if any obstacle exists between the TV and the remote control , then remove it, if any.

4. If the batteries have no power, replace them with two new batteries.

This TV is for household use and registered as harmless on electromagnetic waves. Therefore, you can use it in every location as well as residential areas.

Specifications

Techincal Specifications

TVSystem PAL BG/DK/I SECAM BG/DK Screen size 24"(diagonal) Resolution 1920x1080 pixels (RGB) Aerial input 75

Power Consumption

12V 5A

(unbalanced)

60W

Maintenance and Service

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Kogan KGNFHDLED24VBA Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
