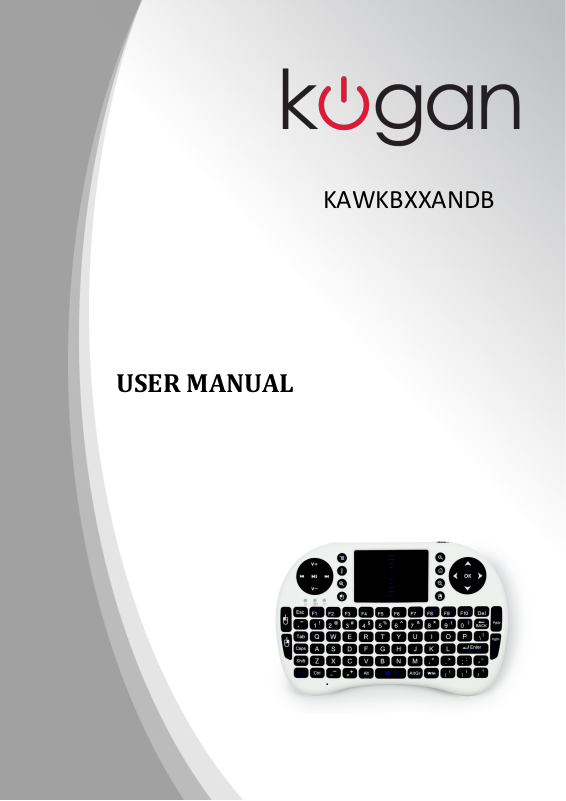

Page 1
KAWKBXXANDB
USER MANUAL
Page 2
Page 3
Kogan Australia / KAWKBZZANDB/ Kogan Deluxe Wireless Android Keyboard with Trackpad
Package Contents
● Kogan Deluxe Wireless Android Keyboard with Trackpad
● USB wireless receiver
● 3.7V Lithium battery pack
● USB charging cable
System Requirements
1. Human Interface Device (HID) compatible device
2. Full-sized USB port
Specifications
● 92-key QWERY keyboard
● Touchpad
● Left/right click keys
● Interface: Hi-Speed USB (USB 2.0)
● Peak force: 130g
● Total travel: 3.0 ± 0.5mm
● Switch life: 0.8 - 1 million cycles
● Operation frequency: 2.4GHz RF
● Dimensions: 146.8 x 97.5 x 19.0mm
● Dimensions (RF receiver): 19.0 x 14.3 x 6.15mm
● Weight: 110g
Disposal
Always dispose of this device at a recycling center. Do not dispose this device
with household waste.
Page 4
Kogan Australia / KAWKBZZANDB/ Kogan Deluxe Wireless Android Keyboard with Trackpad
Installation
1. Ensure your keyboard is fully charged before use.
2. Open the battery compartment location on the rear of the device.
3. Remove the USB wireless receiver from the battery compartment and replace the cover.
4. Connect the USB receiver to your HID-compatible device.
5. Turn your device on using the switch on the top-right of the keyboard v- no further
action required. Your wireless keyboard is now ready for use.
Page 5
Kogan Australia / KAWKBZZANDB/ Kogan Deluxe Wireless Android Keyboard with Trackpad
Multimedia Keys
Multimedia keys and their functions in Android ICS.
Play/Pause Switches between Play and Pause of audio and video
media. Once pause is pressed, pressing this button again
resumes play.
Volume Up Increases the sound volume. Hold down to increase volume
quickly.
Volume Down Decreased the sound volume. Hold down to decrease
volume quickly.
Menu Toggles the menu available in certain applications, such as
the internet browser, for more available options
Search Perform a quick Google search using the internet browser.
Back Takes you back to the previous screen, or if in the browser,
the previous page.
Home Takes you back to the home screen, regardless of which
application you are using.
Zoom In Press to zoom in on a web page when using the browser.
Zoom Out Press to zoom out on a web page when using the browser.
Notification Display the notifications page.
Left click Left button click.
Page 6
Kogan Australia / KAWKBZZANDB/ Kogan Deluxe Wireless Android Keyboard with Trackpad
Right click Right button click.
Touchpad
A touchpad is a pointing device that uses a tactile sensor - a specialised surface that can
translate the motion and position of a user’s fingers to a relative position on your display
device. Use it just like a mouse or a touchpad on a laptop computer.
