V6 CORDLESS 29.6V STICK
VACUUM CLEANER
KAVACSTV06A
Please read all safety instructions below and follow all general safety measures before use,
any incompliant operation may cause damage of product. Retain this user guide for future
reference.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Ensure this appliance is disposed of in an environmentally friendly manner. Do not throw in
general waste. Check your local council regulations for information regarding the correct
disposal.
Do not use the appliance to pick up the high temperature goods (matches, cigarette butts,
hot ashes, etc), micro dust (lime, cement, bits of wood, land plaster, ashes, carbon dust, etc),
large sharp objects (broken glass, nails, pins, etc), dangerous goods (disinfectant, solvents,
etc), chemical substances (acidic substances, detergent, etc), or flammable liquids
(gasoline, alcohol, etc). The items listed here are examples and not a complete list.
• WARNING: For recharging the battery, use only the removable power supply unit
supplied with the device.
• Keep the air outlet of appliance away from hair, loose clothing, fingers or other body
parts. Do not use suction tube, tube extension handle or other accessories while
directed at eyes, ears, or inside someone’s mouth.
• If large pieces of paper, paper balls, plastic sheets, sharp objects, or anything that is
thicker than a straw, please remove them in advance in case that the suction tube is
blocked. Attempting to vacuum these items will affect the use of the product.
• In the case of leakage, high temperature of the appliance, strange odour, or abnormal
sounds during operation, cease using the appliance immediately and contact
help.kogan.com for support.
• Check the dust cup regularly. If the dust cup is full, empty it. Keep the air outlet
unblocked to avoid loss of suction power or motor overheating, which may lead to the
reduction of vacuum cleaner service life.
• Check the aluminium alloy tube regularly. If there is a blockage, clear it to avoid the
reduction of suction. Failure to do this will affect the performance of appliance.
• When cleaning the appliance, do not use lubricants, cleaners, or polishes to clean any
part.
• The plug must be removed from the power outlet before performing any maintenance
or cleaning on the appliance.
• Do not perform electrical repairs by yourself, contact help.kogan.com for support.
• The appliance is only to be used with the power supply unit provided with the
appliance.
o The battery must be removed from the appliance before it is disposed of;
o The appliance must be disconnected from the supply mains when removing
the battery;
o The battery is to be disposed of safely and in an environmentally conscious
manner.
• Remove the battery pack by holding the vacuum cleaner handle with the right hand,
pressing the battery pack release button with the left hand.
• This appliance contains internal batteries that are only replaceable by authorised
service agents.
1
Battery set
10
Dust container
2
Metal tube battery
release button
11
Release for metal tube
3
Handle
12
Metal tube
4
On/off switch
13
Release for floor brush
5
Release for dust container
14
Crevice tool
6
Fix for on/off switch
15
Sofa brush
7
Release for brush roller
16
Hairbrush
8
Motorised floor brush
17
Stand for charging
and accessory holder
9
Digital screen
18
Brush roller
Usage of Vacuum Cleaner
1. Connect into position the metal tube to the handy body.
2. Connect into position the floor brush to the body.
3. Put vacuum cleaner and accessories on charging stand.
Vacuum floor operation
1. Step on floor brush and pull-down vacuum cleaner to start cleaning work.
2. Turn on the switch and press the upper button to fix the switch if necessary.
Vacuum cleaner smart display
A
Battery power
B
Auto mode
C
Eco mode
D
Max mode
E
Brush roller blocked
F
Motor speed
G
Mode select
Using the accessories
Hairbrush
Sofa brush
Crevice tool
Ideal for: curtains, keysets,
cold air outlets, etc.
Ideal for: bed, sofa,
cushions, etc.
Ideal for: crevices, doorjambs,
window frame, etc.
Instruction for the use of basic accessories:
Optional accessories can be used interactively with basic accessories:
Ideal for:
Interior and interior cracks and dead corners, narrow areas, drawers, wardrobes, lockers,
lockers under upholstery, etc.
Before replacing accessories, please separate the cleaner handle from the floor brush and
turn off the power supply.
Cleaning the dust cup
Turn off the device and unplug before cleaning. Push the release button, then fall off the
dust vacuum cleaner can only be used after the dust cup is closed.
Clean and maintain filters
Pull the dust cup
release button
Take out the
Hair dust
Brush gently clean
Washed clean
Important! Filter element and screen
1. Please stop working at first before cleaning.
2. Scrubbing with water or neutral detergent, the cleaning cloth must be wrung
before scrubbing. Do not penetrate the water into the interior of the vacuum
cleaner electrical component.
3. After cleaning, take care not to place the cleaner in the sun or a damp place.
4. Pull the release ring and remove the dust cup. Contra rotate, get out the filters,
then cleaning.
filter
release button
cannot be washed by the washing
machine, cannot be blown by a hairdryer.
Attention! Do not use the brush while washing the filter element.
Scrub to avoid damage to the filter element. The filter element should be washed after
washing Make sure it is dry before loading it into the vacuum cleaner.
Ta k edown floor brush
Remove the brush
Tak e off the transparent covert
Floor brush head baffle
Get out the roller
1. Please make sure the power switch is turned off.
2. According to the manual of taking down the brush, take down the brush.
3. Get out the transparent cover of brush from brush top and then get out the roller to
clean.
Clean the brush
1. Clean inside brush head
2. Clean the roller
Clean neck of the floor brush
Dust absorption pipeline
Bend pipe leveling
Visual
1. Push down the neck to a straight position.
2. Clean dirt inside the neck regularly to make sure a stable suction power.

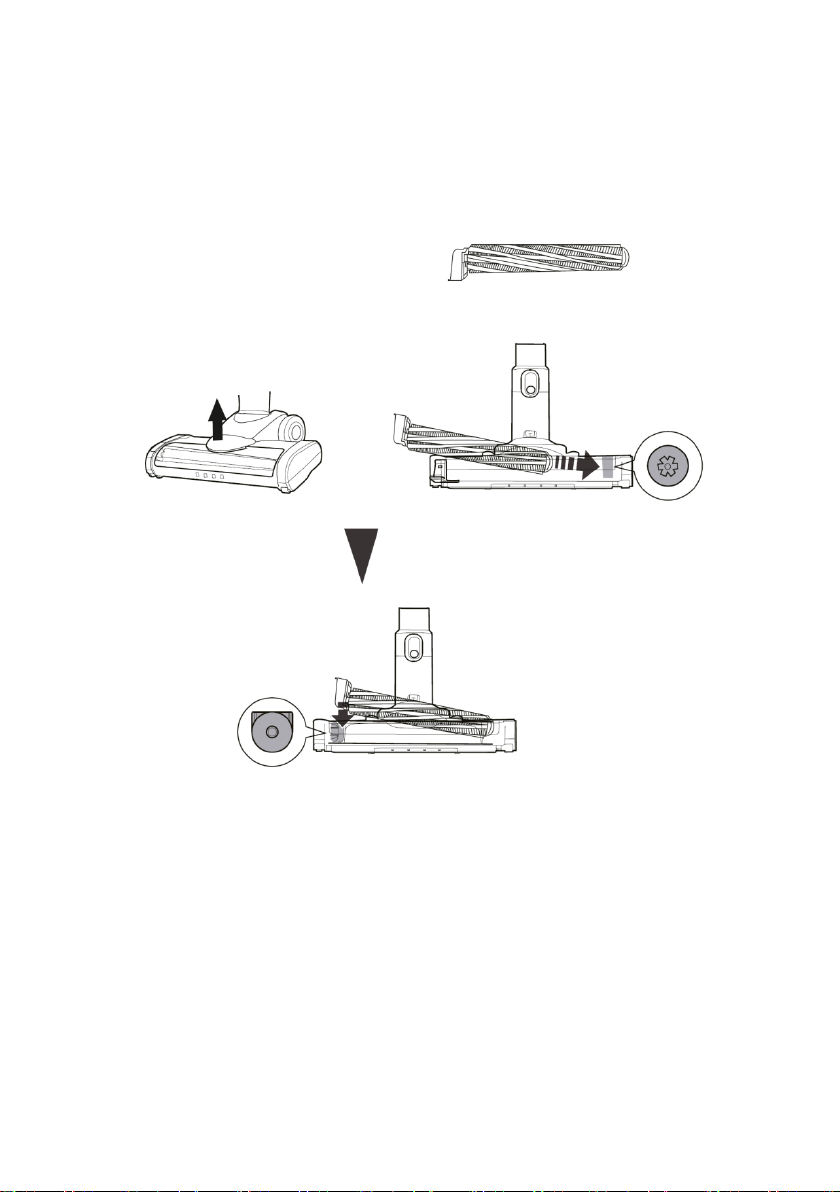

Clean the PP Hair Roller Brush
Figure 1 (for option)
Put the hair roller brush into the floor brush
Match with the
Match with the
1. In order not to affect the rotating flexibility of the roller brush, the hair can be cut
and removed if there have hair is wrapped both sides of the shaft.
2. Put the roller brush into the floor brush after cleaning the hair.
3. Pic. 1, cloth roller is only used for the hard floor: Can be used on a variety of hard
floors and can be used interchangeably with a hair roller brush.
flower shape
shape of shaft
Attention! The roller brush is installed into the floor brush and the installation must be
accurate, otherwise, the roller brush cannot move on.
Battery
Lithium 29.6V / 2200mAh
Motor Power
130W
Dust Capacity
700ml
Rated Voltage
100-240V, 50/60Hz
Product Net Weight
2.4Kg
Product Gross Weight
3.25Kg
Adaptor
Disposal
If disposing of this product, take care to dispose of the battery correctly. Do not
throw battery in general waste. Please take the device to a recycling centre
and ensure the battery is recycled separately. For further information, please
contact your local council office or waste disposal service.
Input: AC 100-240V, 50/60Hz, 0.5A;
Output: DC 36V, 500mA
Trouble phenomenon
Cause
Treatment method
Charging the battery.
retailer or after sales for repair.
Wash the filter, can be
prevent breeding bacteria.
Dust cup with full dust.
Clean the dust cup.
The dust cup is not installed
correctly.
Roller brush blocked.
Clean the roller brush.
Buy new filter and replace
every six months.
Roller brush stopped
working during vacuuming
Do not bump or move the
light.
Poor contact of the shrapnel
on the charging base.
The circuit inside the
damaged.
Check the adaptor power
socket.
Wash the filter, can be
prevent breeding bacteria.
Buy new filter.
The vacuum cleaner has a
plastic smell
The plastic smell will fade
after a while use.
Treatment of common problems:
Attention! If you find that the vacuum cleaner is not working properly, turn off the power of
the vacuum cleaner before performing the inspection.
The product does not work
A vacuum cleaner cannot
suck or has low suction
power
The battery cannot be
charged
The charging indicator
does not light up
Battery no power.
Battery ageing.
Motor abnormal.
Filter blocked.
Filter used too long.
Roller brush blocked. Clean the roller brush.
Poor contact of the shrapnel
on the charging base.
charging, the base is
Charging dock power is not
plugged into the socket.
Buy one new battery and
replace it.
Return the product to the
cleaned, with detergent and
toothbrush. Dry before use, to
Install the dust cup correctly.
charging stand before the
charging indicator is keeping
Toggle shrapnel by hand.
Return the product to the
retailer or after-sales for repair.
cord if plugged into the
Odour from the air outlet of
the vacuum cleaner
The filter is not cleaned.
New product.
cleaned with detergent and
toothbrush. Dry before use, to
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
