9-IN-1 STEAM STICK
KASTKSTM09A
• To provide continuous protection against the risk of electric shock, connect the
device to properly grounded outlets only.
• Check that the mains voltage corresponds to the voltage indicated on the rating
label. See specifications as below: ~220-240V, 50/60Hz, 1300W.
• This product is designed for domestic use only.
• Do not use at outdoors.
• Do not leave the Steam Stick unattended while switched on. Turn OFF the switch
and unplug the electrical cord when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is required when used near
children, pets or plants.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
• Never direct steam towards people, animals, plants or equipment containing
electrical components, such as the interior of the ovens.
• Do not immerse the Steam Stick into water or other liquids.
• Do not use with damaged cord or plug. If the supply cord is damaged, it must be
replaced by the manufacturer or a similarly qualified person to avoid a hazard.
• If the Steam Stick is not working as it should or has been dropped, damaged, left
outdoors or immersed into water, cease use and contact Kogan.com Support.
• Do not pull or carry the device by a cord, use cord as a handle, close the door when
the cord is obstructing or pull the cord around sharp edges or corners. Keep the
cord away from heated surfaces.
• Never force the plug into an outlet.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Unplug the appliance after use and before carrying out user maintenance.
• Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or Steam Stick with wet hands or operate without shoes.
• Do not insert any objects into openings. Do not use with blocked openings.
• Do not use without floor cloth in place. Do not use without water in the water tank.
• When using on stairs, be extra cautious.
• Store your Steam Stick indoors in a cool, dry area.
• Keep your work area well lit.
• Never put any cleaning detergents into the Steam Stick. This will make the
operation unsafe and may damage the unit.
• Never block the steam openings of the product or place it on a soft surface, where
the steam openings may be blocked. Keep the steam openings free of lint, hair and
other particles.
• Use only as described in this manual. Use only with manufacturers recommended
accessories.
• Do not use in swimming pools containing water.
• This appliance can be used by children aged 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
1 Steam switch 8 Aluminium tube 2 15 Power cord
2 Steam regulator 9 Mop head 16 Wall holder
3 Power switch 10 Detergent tank cover 17 Water tank
4 Aluminium tube
button
5 Upper cord wrap 12 Lock button 19 Measuring cup
6 Aluminium tube 1 13 Lock push button 20 Cloth pad
7 Lower cord wrap 14 Main body 21 Carpet glider
11 Detergent release
button
18 Lock button of water
tank
ASSEMBLY
1. Aluminium tube assembly
Insert aluminium tube 2 into the aluminium tube 1.
Figure 1
2. Mop head assembly
Insert the mop head into the assembled aluminium tube and attach the cloth pad to the
bottom of mop head.
Figure 2
3. Assemble main body
Connect the main body to the aluminium tube.
Figure 3
4. Add water in the water tank
Add the water in the water tank.
Figure 4
5. Assemble the water tank
Attach the water tank filled with the water to the main body. The buttons on both of sides
must lock with the main body.
Figure 5
6. Use the mop
Plug in the Power cord to a grounded electrical outlet, turn ON the power switch, after 20
seconds approximately, the light on the steam regulating mask will change from red to
green, then choose steam volume position, finally turn ON the steam switch for use.
Figure 6
OPERATION
1. How to use the carpet glider
Insert the mop head into the tube, stick the cloth pad on the mop head as per below picture.
Then install the carpet glider on the mop head and clean the carpet.
2. How to use the accessories
1 Big round brush 5 Angle nozzle
2 Long brush 6 Window squeegee
3 Small round brush 7 Accessory adaptor
4 Scraping tool 8 Garment steamer cloth
Insert the attac hment connection head into the main body as per above picture. Then insert
the other accessories by counter clock wise rotation.

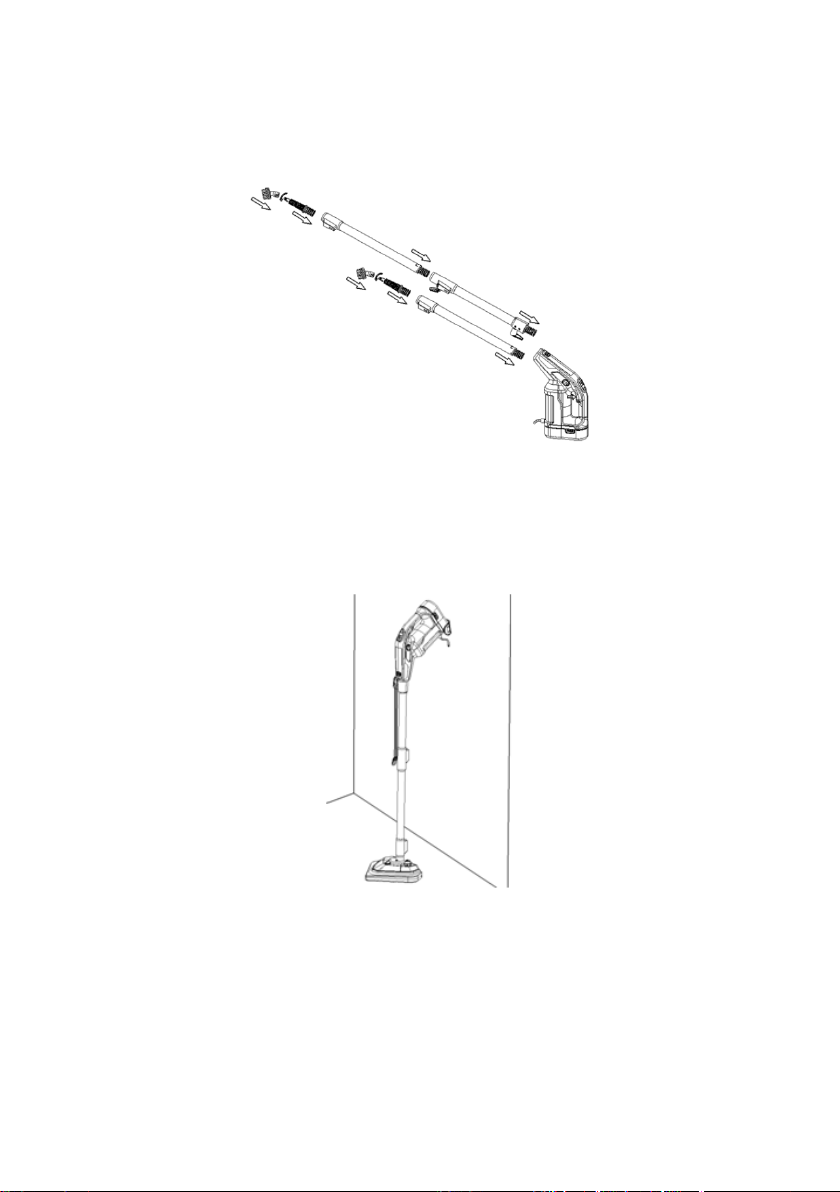

If need longer handle, you can insert the aluminium tube into the main body and then link
the attachment.
3. How to use the wall mount
1. Stick the wall mount on the position which user want and then fix the steam mop main
body to the wall mount as shown below;
TROUBLESHOOTING
CLEANING AND CARE
1. Drain the remaining water in the tank after use.
2. Take off the used cloth pad, wash it and dry it in an airy place.
3. Put the power cord on the cord wrap and fix the main body onto the wall holder.
Problem Reason Solution
The appliance is not
turning ON. The power
indicating light does not
light up.
The appliance fails to
steam. The power
indicating light is on.
The appliance is not
plugged in or household
power system
problem/fuse is blown.
The water tank is empty. Refill the water tank.
The appliance needs more
time to warm up.
During operation, the
appliance will automatic
shut off if water tank is
empty.
Plug the power cord to the
electrical outlet or check
the power or ask a
qualified electrician for
help.
Wait for 45 seconds to
warm-up.
Wait for the appliance to
cool down and refill the
water tank.
Need more information?
This is a Quick Start Guide, and we hope that this has
given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
