Kogan KAMN32RT1SA User Manual

32 QHD IPS 165HZ FREESYNC
HDR GAMING MONITOR

(2560 x 1440)

KAMN32RT1SA

SAFETY & WARNINGS

• Read all instructions before using this mo nitor, and retain this user guide for future
reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly dampened cloth to wipe the main monitor body.

• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe

it with a dry micro-fibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface and
the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.

Stand base screw

Monitor

Stand connector Stand base

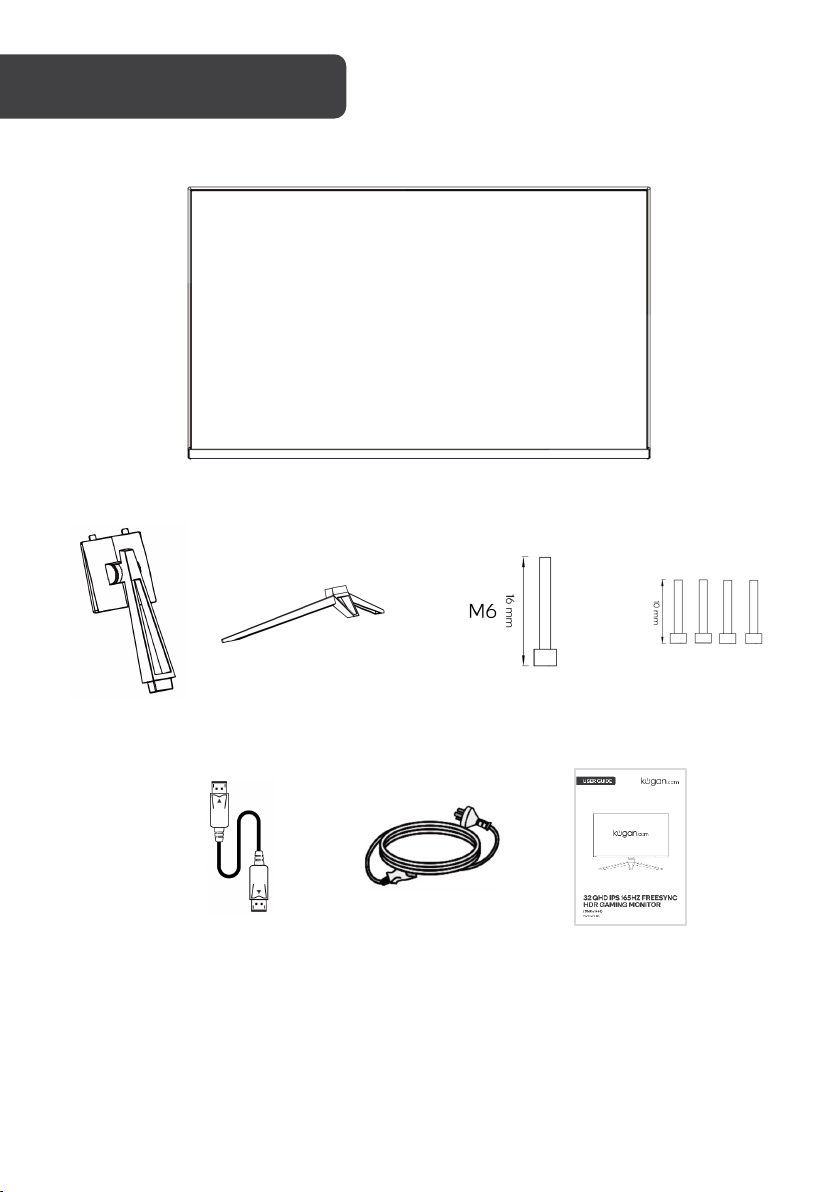

DisplayPort cable Power cable User guide

(M6 x 16mm) (x1)

VESA screws (x4)

1

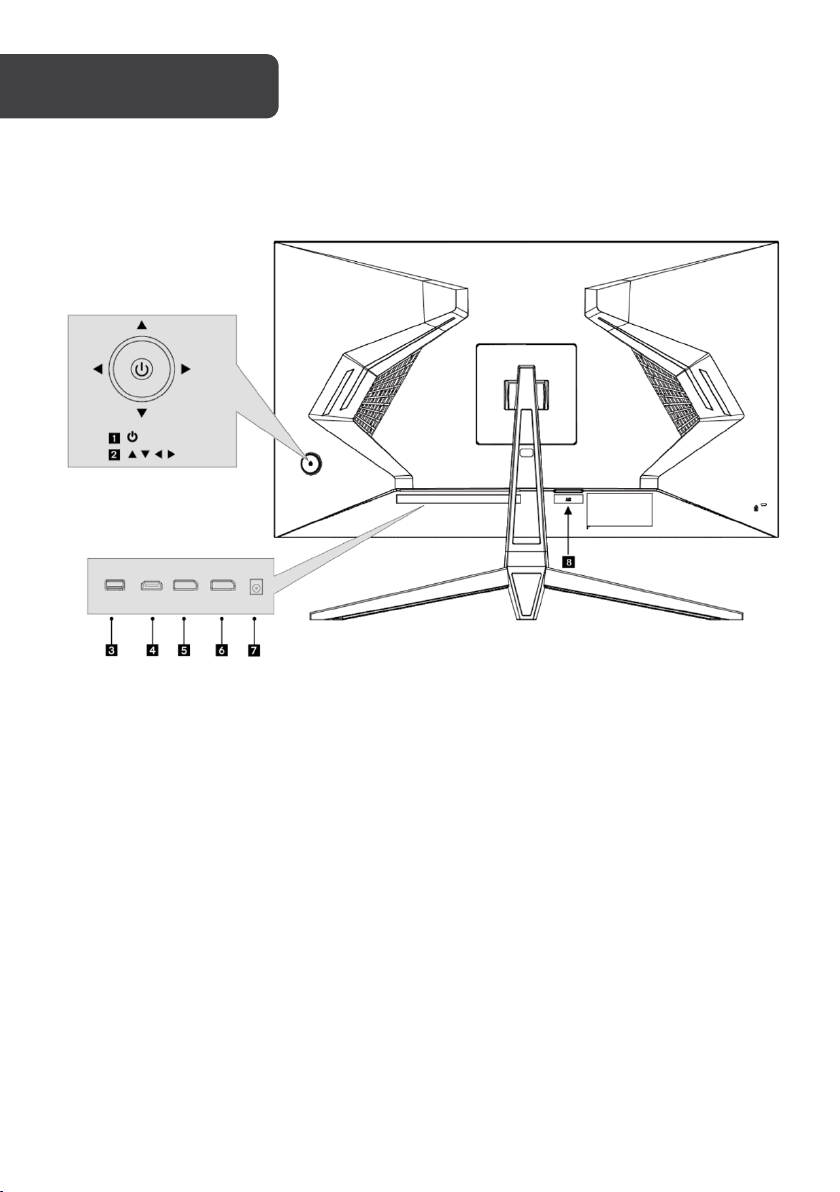

Power/OK button

5

DP port 1

2

Direction keys

6

DP port 2

3

USB

7

Audio out

4

HDMI port

8

Power connector

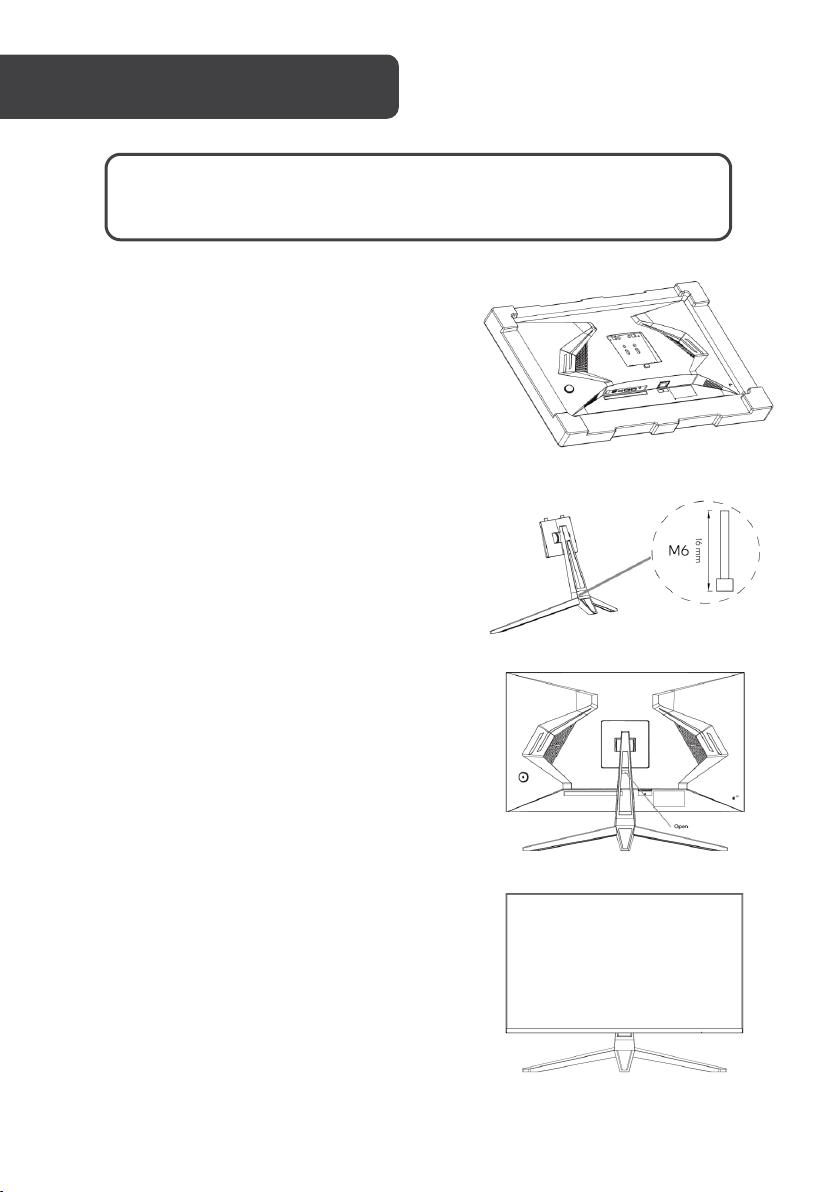

STAND ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam

underneath the monitor screen while assembling the stand.

1. Carefully remove the monitor, stand
connector and stand base from the box.

2. Attach the stand base to the stand
connector using the M6 screw provided.

3. Insert the connection block into the back
cabinet and push down until firmly
connected.

4. Lift monitor up straight and remove the
bottom foam. Stand the monitor up on the
installed base.

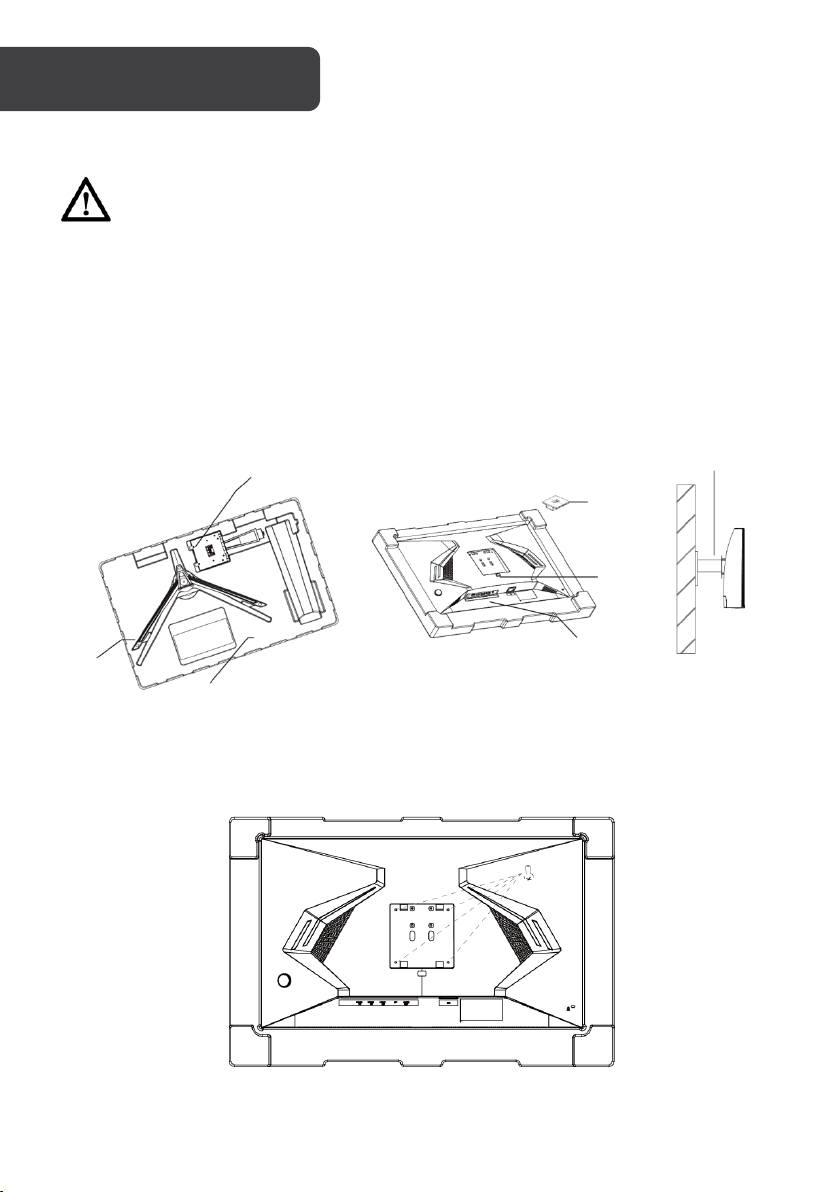

Note: VESA mount or mounting accessories are NOT included.

VESA mounting pattern is 100 x 100mm, screw size M4.

1. Open the box, remove the monitor with the protection foam attached and gently place
it on a desktop or table.

2. Remove the foam covering the back of the monitor and all additional components from
the packaging. Press the release button to remove the stand plate. If the monitor was
already attached to the stand, remove the stand.

Stand connector

Stand plate

Button

Mount

(not included)

Stand base

Foam

3. Follow the Mount Assembly Instructions as provided with the mount.

Monitor

Power cable

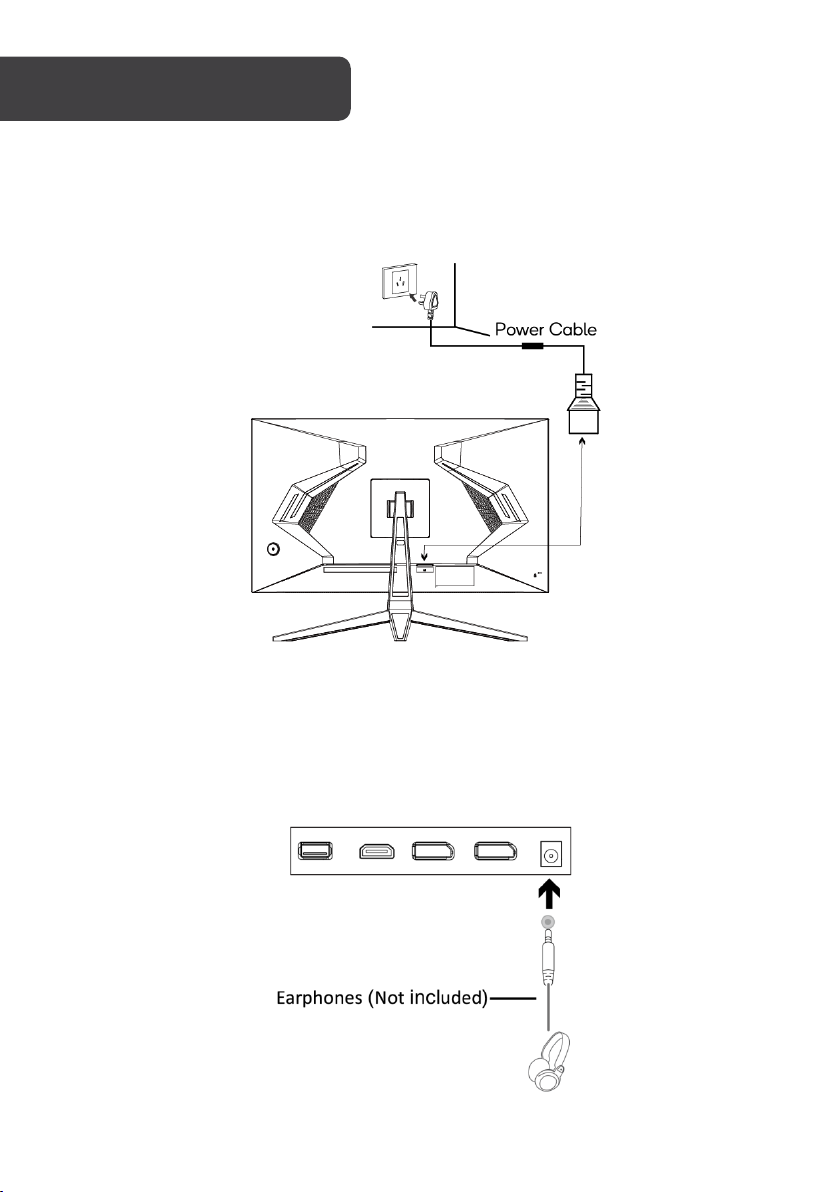

Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.

Earphones (Audio Out)

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.

Note: The monitor may need to be set as the PC’s default sound output device.

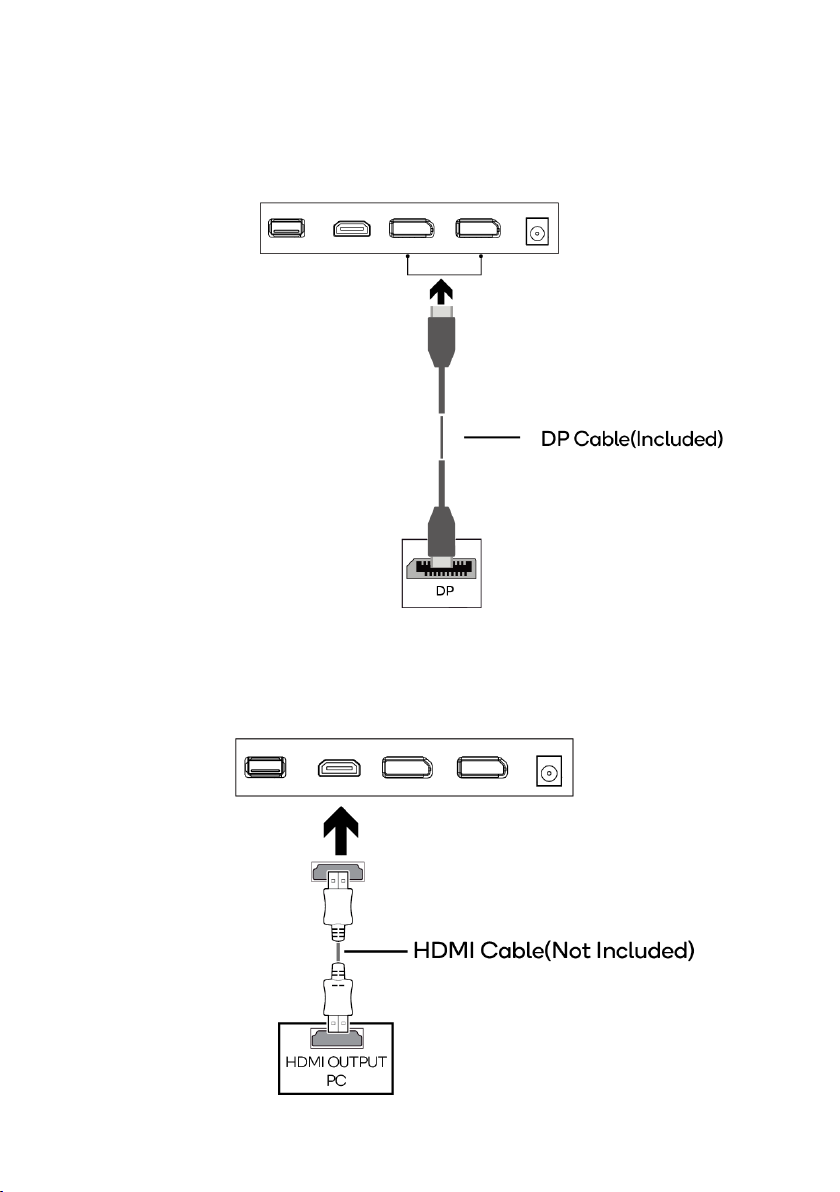

DisplayPort

In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort
cable to connect the monitor to the computer.

HDMI

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to
connect the monitor to the computer.

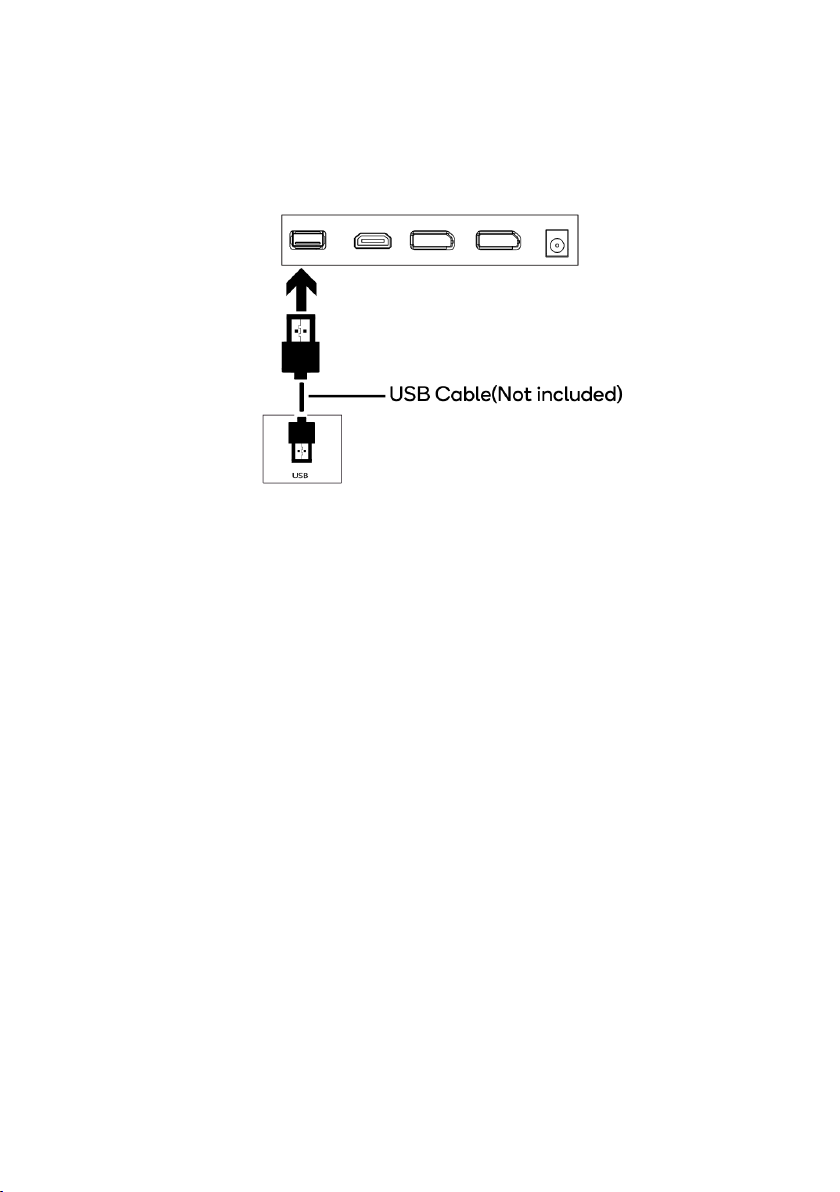

USB

In order to update the software, use a USB cable to connect the monitor to the computer.

Button

Action

Description

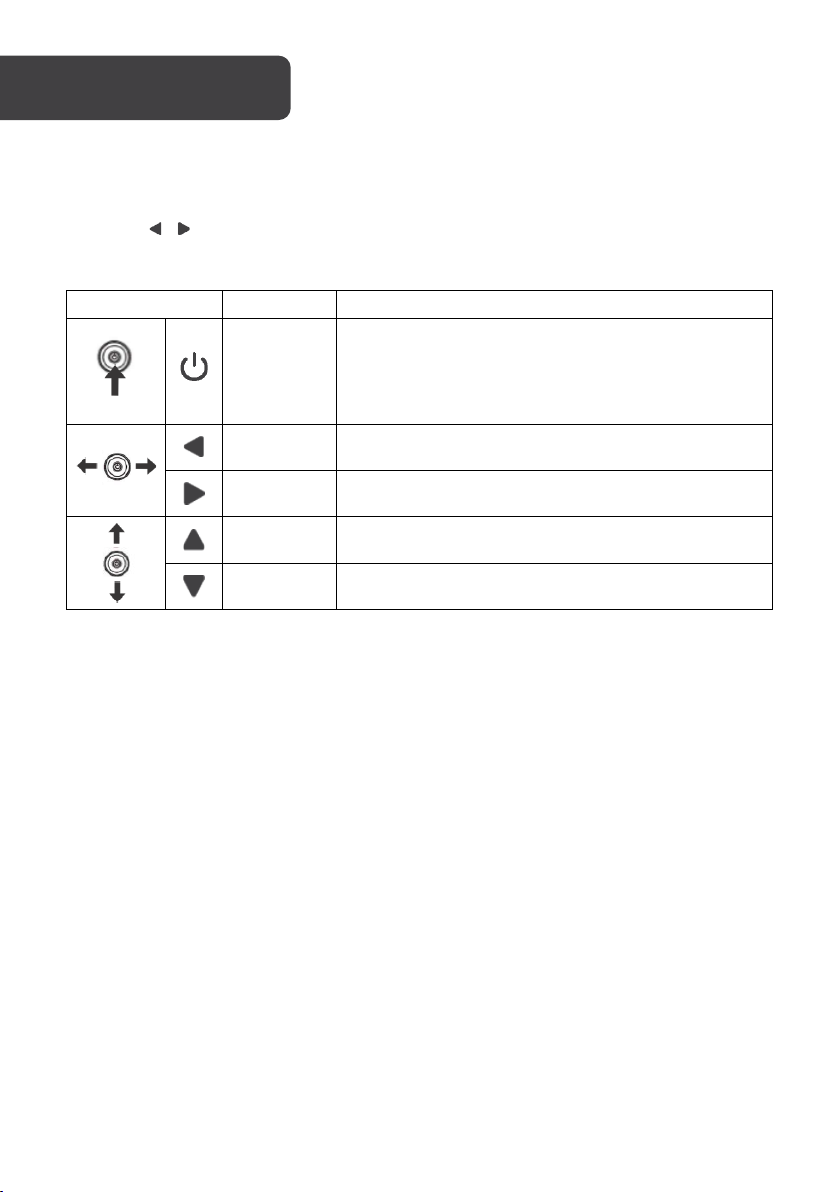

Monitor Control

You can easily control the functions of the monitor by pressing the Power button or moving

it left/right ( / ) with your finger.

• Pre

ss and hold for 6 seconds to turn the monitor on/off.

Press in

• When the display is turned on, press to wake up the
main menu for one second.

• Press to confirm menu selections.

Push left

Push right

Push up

Push down

• Enable the main menu or select the menu item.

• Exit from the main menu or return to the upper menu.

• Select menu items or increase the setting values of the

selected menu item.

• Select menu items or decrease the setting values of the
selected menu item.

Shortcuts:

• Source menu: Press RIGHT twice to access the signal source selection menu, use

the directional buttons to select the desired source and press Power to confirm.

• Display mode menu: Press LEFT twice to access the display mode menu, use the

directional buttons to select the desired display mode and press Power to confirm.

• Gameplus timer menu: Press the UP twice to access the Gameplus timer menu.

Select the desired timing length and press Power to confirm.

• Gameplus sight menu: Press DOWN twice to access the Gameplus sight menu.
Select the desired sight and press Power to confirm.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the
graphics drivers are fully up to date.

• After connecting, you may receive a prompt to enable the feature on your

computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.

• See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.

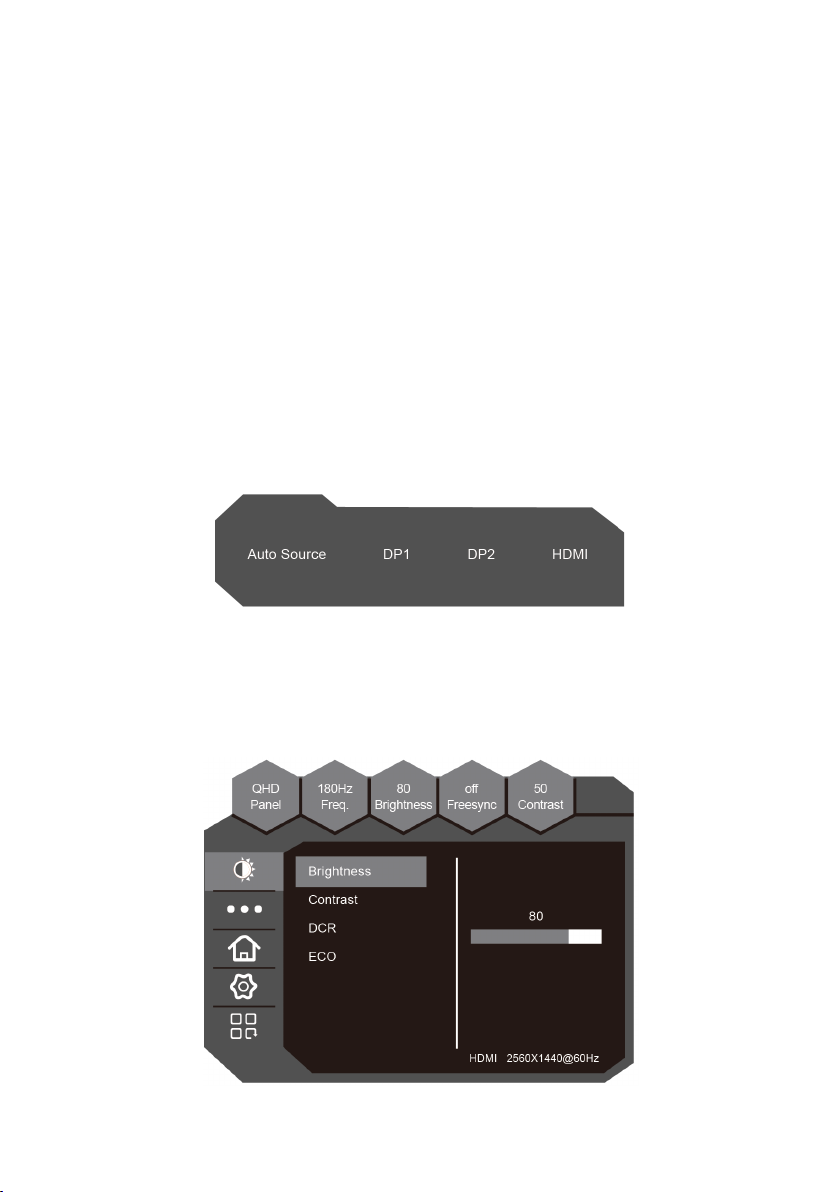

Display settings

When first using this monitor it will automatically configure the optimal display settings.

The On-Screen Display (OSD) Menu can be used to adjust your monitor’s display settings to
your liking. To access the OSD:

1. Press the direction button Right to activate the navigation window.

2. Press Power button to enter the OSD menu.

3. Press the direction buttons Up and Down to navigate functions.

4. With the desired function highlighted, press direction button Right to enter the sub­menu.

5. After making your desired adjustments press the Power button to confirm the
settings and exit the current screen.

6. Press the direction button Left to exit the current screen.

7. Refer to the following pages for a detailed list of the OSD menu functions.

Refer to the following pages for a detailed list of the OSD menu functions.

Menu

Sub-Menu

Options

Description

Brightness

~0-100

Adjust display brightness

Contrast

~0-100

Adjust display contrast

DCR

On / Off

Turns dynamic contrast ratio on/off

Standard, Photo,

RTS

Normal

Warm

Cool

User

Red

~0-100

Adjust red value (User mode only)

Green

~0-100

Adjust green value (User mode only)

Blue

~0-100

Adjust blue value (User mode only)

OSD H-Position

0-100

Adjust OSD horizontal position

OSD V-Position

0-100

Adjust OSD vertical position

Auto Source / DP1 /

Enable/disable monitor speaker
output

Reset

/

Restore factory defaults

ECO

Colour Temperature

Language

OSD Transparency 0-100 Set OSD overall transparency

OSD Time Out 0-100

Input Source

Game, Movie, FPS,

English, 简体中文,
한국어, Русский,

Español, Français,
日本语

DP2 / HDMI

Preset colour modes

Select colour temperature mode or
allow manual colour configuration in
User mode

Set OSD language

Set how long the OSD remains open
after last input

Select input source or allow manual
selection

Mute

Volume 0-100 Adjust monitor speaker volume

Audio Source DP1 / DP2 / HDMI

Firmware Update /

On / Off

When Open Multi-Window, this
option allows you to choose audio
source from different sources.

When Open Multi-Window, this
option allows you to choose audio
source from different sources.

Aspect Ratio

Wide Screen

4:3

1:1

Auto

Off

Low

Medium

High

This option turns on or off the HDR of

Press to turn the display backlight
Off

PiP Mode

PBP 2Win

PBP 3Win

Sub Win3

Select source to be displayed in the
Bottom Left

Sub Window

Select the display's aspect ratio

Low blue Light

Response Time

FreeSync

HDR

LED Mode

Multi­Window

Multi­Window

Sub Win2
Input

Input

PiP Size

Max High

On / Off

On / Off

On / Off / Auto

On / Off

DP1 / DP2 / HDMI

DP1 / DP2 / HDMI

Small / Medium /
Large

Blue light reduction adjustment

Enable or disable overdrive
for faster response time

Enable or disable AMD FreeSync

the monitor.

on/off.

Select multi-window mode

Select source to be displayed in the
second window

second window

Change the size of the sub window
in PIP mode

PiP
Position

Swap

Top Right

Top Left

Bottom Right

Main Window

Change the position of the
subwindow in PIP mode

Swap between the main and sub
window

Display modes

Press the Power button to the left to switch between the preset display modes. These
modes include: Standard, Text, Movie, Game, FPS and RTS. These modes are designed to

optimise settings according to your activity. Standard mode is suitable for most activities.

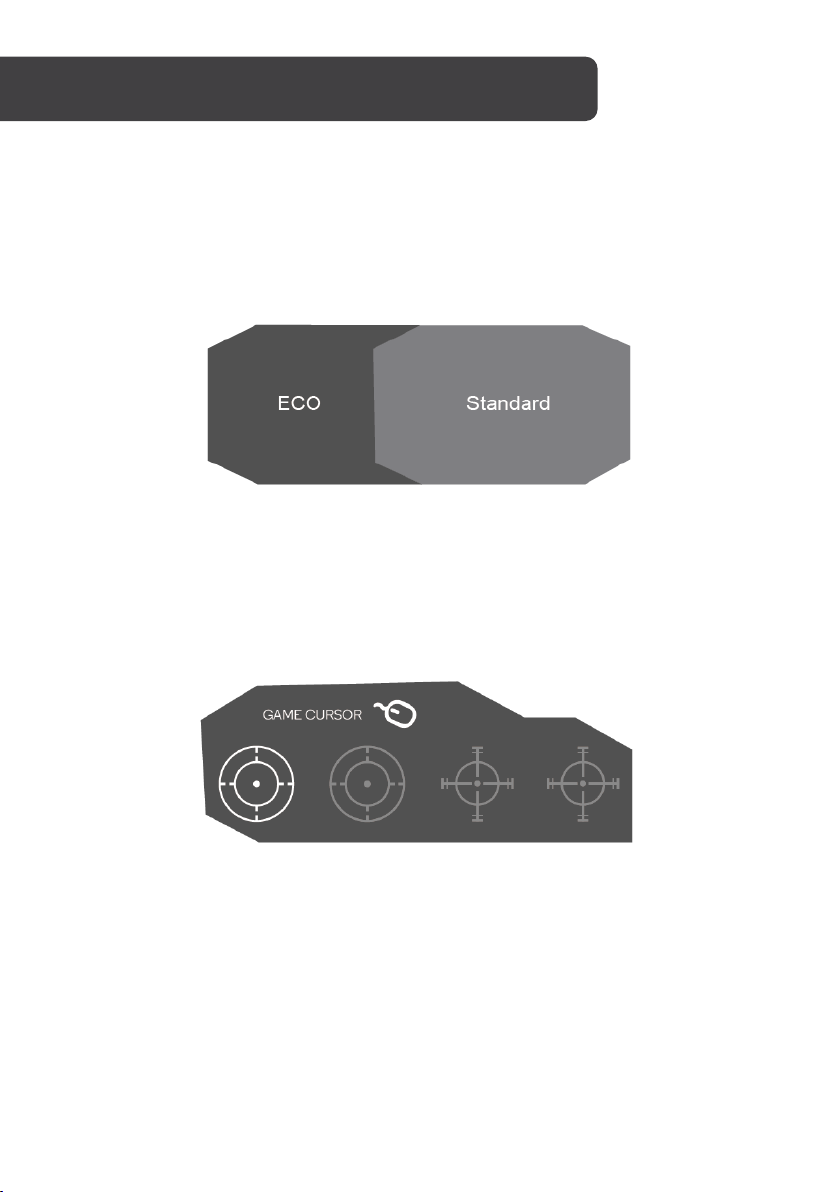

Gameplus

Press the Power button downwards
primarily designed to assist aim during first person shooter games.

to switch Gameplus modes. These overlay icons are

Screen size

32

Aspect ratio

16:9

Brightness

300cd/m2 (typical)

Panel

IPS

Resolution

2560 x 1440

Refresh rate

165Hz

Response time

5ms with Overdrive enabled (8ms typical)

Viewing angle

≥178°(H) / 178°(V)

Contrast ratio

1200:1

VESA mounting

100 x 100mm

Colours

16.7M

Signal input

HDMI 2.0 x 1, DP 1.4 x 2

Power

AC 100-240V ~50/60Hz 1.1A

Audio

Speakers

YES

Audio out

YES

Accessories

Power cable

YES

DisplayPort Cable

YES

Additional functions

Low Blue Light

YES

Flicker Free

YES

Physical dimensions

Dimensions (w. Stand)

717.36 x 504.89 x 249.47 mm

Dimensions (w/o Stand)

717.36 x 421.46 x 71 mm

Net weight

7.2KG

Gross weight

9.6KG

SPECIFICATIONS

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
