32” FULL HD IPS 75HZ FREESYNC
MONITOR
1920 x 1080
KAMN32F7SA
Page 2
Page 3
SAFETY & WARNINGS
Ensure to read all instructions and warnings in this user guide prior to assembly and use.
Retain this user guide for future reference.
• Ensure the monitor is unplugged before cleaning.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover
or block them.
• Do not insert any object or spray anything into the vents.
• Do not place the monitor near heaters, stoves, fireplaces, or other heat sources.
• Do not place the monitor in rooms lacking adequate ventilation.
• Do not position the monitor on unstable surfaces or unsafe locations. If the monitor
falls, it may be damaged and injure people around its vicinity.
• Unplug the monitor if it will not be used for an extended period.
• Do not place heavy objects on the monitor, its power cord, or any connected cable.
• Do not open the back panel of the monitor as it contains a high-voltage current even
when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia
Interface and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
Page 4

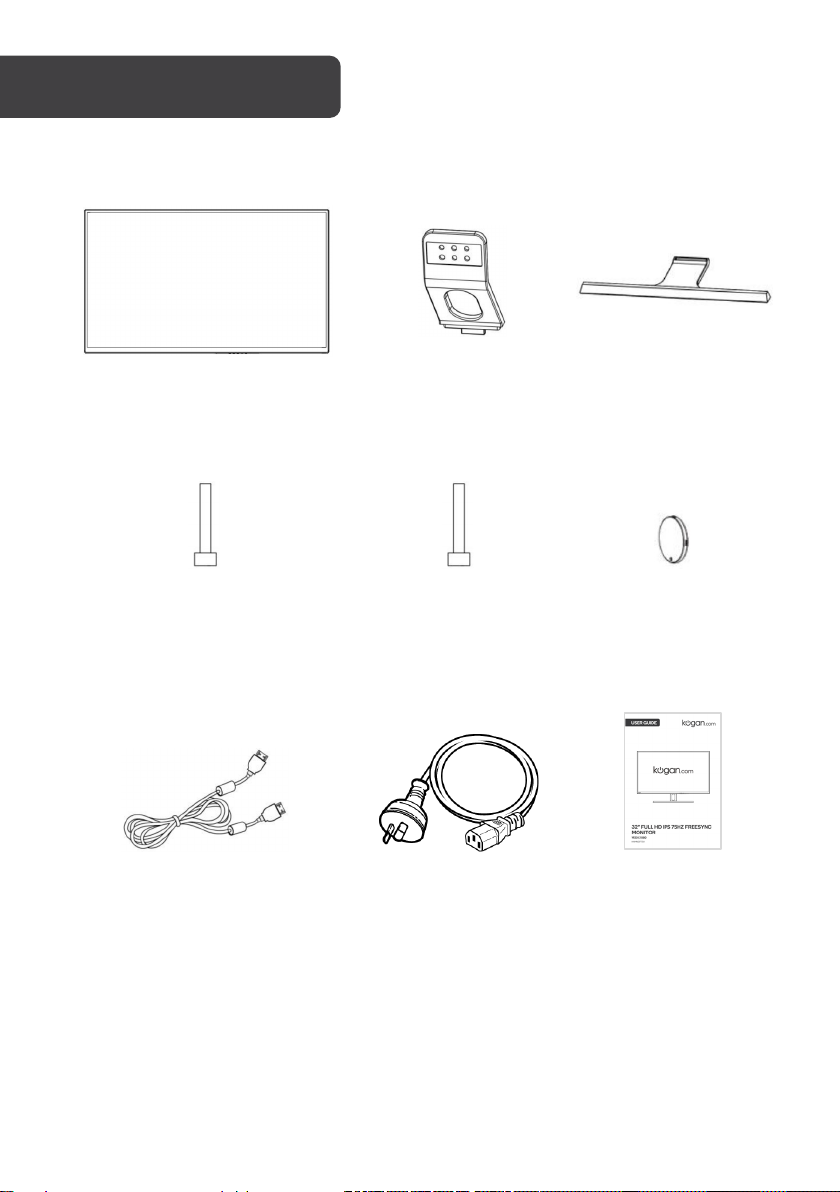

A Monitor (x1)
B Stand connector (x1)
C Stand base (x1)
D 10mm M4 stand base screw (x5)
E 10mm M4 VESA
screw (x4)
F Cover (x1)
G HDMI cable (x1)
H Power cable (x1)
I User guide (x1)
COMPONENTS
Page 5
OVERVIEW

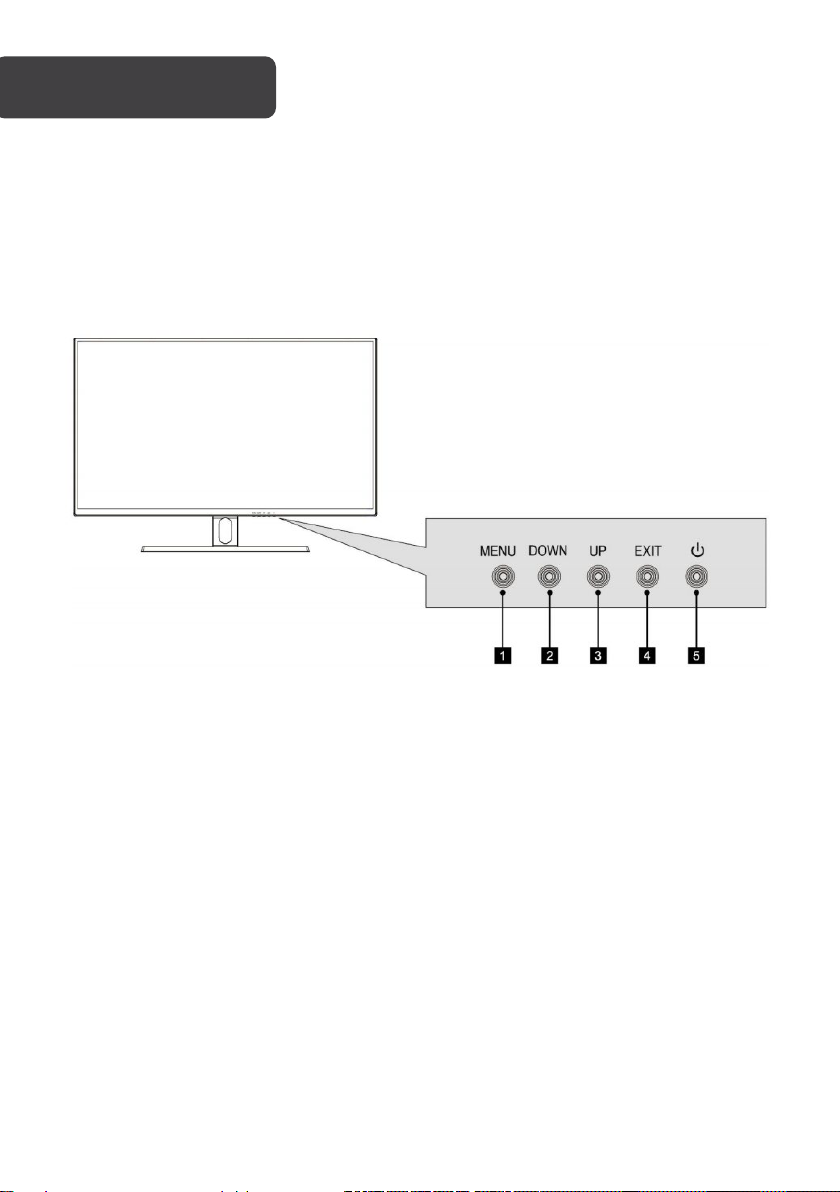

Front view
1 Menu button Press to display the OSD menu or enter sub-menus.
2 Down button Press to move down in the menu.
3 Up button Press to move up in the menu.
4 Exit button Press to exit.
5 Power button Press to turn the monitor ON/OFF.
Page 6
Back view

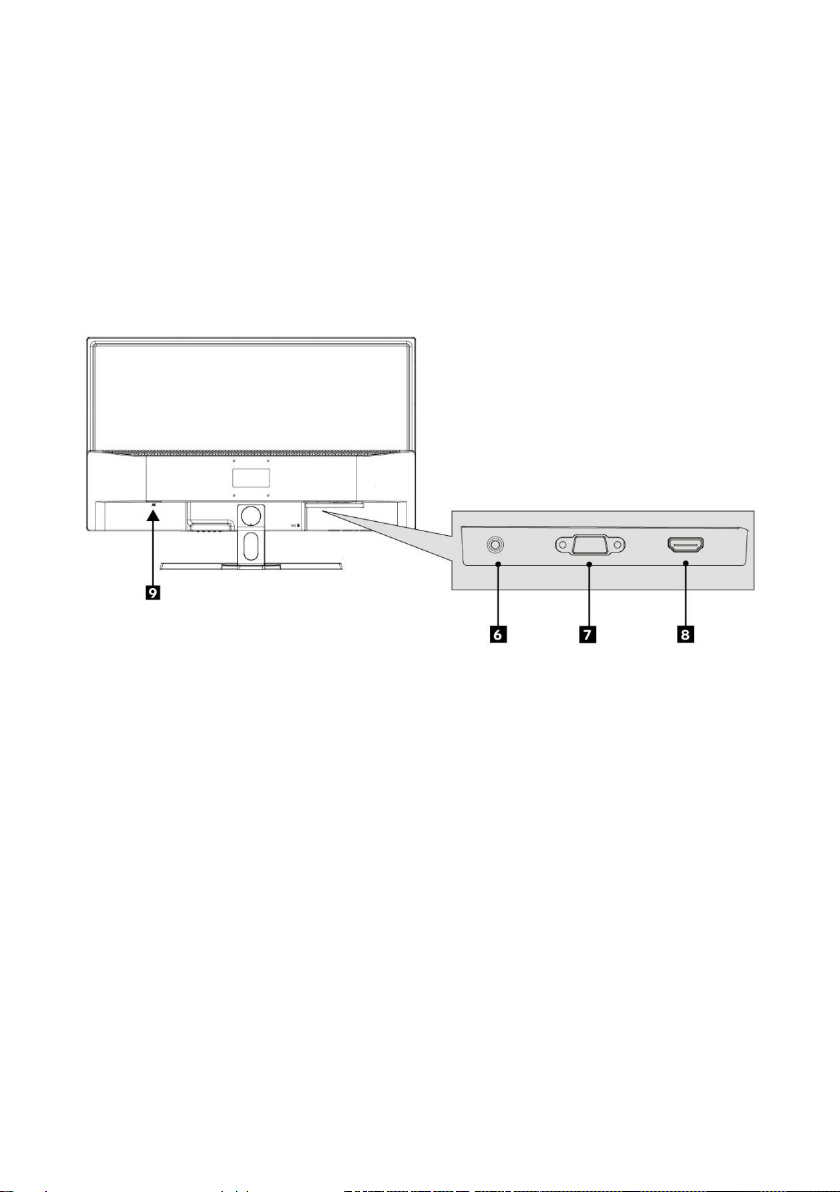

6 Audio output port
7 VGA port
8 HDMI port
9 Power port
Page 7
B
D C D F A
B
STAND ASSEMBLY
Attention:
The monitor is fragile. Keep the foam underneath the monitor while
assembling the stand.

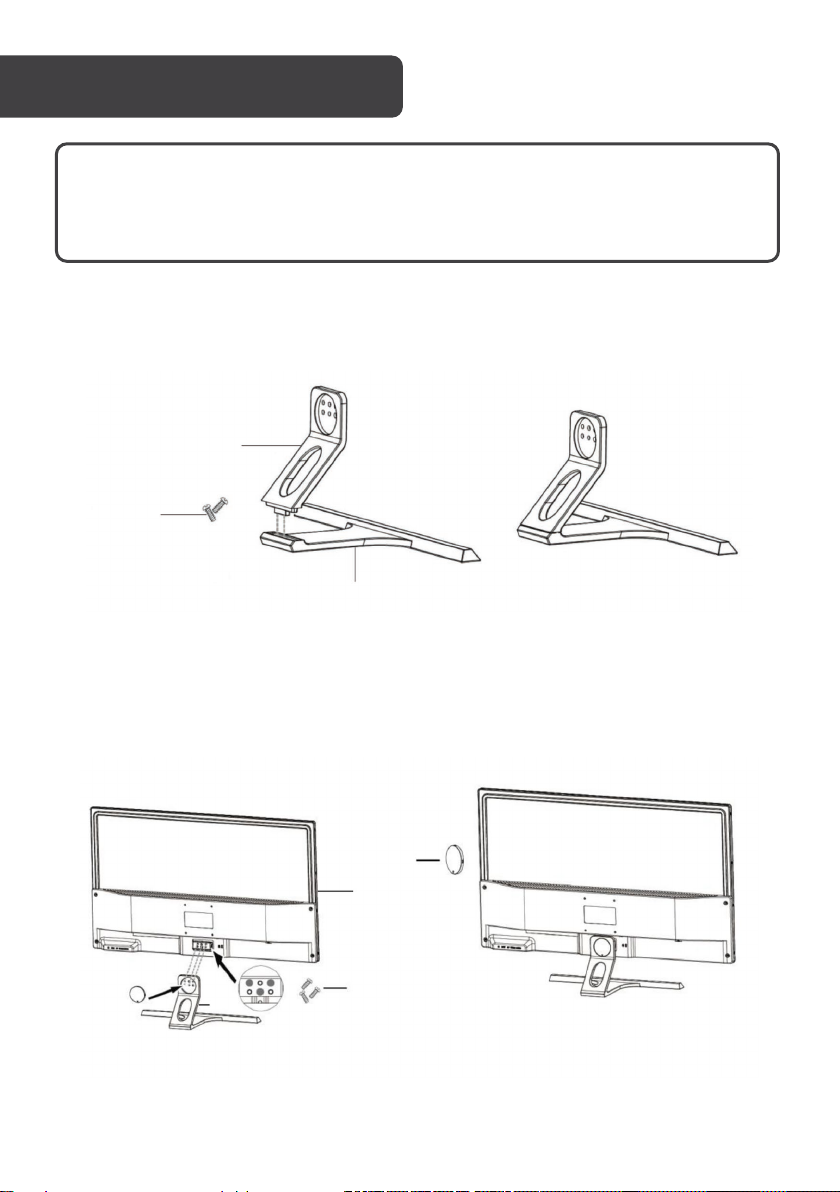

1. Open the packaging and remove the stand connector (B) and stand base (C). Using
a Phillips head screwdriver (not supplied), secure the stand connector (B) to the stand
base (C) with two 10mm M4 stand base screws (D).
2. Remove the upper foam and reveal the lower part of the monitor (A). Fix the monitor
(A) to the stand connector (B) with three 10mm M4 stand base screws (D) in the
marked grey holes as illustrated.
3. Place the cover (F) over the stand connector (B).
Page 8
Stand plate
Notes:
B C A
VESA MOUNT

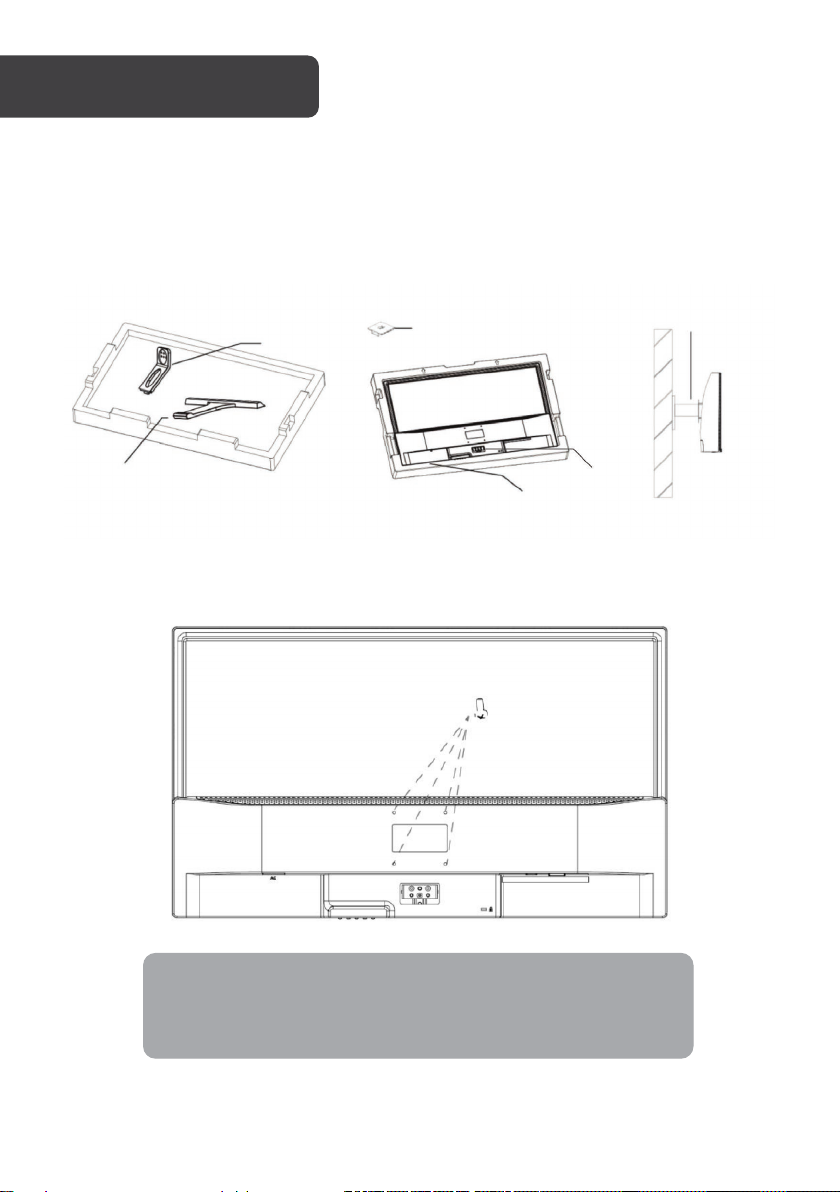

1. Open the packaging and take out the monitor (A) with the foam attached. Gently
place it on a desktop or table.
2. Remove the stand connector (B), stand base (C), and foam covering the back of the
monitor (A). Press the release button to remove the stand plate.
If the monitor was already attached to the stand, remove the stand.
Release
button
3. Mount the monitor (A) as desired with the steps provided with your VESA mount.
Mount (not
included)
• The mounting hole distance for this monitor is 75 x 75mm.
• VESA mount and mounting accessories are not included.
Page 9
Earphones
(Not included)
(not included)
(PC)
HDMI cable

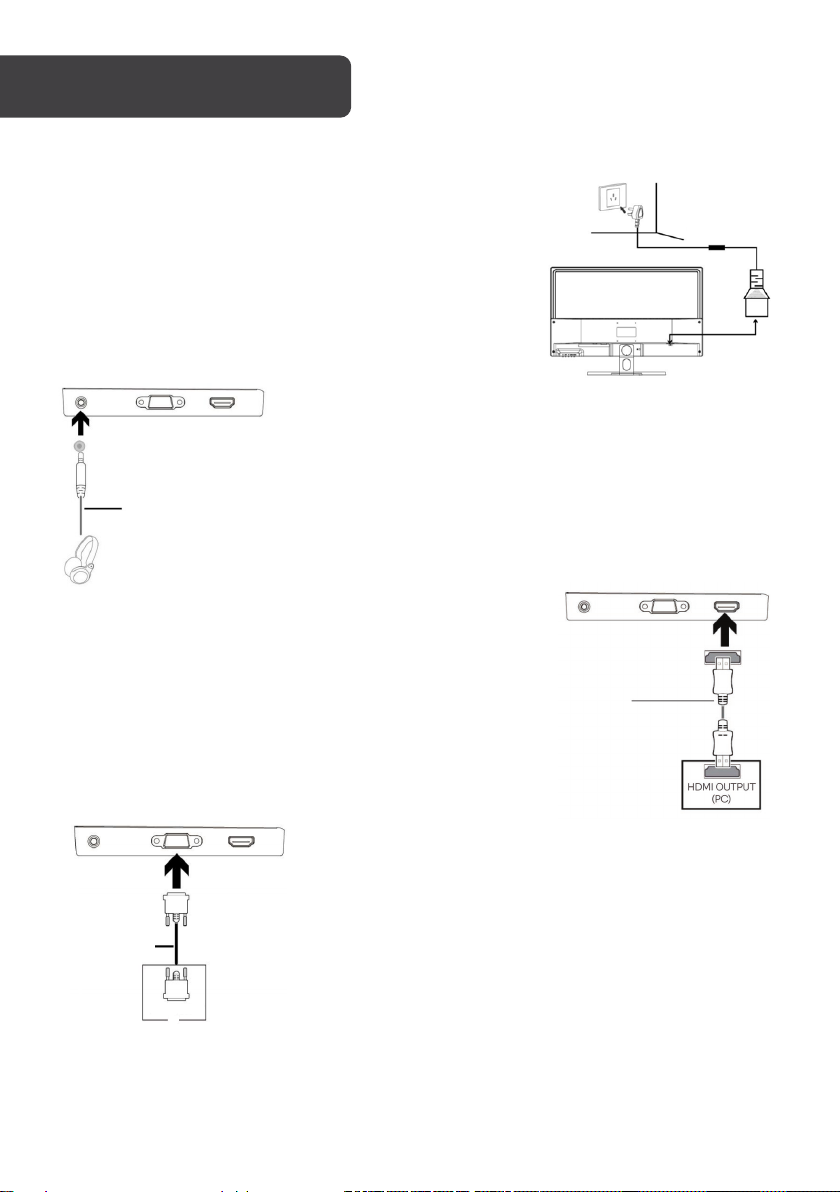

CONNECTIVITY
Power cable
Connect one end of the power cable into the power
port on the monitor. Connect the other end into a
power socket.
Earphones (audio out)
Earphones and other audio devices (not included) can
be connected to the audio output port on the monitor.
The monitor may need to be set as the PC’s default
sound output device.
HDMI
Connect the HDMI cable into your input device’s
display output and the monitor’s HDMI port.
Power cable
VGA cable
VGA OUTPUT
VGA
Connect a VGA cable (not included) into your input
device’s display output and the monitor’s VGA port.
Page 10
Note:
automatically.
OPERATION
1. Connect the monitor to the input device via HDMI or VGA.
2. Connect one end of the power cable to the monitor, then connect the other end
directly to a power socket. Turn on the power socket.
3. Press the power button to turn the monitor on.
4. When finished use, press the power button again to turn it off.
FreeSync
• To use this feature, ensure your hardware has FreeSync capabilities and the graphics
drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If
you do not receive the prompt, you may need to enable the function in your graphics
card menu.
• See your graphics card manufacturer’s documentation for instructions on how to turn
on and/or enable FreeSync.
On-screen display (OSD) menu
The OSD menu may be used to adjust the monitor’s settings.
When using the monitor for the first time, the monitor will configure to optimal settings
Page 11

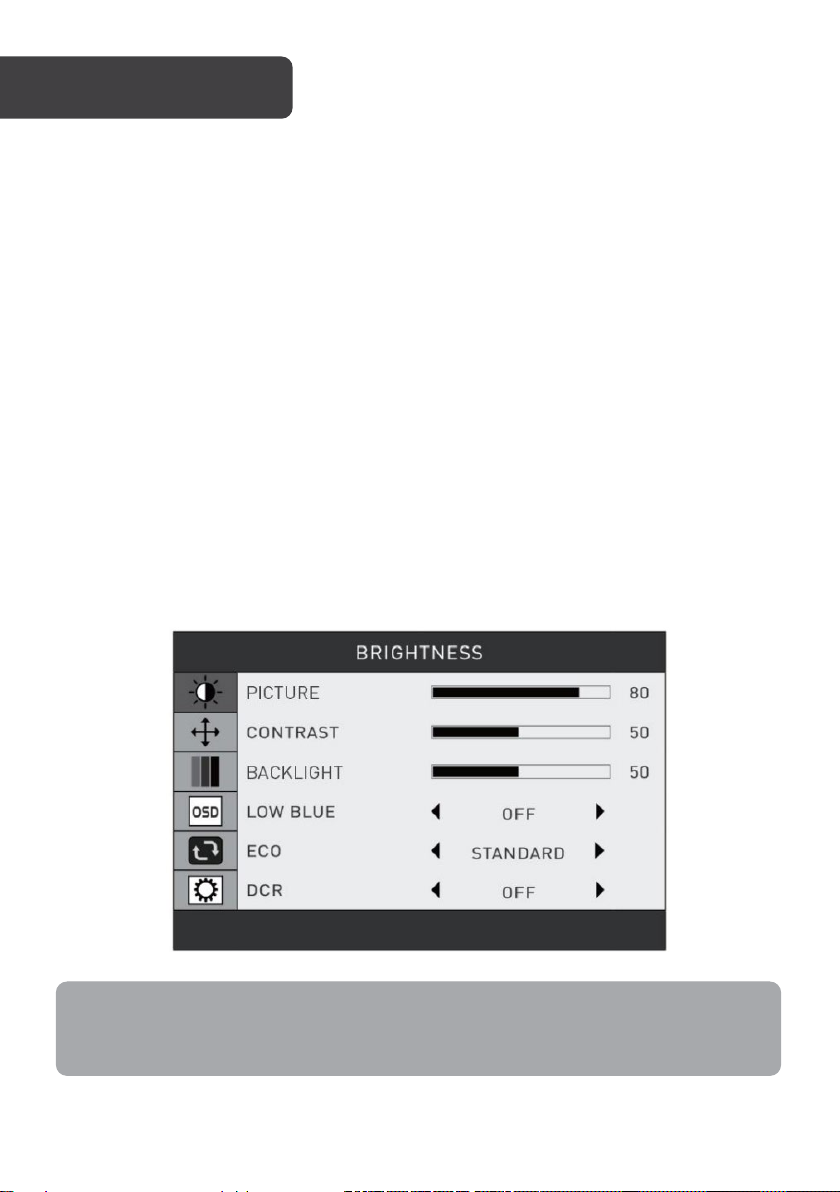

1. Press the menu button to enter the OSD menu.
2. Press up and down buttons to browse the settings categories. With the desired
category highlighted, press the menu button to enter the sub-menu.
3. Press the up and down buttons to browse the sub-menu. With the desired sub-menu
setting highlighted, press the menu button to select the sub-menu setting.
4. Press the up and down buttons to adjust the setting. Once adjusted, press the menu
button to confirm.
5. Press the exit button to return to the display.
OSD menu options
Below is a list of settings that can be adjusted in the OSD menu.
Category Sub-menu Setting Description
Brightness 0–100 Adjusts the display brightness
Contrast 0–100 Adjusts the display contrast
Backlight 0–100 Adjusts the display backlight
Brightness
Low blue ON/OFF
STANDARD/
ECO
DCR ON/OFF
Horizontal
position
Vertical
position
Clock 0–100 Adjusts the display clock setting
Phase 0–100 Adjusts the display phase setting
Aspect Wide (16:9), 4:3 Adjusts the aspect ratio
FreeSync ON/OFF Turns the FreeSync function on/off
TEXT/GAME/
MOVIE/FPS/RTS
0–100
0–100
Enables/disables the blue light
reduction function
Sets the display’s colour balance to
pre-set levels calibrated for different
uses.
Enables/disables the dynamic
contrast ratio function
Adjusts the horizontal position of the
video display area (VGA only)
Adjusts the vertical position of the
video display area (VGA only)
Page 12
Colour
Warm mode Red/green/blue Adjusts the red/green/blue levels
Cool mode Red/green/blue Adjusts the red/green/blue levels
User mode Red/green/blue Adjusts the red/green/blue levels
HDR mode On/Off Turns the HDR mode on/off.
English, 简体中文,
한국어, Русский,
Language
Español, Deutsch,
Italiano, Français,
Portugues, Turkce,
Polski, Nederlands
Sets the OSD language
OSD
H-position
OSD Setting
OSD
V-position
OSD
transparency
OSD time out 5–60
Image N/A
Colour N/A
Reset
Reset N/A
Timecount 10–90 mins
Misc Signal source VGA/HDMI Adjusts the input source
0–100
0–100
0–100
Adjusts the horizontal position of the
OSD menu
Adjusts the vertical position of the
OSD menu
Adjusts the transparency of the
OSD menu
Sets how long the OSD menu will
remain on-screen after no input
(seconds)
Restores the display to VGA image
defaults
Automatically configures the VGA
colour settings
Restores the monitor to factory
default settings
Adjusts how long the time count
function should be set for
Page 13
ECO modes
There are various pre-set colour modes suited for various use cases available on this monitor.
These can be accessed using the ECO modes menu. The modes include the following:
• Standard (suitable for most activities)
• Text (best suited when reading text)
• Game (best suited for general gaming)
• Movie (best suited when watching movies)
• FPS (best suited when playing first-person shooter games)
• RTS (best suited when playing real-time strategy games)

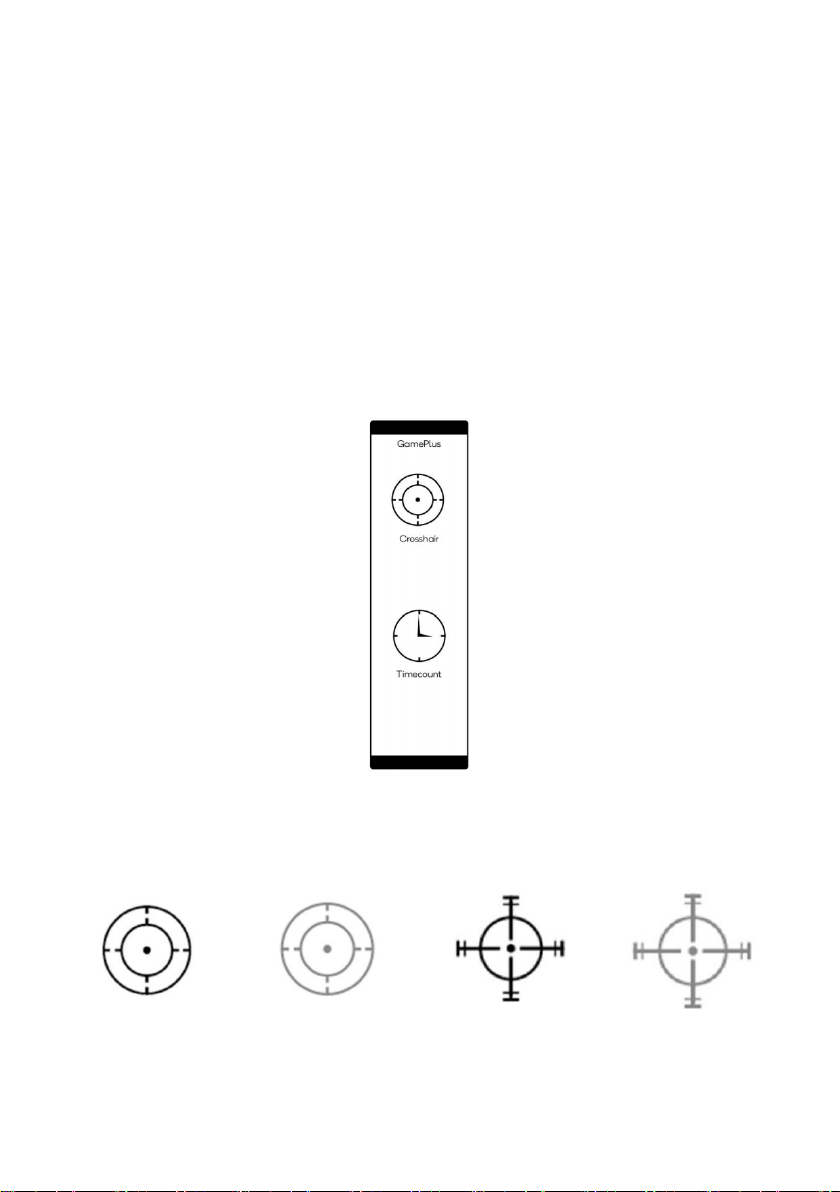

GamePlus menu
To access the GamePlus menu, press the exit button, followed by the menu button.
The GamePlus menu allows users to access two settings:
• Crosshair – Allows users to change the appearance of the crosshair used when
gaming)
• Timecount – Allows users to turn on a timer to record how long the monitor has been
used (10–90mins).
Page 14
Note:
CLEANING & CARE
• To clean the screen, turn it off, unplug it, and wait for it to cool completely. Wipe it with
a dry micro-fibre cloth.
• To clean the body, wipe with a clean, slightly dampened cloth.
Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.
SPECIFICATIONS
Screen size 32”
Aspect ratio 16:9
Brightness 300cd/m² (typical)
Panel IPS
Resolution 1920 x 1080
Refresh rate 75Hz
Response time 8ms
Viewing angle ≥178°(H)/178°(V)
Contrast ratio 1000:1
VESA mounting 75 x 75mm
Colours 16.7M
Signal input HDMI 1.4 x1, VGA x1
Power supported 100–240V, 50/60Hz, 1.1A
Page 15
Audio
Speakers No
Accessories
Power cable Yes
HDMI cable Yes
Additional functions
Low blue light Yes
Flicker-free Yes
Physical dimensions
Dimensions (w. stand) 720.5 x 84.6 x 507.0mm
Dimensions (without stand) 720.5 x 42.9 x 423.1mm
Net weight 6.3kg
Gross weight 8.2kg
Page 16
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
