Kogan KAMN32F7CSA User Manual

32 FULL HD CURVED
FREESYNC GAMING MONITOR

(1920 x 1080, 75Hz)

KAMN32F7CSA

The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain this user guide for future
reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly-dampened cloth to wipe the main monitor body.

• To c l e a n t h e s c r e e n : t u r n i t o f f , u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y , t h e n w i p e i t

with a dry microfibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not cover or

block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as

well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged
and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current even

when not plugged in.

Monitor

Stand arm

Stand base

Stand base screw

(M4 x 16mm)

VESA screws (x4)

HDMI cable

Power cable

User guide

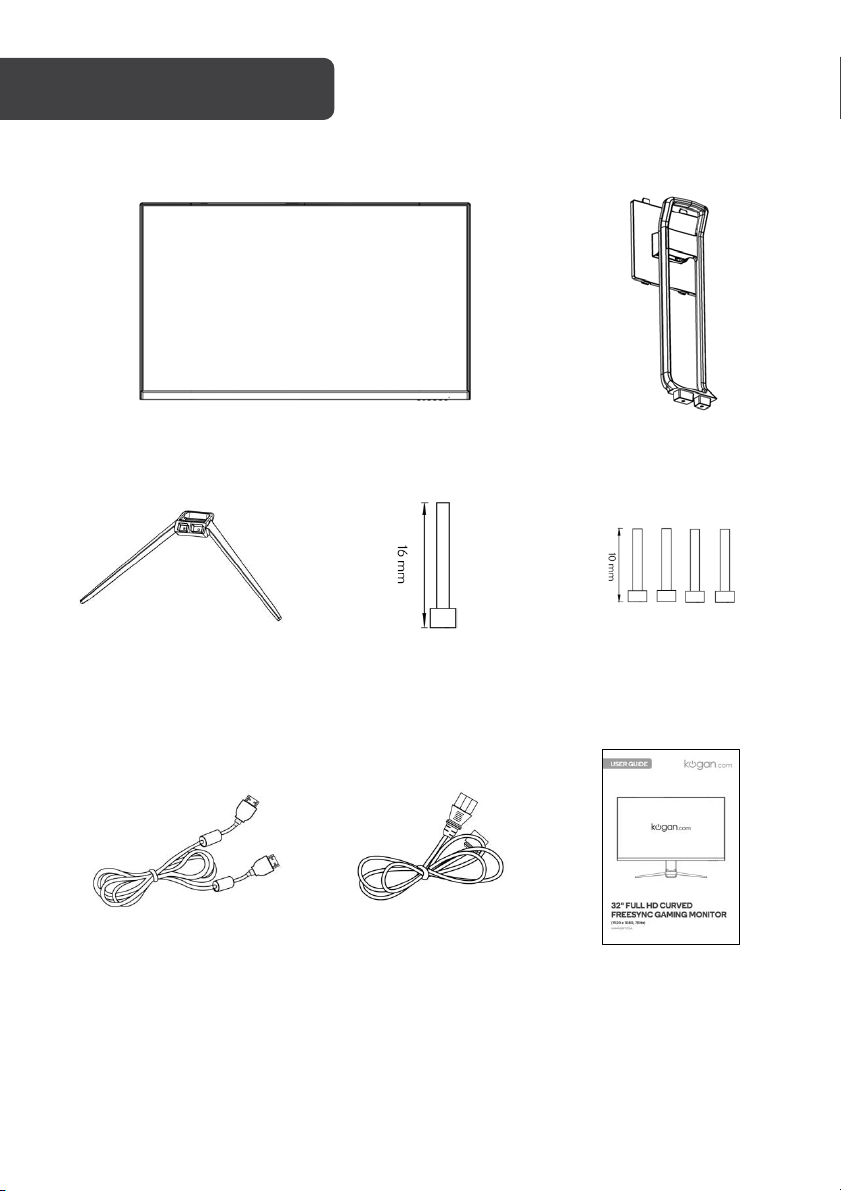

COMPONENTS

1

Backlight button

Press to turn the display backlight on/off.

2

Menu button

Press to display the OSD menu or enter sub-menus.

3

Down button

Press to move down in the menu.

4

Up button

Press to move up in the menu.

5

Exit button

Press to exit the menu.

6

Power button

Press to turn the monitor ON/OFF.

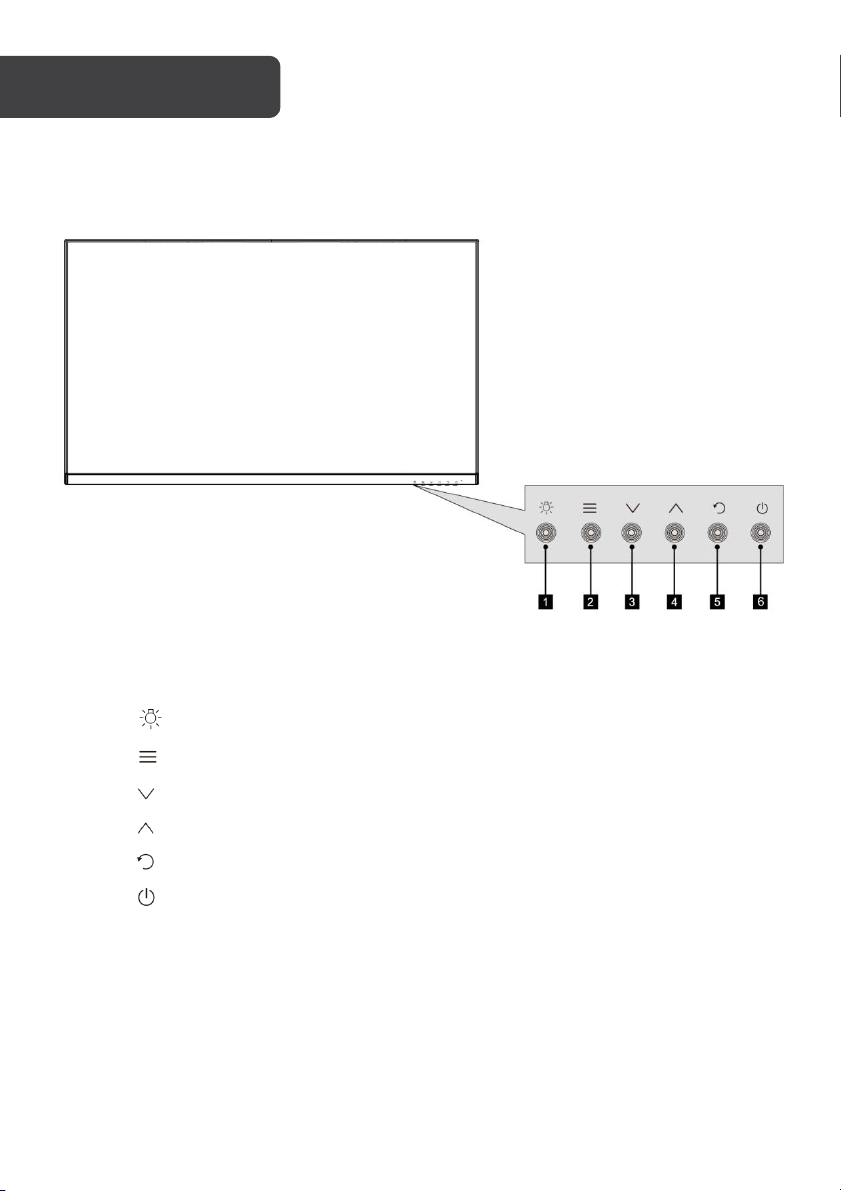

OVERVIEW

Monitor Controls

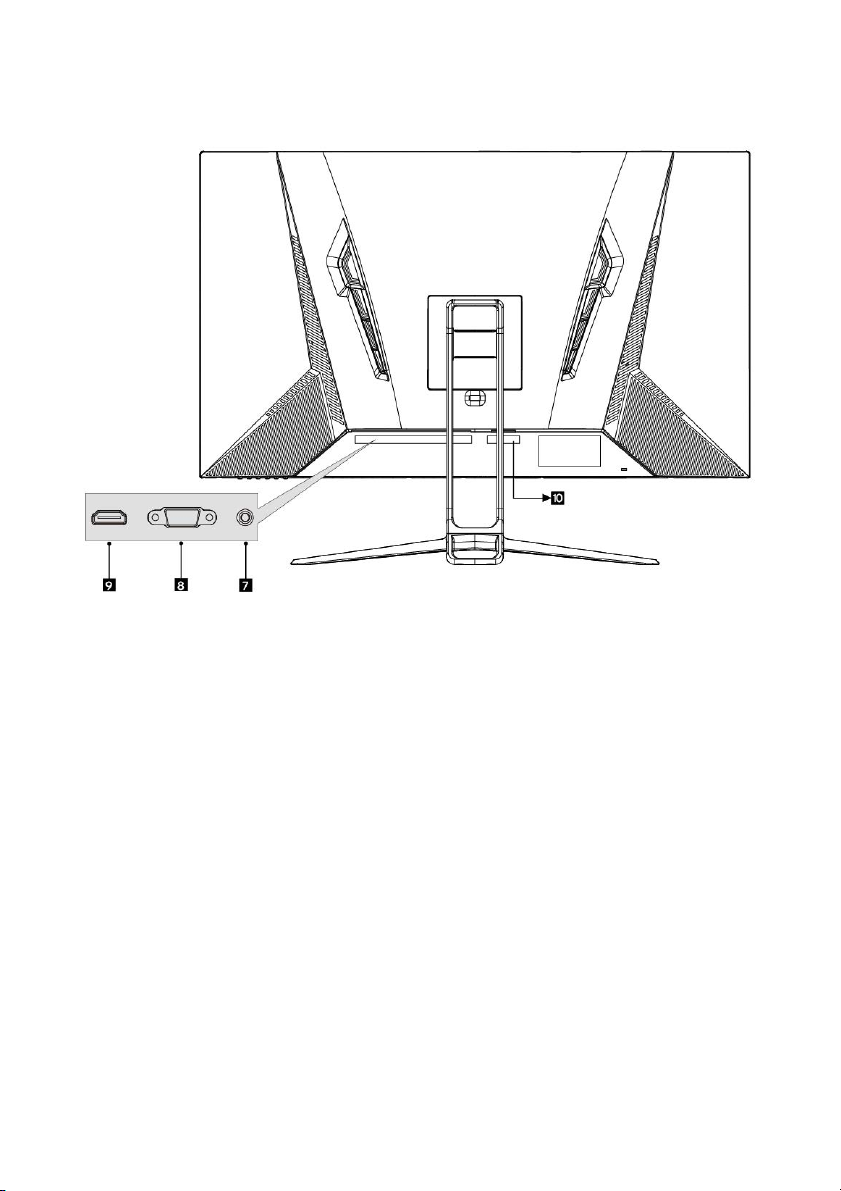

Monitor Ports

7

Audio in

8

VGA input

9

HDMI input

10

Power input

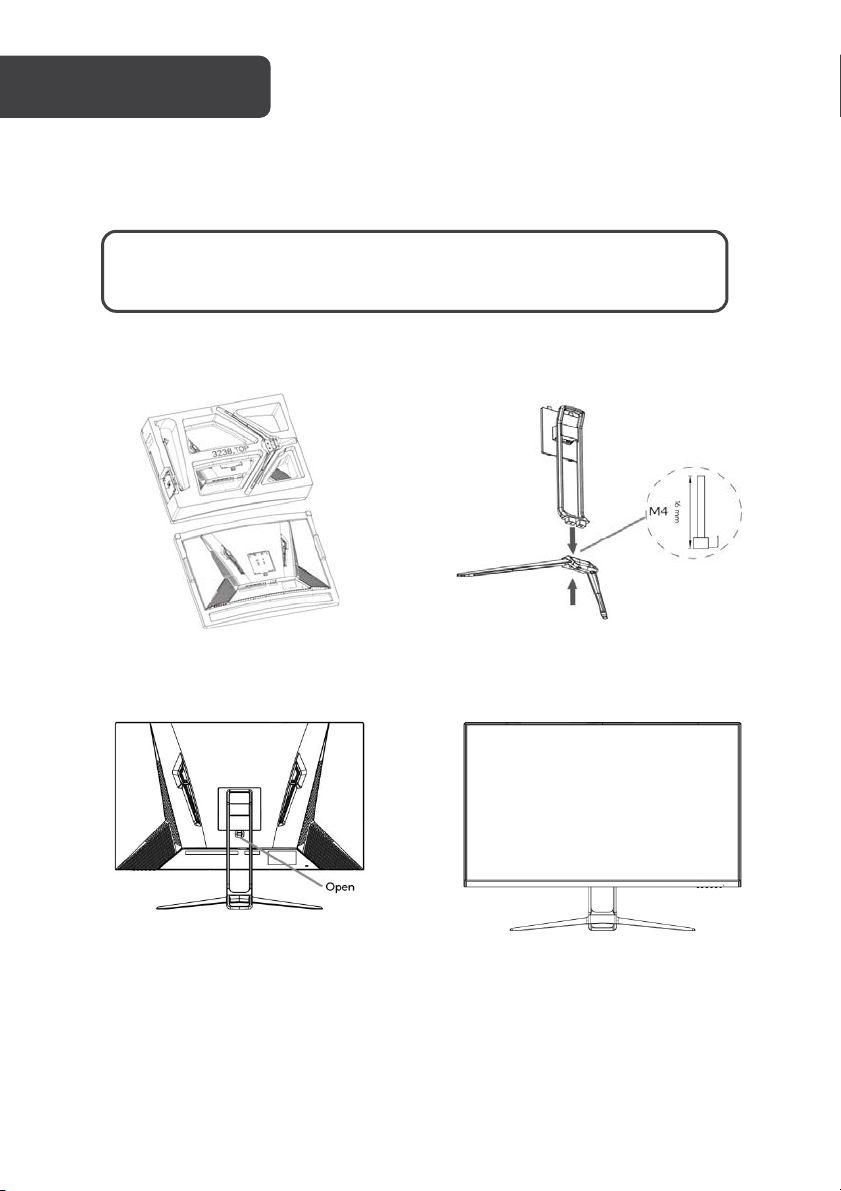

1. Carefully remove the monitor, stand
arm and stand base from the box.

2. Attach the stand base to the stand
arm using the M4x16 screw provided.

3. Insert the stand arm block into the
back cabinet and push down until
firmly connected.

4. Lift the monitor up straight and
remove the bottom foam. Stand the
monitor up on the installed base.

ASSEMBLY

WAR NIN G: The panel of the monitor is fragile. Keep the foam

underneath the monitor screen while assembling the stand.

Before disposing of any packaging, place all items on a soft, clean and flat surface to
ensure all components are accounted for.

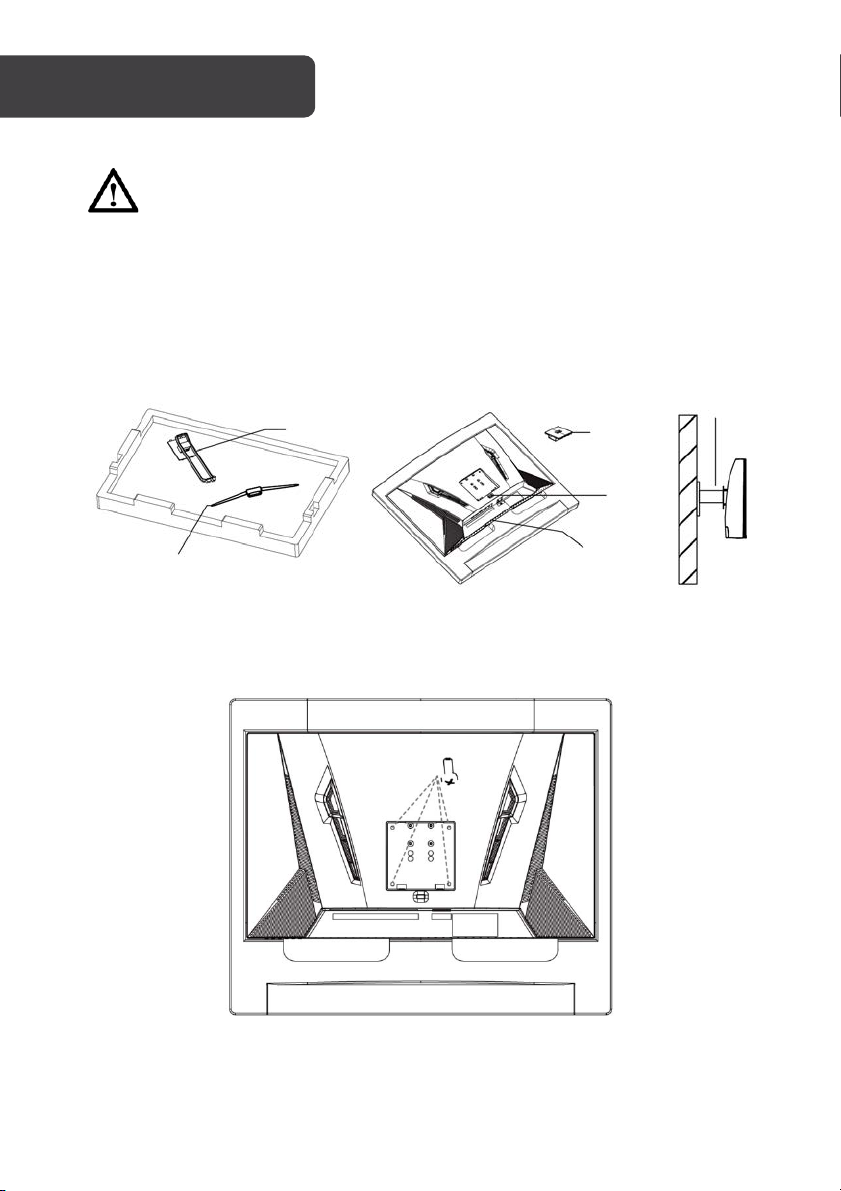

VESA MOUNT

VESA mounting pattern 100 x 100mm, screw size M4.

Note:

VESA mount or mounting accessories are NOT included.

Stand base

Monitor

Stand
plate

Button

Stand arm

Mount (not included)

Open the box, take out the monitor with protection form attached and gently place it on a
desktop or table. Remove the extra parts and the foam covering the back of the monitor.
Press the release button to remove the stand plate. If the monitor was already attached to
the stand assembly, remove it.

Assemble the mount following the instructions provided with the mount.

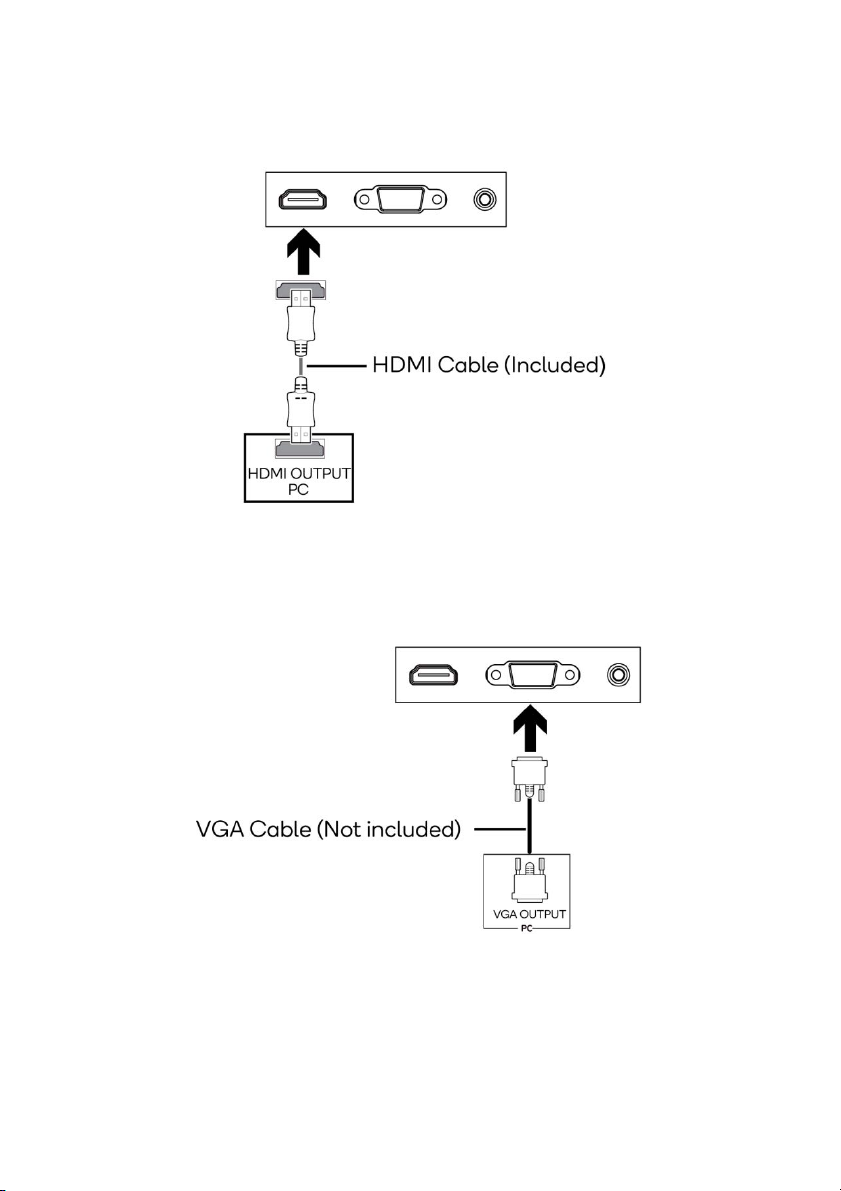

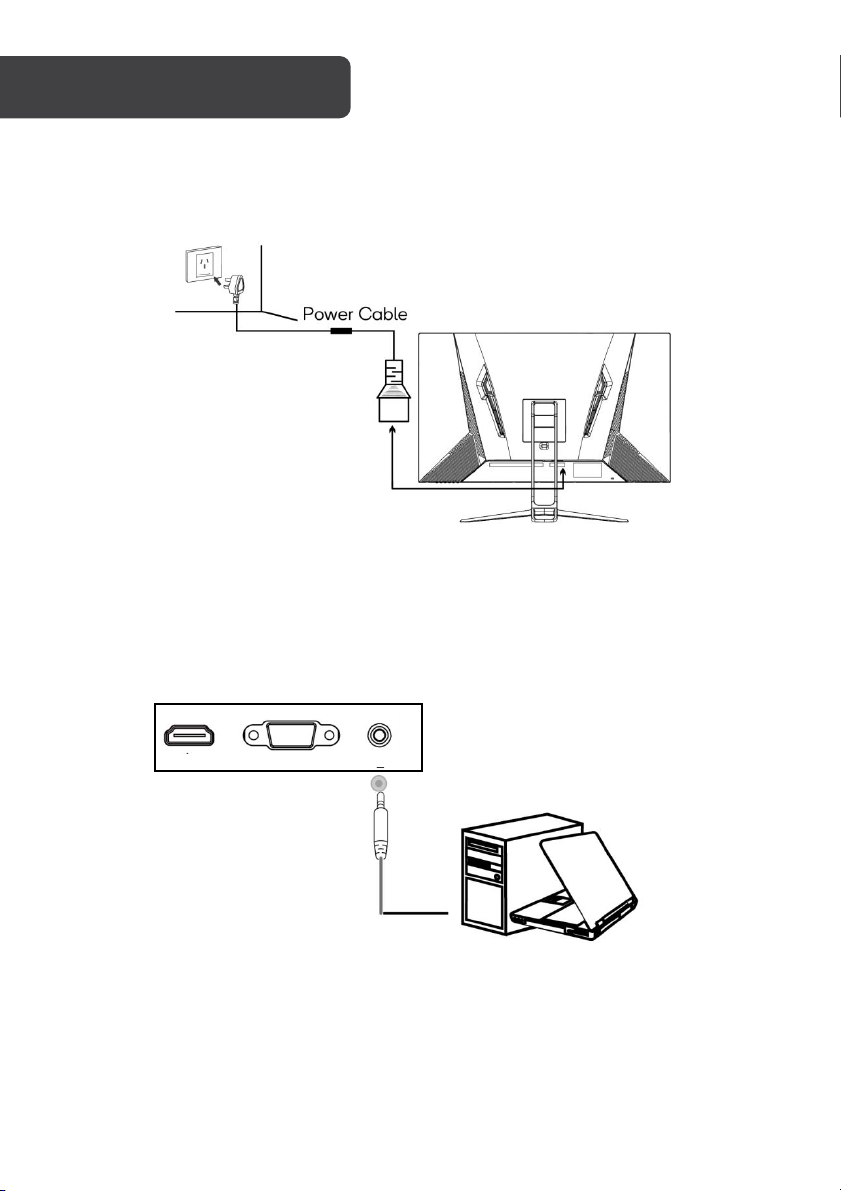

CONNECTIVITY

Power

Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.

Audio In

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.

HDMI

Connect an HDMI cable from the computer’s display output to the monitor’s display input.

VGA

Connect a VGA cable from the computer’s display output to the monitor’s display input.

OPERATION

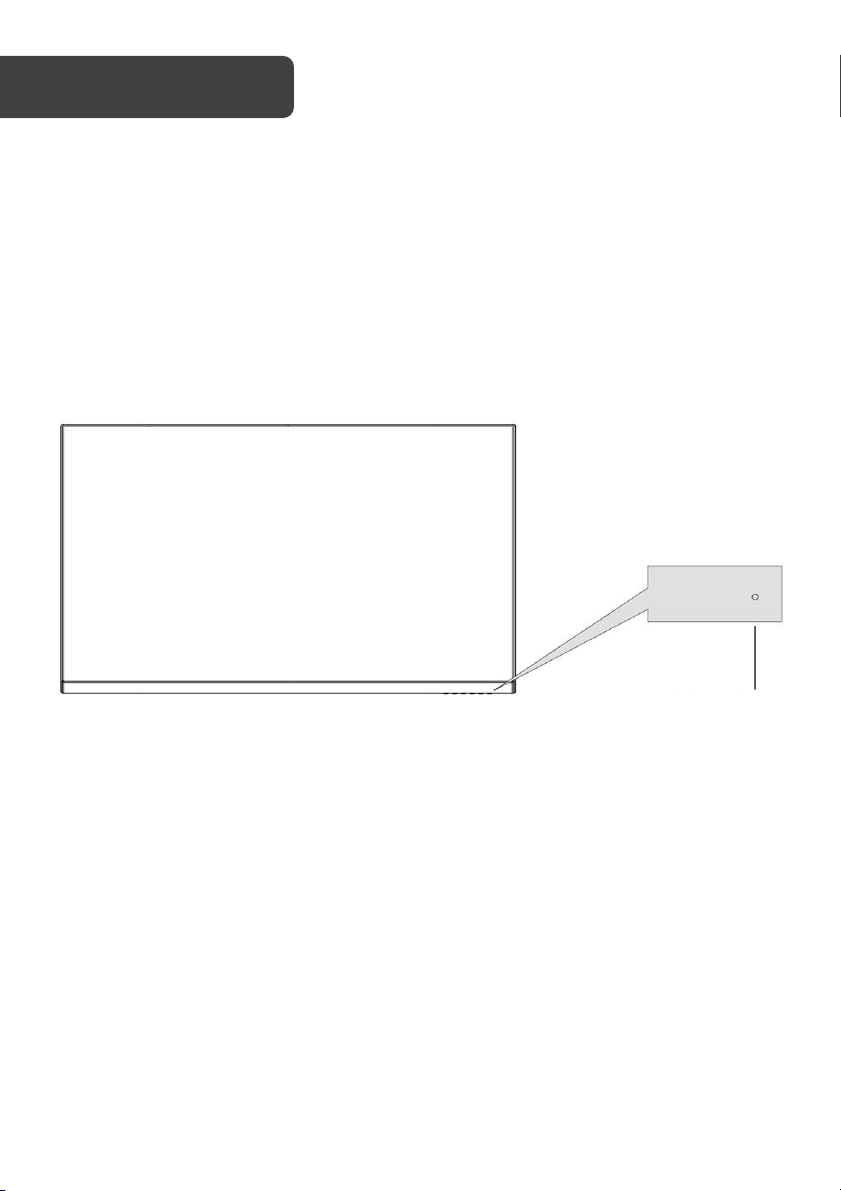

Indicator light

1. Connect the monitor to the input device via HDMI or VGA.

2. Connect the power cable to the monitor, then connect the other end directly to a

power socket.

3. Use the power button to turn the monitor on.

Indicator Light

The indicator light will illuminate green when the monitor is powered on.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the
graphics drivers are fully up to date.

• After connecting, you may receive a prompt to enable the feature on your computer. If
you do not receive the prompt, you may need to enable the function in your graphics
card menu.

• See your graphics card manufacturer’s documentation for instructions on how to turn
on and/or enable FreeSync.

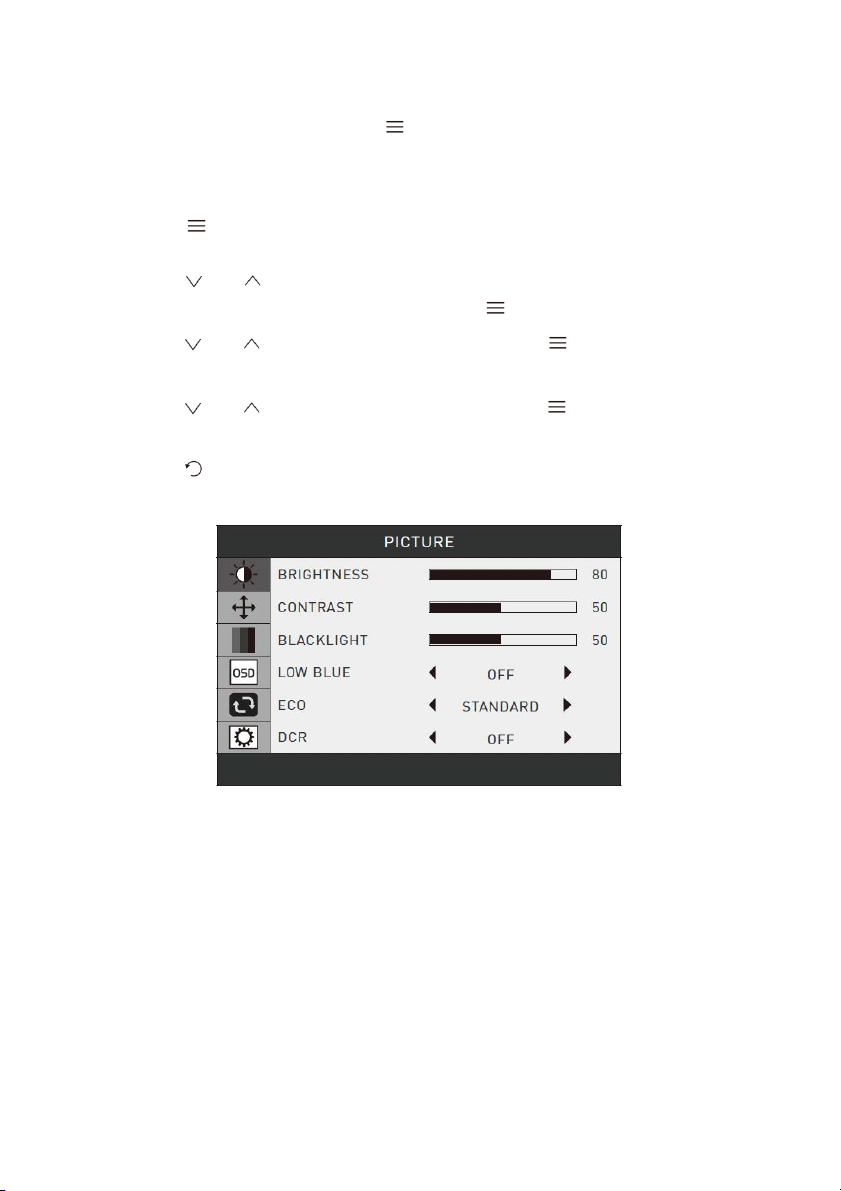

The On-Screen Display (OSD)

The OSD menu may be used to adjust your monitor’s settings and appears on screen after
turning on the monitor and pressing the “ ” button.

When using the monitor for the first time, settings will automatically adjust to optimal
parameters according to your computer’s configuration and parts etc.

1. Press “ ” to enter the OSD menu.

2. Press “ ” or “ ” to browse functions.

With the desired function highlighted, press “ ” to enter the sub-menu.

Press “ ” or “ ” to browse sub-menus, then press “ ” to highlight the desired
function.

Press “ ” or “ ” to highlight an option, then press “ ” to confirm the settings
and exit the current screen.

3. Press “ ” to exit the current screen.

List of Functions

Main Menu

Sub-Menu

Options

Description

Brightness


~0-100

Adjust display brightness

Contrast

~0-100

Adjust display contrast

Blacklight

~0-100

Adjust display Blacklight

Low blue

On

Enable/disable blue light reduction

Off

ECO

STANDARD/
TEXT/GAME/
MOVIE/ FPS/RTS

Preset colour modes

DCR

On

Enable/disable dynamic contrast
ratio

Off


Horizontal
position

~0-100

Adjust video display area left to right
(VGA only)

Vertical
position

~0-100

Adjust video display area up and
down (VGA only)

Clock

~0-100

Adjust display Clock

Phase

~0-100

Adjust display Phase

Aspect

Wide (16:9), 4:3

Adjust display Phase Aspect

FreeSync

On/Off

Adjust display FreeSync On/Off

Colour

Warm mode

Red/green/blue

Adjust red/green/blue levels

Cool mode

Red/green/blue

Adjust red/green/blue levels

User mode

Red/green/blue

Adjust red/green/blue levels

HDR mode

On/Off

Enable or disable HDR mode

OSD Setting

Language

English, 简体中文
,한국어, Русский,
Español, Deutsch,
Italiano, Français,
Portugues, Turkce,
Polski, Nederlands

Set OSD language

OSD H­Position

~0-100

Adjust OSD horizontal position

OSD V­Position

~0-100

Adjust OSD vertical position

OSD Timer

5~60

Set how long the OSD remains
open after last input

Transparency

~0-100

Set OSD overall transparency

Reset


None

Restore VGA image defaults

Colour

None

Automatically configure VGA colour
settings

Reset

None

Restore factory defaults

Power down

On

Enable/disable Power down function

Off

Time count

10-90min

Adjust Time count

OD

On (default)

Enable/Disable Overdrive

Off

Misc

Signal
source

VGA/HDMI

Adjust input source

Mute

On

Enable or disable monitor speaker
output

Off

Volume

~0-100

Adjust monitor speaker volume

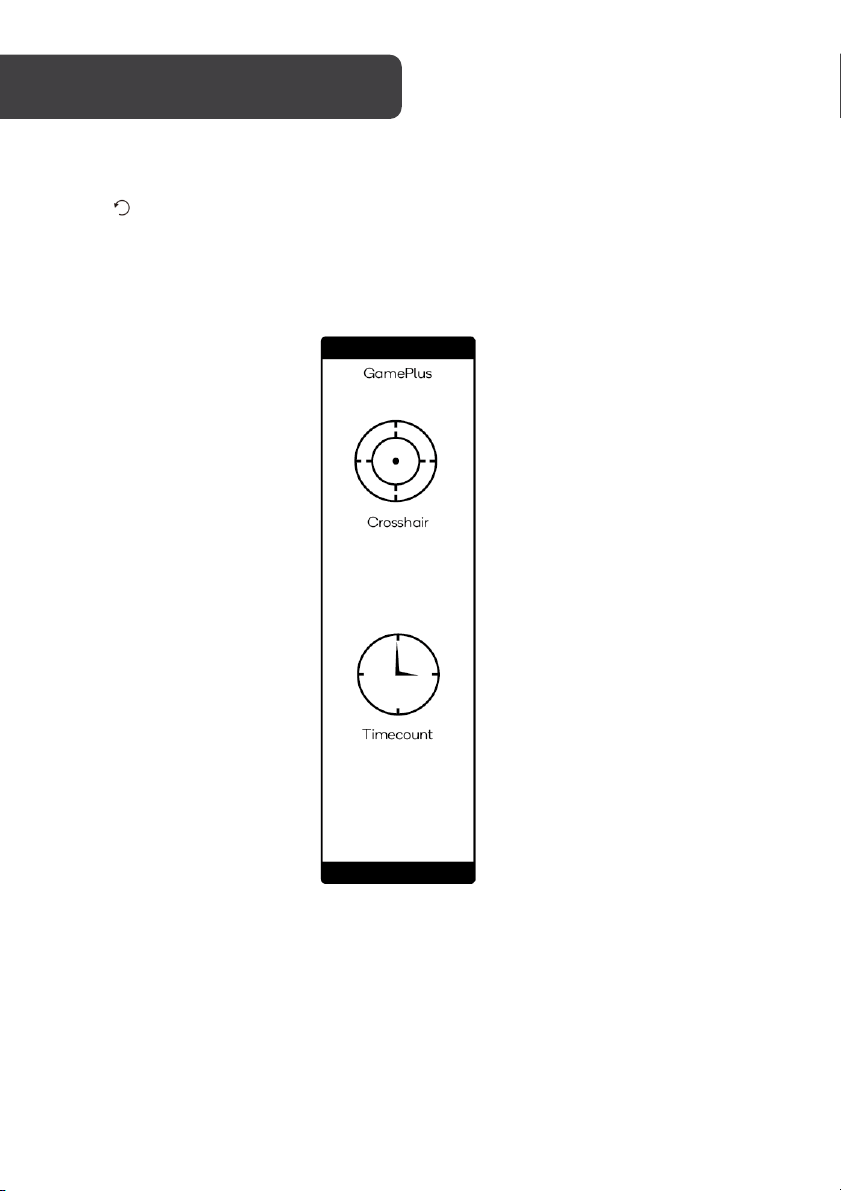

Gameplus

Press “ ” button to switch Gameplus modes. According to the needs of your game,
choose the corresponding game icon. These game icons are primarily designed to optimize
your aim during shooting games, though they can be used for other scenarios.

Screen size

32

Aspect ratio

16:9

Brightness

280cd/m² (typical)

Panel

VA

Resolution

1920 x 1080

Refresh rate

75Hz

Response time

10ms with Overdrive enabled (20ms typical)

Viewing angle

≥178°(H) / 178°(V)

Contrast ratio

3000:1

VESA mounting

100 x 100mm

Colours

16.7M

Signal input

HDMI 1.4 x 1, VGA x 1

Power

AC 100-240V~ 50/60Hz 1.1A

Speakers

YES

Power cable

YES

HDMI Cable

YES

Low Blue Light

YES

Flicker Free

YES

Dimensions (w. Stand)

714.4 x 231.6 x 536.4 (mm)

Dimensions (w/o Stand)

714.4 x 106.2 x 424 (mm)

Net weight

7. 2kg

Gross weight

9.2 kg

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For th e mo st u p-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
