Kogan KAMN30FUSA User Manual

30" CURVED 21:9
ULT R A W I D E 75Hz MONITOR

(2560 x 1080)

KAMN30FUSA

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly dampened cloth to wipe the main monitor body.

• To c l e a n t h e s c r e e n : t u r n i t off, unplug it and wait for it to cool completely, then

wipe it with a dry micro-fibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

• Do not insert any object or allow any liquid to enter the ventilation.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface

and the HDMI Logos are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other

countries.

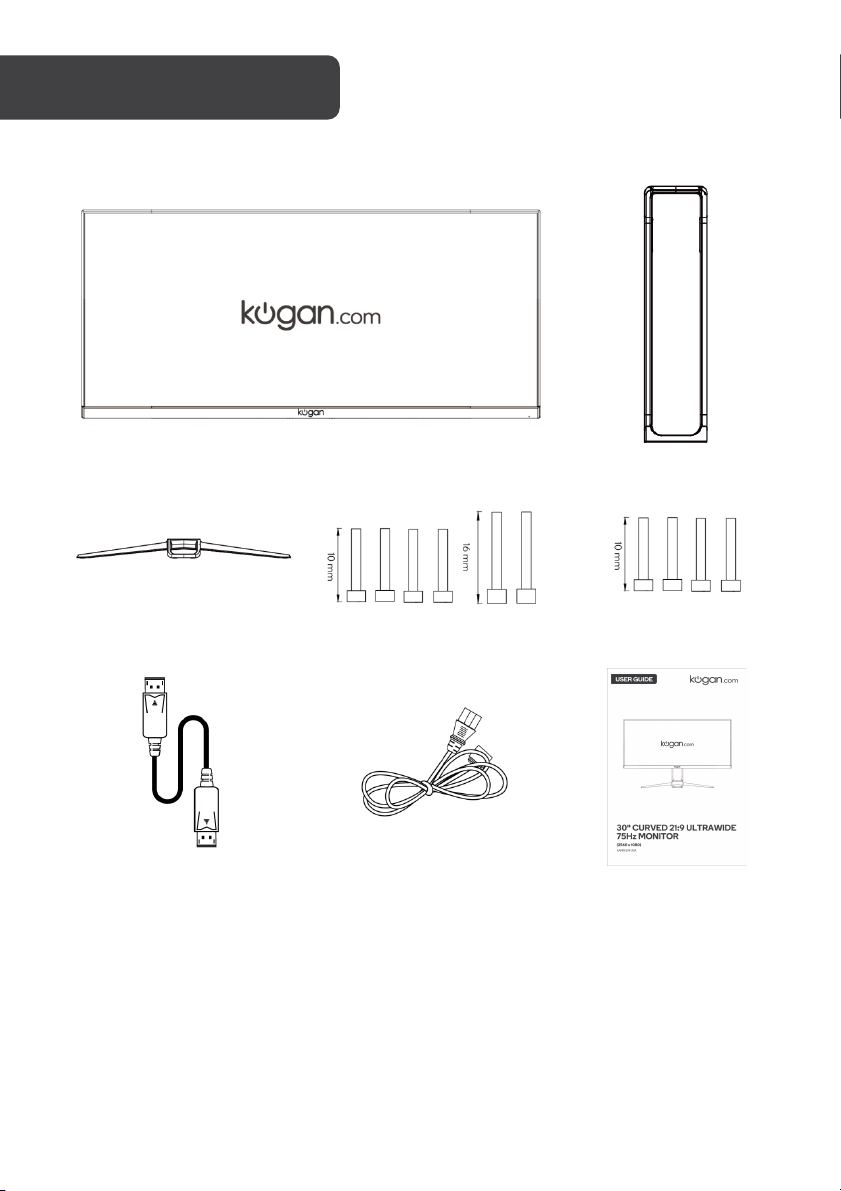

Monitor

Stand connector

Stand base

Stand base screws

(M4*10mm x 4, M4*16mm x 2)

VESA screws (x4)

DisplayPort cable

Power cable

User guide

COMPONENTS

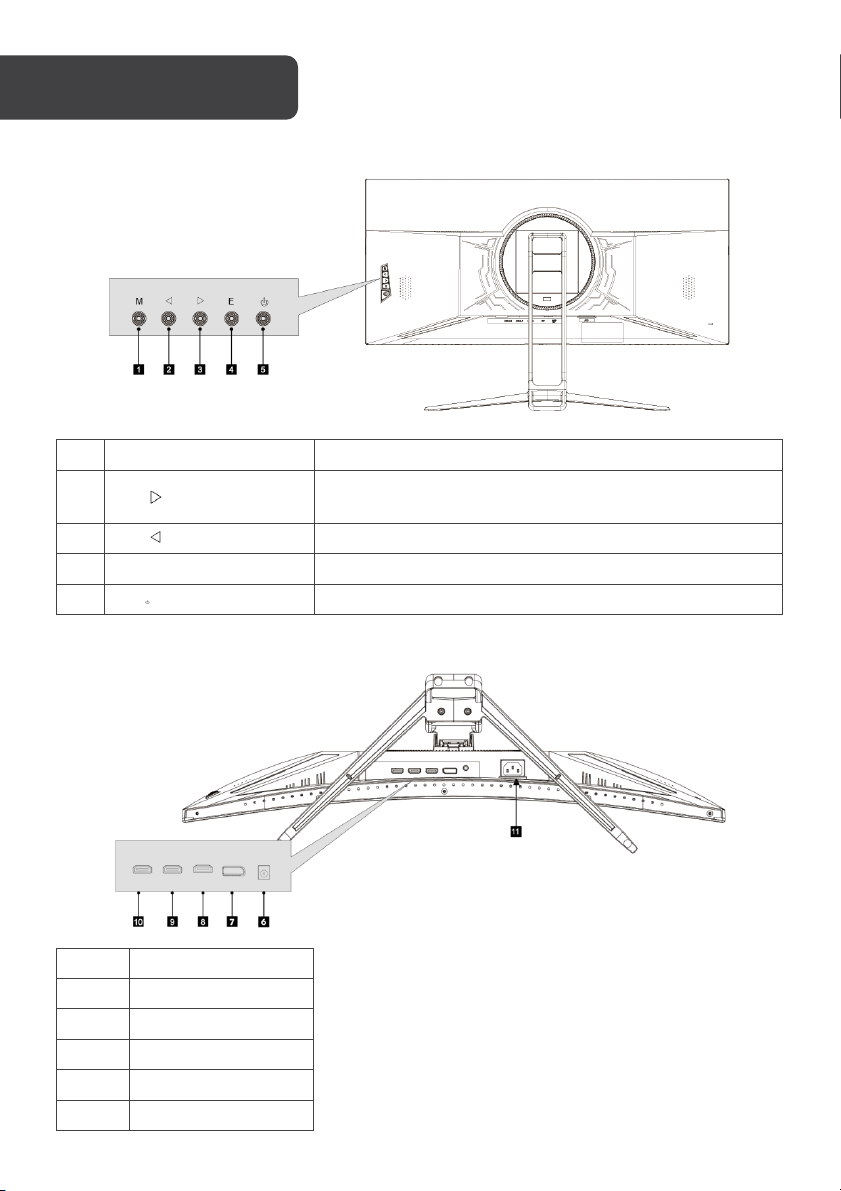

1

M Menu button

Press to display the OSD menu or enter sub-menus.

2

Forward button

Press to move forward in the menu or increase
parameters.

3

Back button

Press to move back in the menu or decrease parameters.

4

E Exit button

Press to exit.

5

Power button

Press to turn the monitor on/off.

6

AUDIO OUT

7

DP Connector

8

HDMI1 2.0

9

HDMI2 1.4

10

HDMI3 1.4

11

Power Connector

Monitor Controls

Monitor Ports

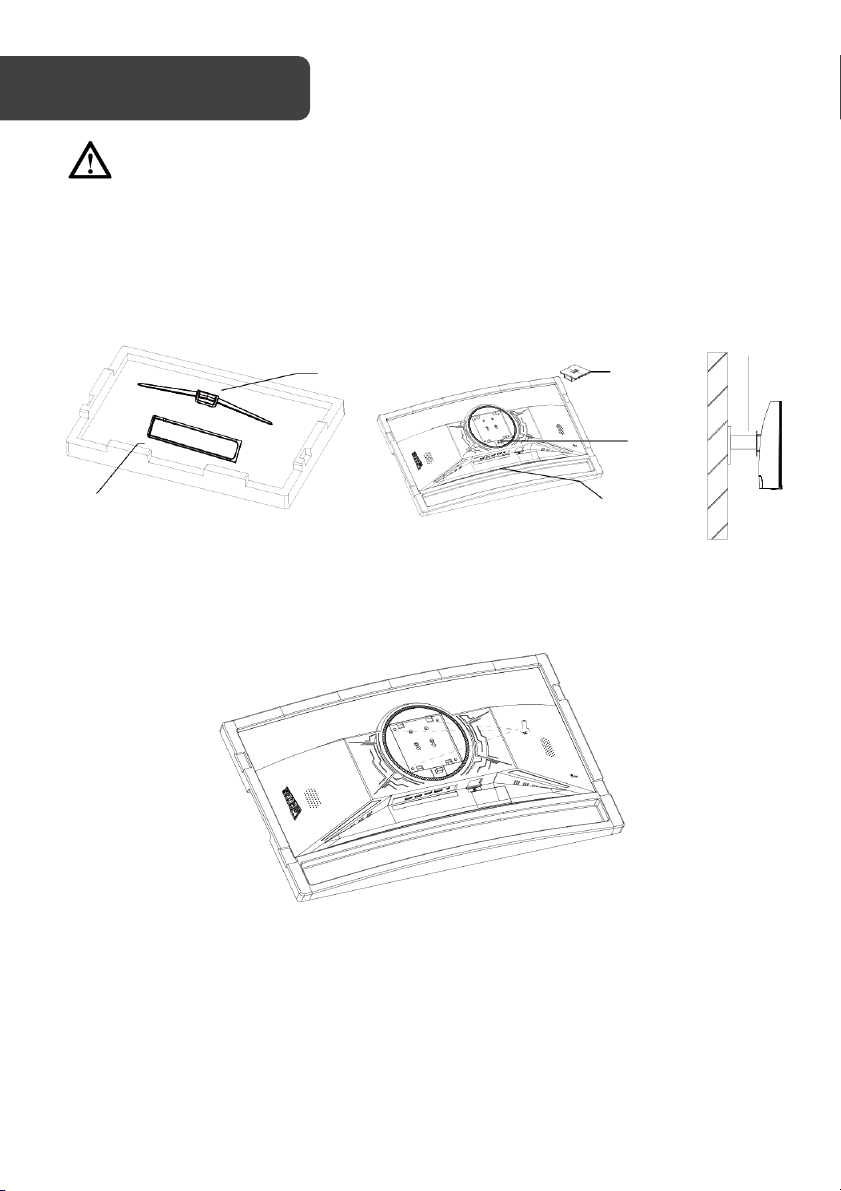

Attention: Panel is fragile. Ke ep t he fo am u ndernea th t he moni tor while assembling the
stand.

1. Carefully remove the monitor from the packaging with the protective foam
attached and place it face down on a soft cloth spread across a stable surface
such as a table.

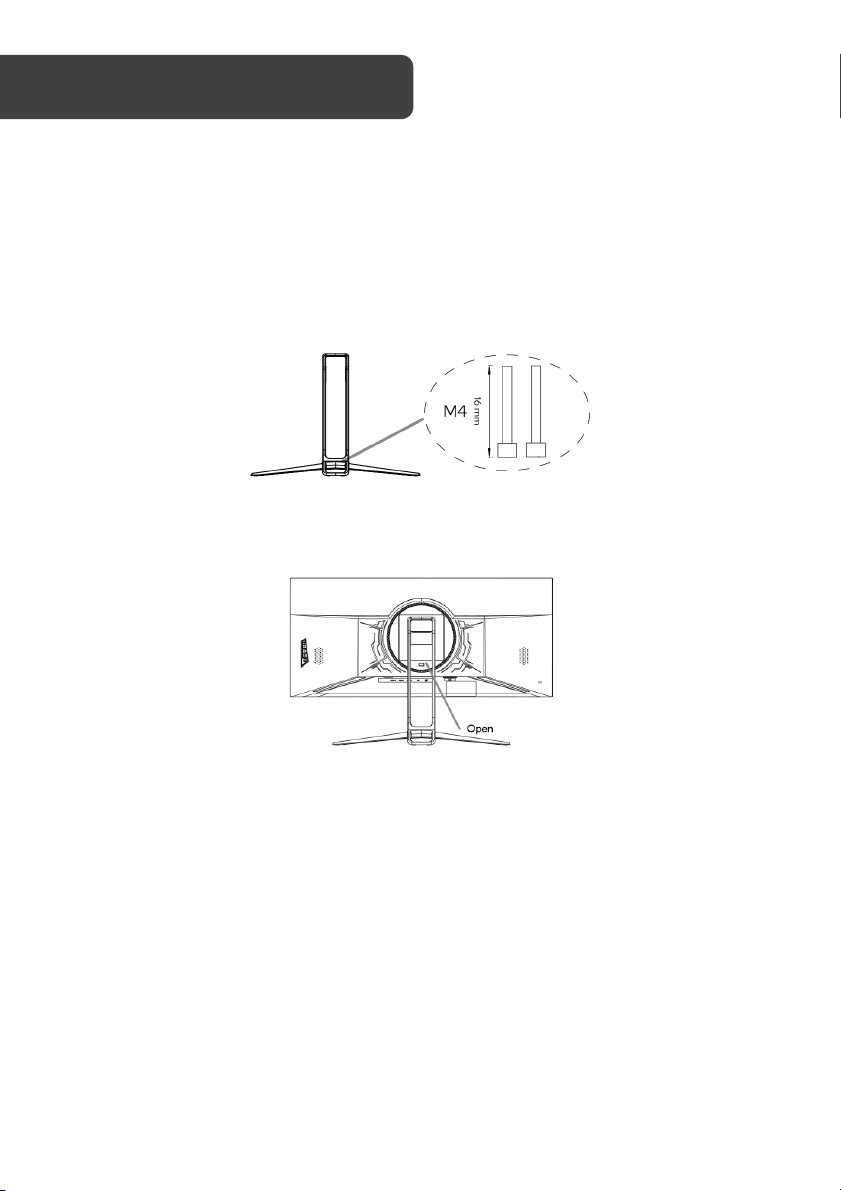

2. Remove and assemble the stand base and connector using the included screws.

3. Remove the connection block from the back of the monitor by pressing the detach
button.

4. Insert the Connection Block into the back cabinet, then push down until it snaps
into place.

5. Remove the bottom foam and place the monitor on the desk or other location
intended for use: installation is complete.

VESA MOUNT

Stand base

Monitor

Stand Stem

Stand plate

Button

Mount (Not included)

VESA 100*100mm, Screw size (M4 screw needed for VESA Mount)

Note:

VESA mount or mounting accessory are

NOT

included.

1. Carefully remove the monitor from the packaging with foam attached and place it
face down on a soft cloth spread across a stable surface such as a table.

2. Remove the connection block from the back of the monitor by pressing the detach
button. If the stand is attached, remove it.

3. Assemble the mount as per the instructions provided with the mount.

CONNECTIVITY

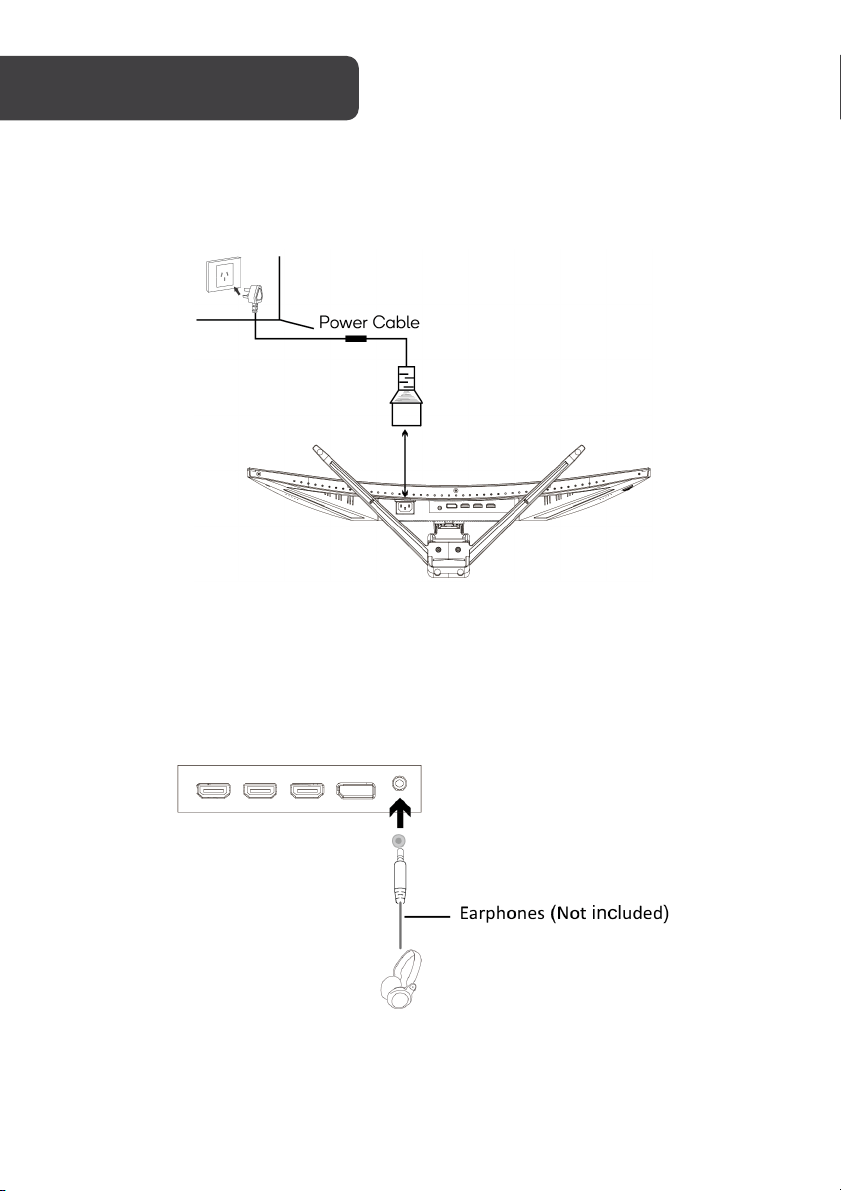

Power Cable

Connect the included power cable to the monitor power port and then connect the other
end to a power outlet.

Earphones (Audio Out)

Yo u c a n c o n ne c t ea r p ho n e s o r an o t he r a u d i o d e vi c e t o th e 3. 5 m m o u t pu t o n t h e m o ni t o r.
Yo u m a y need to set the Kogan monitor as your PC’s sound output device.

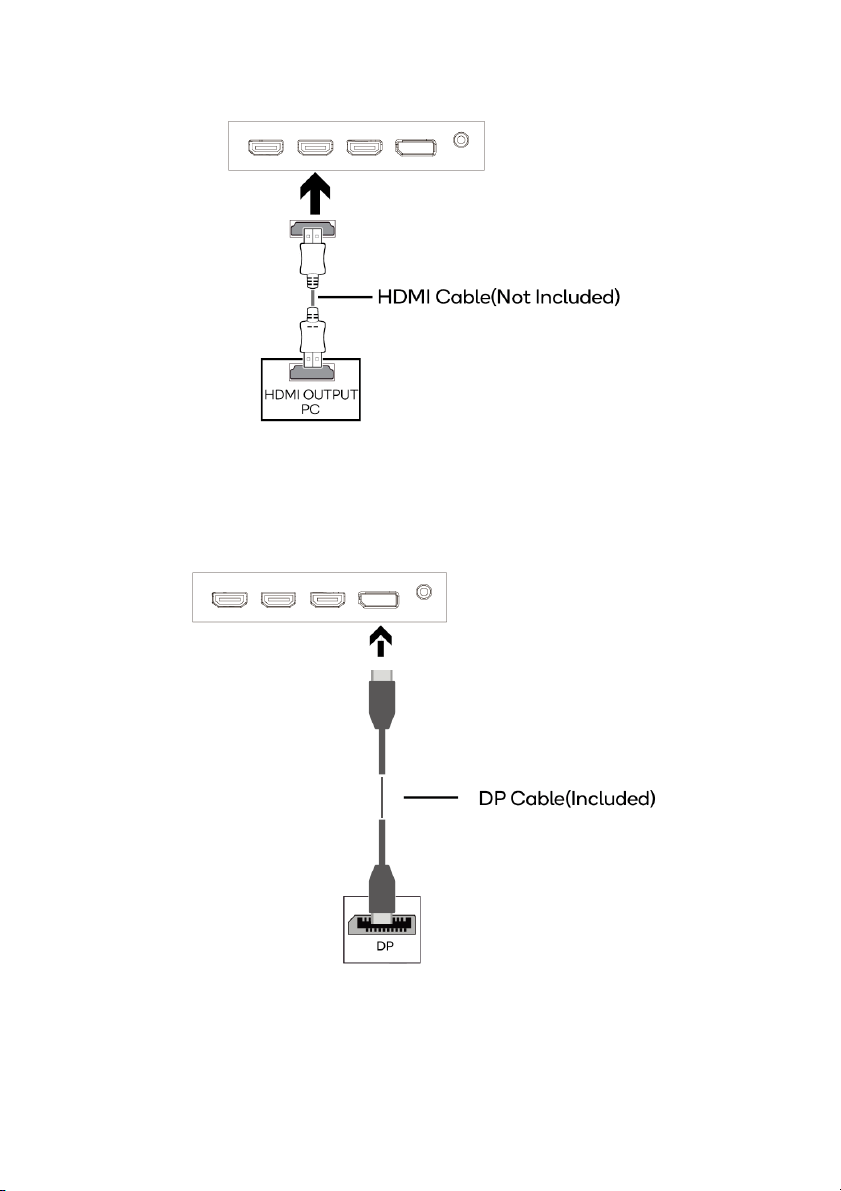

HDMI

Connect an HDMI cable from the computer’s display output to the monitor’s display input.

DisplayPort

Connect a DisplayPort cable from the computer’s display output to the monitor’s display
input.

BASIC OPERATION

1. Connect the monitor to your input device via HDMI or DisplayPort.

2. Connect the power cable to your monitor and then connect the other end directly
to a power socket.

3. Use the power button to turn the monitor on.

FreeSync

• The feature is disabled by default when setting a 75Hz refresh rate.

• In order to use this feature, ensure your hardware has Free Sync capabi lity and the

graphics drivers are fully up to date.

• After connecting, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.

• See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.

OPERATION

The On-Screen Display (OSD) may be used to adjust your monitor’s settings and appears on
screen after turning on the monitor and pressing the “M” button.

When using the monitor for the first time, the monitor will configure optimal settings
automatically.

1. Press “E” to activate the navigation window.

2. Press “M” to enter the OSD.

3. Use the arrow buttons ( / ) to navigate and press “M” to enter a submenu.

With the desired function highlighted, press “M” to edit it, the arrow buttons to
adjust parameter values and “M” again to commit the new value.

4. Press “E” to exit the current screen.

List of Functions

Main Menu

Sub-Menu

Options

Description


Brightness

~0-100

Adjust display brightness

Contrast

~0-100

Adjust display contrast

DCR
ON

Enable/disable dynamic contrast ratio

OFF

ECO

STANDARD/
PHOTO/GAME/
MOVIE/ FPS/RTS

Preset colour modes

Colour

Colour
Temperature

Normal

Select colour temperature mode or
allow manual colour configuration
(USER)

Warm

Cool

USER

Red

~0-100

Adjust red value (USER mode only)

Green

~0-100

Adjust green value (USER mode only)

Blue

~0-100

Adjust blue value (USER mode only)

OSD

Setting

Language

English, 简体中文,

한국어, Русский,

Español, Français，

日本语

Set OSD language

OSD H-Position

0~100

Adjust OSD horizontal position

OSD V-Position

0~100

Adjust OSD vertical position

OSD
Transparency

0~100

Set OSD overall transparency

OSD Time Out

0-100

Set how long the OSD remains open
after last input

Setup

Auto Source

DP/ HDMI1/
HDMI2/HDMI3

Select input source or allow manual
selection

Mute
ON

Enable or disable monitor speaker
output

OFF

Volume

~0-100

Adjust monitor speaker volume

Other

Aspect Ratio

Wide Screen

Select the display's aspect ratio

4:3

1:1

Auto

Low blue Light

Off

Blue light reduction adjustment

Low

Medium

High

MaxHigh

Response Time
ON

Enable or disable Overdrive
for faster response time

OFF

FreeSync
ON

Enable or disable FreeSync

OFF

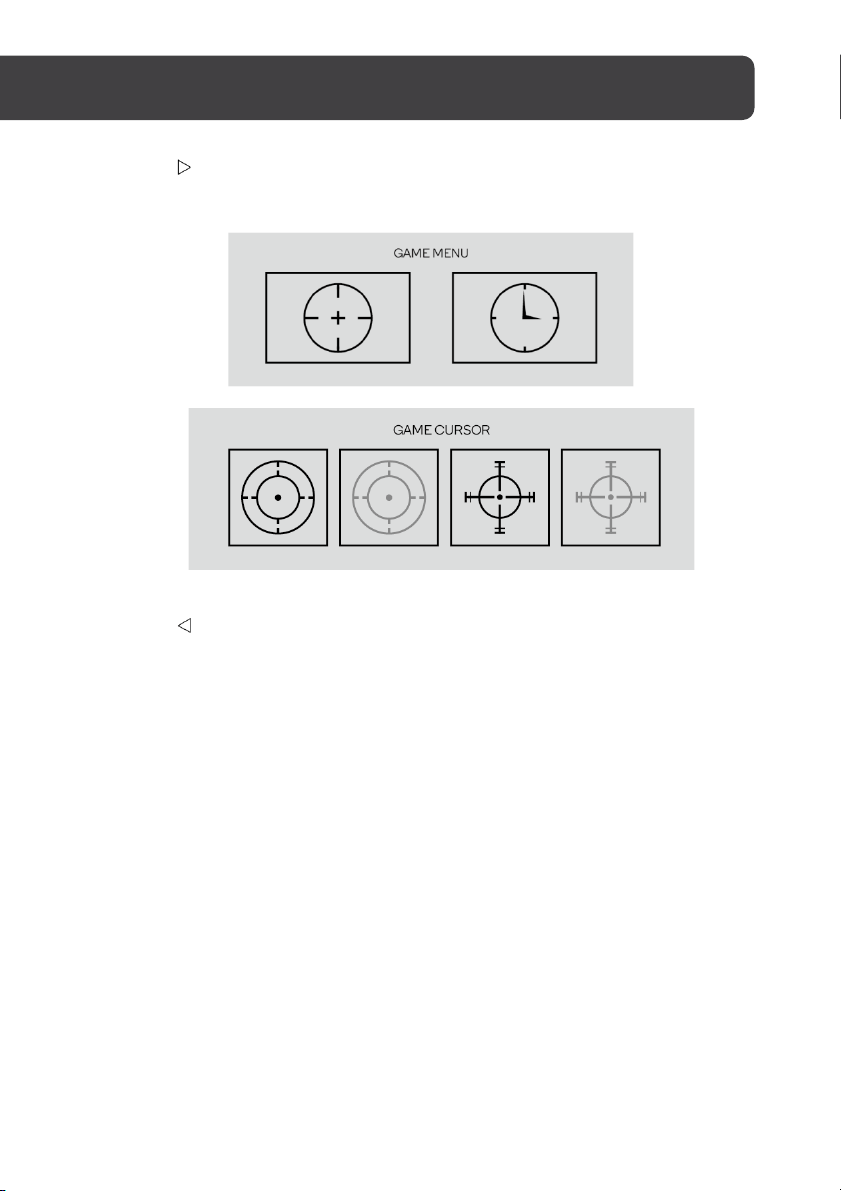

ECO MODES & GAMEPLUS SWITCHING

1. Press to switch GAME MENU modes. These overlay icons are primarily designed

to assist aim during FPS games, though they can be used for other scenarios.

2. Press to switch ECO modes. These modes include Standard, Photo, Movie,

Game, FPS and RTS and can be used to optimise settings according to your
activity. Standard mode is suitable for most activities.

Screen size

30"

Aspect ratio

21:9

Brightness

270cd/m²(Typ.)

Panel

VA

Resolution

2560x1080

Refresh rate

75Hz

Response time

5ms w. Overdrive (20ms w/o)

Viewing angle

≥178°(H) / 178°(V)

Contrast ratio

3000:1

VESA mounting

100x100mm

Colours

16.7M

Signal input

HDMI 1.4 x2, HDMI 2.0 x1, DP 1.2 x 1

Power

AC 100-240V ~50/60Hz 1.1A

Audio

Speakers

YES

Audio out

YES

Accessories

Power cable

YES

DP Cable

YES

Additional functions

Low Blue Light

YES

Flicker Free

YES

Physical dimensions

Dimensions (w. Stand)

707 x 477.9 x 231mm (mm)

Dimensions (w/o Stand)

775 x 159 x 466mm (mm)

Net weight

5.6kg

Gross weight

7. 6kg

SPECIFICATIONS

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For th e mo st up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
