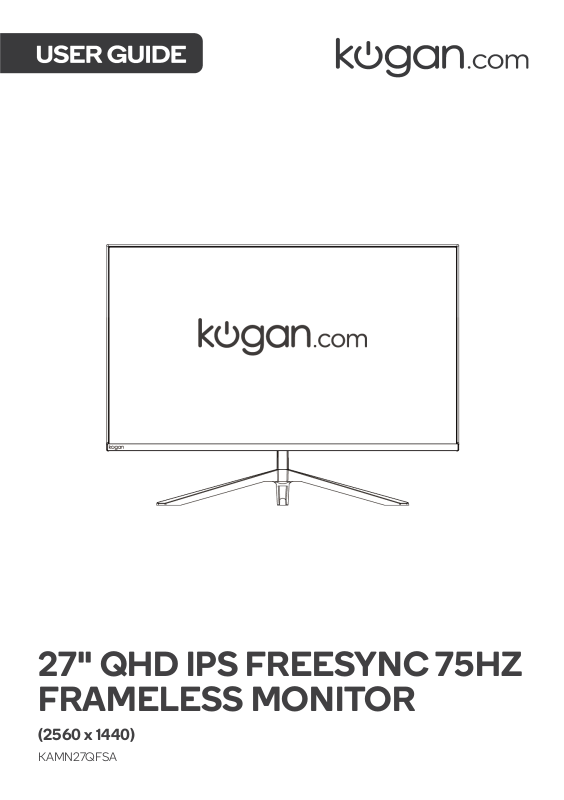

Page 1
27" QHD IPS FREESYNC 75HZ
FRAMELESS MONITOR
(2560 x 1440)
KAMN27QFSA
Page 2
• Read all instructions before using the monitor and retain for future reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To c l e a n t h e s c r e e n , t u r n i t o f f u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y , t h e n w i p e
it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat.
• Place monitor in well ventilation room.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
• Before disposing of any packaging, place all items on a soft, clean and flat surface
to ensure all components are accounted for.
The terms HDMI and HDMI High-Definition Multimedia Interface
and the HDMI Logos are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
Page 3
Monitor
Stand Arm
Stand base
Stand base screw
(M6 x 16mm)
VESA screws (x4))
Display port cable
Power cable
User guide
Page 4
1
Power button
2
Directional buttons
3
Audio in
4
VGA connector
5
DP connector
6
HDMI connector
7
DVI connector
8
Power connector
Page 5
1.
Carefully remove the monitor, stand
arm and stand base from the box.
2.
Attach the stand base to the stand
arm using the provided M6 screw.
3.
Insert the stand arm into the rear of
the monitor and push down until it is
firmly connected.
4.
Lift the monitor up straight and
remove the bottom foam. Stand the
monitor up on the installed base.
ASSEMBLY
WAR NING: The panel of the monitor is fragile. Keep the foam
underneath the monitor screen while assembling the stand.
Open
Page 6
VESA mounting pattern 100 x 100mm, screw size M4.
Note: VESA mount or mounting accessories are NOT included.
Stand base
Monitor
Stand connector
Stand plate
Button
Foa m
1. Open the box, remove the monitor keeping the protection foam attached and gently
place it on a desktop or table.
2. Remove the foam covering the rear of the monitor. Press the release button to remove
the stand plate. If the monitor is already attached to the stand, remove the stand.
3. Assemble the mount as per the instructions provided with the mount.
Page 7
Audio Cable (not included)
Power cable
Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.
Audio In
Connect the audio cable between the socket on the rear of the monitor (Audio In) and your
computer audio outlet.
Page 8
DP cable (included)
HDMI cable (not included)
DisplayPort
Use the included DisplayPort cable to connect the monitor to your computer.
HDMI
Use a HDMI cable to connect the monitor to your computer.
Page 9
VGA cable (not included)
DVI cable (not included)
VGA
Use a VGA cable to connect the monitor to your computer.
DVI
Use a DVI cable to connect the monitor to your computer.
Page 10
1. Connect the monitor to the input device via HDMI/DisplayPort/DVI or VGA.
2. Connect the power cable to the monitor, then connect the other end directly to a
power socket.
3. Use the power button to turn the monitor on.
Monitor Controls
Power Button:
• Press and hold the Power button for 6 seconds to turn on and off.
• When the display is turned on, press the Power button to bring up the main menu.
• Using directional buttons, navigate the main menu and make any required
adjustments.
• When finished press the Power again to save and return to the main menu.
Directional Buttons:
To use the directional buttons, press the Power button in the desired direction.
Shortcuts:
• Source menu: Press the Power button to the RIGHT twice to bring call up the
signal source selection menu, use the directional buttons to select the desired
source and press Power to confirm.
• Display mode menu: Press the Power button to the LEFT twice to bring call up the
display mode menu, use the directional buttons to select the desired display mode
and press Power to confirm.
• Gameplus timer menu: Press the Power button UP twice to bring call up the
Gameplus timer menu. Select the desired timing length and press Power to
confirm.
• Gameplus sight menu: Press the Power button DOWN twice to bring call up the
Gameplus sight menu. Select the desired sight and press Power to confirm.
Page 11
FreeSync
• In order to use this feature, ensure your hardware has FreeSync capability and the
graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.
• See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.
Display settings
When first using this monitor it will automatically configure the optimal display settings.
The On-Screen Display (OSD) Menu can be used to adjust your monitor’s display settings to
your liking. To access the OSD:
1. Press the Power button to the right to activate the navigation window.
2. Press the Power button to enter the OSD menu.
3. Press the Power button up and down to navigate the functions.
4. With the desired function highlighted, press the Power button to enter the sub-
menu.
5. After making your desired adjustments press the Power button to confirm the
settings and exit the current screen.
6. Press the Power button to the left to exit the current screen
Page 12
Refer to the following pages for a detailed list of the OSD menu functions.
Menu
Sub-Menu
Options
Description
Brightness
~0-100
Adjust display brightness
Contrast
~0-100
Adjust display contrast
ECO
STANDARD/PHOTO
/GAME/MOVIE
/FPS/RTS/USER
Preset colour modes
Colour
Colour
Temperature
6500K
Select colour temperature mode or
allow manual colour configuration
(USER)
9300K
User Define
Red
~0-100
Adjust red value
(USER mode only)
Green
~0-100
Adjust green value
(USER mode only)
Blue
~0-100
Adjust blue value
(USER mode only)
OSD
Settings
Language
English, 简体中文,
한국어, Español,
Français, Deutsch,
Italiano
Set OSD language
OSD H-Position
0~100
Adjust OSD horizontal position
OSD V-Position
0~100
Adjust OSD vertical position
OSD Transparency
0~100
Set OSD overall transparency
Page 13
OSD Time Out
0-100
Set how long the OSD remains open
after last input
Setup
Input
Auto Select / DP /
HDMI /VGA/DVI
Select input source or allow manual
selection
Mute
ON/ OFF
Enable or disable monitor speaker
output
Volume
0-100
Adjust monitor speaker volume
Reset
/
Restore factory defaults
Others
Display Size
Full Screen
Select the display's aspect ratio
4:3
Auto
Low blue Light
Off/ Weak/Median/
Weak/Median/Strong
/ Strongest
Blue light reduction adjustment
Over Driver
On/Off
Enable or disable overdrive
for faster response time
FreeSync
On/Off
Enable or disable AMD FreeSync
Page 14
Display modes
Press the Power button to the left to switch between the preset display modes. These
modes include: Standard, Text, Movie, Game, FPS and RTS. These modes are designed to
optimise settings according to your activity. Standard mode is suitable for most activities.
Gameplus
Press the Power button downwards to switch Gameplus modes. These overlay icons are
primarily designed to assist aim during first person shooter games.
Page 15
Screen size
27"
Aspect ratio
16:9
Brightness
300cd/m2 (typical)
Panel
IPS
Resolution
2560 x 1440
Refresh rate
75Hz
Response time
7ms with Overdrive enabled (14ms typical)
Viewing angle
≥178°(H) / 178°(V)
Contrast ratio
1000:1
VESA mounting
100 x 100mm
Colours
1.07B
Signal input
HDMI 1.4 x 1, DP 1.2 x 1, VGA x 1, DVI x 1
Power
AC 100-240V ~ 50/60Hz 1.1A
Audio
Speakers
Yes
Audio in
Yes
Accessories
Power cable
Yes
DisplayPort Cable
Yes
Additional functions
Low Blue Light
Yes
Flicker Free
Yes
Physical dimensions
Dimensions (w. Stand)
615.3 x 455.3 x 247.3 (mm)
Dimensions (w/o Stand)
615.3 x 360.83 x 72.2 (mm)
Net weight
4.9kg
Gross weight
6.9kg
SPECIFICATIONS
Page 16
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For th e mo st up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
