24” FULL HD FREESYNC
FRAMELESS MONITOR
1920 x 1080, 75Hz
KAMN24F7VA
Page 2
Page 3
Ensure to read all instructions and warnings in this user guide prior to first use. Retain this
user guide for future reference.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover
or block them.
• Avoid placing the monitor near heaters, stoves, fireplaces, or other heat sources.
• Do not place this monitor in rooms lacking adequate ventilation.
• Do not insert any objects or spray any liquids into the vents.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and cause injury to people within its vicinity.
• Do not place heavy objects on the monitor, its power cord, or any connected cables.
• Do not open the back panel of the monitor as it contains a high-voltage current even
when not plugged in.
• Unplug the monitor if it will not be used for an extended period.
• Ensure the monitor is unplugged before cleaning.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States, and other
countries.
Page 4

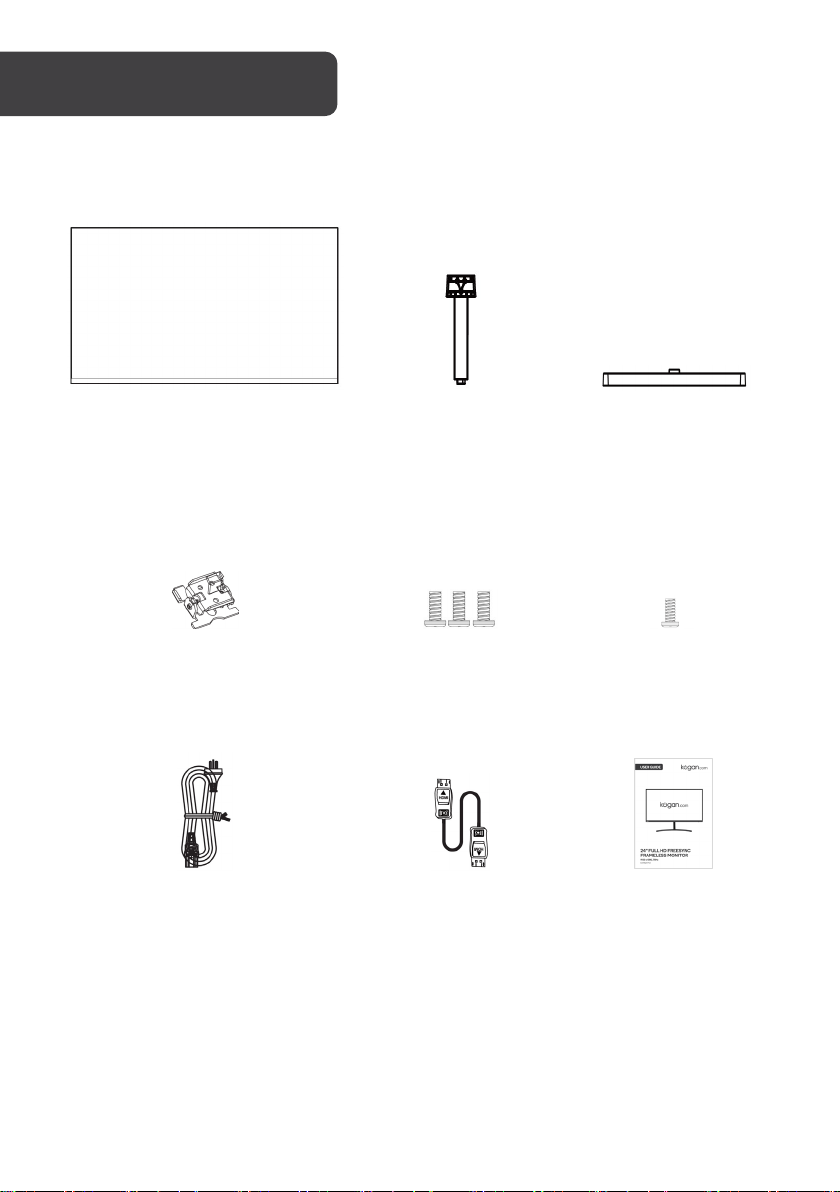

A Monitor (x1)
B Stand stem (x1)
C Stand base (x1)
D Stand stem plate (x1)
E M4 8mm screw (x3)
F M5 12mm screw (x1)
G Power cord (x1)
H HDMI cable (x1)
I User guide (x1)
COMPONENTS
Page 5
1
2 3 4
5 6 7 8 9

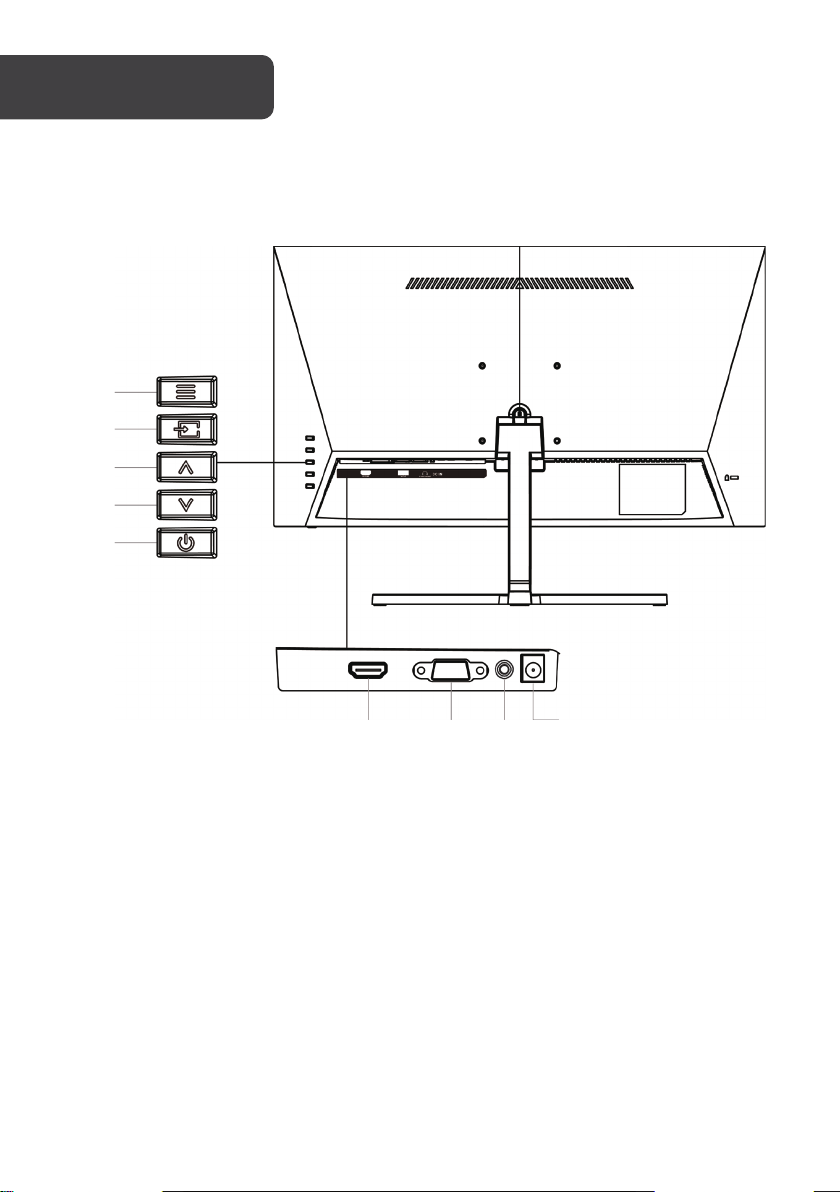

1 Menu/select button 6 HDMI port
2 Exit/input menu button 7 VGA port
3 Up button 8 3.5mm audio port
4 Down button 9 Power port
5 Power button
Page 6
A
B
C
E
D
B
F
B

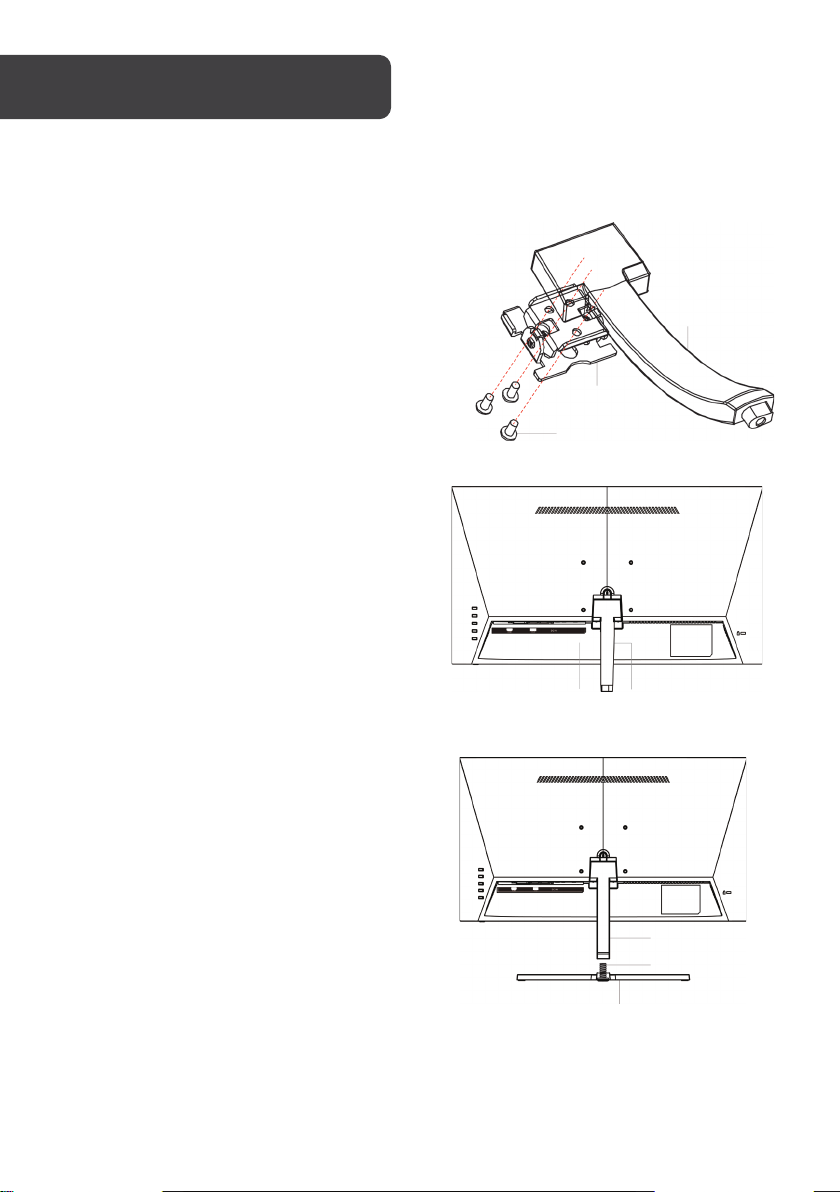

1. With the display side facing down, lay the monitor (A) on a soft cloth to prevent
damage.
2. Clip the stand stem plate (D) into the
stand stem (B). Using a screwdriver (not
supplied), secure the M4 8mm screws (E)
through the holes on the stand stem
plate (D) to the stand stem (B).
3. Clip the stand stem (B) into the monitor
(A).
4. Align the stand base (C) with the stand
stem (B). Using a screwdriver, secure the
stand base (C) to the stand stem (B) with
the M5 12mm screw (F).
Page 7
VESA MOUNT
Notes:
(not included)

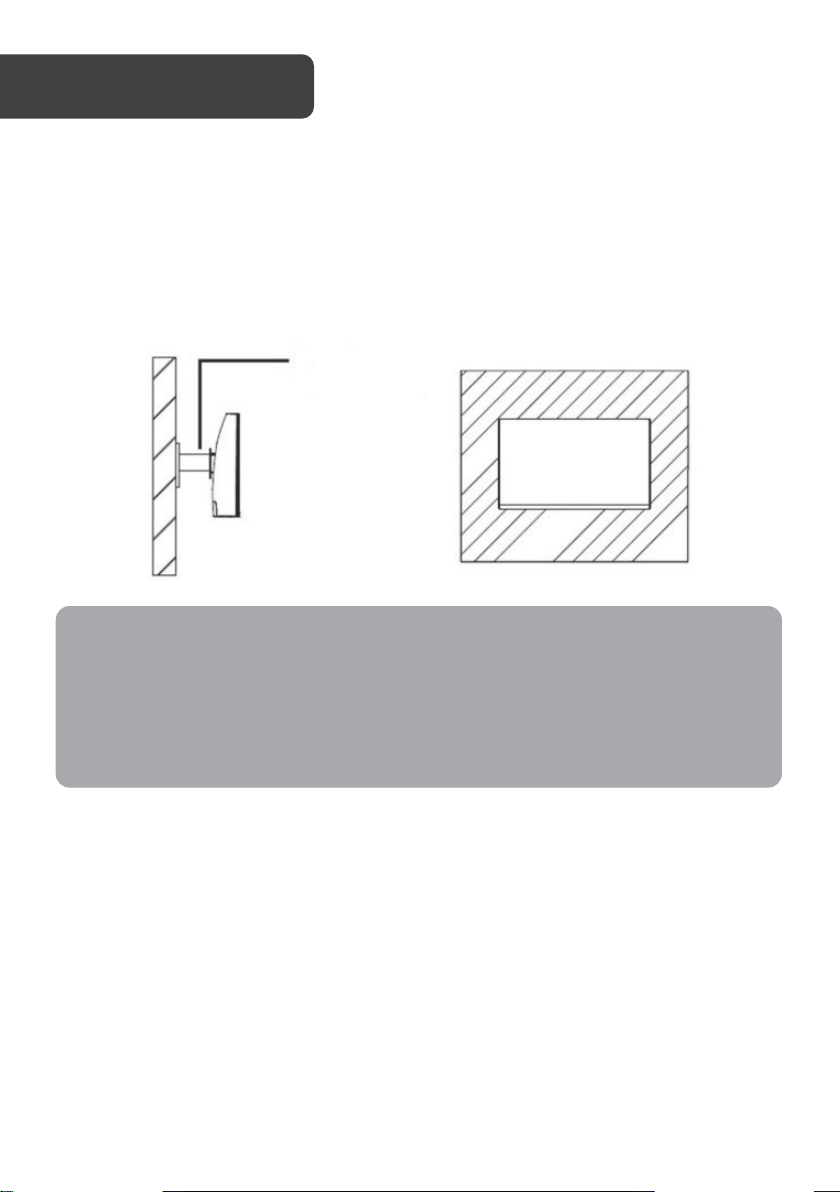

If mounting to a wall, ensure the stand base and stand stem are disconnected from the
monitor.
Consult a professional before mounting the monitor.
1. With the display side facing down, lay the monitor on a soft cloth to prevent damage.
2. Identify the four wall mounting screws on the back of the monitor.
3. Mount the monitor as desired with the steps provided with your VESA mount.
Mount
• Ensure there is at least a 10cm clearance away from all sides of the monitor.
• The mounting hole distance for this monitor is 75mm x 75mm.
• M4 8mm screws are required.
• VESA mount and mounting accessories are not included.
• Images are for reference only.
Page 8

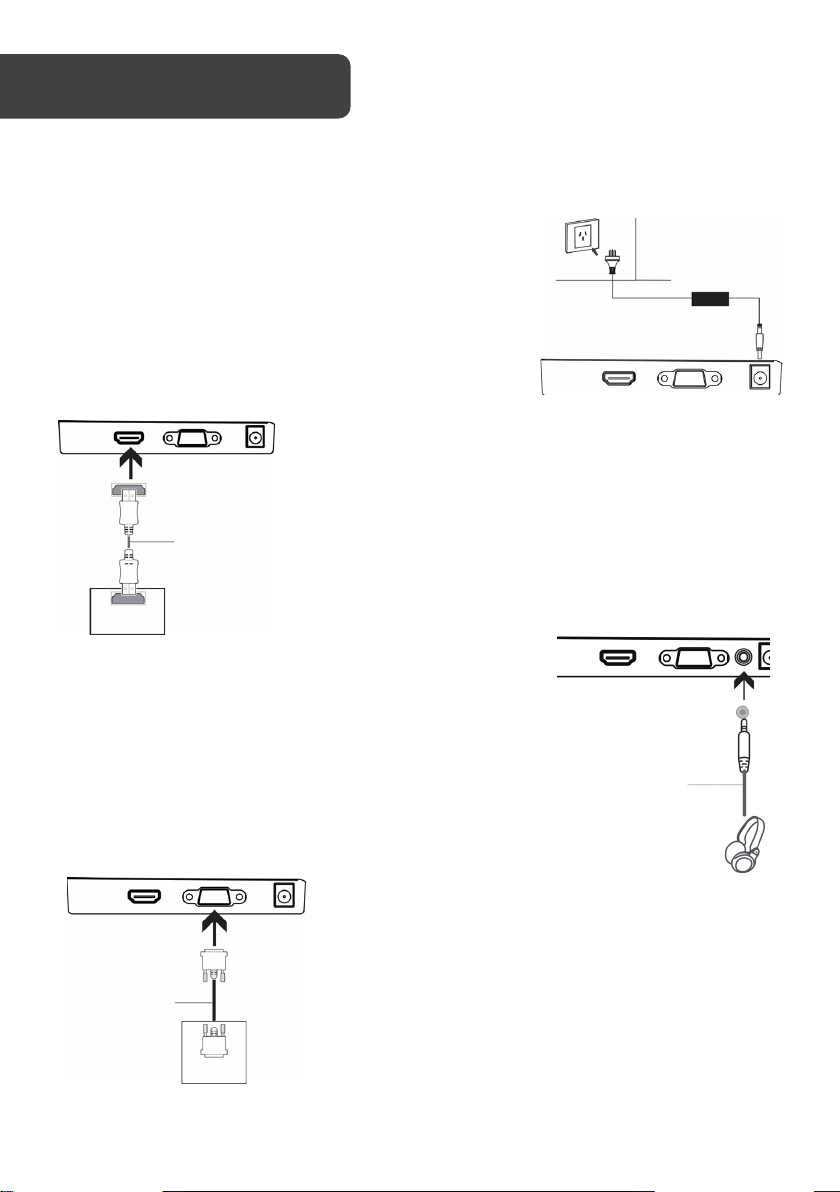

CONNECTIVITY
Earphones
(not included)
(not included)
HDMI cable
HDMI OUTPUT
)
Before connecting, ensure the display is switched off.
Power cable
Connect one end of the power cable into the power port
on the monitor. Connect the other end into a power
socket.
HDMI
In order for the monitor to receive HDMI signals to your
computer, plug one end of the included HDMI cable
into the HDMI port on the monitor.
Plug the other end into the HDMI port on your
computer.
(PC
3.5mm audio port
In order to receive audio signals to your computer, plug
your earphones, headphones, or other audio device (not
included) into the 3.5mm audio port on the monitor.
If any audio device is connected to the computer at the
same time, it will not produce sound.
Power cable
VGA cable
VGA OUTPUT
(PC)
VGA
In order for the monitor to receive VGA signals to your
computer, plug one end of a VGA cable (not included)
into the VGA port on the monitor.
Plug the other end into the VGA port on your computer.
Page 9
OPERATION
Note:
1. Connect the monitor to your computer via HDMI/VGA.
2. Connect one end of the power cable into the power port of the monitor. Connect the
other end into an outlet, then turn the outlet on.
It is recommended that a surge protector with adequate voltage is used if the
monitor cannot be directly connected to an outlet.
3. Press the power button to turn the monitor on.
On-Screen display (OSD) menu

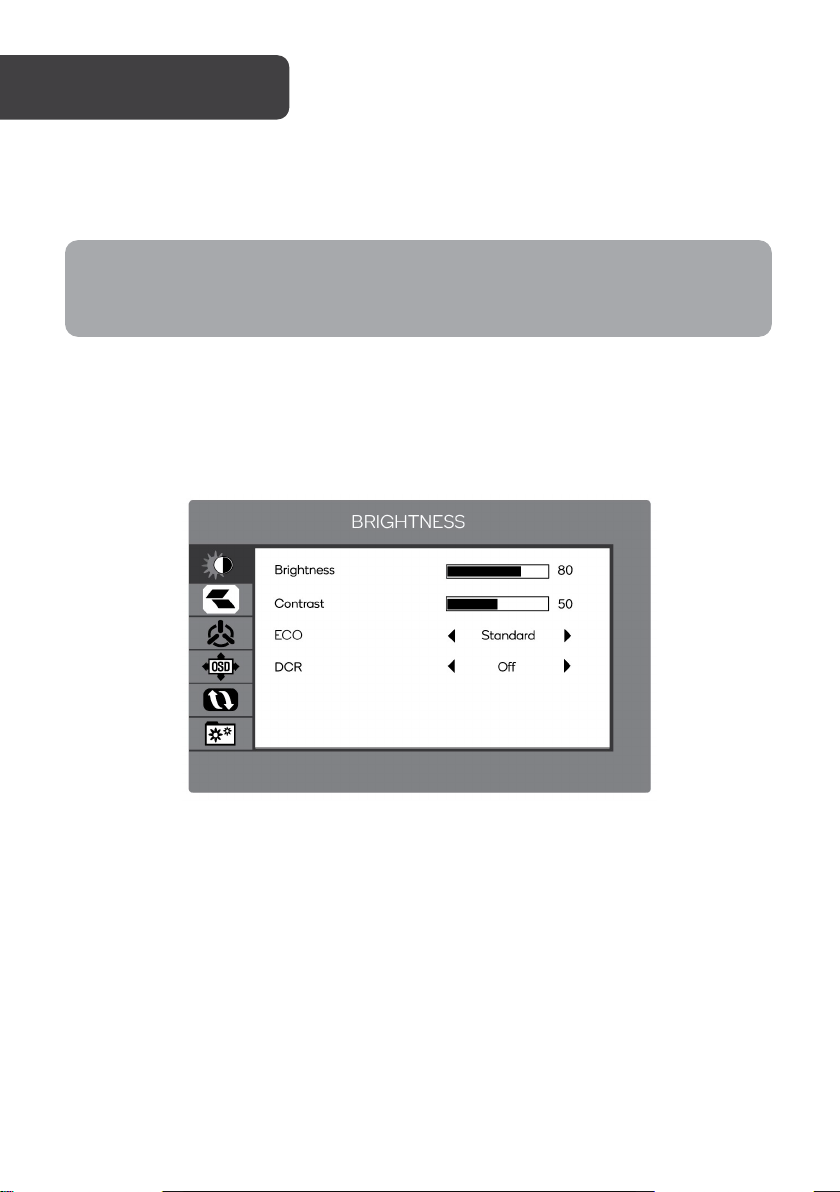

The OSD menu allows adjustments to various settings for the monitor.
1. Press the menu/select button to access the OSD menu.
2. Press the up and down buttons to browse through the categories of settings. Press the
menu/select button to enter the sub-menu.
3. Press the up and down buttons to browse through the sub-menu. Press the
menu/select button to enter the adjustment settings of the desired setting.
4. Press the up and down buttons to adjust the desired setting. Press the menu/select
button to confirm the adjustment.
5. Press the exit/input menu button to exit the OSD menu.
Page 10
OSD menu settings
Below is a list of the settings available that can be adjusted through the OSD menu.
Category Sub-Menu Options Description
BRIGHTNESS
Brightness 0–100
Contrast 0–100 Adjusts the display contrast
Standard, Movie,
ECO modes
DCR On, Off
H. position 0–100
V. position 0–100
Clock 0–100 Adjusts the clock setting
Phase 0–100 Adjusts the phase setting
Aspect Wide, 4:3 Sets the aspect ratio
Colour temp.
RTS, FPS,
Game, Text
Warm, User,
Cool
Adjusts the display
brightness
Sets the display’s colour
balance to pre-set levels to
suit different uses
Turns the DCR function
on/off
Adjusts the horizontal
position of the display
Adjusts the vertical position
of the display
Includes pre-set (Warm,
Cool) and custom (User)
colour temperatures
COLOUR TEMP.
Red 0–100
Green 0–100
Blue 0–100
Low blue light 0–100
Allows for manual
adjustment of the RGB
colour balance
Adjusts the intensity of the
low blue light effect
Page 11
Language
English,
Русский,
Français, 한국,
Português,
Deutsch, Türkçe,
简体中文,
Polski, Italiano,
Nederlands
Español,
Sets the OSD language
OSD SETTINGS
RESET
OSD H. POS. 0–100
OSD V.POS. 0–100
OSD timer 0–60
Transparency 0–100
Image auto
adjust
Colour auto
adjust
Reset N/A
Signal source VGA, HDMI
N/A
N/A
Adjusts the horizontal
position of the OSD menu
Adjusts the vertical position
of the OSD menu
Sets how long the OSD
menu will remain on-screen
without input (in seconds)
Sets the level of
transparency of the OSD
menu
Using this feature
automatically adjusts the
horizontal/vertical position,
focus, and clock of the
display
Using this feature will reset
the colour settings to default
Resets the monitor to
factory default settings
Selects the input signal
source
MISC.
Mute On, Off Mutes/unmutes volume
Volume 0–100 Adjusts audio volume
FreeSync On, Off
Turns the FreeSync function
on and off
Page 12
Adjusting the angle of the monitor
Note:
Note:

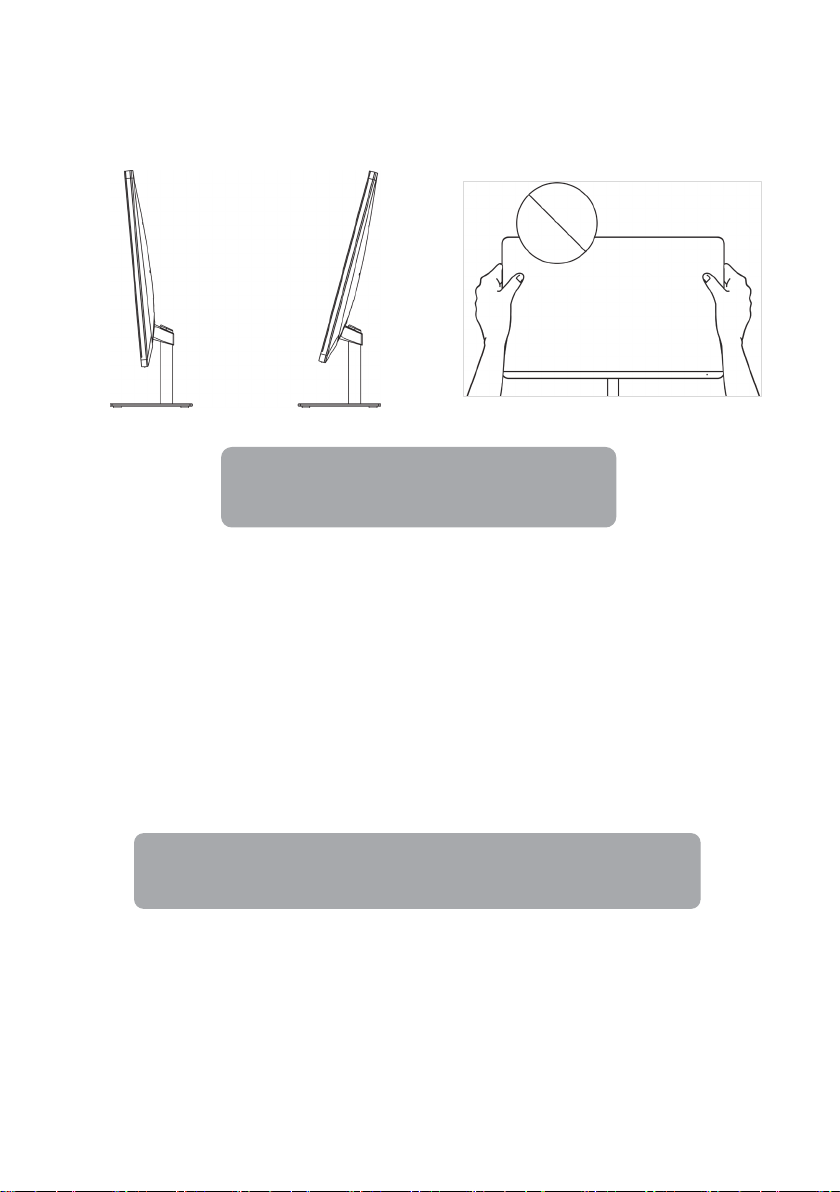

The screen can be tilted forwards up to 5° or backwards up to 15°.
To adjust the angle, hold the edges of the screen with both hands and tilt.
FreeSync
To use this feature, ensure your hardware has FreeSync capabilities, and that the graphics
drivers are fully up to date.
After connecting the monitor, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in the
graphics card menu.
Check your graphics card manufacturer’s documentation for instructions on how to turn on
and/or enable FreeSync.
The feature is enabled by default when set to a 75Hz refresh rate.
Do not directly touch the screen when tilting.
Page 13
Input menu shortcut
To quickly change the input source between HDMI and VGA:
1. Press the exit/input menu button to access the input menu.
2. Press the up and down buttons to highlight the desired input source, then press the
menu/select button to confirm.
Brightness shortcut
When outside the OSD menu, press the up and down buttons to adjust the brightness.
ECO modes
There are various pre-set colour modes suited for various use cases available on this monitor.
These can be accessed using the ECO modes menu. The modes include the following:
• Standard (suitable for most activities)
• Movie (best suited when watching movies)
• RTS (best suited when playing real time strategy games)
• FPS (best suited when playing first person shooter games)
• Game (best suited for general gaming)
• Text (best suited when reading text)
Page 14
Model
KAMN242F7VA
Screen size
24"
Aspect ratio
16:9
Brightness
250cd/m
Panel
VA
Resolution
1920 x 1080
Refresh rate
75Hz
178° (H)
Contrast ratio
3000:1
VESA mounting
75 x 75mm
Colours
16.7M
Signal input
x1 VGA, x1 HDMI 1.4
Power
DC 12V, 3A
CLEANING & CARE
Note:
Ensure the monitor is turned off and unplugged before cleaning.
• Wipe the body with a slightly damp, clean cloth.
• Wipe the screen with a dry microfibre cloth.
Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.
Backlight E–LED
2
Response time 16ms
Viewing angle
FreeSync Ye s
178° (V) (typical)
Page 15
Audio
Audio out
Yes
Speakers
No
Accessories
Power adapter
Yes
Additional functions
Low blue light
Yes
Flicker-free
Yes
Physical dimensions
Dimensions (without stand)
537.9 x 46.3 x 315.6mm
Net weight
2.50kg
Gross weight
3.66kg
HDMI cable
Dimensions (with stand) 537.9 x 170.1 x 396.9mm
Yes
Page 16
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
