Kogan KAM87LTMSFA User Manual

87L TOP MOUNT FRIDGE

KAM87LTMSFA

SAFETY AND WARNINGS

Thank you for buying this Kogan product. Please read all safety instructions before using
your fridge or freezer.

• Read this manual thoroughly before first use, even if you are familiar with this type of
product. The safety precautions enclosed herein reduce the risk of fire, electric shock
and injury when correctly adhered to.

• Make sure you understand all instructions and warnings.

• Always follow basic safety precautions and accident prevention measures when using

an electrical appliance, including the following:

• IMPORTANT: Pay particular attention to messages that contain the words DANGER,
WARNING or CAUTION. These words are used to alert you to a potential hazard that
can seriously injure you and others. The instructions will tell you how to reduce the
chance of injury and let you know what can happen if the instructions are not followed.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a gas with a high level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the appliance, ensure that none of
the components of the refrigerant circuit become damaged.

• WARNING: Do not damage the refrigerant circuit. Never use an appliance with a
damaged refrigerant circuit. If the refrigerant circuit becomes damaged, avoid
proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate
the room in which the appliance is located.

• DANGER: It is hazardous for anyone other than an authorised service person to service
this appliance. In Queensland, the authorised service person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve
the removal of covers.

Usage conditions and restrictions:

• This appliance is only intended for use within a domestic environment only.

• If the supply cord is damaged, it must be replaced by Kogan.com or an authorised

service agent on Kogan.com’s behalf.

• Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.

• The appliance must be unplugged after use and before carrying out user maintenance
on the appliance.

• WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the food storage compartments of

the appliance, unless they are of the type recommended by the manufacturer.

• WARNING: When positioning the appliance, ensure the power cord is not trapped or
damaged.

• WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.

• Do not use extension cords or ungrounded, （two prong adapters.

• This appliance is designed to be standing only and should not be recessed.

Electrical safety:

• Before connecting and turning on the appliance, ensure the electrical voltage and
circuit frequency correspond to that indicated on the appliance rating label.

• This appliance should be properly earthed for your safety. The power cord of this
appliance is equipped with a three-prong plug for use in standard wall outlets to
minimise the possibility of electrical shock. Do not modify the cord and/or plug provided
with the appliance. Improper use of the earthed plug can result in the risk of electric
shock.

• This appliance requires a standard 220-240V AC 50Hz electrical outlet. Do not
overload the electrical circuit.

• Do not kink or damage the power cord; do not leave it exposed or dangling. Secure it at
the back of the appliance so no one steps on or places anything on the cord or against
it. Keep the cord out of reach of children. When moving the appliance, make sure not
to damage the power cord.

• Do not use an inverter, adaptor or extension cord with this appliance. If the cord is too
short, have a qualified electrician install an outlet near the appliance. Use of an
extension cord and an inverter can negatively affect the performance of the unit.

• To protect against the risk of electric shock, do not immerse the unit, cord or plug in
water or spray it with any other liquid. Do not connect or disconnect the electric plug
when your hands are wet. Turn the power switch off before removing the plug from the
socket.

• WARNING: To reduce the risk of fire, electric shock or personal injury, always unplug
the appliance from the socket when not in use, when moving and before cleaning or
servicing. Never unplug the unit by pulling the power cord. Always grip the plug firmly
and pull straight out from the power point.

Children:

• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

Unpacking:

• During transportation, protective packaging was used to protect the appliance against
any damage. After unpacking, please dispose of all elements of packaging in a way
that will not cause damage to the environment.

• CAUTION: During unpacking, the packaging materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of children.

• This appliance is heavy, take care when moving it. To avoid back or other injury,
consider a two person lift or mechanical aid when installing it.

• When unpacking, check the appliance carefully for damage. If it is damaged, do not
install the appliance

Risk of Fire:

• If the refrigerant circuit should become damaged. Avoid open flames and sources of
ignition. Disconnect the appliance from the mains power. Thoroughly ventilate the
room in which the appliance is situated for several minutes.

Disposing:

• Old appliances should not simply be disposed of with normal household waste, but
should be delivered to a collection and recycling centre for electric and electronic
equipment. A symbol shown on the product, the instruction manual or the packaging
shows that it is suitable for recycling.

• Materials used inside the appliance are recyclable and are labelled with information
concerning this. By recycling materials or other parts from used devices you are making
a significant contribution to the protection of our environment.

• Information on appropriate disposal centres for used devices can be provided by your
local authority

1

Freezer compartment shelf

2

Temperature control

3

Fridge compartment shelf

4

Bottom shelf

5

Fruit & vegetable crisper

6-9

Door shelves

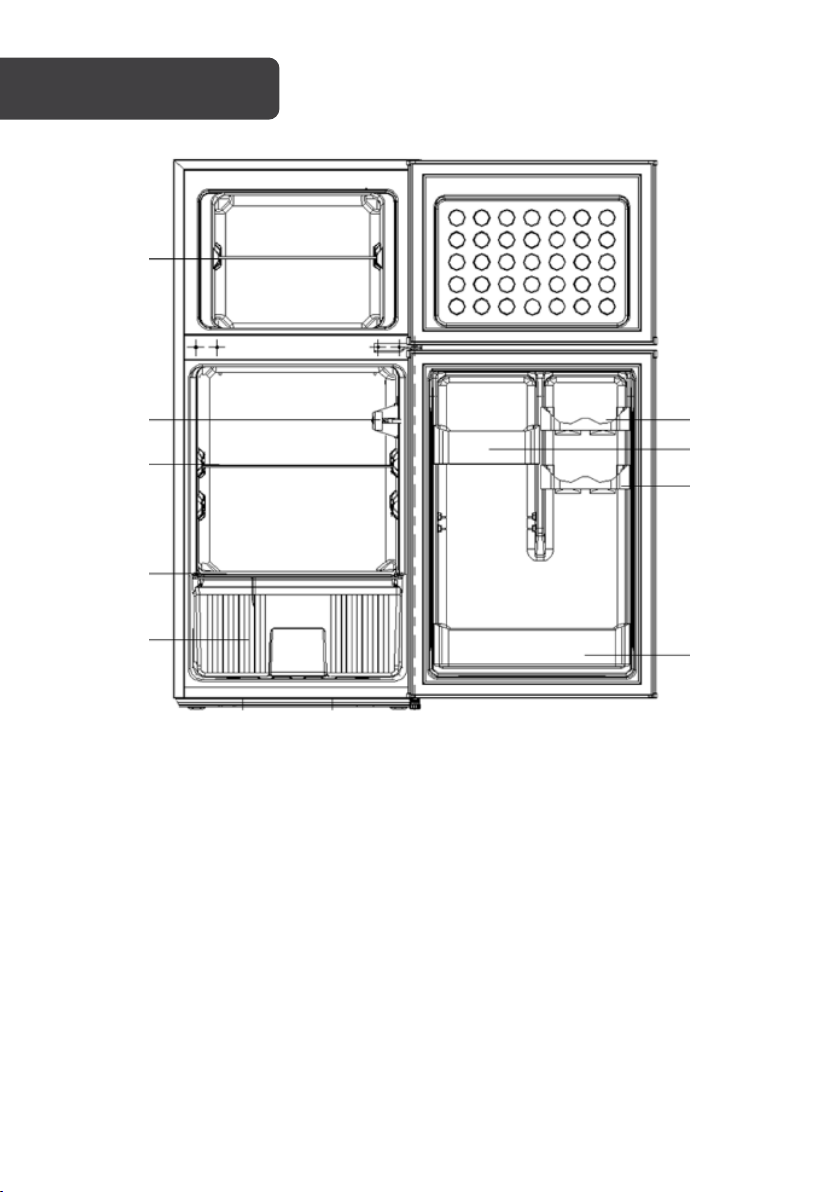

OVERVIEW

1

2

3

4

5

9

8 7 6

Note: Images shown are for reference only, final design may differ.

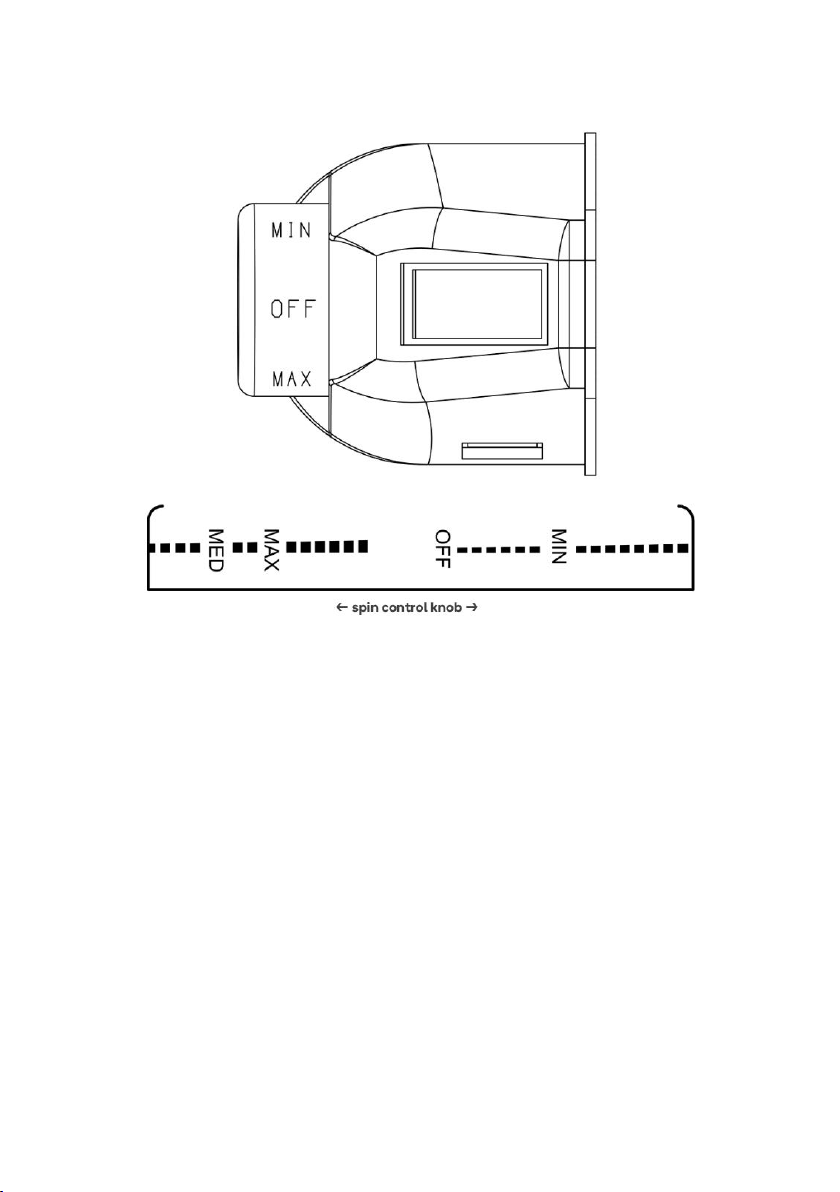

Temperature control

Turn the temperature control knob to “MAX”, the internal temperature of the refrigerator
becomes lower; Turn the temperature control knob to “MIN”, the internal temperature of
the refrigerator becomes higher.

Note: Please adjusting and using between “MAX” and “MIN”.

Recommended gear: Mid-range

INSTALLATION

Selecting a suitable location

When selecting a position for your unit, ensure the floor is flat and firm, and the room is well
ventilated. Avoid placing your unit near a heat source (ie, oven, radiator, or hot water
system). Avoid direct sunlight as it may increase the electrical consumption. Extreme cold
temperatures may also cause the unit to not perform correctly. This unit is not designed for
use in a garage or outdoors. Do not drape the unit with any covering.

When installing the unit, ensure that 10cm of free space is allowed to the left, right and rear
of the unit, and 30cm at the top. This will allow cold air to circulate around the unit and
improve the efficiency of the cooling process.

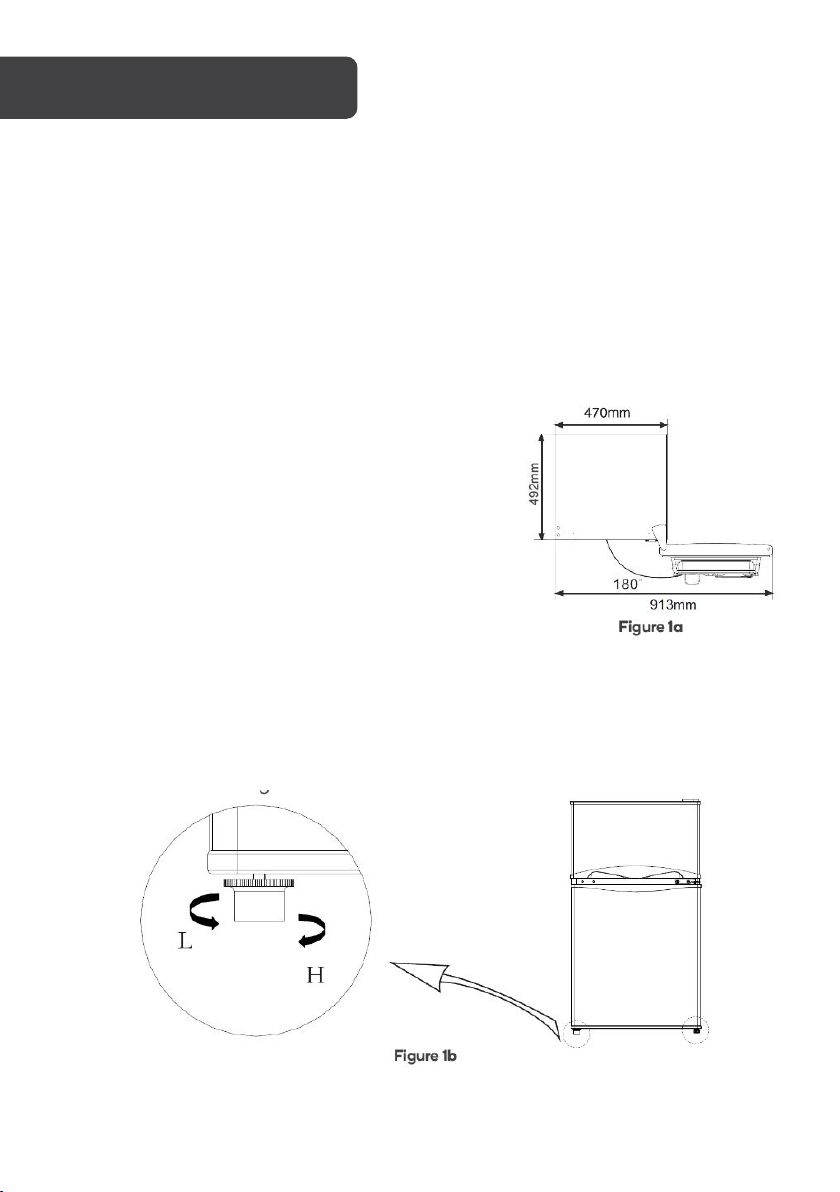

1a. Door space requirements.

The unit’s door must be able to open fully as pictured
(1a).

1b. Levelling the unit

To level the unit, adjust the two feet at the front of the unit – turning clockwise to extend
and counter-clockwise to reduce (1b). If the unit is not level, the door and magnetic seal
alignments will not be covered properly, leading to inefficient freezing performance. Ensure
that the feet all touch the ground before use.

2. Reversing the door swing

Tools Required

Phillips head screwdriver, flat-blade screwdriver or putty knife, 5/16” socket and ratchet, and
masking tape.

Note: All images shown are for reference only. Actual configuration and design may differ.

a. Remove all food from the inner door

shelving, then secure the door with masking
tape.

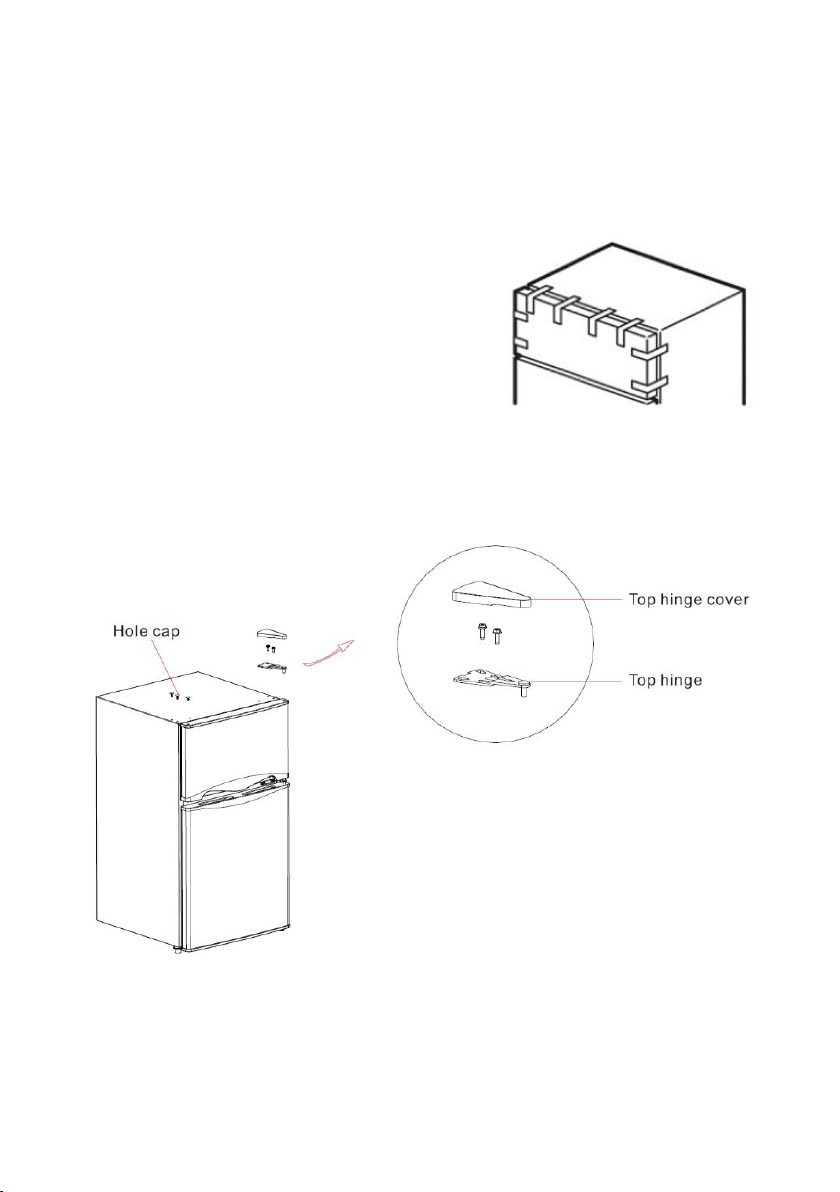

b. Dismantle top hinge cover and top hinge on the hinge side, as well as the hole cap

of the other side.

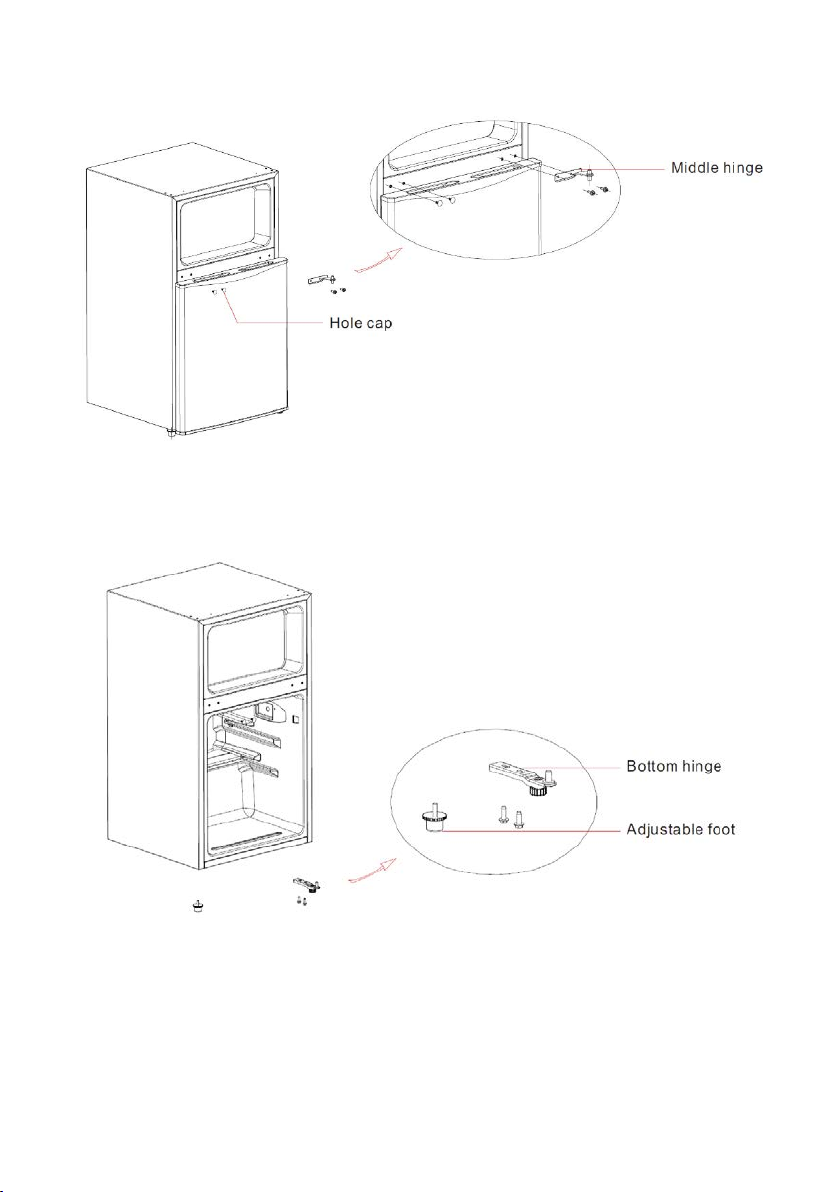

c. Remove freezer door as well as middle hinge and hole cap of the other side.

d. Remove fridge door and dismantle bottom hinge and adjustable foot.

e. Swap the installation

placements of bottom hinge
and adjustable foot to the
opposite sides, then secure
them. Remove the hinge
sleeve pipe of the fridge door
and install it on the other side.
Repeat the same step for the
hinge sleeve pipe of the
freezer door.

f. Place fridge door on bottom

hinge, then secure the middle
hinge on left side and insert
the hole caps on right side.

g. Repeat the same sequence, but for the freezer. Place freezer door on bottom

hinge, then secure the middle hinge on left side and insert the hole caps on right
side.

FIRST TIME USE

WARNING: If the supply cord is damaged, it must be replaced by
Kogan.com or an authorised service agent on Kogan.com’s behalf.
Cease use and ensure the appliance is completely disconnected from
the power supply.

POWER SOURCE AND GROUNDING

It’s recommended to use the vertical fridge on its own dedicated power outlet for both
convenience and safety. The power outlet must be grounded.

Cleaning before use

Wipe the inside of the unit with a weak solution of bicarbonate soda, then rinse with warm
water using a wrung-out cloth or sponge. Wash the shelves and drawers in warm soapy
water and dry completely before replacing in the unit. Clean the exterior of the unit with a
damp cloth.

Before using your unit

• Before initial start, keep the refrigerator still for two hours before connecting it to power
supply.

• Do not use when the power cord is damaged or the plug is worn.

• Do not alter the power cord under any circumstances, so as to ensure safe use.

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator

to prevent damages to the product or fire accidents.

• Do not place flammable items near the refrigerator to avoid fires.

• This product is a household refrigerator and is only suitable for domestic use.

• According to national standards, household refrigerators shall not be used for other

purposes, such as storage of blood, drugs or biological products.

• Important! Before plugging in your fridge, you must check that you have a power outlet
which is compatible with the plug supplied on the appliance lead.

Operation

• When using the refrigerator for the first time or after defrosting, turn the temperature
control to “MAX” for at least two hours before introducing any food to be stored.

• All frozen food products that you purchase should be placed in the freezer
compartment as soon as possible to avoid the frozen food from defrosting.

• In winter or low temperature surrounded condition, please switch the temperature
controller to “MAX” for coldest settings.

• Storage recommendation printed on the packaging of frozen food by the
manufacturers should always be followed.

• Ensure that the drawer doesn’t damage the refrigerant circuit.

Interior accessories

• Various glass or plastic storage shelves are included with your appliance – different
models have different combinations.

• There must always be one of the storage shelves positioned in the lowest set of guides
above the fruit and vegetable crisper.

• To adjust shelf position, or remove a shelf, pull the storage shelf forward until it can be
swivelled upwards or downwards and removed. Follow the same steps in reverse order
to insert the shelf at a different height.

Noise from your fridge

You may notice that your fridge makes some unusual noises. This is completely normal for
refrigerators and freezers, and the noises are caused by the circulation of the refrigerant
liquid within the cooling system.

Tips for keeping food within the fridge

• Cooked meats & fish should always be stored on a shelf above raw meat/fish to avoid
bacterial transfer. Keep raw meat/fish in a container which is large enough to collect
juices and cover properly, placing the container on to the lowest shelf.

• Leave space around your food to allow air to circulate inside the unit.

• Ensure all parts of the appliance are kept cool.

• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit

and vegetables do not need to be wrapped.

• Always let pre-cooked food cool down before you place into the fridge. This will help to
maintain the internal temperature of the fridge.

• To prevent cold air from escaping the fridge, try to limit the number of times you open
the door.

WARNING! To avoid an electric shock, always unplug your fridge before cleaning.

Cleaning the inner cabinet

Caution: Before using any cleaning products, please read and follow the

manufacturer’s instructions and warnings to avoid any damage to your fridge or
personal injury.

• Upon installation of your new appliance, it is recommended that it be cleaned
thoroughly.

• Wash the inside with a damp warm cloth containing a water and baking soda solution.

• The solution should be about 2 tablespoons of baking soda to 2L of water.

• Wash the storage basket with a mild detergent solution.

• Be sure to keep the door seal clean to keep the unit running efficiently.

• The outside of the fridge should be cleaned with mild detergent and warm water.

• Dry the interior and exterior with a soft cloth.

• The condenser coils should be carefully vacuumed when they are dusty or dirty.

• It is recommended that the unit be cleaned each time it is defrosted to help keep the

unit odour free and running efficiently.

• Clean your door gasket seals every 3 months using the same warm water solution
described above.

Cleaning tips

Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem continues, please contact a
qualified technician for assistance.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be
lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should
be used. Under no circumstances should you attempt to repair the unit yourself. Repairs
carried out by inexperienced persons may cause injury or serious malfunction. Contact
Kogan.com

Defrosting

The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also be
manually removed by disconnection of the appliance from power supply or by wiping
with a dry towel.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains
supply, empty all food and clean the appliance, leaving the door ajar to prevent
unpleasant smells.

Warm tips

• The refrigerator enclosure may emit heat during operation specially in summer, this is
caused by the radiation of the condenser, and it is a normal phenomenon.

• Condensation phenomenon will be detected on the exterior surface and door seals of
the refrigerator when the ambient humidity is large. This is a normal phenomenon, and
the condensation can be wiped away with a dry towel.

• Buzz will be generated by running compressor specially when starting up or shutting
down.

Tips for energy saving

• Try not to open the door too often, especially when the weather is wet and hot. Once
you open the door, close it as soon as possible.

• Every now and then check if the appliance is sufficiently ventilated (adequate air
circulation behind the appliance).

• In normal temperature conditions, please arrange the thermostat at the middle setting.

• Before loading the appliance with packages of fresh food, make sure they are cooled to

ambient temperature.

• Ice and frost layer increase energy consumption, so clean the appliance as soon as the
layer is 3-5 mm thick.

• If it is the outer condenser, the rear wall should be always clean free of dust or any
impurities.

• The appliance should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.

• Let hot foods cool to room temperature before placing in the appliance. Overloading
the appliance forces the compressor to run longer. Foods that freeze too slowly may
lose quality, or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance. This cuts down on frost build-up inside the appliance.

• Appliance storage bin should not be lined with aluminium foil, wax paper, or paper
towel. Liners interfere with cold air circulation, making the appliance less efficient.

• Organise and label food to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.

Disposal

• This marking indicates that this appliance should not be disposed with
other house-hold wastes. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.

• Old units still have some residual value. An environmentally friendly method of disposal
will ensure that valuable raw materials can be recovered and used again.

• The refrigerant used in your unit and insulation materials require special disposal
procedures. Ensure that none of the pipes on the back of the unit are damaged prior to
disposal.

• Up to date information concerning options of disposing of your old unit and packaging
from the new one can be obtained from your local council office.

• When disposing of an old unit break of any old locks or latches and remove the door as
a safeguard.

Fridge isn’t operating

• Check that the fridge is plugged in
and connected to power.

• Check whether voltage is too low.

• Check that a fuse hasn’t blown or

circuit tripped.

Fridge is making strange odour

• Odourous foods should be closely
wrapped and sealed in containers.

• Ensure that the interior is clean. Refer
to cleaning instructions.

Fridge compressor is continuously
running

• It is normal for the fridge compressor
to operate for longer periods of time
when the ambient temperature is
higher (ie. Summer).

• Do not put too much food in the fridge
at one time.

• Do not put warm/hot foods into the
fridge.

• Try to minimise the frequency of the
door opening.

Illuminating light does not work

• Ensure the fridge is connected to
power.

• Check that the globe hasn’t blown.

The fridge door doesn’t close properly

• Ensure that food isn’t preventing the
door from closing.

• Ensure that the fridge is completely
level and feet adjusted to touch the
floor.

• Ensure the fridge door gaskets/seals
are clean.

Water pan overflows

• Doors not closed properly, resulting
increased defrosting.

• Too much food within the fridge, or
stored food contains too much water,
resulting in heavy defrosting.

The fridge is making loud noises

• It’s normal for the fridge to make
noises when refrigerant coolant is
being circulated.

• Check that the fridge is correctly
levelled.

TROUBLESHOOTING

Capacity

Volume

Net: 87L

Freezer: 26L

Refrigerator: 61L

Dimensions

Dimensions

(W x D x H): 470 × 505 × 850mm

Weight

25kg

Hardware

Compressor type

SZ45Y1J

Power

Current

0.6A

Energy consumption

207kWh per year

Energy rating

2 Stars

Voltage

220V-240V~ / 50Hz

SPECIFICATIONS

Note:

Design and specifications are subject to change without notice.

Weight and dimension shown are approximate.

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For th e mo st up -to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
