Kogan KALED463D1A User Manual

Page 1

KALED463D1A

USER MANUAL

Page 2

The screen and cabinet get warm when the TV is in use. This is not a malfunction.In case of smoke, strange noise or strange smell from the unit:

· Turn off the power switch immediately;

· Disconnect the power plug from the power outlet;

· Contact your dealer or service centre. Never attempt to make repairs yourself because this could be dangerous.

High Voltage Do not open

Risk of electronic shock, do not open. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

CAUTION

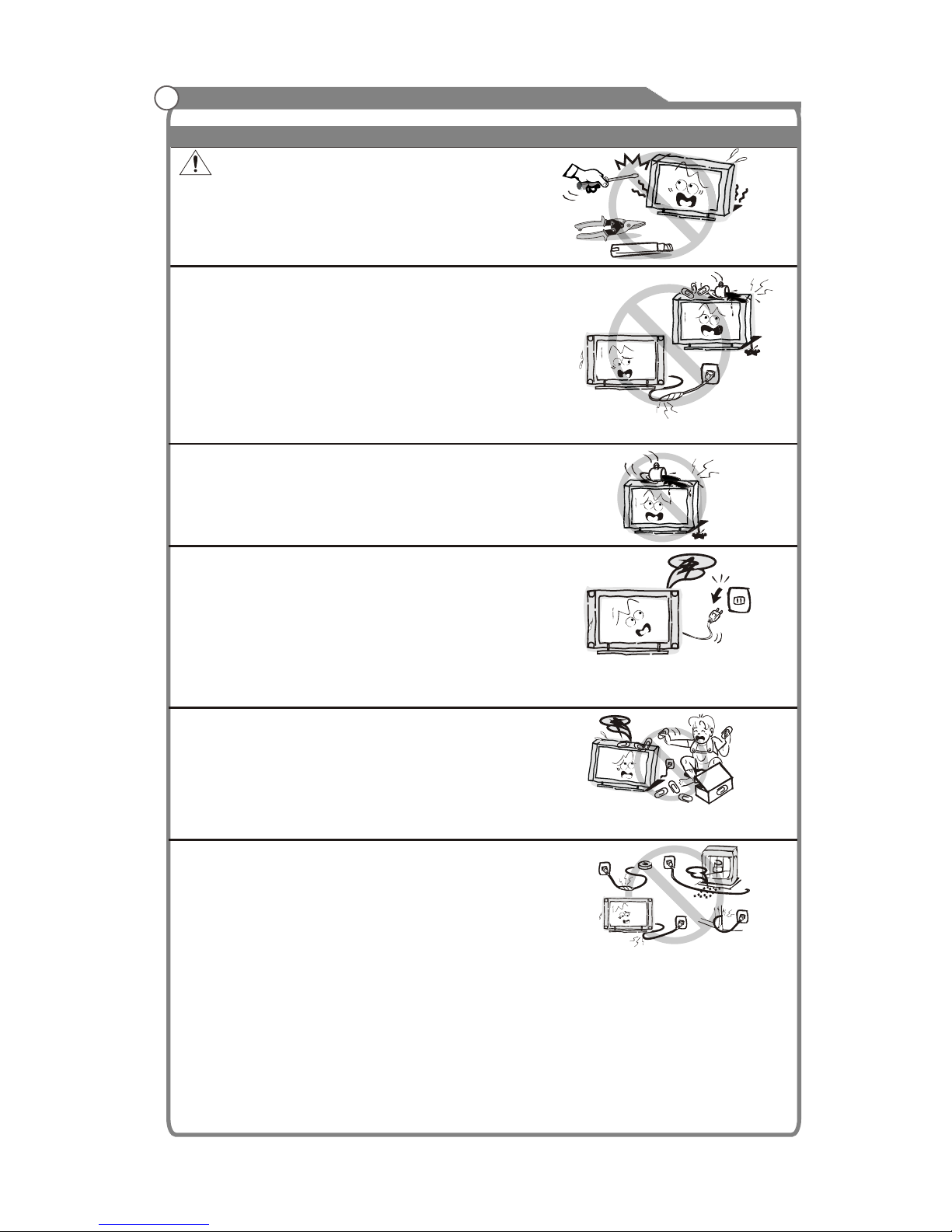

Important Safety Instructions

Important Safety Instructions and Maintenance

Never push objects of any kind into the set through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the set. Use special caution in households where children are present. The apparatus is not suitable for children under 3-year to operate.

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

If the following problems occur: Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or service centre to have it checked by qualified service personnel When:

- AC power cord is damaged.

- Poor fitting of AC power outlet.

- TV set is damaged by being dropped, hit or having something thrown at it.

- Any liquid or solid object falls through openings in the cabinet.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, this can result in fire or electrical shock. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance. The mains plug is used as the disconnect device. It shall remain readily accessible and should not be obstructed during intended use. Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet, do not pull the plug out by the wire. NEVER touch the plug or power cord with wet hands. To disconnect the apparatus from the mains power, the plug must be pulled out from the mains socket, therefore make sure the mains plug is always easily accessible.

Page 3

Important Safety Instructions and Maintenance

Important Safety Instructions

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC mains for environmental and safety reasons. As the TV set is not disconnected from the AC power when the TV is turned off at the standby switch, pull the plug from the AC power outlet to disconnect the TV completely. However, some TV sets may have features that require the TV set to be left in standby to function correctly. In the case of lightning,

unplug the TV set from the outlet immediately. Never touch the antenna wire during lightning.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.Ensuring the television is not overhanging the edge of the supporting furniture.

Installation

The ventilation should not be impeded by covering the ventilation opening with items, such as newspapers, tablecloths, curtains, etc. At least 10 cm space should be left around the apparatus for sufficient ventilation.

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Place the apparatus in such a position that the screen is not exposed to direct sunlight. It is best to have soft indirect lighting while watching and avoid

and reflection from the screen as these may cause eye fatigue. Keep the TV set away from any equipment emitting electromagnetic radiation.

completely

dark environments

Do not pull the plug out by the wire; Never touch the plug with wet hands.

Excessive from earphones and headphones can cause hearing loss.

volume

To avoid the fire, no naked flame source, such as lighted candles, should be placed on the apparatus.

Do not push or scratch the front filter, or place any objects on top of the TV set. The image may be uneven or the screen may be damaged.

Page 4

Important Safety Instructions and Maintenance

Installation

Do not place this apparatus near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or a swimming pool; and the like;

When the TV being moved in from cold place, it needs some right time for dew inside unit evaporating fully before turn on the unit;

Cleaning and handling the screen surface and cabinet. Disconnect the unit from the AC outlet before cleaning. To remove dust, wipe gently with a soft, lint free cloth. If required use a slightly damp cloth.

Do not place the set on an unstable cart, stand, table or shelf. The set may fall, causing serious personal injury as well as damage to the product. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Cleaning

Move

LCD Screen Although the LED screen is made with high precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue or green) may appear constantly on the LED screen. This is a structural property of the LED screen and is not a malfunction.

If the surface of the LCD panel cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result. Do not throw anything at the TV set. The LCD panel may break from the impact and cause serious injury.

Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen. Do not display still images and partially still images on the LED panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LED TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

MAINS PLUG

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Use care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure, fire or electrical shock.) Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances as this may deteriorate the surface and finish of the cabinet.

solvent

thinner

Page 5

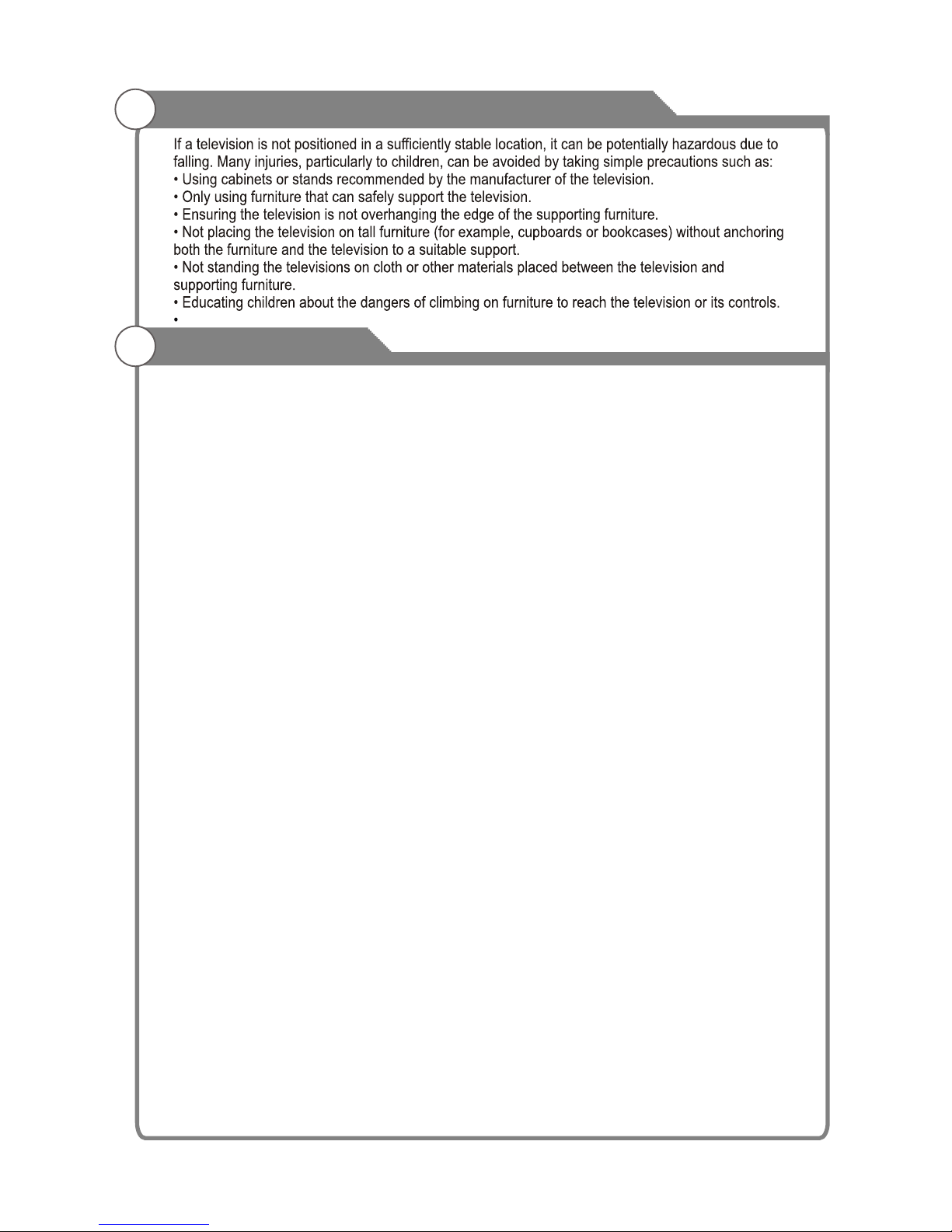

Table of Contents

Important Information

Accessories-----------------------------------------------------------------------------------------------5 Introduction-----------------------------------------------------------------------------------------------6

Features----------------------------------------------------------------------------------------------------6 Specifications----------------------------------------------------------------------------------------------7 Stand and wall-mounting instructions (optional)-------------------------------------------------8

--------------------------------------------------------------------------------10 Overview of back panel-------------------------------------------------------------------------------10 Overview of front panel--------------------------------------------------------------------------------11 Overview of remote control---------------------------------------------------------------------------12 Teletext ----------------------------------------------------------------------------------------------------14 Installing Batteries in the Remote Control--------------------------------------------------------16 External Connection--------------------------------------------------------------------------------------16 Antenna connection------------------------------------------------------------------------------------16 Connecting VCR ---------------------------------------------------------------------------------------17 Connecting a Camcorder-----------------------------------------------------------------------------18 Connecting a DVD Player/Set-Top Box ----------------------------------------------------------19 Connecting a DVD Player/Set-Top Box via DVI ------------------------------------------------20 Connecting DVD Player/Set-Top Box via HDMI ------------------------------------------------21 Connecting Digital Audio System-------------------------------------------------------------------22 Connecting PC -----------------------------------------------------------------------------------------23

Supporting signals ----------------------------------------------------------------------------------------23

Basic operation----------------------------------------------------------------------------------------24

Turning the TV on and off----------------------------------------------------------------------------24 Menu operation -----------------------------------------------------------------------------------------25 Menu system instruction--------------------------------------------------------------------------------27 Picture-----------------------------------------------------------------------------------------------------27 Sound------------------------------------------------------------------------------------------------------29 Channel----------------------------------------------------------------------------------------------------31 Time--------------------------------------------------------------------------------------------------------33 Option------------------------------------------------------------------------------------------------------34 Function---------------------------------------------------------------------------------------------------35 PVR---------------------------------------------------------------------------------------------------------37 Digital Media Player ---------------------------------------------------------------------------------------40

------------------------------------------------------------------------------------------------40

-------------------------------------------------------------------------41

--------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------41

--------------------------------------------------------------------------------------------------------43

--------------------------------------------------------------------------------------------------------44

----------------------------------------------------------------------------------------------------------47

My Disk-----------------------------------------------------------------------------------------------------48

Troubleshooting -------------------------------------------------------------------------------------------50 Picture defects and the reason------------------------------------------------------------------------52

General Description

Introduction Device and File Management USB Support Character 41 Photo Music Movie Text

Keep small accessories out of reach of children so they are not mistakenly swallowed.

Page 6

Please make sure the following items are included with your LED TV. If any items are

missing, contact your dealer.

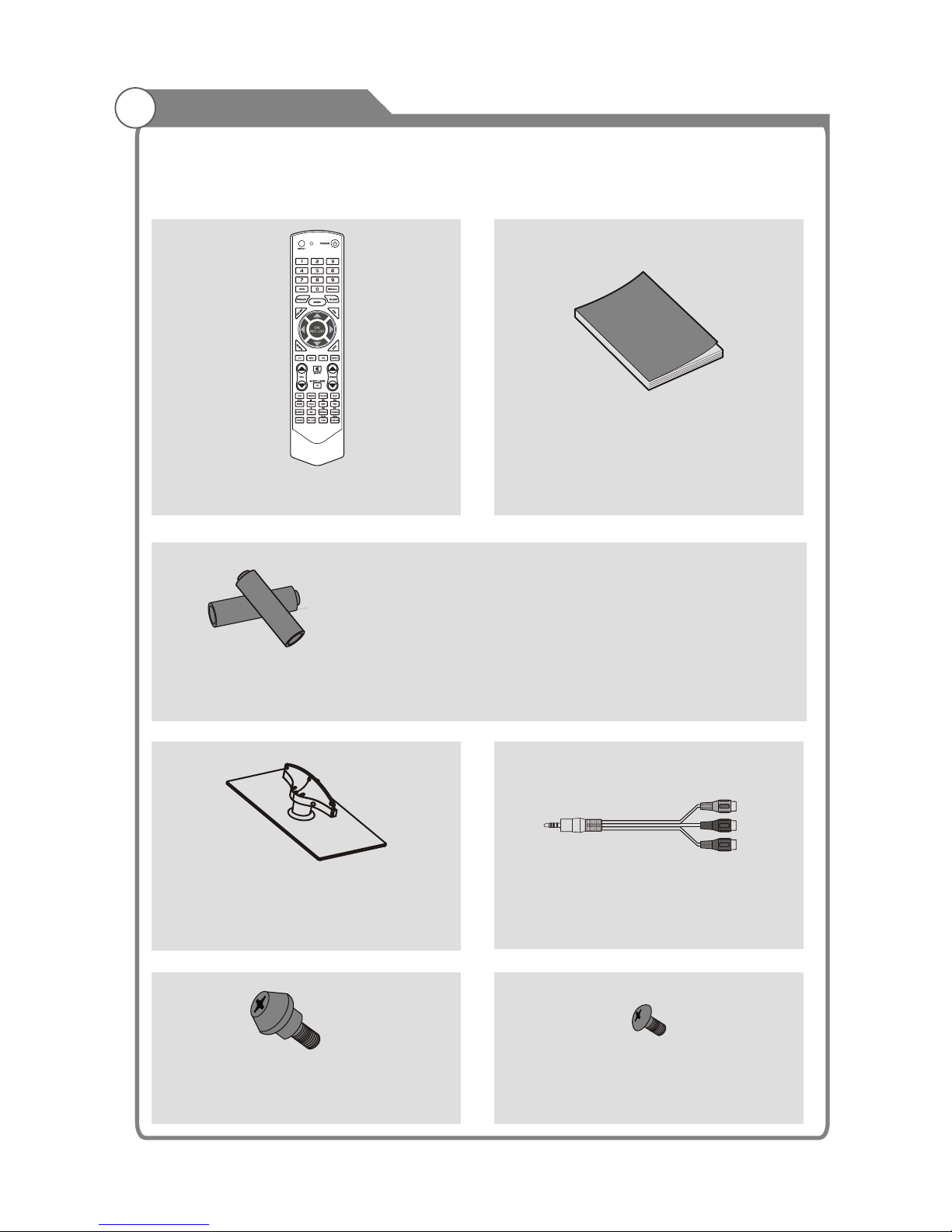

Accessories

Remote Control

Owner’s

Instructions

Batteryx2

CAUTION:

Do not dispose of batteries in a fire. Do not short circuit, disassemble or overheat the batteries. Danger of explosion if battery is incorrectly replaced, please observe polarity. Replace only with the same or equivalent type.

M8X10,4 Pieces-see rear panel of TV. Mounting screws

M4X10( 5 Pieces) Stand screw s

Stand(1 Piece)

YPbPr cable(1to3) and AV cable(1to3)

Page 7

Features

Introduction

Input terminals used for external equipment connection

1 x AV output

1 x ANTENNA jack 4 x HDMI inputs 1 x computer PC-RGB input 2 x USB inputs 2 x COMPONENT input 2 x AV inputs 1 x SPDIF output 1 x Headphone output

l TV adopts 42”/46”/55”TFT display screen l Zero X radiation complies to green environment protection requirement l Connect to computer directly to realize TV/monitor combo. l 16:9 wide screen l Auto tuning and fine tuning l HDMI input l Component Compatible (480i; 480P; 576i; 576P; 720P; 1080i; 1080P) l PC VGA l Programmable sleep timer l Wide range voltage input l No-signal automatic power off

LED

Page 8

Note:

- Design and specifications are subject to change without notice.

- Weight and Dimension shown are approximate.

- It is suggested to watch 3D program under the operation temperature above 10 C to

obtain the best 3D effect.

Introduction

Specifications

Analog: Antenna:

46.25MHz-855.25MHz Digital:5-12, 21-69

PAL / NTSC / SECAM

≥5 X2W

145W

o o

0 C -40 C

<1W

~110-240V, 50/60Hz

75 ohms, unbalanced

46” Diagonal (max.)

Display size

LED panel resolution

Power supply

TV receive system

Frequency range

Video in

Antenna Input

Speaker output power

Power consumption

Standby consumption

Work Temperature

Model

Controller power

DC 3V (Two AAA size batteries)

1920X1080

1112X42X724mm

16.6Kg

1112X 275X 756 mm

20.7Kg

KALED 463 D1A

Digital: DVB-T Analog: PAL: BG, I, DK, SECAM: BG, D/K

Analog: Antenna:

46.25MHz-855.25MHz Digital:5-12, 21-69

PAL / NTSC / SECAM

≥5 X2W

185W

o o

0 C -40 C

<1W

~110-240V, 50/60Hz

75 ohms, unbalanced

55” Diagonal (max.)

DC 3V (Two AAA size batteries)

1920X1080

1304X50X810mm

23Kg

1304X 289 X858 mm

25.5Kg

KALED 553 D1A

Digital: DVB-T Analog: PAL: BG, I, DK, SECAM: BG, D/K

Page 9

Stand and wall-mounting instructions (optional)

How to assemble the stand

-Before attaching/detaching the stand, make sure to turn off the TV.

-Before performing work, spread cushioning over the base area to lay the LED TV on.

This will prevent it from being damaged.

Assembling instruction:

1) Assemble the stand and the unit together with five M4*12 screws. (Figure 1)

- To disconnect the stand from the TV, perform the above steps in reverse order.

Securing the TV Stand

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular,

ensure your children do not hang over or destabilize the TV; doing so may cause the TV

to tip over, causing serious injuries or death. Follow all safety precautions

For added stability, install the anti-fall device for safety purposes,

as follows.

ALTERNATIVELY

To secure the TV to the wall:

1- Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the

screws have been firmly installed onto the wall.

- You may need additional material such as an anchor depending on the type of wall.

- Since the necessary clamps, screws, and string are not supplied, please purchase them

separately.

2 - Remove the screws from the center back of the TV, put the screws into the clamps,

and then fasten the screws onto the TV again.

- Screws may not be supplied with the product. In this case, please purchase the screws

of the following specifications.

If you need to remove or assemble the stand please read the following instructions.

at the start of

this manual.

Figure 1

Screws(5-M4X10)

Page 10

3 - Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable.

- Install the TV near to the wall so that it does not fall backwards.

- It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

- Remove the cable before moving the TV. 4 - Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

(optional)

Your LED TV is able to accommodate wall mounting with the use of a wall mount bracket (not supplied with LED TV, please contact your local hardware store) and the mounting holes on the back of the unit. We recommend removing the TV stand prior to wall mounting the TV. Please

How to mount the LED TV on the wall

1.After detaching the stand, fasten 4 mounting screws (Not supplied! Please contact your local hardware store) into the 4 screw holes on the rear cover, see the figure below.

2.Fasten wall mounting bracket (Not supplied with LED TV, please contact your local hardware store) with screws on the wall.

3.Carefully check for the strength before releasing the LED TV. NOTE: For more detailed instructions please refer to your “after market” wall mounting instruction book.

Thread hole size – M8 x 10 depth (TV mounting screw size) on the TV.

Wall mounting instructions

see previous

page for instructions on removing the stand.

Stand and wall-mounting instructions (optional)

Wall

Page 11

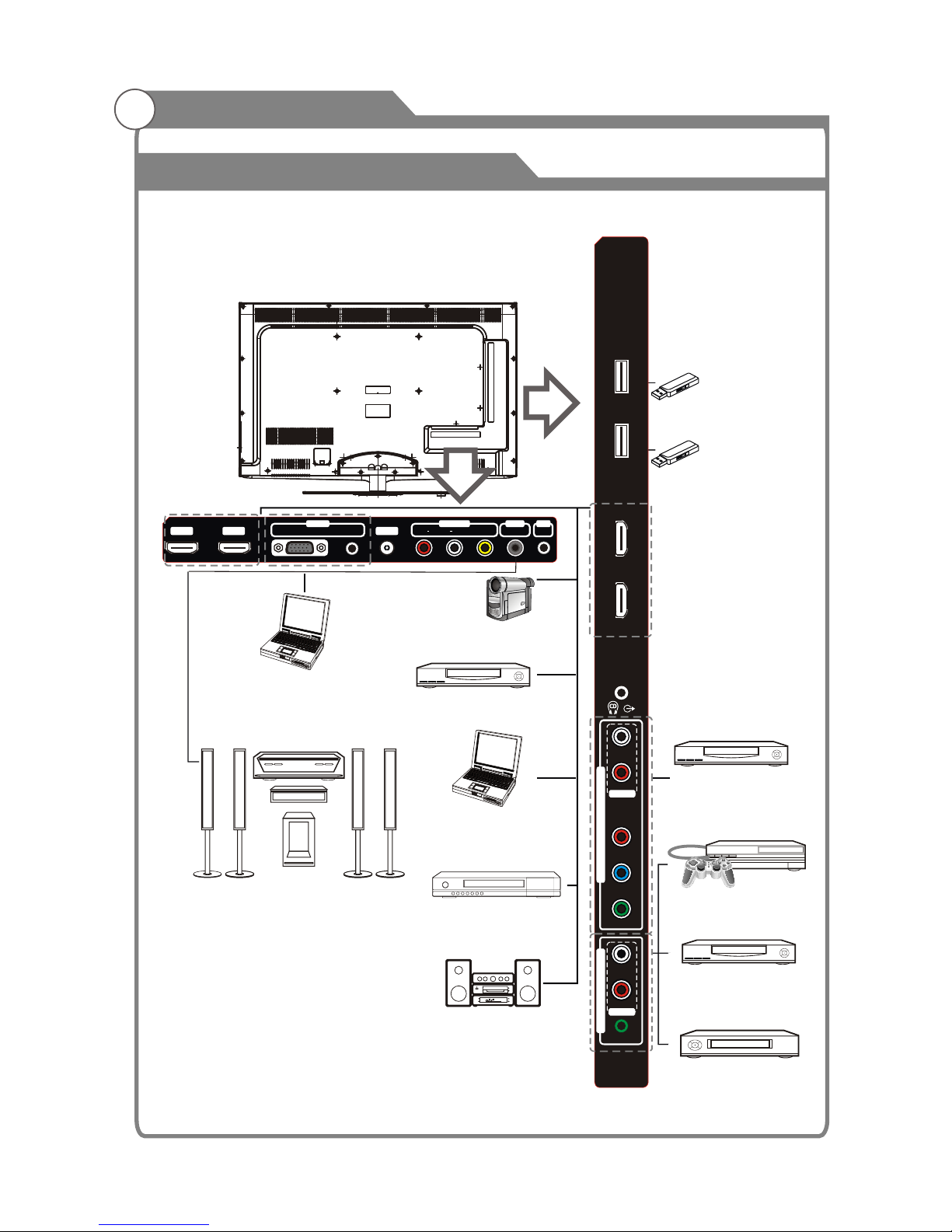

General Description

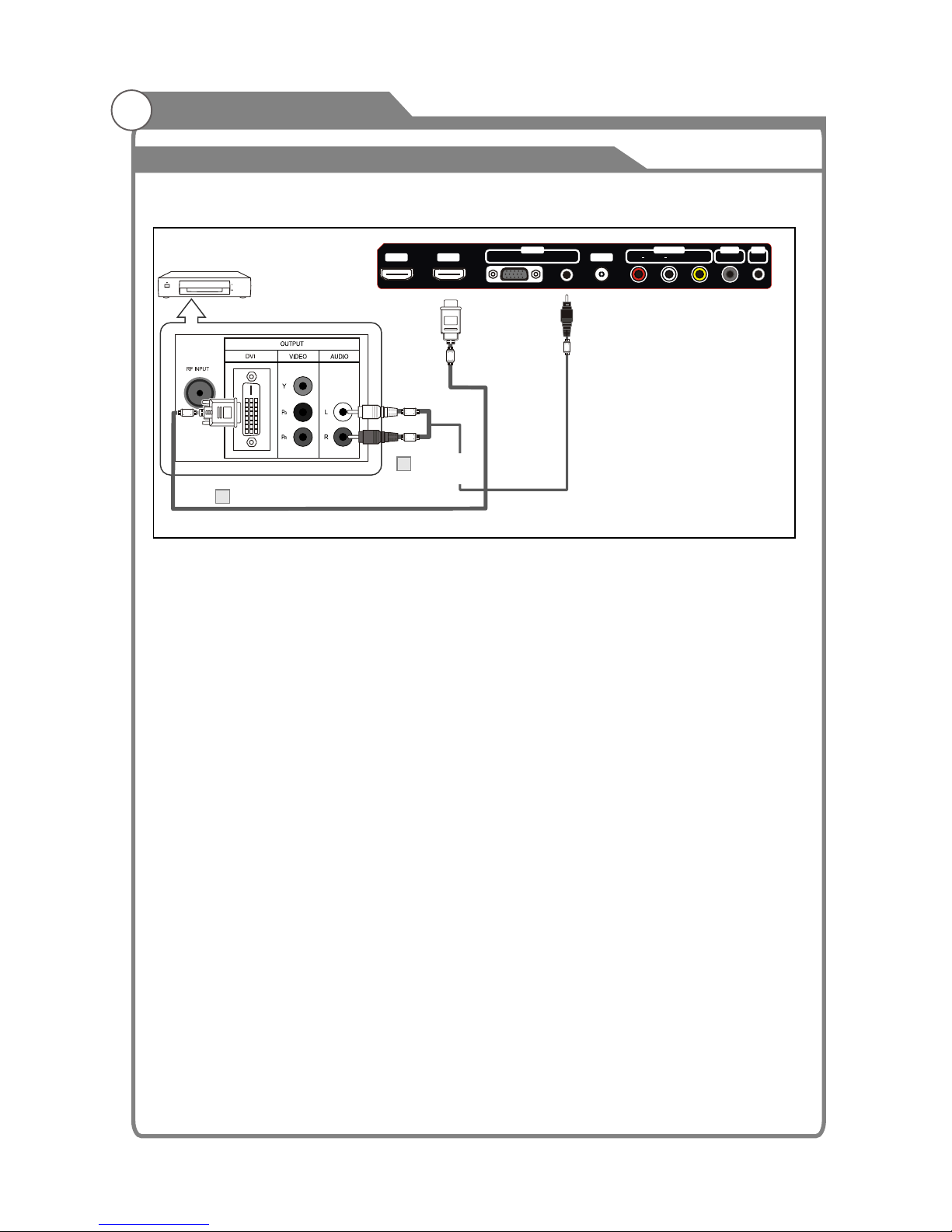

You can connect the TV with video devices such as DVD/VCD player, VCR and video camera

to enjoy the high quality picture.

USB2

USB1

Camcorder

DVD player

PC (HDMI-output)

Blu-ray disc player

Audio system

DVD player

VCR

DVD player with component output

Home theatre system with digital input

Overview of back panel

PC (HDMI-output)

Video game equipment

YPbPr

COMPON ENT1 IN

AUDIO

HDM I 3

HDM I 4

USB 1

USB 2

Y / V2

COMPON ENT2/AV2 IN

AUDIO

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 12

General Description

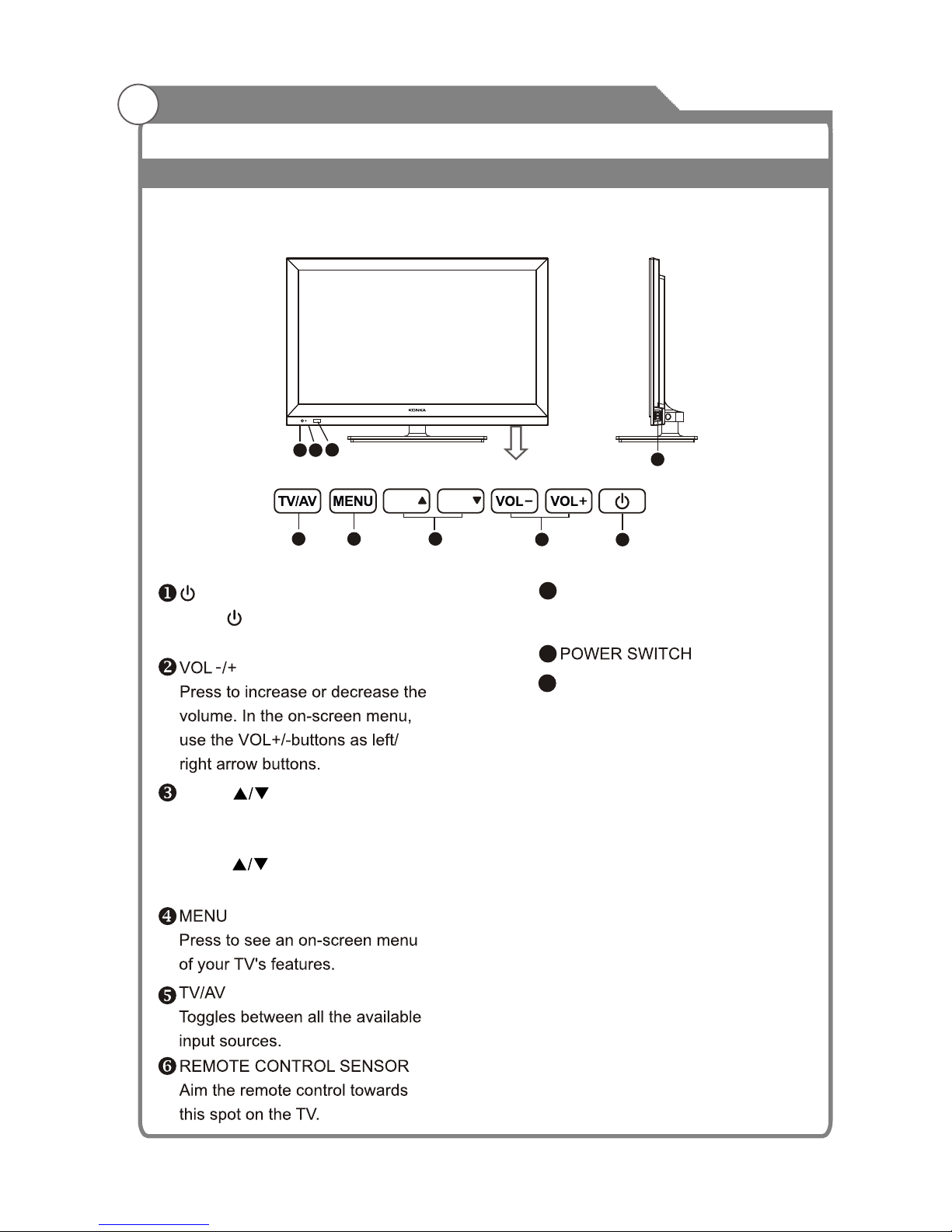

Overview of front panel

The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

Note:

1. Sensor lights will turn off within 6 seconds of the last operation.

2. In order to avoid errors, the TV will go into

standby mode after touching the standby button for 2 seconds. In standby mode, the standby indicator will remain illuminated, all other indicators will be off.

3. When the sensor indicator lights are off, they are still active and will respond to the first touch.

4. Please do not touch the buttons in rapid succession.

5. When the TV initialises during power up, all sensor lights on the front panel will flash sequentially, cycling from left to right. When the TV has finished the initialising process, the cycle will cease and all light indicators will remain off until touched.

6. When recording in normal/standby mode, the power indicator will cycle from green to red for the duration of the recording.

POWER INDICATOR Red:In standby mode. Green: In power on mode.

Standby button Press button to toggle between normal and standby mode.

PROG Press to change programs. In the on-screen menu, use the PROG buttons as up/down arrow buttons.

PROG

3D Sync Signal emitter 3D sync signal for shutter glasses.

Page 13

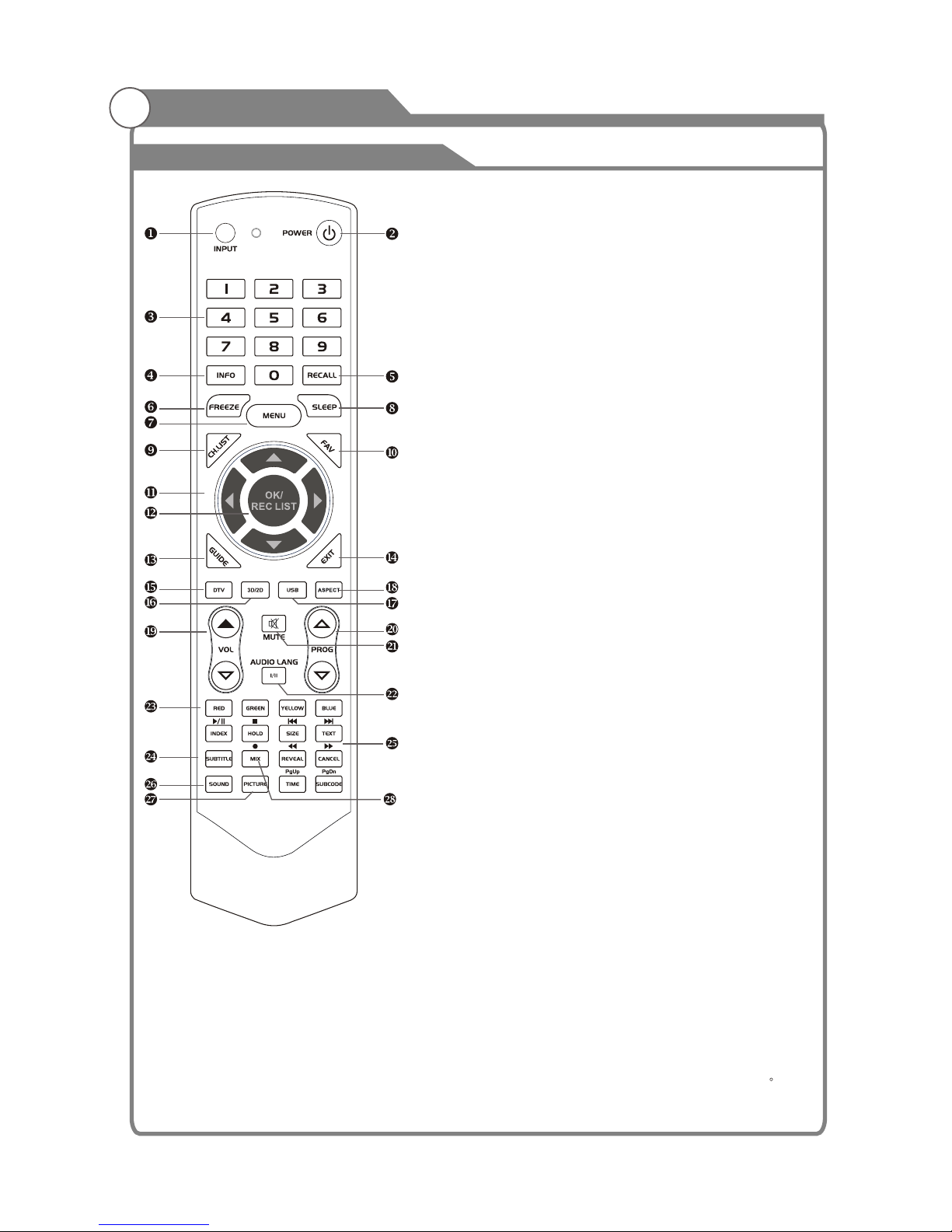

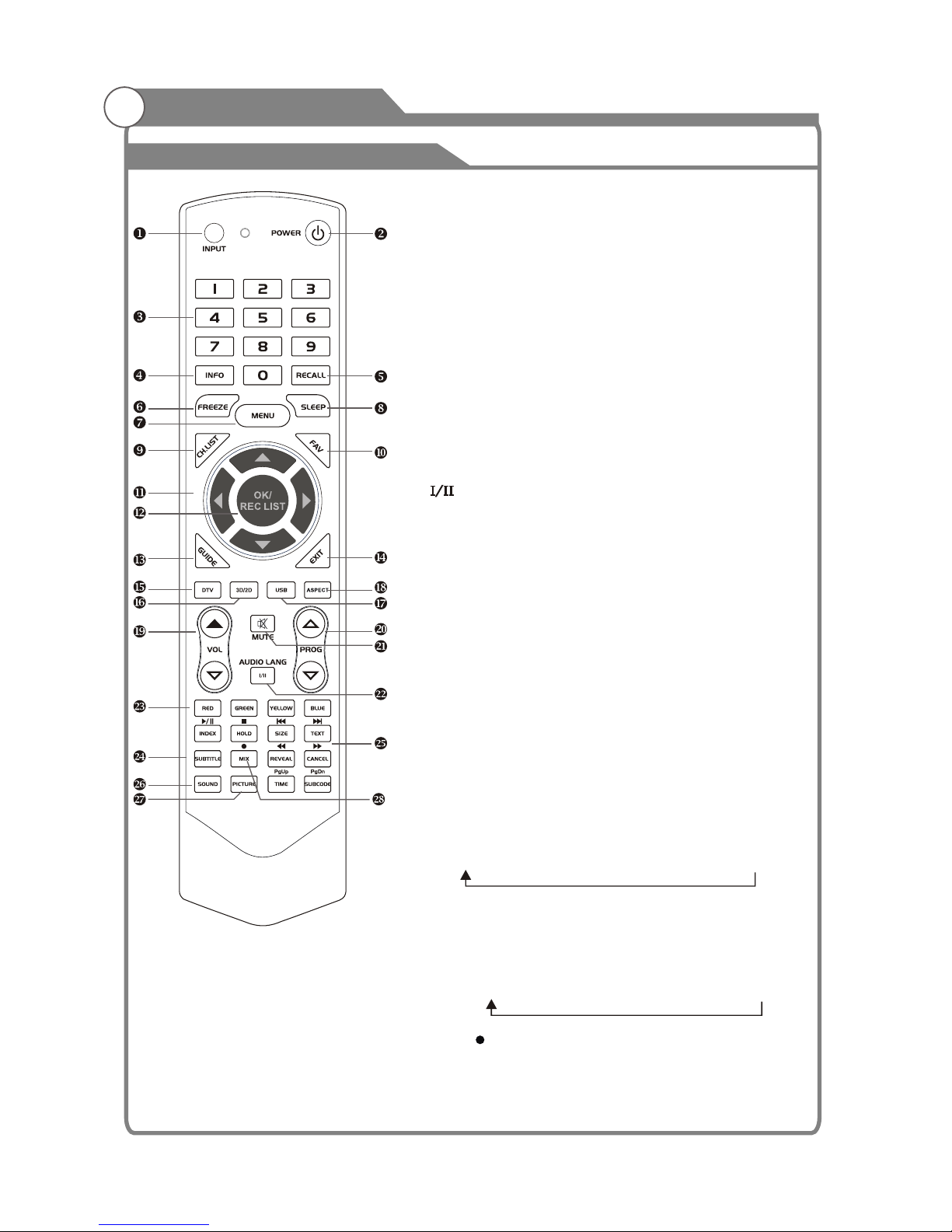

Overview of Remote Control

General Description

1. INPUT: This button is used to switch among different sources: DTV,ATV, AV1, AV2, Component1, Component2,PC-RGB, HDMI1, HDMI2, HDMI3, HDMI4, USB. Select a source and press OK button to confirm.

2. POWER: Press this button to switch to standby mode, and press it again to turn TV on.

3. Digital buttons(0~9): To select channel with digital buttons.

4. INFO: This button is used to start the "Current Service Banner" application that provides information about the current service.

5. RECALL: Switch to the previous program.

6. FREEZE: Press this button to freeze the image.

8. SLEEP: TV will be switched off automatically at preset sleep time if you have set sleep timer. Use your remote control to set the sleep timer. Press SLEEP button on the remote control, then press this button again to set sleep time: off, 10, 20,30, 60,90,120,180, 240 min. Press MENU button to exit when you have set the sleep timer. After you have set sleep timer, press SLEEP button again, you will see the Remaining time. Notes: The sleep timer you have set will be Cancelled when the TV turns off or if a power failure occurs.

9. CH.LIST: Press it to show channel list on screen.

10. FAV: Press it to display favorite list.

11.

12.

GUIDE: In DTV source, this button is used to

start the EPG application.

14. DTV: Switch to DTV mode.

16. 3D/2D: Swich to 3D(2D)mode directly.

Press twice to swich to 2D(3D)mode.

MENU: Press this button to display main menu or exit the menu. When you are in the submenu, you can press it to return the main menu.

Arrow buttons: Press these buttons to move

cursor up/down/left/right for menu.

OK/REC LIST: Press this button to display a list of recorded programs. In main menu and submenu it is a validation button.

13.

Exit: Exit the menu.

15.

Note:It is suggested to watch 3D program under

the operation temperature abov e 10 C to

obtain the best 3D effect.

Page 14

Overview of Remote Control

General Description

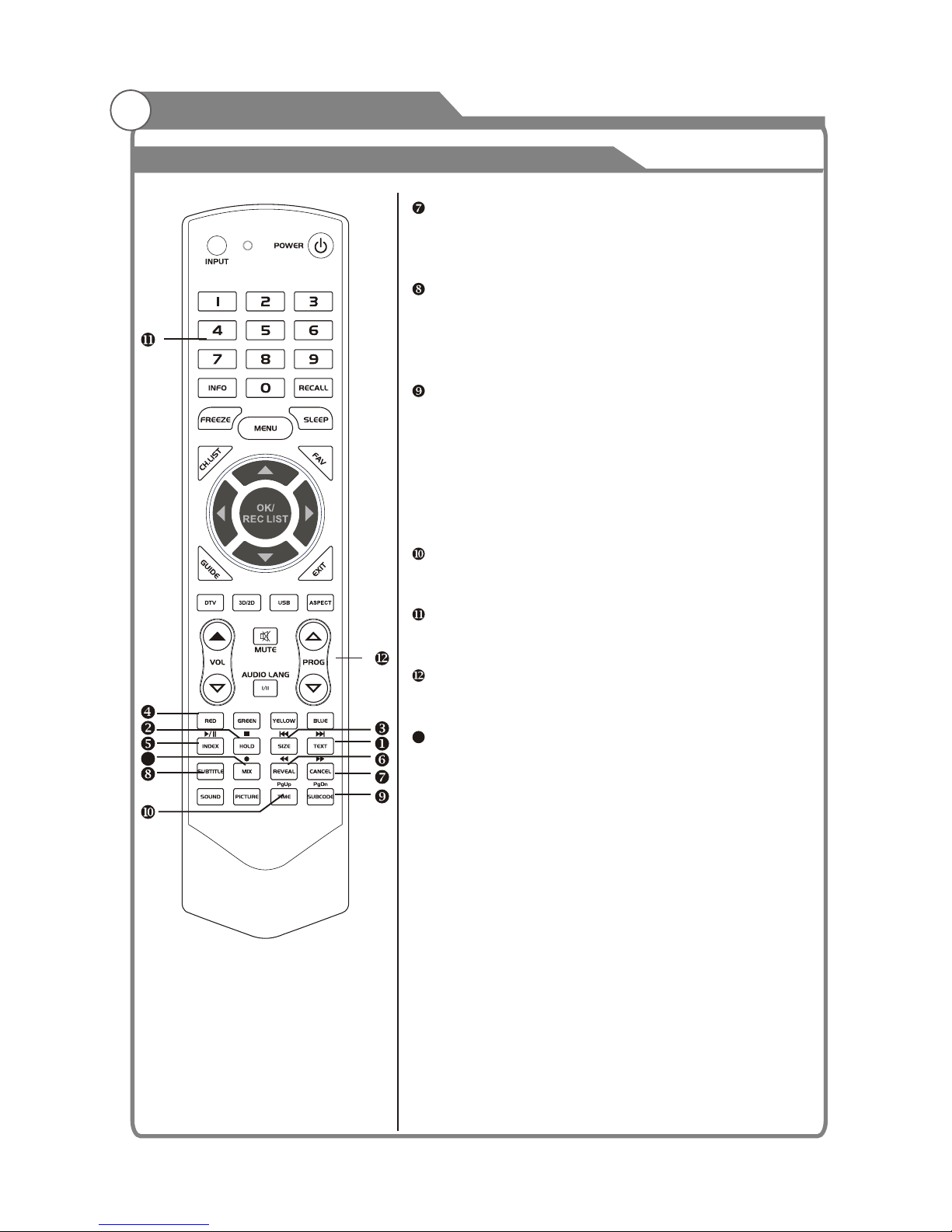

17. USB: Switch to USB mode directly or call the control menu in USB mode. Please see the details in “Digital Media Player” on

: Press this button to switch the screen

mode.

19.

22. Button/Audio Lang: source

source

Digital media player control button: play/pause, stop, previous file, next file, page up, page down, back, forward, is used to control in USB mode. Please refer to instructions in the section of multimedia player.

26. SOUND: This button is used to select the sound mode.

27. PICTURE: This button is used to adjust user picture mode, press this button repeatedly and select one of four settings.

28. MIX ( ): Teletext buttons for mix function, please refer to page 15. It is also used for recording function when TV is on DTV mode, please refer to page 39.

Page 40

-Page49.

18. ASPECT

VOL and VOL: Press these buttons to adjust TV volume.

20. PROGand PROG: Press these buttons to change channel upward or downward. In the teletext, these buttons are used to display the next page and previous page.

21. MUTE: Press this button to shut off sound of the TV, press again to restore TV sound.

In ATV , the button is used to set NICAM sound system. In DTV , the button is used to set the audio language.

23. Red/Green/Yellow/Blue Command: These four buttons are used to request linked buttons with the current menu/page.

24. Teletext buttons: Detail operation please refer to "Teletext “ in the next page.

25. Including

relevant

User " Standard " News" Movie" Spo rts " Dan ce" Classic" Pop" Rock " Jazz" Soft

Standard" Mild" Bright" User " Sports

Page 15

Teletext

General Description

Teletext is an information system broadcast by certain channels which be consulted like a newspaper. It also offers to subtitles for viewers with hearing problems or who are not familiar with the transmission language. You can press these buttons to operate the teletext: Text Press TEXT button to enter or exit teletext mode. Hold Press HOLD button to toggle Hold function on or off. When Hold is switched on, the page acquisition is stopped. When Hold is switched off, the page acquisition is started. Size

Red/Green/Yellow/Blue Command

Index Press INDEX button, then index page displays. Reveal

Press SIZE button one time to display the upper half of the screen in double height, press the SIZE button two times to display the lower half of the screen in double height, press three times to display the full screen in normal size.

These four buttons are used for quick access to different pages as numbered at the bottom of the screen.

Pressing this button will reveal any hidden data (answers to quizzes for example).Press the REVEAL button again to return to normal screen.

Teletext

General Description

Red/Green/Yellow/Blue Command

Index Press INDEX button, then index page displays. Reveal

These four buttons are used for quick access to different pages as numbered at the bottom of the screen.

Pressing this button will reveal any hidden data (answers to quizzes for example).Press the REVEAL button again to return to normal screen.

Page 16

Teletext

General Description

Cancel

Subtitle Turning the Teletext subtitles on or off. Subtitles is a separate mode with only a few buttons available. There will be no OSD visible other than the Teletext Subtitles. Subcode Subcode mode gives the possibility to select certain subcode pages of a Teletext page. Entry of digits within the range 0...9 for current subcode entry. If the digit completes the entry, a page request is started. Press PAGE+/PAGE- buttons to change the subcode pages. Time This button is used to show the time of the Teletext. Digital buttons(0~9) You can press them to enter the number of the Page required. Page+/Page You can press them to change page upward or downward. Mix Press MIX botton, the teletext page changes transparent, TV content and teletext page content will display at the same time. Press MIX button again to exit MIX mode.

The CANCEL button will exit from any Teletext on the display. Press CANCEL button again to exit Teletext and return to live TV broadcast.

Page 17

Installing Batteries in the Remote Control

General Description

Antenna connection

Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details Please refer to the following drawing.

Use a 75ohm - 300ohm converter

300ohm coaxial cable

Antenna feeder

ANT IN

75ohm c oaxial ca ble

Anten na cable

Antennas with 300 W flat twins Leads

Antennas with 75 W Round Leads

External Connection

Installing BatteriesInstalling Batteries

Poin t the rem ote tow ard s th e rem ot e cont rol sen sor o f th e TV a nd us e it with in 8 mete rs.

Put th e used ba tteri es in to t he re cy cling b in sinc e the y ca n neg at ive ly affect t he envi ron me nt.

The batteries (battery pack or batteries installed) shall not be exposed to excessive h eat such as sunshine, fire or the lik e.

ATV DTV HDMI SLEEP

INPUT

SOUND


ZOOM

Open the bat ter y com par tme nt cover on the b ack s ide .

Insert two 1 .5V AA A size b att eri es in correct p ola rit y. Don´t mix old o r used batte rie s wit h new o nes .

Closed the c ove r.

Page 18

External Connection

Connecting VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.

VCR Rear Panel

Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

4. jack

on the TV.

5. Connect Audio Cables between the AUDIO OUT jacks

on the VCR and the AUDIO L and AUDIO R jacks on the TV.

Note: 1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2. When connecting an external device, match the color of the connection terminal

to the cable.

Connect a Component Cable between the COMPONENT

[Y, Pb, Pr] jacks on the VCR and YPbPr

TV Rear Panel

White

Red

R de

eWhit

ANT

ANT OUT S-VIDEO

AUDIO OUT

Red

Blue

Green

VIDEO OUT

Green

Blue

Red

Audio Cable (Not supplied)

YPbPr cable(Not supplied)

RF Cable (Not supplied)

1 2 3

YPbPr

COMPONE NT1 IN

AUDIO

HDM I 3

HDM I 4

USB 1

USB 2

Y / V2

COMPONE NT2/AV2 IN

AUDIO

Page 19

External Connection

Connecting a Camcorder

The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable.

1. Connect a Video Cable between the AV1 VIDEO jacks on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio Cables between the AUDIO L and AUDIO R jacks on

the TV and the AUDIO OUT jacks on the camcorder.

Note:

1. Whenever you connect an external device to your TV, make sure that

power on the unit is turned off.

2. When connecting an external device, match the color of the connection

terminal to the cable.

Video Cable (Not supplied)

Audio Cable (Not supplied)

Camcorder

White

lYelow

Red

eR d

White

Yellow

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 20

External Connection

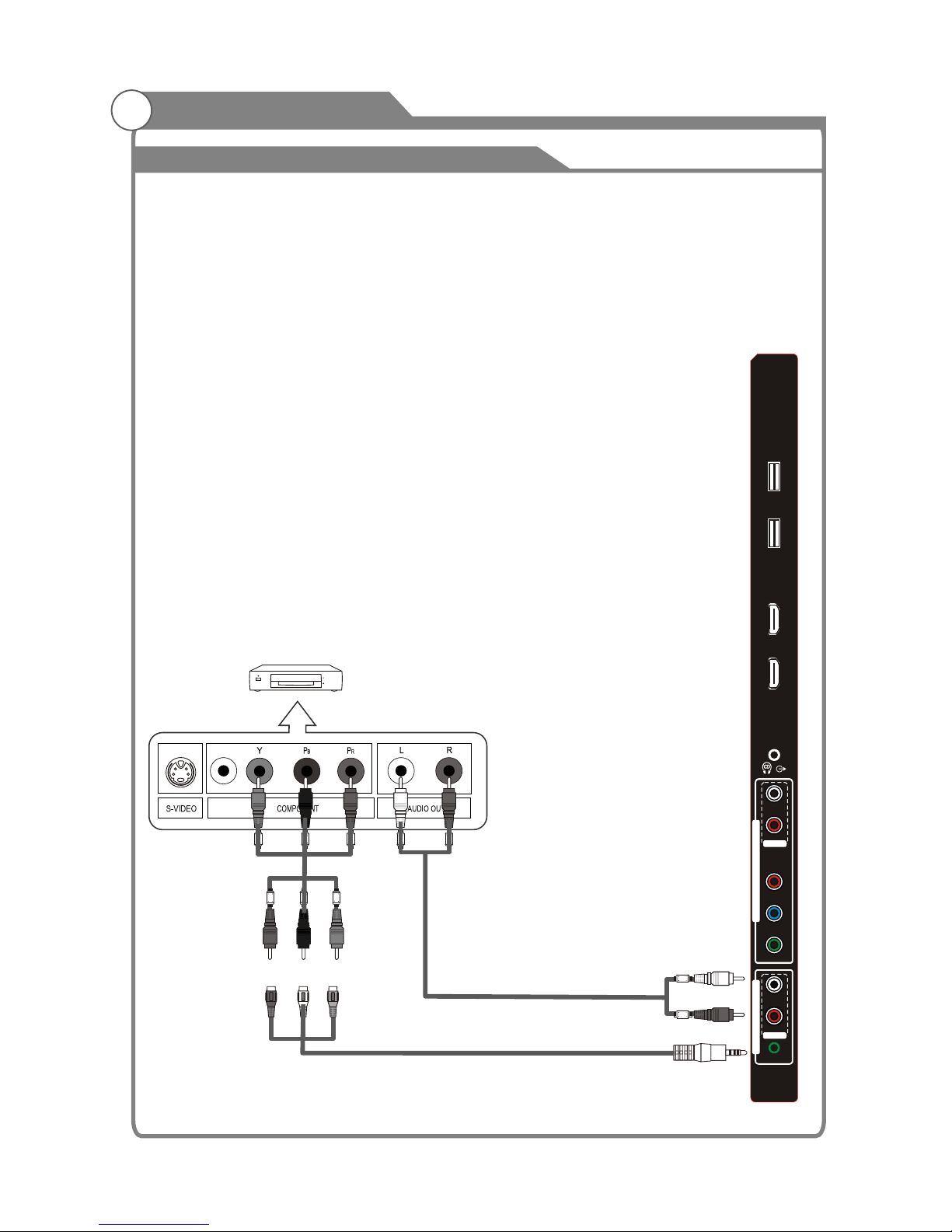

Connecting a DVD Player/Set-Top Box

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

1. Connect a Component Cable between the COMPONENT IN [Y, Pb, Pr] terminal on the cable and the COMPONENT [Y, Pb, Pr] jacks on the DVD player.

2. Connect Audio Cables between the COMPONENT IN [R- AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD player. Note: 1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

The rear panel jacks on your TV make it easy to connect a DVD to your TV.

Insert the small terminal on the into jack on the TV.

YPbPr (1 to 3)

YPbPr cable (1 to 3) YPbPr

Green

Blue

Red

White

Red

Blue

Green

YPbPr cable(supplied)

Green

Blue

Red

VIDEO OUT

Audio cable(Not supplied)

TV Rear Panel

DVD Player/Set-Top Box

Red

White

YPbPr

COMPONE NT1 IN

AUDIO

HDM I 3

HDM I 4

USB 1

USB 2

Y / V2

COMPONE NT2/AV2 IN

AUDIO

Page 21

External Connection

Connecting a DVD Player/Set-Top Box via DVI

This connection can only be made if there is a DVI Output connector on the external device.

Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI 1, HDMI 2, HDMI 3 or HDMI 4 connector on the TV and the DVI connector on the DVD player/Set-Top Box.

2. Connect Audio Cables between the PC AUDIO IN jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

TV Rear Panel

DVI to HDMI Cable (Not supplied)

Audio Cable

(Not supplied)

DVD Player/

Set-Top Box

White

Red

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 22

External Connection

Connecting DVD Player/Set-Top Box via HDMI

This connection can only be made if there is a HDMI Output connector on the external device.

What is HDMI? HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression. Multimedia interface is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. Each DVD player/STB has a different back panel configuration.

1. Connect an HDMI Cable between the HDMI1, HDMI2, HDMI3 or HDMI4 connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

HDMI Cable (Not supplied)

DVD Player/

Set-Top Box

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 23

External Connection

Connecting Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.

1. Connect an Coaxial Cable between the SPDIF jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. When a Digital Audio System is connected to the SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the volume control.Digital Audio System's

TV Rear Panel

Coaxial Cable (Not supplied)

Digital Audio System

(Black)

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 24

Connecting PC

Each PC has a different back panel configuration. The HDMI jacks do not support PC connection.

1. Connect a D-Sub Cable between VGA/PC IN connector on the TV and the PC output connector on your computer.

2. Connect a PC Audio Cable between PC AUDIO IN jack on the TV and the Audio Out jack of the soundcard on your computer. You should set PC software before you connect a PC to your TV (please refer to "PC

Note: 1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. 2. When connecting an external device, match the color of the connection terminal to the cable.

Display'' settings)

D-Sub Cable (Not supplied)

PC Audio Cable (Not supplied)

60Hz

640x480 800X600

1024X768

1280X1024

External Connection

Resolution

Input

VGA

60Hz

640x480

PC/VGA

SVGA

XGA

SXGA

75Hz 60Hz 75Hz 60Hz 75Hz 60Hz

800X600

1024X768

1280X1024

Vertical

Frequency

60Hz

1360X768

Supporting signals

Input

Mode

DTV

ATV

DVB-T

CVBS PAL/NTSC/SECAM

PAL BG I DK

SECAM BG DK

Resolution

Input

Component

60Hz 60Hz

50Hz/60Hz

480i

480p

720p

50Hz/60Hz

1080i

HDMI

DVI-HDMI

50Hz/60Hz

480p

720p

60Hz

1080i

Vertical

Frequency

50Hz/60Hz

1080p

50Hz/60Hz

1080p

50Hz 50Hz

576i

576p

567p

50Hz

HDMI2 HDMI1

AUD IOVGA

ANT

AV1 IN

VIDEO

OUT

SPDIF

OUT

AUDI O

Page 25

Turning the TV On and Off

1. Insert the power cord plug into a polarized AC outlet.

2. If TV is in standby mode Press POWER button on the remote control or button on the bottom panel of LED/LCD TV.

3. Normal picture will be displayed on the screen after 15 seconds. If no signal input, "No Signal" will be displayed on the screen.

4. If temporary POWER off is required, press POWER button on the remote control or button on the bottom panel.

5. If you want to completely switch off the power for this unit, unplug the power cord plug for this unit.

6. After switching off the unit, you should

Status indication lamp

Red: In standby mode. Green: In power on mode.

Auto power-off If there is no signal, the TV will 10 minutes.

Memory before turning TV off

wait at least 5 seconds before switching on again.

automatically enter standby mode after

See 'Auto sleep' pg. 36 for more details.

The picture and sound settings and preset channels will be memorised at the point when the TV is turned off. When the TV is started up again it will work accordingly with these settings.

How to turn the TV on or off

Basic Operation

Page 26

Menu operation

Input Setup

Press INPUT key on the remote control to enter "INPUT SOURCE" menu. There are twelve options for you to select: DTV,

ATV, AV1, AV2, Component1, Component2, PC-RGB, HDMI1, HDMI2, HDMI3, HDMI4 and USB Use ▲/qkey to move the cursor to the input you desired and press OK key to confirm.

Channels Selection

There are four ways to select channel:

1) Using number keys, and OK keys on the remote control to select channel directly. To select channel 90, press .

When you use the number buttons, you can directly select channels

that were either erased or not memorized.

2) Using PROGr/s key on the remote control or on your TV to select channel. When you press the PROGr/s key, the TV changes channels in sequence. You will see all the

channels that the TV has memorized. You will not see channels that were either erased or not memorized.

3) Press RECALL key to return to previous channel, press it again to return to current channel.

To quickly switch between two channels that are far apart, tune to one channel, then use the

number keys to select the second channel. Then use the RECALL button to quickly alternate

between them.

RECALL is not activated if no channel has been changed after TV turning on.

4) Select channels from "Channel List" or "Favorite Channels List". Press OK key to select Channel.

Volume Adjustment and Mute Setup

Volume adjustment

Press VOLr/s key on the remote control or on the TV to display "Volume" menu, adjust the volume of TV between 0 to 100 by using VOLr/skey:

-To increase the volume, press VOLr key;

-To decrease the volume, press VOLs key;

Mute

Press MUTE and the sound cuts off. The MUTE icon will appear in the lower-left corner of the screen. To resume sound, press the MUTE button again, or simply press the VOL r key.

Basic Operation

Input Source

DTV ATV AV 1

AV 2

Component2

Component1

PC-RGB

HDMI1 HDMI2

HDMI4

HDMI3

USB

Select

Page 27

Menu operation

Basic Operation

Current Channel Information

Press INFO key on the remote control to view current channel information, the indications of channel information are listed in the following table.

Press EXIT key on the remote control to exit this OSD.

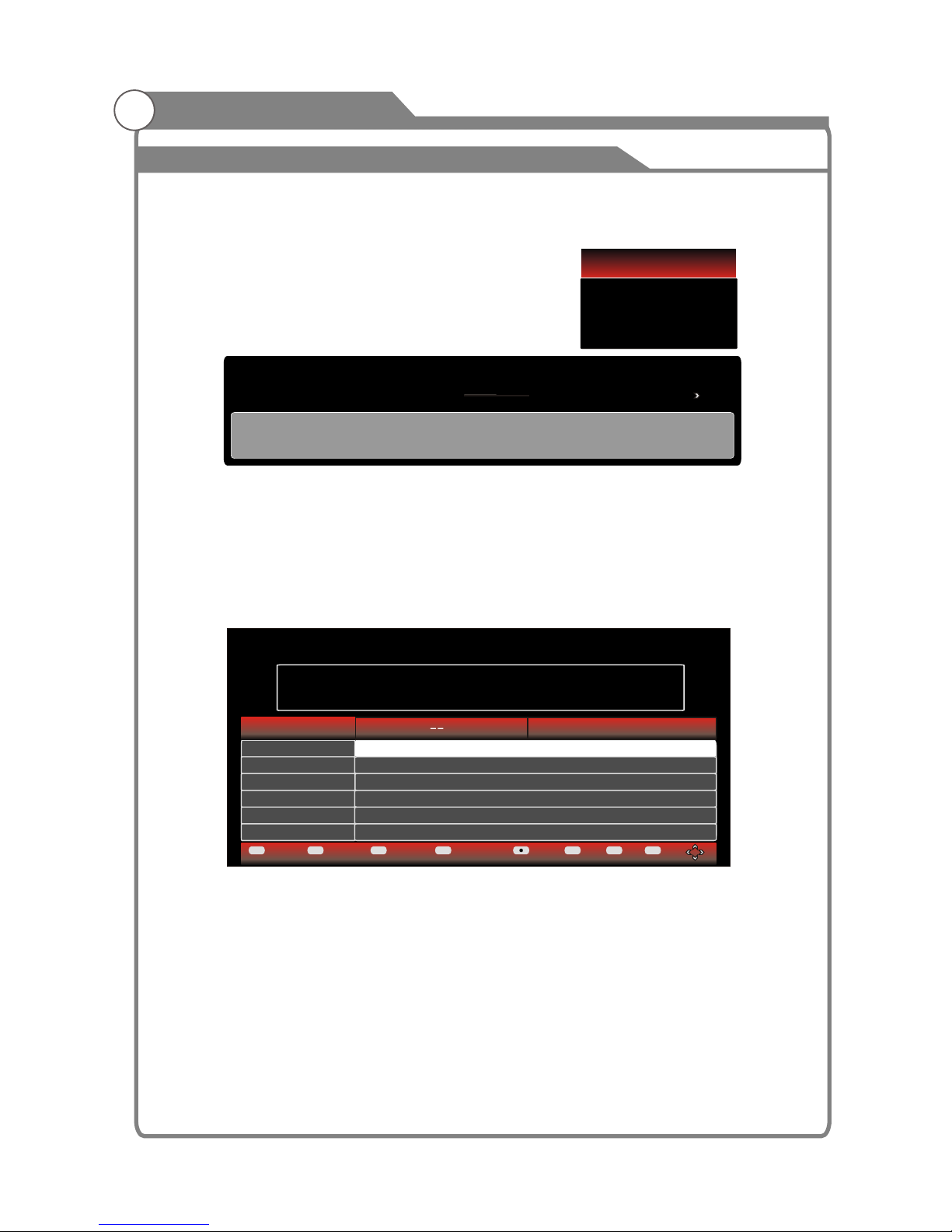

GUIDE Menu

Press GUIDE key to enter “GUIDE " menu, the first line displays current channel number, channel name, event title and current time. The following line displays all programs this channel, press ▲/q key to select the program you desired.

DTV EPG (Electronic Program Guide)

In DTV mode, press “GUIDE” button to enter the Electronic Program . (Disabled when there is no signal)

1. Electronic Program Guide

2. TV program of each channel is listed under the time axis. Press / / rogram. The selected program’s

background colour will change to . Press “INFO” button to view the detailed information. Press “OK” to . 3 “Reminder”(blue) button to reserve programs. If the TV is in DTV mode, it will automatically turn to the reserved program at the scheduled time. Use “Schedule” (yellow) button to look up the reminder list.

that will be played on

Disabled

information is provided by the broadcaster and displays

scheduled programs for the week ahead (depending upon the broadcaster).

“t u” button to select

the channel and press “p q” button to highlight the p

white

select the desired channel

.Use the

18Jan 15:30-16:00

18Jan 16:00-16:30

PROGRAMME GUIDE

DTV

Pre .Day Nex tDay Sch edule R emind er

INFO

INFORecord

EXIT

Exi t

DTV

MALCOLM IN THE MIDDLE

9 Nine Digital

THE SHAK No Information No Information No Information No Information

18 Ja n 2010 04 :54

MALCOLM IN THE MIDDLE

DTV 576i

SD DOLBY

MPEG

THE SHAK

Wednesday 17 Jun 2009

Fears Ahhhh, it’s time to face your fears!! it’s a scary day at The Shak with the theme of Fears-Eco. Curio.

Nine D igi tal

Subtitle

10:47

09:41 12:00

Age 11

18 Jun 13:00-13:30 18 Jun 13:30-14:30

Page 28

6 Install Guide

OSD Language, Country, Channel Tunning.

1. Press ▲/q key to select OSD Language option, Press and ◄/►key to change Language.

2. Press ▲/q key to select Country option, and Press ◄/►key to change Country.

3. Press ▲/q key to select Channel Tunning option, and press “OK” or “u” to start tuning. If you want to exit, press EXIT button and select “Yes”, then press OK button to exit

When the TV is turned on for the first time, the Installation Guide will appear, it consists of 3 parts:

NOTE: Install guide will also appear the first time you turn on the TV after performing the Reset function.

Prev.Day: If you press the red key on the remote controller, It will show Day’s programs. Next Day: If you press the green key on the remote controller, It will show Next Day’s programs.

Schedule: If you press the yellow key on the remote controller, It will show the reminder list. Reminder: If you press the blue key on the remote controller, It will show a command window, and you can set the reserve programs. Record: If press the record key on the remote controller it will show the RECORDER page. INFO: you can press the INFO key on the remote controller to show information in regards to the program you have chosen.

OK: you can press the OK key on the remote controller to

Exit:

select the channel you

want to view.

once you have selected a channel using the OK key, press the Exit key to view

that particular channel.


1. Press MENU key to display the main menu on the screen.

2. Press ▲/q key to select "Picture" option.

3. Press u key to enter "Picture" submenu.

4. You can also press the PICTURE key on the remote control to select one of the picture settings.

Picture Mode

Your TV has four picture settings (Standard, Mild, Bright, user, Sports) that are preset at the factory. Only "User" mode can be set to your preference by adjusting particular items such as Contrast, Brightness,Color,Sharpness,Tint, Color.

1. Press p/q key to select "Picture Mode" option.

2. Press t/u key to select one picture mode.

Menu operation

Menu system instruction

OSD Language English

Country Australia

Channel Tuning

Exit

EXI T

Install ati on Gu ide

Contrast 50

Brightness 50

Color 50

Sharpness 50

Tint 0

Backlight 80

Color Temp Cool


Select

Menu:Exit

Picture Mode Standard

Basic Operation

Page 29

User settings for PICTURE (Contrast, Brightness, Color, Sharpness, Tint)

Your set has several settings which allow you to control picture quality.

1. Press ▲/▼ key to select a particular item.

2. Press t/u key to decrease or increase the value of a particular item.

Note: The adjusted values are stored according to the selected particular item.

Standard: Selects the picture for optimum display in a normal environment. Mild: Selects the picture for comfortable display in a dark room. Bright: Selects the picture for high-definition in a bright room. User: Select to view your favorite display settings (see User settings for PICTURE). Sports: Selects the picture for high-definition in a bright room.

Contrast: Adjusts the lightness and darkness between objects and the background.

Brightness: Adjusts the brightness of the picture. Color: Adjusts the colors, making them lighter or darker. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Tint: Adjusts the color of objects, making them more red or green for a more natural look. Tint can only be adjusted when signal is NTSC.

Adjusting the Backlight

You can the brightness of the entire screen according to your preference.

1. Press p/q key to select "Backlight" option.

2. Presst/u key to select one backlight mode.

Adjusting the Color Temp

You can change the color of the entire screen according to your preference.

1. Press p/q key to select "Color Temp" option.

2. Press t/u key to select one color temp.

change

Backlight: Adjusts the brightness of the whole screen.


Menu system instruction

Standard: Keeps whites white. Warm: Makes whites reddish. Cool: Makes whites bluish.

Page 30

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Sound" option.

3. Press u key to enter "Sound" submenu.

4. You can also press the SOUND key on the remote control to select one of the sound settings.

Sound Mode

You can select the type of special sound to be used when watching a given broadcast. Your TV has eleven sound settings (“Standard”,“News”, “Movie”,“Sports”, “Dance”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ” that are preset at the factory.

1. Press p/q key to select "Sound Mode" option.

2. Press t/u key to select one sound mode.

l Standard: Selects the normal sound mode.

l l Movie: Provides live and full sound for movies. l Sports: Emphasizes bass over other sounds. l l l l l l l User: Selects your custom sound settings (See "User settings for Sound”).

Balance

If the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to suit your personal preference.

1. Press p/q key to select "Balance" option.

2. Press t/u key to decrease or increase the value of the item.

settings

Classic Pop Rock Jazz Soft User )

News: Provides clear and live sound for news.

Dance: Select the sound mode for dances. Classic: Provides the classical sound for classic music. Pop: Select the sound mode for Pop. Rock: Provides powerful sound for Rock music. Jazz: Select the sound mode for Jazz. Soft: Select the soft sound mode.

Sound

Menu system instruction

Select

Menu:Exit

SOUND

Sound Mode Standard

Balance Surround Sound Off HDMI Sound HDMI Auto Volume Off SPDIF Mode PCM Equalizer

Page 31

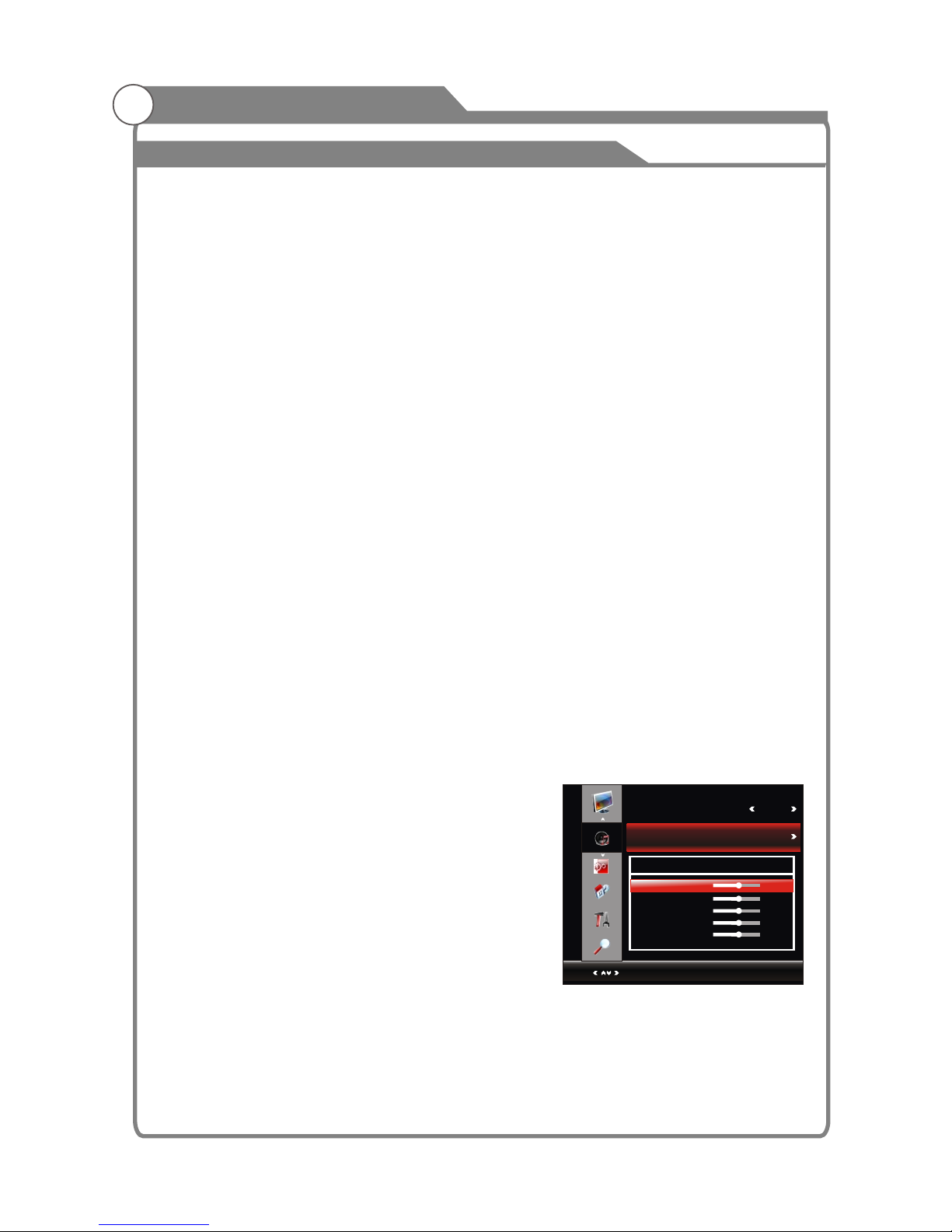

Menu system instruction

Sound

Surround Sound

This is used to turn on surround sound to gain better sound effect.

1. Press p/q key to select "Surround sound" option.

2. Press t/u key to select “Surround” or “Off”.

HDMI Sound

This option is only used in HDMI mode.

1. Press p/q key to select “HDMI Sound" option.

2. Press t/u key to select HDMI Sound mode, HDMI or PC-RGB.

Auto Volume

Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press p/q key to select “Auto Volume" option.

2. Press t/u key to select “On” or “Off”. .

SPDIF Mode

This is used to select "SPDIF Mode" .This option is only used in HDMI\DTV mode.

1. Press p/q key to select "SPDIF Mode" option.

2. Press t/u key to select "RAW" or "PCM".

User settings for SOUND(Equalizer)

1. Press ▲/▼ key to select an equalizer item.

2. Press OK or u key to enter the equalizer

. The sound settings can be adjusted to suit your user preferences.

1. Press ▲/▼ key to select a particular item.

2. Press t/u key to decrease or increase the value of a particular item. Note: The adjusted values are stored according to the selected particular item.

submenu

Select

Menu:Return

SOUND

Equalizer

环绕声

HDMI声音 HDMI

自动音量控制

超重低音

丽音

关

立体声

Equalizer Adjust

120Hz 50 500Hz 50

1.5Hz 50

3KHz 50

7.5KHz 50

SPDIF Mode PCM

Page 32

Channel

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Channel" option.

3. Press ukey to enter "Channel" submenu.

p/q key elect

u key to start a notice window. In this

notice window, you can select country in the “Country Selection” option and set “Tune Type” option.

/ button to select

“Cancel",

Auto Search

Press  button to select "Start" , and press OK button to search, then the searching interface will be on the screen as follows: (If you want to exit, press

and press OK button to exit.)

The number of searched channels will be shown on the screen. If you set “Tune Type” to “DTV+ATV”, When the searching of ATV channels is over , TV will start to search DTV channels. When the whole searching is finished, all the channels will be stored in memory, and a message will appear on the screen as per the diagram on the right: NOTE:

1) If you want to exit the ATV searching, you can press MENU button, then a confirmation message will appear on the screen.

2) To exit DTV searching, press the MENU button, a confirmation message will then appear on the screen.

3) If you want to exit the whole searching, you can press EXIT button.

ATV Manual

In the ATV source, you can choose “ATV Manual ” to enter “ATV Manual ” menu.

ress to s "Auto Search" option. Then

press OK or

Menu system instruction

Select

Menu:Return

CHANNEL

Color System PAL

Auto Search

DTV Manual Search ATV Manual Search Programme Edit Signal Information

Ple ase sel ect cou ntry fi rst, The n selec t Start t o updat e info.

CancelSta rt

Country selection Australia

Tune Type DTV+ATV

è Color System

è Sound System Sound

ound

" I " DK

è è

Current CH:You can see the current channel number and you can press/button to

choose the channel you want to modify.

: Select the “Color System” option, Press / on the remote control or TV.

The color system will be changed repeatedly in the below order. PAL SECAM

: Select the “ System” option, Press / on the remote control or TV.

The s system will be changed repeatedly in the below order. BG

Search: you can use  button to search channels from low frequency to high

frequency and use  button to search channels from high frequency to low frequency. When you have searched a channel, the searching will be paused and you can press it again for other channels after you store the channel.

Fine Tune: In case of unfavorable image or sound of TV program, you can use “Fine Tune”. Skip: Select “Skip” option, “be changed” on the remote control or TV to swich, select “ON” to

skip current program, select “OFF” to add the program into the program list.

Frequency: You can see the frequency of the searched channels.

Auto S eac h

4 % 76.5MH z (C H3 )

ATV

: 4

Prog ra m( s)

DTV

: 0

Prog ra m( s)

Radi o

: 0

Prog ra m( s)

EXI T

EXIT

Skip

Data

: 0

Prog ra m( s)

Colo r Sy st em

Curr en t CH 5

Sear ch

Fine Tu ne

Skip

Freq ue nc y

Adju st

Off

112. 25 MHz

Exi t

Exit

ATV Manua l Searc h

Soun d Sy st em

PAL

Page 33

Channel

Menu system instruction

1. Press p/q key to select “ " option.

2. Press “Ok”or u key ,you can see the i of the DTV channel.

Used only in DTV)

NOTE: Signal Quality/Signal Strength (DTV Only):

Unlike analogue channels, which can vary in reception quality, digital channels must have perfect reception quality or you will not receive them at all. So, unlike analogue channels, you are not able fine tune a digital channel. If the signal strength indicates that the signal is weak, a possible solution is to adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.

Signal Information(

Signal Information

nformation

è Rename(green)

Delele:You can press RED button to enter "DEL" menu, then choose the channel you

want to delete and press RED button again to delete.

/ button to choose the channel in ATV mode you want to

move and press YELLOW button to move it.

Skip: / button to choose the channel you want to skip and press

BLUE button to skip it when you change channels.

FAV:If you like the program of a channel, you can choose “FAV” button in the menu to add it to your favorite list and later you can press “FAV” button in the remote control to choose your favorite programs as soon as possible.

/ button to selectthe program that need to be renamed, then press green button into rename state, and press / button to select the letter that need to be edited, and press / button to select a new letter, repeat to rename the program.

Move:You can press

You can press

:Rename some program from program list in ATV mode you want to

Rename. Press

Select

Menu:Return

CHANNEL

Color System PAL Sound System BG

Auto Search DTV Manual Search ATV Manual Search

Programme Edit

Signal Information

Channel Network Modulation Quality Strength

Signal Information

37 Nine Melbourne 64QAM 100% 100%

Program Edit

You can use / button to choose “Program Edit” and enter the menu, press the Red/Green/Yellow/Blue color button on the remote control to delete, rename, move and skip programs, also you can press FAV button to add to your favorite list.

DTV Manual Search

In the DTV source, you can choose “DTV Manual Search” to enter “DTV Manual Search” menu. You can use /button to choose the channel number and press OK button to enter searching, and then the TV will store the DTV channel if there is a DTV signal present.

DTV Manual Search

VHF CH 7

Ple ase sel ect cha nnel

Pre ss OK to se arch

Str ength

Bad Nor mal G ood

No Si gnal

Menu ReturnOK

Qua lity

Bad Nor mal G ood

Prog ramme E dit

5.1 Globo HD

5.2 Globo SD

DTV

Delete

Remane

Move

FAV Return

FAV

Skip

Page 34

Time

Menu system instruction

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Time" option.

3. Press u key to enter "Time" submenu.

Sleep Timer

1. Press p/q key to select "Sleep Timer" option.

2. Press t/u key repeatedly until the desired time appears (Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min). Notes: The sleep timer you have set will be cancelled when the TV turns off or if a power failure occurs.

1. Press p/q key to select "Time Zone" option.

2. Press t/u key to select time zone.

Clock

You can modify the time of your TV set, but when you switch to DTV program, the "Clock" is decided by the signal from your antenna.

Off/On Time

In "Off Time" item, press /button or OK button to enter the submenu, set the day & time to turn off the TV set. In "On Time” item, press /button or OK button to enter the submenu, set the time to turn on the TV set, when the TV set is in the standby mode. You can also choose which day to control your TV set in a week.

Notes: When the time is less than 60 seconds, remind information will be displayed on the screen. Press any key button to cancel timer function.

Time Zone

You can choose it to modify your time zone in the TV set.

TIME

Select

Menu:Return

Clock 10:02

Off Time Off

On Time Off

Sleep Timer Off

TIME

Select

Menu:Return

Month

Day

Year

Hour

Minute

Clock

TIME

Select

Menu:Return

On Time

Hour

Minute

On Time

Clock

Source

TIME

Select

Menu:Return

Off Time

Hour

Minute

Off Time

On Time

Time Zone WA

10:0 2

Janu ar y

2011

10 20

10:0 2

Off

12 00

DTV

Off

Page 35

Option

Menu system instruction

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Option" option.

3. Press u key to enter “Option” submenu.

1. Press p/q key to select “ " option.

2. Press OK or u key to display the OSD setting menu. OSD Language: select the proper language OSD Time : Set the preferred amount of time for the OSD to be displayed on the screen.

OSD Setting

You can modify the OSD set to suit your user preferences.

OSD Setting

OPTIONOPTION

Select

Menu:Exit

OSD Setting

Aspect Ratio

Screen Saver

Software updata(USB)

Lock

PVR File System

Menu:Return

Reset

Screen Saver

This option is only used in ATV mode.

1.Press p/q key to select “Screen Save” option.

2.Press t/u to choose on or off.

Aspect Ratio

You can select the picture size which best corresponds to your viewing

1. Press p/q key to select “ " option.

2. Press t/u key to set the scale mode. You can also press “ ” key on the remode control to select one of the scale modes. Each source has different scale modes. (16:9,4:3,Panorama,Movie,Subtitle,Full view,Auto )

RESET

1. Press MENU key to display the main menu on the screen.

2. Press p/q key

3. Press OK or u key to enter " " submenu, "Enter Password" menu will appear, enter your 4-digit password to enter " " submenu

1. Press p/q key to select " " option.

2. Press

requirement.

Aspect Ratio

Aspect

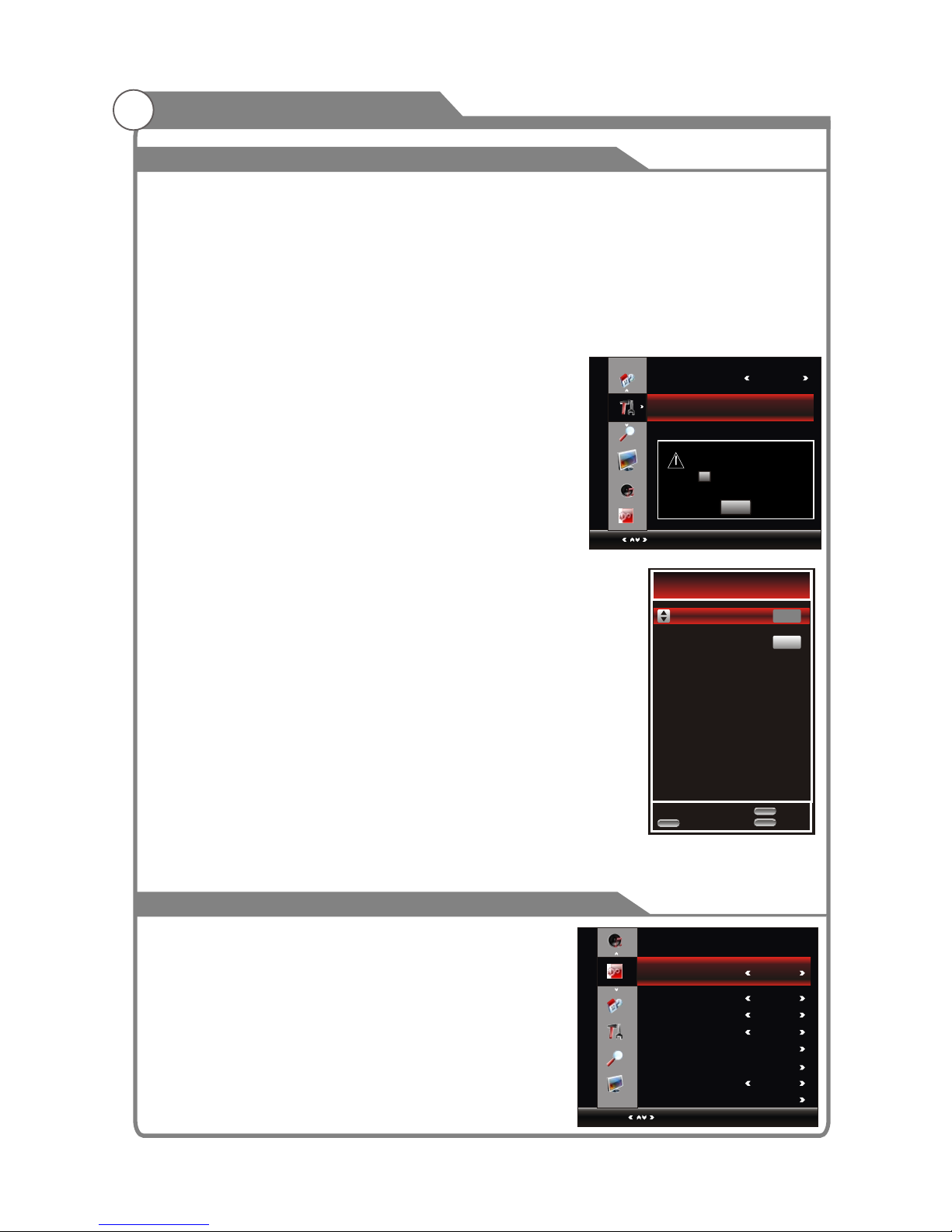

Note: Please use the "Reset" option with caution as it will return all settings and channel memories to factory default.

The lock feature requires a Password to be entered before any settings can be changed.

and select "Lock" under the "Option" menu.

Select the “Reset” option and press OK or key to display a confirm box,and select”Yes” or “No”.

Lock

Lock (the default and universal password is

0000, the almighty password is 1980).

Lock System

t/u key to select "On" or "Off".

Hearing Impaired PVR File System

On/Off

16:9

Off

Hearing Impaired

Off

Window

Audio Languages

Noise Reduction MIDDLE

Lock

OSD Setting

OSD Language

OSD Time

English

Always

Page 36

Menu system instruction

Set Password

Password

enter "Change Password" submenu. Choose any 4-digits for your new password and enter them. As soon as the 4 digits are entered, the cursor to “Confirm Password” item, re-enter the same 4 digits, and your new password has been memorized.

Block Program

Parental Guidance

t/u

Press OK or

Hearing Impaired

Specific Hearing Impaired subtitles can be activated subject to

Note: Only available in DTV mode.

will skip

availability from broadcaster.

for

detailed

1. Press p/q key to select "Set " option.

2. Enter your 4-digit password to enter

1. Press p/q key to select “Block Program” option.

2. Press OK or u key to enter Block Program list.

In the program list, use Green key to lock or unlock the program. Once the program is locked and Lock System is on, password is needed to enter it.

This option only used in DTV mode.

1. Press p/q key to select “ ” option.

2. Press key to select the lock level of the Parental Guidance: 4~18, Off.

Software Update(USB)

1. Press p/q key to select “Software Update(USB)” option.

2. u key to software update process. Note: In the software update process, do not turn off the power.

PVR File System

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select “PVR File System” option.

3. Press OK or u key to enter “PVR File System" submenu,

operation refer to

“PVR File System” in page 37.

Option

Menu:Return

OPTION

Select

Set Password

Block Program

Parental Guidance Off

Lock System Off

Plea se ente r passw ord

Cancel

New - - - - - - -Conf irm - - - - - - - -

Bloc k Pr og ram

5.1 Globo HD

5.2 Globo SD

DTV

LOCK

Return

Exit

EXIT

FUNCTION

Select

Menu:Exit

NoSignal PowerOff

RGB Range

NoAct PowerOff Window Adjust

16-235

Off

Noise Redution

Off

Advanced Setting Motion

Off

Function

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Function" option.

3. Press u key to enter “Function” submenu.

Noise Reduction

1. Pressp/qkey to select "Noise Reduction" option.

2. Press / key to select "Off", "Low", "Middle", "High" and "DEFAULT” to improve the picture sharpness. Note: Noise Reduction doesn't work in PC-RGB Mode.

t u

3D Setting

Page 37

Menu system instruction

Window Adjust

This option is only used when PC mode has signal.

1. Press p/q key to select “Window" option.

2. Press OK or u key to display the “Window Adjust” menu.

-Auto Adjust: Allows you to set the TV to self-adjust to the incoming PC video signal. The fine, coarse and position values are adjusted automatically

-H-Postion: Set horizontal of picture.

-V-Postion: Set vertical of picture.

-Clock/Phase: Remove or reduce picture noise.

Advanced Setting

Pressp/qkey to select "Advanced Setting" ,then press OK oru key to display the "Advanced Setting"menu. TTX Language

1.Pressp/qkey to select "TTX Language" option.

2.Press / key to set TTX Language. Primary Audio Language

1.Pressp/qkey to select "Primary Audio Language" option.

2.Press / key to set Primary Audio Language. Secondary Audio Language

1.Pressp/q key to select "Secondary Audio Language" option.

2.Press / key to set Secondary Audio Language. Primary Subtitle Language

1.Pressp/q key to select "Primary Subtitle Language" option.

2.Press / key to set Primary Subtitle Language. Secondary Subtitle Language

1.Pressp/q key to select "Secondary Subtitle Language" option.

2.Press / key to set Secondary Subtitle Language.

Motion

1.Pressp/q key to select “Motion” option.

2.Press / key to select “Motion” ,“Off”,“On”,“Demonstrate”.

position

t u

FUNCTION

Select

Auto Adjust

Menu:Return

H-Position V-Position Clock Phase

50 50 50 25

Window Adjust

NoAct PowerOff Off

Window Adjust

RGB Range Change the brightness and saturation for a better picture.

1.Pressp/qkey to select "RGB Range" option.

2.Press / key to select "16~235" or "0~255". Note: only available in HDMI mode, please select the appropriate setting according to the DVD Player/STB.

NoSignal PowerOff

1. Press p/q key to select "NoSignal PowerOff" option.

2. Press / key to set it "On" or "Off". When “NoSignal PowerOff” is turned on, the TV set will be Power Off 10 minutes later if there is no signal. Note: The TV will be Power Off 15 minutes later if there is no signal. The function is not available in USB mode.

NoACT PowerOff

1. Pressp/qkey to select "NoACT PowerOff" option.

2. Press / key to set it "Off" or "1 Hour","2 Hour","4 Hour". When “NoACT PowerOff” is turned on, the TV set will be Power Off after the set-time if there is no action.

t u

FUNCTION

Select

Menu:Return

Window Adjust

West

Advanced Setting

TTX Language

Primary Audio Language

Secondary Audio Language

Primary Subtitle Language

Secondary Subtitle Language

English

English English

Page 38

PVR

Menu system instruction

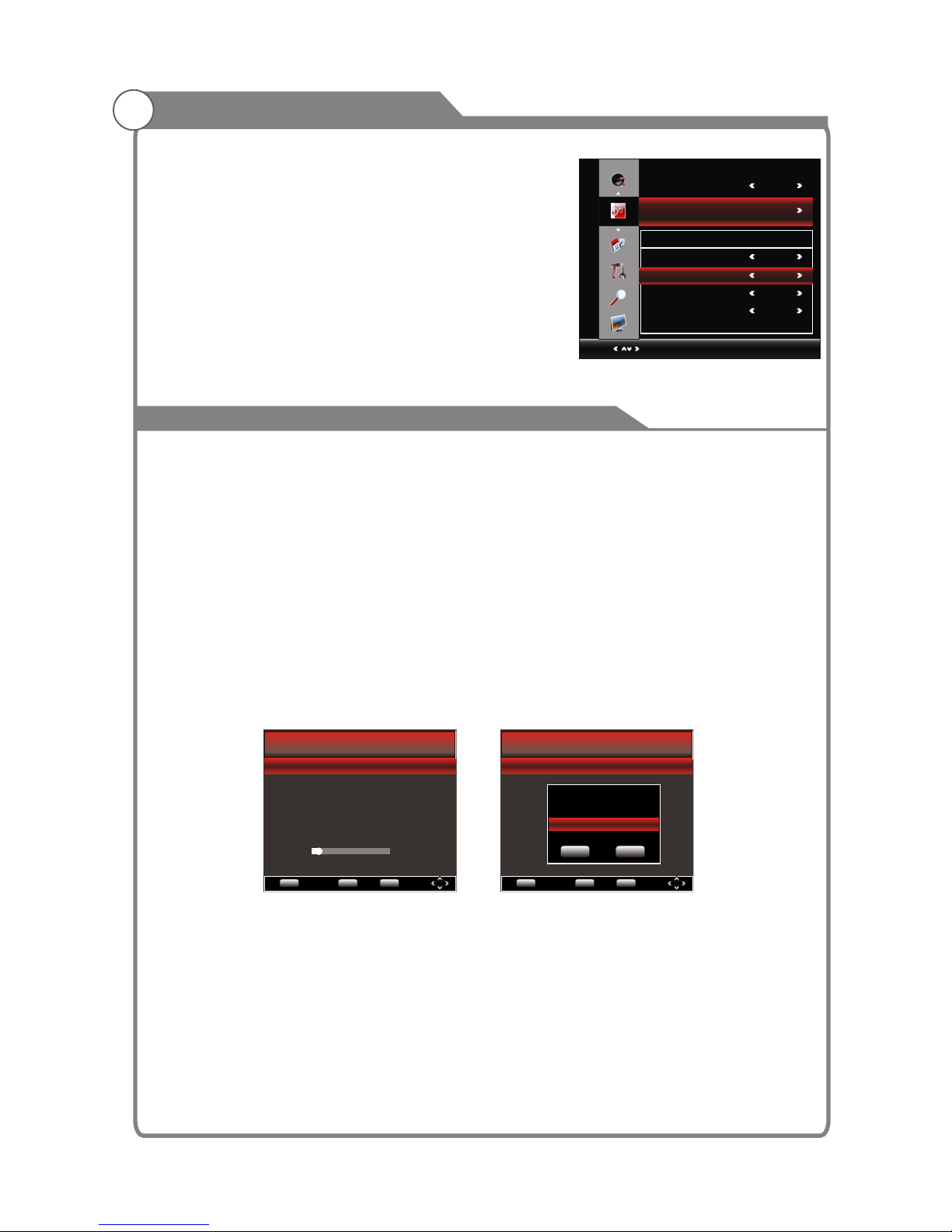

PVR File System

Select Disk: Press OK” button to enter submenu and press / choose the disk for PVR. Record Max Time: Press /

Check PVR File System: Press OK” button to check if the disk is PVR. USB Disk: Format: Press OK” button to enter format submenu. The disk must be when first used for PVR.

WARNING:

1. Before connecting your USB device to the TV, please back up your files to prevent them from damage or loss of data.

2. A USB disk must be formatted when first used for PVR. Any existing data on the disk will be lost during the formatting process. Please back up your disk if you do not want to lose this data. You are recommended to use a dedicated disk for PVR use only. Do not disconnect disk or power during formatting.

3. Do not modify PVR files on a PC.

4. Only USB1 support PVR function.

Note: Make sure your USB device is compatible with the TV and able to support PVR recording.

“ “t u” to

“t u” to set the max time for PVR Record.

Record Max Time: Set the maximum duration for any recording.

“ suitable for

Indicates PASS or FAIL for the status of your USB Disk.

“ formatted Do not disconnect disk or turn power off during formatting.

When formatting your disk, a progress bar will appear on the display. NOTE: The larger

your device the longer it will take to format. The device may take many minutes to format, this is not a malfunction, please wait for the formatting to finish.

Menu Return

EXIT

Exit

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

Menu Return

EXIT

Exit

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

Select Disk

OK Ex it

Disk C:

3D Setting

1. Pressp/qkey to select “3D Setting”option, press OK/ukey to display the “3D Setting” submenu.

2. Pressp/qkey to select 3D format, 2D to 3D, 3D to 2D or 3D order .

3. Press / to confirm

t u to select mode in submenu, then press “Exit”

FUNCTION

Select

3D Format

Menu:Return

3D Setting

Motion Off

3D Setting

2D to 3D

3D to 2D

3D Order

Off

Off Off

Antitone

Note:When you in 3D mode, “2D to 3D” can’t be selected, When you in 2D mode, “3D to 2D” can’t be selected.

Page 39

Menu system instruction

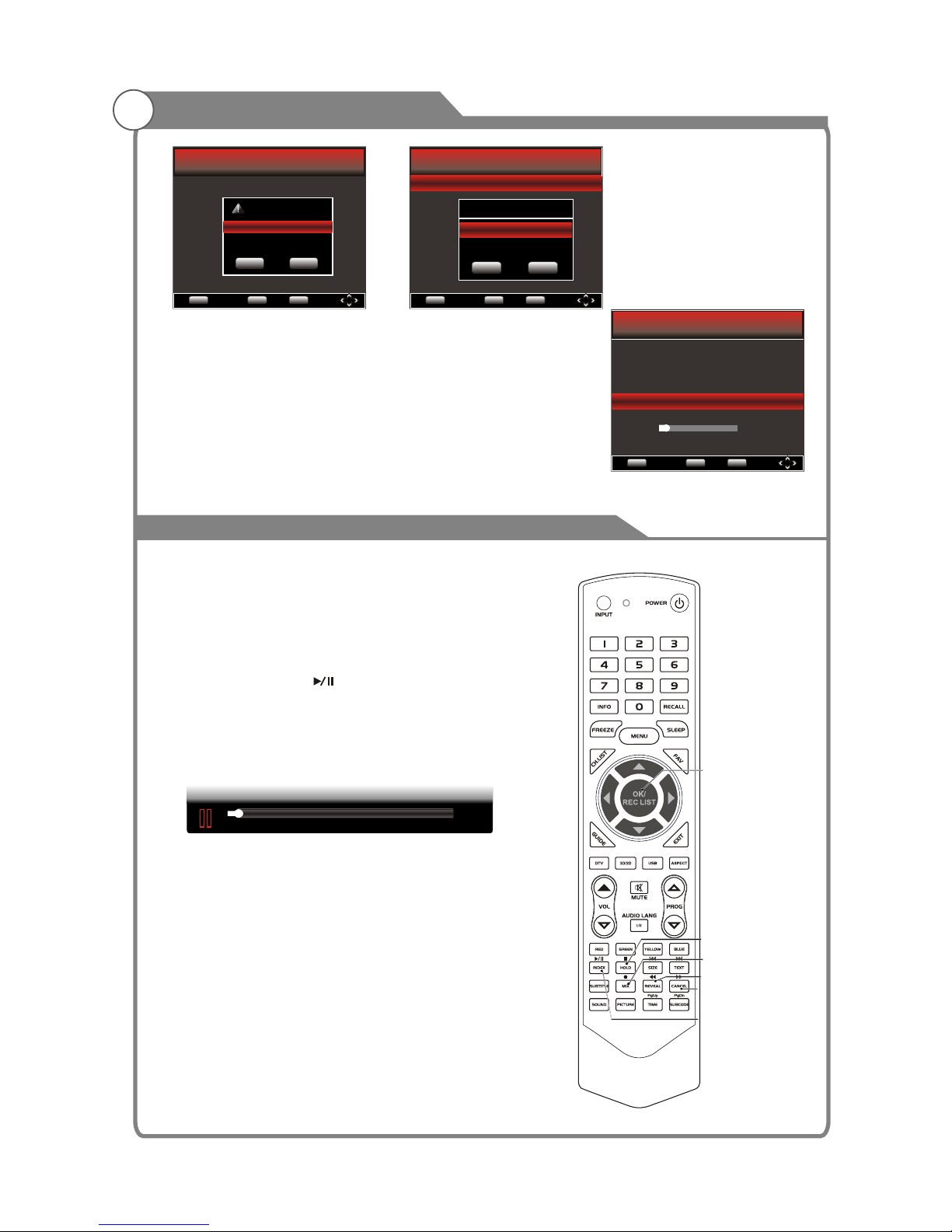

PVR Guide

If the disk for PVR is ready, the programs can be recorded in DTV mode.

Time shift

In DTV mode, press “ ” button to pause the DTV program, press it again to continue play.

Press “EXIT” to show or

hide the control menu.

The length of time a program can be paused depends upon the setting in the PVR File System.

1. Current time behind live TV.

2. Total allowable time for time shifting, please see pg. 37 'PVR File System' for details in regards to setting the Time Shift Size. The progress bar will not fade out unless press EXIT button. Press the PLAY button to continue playing the program from the point where it was paused. NOTE: Time Shift will stop if you change channels, change inputs or go into standby mode while in Time Shift mode. A message will appear on the display prompting you to continue or cancel.

PVR

[- 0 0:00: 38/00 :04:0 0]

04:5 5

Time Shift

BACK

FORWARD

PLAY/ PAUSE

STOP

RECO RD

Menu Return

EXIT

Exit

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

OK Exit

Time Shift Size

Time Shift Disk Size 512MB

SD 14 Mins HD 4 Miins

Menu Return

EXIT

Exit

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format nat... Time Shift Size Speed Disk Remaining Space MB

OK E xi t

File System Size

SD 55 Mins HD 15 MIins

PVR File System Size All

Menu Return

EXIT

Exit

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System SUCCESS USB Disk Pass Format Pass Time Shift Size 512MB Speed 4500KB/s Disk Remaining Space 384 MB

FULL HD support

Time Shift Size: This setting is available to adjust only after the disk has been formatted. The maximum Time Shift Size is 8G.

Please note: It is suggested that you use a disk with speed that is greater

NOTE: The times listed are not precise, only for reference.

Speed: Display the disk writing/reading speed.

than 4500KB/S.

Disk Remain Space: Display the remaning space for PVR.

Page 40

Menu system instruction

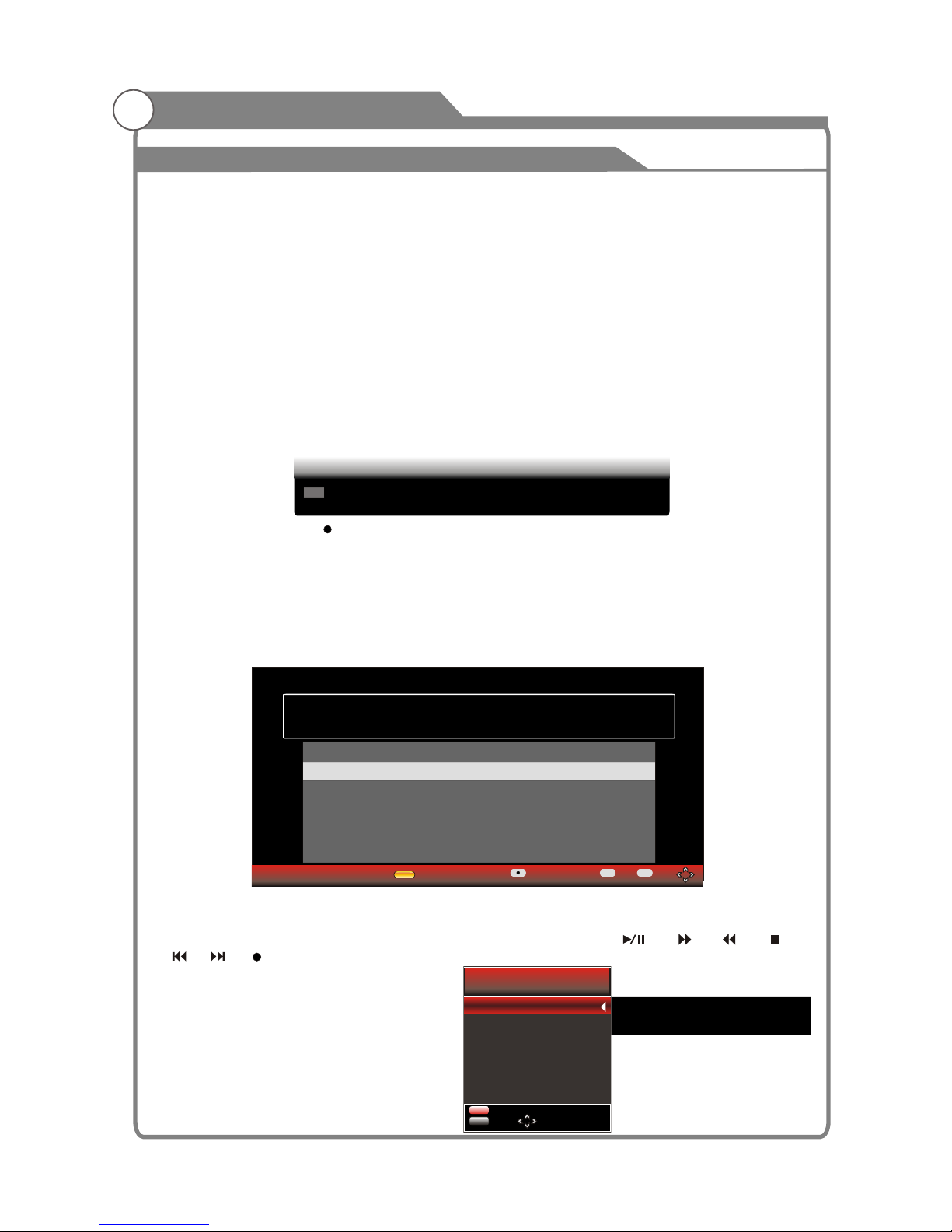

At Guide menu, press “ ” button to reserve -record the program. At reserve record menu, press “ / ” button to adjust the scheduled time, press “OK” to save the setting and press the yellow button to check the record schedule.

The should not overlap, and there should be at least 1

min between two programs.

In DTV mode, press “OK/RECLIST” to open the recorded list. Press “ / ” button to select the press “OK/RECLIST” to play the and press the “u” button to show the Information. When playing, the “ ”, “ ”, “ ”, “ ” , “ ”,“ ” “ ” available. Press “EXIT” to show or hide the control menu.

Instant recording

1. Select the desired channel then press the RECORD button on the remote control to start recording the current broadcast, a progress bar will be displayed at the bottom of the screen.

- During recording, the progress bar will fade out after 10 seconds.

2. Recording stops when you press the STOP button and the recorded file is stored in the external USB device automatically.

NOTE: You can only watch channels on the same frequency as the program being recorded. If you try to change to another channel a message will appear prompting you to continue or not 'Recording in progress. Change channel will stop recording. Yes or No.'

Recording in standby mode

This unit is able to do recording while in standby mode.

1. Start a recording then press the power button. A message will be displayed prompting you to continue or cancel.

selected

t u

Recording will proceed when the TV is in either active or standby modes. When recording initialises in standby mode, the front panel indicators will flash momentarily, and there will be no picture output. You can intercept the recording by turning on the power and viewing the program that is being recorded. schedules

scheduled

p q

recorded file, recorded file,

recording information.

buttons are

When the Recorded List is displayed on the screen, you can delete files you no longer require. Select the desired file using the arrow buttons, then press the Red button to delete. NOTE: Files cannot be deleted during Playback or Recording.

04: 56

REC

[0 0: 00 :1 3] R em ai n [ 00 :0 5:13]

9 Nine Di gi ta l

Rec ordin g

PVR

OK OK

[DATE ] 2010/ 01/18 [Time ] 04：56：40 [ DUR ATION] 00 00 :00:1 3 [PRO GRAM NA ME] [CHA NNEL NAM E] 9 Nine D igit al [PRO GRAM DE SCRIP TION] I f Boys We re Gils Every t ime the b oys are ...

MALC OLM IN TH E MIDDL E

Reco rd ed L is t

MALCOLM IN THE MIDDLE

To. Page 1 Cu. Page 1

9 MALCOL M IN THE MIDDL E

18 Jan 201 0

04:30

18 J an 2 01 0

05:00

Progra mm e

Mode

Start Da te

Start Tim e

End Date

End Time

AUTO

Back

EXIT

Exi t

DTV

MALCOLM IN THE MIDDLE

9 Nine Digital

Schedule

Delete Delete

Page 41

MPG,MPEG, , ,MP4 MOV MKV

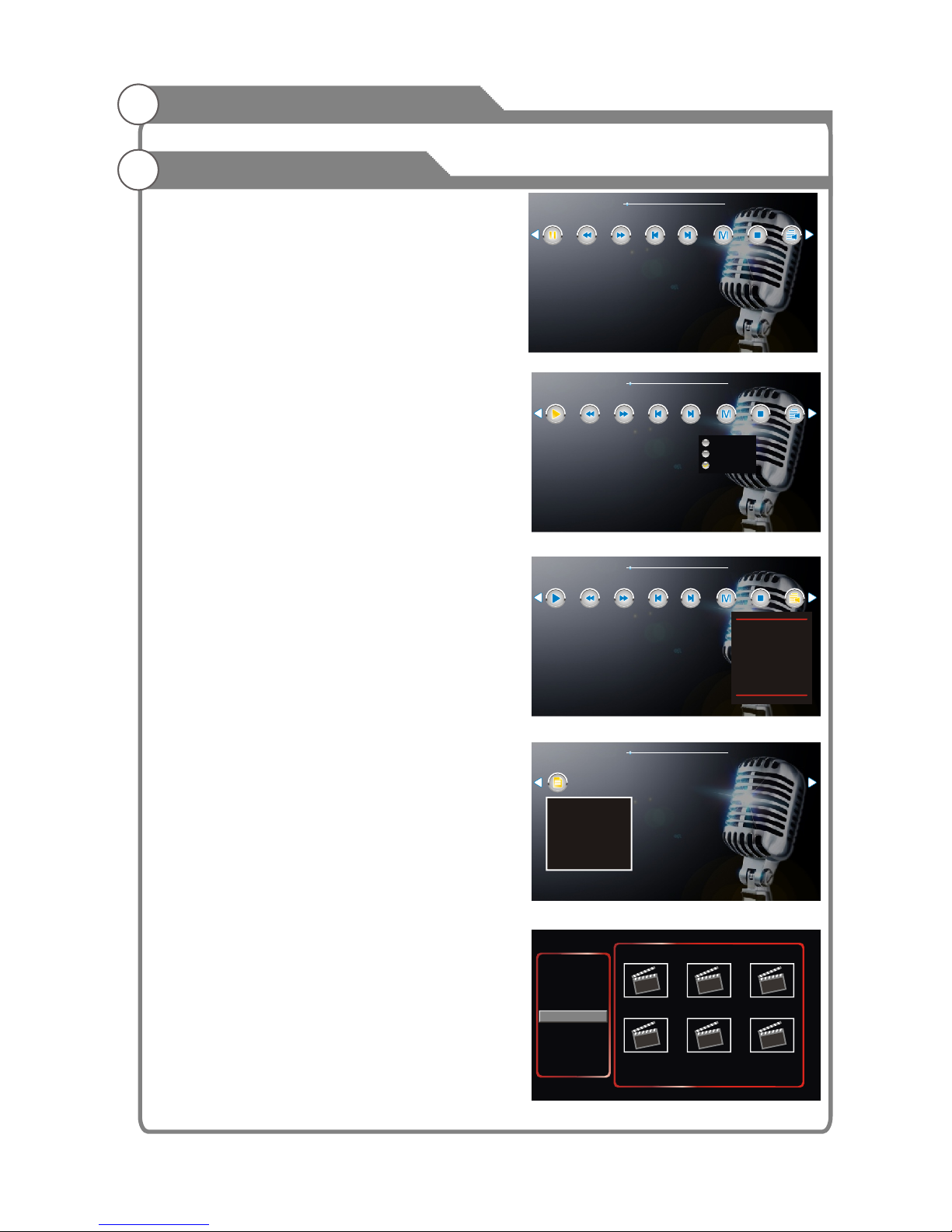

Introduction This TV is embedded with one USB port digital media player. It can find devices that support USB1.1/2.0,including flash disk, USB hard disk and digital camera. It supports functions as: Display pictures, Play music files, Play video files, Display text files. Note: please do not remove the cable during the data transfer. It may cause problems for the system.

Data


Music

Video

Text

Format

JPG,JPE,PNG,BMP

MP3,WMA,AAC

TXT

Description of Playback Buttons:

Digital Media Player

PgUp

PgDn

Pause/Play

Stop

Previous file

Next file Page up/Zoom in

Page down/Zoom out

Backw ard

Forwa rd Displ ay th e short cut k ey

Buttons Function

SUBTITLE

Subti til e switch( video)

Langu age S ound tra ck Switc h(v id e o)

Remote Control Button

NAVIGATION

BUTTONS

pqtu

EXIT

Page 42

Initialization Interface

Into the USB channel, the interface shown in Figure 1. If no inserted U disk, the system will be prompted to insert the USB device, while the lower right corner screen displays "No Device" message. When you insert a U disk, select the first letter located in the C drive, shown in Figure 2. The corresponding buttons as follows: Left and right keys: Select the drive letter. Enter key: to enter the selected letter.

1. Photo

Features:Browse and play under the specified path (the default path is specified in the curre nt disk, set the photo interface methods please refer to the specified path: path - Set) picture. Content: Browse and play all the images under the specified path.

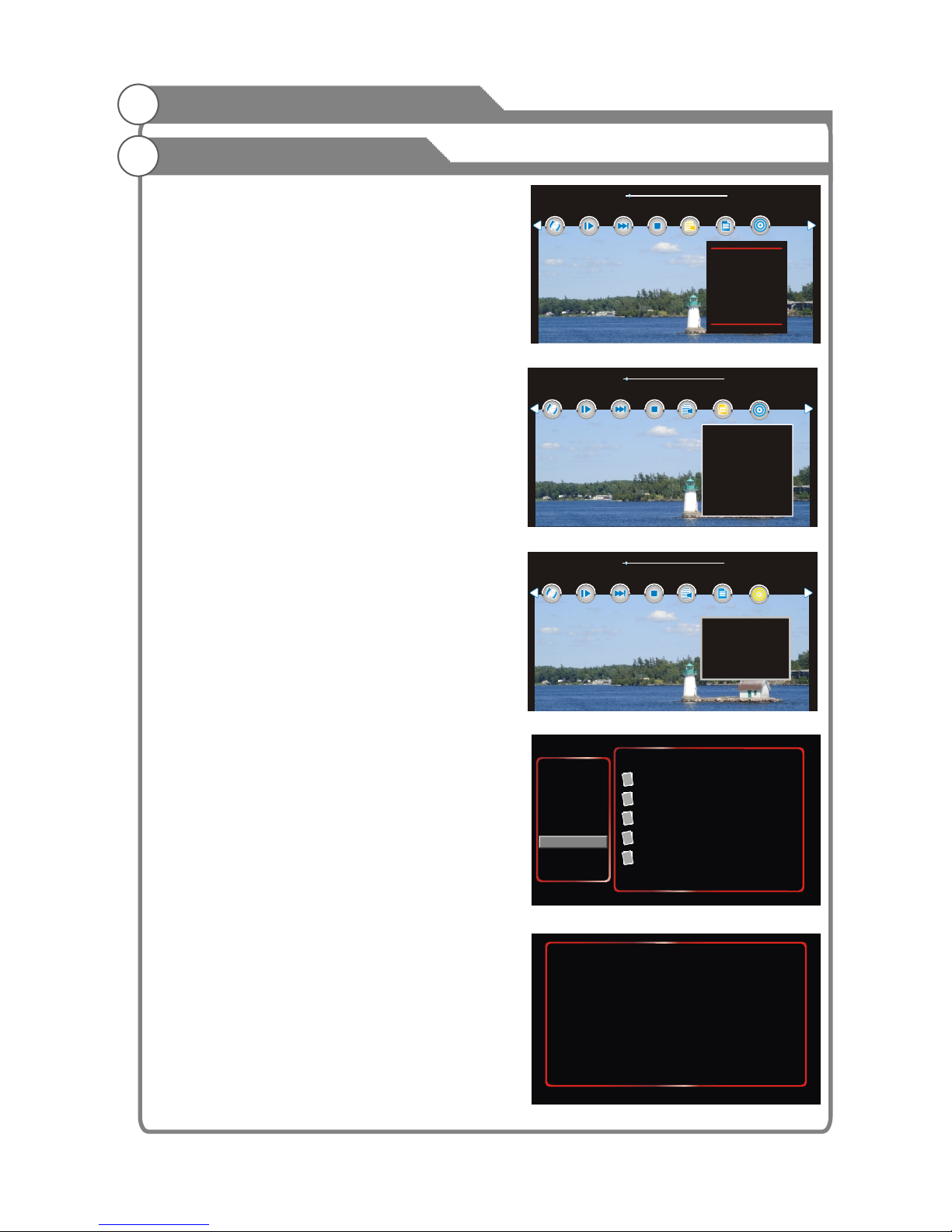

Photos View Shown in Figure 3 Features: Displays thumbnails of all images

path, bmp and png format does not support thumbnails. Key operation:Up, Down, Left, Right: Option key to switch up and down. Enter Key: elected in the entry photo option on the left, the switch to the image preview area, was elected in the image preview area in the right section, then play image files Exit Key: elected in the entry in the right image preview area, select the entries to switch back to the left side of photo options, the elected option in the entry on the left picture, the switch back to the USB interface initialization.

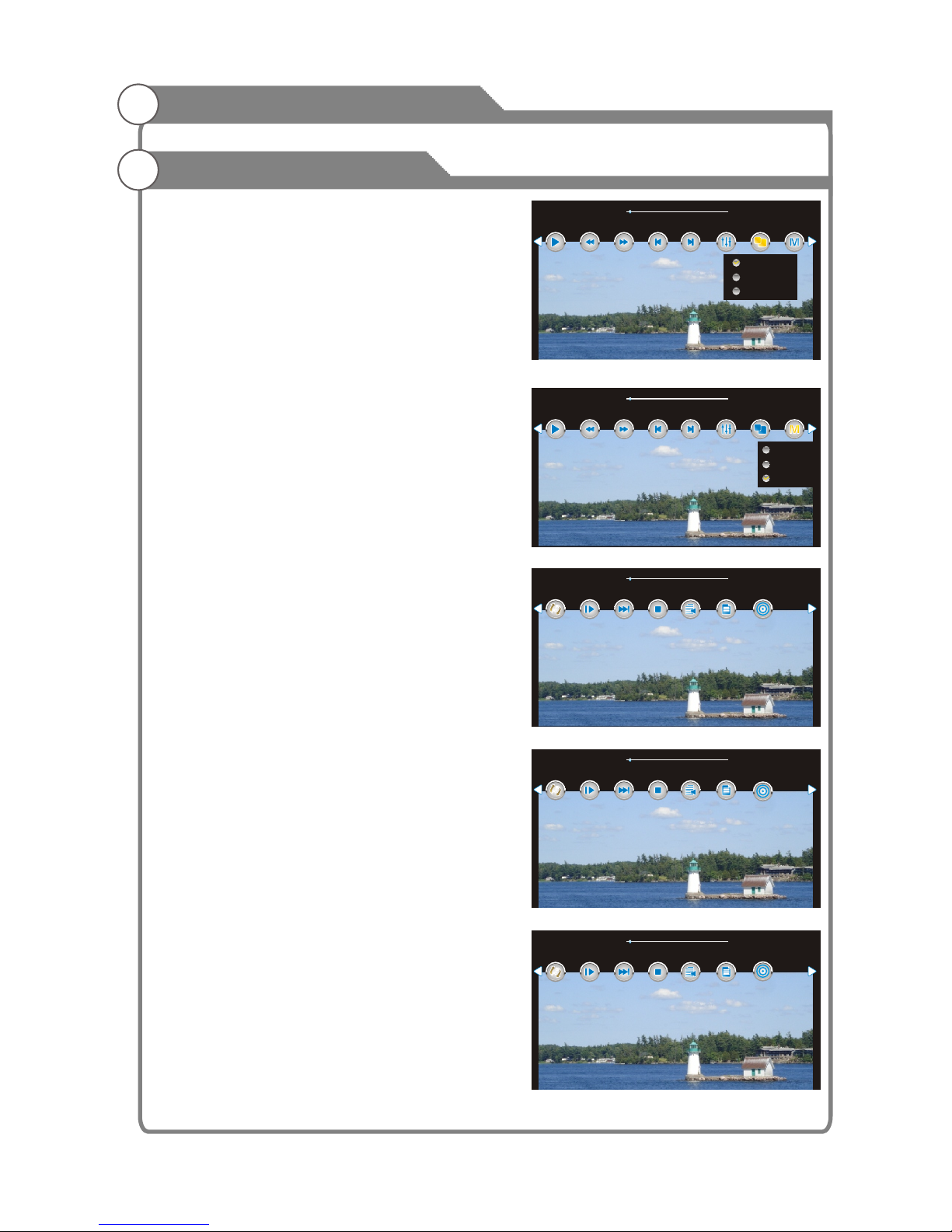

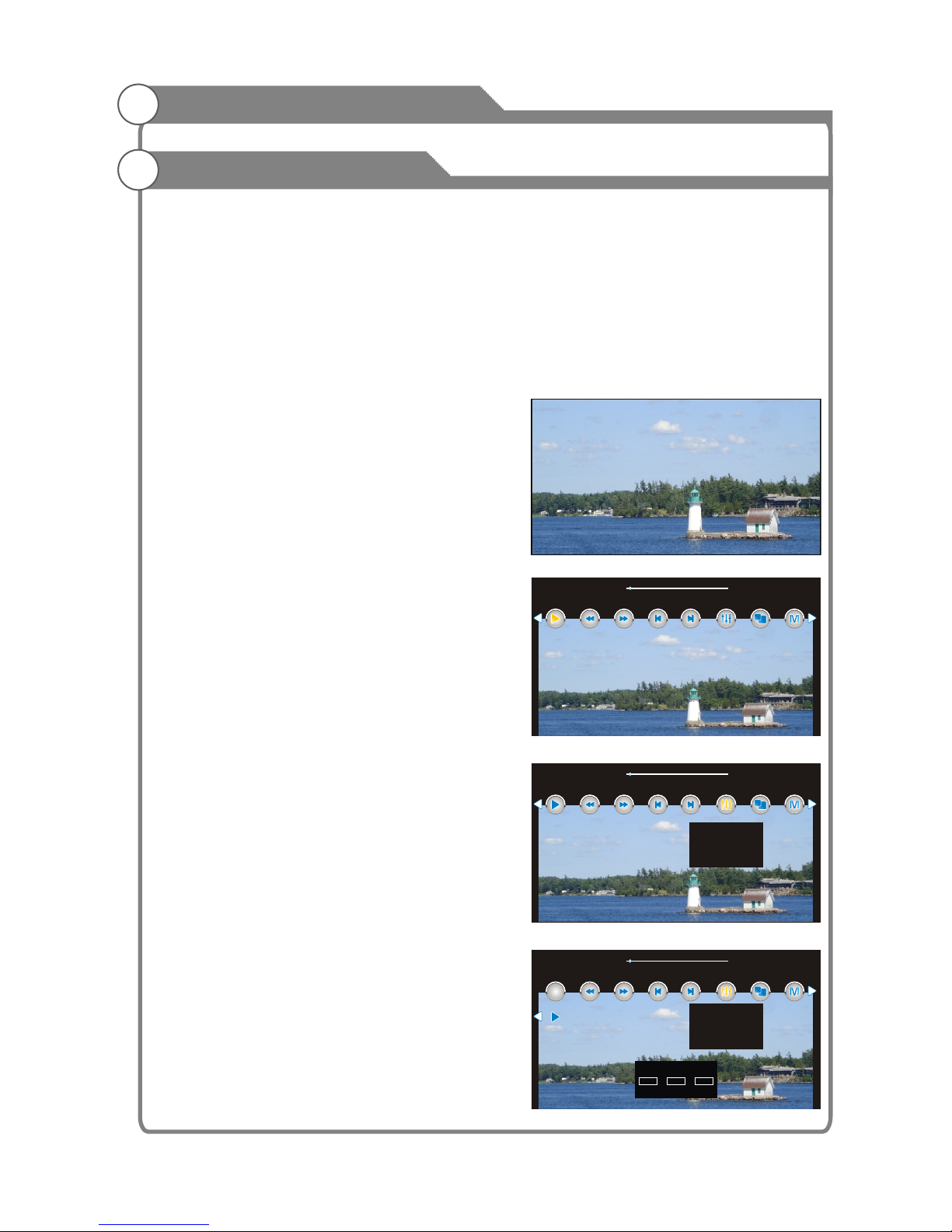

Photo Play interface (Shown in Figure 4) Key operation:

The following key: Play on a picture / next picture Left, Right: Reverse / Rotate the image clockwise Confirmation: play / pause image Exit: Exit the pictures to return to photo browsing interface Menu key: enter the playback control menu. Shown as Figure 5

Digital Media Player

Device and File Management

0/ 0

0/0

USB 2 .0

0/ 0

USB 2 .0

1/1

0/ 0


MUSIC

MOVIE

TEXT

My Disk

Stre et.jp g Ca stle. jpg Cast le2.j pg

Lan dscap e.jpg

Lan dscap e2.jp g

USB support character

Please insert USB device

Left/Right key: select OK Key: Enter

UP / Down key: select OK / Right Key: Enter

1/1

1.JP EG

Defa ul t pa th C :\

Page 43

Digital Media Player

Play Control menu

Key operation Left, Right: Select Options OK button: the selected function key to enter the selected Living the secondary function key menu.

Play

Play / Pause: Play / Pause Picture. Prev: Play on a picture. Next: Play the next picture. Rotate: Rotate the image counter-clockwise along. (Shown as Figure 6)

Proportion

1. Zoom In: enlarge image（1X,2X,4X,8X）

2. Zoom Out: shrink images（1/2,1/4）

3. Move View: Mobile pictures.

press the arrow keys to move a picture, press the Escape key to return to the previous menu, as shown in Figure 7.

PlayMode: Shown as Figure 8

1. Filmstrip: loop all the pictures.

2. Single: Repeat the current picture.

Music: Shown as Figure 9

Is set to open when the user is playing the most recently played songs. If the user is set to open when not playing a song recently, the default entry to play music all the music under. Stop: Exit Slideshow

When the picture have been magnified over the role of screen size, Press OK to display the arrow guide OSD,

Play

Prev Next Rotate

Proportion

Music

Stop

PlayMode

Play

Prev Next Rotate

Proportion

Music

Stop

PlayMode

Pos-Spin

Neg-Spin

Play

Prev Next Rotate

Proportion

Music

Stop

PlayMode

Zoom In

Zoom Out

Move View

Play

Prev Next Rotate

Proportion

Music

Stop

PlayMode

Filmstrip

Single

Play

Prev Next Rotate

Proportion

Music

Stop

PlayMode

Off

USB support character

1.JP EG

Page 44

Digital Media Player

USB support character

Playlist: Show is playing and will play the

image file. Shown as Figure 10 Up,Down keys: select the image file OK button: Play the selected picture file Left, Right keys: Exit playlist, and select other options. Exit button: Exit Playlists

Info: Display the name of the picture playback, resolution, size and date. (Shown as Figure 11)

(Show as Figure 12)

2. Music

Features: browse and play development path is to develop the current disk, set the method's interface, please refer to the specified path: Path - setting) music files under the.

Content: Displays the playback of music

files under the specified path.

Browse Music

Content: Displays the music files. (Show as Figure 13)

Key operation:

Arrow keys: up and down between the different options about the switch. Enter key: elected in the last entry in the left side of music options, the switch to music preview area; elected entries in the preview area on the right music, then play music files. Exit: election preview in the music entry in the right area, select the entries to switch back to the left side of music options; elected entries in the music option on the left, the switch back to the USB interface initialization

Play Music

Music player interface Shown as Figure 14 Action: Left, Right: rewind / fast forward Upper and lower key: on a / the next one OK button: Play / Pause music Exit: exit the music player interface, return to music browsing interface Menu key: enter the playback control menu. (Shown as Figure 15)

Press Left or Right to Select 3D Option and display submenu. Press OK button to confirm.

Playlist

Info

Water lilies.jpg Blue hills.jpg

Playlist

Info

Water lilies.jpg

Rsolution: 800X600

Size: 82 KBytes

Date: ----/--/--


MUSIC

MOVIE

TEXT

My Disk

Burning. Mp3

Jesus To A Child George Michael. Mp3

Bonnie Windsl. mp3

music_ac3_448kbps.aac

1/1

Bonnie Winds.mp3

Hol d me now

Don ’t ever l et me go ag ain

It’ s beati ng hear t back in a nd answ ers me

(ar ise) my l ove oh lo wer me to h is grav e

And d ry thes e tears m y beati ng hear t would b ring

00:00:03 /00:04 :07

UP / Down key: select OK / Right Key: Enter

Playlist

Info

3D Format

2D to 3D

3D to 2D

3D Order

Off

Desitive Order

Off

Play List

Up/down select OK:Play

1 / 1

1.JP EG

Def ault pa th C:\

Page 45

Digital Media Player

USB support character

Action:

Up,Down keys: Select the music file OK button: Play the selected music files Left, Right keys: Exit playlist, and select other options Exit button: Exit Playlists

Function:

Play / Pause: Play / stop the music FB: Fast back playing (x2,x4,x8,x16) FF: Fast forward playing (x2,x4,x8,x16) Prev: Play previous music Next: play next music

Play mode: Shown as Figure 16

1.ByOrder: Play music as order

2.Signle: Repeat single music

3.PlayLoop:Play all the music in order loop.

Stop:Exit the music play

Playlist:

Show is playing and will play music files. Shown as Figure 17

Info: Display the name of music, album name,

title, stream, author, sampling year. Shown as Figure 18.

3. Movie

Features: browse and play video files under the specified path (default path is the current disk, set the video interface, the method please refer to the specified path: Path setting) Content: Displays the playback video files under the specified path. Shown in Figure 19

Bonnie Winds.mp3

00:00:03 /00:04 :07

ByOrder

Single

PlayLoop

Play

FB FF

PlayMode

Playlist

Stop

Bonnie Winds.mp3

00:00:03 /00:04 :07

Play

FB FF

PlayMode

Playlist

Stop

1 / 1

Burning. mp3

Jesus To A Child . Mp3

Bonnie Windsl. mp3

music_ac3_448kbps.aac

Bonnie Winds.mp3

00:00:03 /00:04 :07

Info

Bonnie Winds.mp3

Album: The Best Songs Of The World

Title: Bonnie Winds

Bit Rate: 16 Bits

Artist: Bohinta

Sampling:

Year:


MUSIC

MOVIE

TEXT

My Disk

1/1

Ad.mpeg V50.mp4

Canoe_vp6.mpg

V1.RM

Div x4.... rmvb

ASF_vp6.mov

UP / Down key: select OK / Right Key: Enter

UP / Down: select OK:play

Bonnie Winds.mp3

00:00:03 /00:04 :07

Play

FB FF

PlayMode

Playlist

Stop

Play Control Key operation:

Left, Right: Select Options Confirm the key: the selected function key to enter the selectedfeatures live secondary menu items. Exit: exit the playback control menu

Defa ul t pa th C :\

Page 46

Ad.mpeg

00:00:03 /00:04 :07

FB FF

PlayMode

Proportion

Switch

Play

Ad.mpeg

00:00:03 /00:04 :07

FB FF

PlayMode

Proportion

Switch

Play

Digital Media Player

USB support character

PLAY Video

Video player interface Shown as Figure 20 Action: Left, Right: rewind / fast forward Upper and lower key: on a / the next one Exit: exit the video player interface, return to video browsing interface. Menu key: enter the playback control menu. Shown as Figure 21

Play Control Key operation:

Left, Right: Select Options Confirm the key: the selected function key to enter the selected. Features live secondary menu items Exit: exit the playback control menu.

Action:

Up,Down keys: Select the video file OK button: Play the selected video files Left, Right keys: Exit playlist, and select other options. Exit button: Exit Playlists

Function:

Play / Pause: Play / stop the video FB: Fast back playing (x2,x4,x8,x16) FF: Fast forward playing (x2,x4,x8,x16) Prev: Play previous video Next: play next video.

Ad.mpeg

00:00:03 /00:04 :07

FB FF

PlayMode

Proportion

Switch

Play

0 0 : 0 0 : 0 0

Input search time

Enter

Video view

Content: The specified path to all the video files displayed as thumbnails Key operation: Arrow keys: up and down in the switch between different options. Enter key: elected in the entry in the video options on the left, the switch to the video preview area; elected to the entry in the right side of the video preview area, then play the video file. Exit: In the video preview on the right in the entry area, select the entries to switch back to the left of the video options. Elected to the entry in the video options on the left, the switch back to the USB interface initialization.

Subtitle Sw.. --/0

Goto Time

Track Swit.. 1/1

Subtitle Sw.. --/0

Track Swit.. 1/1

Goto Time

Page 47

Digital Media Player

USB support character

Proportion:

Select the display ratio video playback. Shown in Figure 24.

1.Auto

2.16 : 9

3.4 : 3 Source of the film will switch to automatic mode by default.

Play Mode: Shown as Figure 25

1.ByOrder: Play video as order.

2.Signle: Repeat single video.

3.PlayLoop:Play all the video in order loop.

A->B: A to B repeat playback of video between points Set A: select the starting point. Shown as Figure 26. Set B: select the destination point . Shown as Figure 27.

None: Cancel A-> B play and resume normal

playback. As shown in Figure 28.

Slow:Play Slowly.(X2,X4,X8,X16) Stepping: Play just one picture each time

the user clicks.

Stop:Exit the video play

Ad.mpeg

00:00:03 /00:04 :07

FB FF

PlayMode

Proportion

Switch

Play

ByOrder

Single

PlayLoop

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

Set A

Stop

Playlist

Info

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

Set B

Stop

Playlist

Info

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

None

Stop

Playlist

Info

Ad.mpeg

00:00:03 /00:04 :07

FB FF

PlayMode

Proportion

Switch

Play

Auto

16:9

4:3

Switch: Shown as Figure 22

1. Track switch: switch the currently playing video tracks.

2. Subtitles switch: switch the currently playing video titles, this option the user can switch the video comes with different titles, select the OFF option, the subtitles will not be displayed.

3. Time Location: Choose a specific time period the video play the video. Shown in Figure 23.

Page 48

Digital Media Player

USB support character

4.Text

Features: browse and play text files under the specified path (default path is the current disk, set the video interface, the method please refer to the specified path: Path - setting) Content: Displays the playback text files under the specified path. Shown in Figure 32

Document view

Content: The specified path to all the document files displayed as thumbnails. Key operation: Arrow keys: up and down in the switch between different options. Enter key: elected in the entry in the document options on the left, the switch to the video preview area; elected to the entry in the right side of the document preview area, then play the document file. Exit: In the video preview on the right in the entry area, select the entries to switch back to the left of the document options. Elected to the entry in the document options on the left, the switch back to the USB interface initialization


MUSIC

MOVIE

TEXT

My Disk

1/1

The W on de rfu l Wizar d of Oz. tx t

Aro und the W or ld i n 80 Da ys. txt

How To B e Ha pp y At Wor k. txt

Ern est Hem ingwa y's cor pus. tx t

Jan e Eyre. T xt

How To Be Ha ppy At Wor k

it’s n ot easy t o tell ot hers ho w to be hap py at wor k, esp ecial ly peop le who fe el as if th ey’re l iving i n a caree r comba t zone. i know t he batt legr ound we ll. for t he past 2 0 years , i’ve b een a ca reer co unsel or, psyc hothe rapis t, and co rpor ate out place ment co nsult ant. in t hat tim e, i’ve s een mo re casua ltie s of the ca reer wa rs than m ost peo ple exp erien ce in a life time . i know wh at it tak es to be ha ppy wit h your wo rk. but i a lso kno w there ’s no si mple fo rmula t o achie ve care er succ ess and s atisf actio n.

the wo rkpla ce is cha otic. i f you’r e like m ost peo ple, yo u proba bly fee l that yo u’re livi ng a car eer nig htmar e: work ing har der to ma ke a livi ng with f ewer av ailab le reso urces , more d emand s on your t ime, an d lots of d isinc entiv es to ach ievem ent. perh aps yo u fanta size ab out chu cking t he whol e scene . right a bout no w, life on the go lf cou rse, ski s lope s, or a san dy beac h can loo k might y appea ling.

mayb e you ju st need a g ood, lo ng vaca tion. y ou don’ t want to d rop out o f the wor kforc e altog ether, b ut you’ re hung ering f or a new ad ventu re. you w ant mor e cont rol ove r your ti me and yo ur des tiny. you r rally ing cry i s more fr eedom , less1 /51 offi ce poli tics!

UP: Pre Page DOWN: Next Page LEFT: Pre File RIGHT: Next File

UP / Down key: select OK / Right Key: Enter

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

None

Stop

Playlist

Info

1 / 1

Ad.mpeg V50.mp4 V1.RM

Divx4....rmvb

Divx5....rmvb

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

None

Stop

Playlist

Info

Ad.mpeg

Resolution: 352x288

Audio Track: 1 /1

Subtitle: - - / 0

Program: - - / 0

Title: - -

Edition: - -

Chapter: - -

3D Format

2D to 3D

3D to 2D

3D Order

Off

Desitive Order

Off

Ad.mpeg

00:00:03 /00:04 :07

Slow

Stepping

None

Stop

Playlist

Info

Press Left or Right to Select 3D Option and display submenu. Press OK button to confirm.

Shown as Figure 31.

Playlist: Show the videos files being playing

and will be played. Shown as Figure 29

Info: Shows the name of the video is playing,

resolution, audio track, subtitles, program, title, version, chapters. Shown as Figure 30.

3D Format

2D to 3D

3D to 2D

3D Order

Off

Desitive Order

Off

1/1

Defa ul t pa th C :\

Page 49

Digital Media Player

USB support character

Goto Page: Select this feature, the pop-up dialog box jump page, the user can enter the page number to view the page, select OK option, and enter the designated page, click Exit to return to playback control menu. Playlist: displays document files can be played. Shown as Figure 36; Show the name, size of the document playing. As shown in Figure 37.

Function: Displays the current disk under the folder, movies, music, pictures, text files; set "Photo", "music", "video", "document" the specified path. Shown as Figure 38.

My Disk

Prev Page Next Page Prev Next Stop Music Goto Page Playlist

The Won derfu l Wizar d of Oz. tx t

Aroun d the Wor ld in 80 Da ys. txt

How To Be Ha ppy At Wor k. txt

Ernes t Hemin gway' s corpu s. txt

Jane Ey re. Txt

1 / 1

How To Be Ha ppy At Wor k. Txt

espe cial ly peop le who fe el as if th ey’re l iving i n a caree r comba t zone. i kno w the bat tlegr ound we ll. for t he past 2 0 years , i’v e been a ca reer co unsel or, psyc hothe rapis t, and c orpor ate out place ment co nsult ant. in t hat tim e, i’v e seen mo re casu altie s of the ca reer wa rs than m ost peo ple exp erien ce in a life time. i k now wh at it take s to be ha ppy wit h your wo rk. but i a lso kno w there ’s no sim ple for mula t o achie ve care er succ ess and s atisf actio n.

the wo rkpl ace is ch aotic . if you’ re like m ost peo ple, yo u proba bly fee l that yo u’re liv ing a car eer nig htmar e: work ing har der to ma ke a livi ng with f ewer av ailab le

reso urce s, more d emand s on your t ime, an d lots of d isinc entiv es to ach ievem ent. per haps yo u fanta size ab out chu cking t he whol e scene . right a bout no w, life on the go lf cou rse, sk i slope s, or a san dy beac h can loo k might y appea ling.

mayb e you ju st need a g ood, lo ng vaca tion. y ou don’ t want to d rop out o f the work force a ltog ether, b ut you’ re hung ering f or a new ad ventu re. you w ant mor e con trol ov er your t ime and y our des tiny. you r rally ing cry i s more fr eedom , less offi ce poli tics!

Info

How To Be Happy At Work. Txt

Size: 115.92Kbytes

UP / Down: select OK:play

Documents Reading

The Documents Reading iinterface: Shown as Figure 33. Key operation Up,Down keys: Previous Page, Next Page Left, right keys: Previous document, Next document. Exit key: Return to the document interface Menu key: Enter the playback control menu. As shown in Figure 34.

Play Control menu

Key operation Left, Right: Select Options OK button: the selected function key to enter the selected Living the secondary function key menu. Exit button: Exit Play control menu.

Function

Prev Page: Show previous page. Next Page: Show next page. Prev: Show previous document. Next: Show next document.

Stop: Exit document reading

Music: Shown as Figure 35 When set to open, play music at the same time.

it’s n ot easy t o tell ot hers ho w to be hap py at wor k, espe cial ly peop le who fe el as if th ey’re l iving i n a caree r comba t zone. i kno w the bat tlegr ound we ll. for t he past 2 0 years , i’v e been a ca reer co unsel or, psyc hothe rapis t, and c orpor ate out place ment co nsult ant. in t hat tim e, i’v e seen mo re casu altie s of the ca reer wa rs than m ost peo ple exp erien ce in a life time. i k now wh at it tak es to be ha ppy wit h your wo rk. but i a lso kno w there ’s no sim ple for mula t o achie ve care er succ ess and s atisf actio n.

the wo rkpl ace is ch aotic . if you’ re like m ost peo ple, yo u proba bly fee l that yo u’re liv ing a car eer nig htmar e: work ing har der to ma ke a livi ng with f ewer av ailab le reso urce s, more d emand s on your t ime, an d lots of d isinc entiv es to ach ievem ent. per haps yo u fanta size ab out chu cking t he whol e scene . right a bout no w, life on the go lf cou rse, sk i slope s, or a san dy beac h can loo k might y appea ling.

mayb e you ju st need a g ood, lo ng vaca tion. y ou don’ t want to d rop out o f the wor kforc e altog ether, b ut you’ re hung ering f or a new ad ventu re. you w ant mor e con trol ov er your t ime and y our des tiny. you r rally ing cry i s more fr eedom , less offi ce poli tics!

Prev Page Next Page Prev Next Stop Music Goto Page Playlist

0 0 0 0

it’s n ot easy t o tell ot hers ho w to be hap py at wor k, espe cial ly peop le who fe el as if th ey’re l iving i n a caree r comba t zone. i kno w the bat tlegr ound we ll. for t he past 2 0 years , i’v e been a ca reer co unsel or, psyc hothe rapis t, and c orpor ate out place ment co nsult ant. in t hat tim e, i’v e seen mo re casu altie s of the ca reer wa rs than m ost peo ple exp erien ce in a life time. i k now wh at it tak es to be ha ppy wit h your wo rk. but i a lso kno w there ’s no sim ple for mula t o achie ve care er succ ess and s atisf actio n.

the wo rkpl ace is ch aotic . if you’ re like m ost peo ple, yo u proba bly fee l that yo u’re liv ing a car eer nig htmar e: work ing har der to ma ke a livi ng with f ewer av ailab le reso urce s, more d emand s on your t ime, an d lots of d isinc entiv es to ach ievem ent. per haps yo u fanta size ab out chu cking t he whol e scene . right a bout no w, life on the go lf cou rse, sk i slope s, or a san dy beac h can loo k might y appea ling.

mayb e you ju st need a g ood, lo ng vaca tion. y ou don’ t want to d rop out o f the wor kforc e altog ether, b ut you’ re hung ering f or a new ad ventu re. you w ant mor e con trol ov er your t ime and y our des tiny. you r rally ing cry i s more fr eedom , less offi ce poli tics!

Prev Page Next Page Prev Next Stop Music Goto Page Playlist

Off

1/1

Play L ist

Page 50

Digital Media Player

USB support character

Current Disk: Set "Photo", "music", "video", "document" for the entire query path

specified disk. This option is selected, each time a user visit the "Photo", "music", "video", "Documents" for the current disk contains all the photos / music / video / document file. Entry: If you enter the C drive, when setting the current disk is selected, the view, "photo", "music", "video", "document" is displayed when the C drive, all photos / music / video / document file. As to the current disk to find the entire disk media files, so speed will be very slow, do not recommend this path set up.

Current Path: Set "Photo", "music", "video", "document" of the specified query path

for the currently selected folder path. when choosen, each time a user browsing photos, music, video, document files is the current folder contains all the photos / music / video / document files.For example,the currently selected folder is "KKDOWNLOAD", when elected in the current path, browsing the "photo", "music", "video", "document" to display all photos / music / video / document files in the "KKDOWNLOAD" folder.This will be faster when serching.Therefore, it is strongly recommended that users put all kinds of media files in a fixed folder and set folder to specify the path, so you can save search time.

Key operation:

Arrow keys: up and down between the different options about the switch. Enter key: If the focus is on the left side when Regional Options, switch to the right area; when the focus is on the right side file display area, if the focus on the folder, then into the folder. If movies, music, pictures, text, and then play the file. Exit: If the focus is on the left, the switch back to the USB initialization interface; if the focus is on the right side of the menu and when in the root directory, then switch to the left region, if the focus is on the right side when the non-root directory, then return to the previous level directory. Set path Description: display area is selected in the file folder, the folder will appear to set the right function. Right-click the arrow keys to select the settings option and then press the OK button will pop up settings dialog, set the box includes two options: the current disk and the current path. Up and down keys to switch between these two options, select the OK button is selected the path way out to save the current settings and launch path settings menu. As shown in Figure 39


MUSIC

MOVIE

TEXT

My Disk

1/1

Landscape2.j pg


Ad.mpeg

Burning. Mp3

Jesus To A Child George Michael. Mp3

Ernest Hemingway' s corpus. txt

Jane Eyre. txt

Setup

Current Drive

Current Path

Index Path


MUSIC

MOVIE

TEXT

My Disk

1/1

Landscape2.j pg


Ad.mpeg

Burning. Mp3

Jesus To A Child George Michael. Mp3

Ernest Hemingway' s corpus. txt

Jane Eyre. txt

Setup

Curren Path C:\

Sav ing set tings . .....

UP / Down key: Entry Type Select OK key: Select Entry Type Exit key:save Entry setting And Return

Page 51

Troubleshooting

If you have any problem, check the couter measures for each symptom listed beiow. The following symptoms may have . adjustment rather than actual malfunction of the unit. If the trouble persists, contact the

been caused by inappropriate

Customer Care

Centre, see back page for contact details

Symptoms

No power

No picture

Good picture but no sound

Good sound but abnormal color or no picture

No response t o remote

control

Full screen flickering under VGA

Horizonta l stripes under VGA

Colored dot s may be present on the screen

Possible so lutions

Please check the power cord

. Unplug the power cord and plug it in after 60 seconds and restart the TV.

plugged in and that the power

outlet works

Please check antenna connection. Station may problems, please tune to another station. Please adjust the settings of contrast and brightness.

be experiencing

Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings

If external devices are being used, check their volumes are not set too low or turned off. If using AVI or Component inputs, please make sure cables are connected prpoerly and not loose. If using DVI to HDMI cable, a separate audio cable is required. Make sure a headphone jack is not connected.

Batteries of remote control may have exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m, within

recommended operating angle and path is free of obstructions.

V-HEIGHT value may be set too big, restart computer and enter safe mode, then set monitor parameters to correct value according to adjustment description.

Sample phase may be deflected, adjust phase according to picture position.

Although the LCD screen is made with high-precision technology and 99.99% or more of the the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and not a malfunction.

Please check antenna connection and antenna condition. If using Component input, please check Component connections, incorrect or loose connections may cause colour problems or cause the screen to be blank.

Keep the TV away from noisy electrical sources such as cars, hair dryers, welders, and all optional equipment. Electrical atmospheric interference such as local or distant lightning storms may cause picture to break up. When installing optional equipment, leave some space between the optional equipment and the TV. Check the antenna and connection. Keep the antenna away from any power or input/output cables.

Picture is breaking up

Page 52

Troubleshooting

Check your area is covered by Digital Video Broadcasts. Try re-tuning or manually tuning missing channels. Check that you are using the correct antenna type - please see pg.16 'Antenna connection'.

After Auto Tuning only some channels are available

Check if the channel has been blocked in the main menu settings.

Please check connecting USB cable and power supply is connected.Hard drive has not been formatted. Please make sure USB disk is compatible and the multimedia data formats are supported.

Channel cannot be selected

USB not playing

Compression of video contents may cause distortion especially on fast moving pictures such as sports and action movies.

Picture is distorted, macroblock, small block, dots, pixelization, etc

Black bars on e ach side will be shown on HD channels when displa ying SD (4:3) contents. Black bars on Top & Bottom will be shown on movies that have aspect r atios different from your TV. Adjust picture size option on your external de vice or TV to full screen .

Noise from speaker

Check cable c onnections, make sure a video cab le is not connected to an audio input. Low signal le vel may cause sound distortion.

TV turns off automatically

Check if the Off Timer is set to On in the Setup menu. Sleep Timer ma y have been enabled. If there is no signal for about 10 minutes from an input, the TV will turn off, see Auto Sleep pg. 33. If connected to your PC, check your PC power settings. Make sure the AC p ower cord is plugged in securely to the wall outlet and the TV.

TV turns on automatically

Check if the On Timer is set to On in the Setup menu.

Picture is no t shown in full screen

Page 53

Troubleshooting

Picture defects and the reason

Ghosting may also occur when still pictures are displayed continuously. It may disappear after a few moments.
