Page 1

<>ϯϮ&

USER MANUAL

Page 2

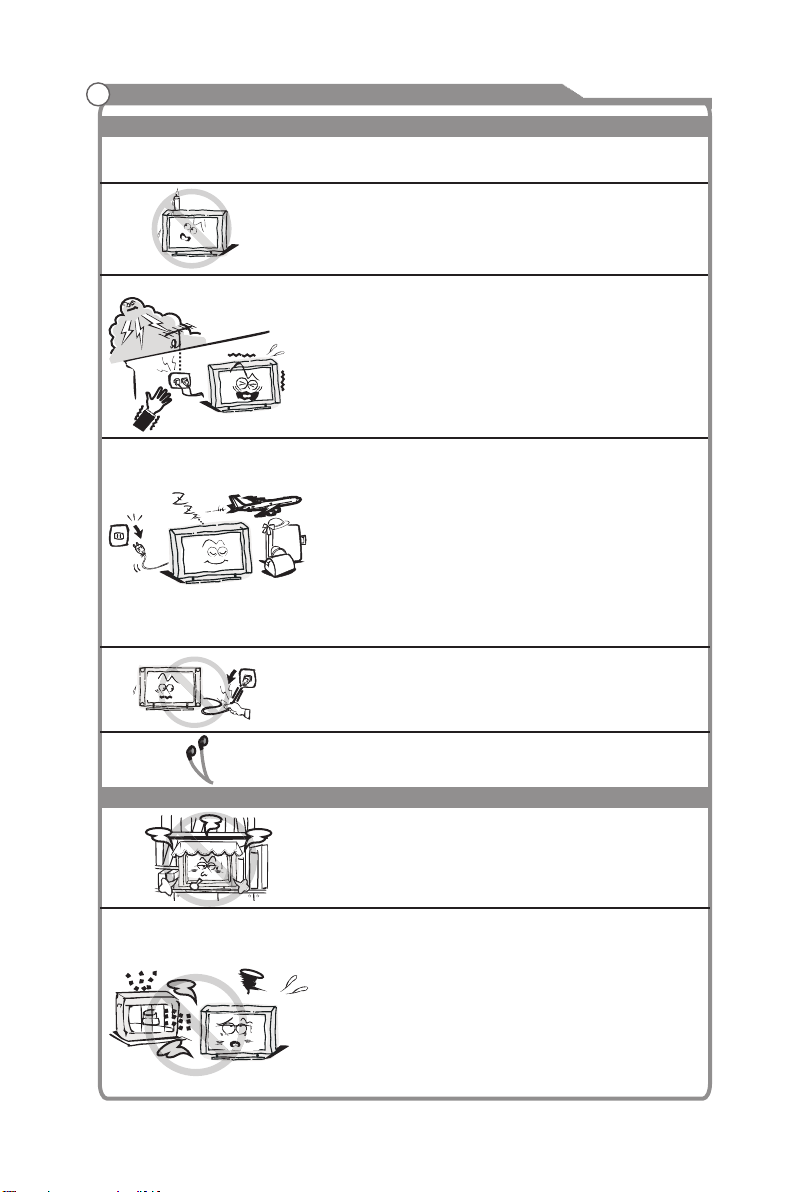

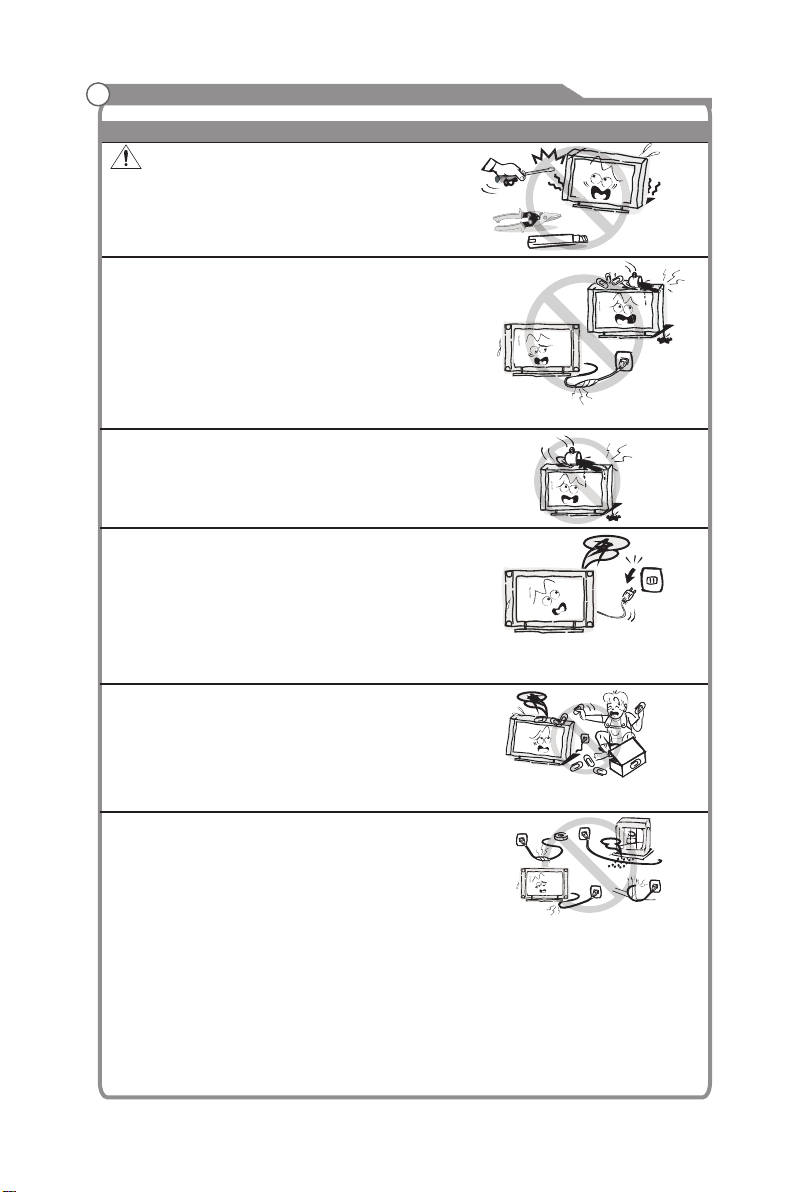

Important Safety Instructions and Maintenance

Important Safety Instructions

CAUTION

Risk of electronic shock, do not open. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

If the following problems occur: Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or service centre to have it checked by qualified service personnel When:

- AC power cord is damaged.

- Poor fitting of AC power outlet.

- TV set is damaged by being dropped, hit or having something thrown at it.

- Any liquid or solid object falls through openings in the cabinet.

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

The screen and cabinet get warm when the TV is in use. This is not a malfunction.In case of smoke, strange noise or strange smell from the unit:

· Turn off the power switch immediately;

· Disconnect the power plug from the power outlet;

· Contact your dealer or service centre. Never attempt to make repairs yourself because this could be dangerous.

Never push objects of any kind into the set through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the set. Use special caution in households where children are present. The apparatus is not suitable for children under 3-year to operate.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, this can result in fire or electrical shock. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance. The mains plug is used as the disconnect device. It shall remain readily accessible and should not be obstructed during intended use. Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet, do not pull the plug out by the wire. NEVER touch the plug or power cord with wet hands. To disconnect the apparatus from the mains power, the plug must be pulled out from the mains socket, therefore make sure the mains plug is always easily accessible.

High Voltage Do not open

Page 3

Important Safety Instructions and Maintenance

Important Safety Instructions

Do not push or scratch the front screen, or place any objects on top of the TV set. The image may be uneven or the screen may be damaged.

To avoid the fire, no naked flame source, such as lit candles, should be placed on the apparatus.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.Ensure the television is not overhanging the edge of the supporting furniture.

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC mains for environmental and safety reasons. As the TV set is not disconnected from the AC power when the TV is turned off at the standby switch, pull the plug from the AC power outlet to disconnect the TV completely. However, some TV sets may have features that require the TV set to be left in standby to function correctly. In the case of lightning, unplug the TV set from the outlet immediately. Never touch the antenna wire during a lightning storm.

Installation

Do not pull the plug out by the wire; Never touch the plug with wet hands.

Excessive from earphones and headphones can cause hearing loss.

The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. At least 10 cm space should be left around the apparatus for sufficient ventilation.

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat. Place the apparatus in such a position that the screen is not exposed to direct sunlight. It is best to have soft indirect lighting while watching and avoid dark environments these may cause eye fatigue. Keep the TV set away from any equipment emitting electromagnetic radiation.

volume

completely

and reflection from the screen as

Page 4

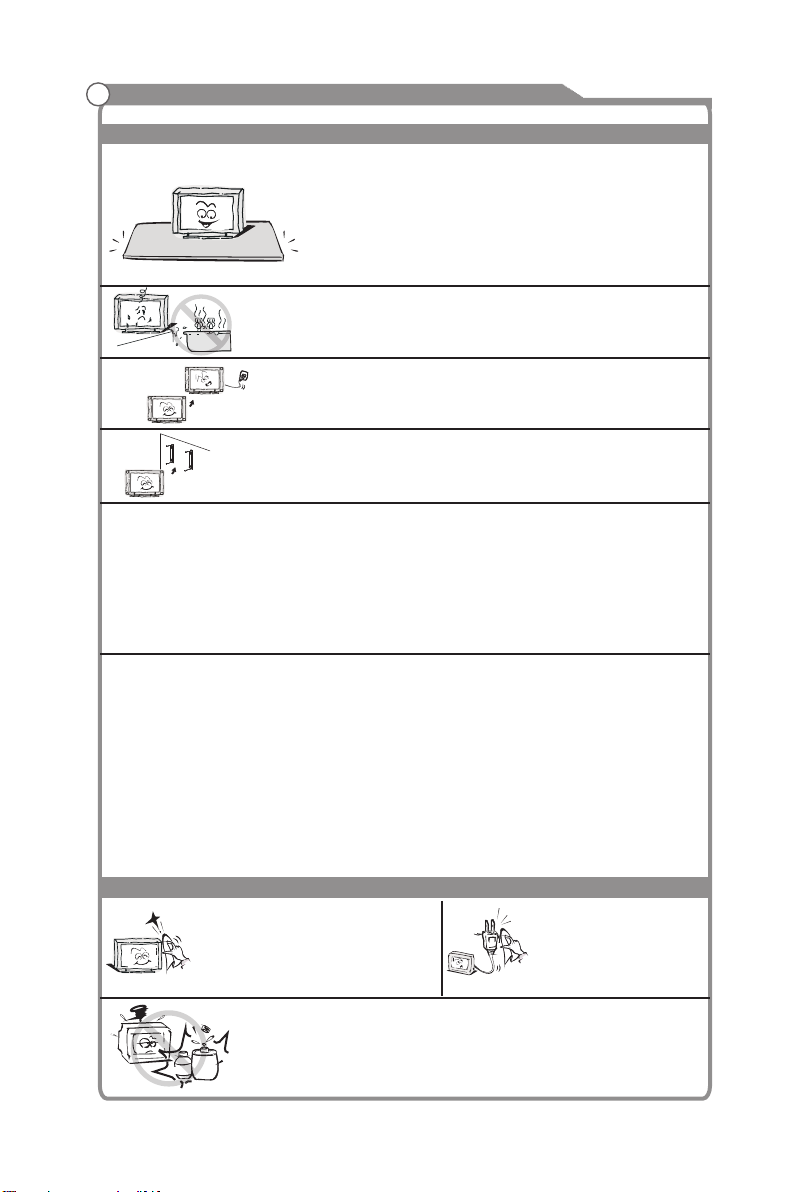

Important Safety Instructions and Maintenance

Installation

Do not place the set on an unstable cart, stand, table or shelf. The set may fall, causing serious personal injury as well as damage to the product. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Do not place this apparatus near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or a swimming pool; and the like;

When the TV being moved in from cold place, it needs

Move

LED Screen Although the LED screen is made with high precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue or green) may appear constantly on the LED screen. This is a structural property of the LED screen and is not a malfunction. If the surface of the LED panel cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result. Do not throw anything at the TV set. The LED panel may break from the impact and cause serious injury.

Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen. Do not display still images and partially still images on the LED panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LED TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

Cleaning

Cleaning and handling the screen surface and cabinet. Disconnect the unit from the AC outlet before cleaning. To remove dust, wipe gently with a soft, lint free cloth. If required use a slightly damp cloth.

thinner

solvent

some right time for dew inside unit evaporating fully before turn on the unit;

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

MAINS PLUG

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Use care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure, fire or electrical shock.) Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances as this may deteriorate the surface and finish of the cabinet.

Page 5

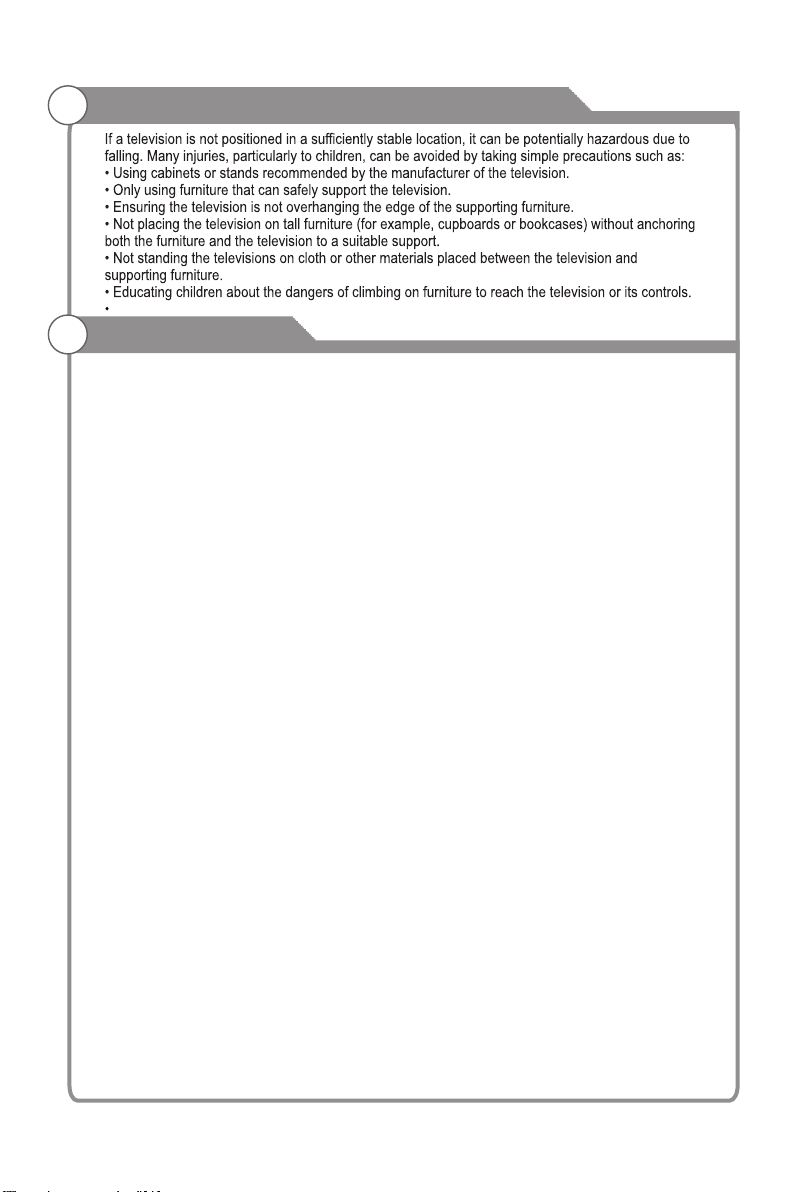

Important Information

Keep small acc essories out of reach of children so they are not mistakenly swallowed.

Table of Contents

Accessories------------------------------------------------------------------------------------------------5 Introduction------------------------------------------------------------------------------------------------6

Features-----------------------------------------------------------------------------------------------------6 Specifications-----------------------------------------------------------------------------------------------7

Stand and wall-mounting instructions (optional)--------------------------------------------------8

General Description

Overview of back panel--------------------------------------------------------------------------------10 Overview of front panel--------------------------------------------------------------------------------11 Overview of remote control---------------------------------------------------------------------------12 Teletext ----------------------------------------------------------------------------------------------------14 Installing Batteries in the Remote Control---------------------------------------------------------16 External Connection---------------------------------------------------------------------------------------16 Antenna connection-------------------------------------------------------------------------------------16 Connecting VCR -----------------------------------------------------------------------------------------17 Connecting a Camcorder------------------------------------------------------------------------------18 Connecting a DVD Player/Set-Top Box -----------------------------------------------------------19 Connecting a DVD Player/Set-Top Box via DVI -------------------------------------------------20 Connecting DVD Player/Set-Top Box via HDMI -------------------------------------------------21 Connecting Digital Audio System--------------------------------------------------------------------22 Connecting PC ------------------------------------------------------------------------------------------23

Supporting signals -----------------------------------------------------------------------------------------23

Basic operation-----------------------------------------------------------------------------------------24

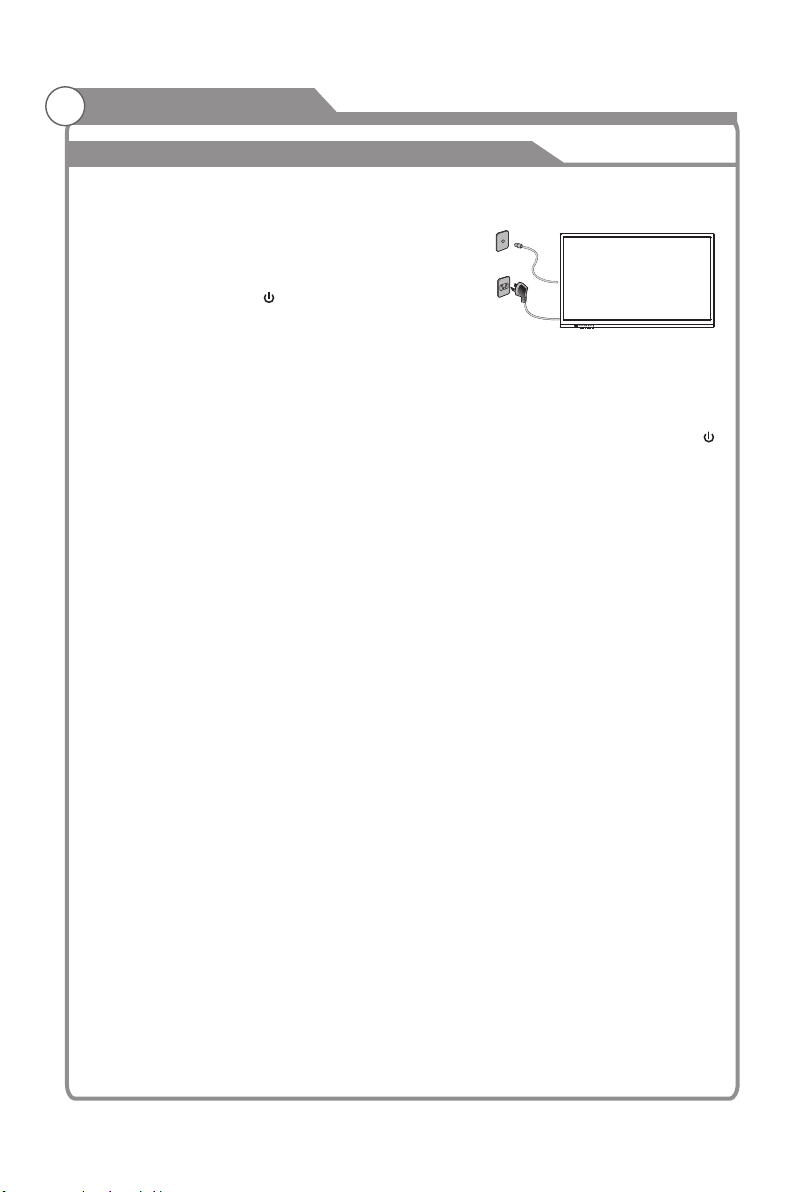

Turning the TV on and off-----------------------------------------------------------------------------24 Menu operation ------------------------------------------------------------------------------------------25 Menu system instruction----------------------------------------------------------------------------------27 Picture-------------------------------------------------------------------------------------------------------27 Sound-------------------------------------------------------------------------------------------------------29 Channel-----------------------------------------------------------------------------------------------------31 Time---------------------------------------------------------------------------------------------------------33 Option-------------------------------------------------------------------------------------------------------34 Function----------------------------------------------------------------------------------------------------36 PVR---------------------------------------------------------------------------------------------------------37 Digital Media Player ---------------------------------------------------------------------------------------40

-------------------------------------------------------------------------------------------------40

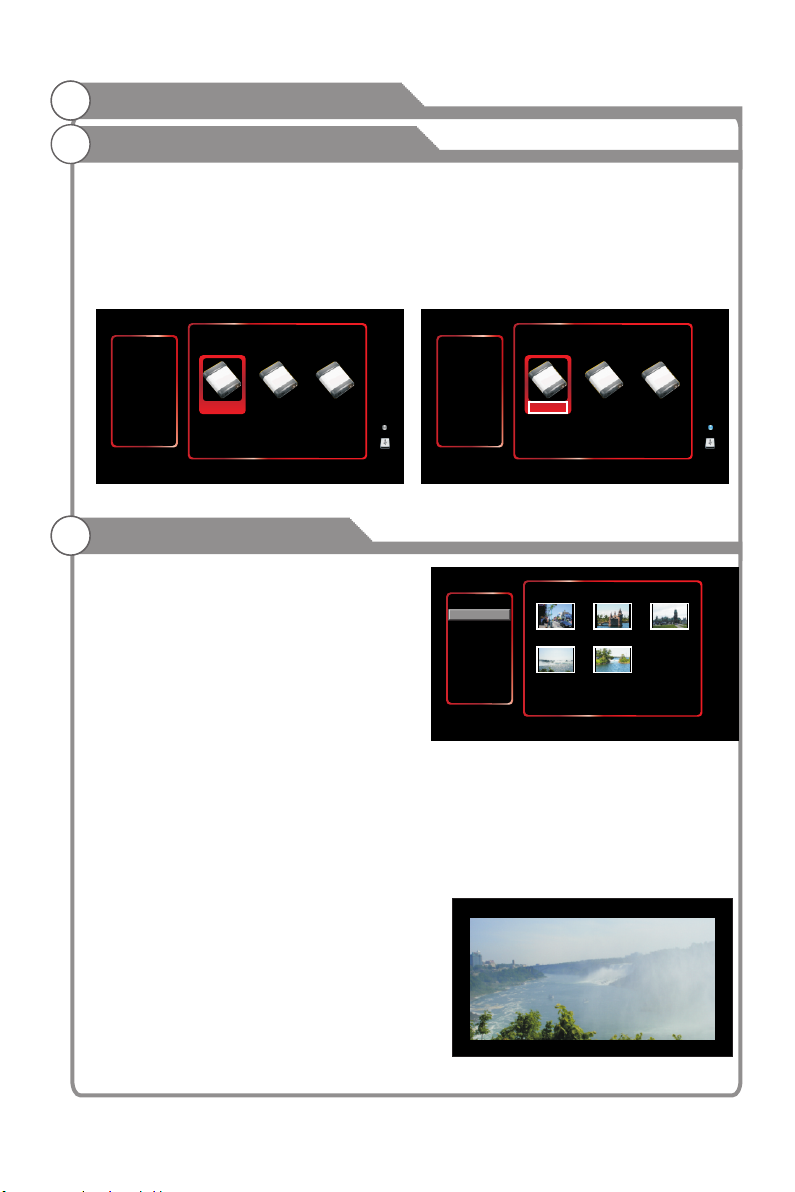

Introduction Device and File Management USB Support Character 41 Photo Music Movie Text My Disk------------------------------------------------------------------------------------------------------48

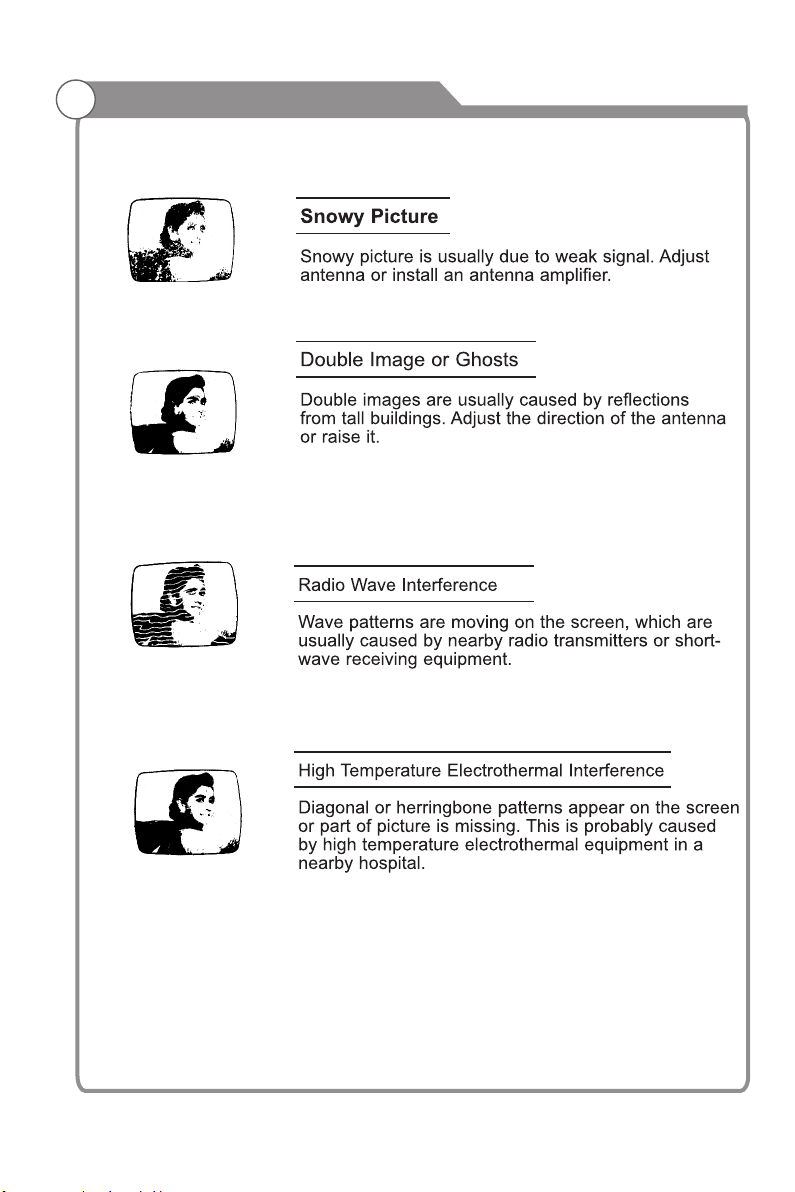

Troubleshooting --------------------------------------------------------------------------------------------50 Picture defects and the reason-------------------------------------------------------------------------52

---------------------------------------------------------------------------------------------------------41

--------------------------------------------------------------------------------------------------------43

--------------------------------------------------------------------------------------------------------44

-----------------------------------------------------------------------------------------------------------47

---------------------------------------------------------------------------------10

-------------------------------------------------------------------------41

---------------------------------------------------------------------------------

Page 6

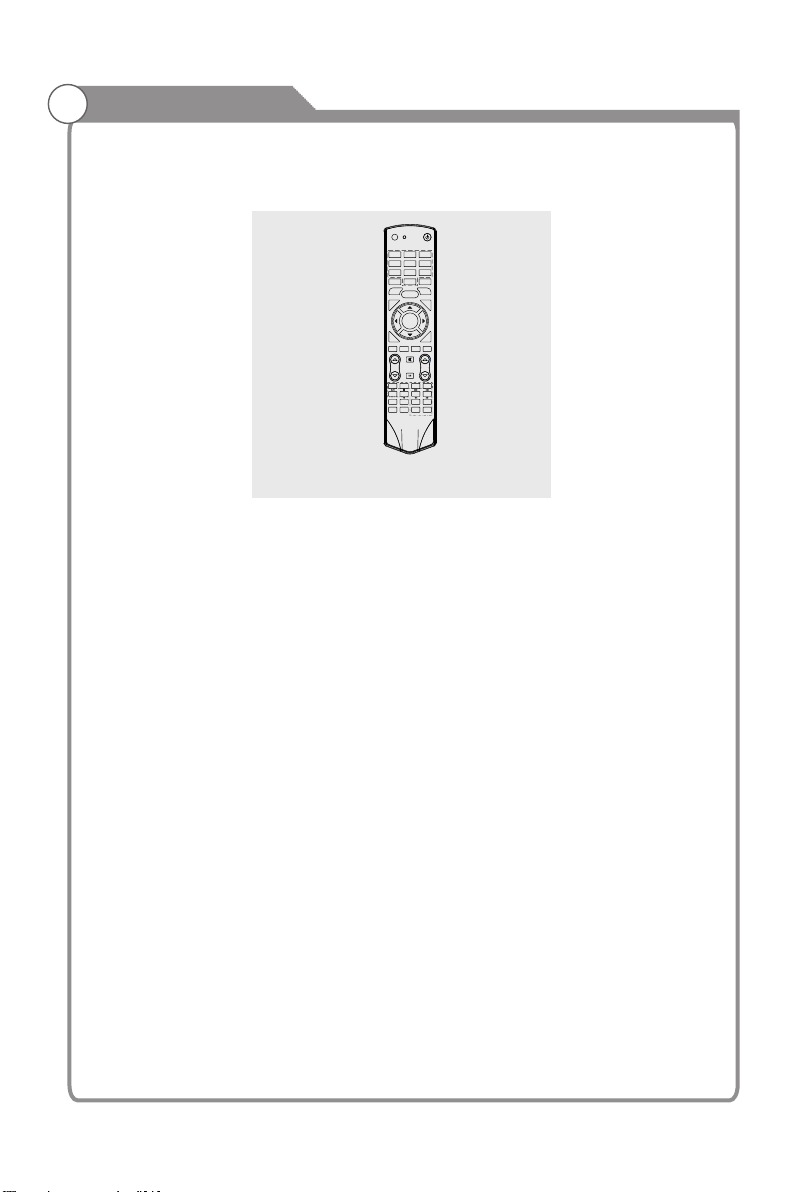

Accessories

Please make sure the following items are included with your LED TV. If any items are

missing, contact your dealer.

POWER

INPUT

1 2 3

4 5

789

RECALL

INFO

FREEZE SLEEP

FAV

CH.LIST

OK/ REC LIST

GUIDE

EXIT

USB

DTV HDMI

ASPECT

MUTE

VOL PROG

AUDIO LANG

BLUE

RED GREEN YELLOW

INDEX

TEXT

HOLD SIZE

SUBTITLE

REVEAL CANCEL

MIX

PgUp PgDn

SUBCODE

SOUND

TIME


Remote Control

Page 7

Introduction

Features

l TV adopts 32” TFT display screen l Zero X radiation complies to green environment protection requirement l Connect to computer directly to realize TV/monitor combo. l 16:9 wide screen l Auto tuning and fine tuning l HDMI input l Component Compatible (480i; 480P; 576i; 576P; 720P; 1080i; 1080P) l PC-RGB l Programmable sleep timer l Wide range voltage input l No-signal automatic power off

Input terminals used for external equipment connection

1 x ANTENNA jack 3 x HDMI inputs 1 x computer PC-RGB input 1 x USB inputs 1 x COMPONENT input 2 x AV inputs 1 x Headphone output

LED

1 x CVBS output 1 x SPDIF output

Page 8

Introduction

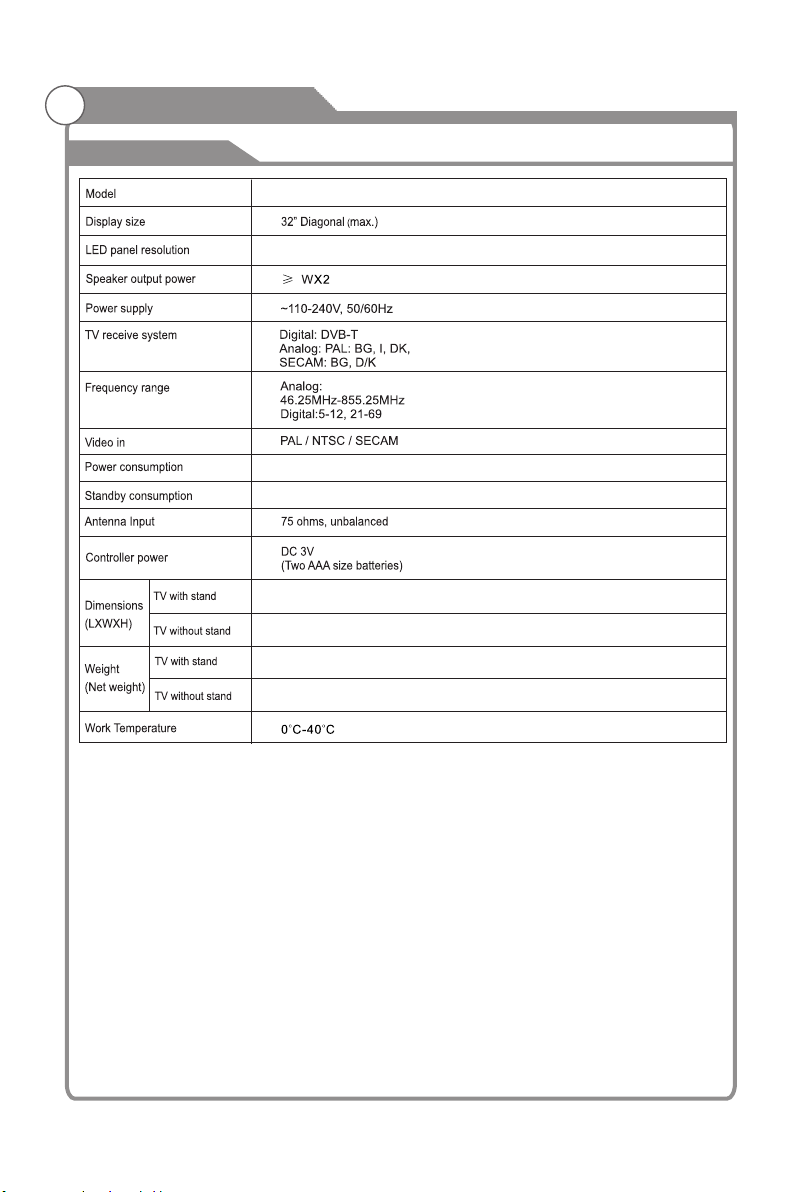

Specifications

KALED 32G FCA

1366X768

65W

<0.5W

739x205.5x51 4.5 mm

739x74x453mm

6.2Kg

5.8Kg

Note:

- Design and specifications are subject to change without notice.

- Weight and Dimension shown are approximate.

Page 9

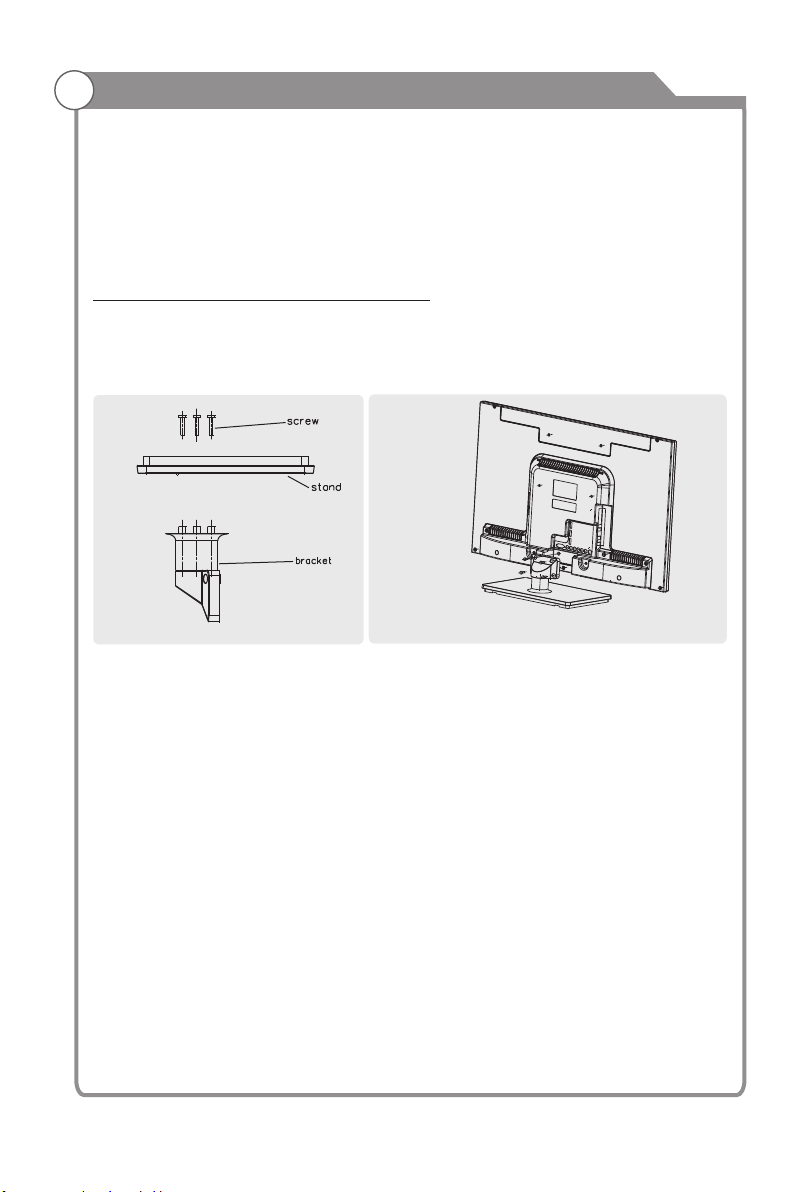

Stand and wall-mounting instructions (optional)

How to assemble the stand

If you need to remove or assemble the stand please read the following instructions.

-Before attaching/detaching the stand, make sure to turn off the TV.

-Before performing work, spread cushioning over the base area to lay the LED TV on.

This will prevent it from being damaged.

Assembling instruction:(Only for 32” model)

1) Fix the bracket and the stand with four screws .(figure 1)

2) Put the television on the table, fix the stand and the unit with four screws given in the carton.(figure 2)

Screws

(2 x M4*12) (2 x B-ST4*16)

Figure 1 Figure 2

Page 10

Stand and wall-mounting instructions (optional)

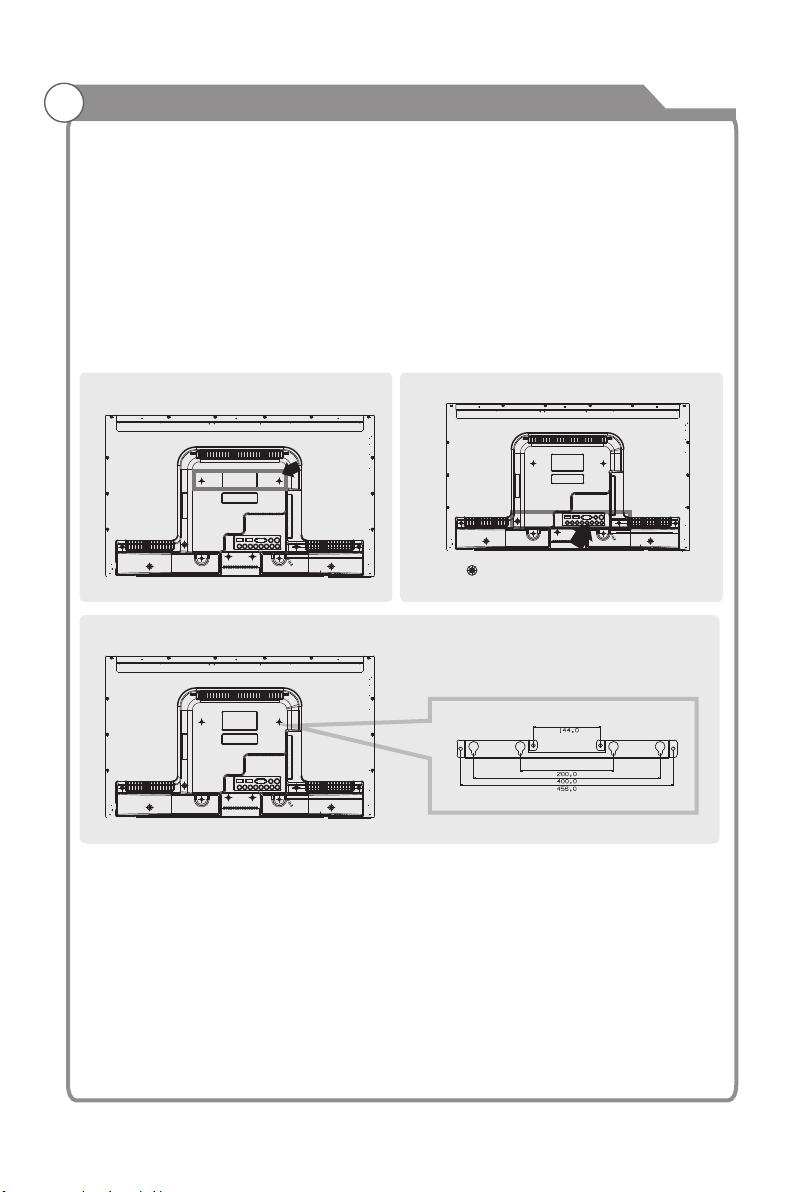

How to mount the LED TV on the wall

1.Detach the TV stand from the bottom of the TV, then place the TV screen down onto a soft blanket or surface to avoid scratching or damage. Fasten two mounting screws (thread size M6X8-not supplied, please contact your local hardware store)into the 2 screw holes on the rear cover ,see the figure 1.

2.fasten 2 bolts by using two M6X18 screws on the rear cover as figure 2 shown.

3.Fasten wall mounting bracket with screws on the wall.

4.Carefully check for the strength before releasing the LED TV. NOTE: For more detailed instructions please refer to your "after market" wall mounting instruction book.

Figure1

Figure3

M6X 8

Figure2

2 bolts

M6X 18

Page 11

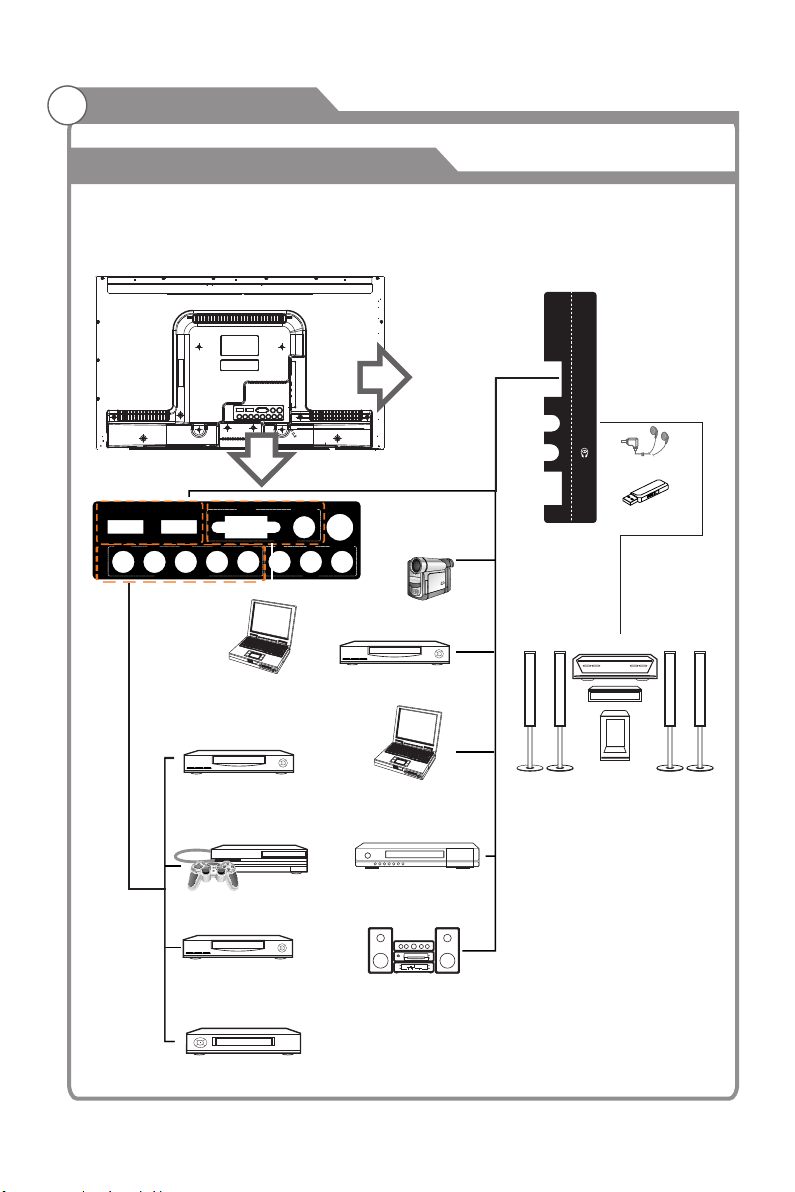

General Description

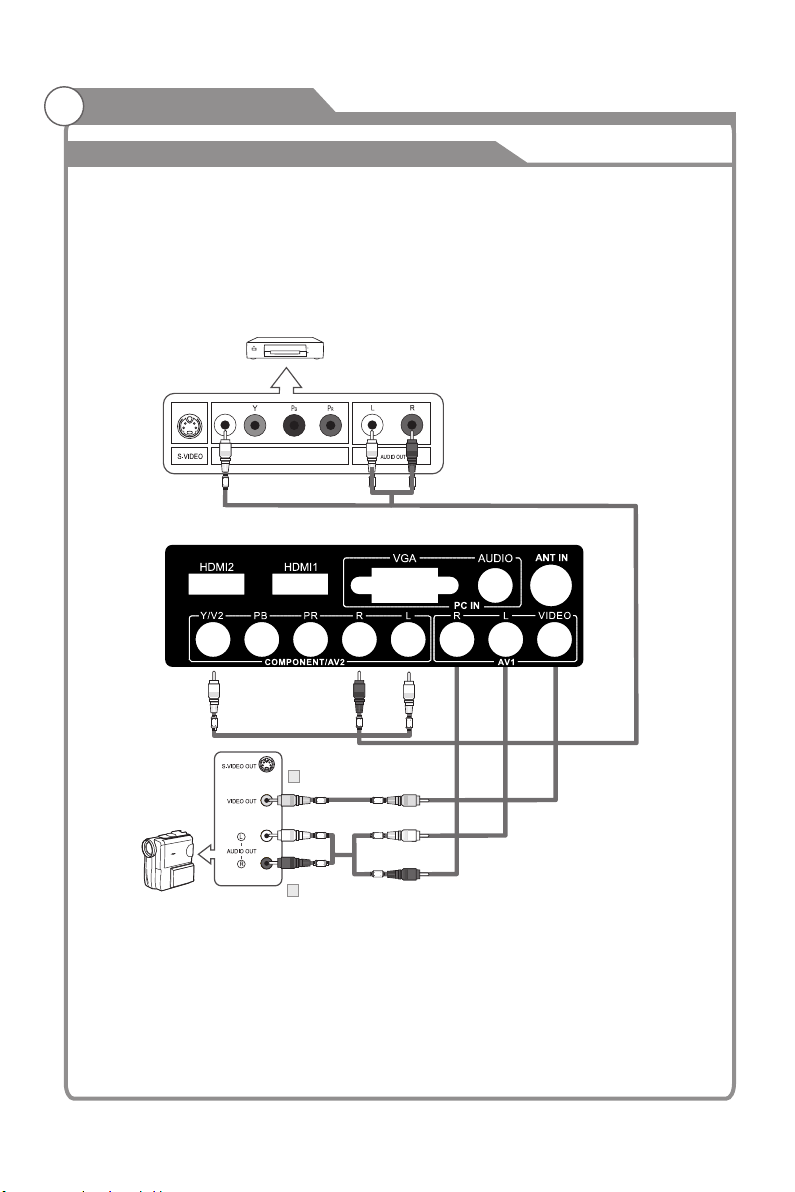

Overview of back panel

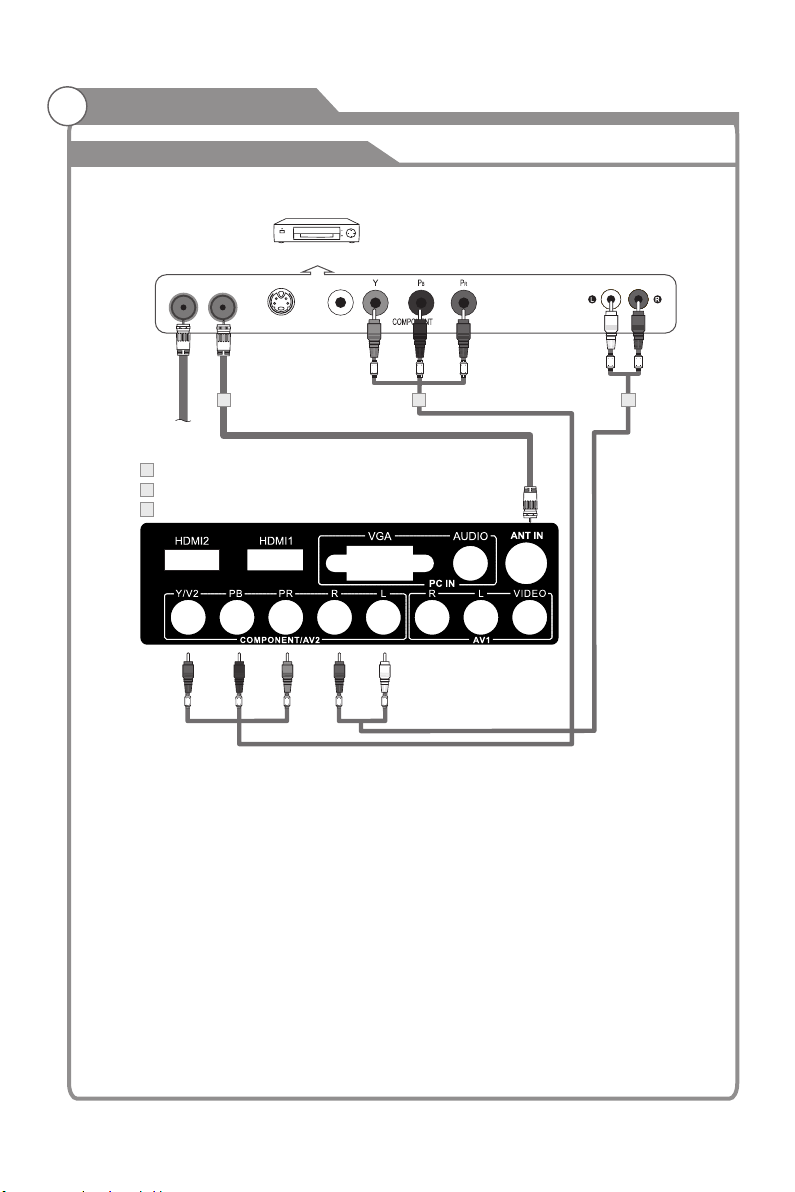

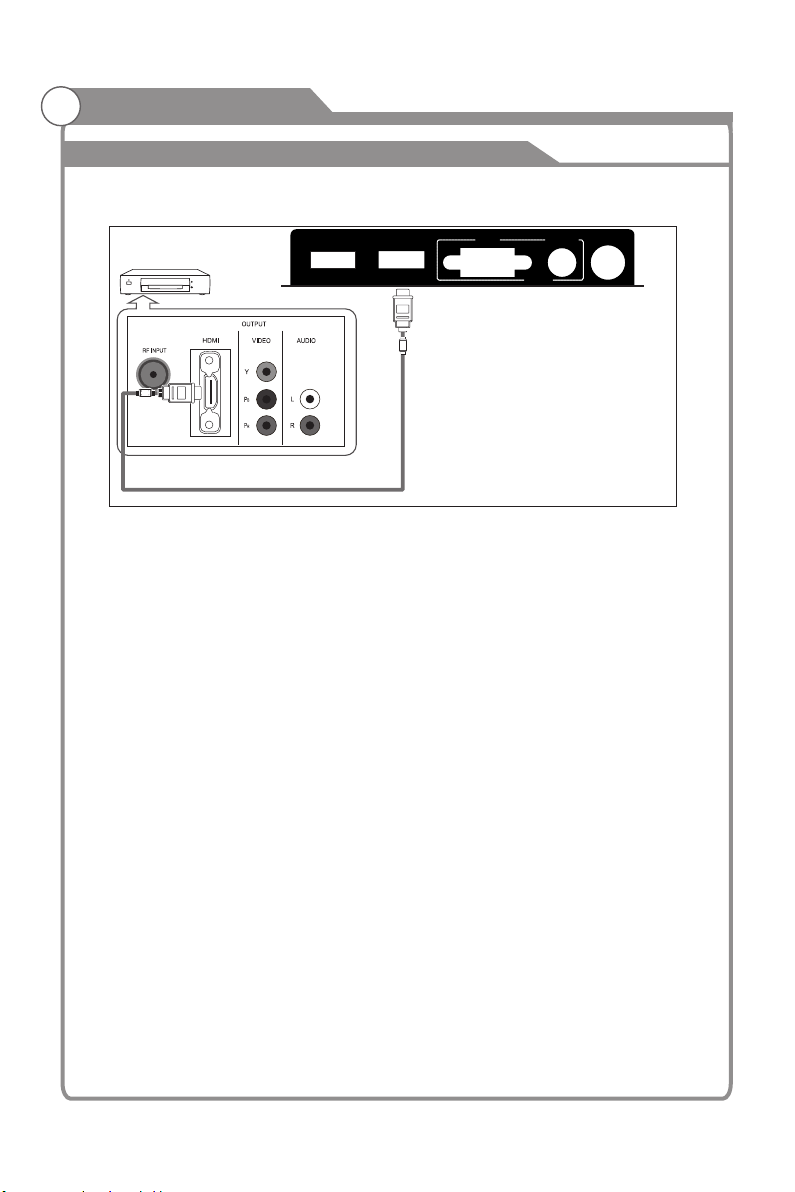

You can connect the TV with video devices such as DVD/VCD player, VCR and video camera

to enjoy the high quality picture.

HDMI3

CVBS/

SPDIF OUT

Headphone

USB

HDMI2 HDMI1

Y/V2

PB PR R L R L

COMPO NENT/ AV2 AV1

VGA AUDIO

PC IN

ANT IN

VIDE O

Camcorder

USB

PC (HDMI-output)

DVD player with component output

DVD player

VCR

DVD player

PC (HDMI-output)

Blu-ray disc player

Audio system

Home theatre system with digital input

Page 12

General Description

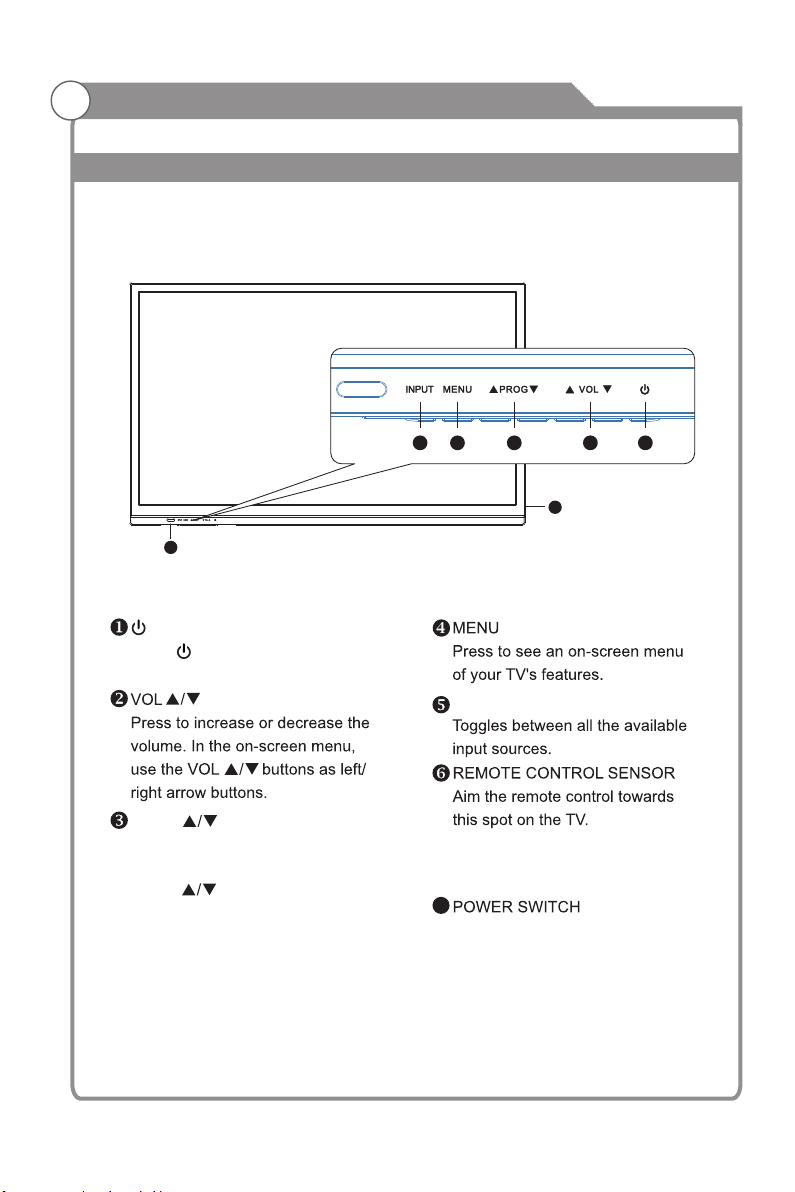

Overview of front panel

The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

Standby button Press button to toggle between normal and standby mode.

PROG Press to change programs. In the on-screen menu, use the PROG buttons as up/down arrow buttons.

245

INPUT

POWER INDICATOR Red:In standby mode. Green: In power on mode.

Page 13

General Description

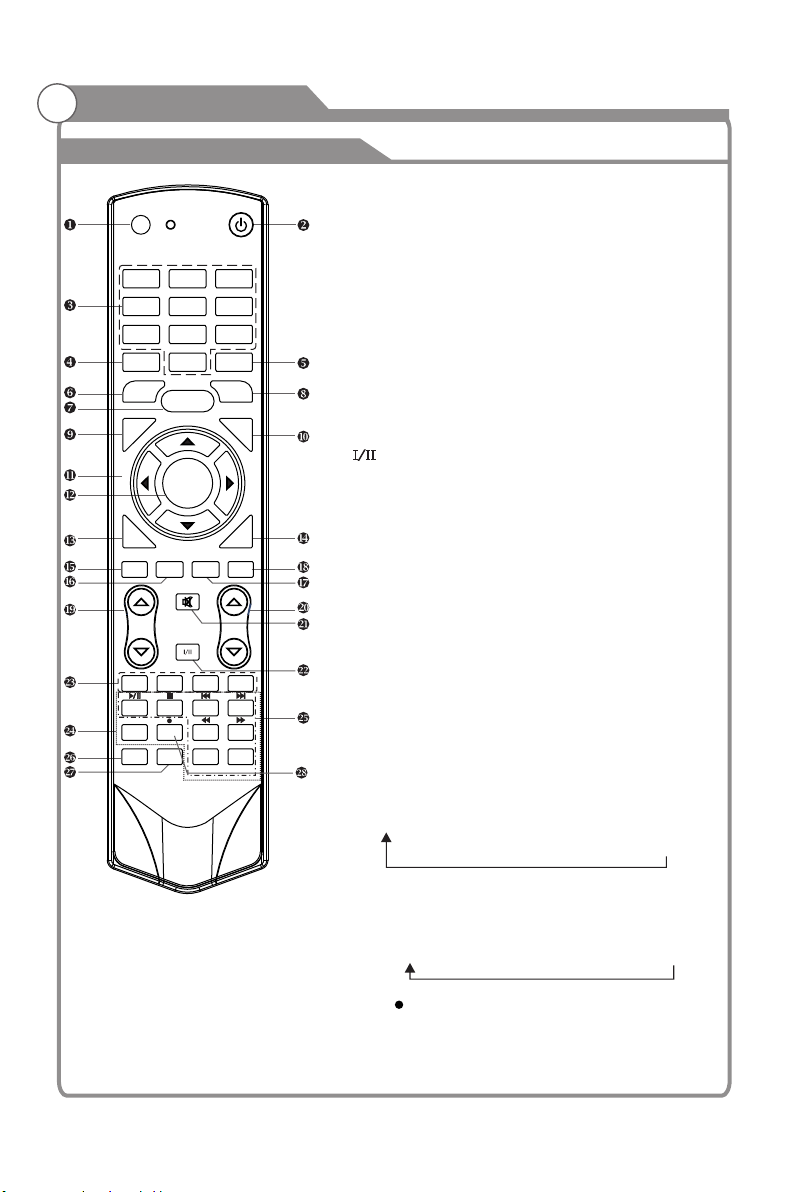

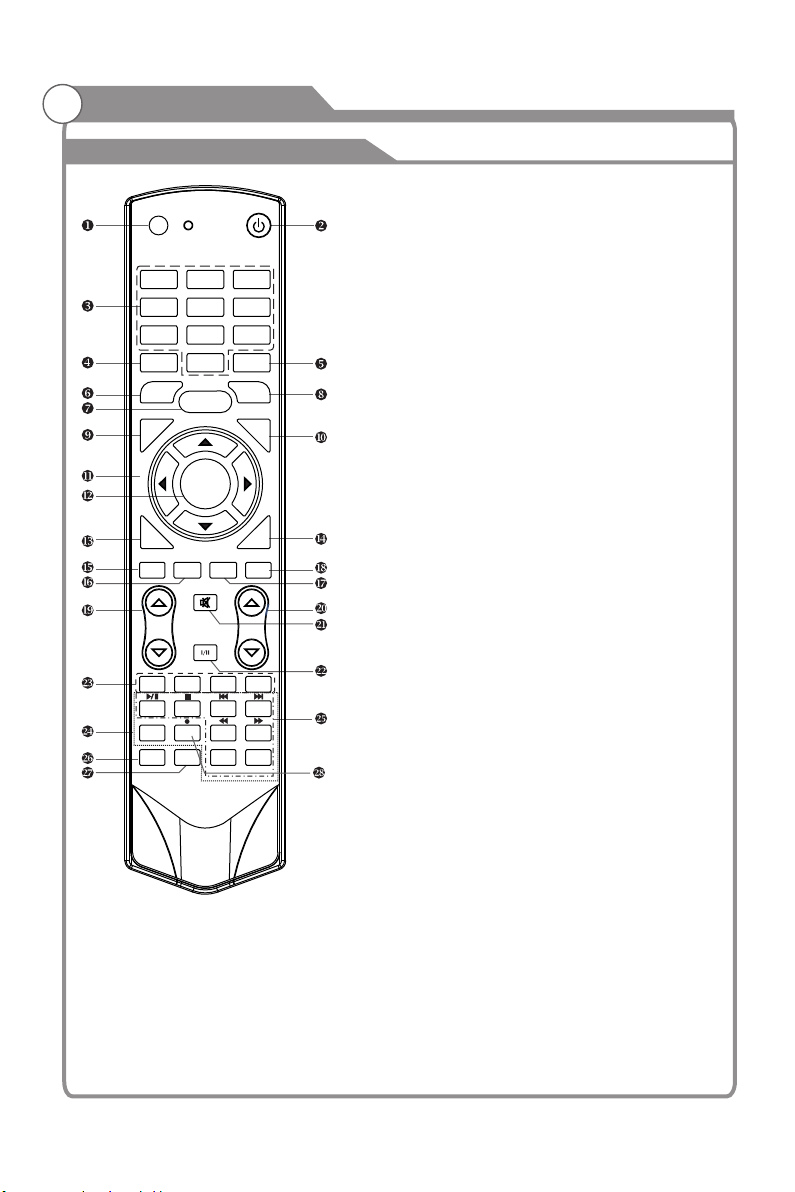

Overview of Remote Control

INPUT

POWER

1 2 3

4 5

INFO

FREEZE

CH.LIST

OK/ REC LIST

GUIDE

MUTE

AUDIO LANG

HOLD

MIX


USB

YELLOW

SIZE

REVEAL CANCEL

PgUp PgDn

TIME

DTV HDMI

VOL PROG

RED GREEN

INDEX

SUBTITLE

SOUND

RECALL

SLEEP

FAV

ASPECT

BLUE

TEXT

SUBCODE

EXIT

1. INPUT: This button is used to switch among different sources: DTV,ATV, AV1, AV2, Component, PC-RGB, HDMI1, HDMI2, HDMI3,USB. Select a source and press OK button to confirm.

2. POWER: Press this button to switch to standby mode, and press it again to turn TV on.

3. Digital buttons(0~9): To select channel with digital buttons.

4. INFO: This button is used to start the "Current Service Banner" application that provides information about the current service.

5. RECALL: Switch to the previous program.

6. FREEZE: Press this button to freeze the image.

MENU: Press this button to display main menu or exit the menu. When you are in the submenu, you can press it to return the main menu.

8. SLEEP: TV will be switched off automatically at preset sleep time if you have set sleep timer. Use your remote control to set the sleep timer. Press SLEEP button on the remote control, then press this button again to set sleep time: off, 10, 20,30, 60,90,120,180, 240 min. Press MENU button to exit when you have set the sleep timer. After you have set sleep timer, press SLEEP button again, you will see the Remaining time. Notes: The sleep timer you have set will be Cancelled when the TV turns off or if a power failure occurs.

9. CH.LIST: Press it to show channel list on screen.

10. FAV: Press it to display favorite list.

11.

Arrow buttons: Press these buttons to move

cursor up/down/left/right for menu.

12.

OK/REC LIST: Press this button to display a list of recorded programs. In main menu and submenu it is a validation button.

GUIDE: In DTV source, this button is used to

13. start the EPG application.

14.

Exit: Exit the menu.

DTV: Switch to DTV mode.

15.

16. HDMI: Switch to HDMI1 mode directly, press twice to switch to HDMI2, press three times to switch to HDMI3.

Page 14

General Description

Overview of Remote Control

17. USB: Switch to USB mode directly or call the

INPUT

POWER

1 2 3

4 5

INFO

FREEZE

CH.LIST

OK/ REC LIST

GUIDE

MUTE

AUDIO LANG

HOLD

MIX


USB

YELLOW

SIZE

REVEAL CANCEL

PgUp PgDn

TIME

DTV HDMI

VOL PROG

RED GREEN

INDEX

SUBTITLE

SOUND

RECALL

SLEEP

FAV

EXIT

ASPECT

BLUE

TEXT

SUBCODE

control menu in USB mode. Please see the details in “Digital Media Player” on

18. ASPECT mode.

19.

VOL and VOL : Press these buttons to

adjust TV volume.

20. PROG and PROG : Press these buttons to change channel upward or downward. In the teletext, these buttons are used to display the next page and previous page.

21. MUTE: Press this button to shut off sound of the TV, press again to restore TV sound.

22. Button/Audio Lang: source is used to set NICAM sound system. In DTV , the button is used to set the audio language. In USB soundtrack switch(video).

23. Red/Green/Yellow/Blue Command: These four buttons are used to request linked buttons with the current menu/page.

24. Teletext buttons: Detail operation please refer to "Teletext “ in the next page.

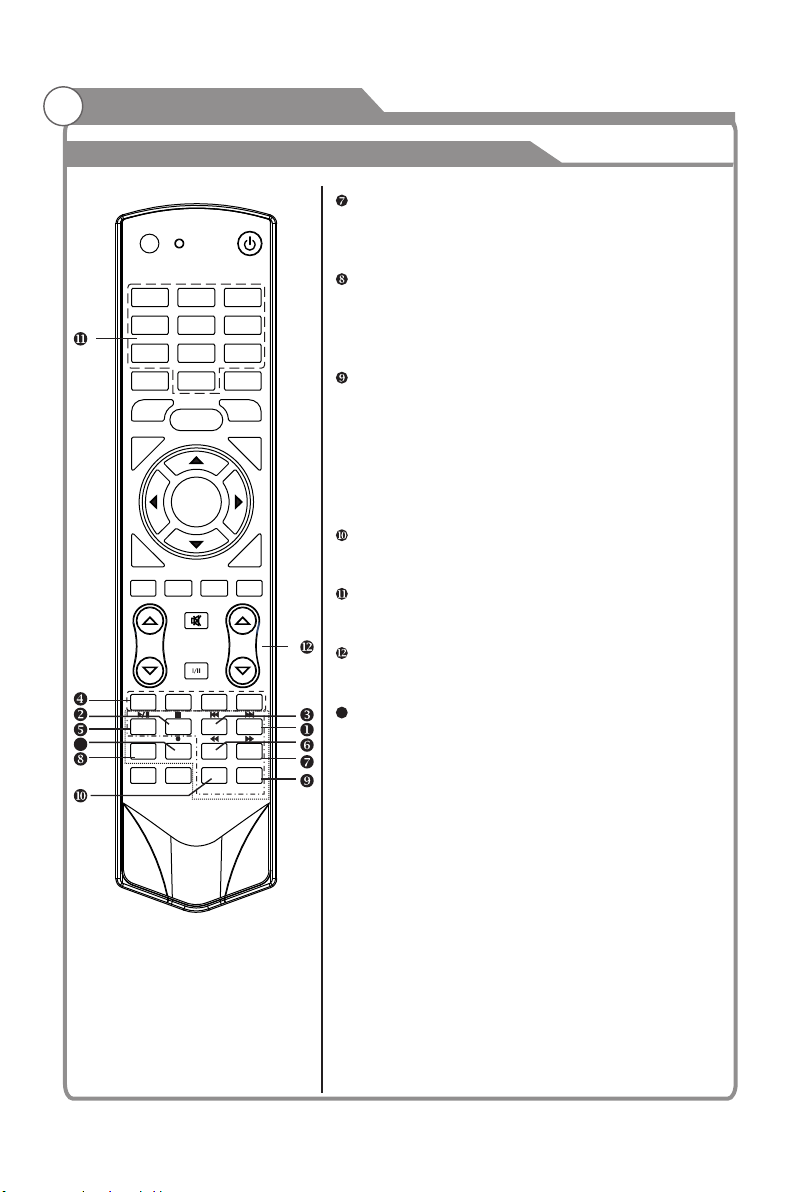

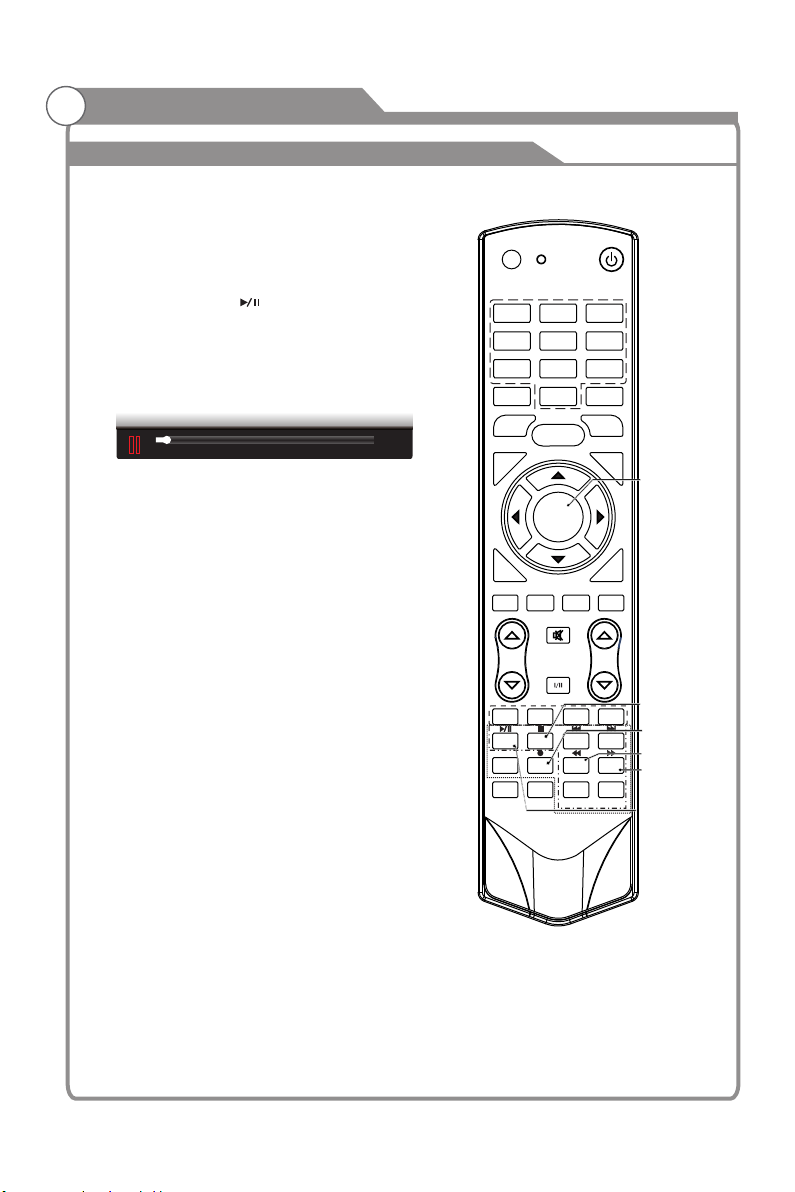

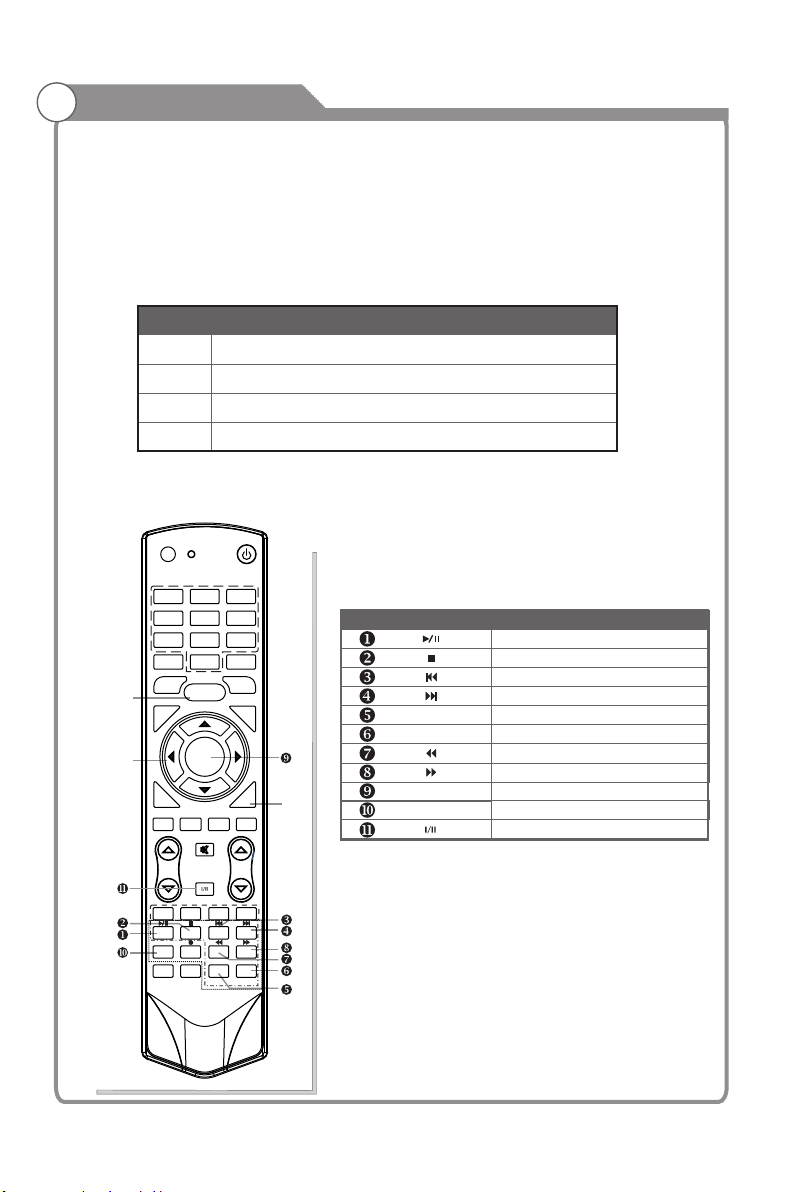

Digital media player control button:

25. Including play/pause, stop, previous file, next file, page up, page down, backward, forward, is used to control in USB mode. Please refer to instructions in the section of multimedia player.

26. SOUND: This button is used to select the sound mode.

: Press this button to switch the screen

Page40 to Page49.

In ATV , the button

source

source,the button is used to make language

relevant

Standard"News"Movie"Sports"“Dance" Classic"Pop"Rock"Jazz"Soft"User

27. PICTURE: This button is used to adjust user picture mode, press this button repeatedly and select one of four settings.

Standar d"Mild"Bright"Us er " Sports

28. MIX ( ): Teletext buttons for mix function, please refer to page 15. It is also used for recording function when TV is on DTV mode, please refer to page 39.

Page 15

General Description

Teletext

INPUT

1 2 3

4 5

INFO

FREEZE

CH.LIST

OK/ REC LIST

POWER

RECALL

SLEEP

FAV

Teletext is an information system broadcast by channels which be consulted like a newspaper. It also offers to subtitles for viewers with hearing problems or who are not familiar with the transmission language. You can press these buttons to operate the teletext: Text Press TEXT button to enter or exit teletext mode. Hold Press HOLD button to toggle Hold function on or off. When Hold is switched on, the page acquisition is stopped. When Hold is switched off, the page acquisition is started. Size

Press SIZE button one time to display the upper

certain

half of the screen in double height, press the SIZE

GUIDE

DTV HDMI

EXIT

USB

ASPECT

button two times to display the lower half of the screen in double height, press three times to display the full screen in normal size. Red/Green/Yellow/Blue Command

These four buttons are used for quick access to

MUTE

VOL PROG

AUDIO LANG

RED GREEN

INDEX

SUBTITLE

SOUND

HOLD

MIX


BLUE

YELLOW

TEXT

SIZE

REVEAL CANCEL

PgUp PgDn

SUBCODE

TIME

different pages as numbered at the bottom of the screen. Index Press INDEX button, then index page displays. Reveal

Pressing this button will reveal any hidden data (answers to quizzes for example).Press the REVEAL button again to return to normal screen.

Page 16

General Description

Teletext

INPUT

4 5

INFO

FREEZE

CH.LIST

GUIDE

DTV HDMI

VOL PROG

RED GREEN

INDEX

SUBTITLE

SOUND

POWER

1 2 3

OK/ REC LIST

USB

MUTE

AUDIO LANG

YELLOW

SIZE

HOLD

REVEAL CANCEL

MIX

PgUp PgDn

TIME


RECALL

SLEEP

FAV

EXIT

ASPECT

BLUE

TEXT

SUBCODE

Cancel

The CANCEL button will exit from any Teletext on the display. Press CANCEL button again to exit Teletext and return to live TV broadcast. Subtitle Turning the Teletext subtitles on or off. Subtitles is a separate mode with only a few buttons available. There will be no OSD visible other than the Teletext Subtitles. Subcode Subcode mode gives the possibility to select certain subcode pages of a Teletext page. Entry of digits within the range 0...9 for current subcode entry. If the digit completes the entry, a page request is started. Press buttons to change the

PROG / PROG

subcode pages. Time This button is used to show the time of the Teletext. Digital buttons(0~9) You can press them to enter the number of the Page required.

PROG /PROG You can press them to change page upwards or

downwards.

Mix Press MIX button, the teletext page changes

transparent, TV content and teletext page content will display at the same time. Press MIX button again to exit MIX mode.

Page 17

General Description

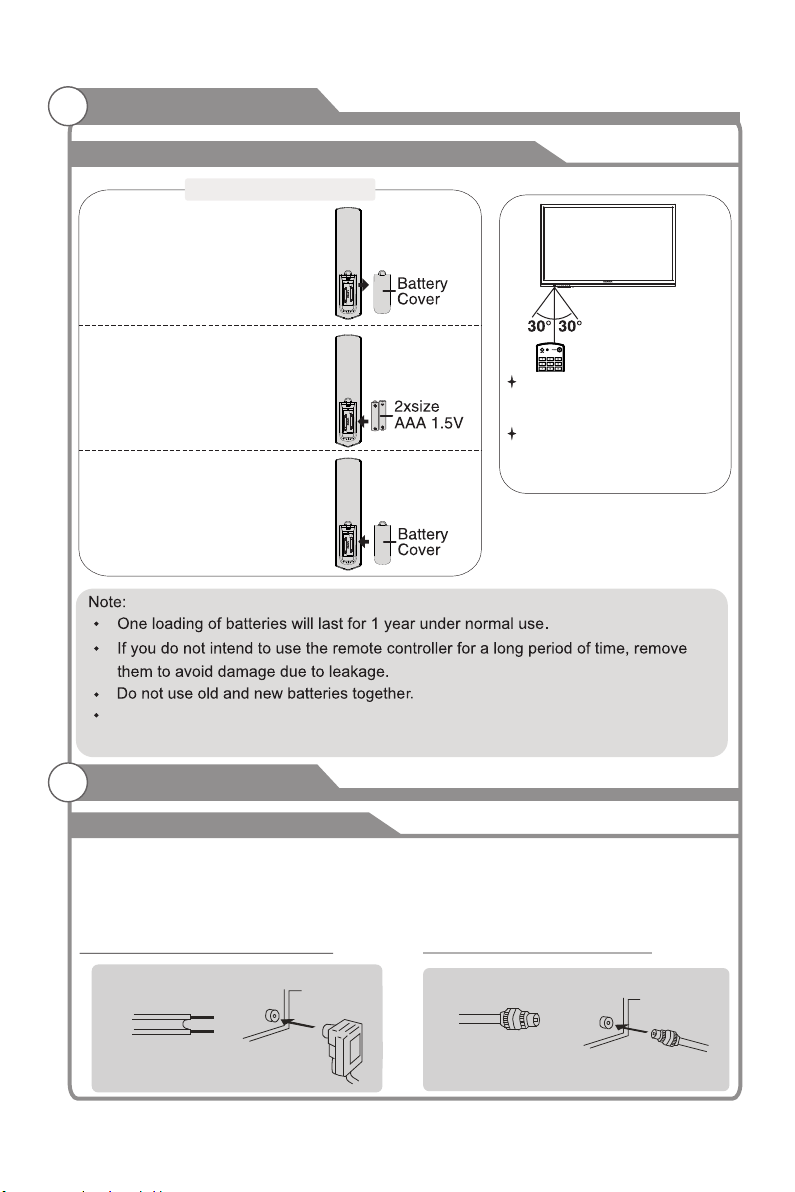

Installing Batteries in the Remote Control

Insta lli ng Batt eri es

Open the batt ery c omp art men t

cover on the ba ck si de.

Insert two 1. 5V AAA si ze ba tte rie s

in correct po lar ity. D on´ t mix o ld or used batter ies w ith n ew on es.

Close the cov er.

Poi nt the re mote to wards t he remo te con trol se nsor of t he TV and u se it wit hin 8 met ers.

Put t he used b atter ies int o the rec yclin g bin sin ce they c an nega tivel y aff ect t he env ironm ent.

The batteries (battery pack or batteries installed) should not be exposed to excessive heat such as sunshine, fire or the like.

External Connection

Antenna connection

Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details Please refer to the following drawing.

Antennas with 300 W flat twins Leads

Use a 75ohm - 300ohm converter

ANT IN

300ohm coaxial cable

Antenna feeder

Antennas with 75 W Round Leads

75ohm c oax ial c abl e

Anten na ca ble

Page 18

External Connection

Connecting VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.

VCR Rear Panel

ANT

ANT OUT S-VIDEO

1 2 3

RF Cable (Not supplied)

YPbPr cable(Not supplied)

Audio Cable (Not supplied)

VIDEO OUT

Green

Blue

Red

TV Rear Panel

AUDIO OUT

White

Red

Green

Blue

Red

White

Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

Connect a Component Cable between the COMPONENT [Y, Pb, Pr] jacks on the DVD

player and YPbPr

jack on the TV.

5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and AUDIO R jacks on the TV.

Note: 1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2. When connecting an external device, match the color of the connection terminal to the cable.

Page 19

External Connection

Connecting a Camcorder

The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

Each Camcorder has a different back panel configuration. When connecting a Camcorder or DVD, match the color of the connection terminal to the cable.

1. Connect a Video Cable between the AV1 VIDEO jacks on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio Cables between the AUDIO L and AUDIO R jacks on the TV and the AUDIO OUT jacks on the camcorder.

3. Connect a Video Cable between the component IN Y on the TV and the VIDEO OUT jack on the DVD.

4. Connect Audio Cables between the component IN AUDIO L and R jacks on the TV and the AUDIO OUT jack on the DVD.

Note:

1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2. When connecting an external device, match the color of the connection terminal to the cable.

Page 20

External Connection

Connecting a DVD Player/Set-Top Box

Note:

1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2. When connecting an external device, match the color of the connection terminal to the cable.

DVD Player/Set-Top Box

VIDEO OUT

TV Rear Panel

Camcorder

Green

Red

Blue

White

Red

AV cable(not sup plied)

Red

Yellow

Video Cable (Not supplied)

Yellow

White

Red

Audio Cable (Not supplied)

White

Yellow

White

Red

Page 21

External Connection

Connecting a DVD Player/Set-Top Box via DVI

This connection can only be made if there is a DVI Output connector on the external device.

DVD Player/ Set-Top Box

TV Rear Panel

White

Red

Audio Cable

(Not supplied)

DVI to HDMI Cable (Not supplied)

Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI 1, HDMI 2 or

HDMI 3 connector on the TV and the DVI connector on the DVD player/Set-Top Box.

2. Connect Audio Cables between the PC AUDIO IN jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

Page 22

External Connection

Connecting DVD Player/Set-Top Box via HDMI

This connection can only be made if there is a HDMI Output connector on the external device.

DVD Player/

HDMI2 HDMI1

VGA AUDIO

Set-Top Box

PC IN

HDMI Cable (Not supplied)

What is HDMI? HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression. Multimedia interface is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. Each DVD player/STB has a different back panel configuration.

1. Connect an HDMI Cable between the HDMI1, HDMI2 or HDMI3 connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

ANT IN

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

Page 23

External Connection

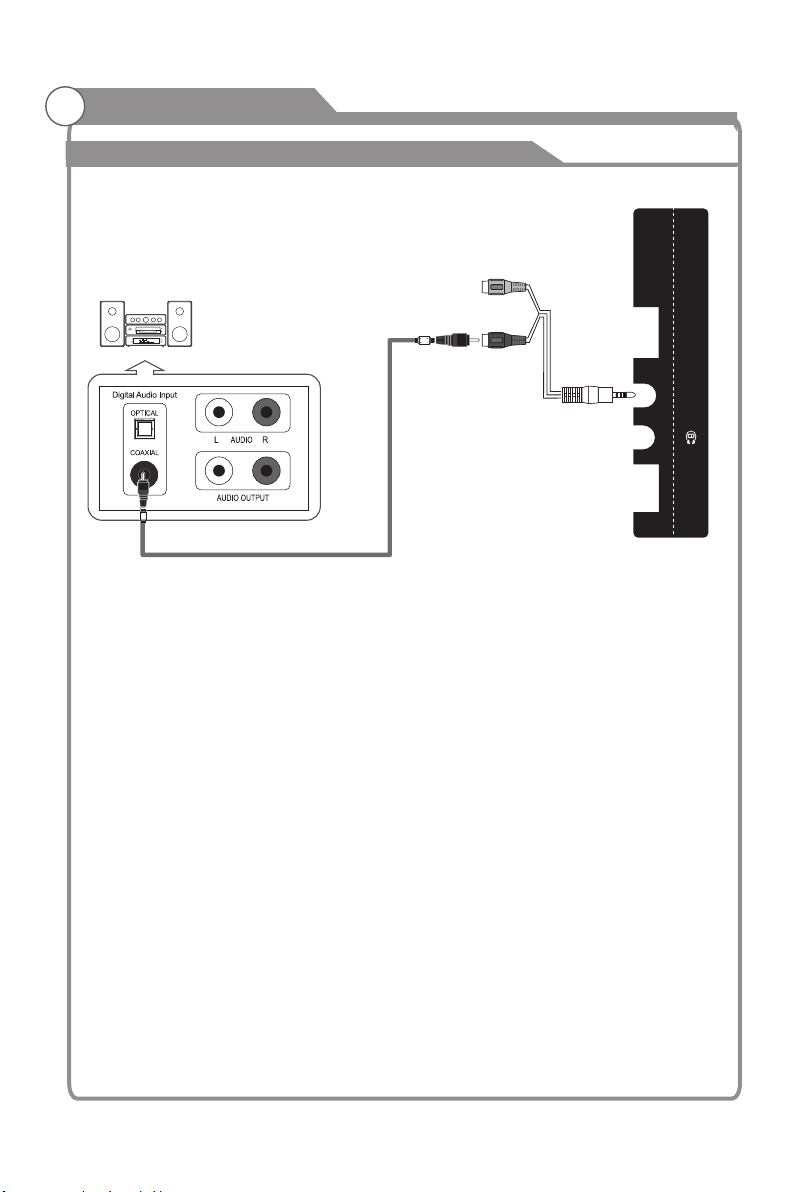

Connecting Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

TV Rear Panel

Digital Audio System

(Not supplied)

HDMI 3

(Bla ck)

CVBS /

SPDI F OUT

USB

Coaxial Cable (Not supplied)

5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.

1. Connect an Coaxial Cable between the SPDIF jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. When a Digital Audio System is connected to the SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the volume control.Digital Audio System's

Page 24

External Connection

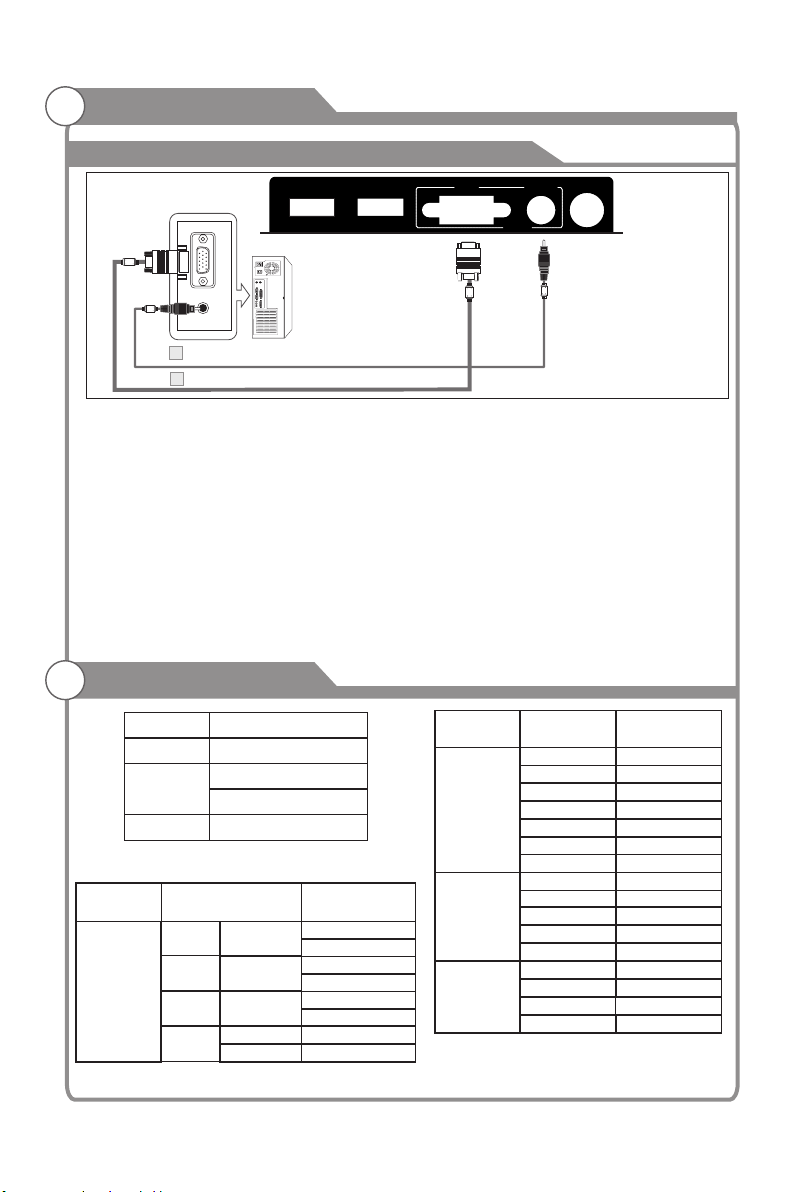

Connecting PC

HDMI2 HDMI1

VGA AUDIO

PC IN

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied)

Each PC has a different back panel configuration. The HDMI jacks do not support PC connection.

1. Connect a D-Sub Cable between VGA/PC IN connector on the TV and the PC output connector on your computer.

2. Connect a PC Audio Cable between PC AUDIO IN jack on the TV and the Audio Out jack of the soundcard on your computer. You should set PC software before you connect a PC to your TV (please refer to "PC Display'' settings) Note:

1. Whenever you connect an external device to your TV, make sure that power on the unit is

turned off.

2. When connecting an external device, match the color of the connection terminal to the

cable.

ANT IN

Supporting signals

Input

DTV

ATV

CVBS PAL/NTSC/SECAM

Input

PC/VGA

Resolution

VGA

SVGA

XGA

SXGA

Mode

DVB-T

PAL BG I DK

SECAM DKBG

640x480

800X600

1024X768

1280X1024

1360X768

Vertical

Frequency

60Hz 75Hz 60Hz 75Hz 60Hz 75Hz 60Hz 60Hz

Input

Component

HDMI

DVI-HDMI

Resolution

480i

480p

576i 576p 720p

1080i

1080p

480p 57 p6 720p

1080i

1080p 640x480 800X600

1024X768

1280X1024

Vertical

Frequency

60Hz 60Hz 50Hz

50Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz

60Hz

50Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz

60Hz

Page 25

Basic Operation

Turning the TV On and Off

How to turn the TV on or off

1. Insert the power cord plug into a polarized AC outlet.

2. If TV is in standby mode, press POWER button on the remote control or button on the panel of LED TV.

3. Normal picture will be displayed on the screen after 15 seconds. If no signal input, "No Signal" will be displayed on the screen.

4. If temporary POWER off is required, press POWER button on the remote control or button on the bottom panel.

5. If you want to completely switch off the power for this unit, press the hard POWER switch on the side of the television. You can also unplug the power cord.

bottom

6. After switching off the unit, you should

Status indication lamp

Red: In standby mode. Green: In power on mode.

Auto power-off If there is no signal, the TV will 10 minutes.

See 'Auto sleep' pg. 36 for more details.

Memory before turning TV off

The picture and sound settings and preset channels will be memorised at the point when the TV is turned off. When the TV is started up again it will work accordingly with these settings.

automatically enter standby mode after

wait at least 5 seconds before switching on again.

Page 26

Basic Operation

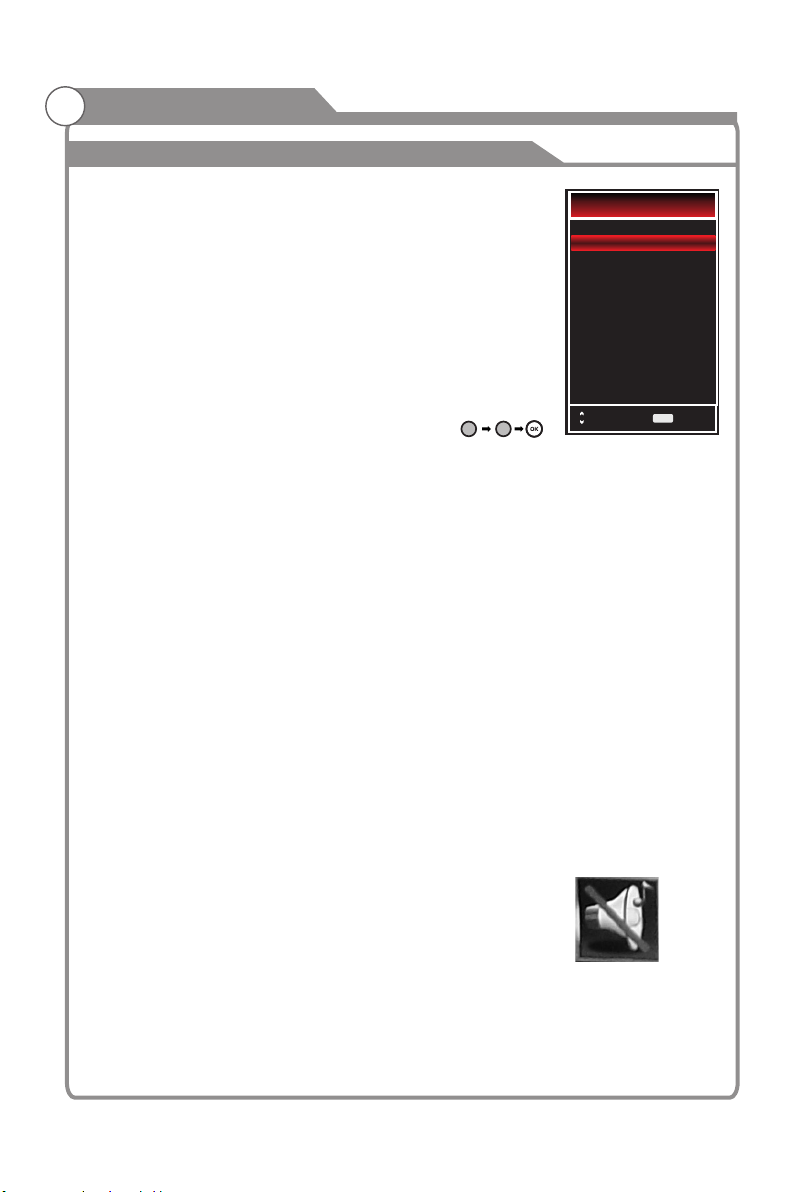

Menu operation

Input Setup

Press INPUT key on the remote control to enter "INPUT SOURCE" menu. There are ten options for you to select: DTV, ATV, AV1, AV2, Component, PC-RGB, HDMI1, HDMI2, HDMI3 and USB use ▲/q key to move the cursor to the input source you desire and press OK key to confirm.

Channels Selection

There are four ways to select channel:

1) Using number keys, and OK keys on the remote control to

select channel directly. To select channel 90, press . When you use the number buttons, you can directly select channels that were either erased or not memorized.

2) Using PROGr/s key on the remote control or on your TV to select channel. When you press the PROGr/s key, the TV changes channels in sequence. You will see all the channels that the TV has memorized. You will not see channels that were either erased or not memorized.

3) Press RECALL key to return to previous channel, press it again to return to current channel. To quickly switch between two channels that are far apart, tune to one channel, then use the number keys to select the second channel. Then use the RECALL button to quickly alternate between them. RECALL is not activated if no channel has been changed after TV turning on.

4) Select channels from "Channel List" or "Favorite Channels List". Press OK key to select Channel.

Input Source

DTV

ATV

AV 1

AV 2

Component

PC-RGB

HDMI1 HDMI2 HDMI3

USB

Select

Volume Adjustment and Mute Setup

Volume adjustment

Press VOLr/s key on the remote control or on the TV to display "Volume" menu, adjust the volume of TV between 0 to 100 by using VOLr/s key:

·To increase the volume, press VOLr key;

·To decrease the volume, press VOLs key;

Mute

Press MUTE and the sound cuts off. The MUTE icon will appear in the lower-left corner of the screen. To resume sound, press the MUTE button again, or simply press the VOL r key.

Page 27

Basic Operation

Menu operation

Current Channel Information

Press INFO key on the remote control to view current channel information, the indications of channel information are listed in the following table.

DTV 576i

Wednesday 17 Jun 2009

THE SHAK

Fears Ahhhh, it’s time to face your fears!! it’s a scary day at The Shak with the theme of Fears-Eco. Curio.

Nine Dig ita l

09:41 12:00

SD DOLBY

Subtitle Age 11

Press EXIT key on the remote control to exit this OSD.

GUIDE Menu

Press GUIDE key to enter “GUIDE " menu, the first line displays current channel number, channel name, event title and current time. The following line displays all programs this channel, press ▲/q

that will be played on

key to select the program you desire.

PROGRAMME GUIDE

DTV

9 Nine Digital

MALCOLM IN THE MIDDLE

18Jan 15:30-16:00

18 Jun 13:00-13:30

18Jan 16:00-16:30

18 Jun 13:30-14:30

DTV

MALCOLM IN THE MIDDLE

THE SHAK

No Information No Information No Information No Information

Pre. Day Nex tDay Sche dule R emind er

INFO

INFORecord

DTV EPG (Electronic Program Guide)

In DTV mode, press “GUIDE” button to enter the Electronic Program . (Disabled when there is no signal)

1. Electronic Program Guide

information is provided by the broadcaster and displays

scheduled programs for the week ahead (depending upon the broadcaster).

2. TV program of each channel is listed under the time axis. Press / the channel and press “pq” button to highlight the p background colour will change to . Press “INFO” button to view the detailed information. Press “OK” to .

.Use the

3 “Reminder”(blue) button to reserve programs. If the TV is in DTV mode,

/ rogram. The selected program’s

white

select the desired channel

it will automatically turn to the reserved program at the scheduled time. Use “Schedule” (yellow) button to look up the reminder list.

MPEG

10:47

18 Ju n 2010 14 :00

EXIT

Exit

Disabled

“tu” button to select

Page 28

Basic Operation

Menu operation

Prev.Day: If you press the red key on the remote controller, It will show Day’s

programs. Next Day: If you press the green key on the remote controller, It will show Next Day’s programs.

Schedule: If you press the yellow key on the remote controller, It will show the reminder list. Reminder: If you press the blue key on the remote controller, It will show a command window, and you can set the reserve programs. Record: If press the record key on the remote controller it will show the RECORDER page. INFO: you can press the INFO key on the remote controller to show information in regards to the program you have chosen. OK: you can press the OK key on the remote controller to want to view. Exit:

once you have selected a channel using the OK key, press the Exit key to view

that particular channel.

select the channel you

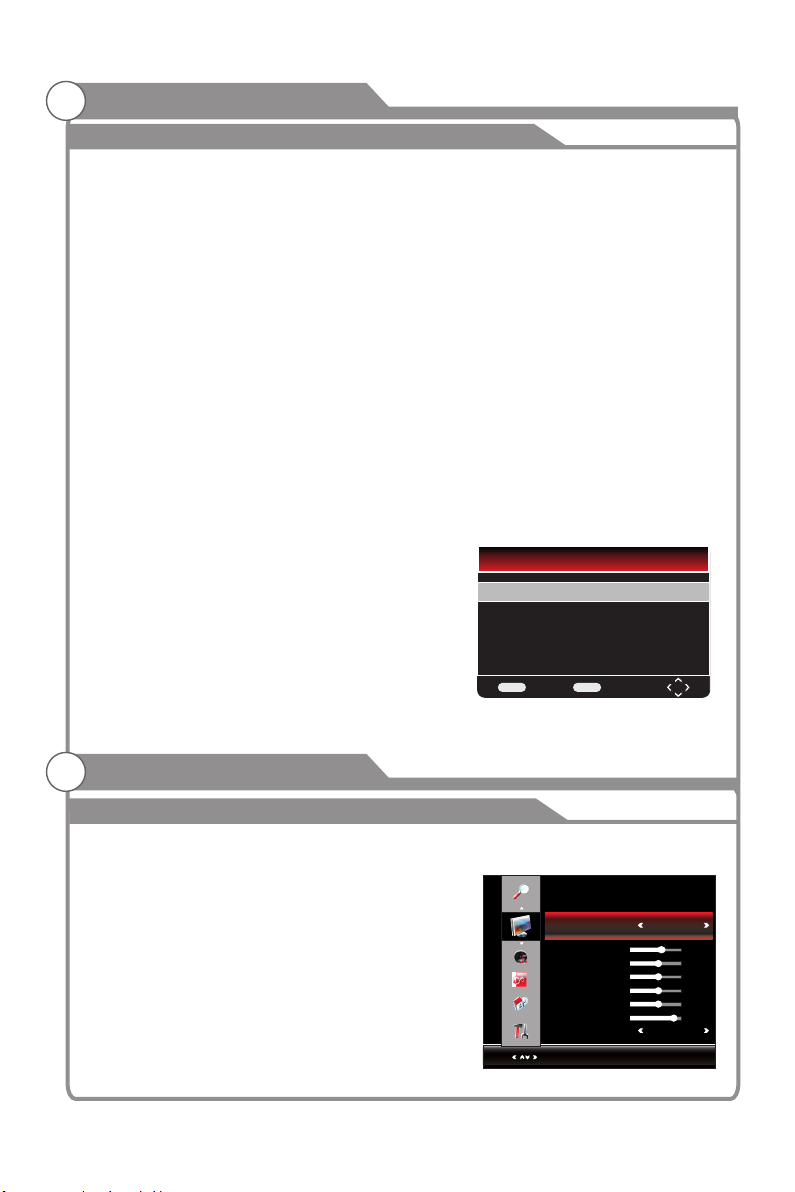

6 Install Guide

When the TV is turned on for the first time, the Installation Guide will appear, it consists of 3 parts:

OSD Language, Country, Channel Tuning.

1. Press ▲/q key to select OSD Language option, Press and ◄/►key to change Language.

2. Press ▲/q key to select Country option, and Press ◄/►key to change Country.

3. Press ▲/q key to select Channel Tuning option, and press “OK” or “u” to start tuning. If you want to exit, press EXIT button and select “Yes”, then press OK button to exit NOTE: Install guide will also appear the first time you turn on the TV after performing the Reset function

Instal lat ion G uid e

OSD Language English

Country Australia

Channel Tuning

EXI T

Exit

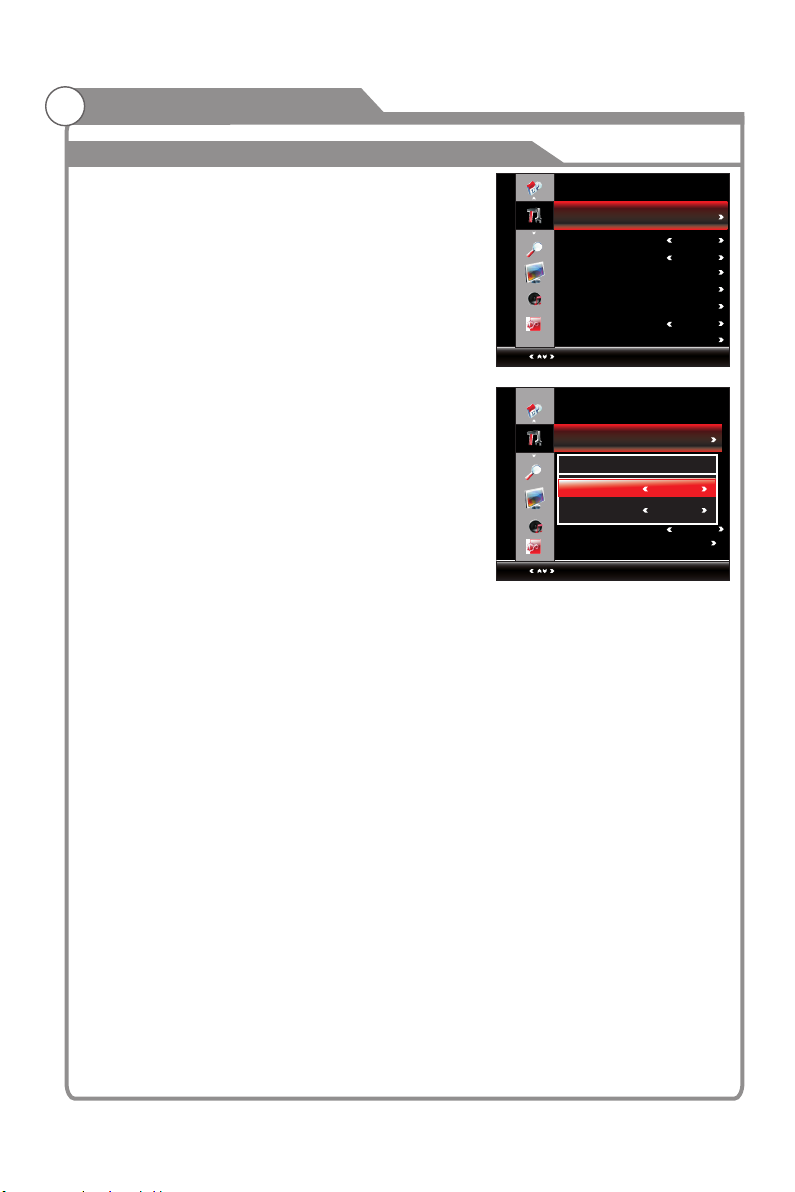

Menu system instruction


1. Press MENU key to display the main menu on the screen.

2. Press ▲/q key to select "Picture" option.

3. Press u key to enter "Picture" submenu.

4. You can also press the PICTURE key on the remote control to select one of the picture settings.

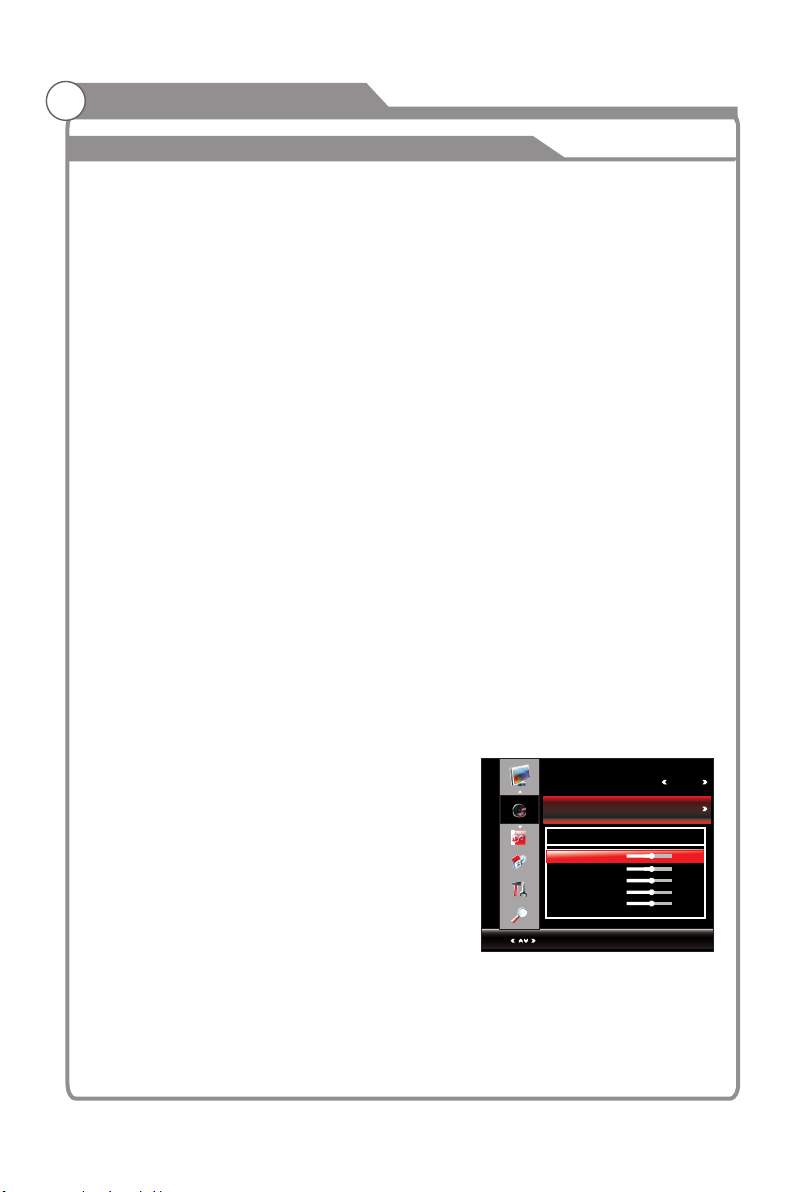

Picture Mode

Your TV has five picture settings (Standard, Mild, Bright, user, Sports) that are preset at the factory. Only "User" mode can be set to your preference by adjusting particular items such as Contrast, Brightness, Color, Sharpness, Tint .

1. Press p/q key to select "Picture Mode" option.

2. Press t/u key to select one picture mode.

Picture Mode Standard


Contrast 50 Brightness 50 Color 50 Sharpness 50 Tint 0 Backlight 80

Color Temp Cool

Select

Menu:Exit

Page 29

Menu system instruction


Standard: Selects the picture for optimum display in a normal environment. Mild: Selects the picture for comfortable display in a dark room. Bright: Selects the picture for high-definition in a bright room. User: Select to view your favorite display settings (see User settings for PICTURE). Sports: Selects the picture for high-definition in a bright room.

User settings for PICTURE (Contrast, Brightness, Color, Sharpness, Tint)

Your set has several settings which allow you to control picture quality.

1. Press ▲/▼ key to select a particular item.

2. Press t/u key to decrease or increase the value of a particular item. Note: The adjusted values are stored according to the selected particular item.

Contrast: Adjusts the lightness and darkness between objects and the background. Brightness: Adjusts the brightness of the picture. Color: Adjusts the colors, making them lighter or darker. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Tint: Adjusts the color of objects, making them more red or green for a more natural look. Tint can only be adjusted when signal is NTSC.

Adjusting the Backlight

You can the brightness of the entire screen according to your preference.

1. Press p/q key to select "Backlight" option.

2. Presst/u key to select one backlight mode.

Adjusting the Color Temp

You can change the color of the entire screen according to your preference.

1. Press p/q key to select "Color Temp" option.

2. Press t/u key to select one color temp.

change

Backlight: Adjusts the brightness of the whole screen.

Standard: Keeps whites white. Warm: Makes whites reddish. Cool: Makes whites bluish.

Page 30

Menu system instruction

Sound

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Sound" option.

3. Press u key to enter "Sound" submenu.

4. You can also press the SOUND key on the remote control to select one of the sound settings.

Sound Mode

You can select the type of special sound to be used when watching a given broadcast. Your TV has eleven sound settings (“Standard”,“News”, “Movie”,“Sports”, “Dance”,“Classic”,“Pop”, “Rock”,“Jazz”, “Soft”,“User”) that are preset at the factory.

1. Press p/q key to select "Sound Mode" option.

2. Press t/u key to select one sound mode.

l Standard: Selects the normal sound mode.

News: Provides clear and live sound for news.

l l Movie: Provides live and full sound for movies. l Sports: Emphasizes bass over other sounds.

Dance: Select the sound mode for dances.

Classic: Provides the classical sound for classic music.

Pop: Select the sound mode for Pop.

Rock: Provides powerful sound for Rock music.

Jazz: Select the sound mode for Jazz.

Soft: Select the soft sound mode.

l l User: Selects your custom sound settings (See "User settings for Sound”).

settings

Sound Mode Standard

SOUND

Balance Surround Sound Off HDMI Sound HDMI Auto Volume Off SPDIF Mode PCM Equalizer

Select

Menu:Exit

Balance

If the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to suit your personal preference.

1. Press p/q key to select "Balance" option.

2. Press t/u key to decrease or increase the value of the item.

Page 31

Menu system instruction

Sound

Surround Sound

This is used to turn on surround sound to gain better sound effect.

1. Press p/q key to select "Surround sound" option.

2. Press t/u key to select “Surround” or “Off”.

HDMI Sound

This option is only used in HDMI mode.

1. Press p/q key to select “HDMI Sound" option.

2. Press t/u key to select HDMI Sound mode, HDMI or PC-RGB.

Auto Volume

Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press p/q key to select “Auto Volume" option.

2. Press t/u key to select “On” or “Off”.

SPDIF Mode

This is used to select "SPDIF Mode" .This option is only used in HDMI/DTV mode.

1. Press p/q key to select "SPDIF Mode" option.

2. Press t/u key to select "RAW" or "PCM".

User settings for SOUND(Equalizer)

1. Press ▲/▼ key to select an equalizer item.

2. Press OK or u key to enter the equalizer submenu The sound settings can be adjusted to suit your user preferences.

1. Press ▲/▼ key to select a particular item.

2. Press t/u key to decrease or increase the value of a particular item. Note: The adjusted values are stored according to the selected particular item.

SPDIF Mode PCM

Equalizer

SOUND

环绕声

HDMI声音 HDMI

120Hz 50

自动音量控制

500Hz 50

1.5KHz 50

超重低音

3KHz 50

丽音

7.5KHz 50

Select

Equalizer Adjust

立体声

Menu:Return

关

Page 32

Menu system instruction

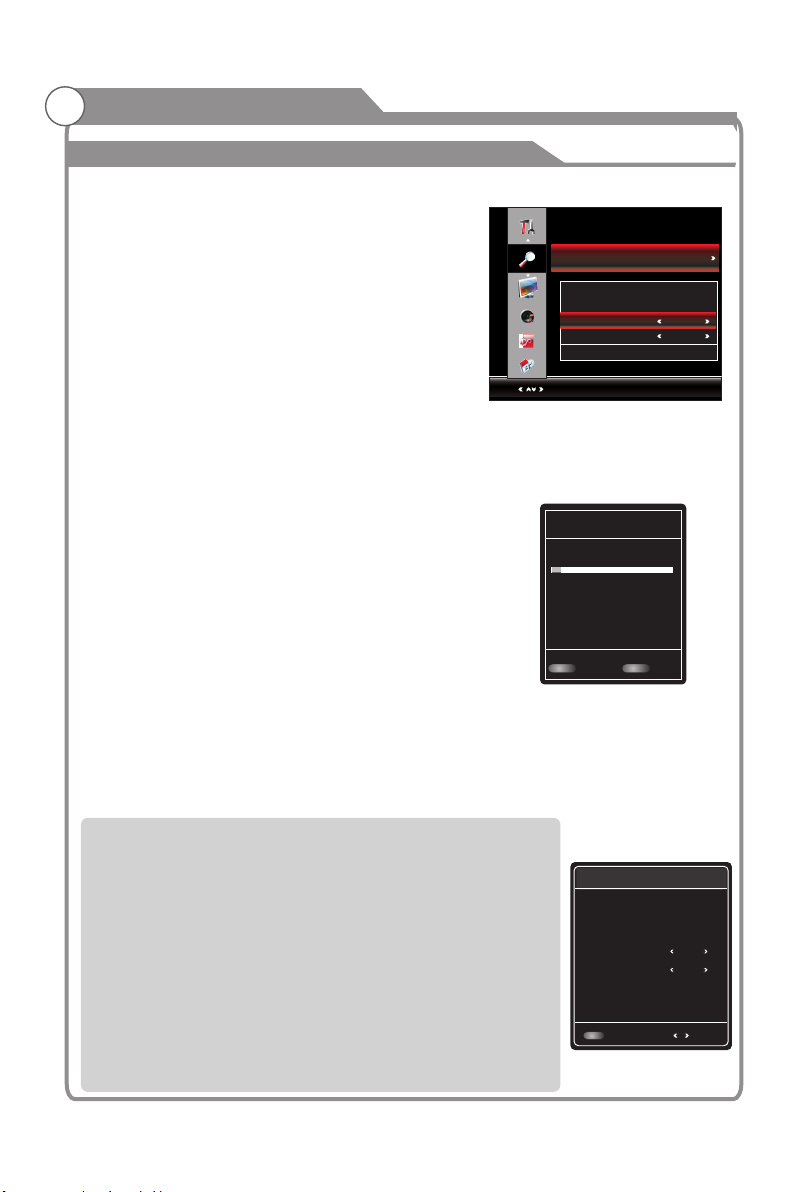

Channel

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Channel" option.

3. Press ukey to enter "Channel" submenu.

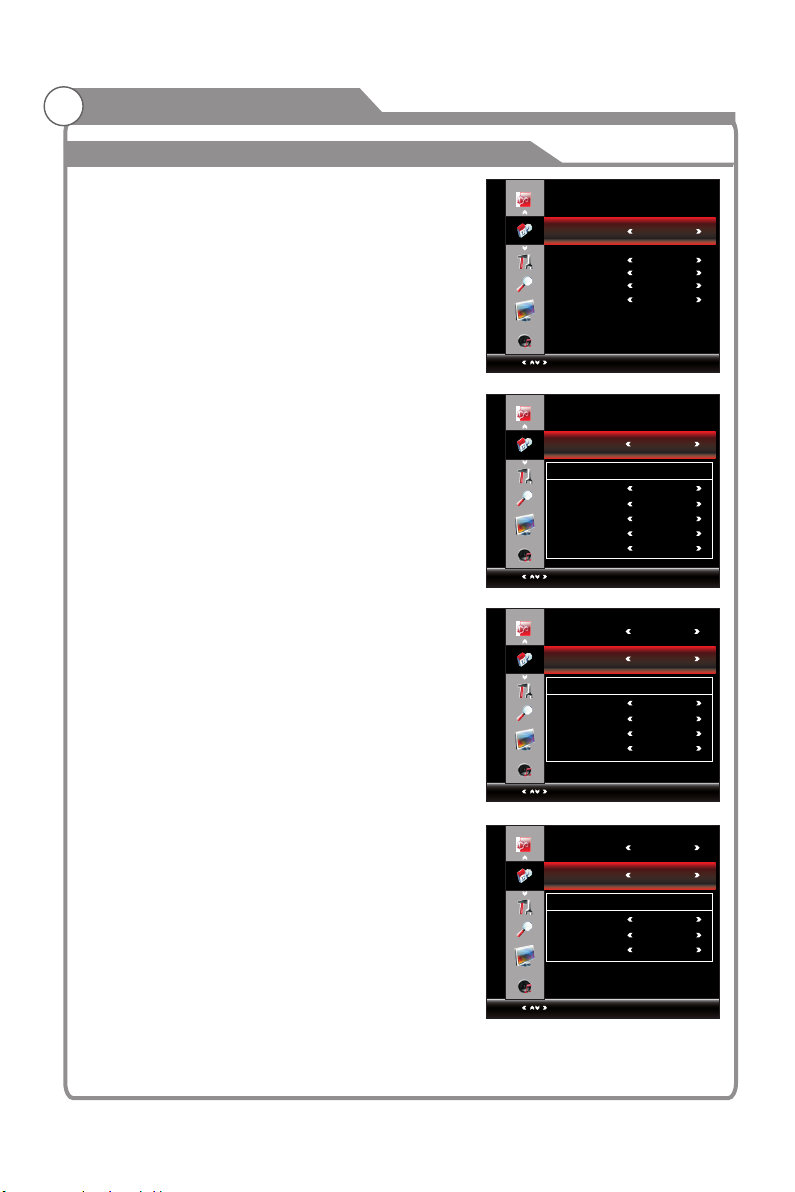

Auto Search

ress to s "Auto Search" option. Then

p/q key elect

press OK or notice window, you can select country in the “Country Selection” option and set “Tune Type” option. Press  button to select "Start" , and press OK button to search, then the searching interface will be on the screen as follows: (If you want to exit, press  / “Cancel",

The number of searched channels will be shown on the screen. If you set “Tune Type” to “DTV+ATV”, When the searching of ATV channels is over , TV will start to search DTV channels. When the whole searching is finished, all the channels will be stored in memory, and a message will appear on the screen as per the diagram on the right: NOTE:

1) If you want to exit the ATV searching, you can press MENU button, then a confirmation message will appear on the screen.

2) To exit DTV searching, press the MENU button, a confirmation message will then appear on the screen.

3) If you want to exit the whole searching, you can press EXIT button.

u key to start a notice window. In this

 / button to select

and press OK button to exit.)

CHANNEL

Select

4 % 77. 25MHz(C H3)

ATV

DTV

Rad io

Dat a

EXIT

Auto Search

DTV Manual Search

Plea se sele ct coun try fir st, Then s elect S tart to u pdate i nfo.

ATV Manual Search Programme Edit

Country selection Australia

Signal Information

Tune Type DTV+ATV

Color System PAL

Aut o Sea ch

: 4

: 0

EXI T

Menu:Return

Pro gram( s)

CancelSta rt

Ski p

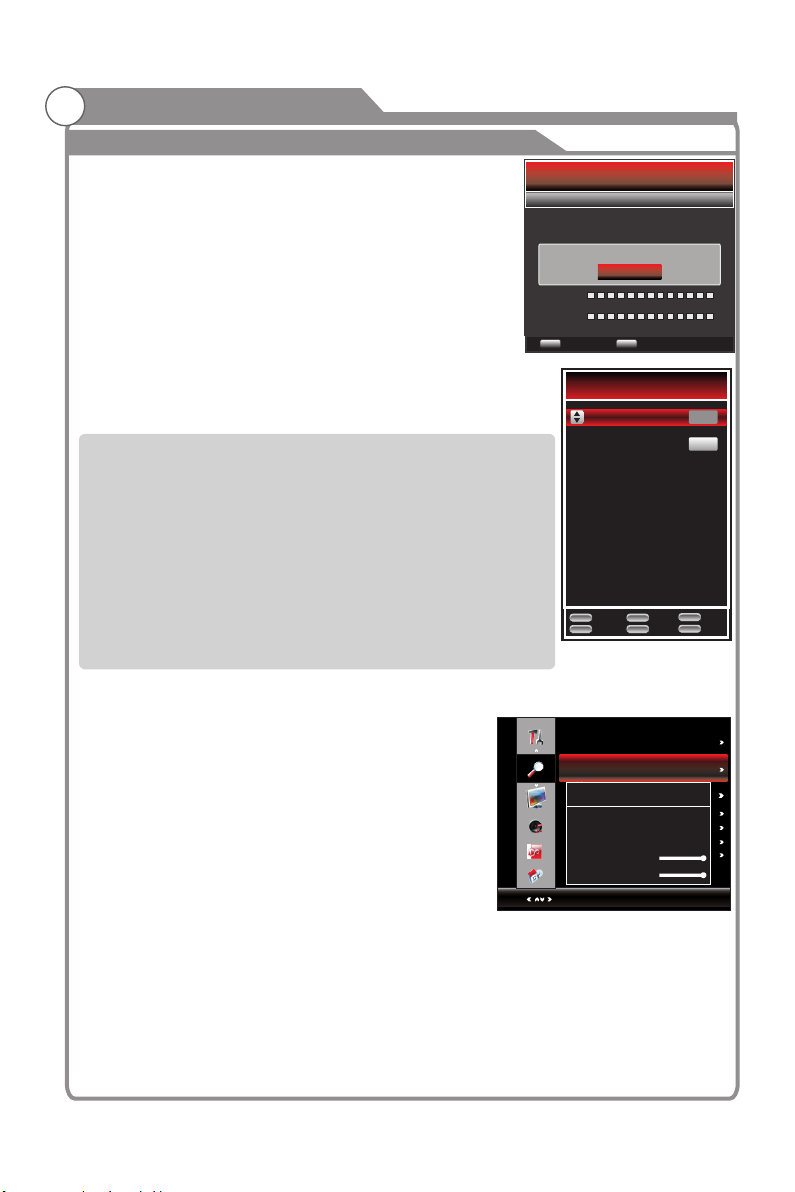

ATV Manual

In the ATV source, you can choose “ATV Manual ” to enter “ATV Manual ” menu.

Current CH: You can see the current channel number and you can press/button to

è choose the channel you want to modify. è Color System The color system will be changed repeatedly in the below order. PAL SECAM

è Sound System Sound The s system will be changed repeatedly in the below order. BG

" I " DK

Search: you can use  button to search channels from low frequency to high

è frequency and use  button to search channels from high frequency to low frequency. When you have searched a channel, the searching will be paused and you can press it again for other channels after you store the channel.

Fine Tune: In case of unfavorable image or sound of TV program, you can use “Fine Tune”.

Skip: Select “Skip” option, “be changed” on the remote control or TV to switch, select “ON” to

è skip current program, select “OFF” to add the program into the program list.

Frequency: You can see the frequency of the searched channels.

: Select the “Color System” option, press / on the remote control or TV.

: Select the “ System” option, press / on the remote control or TV.

ound

ATV Ma nua l Sear ch

Cur rent CH

Col or Syst em

Sou nd Syst em

Sea rch

Fin e Tune

Ski p

Fre quenc y

Exit

77. 25 MHz

Exi t

PAL

Adj ust

Page 33

Menu system instruction

Channel

DTV Manual Search

In the DTV source, you can choose “DTV Manual Search” to enter “DTV Manual Search” menu. You can use  /button to choose the channel number and press OK button to enter searching, and then the TV will store the DTV channel if there is a DTV signal present.

Program Edit

You can use  / button to choose “Program Edit” and enter the menu, press the Red/Green/Yellow/Blue color button on the remote control to delete, rename, move and skip programs, also you can press FAV button to add to your favorite list.

Delete:You can press RED button to enter "Delete" menu, then choose the channel you

want to delete and press RED button again to delete.

Move:You can press

è move and press YELLOW button to move it.

You can press

Skip:  / button to choose the channel you want to skip and press

BLUE button to skip it when you change channels. è

FAV:If you like the program of a channel, you can choose “FAV” button in the menu to add it to your favorite list and later you can press “FAV” button in the remote control to choose your favorite programs as soon as possible.

ename :Rename some program from program list in ATV mode you want to

è R (green) Rename. Press green button into rename state, and press / button to select the letter that need to be edited, and press / button to select a new letter, repeat to rename the program.

Signal Information(

1. Press p/q key to select “ " option.

2. Press “Ok” or u key ,you can see the i of the DTV channel.

NOTE: Signal Quality/Signal Strength (DTV Only): Unlike analogue channels, which can vary in reception quality, digital channels must have perfect reception quality or you will not receive them at all. So, unlike analogue channels, you are not able fine tune a digital channel. If the signal strength indicates that the signal is weak, a possible solution is to adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.

 / button to choose the channel in ATV mode you want to

 / button to selectthe program that need to be renamed, then press

Used only in DTV)

Signal Information

nformation

CHANNEL

DTV Manual Search

VHF CH 7

Plea se sele ct chan nel

Pres s OK to sea rch

No Sig nal

Stre ngth

Bad Nor mal Go od

Qual ity

Bad Nor mal Go od

Select

Menu ReturnOK

Pro gramm e Edit

C-01

5.2 Globo SD

Delete

Rename

Programme Edit

Signal Information

Color System PAL Sound System BG

Auto Search DTV Manual Search ATV Manual Search

Channel Network Modulation Quality Strength

37 Nine Melbourne 64QAM 100% 100%

Menu:Return

Skip

Move

FAV

DTV

FAV Return

Page 34

Menu system instruction

Time

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Time" option.

3. Press u key to enter "Time" submenu.

Clock

You can modify the time of your TV set, but when you switch to DTV program, the "Clock" is decided by the signal from your antenna.

Clock 10:02

TIME

On Time Off Off Time Off

Sleep Timer Off Time Zone WA

Select

Menu:Return

Off/On Time

In "Off Time" item, press button or OK button to enter the submenu, set the day & time to turn off the TV set. In "On Time” item, press button or OK button to enter the submenu, set the time to turn on the TV set, when the TV set is in the standby mode. You can also choose which day to control your TV set in a week.

Sleep Timer

1. Press p/q key to select "Sleep Timer" option.

2. Press t/u key repeatedly until the desired time appears (Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min). Notes: The sleep timer you have set will be cancelled when the TV turns off or if a power failure occurs. Notes: When the time is less than 60 seconds, remind information will be displayed on the screen. Press any key button to cancel timer function.

Time Zone

You can choose it to modify your time zone in the TV set.

1. Press p/q key to select "Time Zone" option.

2. Press t/u key to select time zone.

TIME

Clock

Day

Month

Year

Hour

Minute

Select

Clock

On Time

Hour

Minute

Source

Select

On Time

Off Time

Hour

Minute

Select

10: 02

Clock

Jan uary

Menu:Return

10: 02

On Time

Menu:Return

Off Time

Menu:Return

2011

10 20

Off

12 00

DTV

Off

Page 35

Menu system instruction

Option

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Option" option.

3. Press u key to enter “Option” submenu.

OSD Setting

You can modify the OSD set to suit your user preferences.

1. Press p/q key to select “ " option.

OSD Setting

2. Press OK or u key to display the OSD setting menu. OSD Language: select the proper language OSD Time : Set the preferred amount of time for the OSD to be displayed on the screen.

Screen Saver

This option is only used in ATV mode.

1.Press p/q key to select “Screen Save” option.

2.Press t/u to choose on or off.

Aspect Ratio

You can select the picture size which best corresponds to your viewing

1. Press p/q key to select “ " option.

2. Press t/u key to set the scale mode. You can also press “ ” key on the remode control to select one of the scale modes. Each source has different scale modes. (16:9, 4:3, Panorama, Movie, Subtitle, Full view, Auto)

requirement.

Aspect Ratio

Aspect

OSD Setting

OPTIONOPTION

Screen Saver Aspect Ratio Reset Lock Software updata(USB) Hearing Impaired PVR File System

Select

OSD Setting

Noise Reduction MIDDLE Audio Languages

OSD Language

Window

OSD Time

Lock Hearing Impaired PVR File System

Select

16:9

Off

Menu:Exit

OSD Setting

English

Always

Off

Menu:Return

RESET

Select the “Reset” option and press OK or key to display a confirm box,and select”Yes” or “No”.

Note: Please use the "Reset" option with caution as it will return all settings and channel memories to factory default.

Page 36

Menu system instruction

Option

Lock

The lock feature requires a Password to be entered before any settings can be changed.

1. Press MENU key to display the main menu on the screen.

2. Press p/q key

3. Press OK or u key to enter " " submenu, "Enter Password" menu will appear, enter your 4-digit password to enter " " submenu

0000, the almighty password is 1980).

Lock System

1. Press p/q key to select " " option.

2. Press

t/u key to select "On" or "Off".

Set Password

1. Press p/q key to select "Set " option.

2. Enter your 4-digit password to

Password" submenu. Choose any 4-digits for your new password and enter them. As soon as the 4 digits are entered, the cursor to “Confirm Password” item, re-enter the same 4 digits, and your new password has been memorized.

Block Program

1. Press p/q key to select “Block Program” option.

2. Press OK or u key to enter Block Program list. In the program list, use Green key to lock or unlock the program. Once the program is locked and Lock System is on, password is needed to enter it.

Parental Guidance

This option only used in DTV mode.

1. Press p/q key to select “ ” option.

2. Press key to select the lock level of the Parental Guidance:

t/u

NO BLOCK, BLOCK ALL, G, PG, M, MA, AV, R

and select "Lock" under the "Option" menu.

Lock

Lock (the default and universal password is

Lock System

Password

enter "Change

will skip

Parental Guidance

Lock System Off

Set Password

OPTION

Block Program

Parental Guidance Off

New - - Conf irm - - -- - - --

Select

Plea se ente r passwo rd

Cancel

Blo ck Prog ram

5.1 Globo HD

5.2 Globo SD

-- - - - -

Menu:Return

DTV

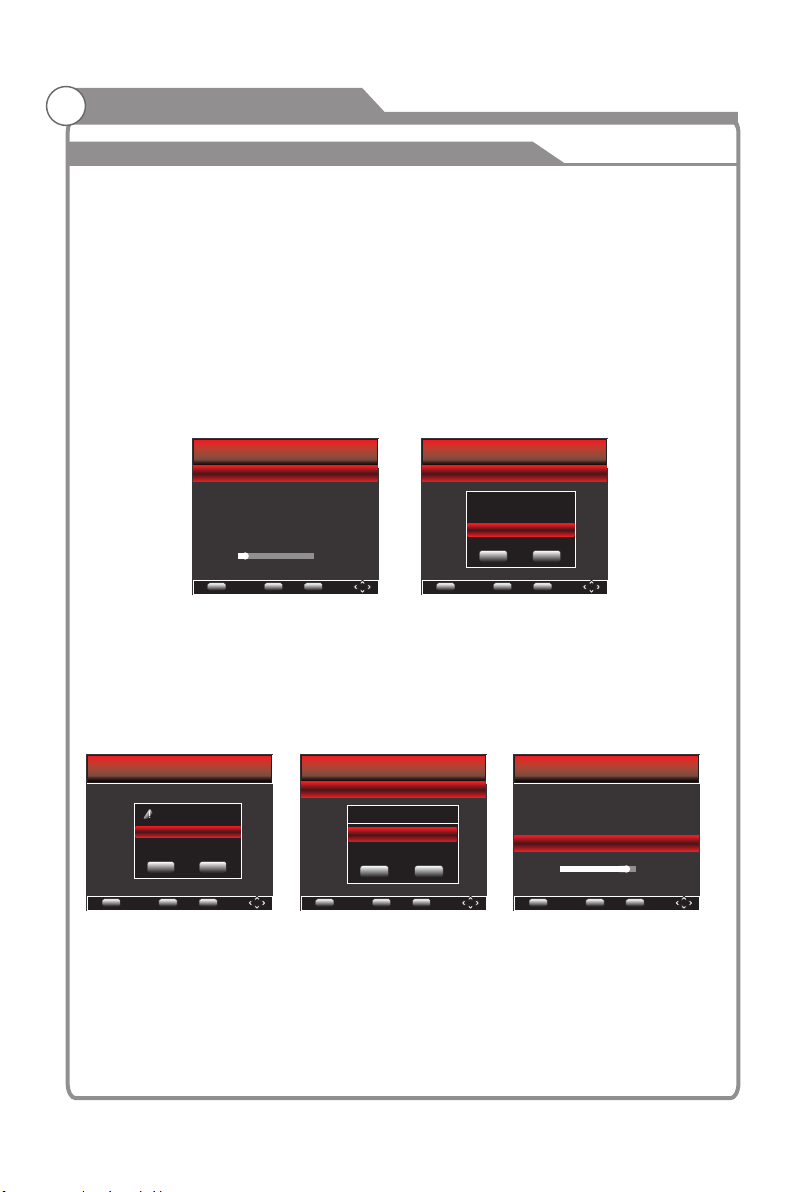

Software Update(USB)

1. Press p/q key to select “Software Update(USB)” option.

2. u key to software update process.

Press OK or

Note: In the software update process, do not turn off the power.

LOCK

EXIT

Exit Return

Hearing Impaired

Specific Hearing Impaired subtitles can be activated subject to Note: Only available in DTV mode.

availability from broadcaster.

PVR File System

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select “PVR File System” option.

3. Press OK or u key to enter “PVR File System" submenu, operation refer to “PVR File System” in page 37.

for detailed

Page 37

Menu system instruction

Function

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select "Function" option.

3. Press u key to enter “Function” submenu.

Noise Reduction

1. Pressp/qkey to select "Noise Reduction" option. tu

2. Press / key to select "Off", "Low", "Middle", "High"

and "DEFAULT” to improve the picture sharpness. Note: Noise Reduction doesn't work in PC-RGB Mode.

RGB Range

Change the brightness and saturation for a better picture.

1.Pressp/qkey to select "RGB Range" option.

2.Press / key to select "16~235" or "0~255".

Note: only available in HDMI mode, please select the appropriate setting according to the DVD Player/STB.

NoSignal PowerOff

1. Press p/q key to select "NoSignal PowerOff" option. tu

2. Press / key to set it "On" or "Off". When “NoSignal PowerOff” is turned on, the TV set

will be Power Off 15 seconds later in PC-RGB mode, 10 minutes later if there is no signal, in other input sources,not working in USB.

NoACT PowerOff

1. Pressp/qkey to select "NoACT PowerOff" option.

2. Press / key to set it "Off" or "1 Hour","2 Hour","4 Hour". When “NoACT PowerOff” is

turned on, the TV set will be Power Off after the set-time if there is no action.

Window Adjust

This option is only used when PC-RGB mode has signal.

1. Press p/q key to select “Window" option.

2. Press OK or u key to display the “Window" menu.

wA uto Adjust: Allows you to set the TV to self-adjust to the incoming PC-RGB video signal. The fine, coarse and position values are adjusted automatically

wH-Position: Set horizontal of picture. wV-Position: Set vertical of picture. wClock/Phase: Remove or reduce picture noise.

position

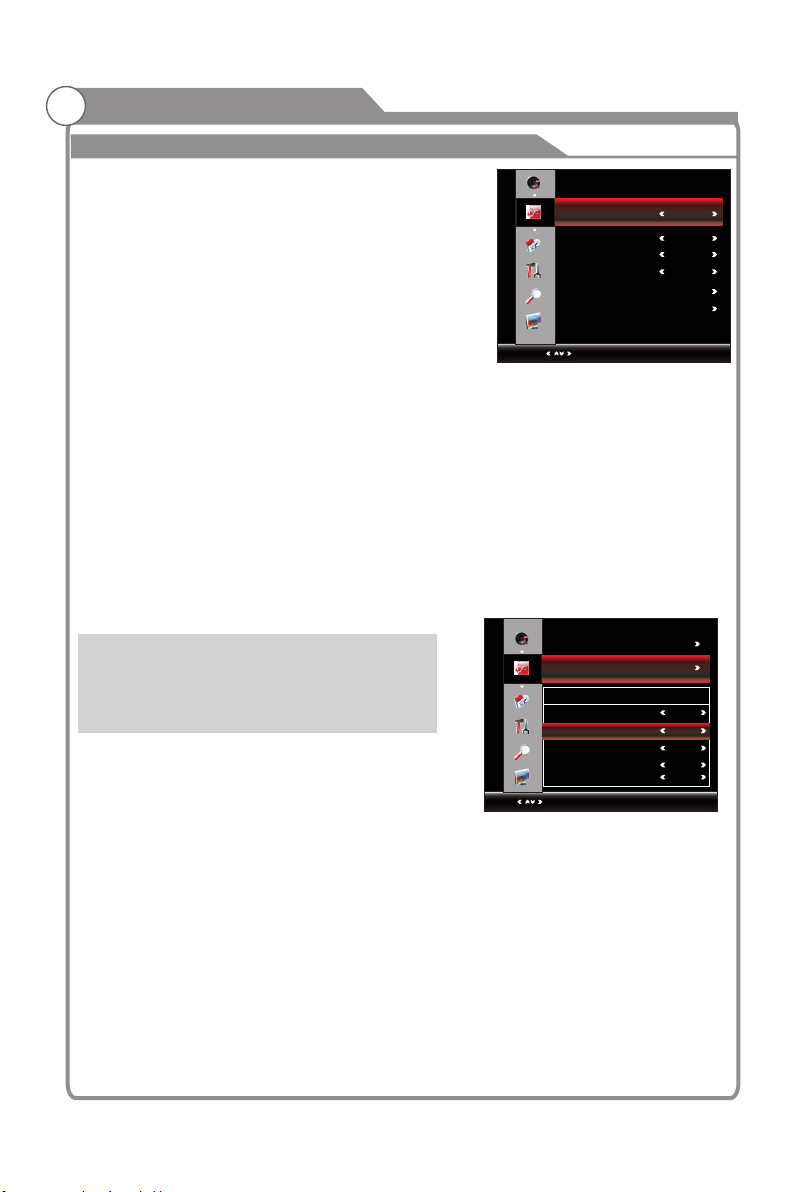

FUNCTION

Advanced Setting

Pressp/qkey to select "Advanced Setting" ,then press OK or u key to display the "Advanced Setting"menu. TTX Language

1.Pressp/qkey to select "TTX Language" option.

2.Press / key to set TTX Language. Primary Audio Language

1.Pressp/qkey to select "Primary Audio Language" option.

2.Press / key to set Primary Audio Language. Secondary Audio Language

1.Pressp/q key to select "Secondary Audio Language" option.

2.Press / key to set Secondary Audio Language. Primary Subtitle Language

1.Pressp/q key to select "Primary Subtitle Language" option.

2.Press / key to set Primary Subtitle Language. Secondary Subtitle Language

1.Pressp/q key to select "Secondary Subtitle Language" option.

2.Press / key to set Secondary Subtitle Language.

Noise Redution

FUNCTION

RGB Range

NoSignal PowerOff

NoAct PowerOff

Window Adjust Advanced Setting

Select

Window Adjust

Advanced Setting

TTX Language

Primary Audio Language

Secondary Audio Language

Primary Subtitle Language

Secondary Subtitle Language

Select

Off

16-235

Off

Menu:Exit

Advanced Setting

Menu:Return

West

English

English English

Page 38

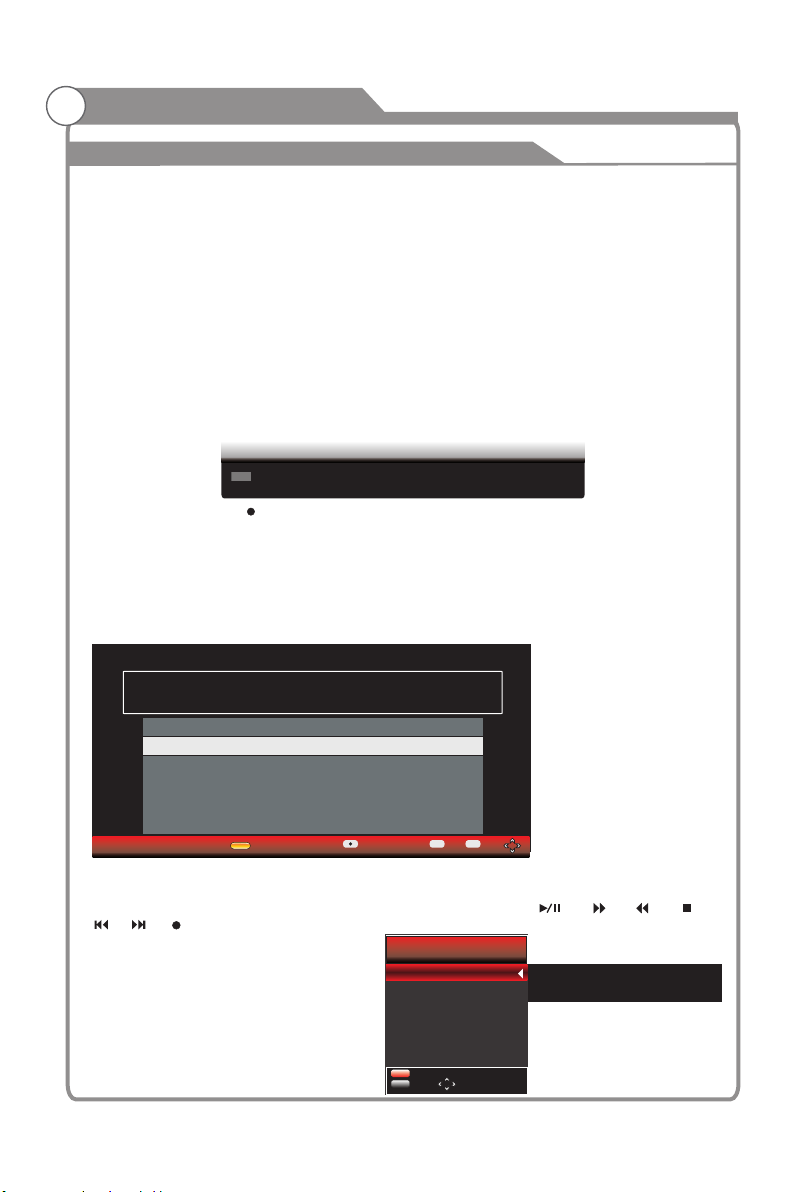

Menu system instruction

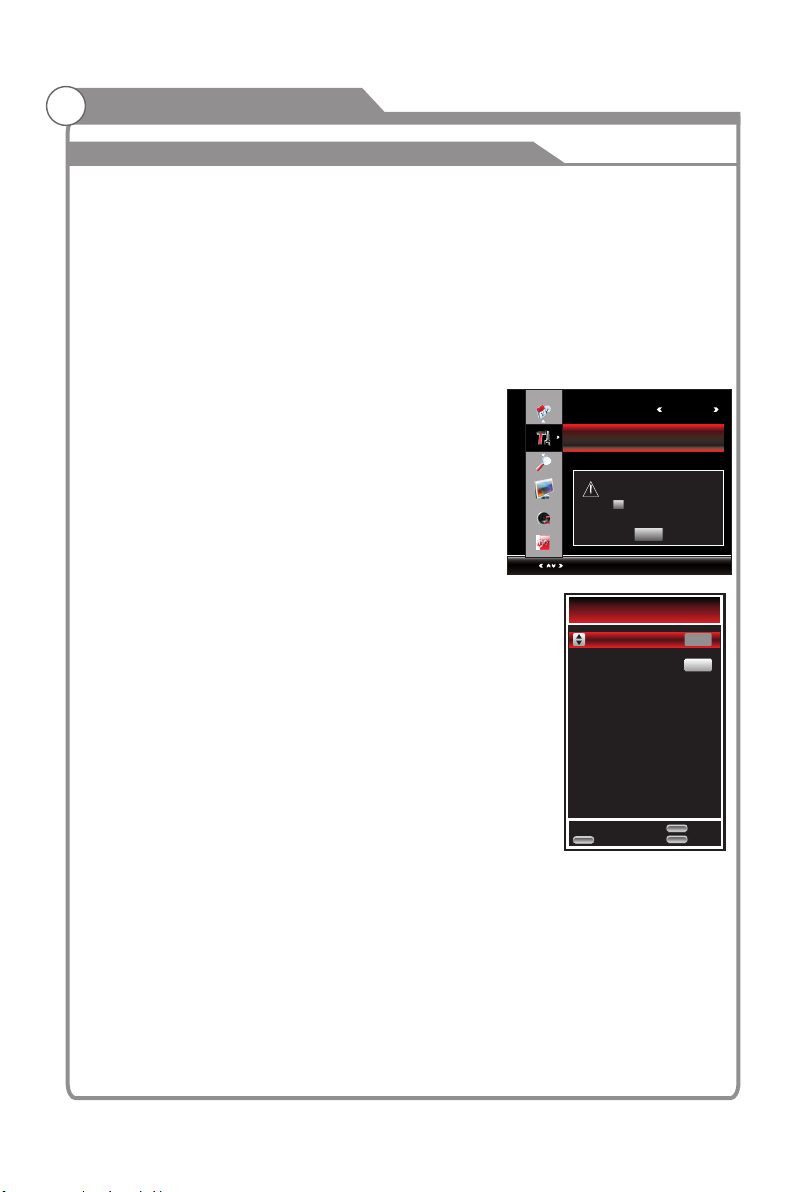

PVR

PVR File System

WARNING:

1. Before connecting your USB device to the TV, please back up your files to prevent them from damage or loss of data.

2. A USB disk must be formatted when first used for PVR. Any existing data on the disk will be lost during the formatting process. Please back up your disk if you do not want to lose this data. You are recommended to use a dedicated disk for PVR use only. Do not disconnect disk or power during formatting.

3. Do not modify PVR files on a PC.

Note: Make sure your USB device is compatible with the TV and able to support PVR recording.

Select Disk: Press OK” button to enter submenu and press / choose the disk for PVR. Record Max Time: Press /

Record Max Time: Set the maximum duration for any recording. Check PVR File System: Press OK” button to check if the disk is PVR. USB Disk: Format: Press OK” button to enter format submenu. The disk must be when first used for PVR. When formatting your disk, a progress bar will appear on the display.

NOTE: The larger your device the longer it will take to format. The device may take many minutes to format, this is not a malfunction, please wait for the formatting to finish.

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start

PVR File System Size All

USB Disk Format nat...

SD 55 Mins HD 15 MIins

Time Shift Size Speed Disk Remaining Space MB

Exit

EXIT

Time Shift Size: This setting is available to adjust only after the disk has been formatted. The maximum Time Shift Size is 8G. Speed: Display the disk writing/reading speed. Please note: It is suggested that you use a disk with speed that is greater Disk Remain Space: Display the remaning space for PVR. NOTE: The times listed are not precise, only for reference.

“ “tu” to

“tu” to set the max time for PVR Record.

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

Exit

EXIT

Menu Return

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

EXIT

Exit

Select Disk

Dis k C:

OK Exi t

Menu Return

“ suitable for

Indicates PASS or FAIL for the status of your USB Disk.

“ formatted Do not disconnect disk or turn power off during formatting.

PVR File System

Select Disk C: Record Max Time 4Hr. Check PVR File System SUCCESS USB Disk Pass Format Pass Time Shift Size 512MB Speed 4500KB/s Disk Remaining Space 384 MB

Exit

EXIT

File System Size

OK E xit

Menu Return

Select Disk C: Record Max Time 4Hr. Check PVR File System Start USB Disk Format Time Shift Size Speed Disk Remaining Space MB

Time Shift Size

Time Shift Disk Size 512MB

SD 14 Mins HD 4 Miins

OK E xit

Exit

EXIT

Menu Return

than 4500KB/S.

PVR File System

Full HD support

Menu Return

Page 39

Menu system instruction

PVR

PVR Guide

If the disk for PVR is ready, the programs can be recorded in DTV mode.

Time shift

In DTV mode, press “ ” button to pause the DTV program, press it again to continue play.

The length of time a program can be paused depends upon the setting in the PVR File System.

Press “EXIT” to show or

hide the control menu.

Tim e Shi ft

[- 00:0 0:38/ 00:04 :00]

04: 55

1. Current time behind live TV.

2. Total allowable time for time shifting, please see pg. 37 'PVR File System' for details in regards to setting the Time Shift Size. Press the PLAY button to continue playing the program from the point where it was paused. NOTE: Time Shift will stop if you change channels, change inputs or go into standby mode while in Time Shift mode. A message will appear on the display prompting you to continue or cancel.

INPUT

POWER

1 2 3

4 5

INFO

FREEZE

CH.LIST

OK/ REC LIST

GUIDE

MUTE

AUDIO LANG

HOLD

MIX


USB

SIZE

REVEAL CANCEL

PgUp PgDn

TIME

DTV HDMI

VOL PROG

RED GREEN YELLOW

INDEX

SUBTITLE

SOUND

RECALL

SLEEP

FAV

EXIT

ASPECT

BLUE

TEXT

SUBCODE

STOP

RECORD BACK WARD

FORWARD

PLAY/ PAUSE

Page 40

Menu system instruction

PVR

Instant recording

1. Select the desired channel then press the RECORD button on the remote control to start recording the current broadcast, a progress bar will be displayed at the bottom of the screen.

- During recording, the progress bar will fade out after 10 seconds.

2. Recording stops when you press the STOP button and the recorded file is stored in the external USB device automatically.

NOTE: You can only watch channels on the same frequency as the program being recorded. If you try to change to another channel a message will appear prompting you to continue or not 'Recording in progress. Change channel will stop recording. Yes or No.

Recording in standby mode

This unit is able to do recording while in standby mode.

1. Start a recording then press the power button. A message will be displayed prompting you to continue or cancel.

Rec ordin g

9 Nin e Digit al

RE C

[0 0:00: 13] Rem ain [00 :05:1 3]

At Guide menu, press “ ” button to reserve -record the program. At reserve record menu, press “ / ” button to adjust the scheduled time, press “OK” to

selected

save the setting and press the yellow button to check the record schedule. proceed when the TV is in either active or standby modes. When recording initialises in standby mode, the front panel indicators will flash momentarily, and there will be no picture output. You can intercept the recording by turning on the power and viewing the program that is being recorded. schedules min between two programs.

DTV

9 Nine Digital

Pro gramm e

Sta rt Date

Sta rt Time

End D ate

End Ti me

The should not overlap, and there should be at least 1

scheduled

MALCOLM IN THE MIDDLE

Mod e

9 MAL COLM IN T HE MIDD LE

18 Ja n 2010

Schedule

AUT O

04: 30

05: 00

EXIT

Back

Exit

In DTV mode, press “OK/RECLIST” to open the recorded list. Press “ / ” button to select

recorded file, recorded file,

the press “OK/RECLIST” to play the and press the “u” button to show the Information. When playing, the “ ”, “ ”, “ ”, “ ” , “ ”,“ ” “ ” available. Press “EXIT” to show or hide the control menu.

When the Recorded List is displayed on the screen, you can delete files you no longer require. Select the desired file

recording information.

buttons are

Rec orded L ist

MALCOLM IN THE MIDDLE

using the arrow buttons, then press the Red button to delete. NOTE: Files cannot be deleted during Playback or Recording.

Delete Delete

OK OK

To. Page 1 Cu. Page 1

04:5 6

Recording will

Note: Recording will stop when you change the locked channel.

[DATE] 2 010/0 1/18 [Time] 0 4：56：40 [DU RATION ] 0000: 10:00 [PROG RAM NAM E]

MALCO LM IN THE M IDDLE

[CHAN NEL NAME ] 9 Nine Di gital [PROG RAM DES CRIPT ION] If B oys Wer e GilsE very ti me the bo ys are. ..

Page 41

Digital Media Player

Introduction This TV is embedded with one USB port digital media player. It can find devices that support USB1.1/2.0,including flash disk, USB hard disk and digital camera. It supports functions as: Display pictures, Play music files, Play video files, Display text files. Note: please do not remove the cable during the data transfer. It may cause problems for the system.

Data


Music

Video

Text

Remote Control Button

POWER

INPUT

1 2 3

OK/ REC LIST

MUTE

AUDIO LANG

RECALL

SLEEP

FAV

EXIT

USB

ASPECT

NAVIGATION

BUTTONS

pqtu

4 5

INFO

FREEZE

CH.LIST

GUIDE

DTV HDMI

VOL PROG

Format

JPG,JPE,PNG,BMP

MP3,WMA,AAC

MPG,MPEG, , ,MP4 MOV MKV

TXT

Description of Playback Buttons:

Buttons Function

PgUp

PgDn

EXIT

SUBTITLE

Play/Pause

Stop

Previous file

Next file Page up/Zoom in(Picture)

Page down/Zoom out(Picture)

Backw ard

Forward Displ ay th e sho rt cu t key Subtitil e swi tch (vi deo )

Langu age S oun dtr ack S wit ch( vid eo)

RED GREEN YELLOW

INDEX

HOLD

SUBTITLE

MIX

SOUND


SIZE

REVEAL CANCEL

PgUp PgDn

SUBCODE

TIME

BLUE

TEXT

Page 42

Digital Media Player

Device and File Management

Initialization Interface

Into the USB channel, the interface shown in Figure 1. If no USB disk is inserted, the system will prompt to insert the USB device, while the lower right corner screen displays

"No Device" message. When you insert a USB disk, select the first letter located in the C drive, shown in Figure 2. The corresponding buttons as follows: Left and right keys: Select the drive letter. OK key: to enter the selected letter.

0/ 0

0/0

Please insert USB device

NO DEVI CE

Left / Right Key: Select OK Key: Enter

USB support character

1. Photo

Features: Browse and play under the specified path (the default path is specified in the current disk, set the photo interface methods please refer to the specified path: path - Set) picture. Content: Browse and play all the images


MUSIC

MOVIE

TEXT

My Disk

under the specified path.

Photos View Shown in Figure 3 Features: Displays thumbnails of all images

path, bmp and png format does not support thumbnails. Key operation:Up, Down, Left, Right: Option key to switch up and down. OK Key: selected in the entry photo option on the left, the switch to the image preview area, was selected in the image preview area in the right section, then play image files Exit Key: selected in the entry in the right image preview area, select the entries to switch back to the left side of photo options, the selected option in the entry on the left picture, the switch back to the USB interface initialization.

Photo Play interface (Shown in Figure 4) Key operation:

The following key: Play on a picture / next picture Left, Right: Reverse / Rotate the image clockwise Confirmation: play / pause image Exit: Exit the pictures to return to photo browsing interface Menu key: enter the playback control menu. Shown as Figure 5

Defaul t pat h C:\

Land scape .jpg

UP / Down key: select OK / Right Key: Enter

0/ 0

1/1

Stree t.jpg Castle.j pg Cast le2.j pg

Land scape 2.jpg

0/ 0

1/1

1.J PEG

USB 2. 0

Page 43

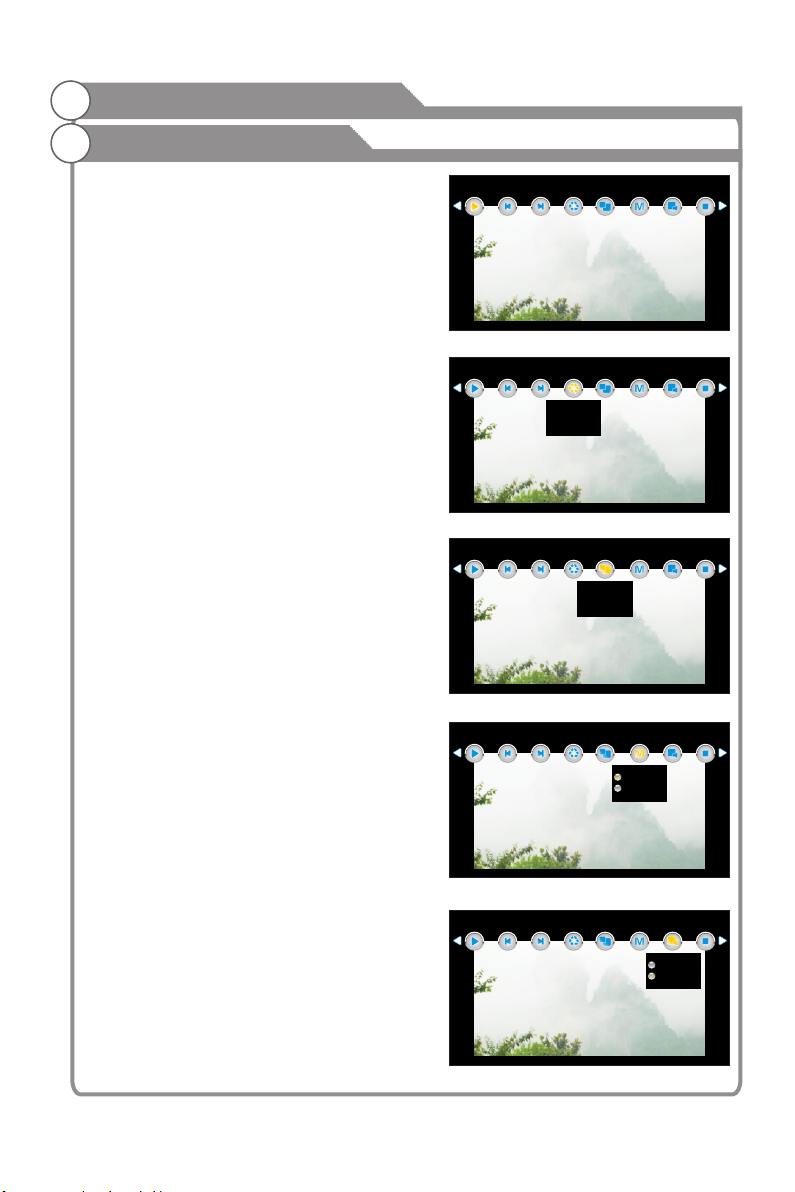

Digital Media Player

USB support character

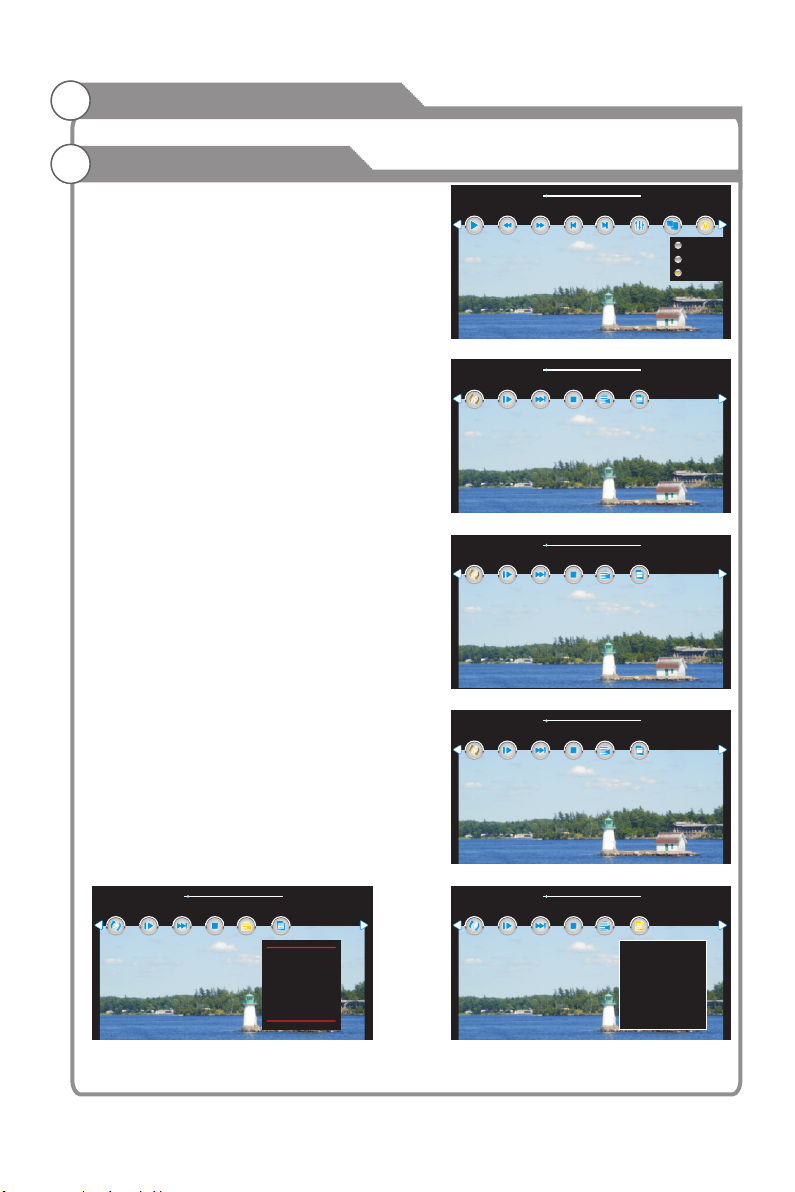

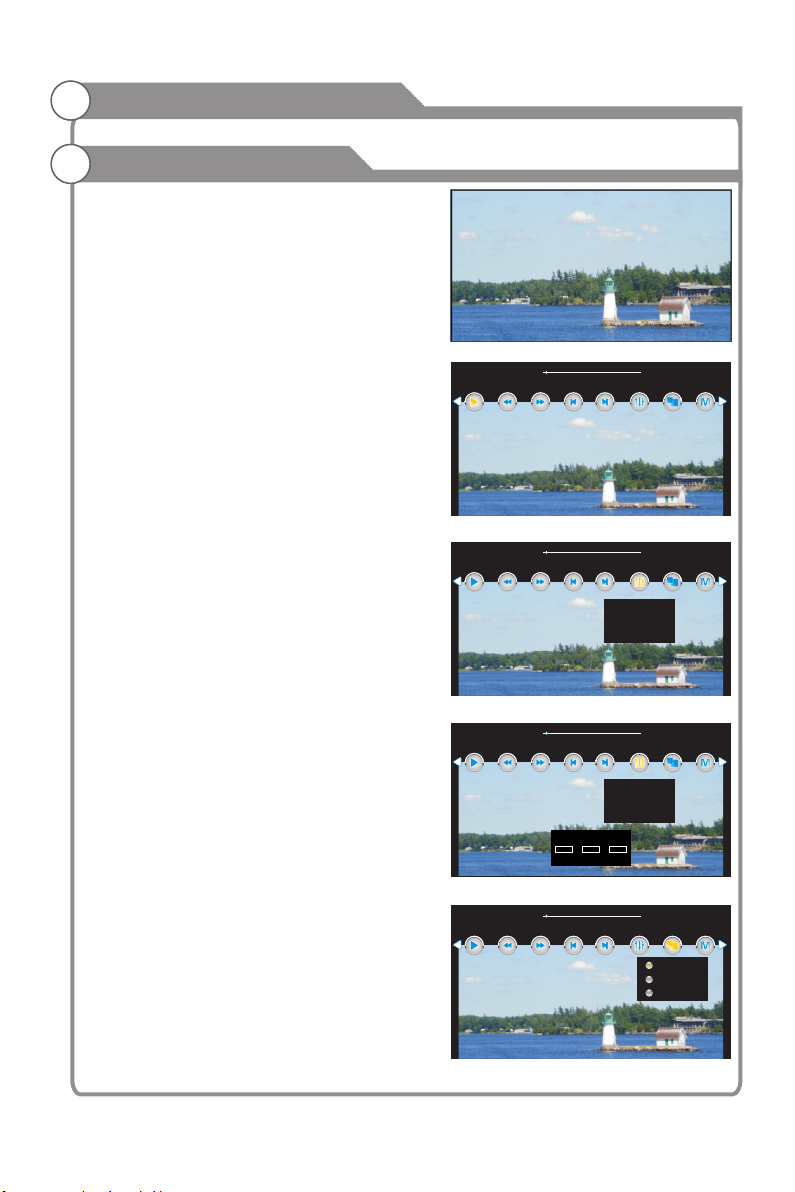

Play Control menu

Key operation Left, Right: Select Options OK button: the selected function key to enter the selected Living the secondary function key menu.

Play

Prev Next Rotate

1.JP EG

Proportion

PlayMode

Music

Stop

Play

Play / Pause: Play / Pause Picture. Prev: Play on a picture. Next: Play the next picture. Rotate: Rotate the image counter-clockwise along. (Shown as Figure 6)

Proportion

1. Zoom In: enlarge image 1X,2X,4X,8X

2. Zoom Out: shrink images（1/2,1/4）

3. Move View: Mobile pictures. have been magnified over the role of screen size, Press OK to display the arrow guide OSD, the arrow keys to move a picture, press the Escape key to return to the previous menu, as shown in Figure 7.

（）

When the picture

press

PlayMode: Shown as Figure 8

1. Filmstrip: loop all the pictures.

2. Single: Repeat the current picture.

Music: Shown as Figure 9

Is set to play music all the music. Stop: Exit Slideshow

Play

Prev Next Rotate

Play

Prev Next Rotate

Play

Prev Next Rotate

Play

Prev Next Rotate

1.JP EG

Proportion

Pos-Spin

Neg-Spin

1.JP EG

Proportion

Zoom

Zoom Out

Move View

1.JP EG

Proportion

1.JP EG

Proportion

PlayMode

Filmstrip

Single

PlayMode

Music

Off

Stop

Page 44

Digital Media Player

USB support character

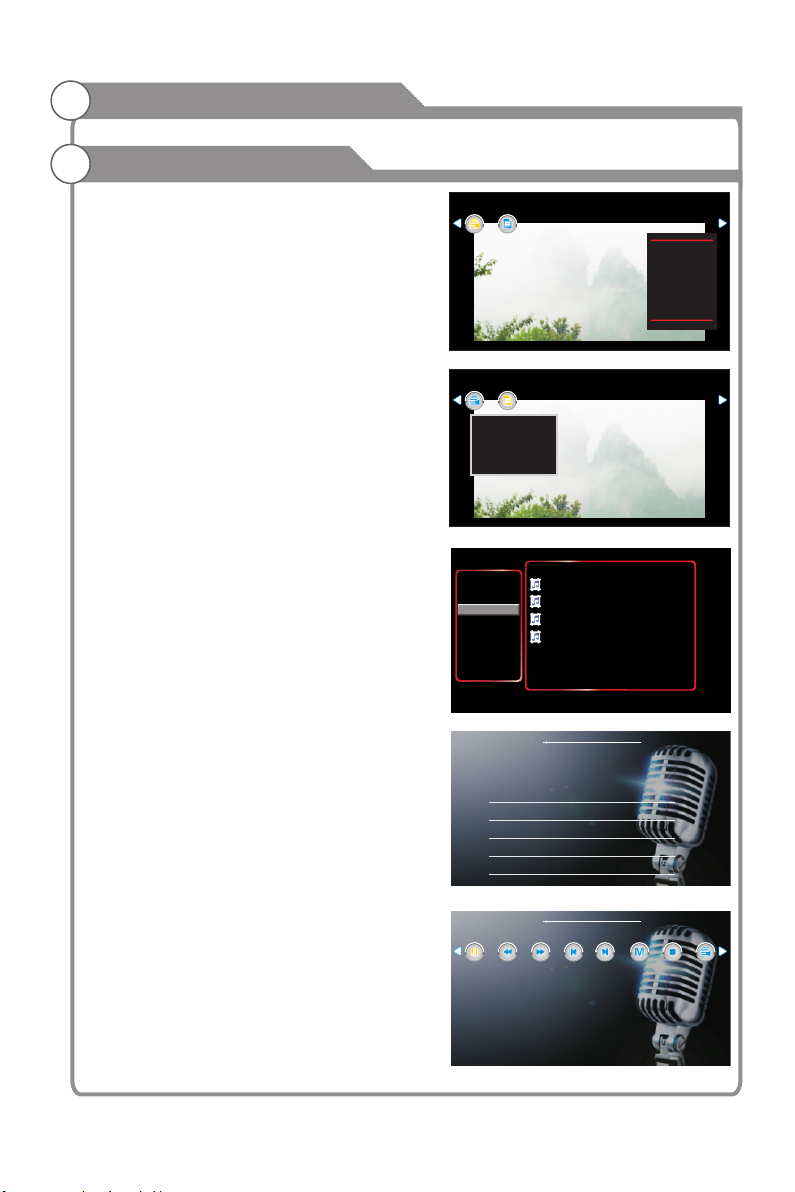

Playlist: Show is playing and will play the

image file. Shown as Figure 10 Up,Down keys: select the image file OK button: Play the selected picture file Left, Right keys: Exit playlist, and select other options. Exit button: Exit Playlists

Info: Display the name of the picture playback, resolution, size and date. (Shown as Figure 11)

2. Music

Features: browse and play development path is to develop the current disk, set the method's interface, please refer to the specified path: Path - setting) music files .

Content: Displays the playback of music

files under the specified path.

Playlist

Water lilies.jpg

Rsolution: 800X600

Size: 82 KBytes

Date: ----/--/--

Info

1.JPE G

1.JPE G

Playlist

Water lilies.jpg Blue hills.jpg Winter.jpg Sunset.jpg nga_549617.jpg

1 / 1

UP /Down: select OK:play

Browse Music

Content: Displays the music files. (Show as Figure 12)

Key operation:

Arrow keys: up and down between the different options about the switch. OK key: Selected in the last entry in the left side of music options, the switch to music preview area; selected entries in the preview area on the right music, then play music files. Exit: Selection preview in the music entry in the right area, select the entries to switch back to the left side of music options; selected entries in the music option on the left, the switch back to the USB interface initialization

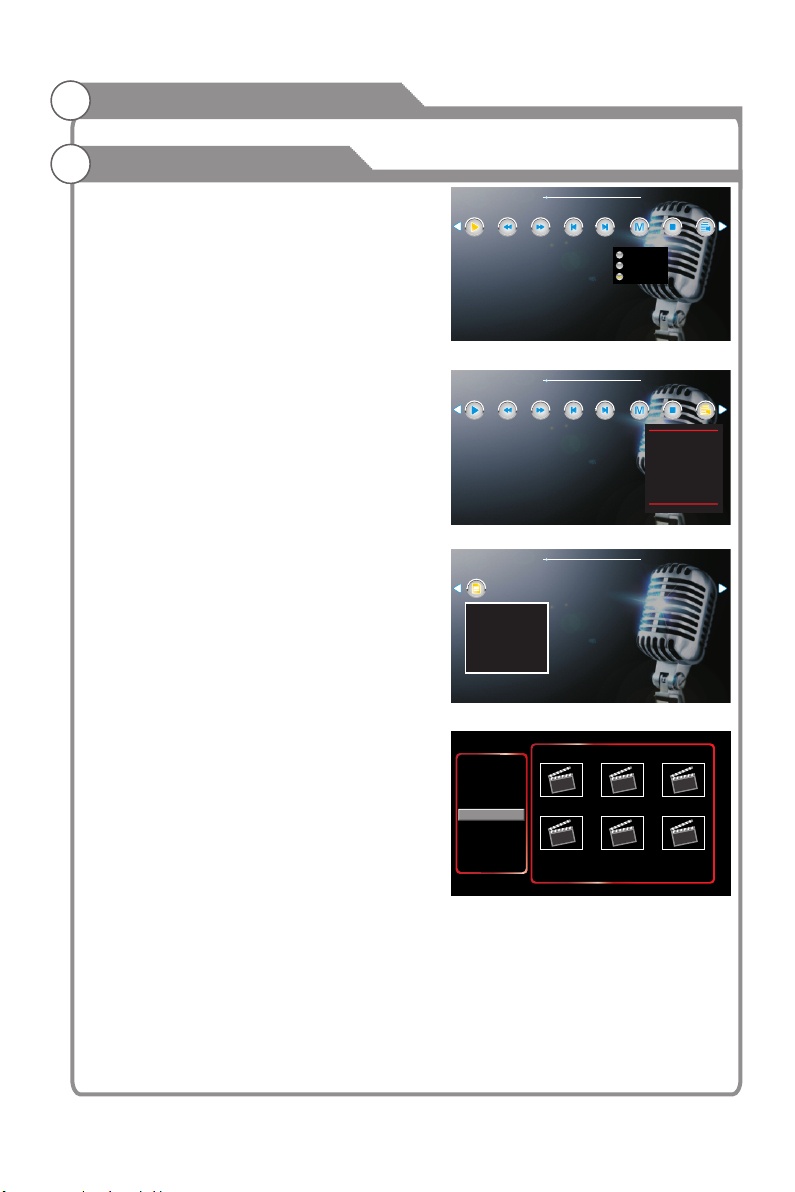

Play Music

Music player interface Shown as Figure 13 Action: Left, Right: rewind / fast forward Upper and lower key: on a / the next one OK button: Play / Pause music Exit: exit the music player interface, return to music browsing interface Menu key: enter the playback control menu. (Shown as Figure 14)

Play Control Key operation:

Left, Right: Select Options Confirm the key: the selected function key to enter the selected features live secondary menu items. Exit: exit the playback control menu

Def ault pa th C:\


MUSIC

MOVIE

TEXT

My Disk

Burning. Mp3

Jesus To A Child George Michael. Mp3

Bonnie Windsl. mp3

music_ac3_448kbps.aac

UP / Down key: select OK / Right Key: Enter

Bonnie Winds.mp3

Hold m e now

Don’ t ever le t me go aga in

It’s b eatin g heart b ack in an d answe rs me

(ari se) my lo ve oh low er me to hi s grave

And dr y these t ears my b eatin g heart w ould br ing

PlayMode

Stop

Playlist

Page 45

Digital Media Player

USB support character

Action:

Up,Down keys: Select the music file

Bonnie Winds.mp3

Play

FB FF

OK button: Play the selected music files Left, Right keys: Exit playlist, and select other options Exit button: Exit Playlists

Function:

Play / Pause: Play / Pause the music FB: Fast back playing (2x,4x,8x,16x) FF: Fast forward playing (2x,4x,8x,16x) Prev: Play previous music Next: play next music

Play mode: Shown as Figure 15

1.ByOrder: Play music as order

2.Single: Repeat single music

3.PlayLoop: Play all the music in order loop.

Stop: Exit the music play

Bonnie Winds.mp3

Play

Bonnie Winds.mp3

Info

FB FF

Playlist:

Show what is playing and will play music files. Shown as Figure 16

Bonnie Winds.mp3

Album: The Best Songs Of The World

Title: Bonnie Winds

Bit Rate: 16 Bits

Artist: Bohinta

Sampling:

Year:

Info: Display the name of music, album name,

title, stream, author, sampling year. Shown as Figure 17.

3. Movie

Features: browse and play video files under the specified path (default path is the current disk, set the video interface, the method please refer to the specified path: Path setting) Content: Displays the playback video files under the specified path. Shown in Figure 18


MUSIC

MOVIE

TEXT

My Disk

Video view

Content: The specified path to all the video files displayed as thumbnails Key operation: Arrow keys: Up and down in the switch between different options. OK key: If selected in the entry in the video options on the left, will switch to the video preview area; if selected to the entry in the right side of the video preview area, then will play the video file. Exit: In the video preview on the right in the entry area, selects the entries to switch back to the left of the video options. Selects the entry in the video options on the left, the switches back to the USB interface initialization.

Def ault pa th C:\

Ad.mpeg V50.mp4

V1.RM

UP / Down key: select OK / Right Key: Enter

PlayMode

ByOrder

Single

PlayLoop

PlayMode

Divx 4....r mvb

1/1

00:00:03/ 00:04:07

Stop

00:00:03/ 00:04:07

Stop

Playlist

Burning. mp3

Jesus To A Child . Mp3

Bonnie Windsl. mp3

music_ac3_448kbps.aac

1 / 1

UP / Down: select OK:play

00:00:03/ 00:04:07

Canoe_vp6.mpg

ASF_vp6.mov

Playlist

Page 46

Digital Media Player

USB support character

PLAY Video

Video player interface Shown as Figure 19 Action: Left, Right: rewind / fast forward Upper and lower key: on a / the next one Exit: exit the video player interface, return to video browsing interface. Menu key: enter the playback control menu. Shown as Figure 20

Play Control Key operation:

Left, Right: Select Options Confirm the key: the selected function key to enter the selected. Features live secondary menu items. Exit: exit the playback control menu.

Action:

Up,Down keys: Select the video file OK button: Play the selected video files Left, Right keys: Exit playlist, and select other options. Exit button: Exit Playlists

Ad.mpeg

Play

FB FF

Ad.mpeg

Play

FB FF

Subtitle Switch --/0

Track Switch 1/1

Goto Time

00:00:03/ 00:04:07

Proportion

Switch

00:00:03/ 00:04:07

Proportion

Switch

PlayMode

Function:

Play / Pause: Play / Pause the video FB: Fast back playing (2x,4x,8x,16x) FF: Fast forward playing (2x,4x,8x,16x) Prev: Play previous video Next: play next video.

Switch: Shown as Figure 21

1. Subtitles switch: switch the currently playing video titles. With this option the user can switch between the subtitles that come with

the video. Select the OFF option and the subtitles will not be displayed.

2.Track switch: switch the currently playing video tracks.

3. Goto Time: Choose a specific time period the video play the video. Shown in Figure 22.

Ad.mpeg

Play

FB FF

Input search time

0 0 : 0 0 : 0 0

00:00:03/ 00:04:07

Switch

Subtitle Switch --/0

Track Switch 1/1

Goto Time

Proportion

PlayMode

Ad.mpeg

Play

FB FF

00:00:03/ 00:04:07

Proportion

Switch

Auto

16:9

4:3

PlayMode

Page 47

Digital Media Player

USB support character

Proportion:

Select the display ratio video playback. Shown in Figure 23.

1.Auto

2.16 : 9

3.4 : 3 Source of the film will switch to automatic mode by default.

Play Mode: Shown as Figure 24

1.ByOrder: Play video as order.

2.Single: Repeat single video.

3.PlayLoop:Play all the video in order loop.

A->B: A to B repeat playback of video between points Set A: select the starting point. Shown as Figure 25. Set B: select the destination point . Shown as Figure 26.

None: Cancel A-> B play and resume normal

playback. As shown in Figure 27.

Slow:Play Slowly.(2X,4X,8X,16X) Stepping: Play just one picture each time

the user clicks.

Stop:Exit the video play

Playlist: Show the videos files being playing

and will be played. Shown as Figure 28

Play

Set A

Set B

None

Ad.mpeg

FB FF

Ad.mpeg

Slow

Ad.mpeg

Slow

Ad.mpeg

Slow

Stop

Stepping

Stop

Stepping

Stop

Stepping

Playlist

00:00:03/ 00:04:07

Proportion

Switch

00:00:03/ 00:04:07

Info

00:00:03/ 00:04:07

Info

00:00:03/ 00:04:07

Info

PlayMode

ByOrder

Single

PlayLoop

Info: Shows the name of the video is playing,

resolution, audio track, subtitles, program, title, version, chapters. Shown as Figure 29.

Set A

Ad.mpeg

Slow

Stepping

Stop

Playlist

00:00:03/ 00:04:07

Info

Playlist

Ad.mpeg V50.mp4 V1.RM

Divx4....rmvb

Divx5....rmvb

1 / 1

UP / Down: select OK:play

Set A

Ad.mpeg

Slow

Stop

Stepping

Playlist

00:00:03/ 00:04:07

Info

Ad.mpeg

Resolution: 352x288

Audio Track: 1 /1

Subtitle: - - / 0

Program: - - / 0

Title: - -

Edition: - -

Chapter: - -

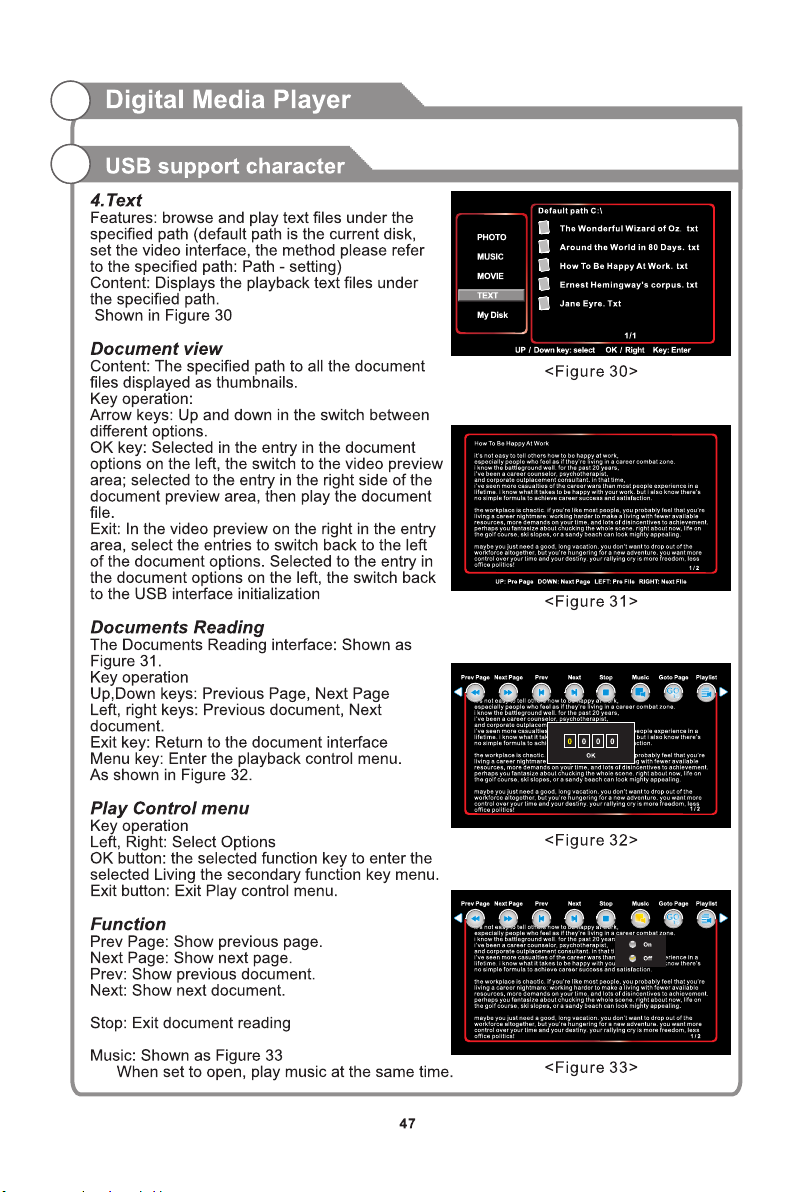

Page 48

Pleas e enter p age num ber

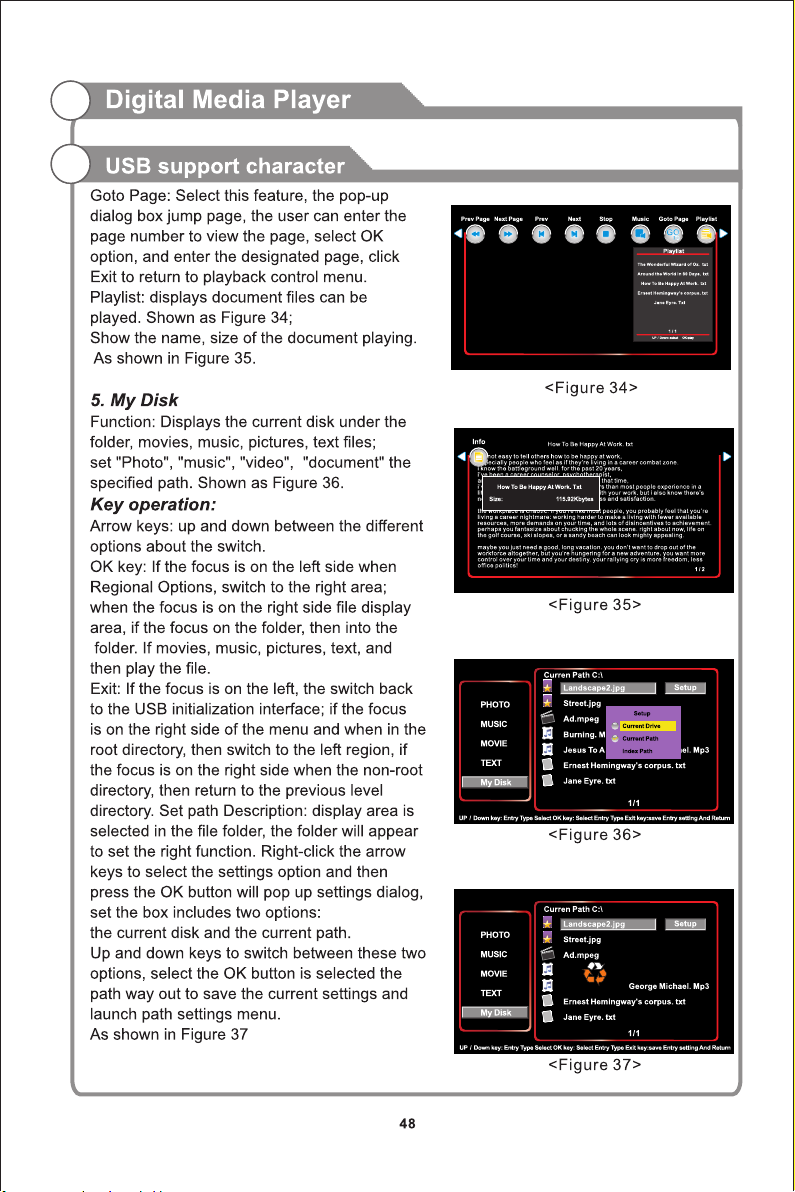

Page 49

save s etup. .....

Page 50

Digital Media Player

USB support character

Current Disk: Set "Photo", "music", "video", "document" for the entire query path

specified disk. This option is selected, each time a user visit the "Photo", "music", "video", "Documents" for the current disk contains all the photos / music / video / document file. Entry: If you enter the C drive, when setting the current disk is selected, the view, "photo", "music", "video", "document" is displayed when the C drive, all photos / music / video / document file. As to the current disk to find the entire disk media files, speeds will be very slow, we do not recommend this path set up.

Current Path: Set "Photo", "music", "video", "document" of the specified query path

for the currently selected folder path. When chosen, each time a user browses photos, music, video, document files is the current folder contains all the photos / music / video / document files. For example, the currently selected folder is "KKDOWNLOAD", when elected in the current path, browsing the "photo", "music", "video", "document" to display all photos / music / video / document files in the "KKDOWNLOAD" folder. This will be faster when searching, therefore it is strongly recommended that users put all kinds of media files in a fixed folder and set folders to specify the path, so you can save search time.

Page 51

Troubleshooting

If you have any problem, check the couter measures for each symptom listed below. The following symptoms may have . adjustment rather than actual malfunction of the unit. If the trouble persists, contact the Centre, see back page for contact details

Symptom s

No power

No pictur e

Good pict ure but no sound

Good sound but abnormal color or no picture

No respon se to remot e

control

Full scre en flicke ring under VGA

been caused by inappropriate

Possibl e solutio ns

Please check the power cord

outlet works

Please try pressing the hard power switch on the side of the TV at the bottom to ensure power is being received.

Please check antenna connection. Station may problems, please tune to another station. Please adjust the settings of contrast and brightness.

Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings

If external devices are being used, check their volumes are not set too low or turned off. If using AVI or Component inputs, please make sure cables are connected properly and not loose. If using DVI to HDMI cable, a separate audio cable is required. Make sure a headphone jack is not connected.

Please check antenna connection and antenna condition. If using Component input, please check Component connections, incorrect or loose connections may cause colour problems or cause the screen to be blank.

Batteries of remote control may have exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m, within

recommended operating angle and path is free of obstructions.

V-HEIGHT value may be set too big, restart computer and enter safe mode, then set monitor parameters to correct value according to adjustment description.

be experiencing

plugged in and that the power

Customer Care

Horizon tal strip es under VGA

Colored d ots may be present o n the scree n

Pic ture is breaking up

Sample phase may be deflected, adjust phase according to picture position.

Although the LED screen is made with high-precision technology and 99.99% or more of the the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LED screen. This is a structural property of the LED screen and not a malfunction.

Keep the TV away from noisy electrical sources such as cars, hair dryers, welders, and all optional equipment. Electrical atmospheric interference such as local or distant lightning storms may cause picture to break up. When installing optional equipment, leave some space between the optional equipment and the TV. Check the antenna and connection. Keep the antenna away from any power or input/output cables.

Page 52

Troubleshooting

After Auto Tun ing onl y some ch annels are avail able

Chann el cann ot be selec ted

USB not playing

Picture is distorted, macroblock, small block, dots, pixelization, etc

Noise fro m speaker

TV turns off automatically

TV turns on automat ically

Picture i s not shown i n full scre en

Check your are a is covere d by Digita l Video Broadcasts. Try re-tuning or manually tun ing missing channels. Check that you are using the correct antenna ty pe - please see pg.16 'Ant enna connection '.

Check i f the channe l has bee n blocked in t he main menu setti ngs.

Please check connecting USB cable and power supply is connected.Hard drive has not been formatted. Please make sure USB disk is compatible and the multimedia data formats are supported.

Compr essio n of vi deo con tents may ca use dis tortion espec ially on fast movin g pictures such as sports and actio n movies.

Check cab le connec tions , make sure a v ideo cabl e is not connect ed to an audi o input . Low signa l level may c ause so un d disto rtion.

Check if th e Off Time r is set to O n in the Setu p menu. Sleep Time r may have be en enab le d. If there is n o signal fo r about 1 0 minutes f rom an inpu t, the TV wi ll turn off, see Au to Sleep pg . 33. If connec ted to your P C, chec k your PC pow er settin gs. Make sure t he AC power co rd is plu gg ed in sec urely to the wall ou tlet and th e TV.

Check if th e On Timer is se t to On in th e Setup men u.

Black bar s on each sid e will be sho wn on HD ch annels when disp laying SD ( 4:3) co ntents. Black bar s on Top & Bott om will be sh own on mo vies that have aspe ct ratios d iff er ent fro m your TV. Adjust pi cture siz e optio n on your ext ernal dev ice or TV t o full scre en.

Page 53

Troubleshooting Picture defects and the reason

Ghosting may also occur w he n still pictures are displayed continuou sl y. It may disappear af te r a few moments.
