Please read these instructions carefully before operating the monitor.
A copy of the manual should be kept for future reference.
Notes:
1. Do not perform any modifications to the monitor as this may damage it and cause your
warranty to become instantly void.
2. Any modifications carried out by the customer that cause damage to the monitor,
computer equipment or injury or destruction due to malfunction are not the
responsibility of Kogan. The customer is entirely responsible for any modifications or
changes to the monitor or power cables.
Warning:
To prevent fire or explosion, please don't put the display in the rain or a wet environment.
There is dangerous high pressure within the display, so don't open the shell. Please contact
the Kogan customer support team if you need assistance with the monitor.
Prevention measures
• Don't put the display close to water, such as in a bathroom, dishwasher, kitchen, washing
machine, swimming pool or a humid basement.
• Don't put the display on an instable car, chair or table. If the monitor falls down, it may
damage the user and equipment. If you mount the monitor on a wall or shelf, the fixed
installation is entirely the responsibility of the customer and Kogan are not responsible if the
monitor comes loose and falls.
• There are many long and narrow holes in the upper and bottom of the shell for ventilation.
To ensure continuous operation with no overheating, these cooling holes must not be blocked
or covered. The monitor should not be placed on soft surfaces such as a bed, sofa or carpet.
It also should not be near a radiator or other heat source. Without good ventilation, the
monitor shuld not be put in a bookcase or cabinet.
• If the display is not to be used for a long time, please disconnect the power. This can
prevent damage caused by an abnormal power surge.
• Do not let the power socket to get overloaded, or it may cause the fire or electric shock.
• Don't put a foreign body into the machine, as this can cause a short circuit and lead to fire
or shock.
• Do not open the casing, or it may suffer from high pressure or other dangers. If the monitor
fails, please contact the Kogan customer support team.
• For safety, please ensure the power supply voltage 100 ~ 240 V AC, current 5A at least.
• Please insert the plug into an easily accessible power socket, so that it can easily be reached
and disconnected from the power supply in the event of fire, electric shock or thunderstorm.
Page 3
Special Notes of LCD monitor
LCD monitors may display the the following issues, which are not faults.
Note
• The picture may blink and flash upon first use while it is going through initial setup. If the
issue continues, please turn off the display, wait 30 seconds and then turn the monitor on
again.
• When you use different desktop patterns, the screen brightness may be slightly uneven.
• LCD screen pixel technology has reached 99.99% quality levels, but in the displaying
process, it may also display a 0.01% or less of pixel loss or brightness loss.
• Due to the characteristics of LCD screens, pixel residue will never appear in normal use.
However, when the same static image stays displayed for a long time before switching, the
previous picture may continue to be retained. This is called 'screen burn'. To avoid screen
burn, the best way is to use a monochrome display or alternately a dynamic moving screen
saver when you don’t need the PC or the system. Additionally, you should power off the
electricity for two hours after every 12 hours’ working.
• When the screen turns black, flickers or doesn't power up at all, please contact the Kogan
customer support team. Please do not attempt to repair the monitor by yourself.
Instructions before using
Features
* (75.62cm)30” TFT color LCD monitor
* 16:10 wide screen
* bright and beautiful pictures
* suggesting resolution: 2560×1600
* used for drawing design, medical and financial area
Packing list
The box contains the following items:
1. LCD monitor/base
2. Product specification
3. Signal lines (including DVI, VGA line)
4. Power cord
5. USB cable
6. Mini DP to DisplayPort cable
Page 4
Control and Connection
Visual connections
Signal line connection: Choose either the the 15 stitch plug or the DVI line of the 24 needle
plug to connect the output port of the computer to the input port of the monitor. Finally use
the screw to fix it.
Power
1. First confirm that the power cord conforms to the area standards.
2. The LCD monitor has a broad power supply voltage scope when working, and it could be
used in the area of 100/120 V or 220/240 V AC.
3. One side of the power cord should be connected with the LCD power port, and the other
side connected to the wall power outlet or the power socket of the computer.

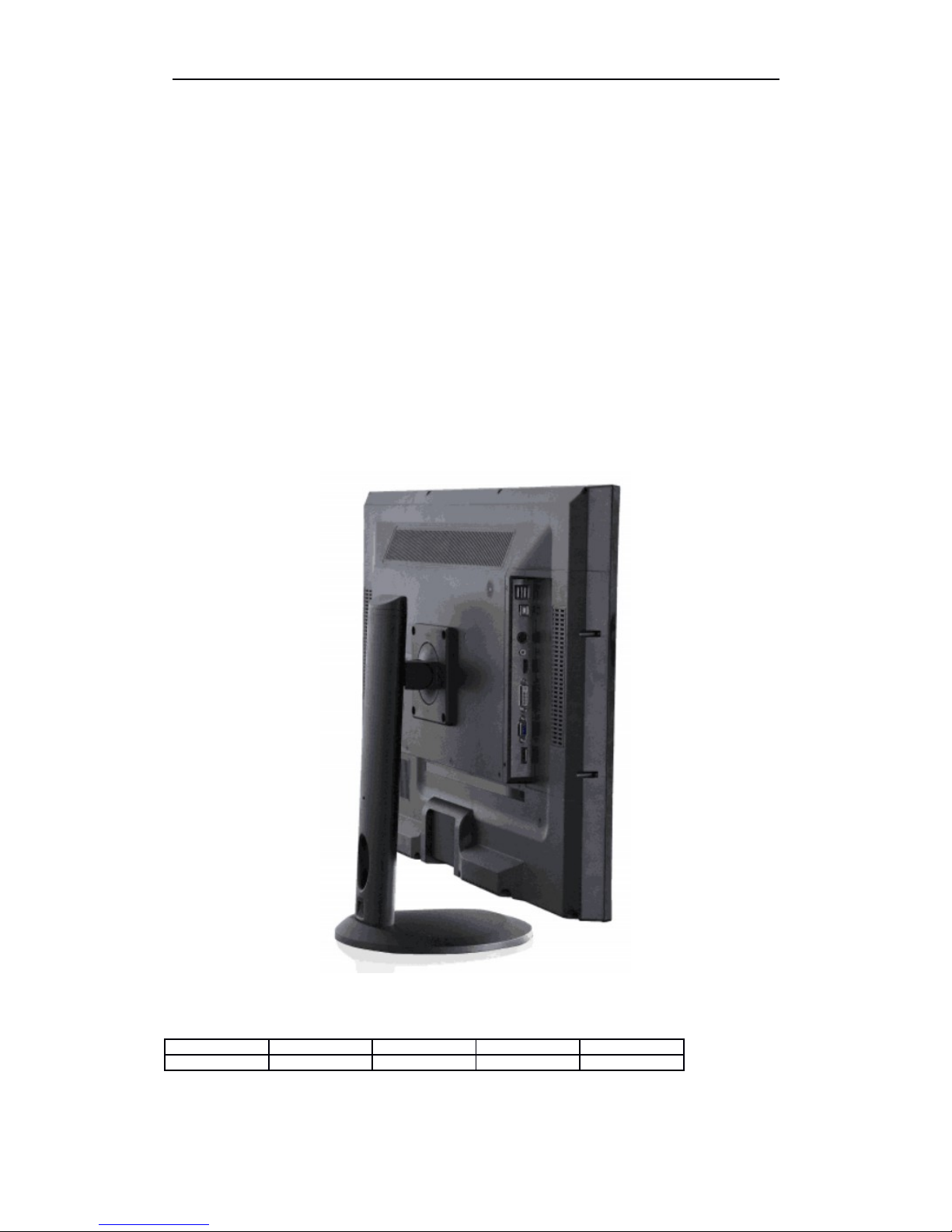

Image one: connections
1 2 3 4 5
Power Port VGA Port DVI Port USB Port USB Port
Page 5
Angle adjusting
• The ideal angle we recommend is to face to the LCD monitor, and then according to your
requirements, adjust the angle of the LCD display.
• When you adjust the angle of the display, hold on to the base while adjusting to prevent the
display shaking.

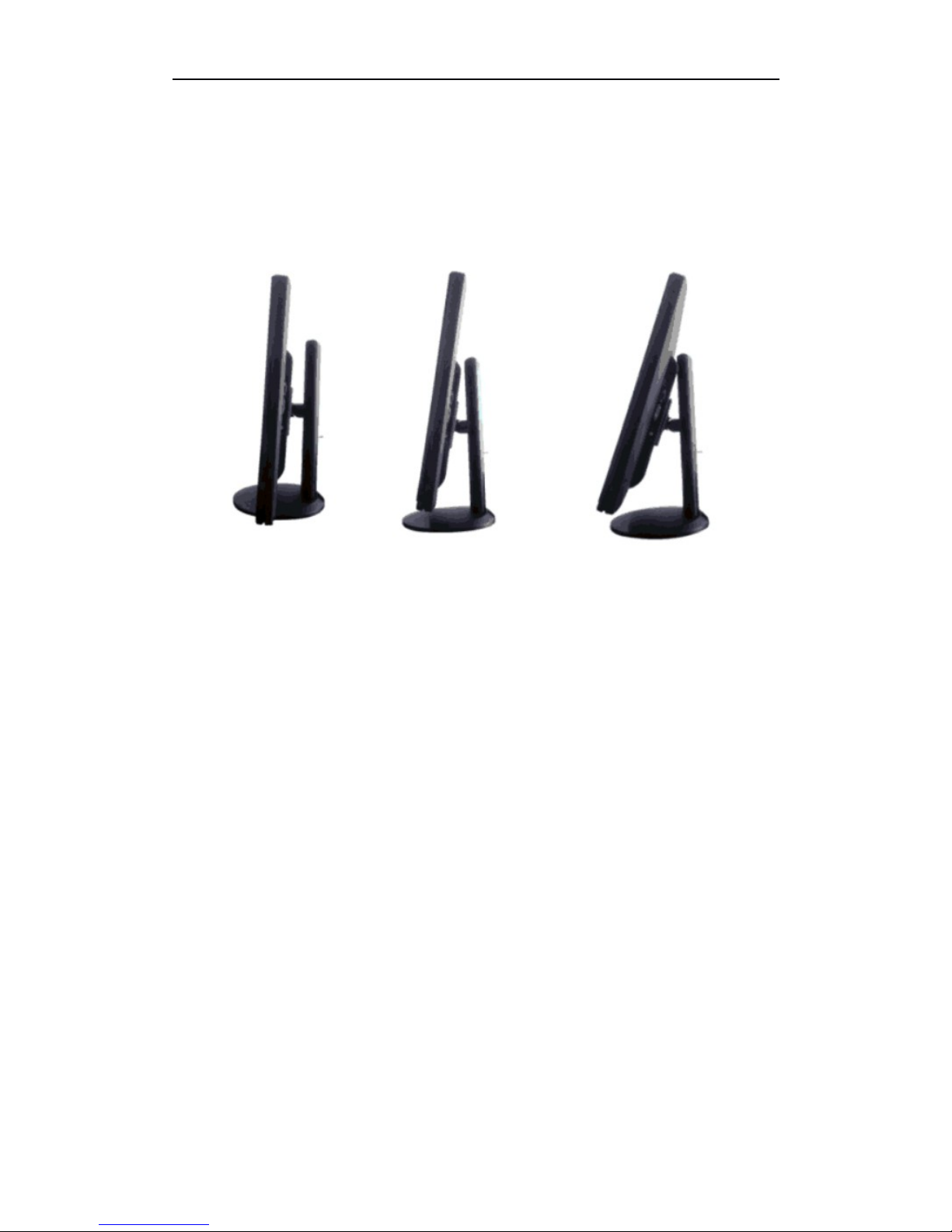

• You can adjust the angle of the display from -5° to 30° .
-5° 10°
30°
Image two
Notice:
•
Do not touch the LCD screen when you adjust the angle of the display, or it may damage or
break the LCD screen.
•
Pay attention to your adjusting motion when you adjust the angle according to the above
picture.
Page 6
Operation Instructions
General Descriptions
You can turn on or off the display with pressing the power switch. Other function buttons
are located on the front panel as shown below. By using these function keys you can get the
pictures you need.
• Connect the power cord.
• Connect the signal line to the PC graphics CARDS
• Turn on the monitor and make the switch in the opening position, then the power light goes
on.

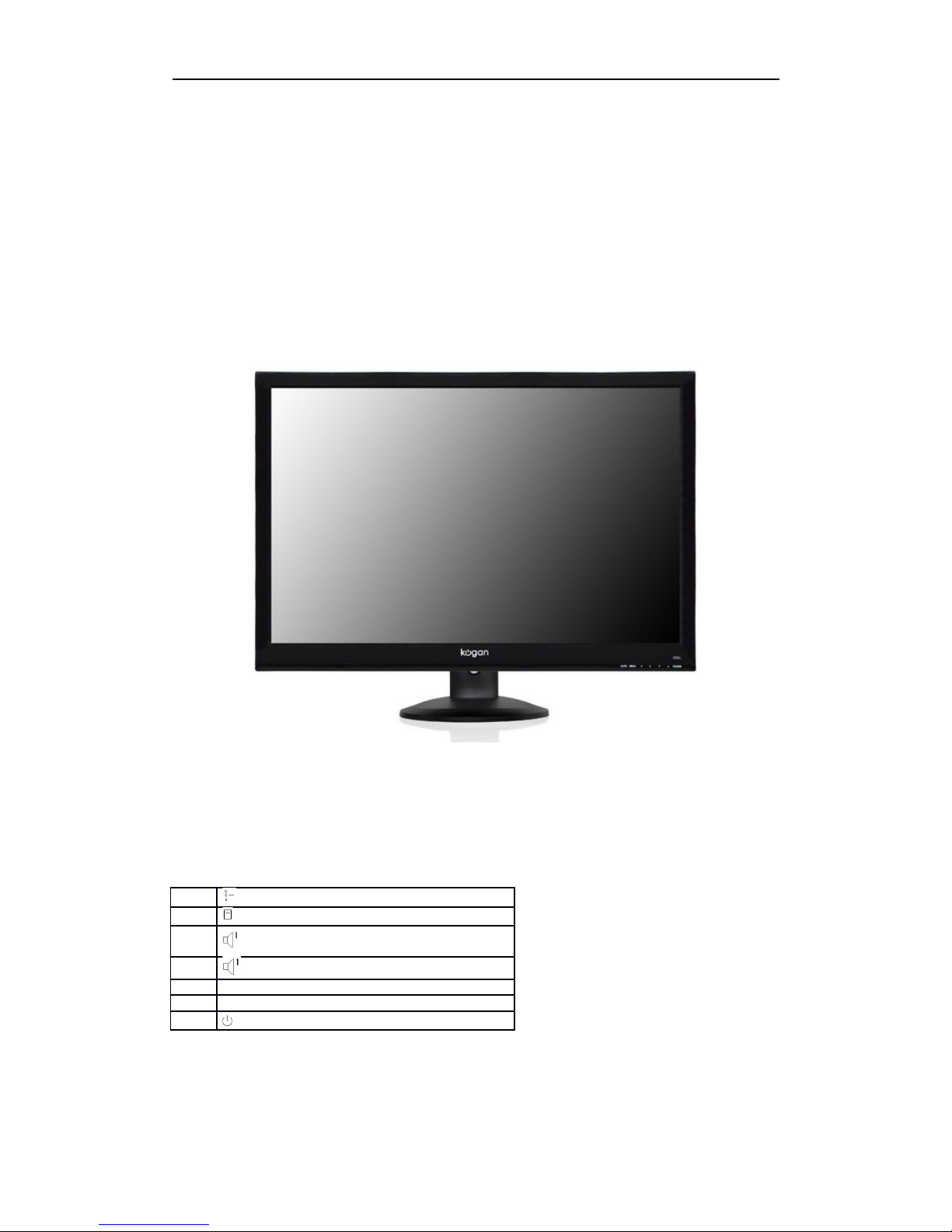

Image three: external control button
External control
1 “ ” Source Key/Automatic Adjust/Exit
2
“ ” Menu /Option Key
3
“ Vol-” Volume Control Key
4
“ Vol+” Volume Control Key
5. “▲” Hot Key
6 “▼” Hot Key
7.
“ ” Power Switch
Page 7
Panel Control
• “ ” MENU key(menu/choice)
Activate the OSD menu or function adjustment confirmation. \
• “ ” Source Signal Key/Automatic Adjustment/Exit:
1. Switch the signal shortcut key
2. When the OSD menu is active, this button could be regarded as the exit button (quit OSD
menu)
3. When the OSD menu is in the closed position, press this button for more than 3 seconds
and it will enter into the automatic adjustment function. The automatic adjustment function
will be set the level position, the vertical position, clock and focus.
• “ Vol-” Volume Control Button
Press this button to decrease volume.
• “ Vol+” Volume Control Button
Press this button to increase volume.
• “▼” Key/Hot Key：
• Press this button to directly enter into the selected hotkey types corresponding to the
hot key function.
• When the OSD directory is in the active situation, it could be regarded as the functional
regulating key.
• “▲” Key/Dynamic Contrast Ratio(DCR) Adjustment Key:
• Press this button to directly enter into the selected hotkey types corresponding to the
hotkey function;
• When the OSD directory is in the active situation, it could be regarded as the functional
regulating key.
• Powerlight:
Green: booting situation
Flicker: deplaning
Note：
• Don't put the monitor in places near to the heat source, such as a space heater, oven or
fireplace. Also do not put it in the places surrounding by dust or mechanical vibration.
• Keep the original packaging materials. If you need your monitor transported, it will
be far more convenient.
• In the event of the monitor being needed to be returned back to Kogan for servicing under
warranty, we recommend you ship the monitor back to us in the original packaging.
• In order to maintain the cleanness of LCD screen, we need to regularly use a clean soft
cloth to wipe away dust. Any liquid may damage the display screen.
• To keep the displays look good, we need to clean it regularly with soft cloth, as to the
overcoming mark, we use the downy cleaner. Don't use strong cleaner, such as diluent,
benzene or corrosive cleaner, because these things will damage the shell. For safety, pull
out the power plug before cleaning.
Page 8
How to Use the OSD Adjustment
1. Use the "MENU" button to activate the OSD window.
2. Use the "▲" or "▼" buttons to browse the main menu. If you want to make adjustments
as the functions appear and the main MENU icon background color is deep blue, press
"MENU" button to activate. If the selected function contains the submenu, and then click
the "▲" or "▼" button to browse the submenu functions. If you want to adjust the function
to be red, press the MENU key.
3. Press "▲" or "▼" to adjust the selected function settings.
4. To exit and save, please click "SOURCE" button. If you want to adjust the any other
function, please repeat step 2 and step 3 to choose and adjust.
5. The main menu icon is selected background color deep blue, otherwise the pale blue. The
submenu item was chosen red, or deep blue.

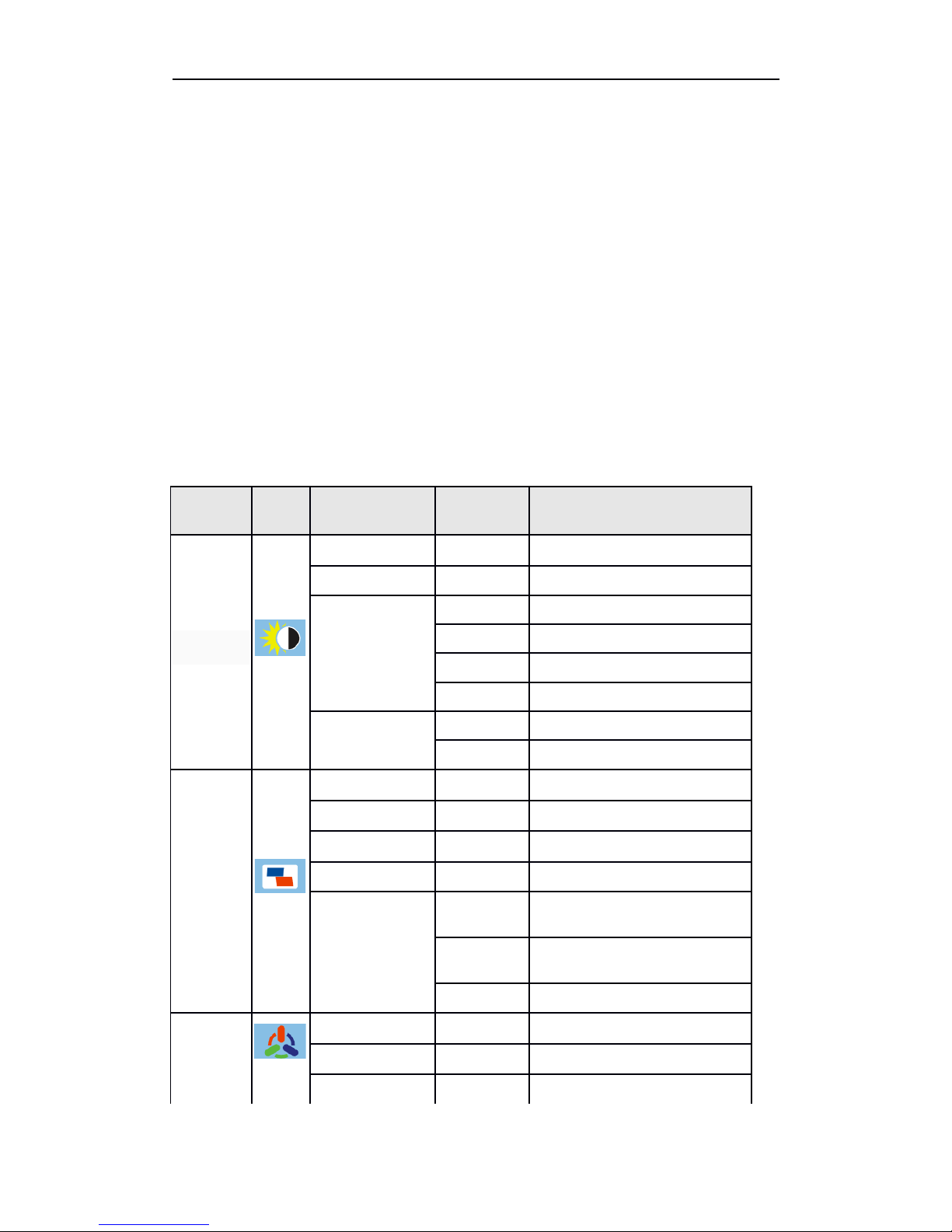

Picture Adjusting
Function Control Specification
MENU
Project
MENU
Icon
Submenu Project
Submenu
Project
Specification
Luminance
Contrast
Luminance no
Adjust display brightness
Contrast ratio no Adjust display contrast ratio
Profile
standard Normal usage pattern
text Text applied pattern
game Game applied pattern
film Film seeing applied pattern
Dynamic Contrast
Ratio
Start using Open contrast ratio
Use forbidden Close contrast ratio
Settings
Clock no
Adjust the picture clock in order to
reduce the vertical noise
Focusing no
Adjust the picture phase in order to
reduce the horizontal noise
Horizontal Position no
Adjust horizontal position of the
Upright Position no Adjust vertical position of the picture
Zoom（fit for wide
monitor）
automatic
Automatic detection and image
display ratio adjusting
Wide screen
Adjust the image ratio to widescreen
mode
4：3
Adjust the image ratio to 4:3 mode
Color
Temperature
Warm Color
Temperature
no Set it as warm color temperature
Cold Color
Temperature
no Set it as cold color temperature
User Settings red Slightly adjust red color temperature
Page 9
green
Slightly adjust green color
temperature
blue Slightly adjust blue color temperature
MENU
Project
MENU
Icon
Submenu Project
Submenu
Project
Specification

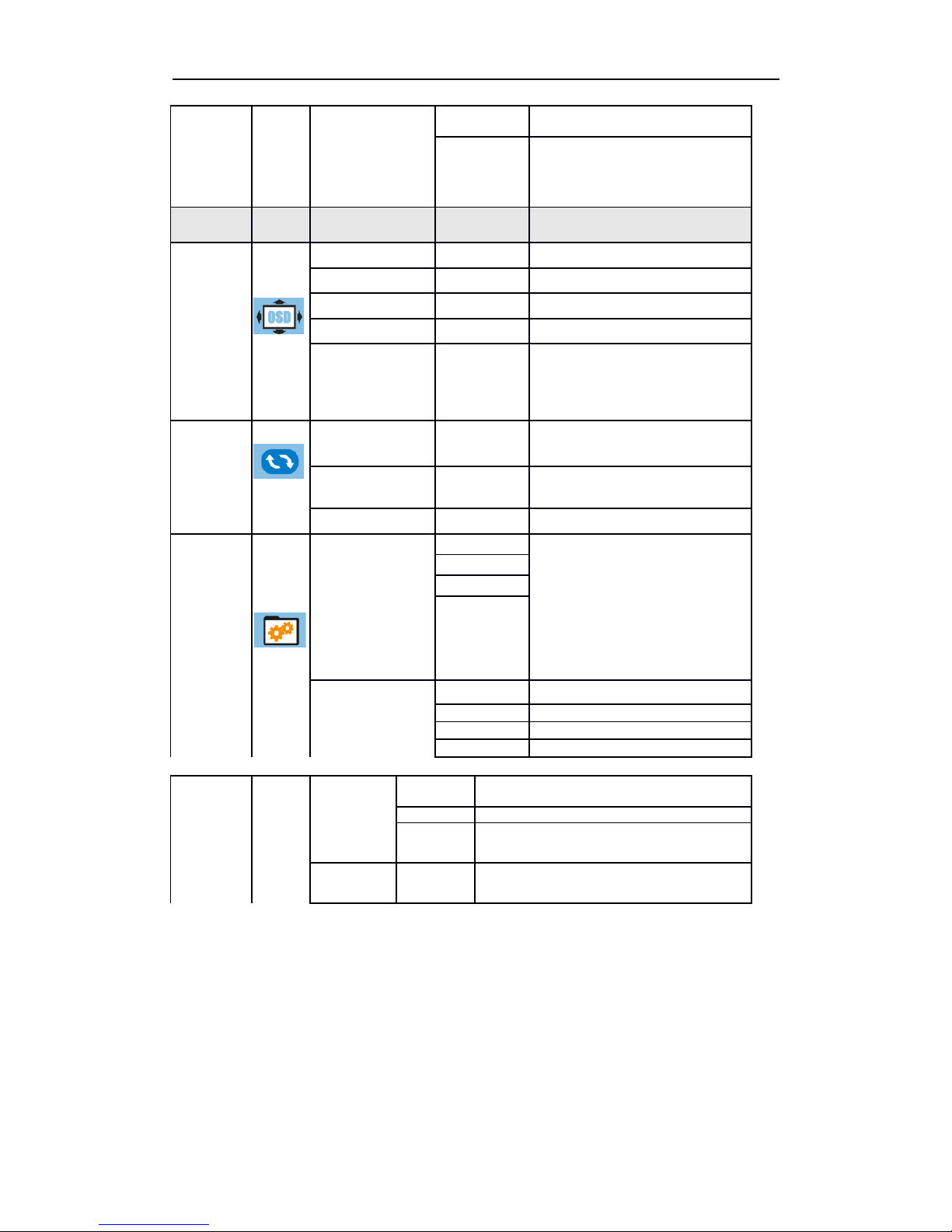

OSD
Setting
Horizontal Position
no Adjust OSD horizontal position
Upright Position
no Adjust OSD vertical position
Time Setting
no Adjust OSD display time
Clarity
no Adjust OSD clarity
Language
no
Choose the OSD menu display
language (English, French, German,
Japanese, Korean, traditional
Chinese, simplified Chinese,
Russian).
Resetting
Images Automatic
Adjustment
no
Automatically adjust the image of the
horizontal or vertical position, focus
and clock.
Color Automatic
Adjustment
no Adjust the color balance
Resetting
no Back to Factory Settings.
other
Hot Key Choice
ECO+DCR
The selected project is hot key.
The first two are provided to all
models.
ASP + ECO to widescreen display
only.
SOU + VOL to widescreen display
and at the same time with audio and
DVI signal.
BRI+CON
ASP+ECO
SOU+VOL
Input Choice
VGA
VGA（analog）signal input
DVI
DVI（digital）signal input
HDMI
HDMI（digital）signal input
DP
DP（digital）signal input
Volume Input
Choice
Analog
Voice signal source from external analog
input.
Digital Voice signal source from DP/HDMI signal
Automatic
Automatic selection according to the signal
source.
Volume no
Speaker volume adjustment. (with audio
model only)
Page 10
Technical Support (FAQ)
Problems Possible solutions
Power light is off
check the power switch is on﹡
check the connection of the power cord﹡
Image is dim adjust brightness and contrast ratio﹡
Image beating, pulsing or
corrugated picture
appearing
electrical equipment which causes ﹡
electronic jamming nearby
The power light is fine, but
no images showing on the
display
whether the power supply is OK﹡
check whether the computer vision cable﹡
has been inserted
signal lines of the displays have already﹡
connected with the computer properly
check the cable plugs to make sure the pins﹡
are not bent
observe the LCD indicator by pressing the﹡
Caps Lock key on the keyboard, confirm
that the computer is working
Lack of colors (red, green,
and blue)
check the cable plugs to make sure the pins﹡
are not bent
Picture is not in the middle
or size not suitable
adjust the clock and focus or realign using﹡
the hot keys
The images have color
issues (whites are not
displaying white)
adjustment RGB color or reselect color﹡
temperature again
Weak brightness and
contrast ratio
Adjust brightness and contrast settings. If﹡
problem persists, please contact the
Kogan customer support team.
a horizontal or vertical
interference of picture
close Win95/98/2000 / ME/XP﹡ ， adjust
CLOCK and FOCUS or executive hot
keys (AUTO key)
The clock controls the quantity of the scanning pixels per line. If the frequency is not correct,
vertical stripes will appear on the screen, and there will be incorrect screen width.
FOCUS adjusts the phase of the point signal, a wrong phase adjustment will lead to
horizontal interference on the picture.
The CLOCK and FOCUS adjustment could use the "dot-pattern" or Win95/98/2000 /
ME/XP shutdown pattern design.
Page 11
Wrong Information and Possible Solutions
No signal lines connected:
1. Check the cable plugs to assure the connection is secure. If the connector becomes loose,
please tight the screws.
2. Check whether the pins which connect signal lines are damaged.
Input is not supported:
Your computer is set in the wrong display mode, please reset your computer display settings
to display a supported mode.
Attachment
Datasheet
LCD Panel
Display device TFT color LCD monitor
Size 75.62cm(30inch)
Dot Pitch 0.2505mm(horizontal) ×0.2505mm(vertical)
Input
Video Red, blue, green analogue interface
Separation
Synchronous Line/Field TTL
Line Frequency 31kHz –96kHz
Field Frequency 60Hz
Dot Frequency 268.5MHz
Maximum Resolution
2560×1600@60Hz
Plug and Play VESA DDC2BTM
Power Consumption
Operating ≤110W
Standby ≤3W
Input Port
VGA-15pin port （ simulation 0.7Vpp polarity
signal/75Ω）
Dual-link DVI-D (24+1pin port)
DP-1.2 port
HDMI-1.4 port
Maximum Image Size
HORIZONTAL: 641.28mm
VERTICAL: 328mm
Power Source
AC 100~240V, 47~63Hz
Ambient Temperature
Humidity
Using temperature: 0C to 50C
Storage temperature: -20C to 60C
Operation relative humidity : 10% to 85%
Size 697×476×512(L×W×H)mm
Weight
Gross Weight: 12.2KG
Net Weight: 8.7KG
Page 12
External control
Switch
• Automatic Adjustment Button
• “▼”button/ Luminance Setting
Profile（Eco Mode）
• Power Supply Button
· “▲”button/ Dynamic Contrast
Ratio（DCR）Adjustment key
• Menu/Enter Key
Function
• Contrast Ratio
• Luminance
• Phase
• Timing Sequence
• Horizontal Position
• Vertical Position
• OSD setting
• Language Alternative
• Automatic adjustment
• Input Signal Information
• (Warm) Color Temperature
• (Cool) Color Temperature
• sRGB Color Temperature
• Conventional color temperature
• User Setting
• Resetting
• Exit
Power Consumption (maximum) 120 Watts
Safety Standards SAA, C-Tick, CCC, CE
Page 13
Factory Presets Mode Table
Preset 15 kinds of form on monitor, and the list is fixed
Standard Resolution H FREQ (KHz) field frequency (Hz)
• DOS mode • 720×400 • 31.469 • 70
• VGA • 640×480 • 31.469 • 60
• SVGA • 800×600 • 37.879 • 60
• XGA
• 1024×768 • 48.363 • 60
• 1024×768 • 56.476 • 70
• SXGA • 1280×1024 • 63.981 • 60
• WXGA+ • 1440×900 • 55.674 • 60
• UXGA • 1680×1050 • 59.80 • 60
• WUXGA • 1920×1080 • 67.50 • 60
• WQHD • 2560×1440 • 88.70 • 60
• WQXGA • 2560×1600 • 96.00 • 60

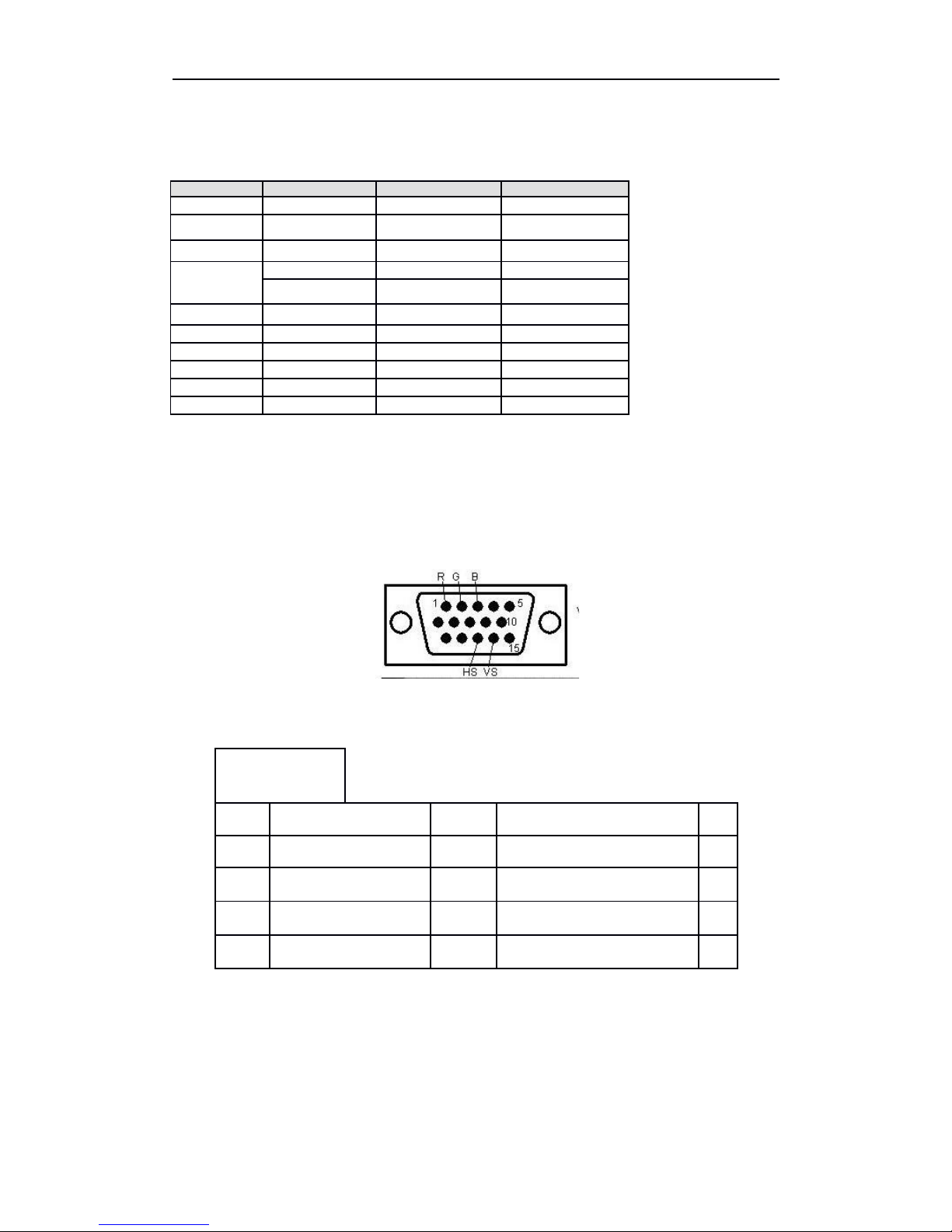

Pin Distribution
15 pin color monitor cable
15-pin D-sub
root
distribution
1 Red 6 Red(grounding) 11
2 Green 7
Blue（grounding）
12
3 Blue 8
Blue（grounding）
13
4 NC 9 Power Source 14
5 Port of Play Port 10 Grounding 15
Page 14

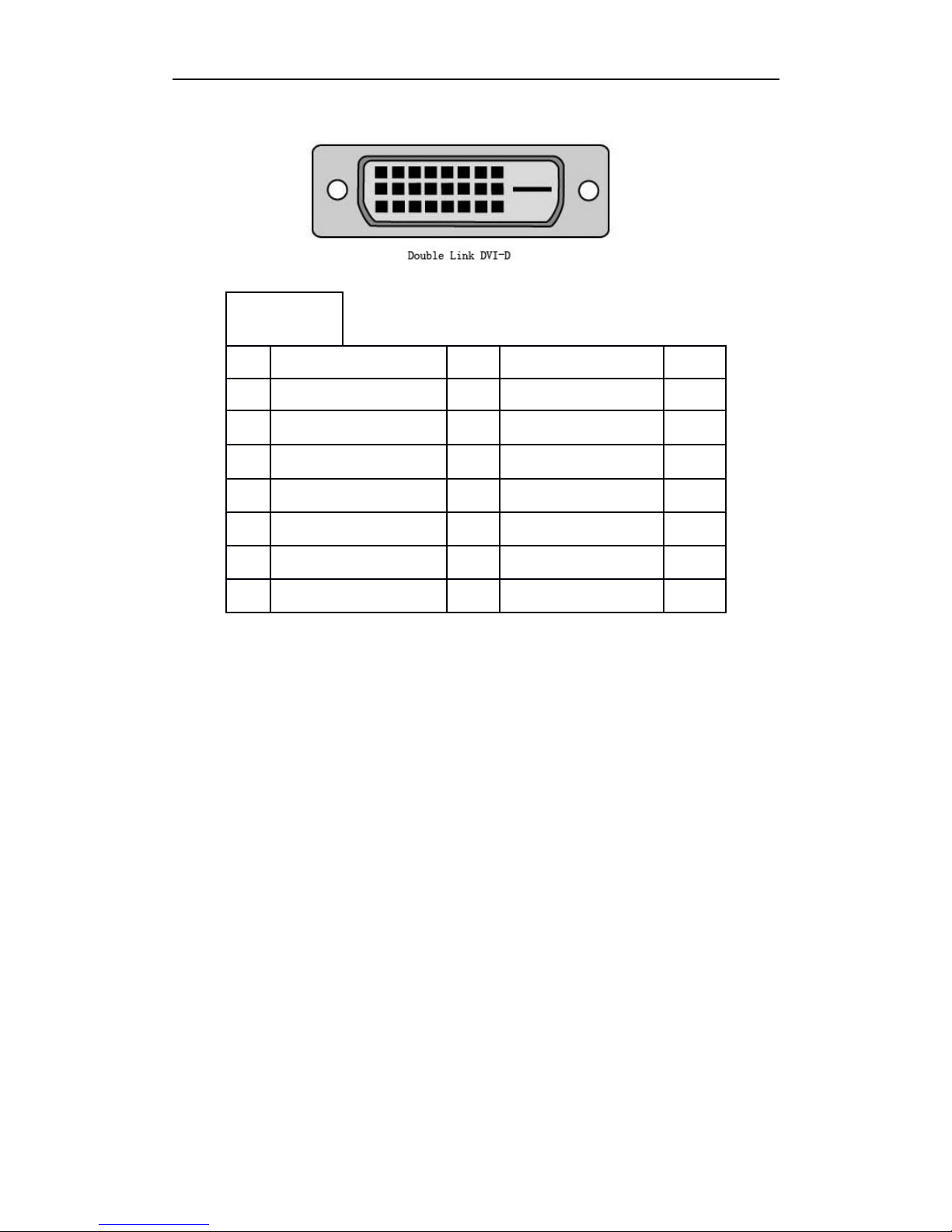

Double-link DVI-D
24+0 pin
DVD-D root
distribution
1 Data Signal 9 Data Signal 17
2 Data Signal 10 Data Signal 18
3 Grounding 11 Grounding 19
4 Data Signal 12 Data Signal 20
5 Data Signal 13 Data Signal 21
6 DDC- SCLK 14 NC 22
7 DDC- SDA 15 Grounding 23
8 NC 16 Plug and Play Port 24
Loading...
