Page 1
<K&E^
USER MANUAL
Page 2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic precautions should always be followed, including
the following:
1. Read all instructions.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label
of the coffee maker.
3. To protect against fire, electric shock and injury to persons do not immerse cord,
plug or unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from electrical outlet when not in use and before cleaning. Allow unit to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or has been damaged in any manner. Return appliance to an authorized
service facility for examination, repair or adjustment.
7. The use of accessory not recommended by the appliance manufacturer may result in
fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Do not use appliance for other than intended use.
12. Only fill the tank with clean and cold water. Never fill the tank with mineral water,
milk or other liquids.
13. To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the
cord.
15. Some parts of appliance are hot when operated, so do not touch with hand. Use
handles or knobs only.
16. Do not leave the appliance on unattended.
Page 3
17. The environment temperature of operating or storing should be more than 0 . ℃
18. Do not leave the appliance exposed to atmospheric conditions (sun, rain etc..)
19. This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliances by a person
responsible for their safety.
20. Children should be supervised to ensure that they do not play with the appliance.
21. This appliance has been incorporated with a grounded plug. Please ensure the wall
outlet in your house is well earthed.
22. Do not let the coffee maker operate without water.
23. Do not use outdoors or for commercial purpose.
24. This appliance is intended to be used in household and similar applications such as:
– Staff kitchen areas in shops, offices and other working environments;
– Farm houses;
– By clients in hotels, motels and other residential type environments;
– Bed and breakfast type environments.
25. Save these instructions.
2
Page 4
KNOW YOUR COFFEE MAKER
Detachable water tank
Water tank cover
Handle
Capsule holder
Coffee button (with indicator)
Capsule collection tray
Tray support
Drip tray
Cup holder grid
Power switch
FOR THE FIRST USE
Check that all accessories are complete and the unit is not damaged. Add water into water
tank, then lift the handle and open it. Insert a coffee capsule into machine then close the
handle. Place a container on the cup holder grid, insert the plug, turn on the power switch
and the red indicator will light. Wait until the blue indicator is lit, then press the coffee
button and the nozzle starts to let out water and allow it flow for 2 minutes. The flow will
not stop automatically, so stop it by pressing the coffee button again. Then discard the
water. Clean all detachable parts thoroughly with warm water. Keep the spent capsule for
subsequent washing operations.
NOTE: While pressing down the coffee button, the machine may produce a pumping
sound, this is normal. The sound tells you that water is pumped for brewing coffee.
3
Page 5
USING YOUR COFFEE MAKER
1. Fill the detachable water tank with drinking water. The water level should not exceed
the MAX level marked on the tank.
2. Open the handle by lifting it and insert a coffee capsule. Close the handle by pushing it
down directly.
3. Plug the power cord into the outlet. Turn on the power switch and the red indicator will
turn on, it will not extinguish until you turn off the power switch. Wait until the blue
indicator turns on.
CAUTION: During brewing, never open the handle. Otherwise the coffee capsule will
be expelled into the collection tray.
4. Position a cup on the cup holder grid. Make sure the drip tray is assembled in place.
5. Once the blue indicator lights up, press the coffee button, the coffee will flow out from
the coffee nozzle. Once the desired quantity has been reached, press the coffee button
again to stop flowing.
NOTE: The flow will not stop automatically, if want to stop it press the button again.
NOTE: We recommend the best coffee capacity is 30ml for each coffee capsule.
6. Once you have made coffee, always expel the spent capsule. Capsules are automatically
expelled into the capsule collection tray by opening the handle.
Caution: Never open the handle during brewing cycles.
7. If you want to another cup, insert a new capsule for operation.
8. Empty the capsule collection tray and rinse the unit and tank frequently.
9. Always turn the coffee maker off and disconnect the power supply when not use.
4
Page 6
CLEANING AND MAINTENANCE
Be sure to unplug this appliance before cleaning. To protect against electrical shock, do
not immerse cord, plug or unit in water or liquid. After each use, always make sure plug is
first removed from wall outlet. We recommend that the following is performed on a
regular basis:
1. Insert an empty and washed capsule and prepare 1 or more cups to wash the coffee
distributor.
2. Use a dry cloth to wash the removable water tank.
3. Empty the capsule collection tray and clean it.
4. Clean the capsule holder with a dry cloth.
5. Use a damp cloth to gently wipe the cup holder grid. Empty the capsule collection tray
and rinse it.
6. Clean the machine using a damp cloth, never submerge the machine.
7. Replace all parts and keep for next use.
REMOVING MINERAL DEPOSITS
To keep your coffee maker operating efficiently, you should clean away the mineral
deposits left by the water regularly according to the water quality in your area and the
frequency use the appliance, the detail is as follows:
1. Fill the water tank with water and descaler to the MAX level in the gauge of coffee
maker (the scale of water and descaler is 4:1, the detail refers to the instruction of
descaler. Please use “household descaler”, you can use the citric acid instead of the
descaler (the one hundred parts of water and three parts of citric acid).
2. Turn on the power switch, the red indicator will turn on. Wait until the blue indicator
turns on.
3. Lift up the handle and insert an empty capsule. Then close the handle.
4. Position a container on the cup holder grid.
5. Press the coffee button and allow the liquid to flow for 1 minute. Then stop flowing by
press the coffee button again.
6. Wait for 20 minutes with the machine turned on.
7. Press the coffee button until all of the water is used up.
8. Rinse the tank well and fill with clean water. Press the coffee button until all of water is
used up.
NOTE: For descaling and rinsing operations, use an empty capsule.
5
Page 7
TROUBLE SHOOTING
Problem Solution
No indicator. Check that the plug has been inserted
correctly into the socket, that the power
button has been pressed and that the
corresponding red light is on.
The machine makes a strange noise. Check that there is water in the tank
The lights are on but no coffee comes out. The capsule inserted may be faulty. Wait for
a few seconds, then try again with a new
capsule.
There are signs of water at the bottom of
machine.
Make sure that the tank has been fitted
correctly into position.
A slight hiss can be heard after the coffee
has been released.
This is not a fault, but normal settling of the
pressure control valve.
ENVIROMENT FRIENDLY DISPOSAL
6
You can help protect the environment!
Please remember to respect the local
regulations: hand in the non-working electrical
equipments to an appropriate waste disposal
center.
Page 8
<K&E^
DŝůŬ&ƌŽƚŚĞƌ
USER MANUAL
Page 9

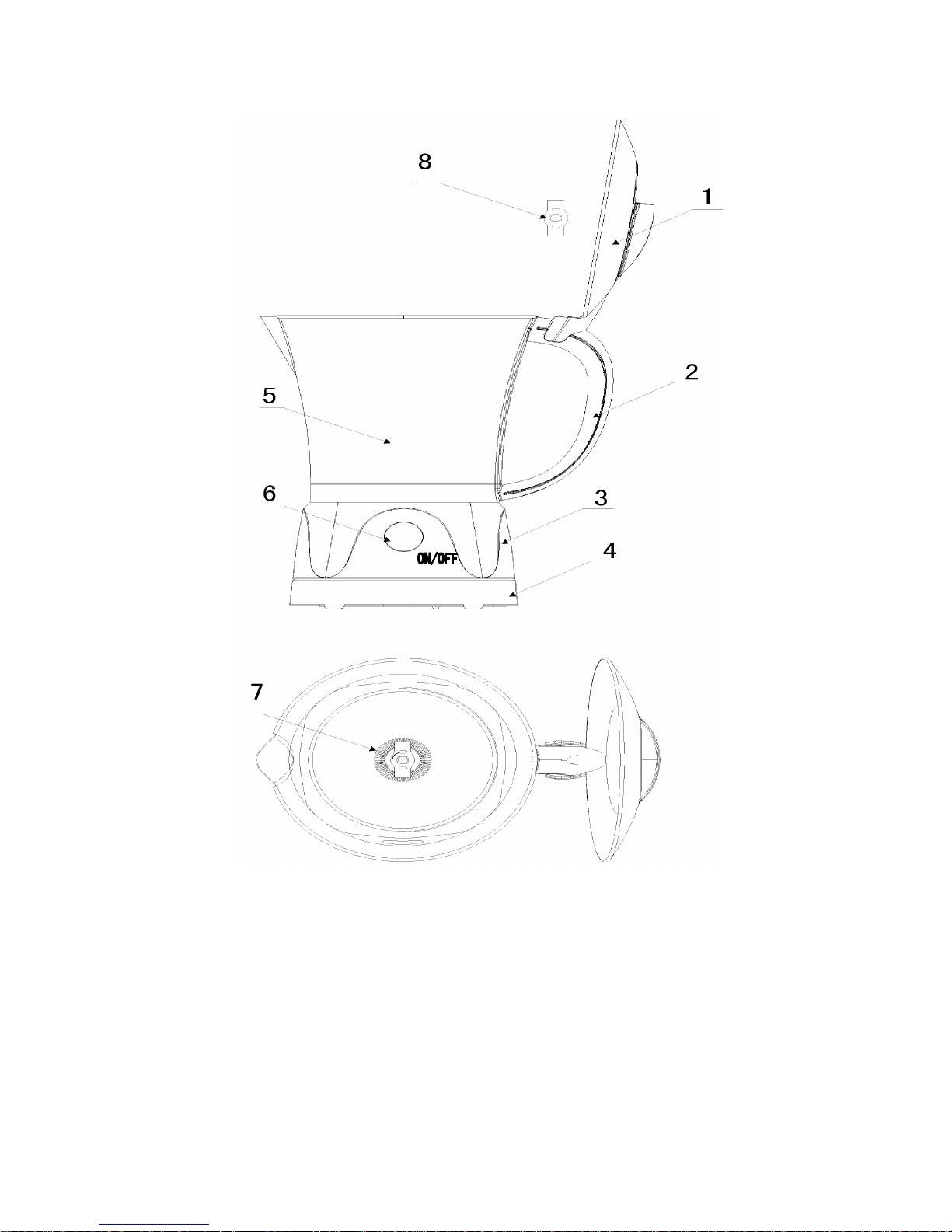

1. Lid 5. Housing
2. Handle 6. Power switch
3.
Base 7. Stir set
4.
Bottom 8. Stir bracket
2
Page 10
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be always be followed.
1. Read all instructions.
2. To protect against electrical hazards, do not immerse cord, plugs, or the appliance in water
or other liquids.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from power outlet when not in use and before cleaning. Allow to cool before putting
attaching or unattaching parts, and also before cleaning the appliance.
5. Do not operate any appliance with a damaged cord or plug ,or after the appliance has
malfunctioned, or has been damaged in any manner.
6. Do not use outdoors.
7. Do not let cord plug over edge of table or counter, or to touch hot surfaces.
8. Do not place near a hot gas or electric burner, or in a heated oven.
9. Extreme caution must be used when moving an appliance.
10. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect,
turn controls to “Off”, and then remove plug from wall outlet.
11. CAUTION: This appliance generates heat during use. Proper precaution must be taken
to prevent the risk of burns, fires or other damage to persons or properties.
12. Do not leave unit unattended while in use.
13. This appliance is for Household Use Only. Do not use appliance for other than intended
use.
14. To reduce the risk of electric shock, cook only in the removable ceramic pot.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.
OPERATION:
3
Page 11
A. To prepare and make the milk froth
1. Open the plastic lid.
2. Pour the fresh milk into the jug to a level between the max. level and the min. level.
3.
Plug the power cord into the power supply and press the power switch. Light will illuminate.
4. The bottom heating plate will generate heat and the stir net will rotate.
5.
The milk inside will be swiveled and heat up.
6.
After a short period of time (about 1 min.) when the milk has reached the pre-set
temperature of 80 degree cel. unit will stop stirring and heating. Milk will be heated and
frothed at this point.
B. To warm the milk
Replace the stir net with the stir bracket and follow the above instructions.
The desired hot milk to be prepared.
CAUTION:
* Do not immerse the appliance in water or other liquids. There is a danger of electric shock.
* Do not use any aggressive or abrasive cleaning agents, nor any sharp objects (such as
knives or hard brushes) when cleaning.
TECHNICAL SPECIFICATIONS:
Power : 550w
Main voltage : 230V ~ 50Hz
Capacity : Min. 0.3L / Max. 0.8L
ENVIRONMENT:
When you are ready to dispose of the appliance, remove the plug from the wall socket, and
cut the power cord. Keep the appliance and its parts out of reach of children. Deliver the unit
to an approved collection point for small electrical appliances.
Dispose of package materials such as plastic and cardboard in the appropriate manner.
4
