Kogan KACCTV4CHA User Manual

Table of Contents

Chapter One: Product Introduction......................................................................................................2

1 Brief Introduction.........................................................................................................................2

2 Main Features...............................................................................................................................2

Chapter Two: Hardware........................................................................................................................3

1 Package Content...........................................................................................................................3

2 Front Panel Operation...................................................................................................................3

3 Rear Panel of Operation................................................................................................................3

4 Remote Controller.........................................................................................................................3

5 Hard Disk Installation...................................................................................................................4

6 Rear Panel Connection..................................................................................................................4

Chapter Three: Usage...........................................................................................................................6

1 Brief Introduction.........................................................................................................................6

2 Menu Operations...........................................................................................................................7

Chapter Four: Operations.....................................................................................................................8

1 Turn on..........................................................................................................................................8

2 Preview.........................................................................................................................................8

3 Record.........................................................................................................................................10

4 Camera Control...........................................................................................................................11

5 Motion Detection Settings..........................................................................................................12

6 Mask Setting...............................................................................................................................13

7 Playback......................................................................................................................................13

8 Backup........................................................................................................................................14

9 Alarm Settings.............................................................................................................................14

10 Network Operation...................................................................................................................15

11 Maintenance..............................................................................................................................18

10 Advanced Settings.....................................................................................................................20

Chapter Five: Appendix......................................................................................................................22

1 Specifications

.......................................................................................................................................................22

2 Methods of Calculating HDD Capacity......................................................................................24

3 Default Values.............................................................................................................................25

4 Introduction of Mobile Phone Monitoring..................................................................................27

1

Chapter One: Product Introduction

1 Brief Introduction

This series DVR is a 4-channel playback H.264 main profile standalone DVR with Pentaplex functionality:
record, playback, live preview, remote preview and backup supported.
With professional and high performance intelligent audio and video solutions, user-friendly GUI and practical
industrial design, this series DVR is suitable for civil applications such as home, store, internet bars and
small offices as well as for common security and surveillance applications.

2 Main Features

• Compression
4/8 channel PAL/NTSC/SECAM video input and H.264 compression standards with each channel
being compressed independently in real-time CIF resolution, or non-real time D1,2CIF resolution.
4 channel audio input and G.726/ADPCM-IMA compression standards with each channel being
compressed independently in 24Kbps.
Compressed video and audio are synchronous. You can select either mixed streams or individual
video streams.
Four-level record quality and self-defined bit rate and frame rate settings supported.
Adjustable video parameters.
Multi-area motion detection.
OSD of channel name and time supported.

• Recording
Manual record and schedule record supported. The schedule report types include: timing, motion
detection, alarm, motion detection | alarm.
SATA hard-disk supported.
Backup and clip record files through USB drive, portable USB HDD and USB CD/DVD RW
supported.

• Preview and Playback
Simultaneous output of VGA and TV.
Up to 4 channels playback in fast play mode, slow play mode, rewind and single frame forward
supported.
OSD of channel name and time supported.
Status displaying of local record, alarm and motion detection supported.

• Control
Controlling of PTZ and dome supported.
Controlling multiple DVRs with on RS485 keyboard.
Setting and calling preset, sequence and track supported.

• Alarm
Local alarm (includes exception and motion detection, video loss and hard disk full) triggered
handling supported.
Alarm linkage: triggered record, linkage alarm output and linkage PTZ preset, sound alarm, report to
alarm center, linkage channel single screen display and e-mail.

• Network
TCP/IP supported.
PPPoE supported.
Dynamic access to IP address, Dynamic Host Configuration Protocol (DHCP) supported.
DDNS supported.
Visit video files in DVR HDD through network neighbourhood supported.
Controlling of PTZ, configuring device parameters, acquiring device status and logs, and upgrade
remotely through network supported.
Local recording through network supported.

2

Chapter Two: Hardware

This chapter is a general description of the device interfaces and connections. It describes the methods of
hard disk installation, the interface of the front panel and the rear panel for users to connect the cables
correctly.

1 Package Content

After purchasing the DVR product, unpack it and unload it flat onto the floor or a place where it is to be
located, and refer to the “Package Contents” for the correct number of device fittings.

2 Front Panel Operation

Table 1 – Front Panel Description

Type Name Description

LED

Power Red when recording. Green when not recording.

HDD Hard disk indicator. Green or blinking when reading/writing.

Black when idle.

3 Rear Panel of Operation

Table 2 – Rear Panel Description

NO. Interface Description

1 Video In 4/8 channel video input: BNC (1Vp_p, 75Ω)

2 TV Out

1 channel TV output, BNC (1Vp-p, 75Ω)

3 Audio Out 1 channel audio output, BNC (2Vp-p, 600Ω)

4 Audio In 4 channels audio input: RCA (2Vp-p, 600Ω)

5 VGA Output 1: DIN-15

6

Network Interface 1: RJ45 10/100M self-adaptive

USB Interface 2: USB 2.0

7 RS485 1: Half Duplex ( + - )

8 Power DC 12V

4 Remote Controller

Table 3 – Remote Controller Description

NO. Name Description

1 REC Record

2 Power ON/OFF Turn the device off or on.

3 Numbers Input numbers or select to switch among relevant channels.

4 Function Buttons DEL: Delete

5 Arrow Buttons

When in menu mode, press [◄ ], [► ] to move to selection boxes.
Press [▲ ], [▼ ] to select sub-menu parameters.

6 1) Press to confirm operations in menu mode.

2) Press to select record type in setting schedule.

3) Press to change status of the current motion detection block.

3

7 Switch between single screen and multi-screen.

8 FN 1) Press to switch from single split to multi-split view mode, or

reverse in preview and playback mode.

2) Press to enter/exit continuous selection when setting motion
detection area and schedule record.

3) Press to set start time and end time in file search.

9 MENU One key system setup.

10 ESC Return to previous menu.

11 PTZ One key PTZ control.

12 BACKUP Backup Record

13 TV/VGA Switch the operation interface between TV and VGA.

14 CLEAR Alarm Off

15 SEQ Call Sequence

16 1) Play/Pause

2) One key file search

17 Stop

18 Play in slow mode/fast rewind

19 Fast forward

5 Hard Disk Installation

The hard disk is not included in the factory fittings. Users can mount suitable hard disks by calculating its
capacity referring “Appendix 5.2 Methods of Calculating HDD Capacity”.

1) Installation procedure

• Open the DVR case. Mount the 4 shock absorption washers into the clamping slots (four protruding
steps) in the case.

• Connect the HDD data cable and HDD power cable to the HDD.

• Attach the hard disk to the shock absorption washers by aligning the installation holes to the case.

Hold and fix them by 4 x M3*12 head screws plus plain washers.

• Connect the HDD data cable and HDD power cable to the respond interfaces of the main board.

• Replace the DVR top cover, then screw it closed.

NOTE: If installing your own HDD, please be sure to purchase a DVR rated HDD instead of a computer rated
HDD. Computer rated HDDs are not designed for continuous DVR use.
NOTE: Please format the HDD for the first use, or the system will return a “Hard Disk Error” notification
accompanied by an audio alarm. Please see 4.9 Maintenance for details.

6 Rear Panel Connection

• Power Input

Connect the power adapter to the Power Input interface of the DVR. Confirm that the DVR power supply
input switch is positioned correctly for the local voltage before connecting and powering the unit.
Turn on the unit. The power LED will light up if the power cable is connected correctly.
NOTE: Please use the power adapter contained in the package.

• Video Input

The video input interface is standard BNC socket, 1Vp-p, 75Ω.
NOTE: The video signal cable should be kept away from the interference of strong electromagnetism and the
city electric power grid.

4

• Audio Input

The audio input interface standard RAC socket, 2Vp-p, 600Ω.
NOTE: The audio input resistance is a little high, please use an active sound collection device or active
microphone. The audio signal cable should be kept away from the interference of strong electromagnetism
and the city electric power grid.

• Network Input

The network input interface is RJ45 10/100M self-adaptive.
NOTE: Confirm that the network band width is enough for transmitting high definite images smoothly.

• Alarm Input and Output

The alarm input device should be the type of GND connected alarm or voltage input alarm, which can be set
as N/O, or N/C.
The requirement of signal input level for voltage alarm type is: low level 0~2V, high level 5~15V.
The green angle pins of the signal cable are designed for access of PTZ and alarming devices. Please
follow these steps to connect.

1. Pull out the angle pins that are inserted in the alarm input and output interfaces.

2. Unscrew the screws with a micro Philips screwdriver, insert the signal cable into the interface under
the spring, then tighten the screws.

3. Plug the connected pins into the green angle pin socket.

• PTZ Input (Pan-Tilt-Zoom)

Connect the PTZ control interface to the RS485 interfaces of the rear panel. The connection method is
similar to the method above.
NOTE: Please refer to the PTZ manual for setting specific parameters, for some PTZ devices contain
multiple telecommunication protocols, baud rates and IDs.
Video Output: VGA/Monitor Input
Video output interface: TV and VGA, which can work together simultaneously.
NOTE: VGA and TV cannot be in the operation interface simultaneously, but can be switched by mouse,
panel or remote control in the menu.

5

Chapter Three: Usage

1 Brief Introduction

6

2 Menu Operations

Press [SET] button to enter into system setting screen.
Press [●] button to start/stop recording manually.
Press [► ▋▋ ] button to play the recorded file.
Press [PTZ] to enter into the PTZ control screen.
NOTE: This manual indicates the menu selection icons and selection boxes in [XX]; the buttons in the menu
screen (except menu selection icons) in [XX]; the buttons on the front panel and remote controller in [XX].
The highlight menu is the current active one. The user can move the highlight icon on the menu by using the
[►], [◄], [▲] and [▼] buttons, and press the [OK] button to confirm the selection, or press [ESC] to return to
the upper menu.
Selection Box: User can move the highlight icon in the selection box by using the [◄] and [►] button, and
press [OK] to confirm the selection. Multiple items are allowed to be selected together at once by left clicking
the mouse.
Sub menu list: User can move the highlight icon to the sub menu required by using the [◄] and [►] button,
or roll the mouse to select directly. Only one item can be selected here.
Edition Box: When in edition box, user can type in numbers directly by pressing the number buttons. Press
[DEL] to delete the character before the cursor and press [OK] or [ESC] button to exit.
Sub screen button: Press it to pop up the sub screen. When in sub screen, select [CONFIRM] to save the
configuration and return to the upper menu. Press [ESC] or select [CANCEL] to return to the upper menu
without being saved.
Use [◄], [►] to move the highlight icon to any of the selection boxes. Press [OK] button to switch to another
select status. User [▲], [▼] to specify the sub menu value where sub menu selections exist.
Exit: User can click the button on the upper right corner, or single right click the mouse, or press [ESC]
button to enter into the Save & Exit screen. You can select exit directly or exit after being saved.
NOTE: There are two different ways to take effect: take effect instantly or take effect after being saved.
Please refer to the navigation for details.

7

Chapter Four: Operations

This chapter mainly describes the main system operations of the DVR. Please refer to the following contents
for details.

1 Turn on

Start Up

The power LED will be lit up after powering on correctly. Please refer to 2.6 Rear Panel Connection for
details of connection method. Press [Power on/off] to start up the device. The preview screen will appear.
After pressing the [ESC] button of the panel or remote, or right clicking the mouse, the login box will appear.
Please select the proper user and type in the relevant password to log in.
NOTE: It takes about 60 seconds for the unit to start up. Please be patient.
NOTE: Modify the password by selecting <Tool Bar>→<System>→<System Setting>→<Password Setting>.
Set as indicated and the new password will take effect instantly.
NOTE: Default password for Admin is 111111. Default password for User is 111111. Admin password
can be restored to factory defaults by short-circuit “JP 1” on the main-board. After logging in by Admin, the

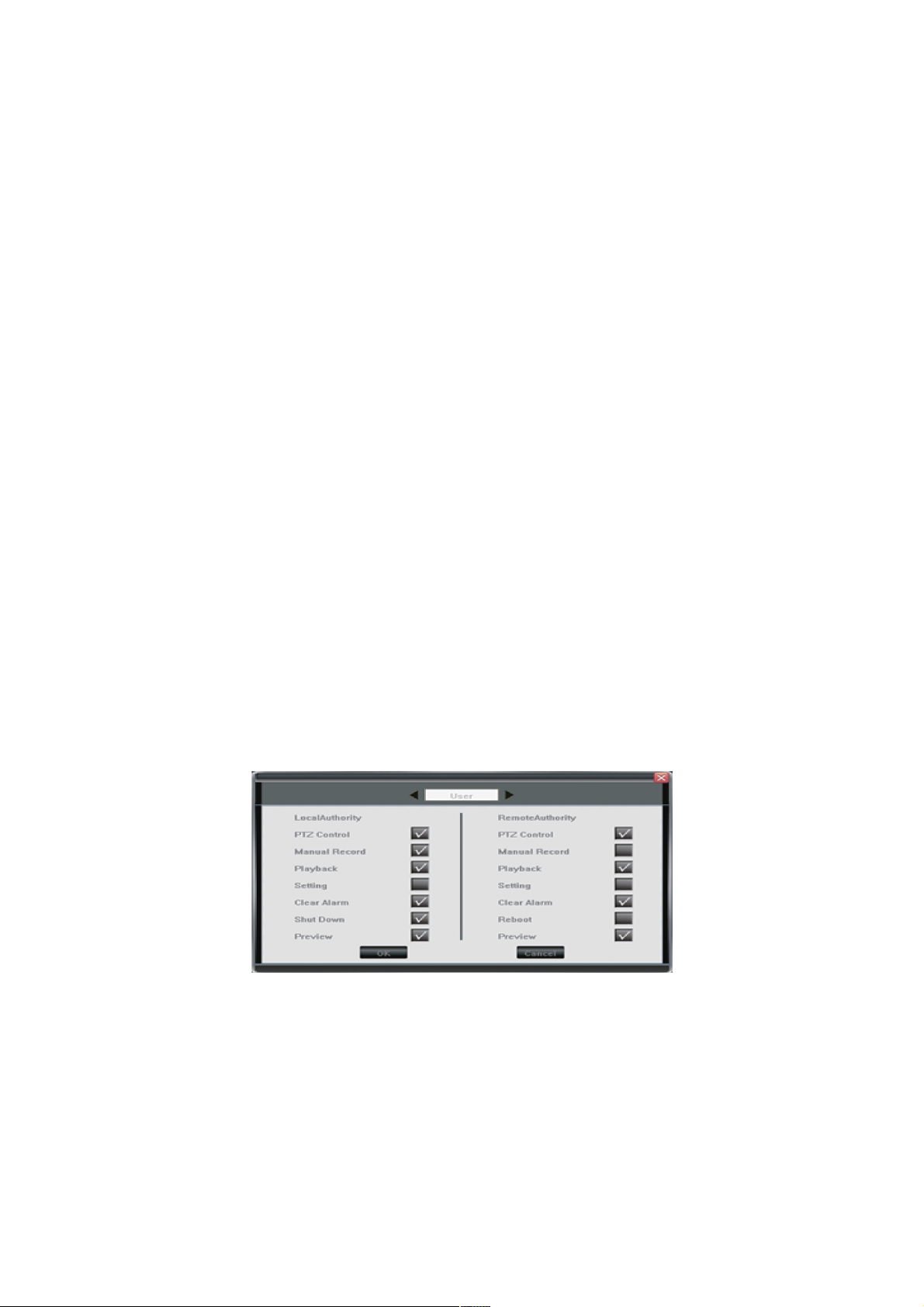

Admin can change the user's password. The system supports 8 users, and the Admin is the manager user
with all permissions, whose name cannot be deleted or changed. The Admin user can add and delete all
other users and permissions.
NOTE: The DVR will buzz and “NO Hard Disk” appears when running without a hard disk. User can choose
whether to buzz or not when using without a hard disk.
NOTE: The DVR can identify the display device automatically. When connected either to VGA or TV, the
menu will be on the specified screen automatically after start-up. When connecting VGA and TV
simultaneously, two images will be displayed on the screen, with it defaulting to VGA first. User can switch
by clicking in the tool bar.

SYSTEM SETTINGS

Language: Please enter <Tool Bar>→<System>→<System Setting>→<Language> to set the language.
VGA Resolution: Please enter <Tool Bar>→<System>→<System Setting>→<VGA Resolution> to set the
VGA resolution and refresh rate. It supports 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz,
1440x900@60Hz currently. Please select relevant values according to the parameters of your setup.
Time Format: Please enter <Tool Bar>→<System>→<System Setting>→<Time Format> to set the time
format. 12 hour and 24 hour formats are supported.
Date/Time: Please enter <Tool Bar>→<System>→<System Setting>→<Time Setting> to set the date and
time.
Video Standard: Please enter <Tool Bar>→<System>→<System Setting>→<Video Standard> to set the
video standard. PAL, SECAM and NTSC are supported. Please set according to the parameters of the
camera.
NOTE: Please make sure the HDD is not recording when you set the system time, as it can cause an error
when playing back recorded video.
NOTE: “Language” and “Time” will take effect immediately. “Record Resolution” and “Video Standard” will
only take effect after being saved.
NOTE: When the resolution setting exceeds the range of the display, please click [ESC][2][ESC] on the Front
Panel or remote controller within 3 seconds to reduce the resolution to 800x600@60Hz.
NOTE: Users can refer to the navigations on the bottom of the main screen to look for relevant guides.
Meanwhile, navigation info will display “Take effect instantly” / “Take effect after being saved”.

2 Preview

After starting up the system, the screen has a live view area and a tool bar. Right-click the mouse in
preview mode or press [OK] on the front panel, and the tool bar will appear. The system status column can
be dragged anywhere on the screen by mouse, and will be back in the default position next time the device is
restarted. The column can be hidden by right-clicking the mouse.
Videos, OSD of channel name, record time and alarm notifications will be displayed on screen.

8

1) Channel Status Display Area

Under preview mode, channel shows current input image and channel status information (video status and
mode, motion detection)

View Mode Switching

When in 1/4/6/8/9/16 splits view mode, the tile with the highlighted green border is the currently selected one.
The user can use the mouse or press the direction buttons to switch to another tile. If the audio output
device is connected, the audio can be previewed together with video. The audio of the current channel can
be previewed besides in playback mode.
Users can select to display a particular channel by pressing the number buttons.
When in preview mode, user can enter into 1/4/6/8/9/16 splits view mode by pressing the button
directly, or vice versa.
NOTE: For 8 channel DVR, the view mode can be directly switched by tool bar. Please refer to 4.2.3 “Tool
Bar”.

Image Parameters Setting

Please enter <Tool Bar>→<System>→<Video>→<Colour Setting> to set brightness, contrast, hue and
saturation. It will take effect instantly.
NOTE: User can set image parameters of one channel one at a time, or for all channels at once by selecting
[ALL] in <Camera Channel>. It is similar to other screens when the user wants to set four channels together
at once: select [ALL] in <Channel>.
NOTE: In preview mode, brightness and contrast can be adjusted by the remote controller directly.

OSD Settings

The OSD of channel name and system time is supported. Please enter <Tool Bar>→<System>→<Record
Setting>→<OSD Setting> to set. The channel name will be displayed on the left upper corner, and the
channel time will be displayed on the right corner of the screen.

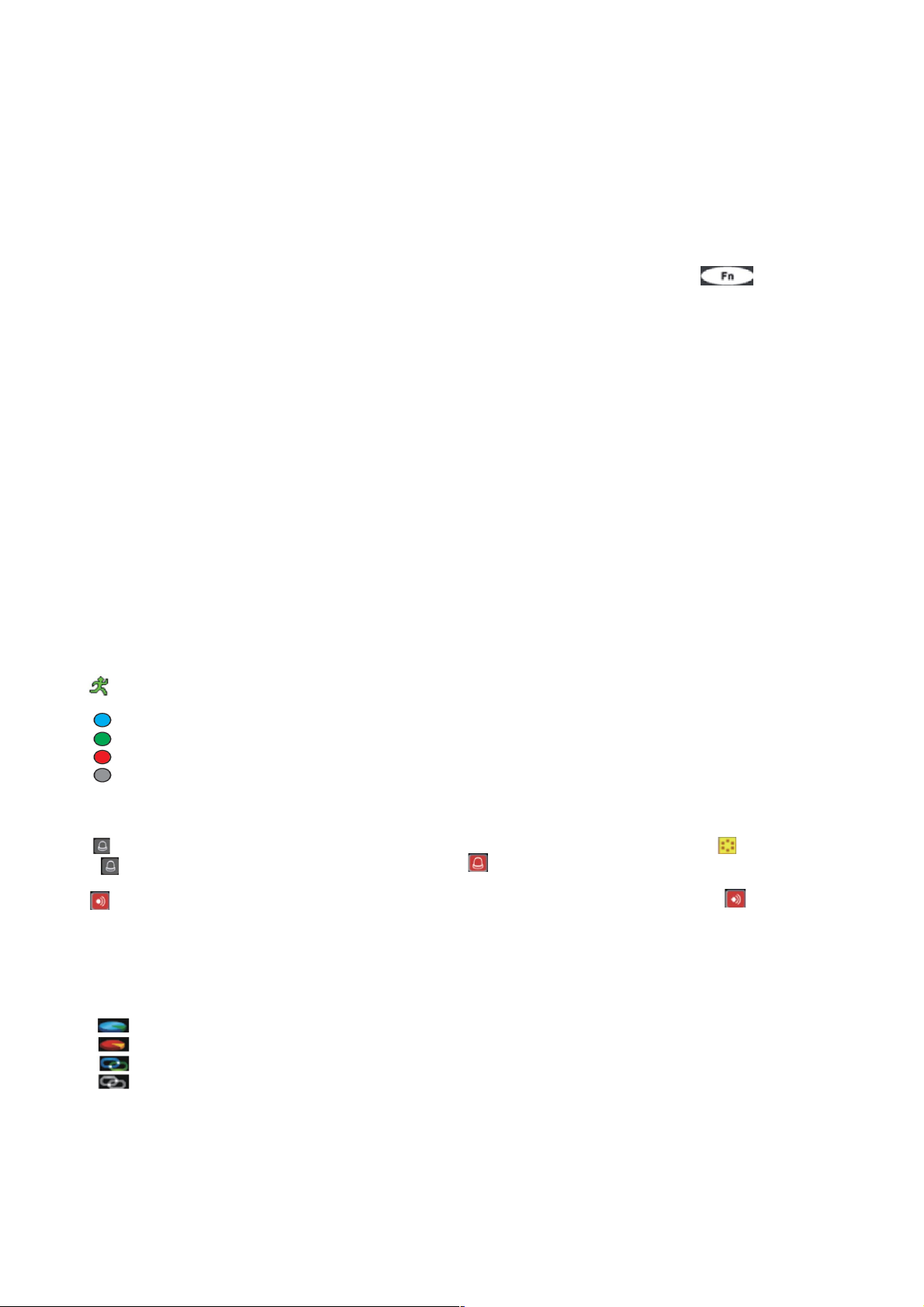

Channel Status Display Area

The channel statuses include: “motion detection triggered recording” / “common recording” / “motion
recording” / “alarm triggered recording” / “external alarm input” / “alarm output”.
Indication of “motion detection” / “common recording” / “alarm recording” will be displayed on the right upper
of screen. Details are as follows:
indicates “motion detection”. The settings of motion detection include sensitivity and area selection.
Please see “motion detection settings” for details.
Blue indicates “common recording”. Please see Record for details.
Green indicates “motion detection triggered recording”.
Red indicates “alarm triggered recording”.
Grey indicates “manual recording”.
Indication of “external alarm input” / “alarm output” will be displayed on the system status column or tool bar.

Details are as follows.
: The 4/8 icons indicate the alarm input status. If alarm defence mode is set, the icon is , otherwise it
is . When alarm is triggered, the icon changes to red . External alarm input can trigger multiple events
handling. Please see alarm settings for details.
: The 1/4 icons indicate alarm output. When alarm output is occurring, it changes to red .

System status bar

In preview mode, the system status bar will display the current system status, including: “External alarm
input” / “Alarm output” / “Hard disk capacity” / “Number of Client connection” / “System Time”.

indicates the disk is OK. Number displayed indicates the capacity percentage of the disk remaining.
indicates “Hard disk error” or “No hard disk”.
indicates client connection. The number shows the client linking number.
indicates “no client connection”.

9

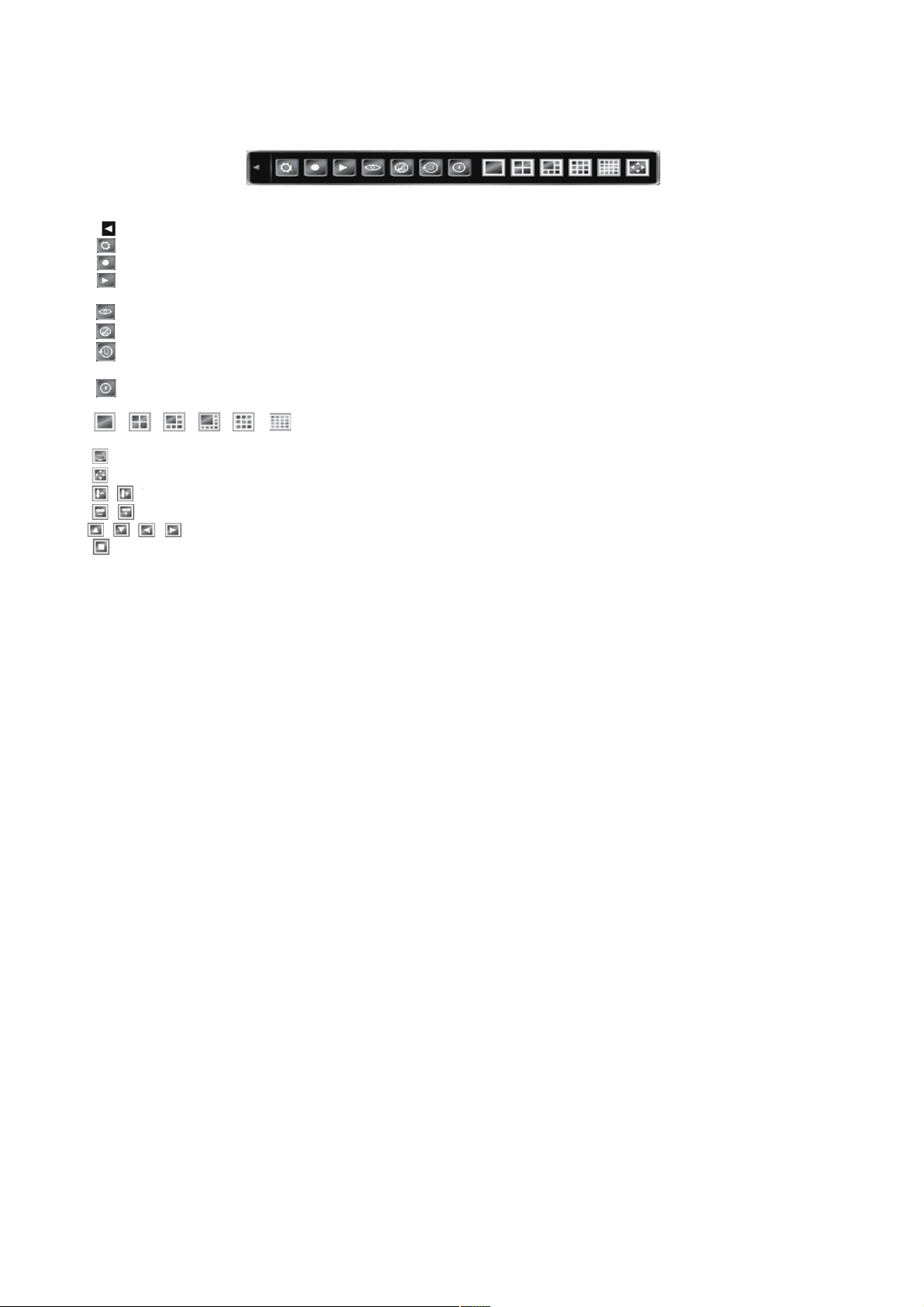

Tool Bar

Right click the mouse or press [OK] in preview mode to show the Tool Bar, as shown below.

Fig IV: System Toolbar

: Hide the tool bar.
: System configuration. Please see 3.1 Menu Structure for details.
: Manual record. Please see 4.3.1 Manual Record for details.
: Search, playback and backup record files. Please see 4.5 Video Playback and 4.6 Video Backup for
details.
: PTZ operation. Please see 4.4.1 PTZ Control for details.
: Click to cancel alarm notification. Click this button for a pop-up of the present alarm information.
: Fast playback. User can enter 10, 20, 30 or 60 seconds before position start playback, and can also
jump to a specified time in the video.
: Power off. Clicking this button will pop up a “confirm password” message. User has to enter the
Admin password to shut down.
, , , , , : Set the preview mode of “Single splits view”, “4 splits view”, “6 splits view”, “8
splits view”, “9 splits view” and “16 splits view”.
: Fast switch TV and VGA. Menu will not be available on the current screen, only a preview image.
: To adjust the screen, 8 pixels per unit.
, : To reduce or increase screen vertically.
, : To reduce or increase screen horizontally.
: To move the screen up, down, left or right.
: To zoom out the screen to maximum and show in the central position.
NOTE: When the mouse moves to the tool bar icon, the indication information will appear to help give the
user guidance.
NOTE: When the video source is PAL, the screen display range max is 720x576. When the video source is
NTSC, the screen display range max is 720x480.
NOTE: Switch display menu between VGA and TV by selecting [ESC]→[1]→[ESC] (sequence must be
pressed within 3 seconds) on the remote control or front panel.

3 Record

Record type contains manual record and schedule record. The priority of manual record is higher than
schedule. If the record schedule is conflicted with the manual recording, the manual recording will be
recognised and processed until the manual recording is cancelled.
Record types include “common recording” / “alarm triggered recording” / “motion detection triggered
recording” / “alarm / motion detection triggered recording”. Each is indicated with a grid of a different colour,
and each colour indicates a particular recording status. Please see Fig IV-2 Record Schedule for details.

Record resolution: The device supports “CIF” / “HALF D1” / “D1” formats.
Record quality: “Best 768Kbps” / “High 640Kbps” / “Better 512Kbps” / “Common 384Kbps”.
Record frame rate: If the current selection is PAL, the frame rate options are “All” / “12” / “6” / “3” / “1” /
“Customised”. If the current selection is NTSC, the frame rate options are “All” / “15” / “7” / “3” / “1” /
Customised”. Default is “All” which is 25fps for PAL and 30fps for NTSC.
Record resource: “Video” for video only, or “Video and Audio” for recording video and audio.
NOTE: Please refer to Appendix 6.2 for the methods of calculating HDD capacity.

Manual Record

Please enter <Tool Bar>→<Manual Record> to let the specific channel record.
Press the [●] button to start/stop recording manually.
NOTE: The type of the video recorded manually is known as “common recording”.
NOTE: The highest priority of recording is manual recording.

Record Schedule

Please enter <Tool Bar>→<System>→<Record Setting> to set the record schedule. The setting screen is
shown as the figure overleaf.

10

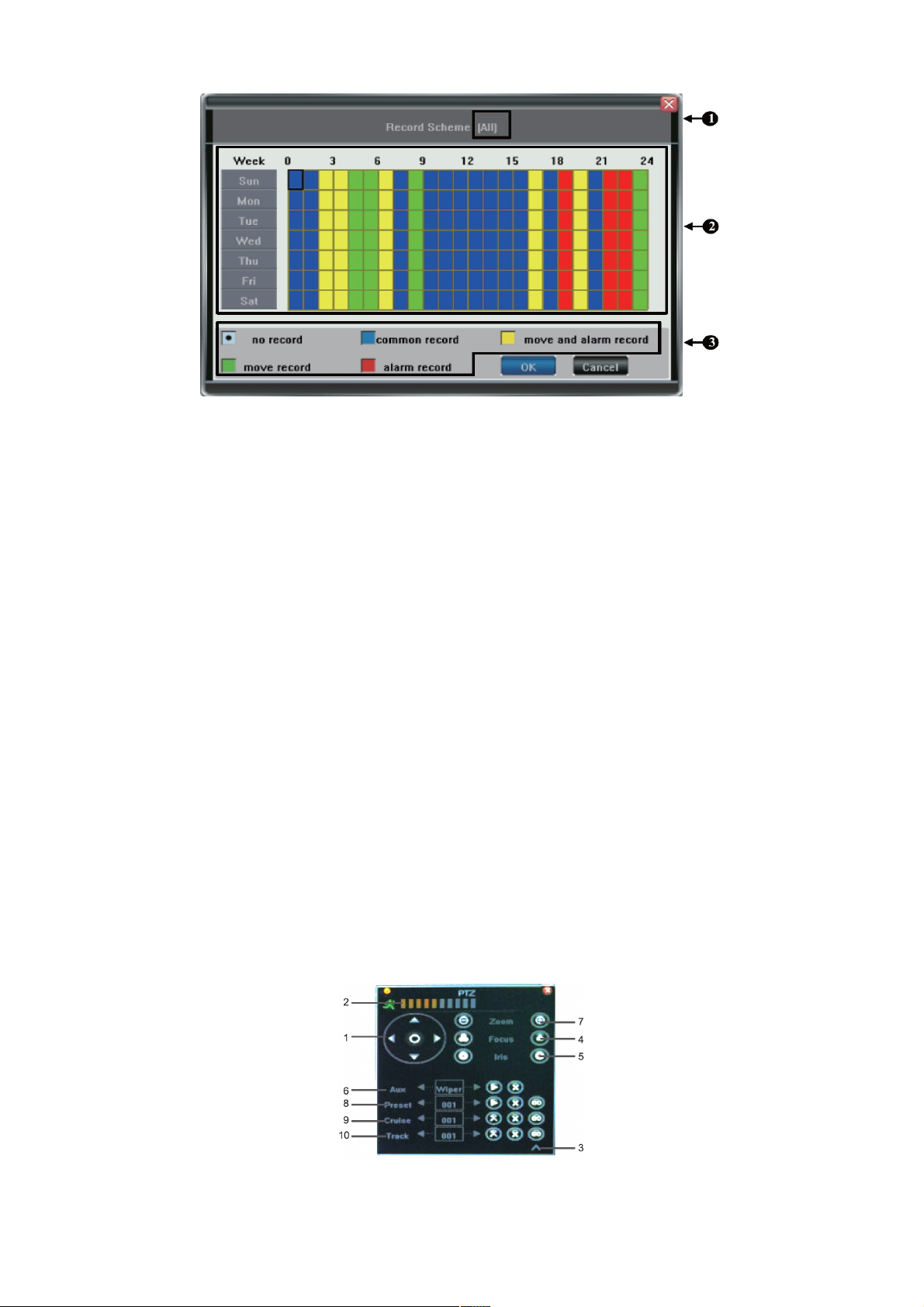

Fig IV-2 Record Schedule

The current recording schedule➀
The record schedule➁
Description of record type➂

Users are free to select a week day or the day of a period of time. The system provides a recording option
for hours every day, or a week day. Each unit (measured by a grid square) indicates one hour.

Move highlight icon to a time grid using the [Direction] buttons.➀
Specify the recording type by repeatedly pressing [OK] button or double left clicking the mouse. ➁

(The colour of the grid will change accordingly.)

Select [OK] to confirm settings. The settings will take effect after being saved.➂

NOTE: Users can copy the current setting onto a neighbouring grid by pressing [Fn] button first, [Direction]
buttons secondly, and then the [Fn] button again to exit. Alternately, user can drag the mouse to set.
NOTE: When motion detection recording is selected, the motion detection sensitivity and area should be set
ahead of time. Please refer to 4.4.2 Motion Detection settings for details. When alarm recording is
selected, the alarm triggering settings should be set ahead. Please refer to 4.7.2 Event Handling for details.

4 Camera Control

PTZ Control

Enter <Tool Bar>→<System>→<Video> to set camera channel, protocol, baud rate and ID.
NOTE: The different PTZ controlled by one PCI should have corresponding PTZ IDs. There are 256 PTZ IDs
supported currently, 0~255.

PTZ Operations

In preview mode, select a tile first (in 4/9/16 splits view mode, the selected tile is with the highlighted green
border), using mouse or [Numbers] buttons, and then enter <Tool Bar>→<PTZ Control> to the PTZ Control
screen that is shown as the table below.

Table IV 1 PTZ Operation Description

11

Table IV 1 PTZ Operation Description

NO. Name Description

1 Direction Click the arrow icons to control the direction of PTZ.

Click the center icon to call sequence or run scanning.
Please refer to the PTZ manual for details of the PTZ scanning mode.

2 Speed Set the turning speed of the PTZ camera.

3 Advanced Click and to show/hide the advanced setting screen (the part under

the blue bar).

4 Focus Click to focus-in and focus-out (disabled for cameras with automatic focus)

5 Iris Click to make the image brighter or darker (disabled for cameras with

automatic iris adjustment).

6

Auxiliary

Open/Close auxiliaries.
Click to open and click to close. Different functions respond to
different protocols. The auxiliaries include light, rain brash and power etc.
Please refer to the PTZ manual for details.
NOTE: Up to two auxiliaries are supported on the device side. Up to 4
auxiliaries are supported on the client web side.

7 Zoom Click to zoom in/zoom out (it is disabled for cameras with automatic focus).

8

Preset

1. Select the preset number in the preset window.

2. Position the camera in the desired position. Save the position by
clicking .

Repeat steps 1 and 2 to get the desired position.
Call preset: Select the preset number you want to call, and click on the go to
button .
Clear/reset preset: Select the preset number you want to clear/reset and
click on the clear button .

9

Sequence

Sequence is a running route of cameras that pass through multiple presets.
Set sequence:

1. Select preset number you want to call. Click on set button .

2. Repeat to add other presets until finished.

Click button to end setting. Click on to clear the sequence.

10

Track

Track is a continuous route of camera.
Set track:

1. Click on to start setting.

2. Move camera as the track and pattern you want it to run.

3. Click on again to finish setting. Click on to run track and click
again to stop running.

NOTE: Whether track is supported or not is dependant on the type of PTZ.

NOTE: IE side supports 5 auxiliary settings. Local side supports 3 auxiliaries.

5 Motion Detection Settings

Motion detection settings include sensitivity and area values. The sensitivity includes three levels: High, Mid
and Low. Please select <Tool Bar>→<System>→<Video>→<Motion Detection> to set.
Mouse Operation: Drag mouse on screen to create grid.
Panel Operation: There are only 16 x 12 blocks in screen. Move the highlight icon among the blocks by using
the [◄], [►] buttons. Please follow these steps below to set.

1. Move the highlight icon to one of the blocks you want to create by using the [◄], [►] buttons. Press
[OK] button to confirm. The created block will be highlighted in blue.

2. Press [Fn] button to copy the current configuration, and press [Direction] buttons to copy to the
relevant grid position. Press [Fn] button again to exit copying.

3. Repeat steps 1 and 2 to set the second area.

Press [ESC] to exit settings.
In Motion Detection Settings, users are free to select a certain day of the week, or a period of time in a future
day (smallest unit is one hour/one block). System provides recording options for all hours of every day.

12

6 Mask Setting

Mask setting function can make some regions of the image invisible. These regions in preview images and
playback images are filled with black pixels. The method to set masks is similar with motion detection
settings. You can right click the mouse in the area where the masking is to cancel this function.
You can stop setting when you right click the mouse in an area where you have no mask setting. There are
four regions that can be set in one channel.

7 Playback

*File Search
Specify the date/time and channel number by selecting <Tool Bar>→<Record Search>. Click [Search] in the
pop-up screen to start searching. The search results will be listed on the screen in different colours so as to
distinguish different record types. Please see Fig IV-2 Record Schedule for details of the colour descriptions.

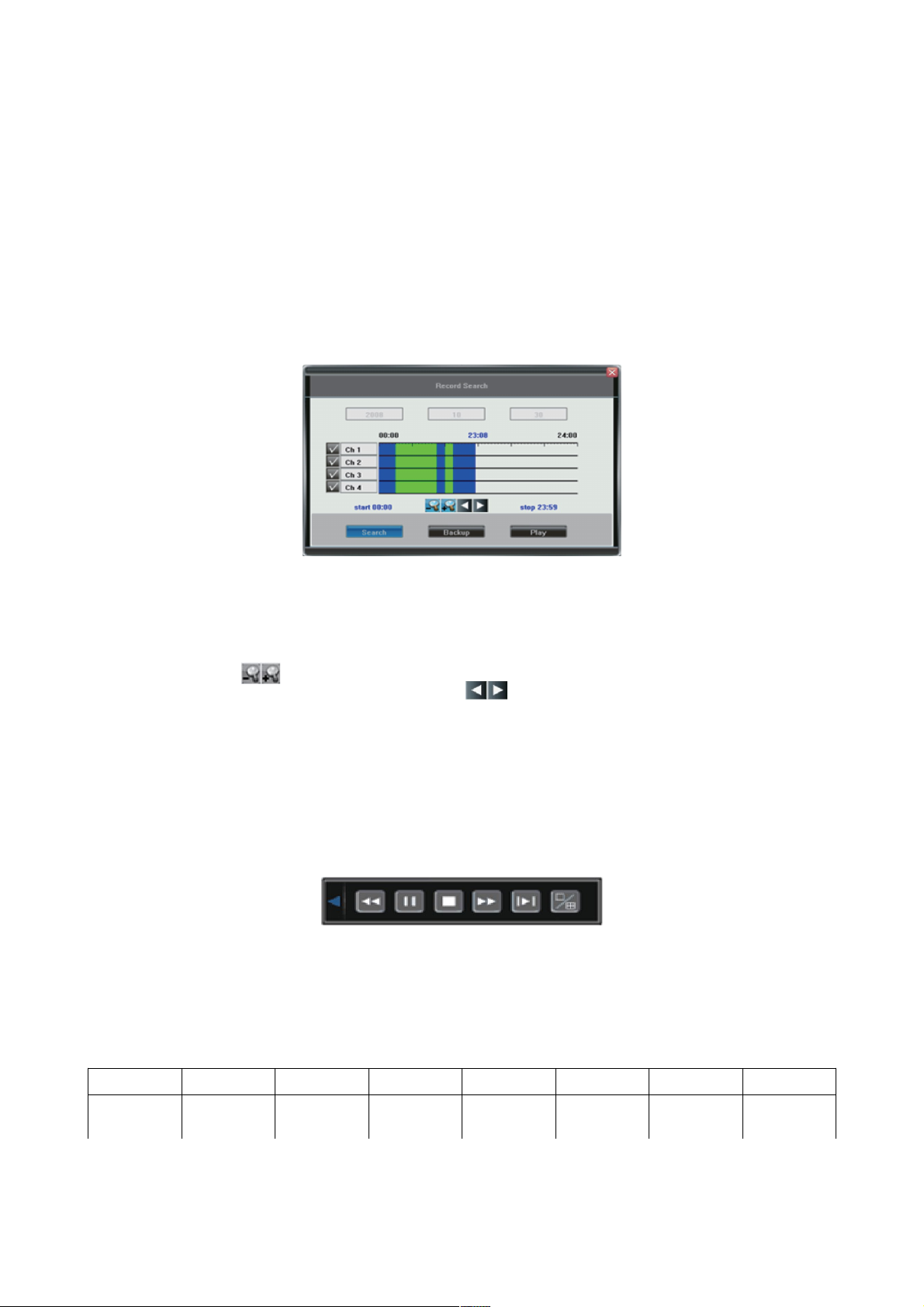

Fig IV-2 File Search

User can use the mouse or use the panel to specify the time.
Panel Operation: move the highlight icon to the relevant selection box using the [◄], [►] buttons.
Move the highlight icon to date/time selection box, then modify it using the [▲], [▼] buttons.
Move highlight icon to channel selection box, press [OK] to select it, or cancel the selection.
Move highlight icon to , then press the [OK] button to zoom in/zoom out the timeline (time ruler). If the
timeline is offscreen, please move the highlight icon to and press [OK] to display the part of screen
that is not in shot.
After setting the time, channel number and timeline, move the highlight icon to [Search] using the [◄], [►]
buttons and press [OK] to start searching.
After searching has completed, press [Fn] button to pop-up the timeline for the selected start point. Press
[◄], [►] buttons to move the timeline and press [Fn] to confirm selection. Press [Fn] again to pop-up the
second timeline for selection stop. Press [◄], [►] to move the timeline, and press [Fn] to confirm selection.
After all settings have been set, move the highlight icon to [Play] using the [◄], [►] buttons and press [OK]
to start playing. Move the highlight icon to [Backup] using the [◄], [►] buttons and press [OK] to backup.

*Playback Control

: Fast Rewind. The available rewind speeds are 8X and 16X.
: Pause. Will pause the current playback, or resume it when paused.
: Stop playing.
: Forward speed. The available forward speeds are 1/4X, 1/2X, 1X, 2X, 4X, 8X and 16X.
: Frame. Advances the playback by 1 single frame.
: Click to switch from single split view to 4/9 splits view mode, or vice versa.

The status of the current playback will be displayed in the upper right corner of the screen.

Indication ►► 16X ►► 8X ► 1X ►► 1/2X ►► 1/4X ◄◄ 8X ◄◄ 16X

Speed 16x Fast

Forward

8x Fast
Forward

Normal
Playback

1/2x
Forward

1/4x
Forward

8x Fast
Rewind

16x Fast
Rewind

NOTE: When playing back only one channel, the image will display in full-screen.

13

8 Backup

Enter <Tool Bar>→<Playback> to search, backup and playback the specific record files you need. Click
[Backup] to enter into the backup screen. The system will detect the backup devices available and display
them. Please select the suitable device and record type according to your requirements first, then click
[Backup] to start storing.
NOTE: The record types include H.264 Raw, MP4 and AVI. When backing up to MP4 files, the special player
plugin will also be backed up to the USB storage. After the player plugin is installed, the stored video files
can be played by Windows Media Player.

9 Alarm Settings

Please make sure that the alarm input and output cables are connected correctly. Please refer to 2.6 Rear
Panel Connection for details.
Select <Tool Bar>→<System>→<Alarm Setting> to configure the alarm parameters in the pop-up screen.
NOTE: All settings will take effect after being saved.

1) Alarm Input

The alarm input attribution includes N/O and N/C. Please select a suitable attribution according to the types
of alarm device connected and control modes of the alarm device adopted.
N/O: Normally open. Circuit connected when the alarm signal is triggered.
N/C: Normally connected. Circuit is opened when the alarm signal is triggered.

2) Alarm Linkage

The alarm triggered event handling includes: record/alarm output/PTZ/sound output/alarm zoom out/E-mail
/report to center/FTP upload file. The channel alarm input can zoom display interval 1-10s optional.
If the display interval time is set to go off, the zoom display will be invalid.
After using the “zoom out image”, Alarm zoom out, report to center, IE client preview will zoom out
simultaneously.
NOTE: If the user wants to set alarm triggered record, please set the record schedule first at “Record
schedule”.
NOTE: If the user wants to set alarm triggered PTZ, please select the channel number first, and then to set
(only preset 1 can be selected).
NOTE: After alarm, email will be sent immediately with the attachment of the captured snapshot.
NOTE: Once FTP server is set, the FTP will upload the file after the alarm. FTP server will receive the
captured snapshot.

3) Alarm Defence and Schedule

The user can enable customised schedules in the advanced menu, which is similar to the schedule record.
In the alarm defence status, the alarm icon will appear in yellow.

4) Device Exception Action

Select <DEVICE EXCEPTION ACTION>→Enter Device exception handle screen. Choose among these
three options: HDD Full, network disconnect and IP conflict. For the full hard-drive setting, user can select
“Alarm Output”/”Sound”/”Report to Center”/”Email”.
Network disconnect and IP conflict can only be set to “alarm output”/”Sound”.
After this setting has been saved, the device exceptions will be handled the way the user has selected.

14

10 Network Operation

1) Network Settings

Please enter <Tool Bar>→<System>→<Network Setting>→<Network Connection>, there are three
connection types: Static IP, DHCP and PPPoE.
Static IP: If this type is selected, please type in the IP address, subnet mask and gateway. User can ping
the network to check the connection status.
DHCP: If this type is selected, a DHCP server should be set in the network. A dynamic IP for the device will
be assigned automatically and displayed in the IP address column.
PPPoE: Click [>>], the PPPoE setup screen will appear. Type in your user name and password, then click
[OK] to confirm. System will then dial automatically. After accomplishing dialling, the IP address will be
assigned and displayed automatically in the IP address column. User can save the user name and
password if dialling is not successful.

The following are types of ports:
*HTTP Port: It is the port number while browsing through a web browser. Default is 80.
*Signal Port: It is the first entry port for communication between web client and device, which is mainly used
for controlling of log-in, log-out, real-time preview, remote playback and remote download etc.
*Media Port: It is for media stream transmitting, including real-time stream, voice stream and file stream etc.
*DDNS: Click [>>], the DDNS setup screen will appear. Select a DDNS server and type in the DDNS
address, user name and password.
*Auto Registration: Select activating Auto Register and click [>>], the register setup screen will appear. Type
in the register server IP port and register interval time.
*File Sharing: After activating file sharing functions, the PC is able to access video files in DVR HDD via
network neighbourhoods.
*Sharing File Access Methods: Open Network neighbourhood, type in \\IP address (for
example: \\192.168.10.220), then enter the login interface. Type in the Super Admin username and
password, then the shared files can be accessed. (Open the folder “videoout”)
Note: After the player plugin has been installed, video files can be played via Windows Media Player.
*Email Setting: Click [>>], the EMAIL setup screen will appear. This function requires the function of alarm
linkage to be used. Enter the mail server address in the screen (support domain method), login account,
password, recipient and sender email address. Press the [Test] button next to the sender email address to
send a test email.

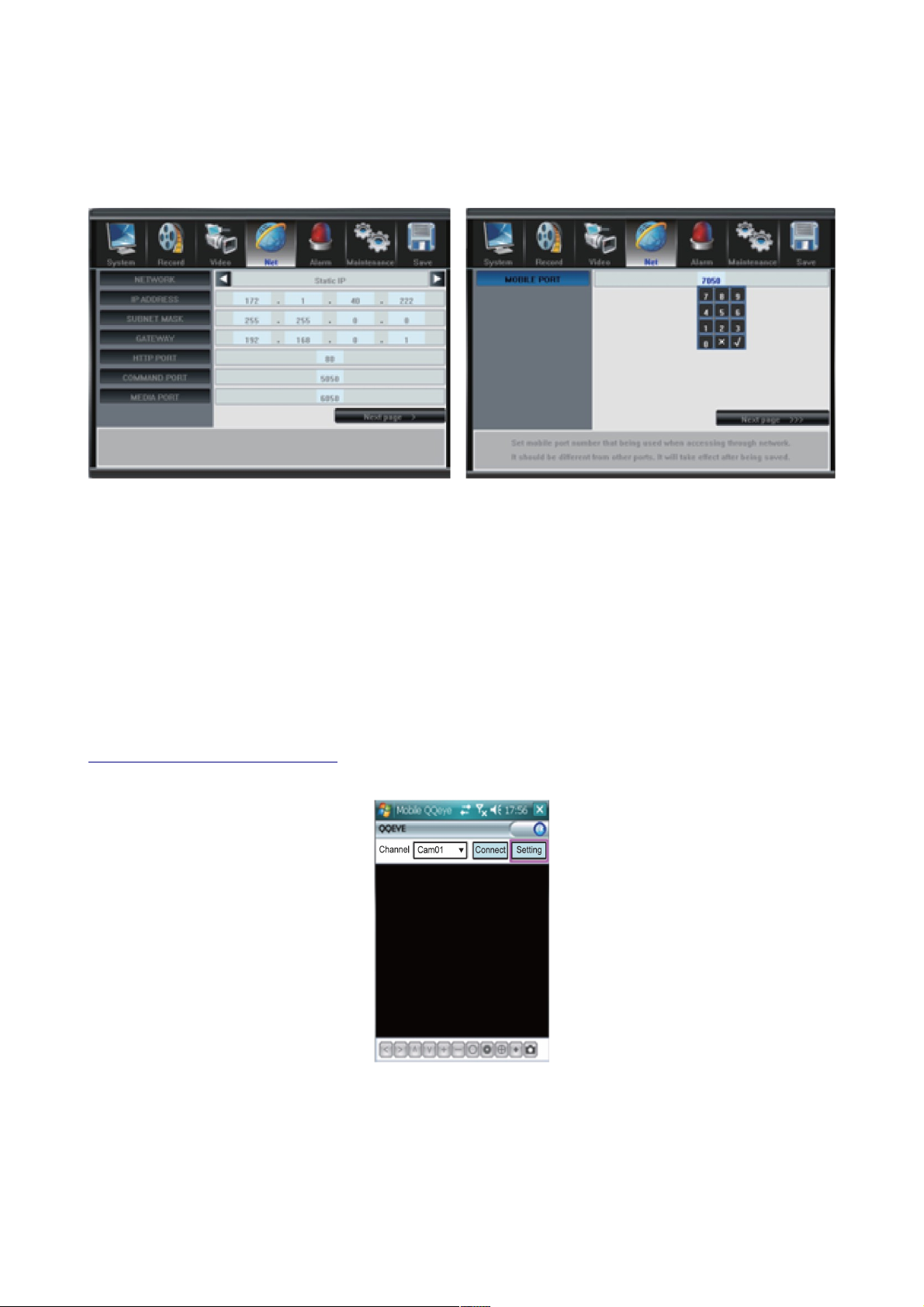

*Mobile Port: Port is the channel for mobile phone data transmission. All media and signalling data will be
transmitted via this port.
*FTP Server: Select FTP upload, then click [>>] to set the FTP server IP, username and password. The
captured snapshots will then be uploaded to the FTP server.
*UPNP: Start UPNP then select [>>]. The device will automatically find the intranet modem UPNP service
and map the HTTP, signal, media, mobile phone port and return the map result and the modem's internet IP.
After mapping is successful, the user can access the IE client from an internet PC through the internet IP.
*IP ACCESS: When turned off, any PC can access the device. When a blacklist is in use, a PC with an IP
entered into the blacklist cannot access the device's IE client, however PCs not on the list can access it.
When a whitelist is in use, a PC with an IP entered on the white list can access the device's IE client, but
other PCs cannot.
*Time Synchronisation: Click [>>] to start synchronisation. The device can automatically synchronise by
setting the server name, synchronisation interval and time zone.
Note: All of these network settings will take effect after being saved.
Note: Currently on supports PPPoE mail servers with SMTP protocol.
Note: Enter into mobile phone system and type the IP address into the IE address column in the form of

http://xxx.xxx.xxx.xxx/download.html. Versions supported by the client side are as follows:

English/Simplified Chinese/Traditional Chinese. Client side of Symbian60 3rd Operation System:
English/Traditional Chinese. Client side of WinMobile5.0/6.0/6.1 Operation System; iPhone mobile can be
supported. Please refer to “Appendix 5: Introduction of Mobile Phone Monitor” for more details.

2) Web Client Operation

Open the IE browser, type in the IP address and the log-in screen will appear.
Note: If PPPoE or DHCP is selected, the user has to check their IP addresses again after restarting.
Note: If it is the first time you are logging in through IE, please install the Active X of IE and type in the user
name and password. The default username and password are Admin (case sensitive). If the plug-ins cannot

15

be downloaded normally, please lower IE's security level:
Click [Tools] and choose [Internet Options] in the IE menu bar to enter the 'Internet Options' page. Choose
[Security] and click [Custom level...] to enter the 'Security Settings' page. Enable ActiveX controls and plug­ins, then click [OK] to save the settings.
Note: Compared with the local side, the added settings on the IE web client are as shown below.

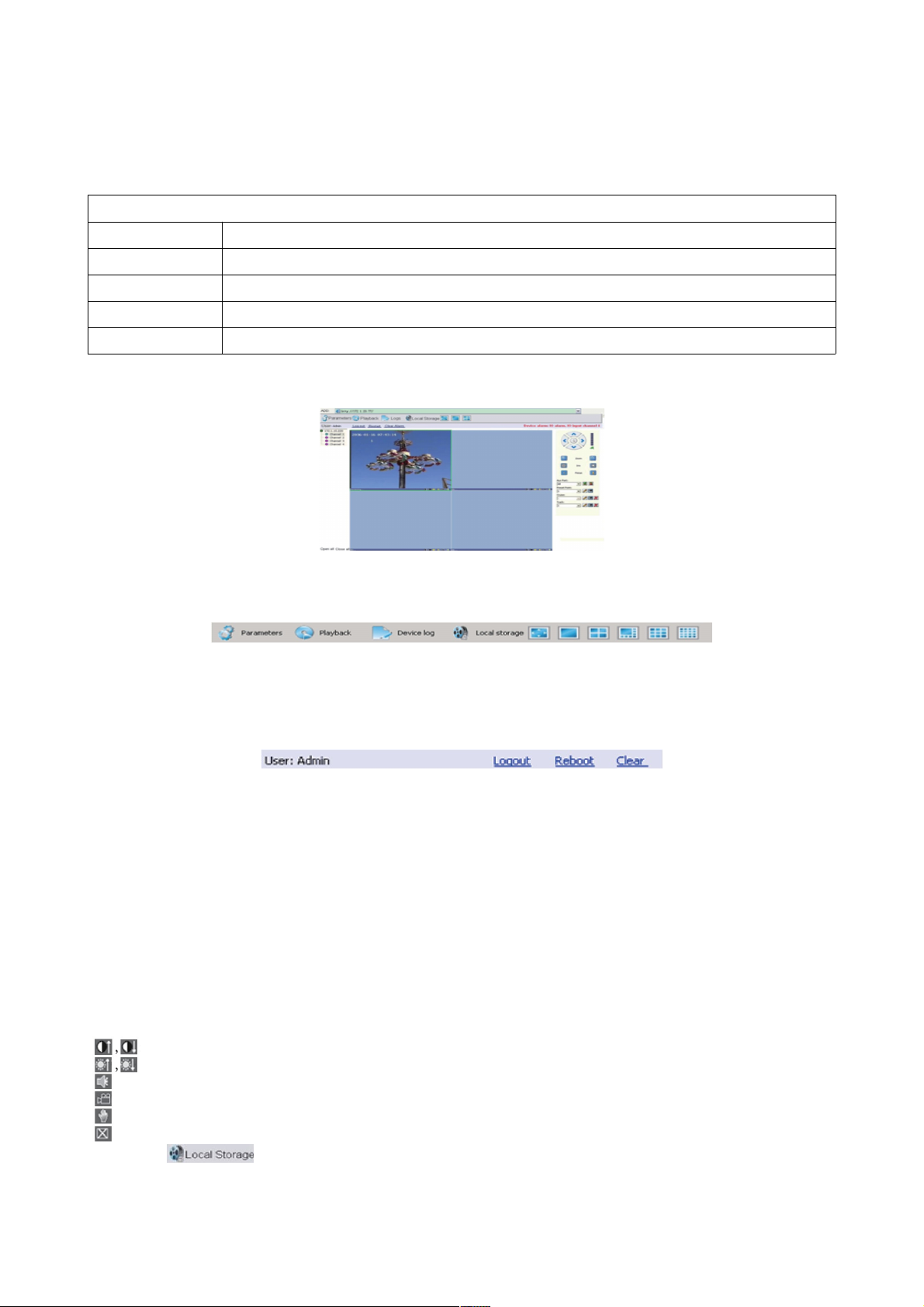

Table V 1 Settings Added on IE Side

Menu Contents

<Server> Tab Name of DVR is configurable on Web client side.

<Channel> Tab The channel OSD is user-defined.

<Device> Tab User can adjust DVR time according to the PC time.

<State> Tab Device states can be viewed directly.

3) Web Screen Descriptions

Address

Display the DVR IP address.

Tool Bar

The description of icons from left to right is:
Configure device parameters
Search and playback record files
View logs and export them
Set the storage directory of record files
Click to switch image view modes among full-screen, single split view mode and 4/9/16 split view mode.

Log-out, restart device, clear alarm

Alarm Notification

When the network connection is broken or abnormal, the alarm notification of “No heartbeat of device, please
check the network!” will be displayed in the right top corner of the main screen. After the recovery of the
network, the preview will be displayed automatically.
When remote notification alarms occur, the alarm notification with the alarm input number will be displayed
such as “Device alarm: IO alarm, IO input x” will be displayed in the top right corner of the main screen.
When motion detection alarms occur, the alarm notification with the alarm channel will be displayed such as
“Device alarm: motion detection, channel 1” will be displayed in the top right corner of the main screen.
When a video loss alarm with uploading to the center occurs, the alarm notification with the alarm channel
number contained such as “Device alarm: video loss, channel x” will be displayed in the top right corner of
the main screen.

Preview

: Adjust image contrast up/down
: Adjust brightness up/down

: Start/stop voice monitoring. The icon will turn green when monitoring.
: Start/stop recording. The icon will turn green when recording.
: Click to take snapshot.
: Stop preview.
Note: Click to set the storage directory of recorded files and pictures.

16

PTZ Setting

The PTZ setting of the client web is similar to the PTZ operation on the local device. Please refer to 4.4
Camera Control.
Note: IE side supports 4 auxiliaries setting.

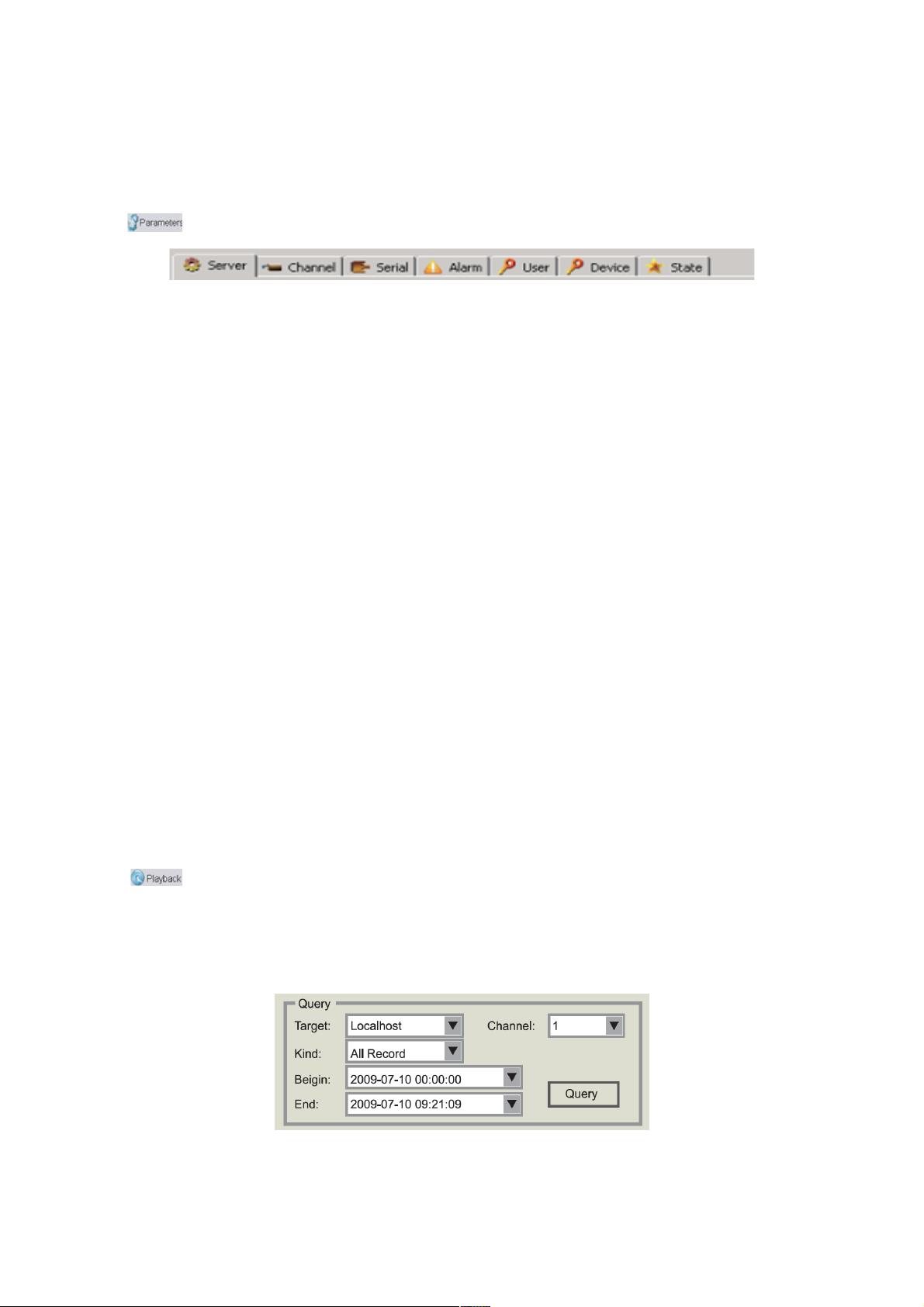

4) Device Parameter Settings

Click , then the parameters screen will appear. All of the configurations are divided into the following
six selections:

Server

Includes the configuration of server, network and version information. All of these configurations can be set
in [Tool Bar]→[System]
Note: if the DHCP mode is selected, the IP address is assigned automatically without modification.

Channel

User can set motion detection, video loss, OSD, image bit rate and frame rate, image parameters and record
schedule here.
Note: User is allowed to set single channel first, and then copy the settings to other channels.

Serial

User can set PTZ protocol, baud rate and address code here. All of these settings can be done by selecting
[Tool Bar]→[System]→[Video Setting].

Alarm

User can set IO alarm and event handling here. All of these settings can be done by selecting [Tool
Bar]→[System][Alarm Setting].

User Management

Including user authority and password setting. Relevant interface information can be found at [Tool
Bar]→[System]→[System Setting]→[Advanced Setting>>].
“User” authority and password can be changed by the “Admin” account.

Device

Upgrade: Click [Browse] to select the software package needed, and click [Start Upgrade] to progress. User
can stop the progress of the upgrade by clicking [Stop Upgrade].
Adjust Time: Click [Adjust Time] to adjust the time of the device in accordance to PC time.

State

HDD information and channel state information is available in this screen.

5) Playback

Click , then the playback screen will appear. It includes file search, playback and download.

File Search

The file search section is the upper right side of the screen. Please set target, type, start time and end time
there. Then click [Query] to start searching. The result will appear as a list on the table. Specify the files in
the table list and click on the play control button or download button to do the relevant operations.

17

File Playback

The play control screen is on the left side of the screen. It includes the image display area, play control bar
and channel information.
Click [Play], and the record files selected will be displayed in time order. The play progress will be displayed
on the progress bar as shown below.

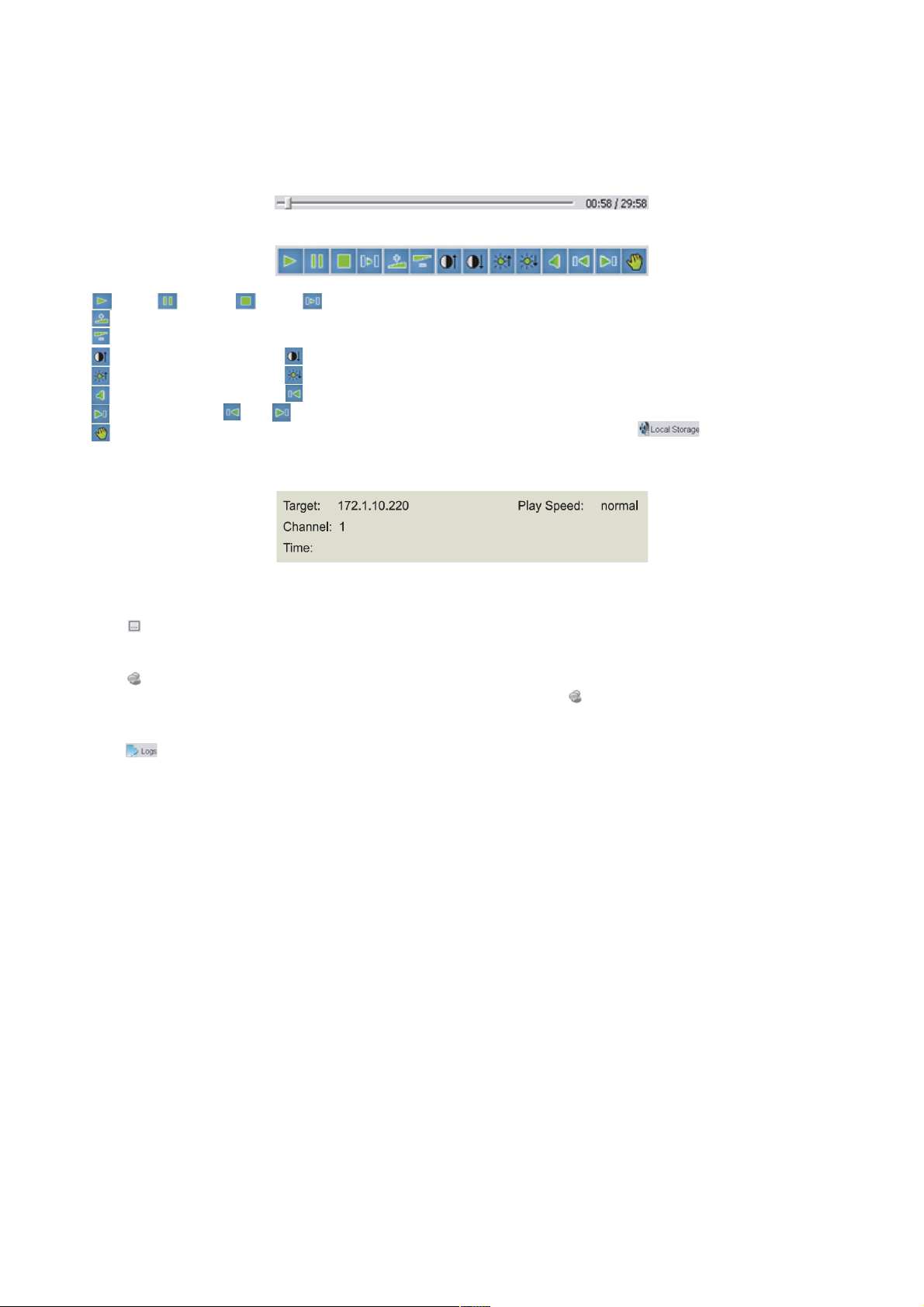

The play control bar is shown in the image below, followed by the descriptions of the icons from left to right.

Play; Pause; Stop; Go to next frame;
Fast forward (Playback speed will double each click. 2X, 4X, 8X and 16X)

Slow play (Playback speed will halve each click. 1/2X, 1/4X, 1/8X and 1/16X)
Enhance contrast; Reduce contrast;
Enhance brightness; Reduce brightness;
Open/close voice; Go to previous file;
Go to next file ( and is enabled only when multiple records are selected to play.)
Snapshot (the storage directory can be set on the pop-up screen by clicking ).

The information of the record file selected will be displayed in the area shown as the figure below. It includes
the device's IP address, current play speed, channel number and start/end time of the record file.

File Download

The File download operation part is on the bottom right corner of the screen.
Click to set the storage directory of the file selected. Click [Download] to start downloading.

6) Bidirectional Talk

Click in the Tool Bar to enable the bidirectional talk between Client Web and DVS side. A microphone
should be connected to the device through the line-in interface. Click again to stop talking.

7) Log

Click , the device logs will appear. There are four options to choose from: All, According to Time,
According to Type, According to Time and Type.
To search logs, please select the search mode and channel number needed first, and then click [Search] to
progress.
Click [Export] to export logs in html format.

8) Remote Upgrade

Select <Server>→<Manage>, click [Browse] to specify the file for upgrade, then click [Start] to upgrade.
User can click [Stop] to stop the upgrade in progress.

11 Maintenance

Please enter <Tool Bar>→<System>→<Maintenance> or <Save> to enter the maintenance screen.

1) Log View

1. Select the type of log to be searched: All/Operation/Exception/Alarm.

2. Select the time scope to be searched.

3. Click [Search] to display the detail information of the log.
Note: If the logs searched contain alarm event logs, the user can directly play the video recorded during the
alarm event by clicking [►] on the right hand side of the screen.
Note: The maximum number of logs supported currently is 10,000. The storage mode adopts the overwrite
mode, continuously overwriting the oldest data when the database is full.

18

2) Upgrade

The upgrade modes supported now are USB/IE/Remote Software:

• USB: Please make sure the USB device is connected correctly and the upgrade applications have

already been copied onto the USB root directory. Please follow the prompts to complete.
After accomplishing the upgrade, the restart prompt will appear. Please restart the device, and the
latest software will be automatically installed.

• IE: Please refer to 5.2.2 Device Parameter Settings for details.

• Remote Software: Please follow the user's manual of the remote software to operate.

3) Device Information

HDD Size: Displays the current total capacity of the HDD, with the remaining capacity.
Hardware Version: Displays the version of the hardware.
Software Version: Displays the version of the software.
Release Date: Displays the release date for the current software.

4) Format HDD

Please make sure that all of the important record files have already been saved before formatting the HDD.
Please stop all recordings before beginning to format, and follow the prompts to operate.

5) Lock Out

Please enter <Tool Bar>→<System>→<Save Setting>→<Log Out>, then the preview screen will appear
together with the log-in box. Please type in the password for further operations.

6) Restore to Factory Defaults

Please enter <Tool Bar>→<System>→<Save Settings>→<Restore Defaults> where the system will ask for
confirmation. Click [Confirm] to proceed with the restoring process.
Note: Please refer to Appendix VI for default values.
Note: The system language, time, camera P/N system and network settings (IP address, subnet mask,
gateway, HTTP port) will not be recovered by restoring to factory defaults.

7) Input/output parameters

Please enter <Tool Bar>→<System>→<Maintenance> when the USB is connected, then the device setting
parameters can be exported to the USB device. Parameters can then be reimported to the device from
USB, then reboot the device and the parameters will take effect.
Note: When importing parameters from a USB device, only import parameters from a DVR with the same
SKU or model number. Importing incompatible parameters may permanently damage the device.

8) Auto-maintenance

Please enter <Tool Bar>→<System>→<Maintenance>. Maintenance will not reboot automatically if auto­maintenance is off. There are three types of maintenance: per day, per week and per time.

19

12 Advanced Settings

Note: Operations in this chapter require permission referring to the current user's authority. Please use the
admin account to log in.

1) System Settings

Please enter <Tool Bar>→<Settings>→<System>→[Advanced Settings>>]

• Select <PREVIEW CRUISE>→[>>] to enter the setting screen. Set the preview cruise interval, 1/4/9

cruise. It will take effect after saving the settings, where the screen will cruise in accordance to the
setting intervals over the segmentation preview.

• Select <DVR IDNUMBER> and the number entered can be between 1 ~ 99. The remote controller

and 485 keyboard can control the device one on one when setting the same number.

• Select <SPOT SETTING>→[>>] to enter the setting screen. Set SPOT channel and time, the

DWELL time sets the period for which a channel can be selected.

• Click [Add] to add the channel to the Matrix output. After being saved, the video output will take

effect. All video channels connected with video inputs to the DVR can be sequentially switched for
SPOT monitoring output.

• Select <DST>→[>>] to enter DST (Daylight Savings Time) settings. Users can set beginning and

ending dates and times of DST. Device will automatically adjust the time after being saved.

• After starting <menu timeout>, when there is no mouse motions on the menu, preview screen or

search screen for a certain time, the control device will automatically lock the screen. User needs to
re-login to unlock the screen. (PTZ, video playback and back-up screens will never lock).

• Select <Channel Lock>→[>>] to enter the channel lock setting screen. Click the channel as desired,

then select [OK]. The user cannot see the locked channel after they log out. Only the admin

account can set and unlock channel lock settings.
Note: <System setup>→<Advanced Settings>, user can set recourse distribution mode, code mode and
playback mode.

2) User Management

Please enter <Tool Bar>→<Setting>→<System Setup>→<Advanced Setting>. Select <ADD USER>→[>>]
to enter the settings screen. The password for the new user is 111111, then the user can enter <Tool
Bar>→<Setting>→<System>→<Password Settings> to modify the password. Select <DEL USER>→[>>] to
enter the setting screen, then the Admin can delete the specified user.
Select <AUTHORITY MANAGE>→[>>] to enter the settings screen.
Authority settings contain the authority options for local and remote settings.

Fig IV 3 Authority Settings

Move the highlight around the options using the [Direction] buttons. Press [OK] button or click the mouse to
select the option.

3) Advanced Setting of Record

Please enter <Tool Bar>→<Setting>→<Record>→[Advanced Setting>>]→<SUB STREAM>, select Enable,
press [>>] to enter the setting screen. The user can then customize the sub-stream frame rate and bit rate.
Sub-stream supports 1-15 frame rates, and 32K-512K bit rates.

20

4) Advanced Setting of Video

Please enter <Tool Bar>→<Video>→[Advanced Setting>>]

• Motion Handling
After setting the area for motion detection, the events can be linked to those handling “Record”,
“Alarm Out”, “Buzzer” or “Upload”.
Note: Please refer to 4.2.2 Motion Detection Settings for instructions on setting detection areas and
sensitivity.

• Video Lost Handling
After the selected video channel has been lost, the incident can be handled by “Alarm Out”, “Buzzer”
or “Upload”.

• Channel Name Setting
After the selected video channel has been lost, the incident can be handled by “Alarm Out”, “Buzzer”
or “Upload”. User can input the channel name through the keyboard, only accepting letters. Then
select [OK] to confirm the settings.

21

Chapter Five: Appendix

1 Specifications

Table VI 1 Specifications

DVR Type 4 Channel DVR 8 Channel DVR

System

Linus 2.6 O/S
Pentaplex Operation: record, playback, preview and network
browse, backup supported.

I/O Interface

Video Input

4 channel, BNC, 1Vp-p, 75Ω
PAL (625 line, 50 f/s)
NTSC (525 line, 60 f/s)
SECAM (625, 50 f/s)

8 channel, BNC, 1Vp-p, 75Ω
PAL (625 line, 50 f/s)
NTSC (525 line, 60 f/s)
SECAM (625, 50 f/s)

Audio Input 4 channel, RCA, 2Vp-p, 600Ω

VGA Output 1 channel, DIN-15(optional); 800x600@60hz, 1024x768@60Hz,

1280x1024@60Hz, 1440x900@60Hz

CVBS Output 1 channel, BNC, 1Vp-p, 75Ω

Audio Output 1 channel, BNC, 2Vp-p, 600Ω

USB Interface Support USB storage device, USB mouse, USB burner

RS422 1 port, receiving and transmitting duplex supported

Network Interface RJ45 – 10/100M self-adaptive

Alarm Input 4 channel NO/NC

Alarm Output 1 channel NO/NC, relay: 30VDC 1A, 125VAC 1A

SATA Interface 1 SATA port, 1 SATA HDD up to 1TB supported.

Video & Audio

Video Video Compression H.264 Baseline

Video Standards PAL/NTSC/SECAM

Video Compression
Resolution

PAL: 352x288(CIF), NTSC: 352x240(CIF)
PAL: 704x288(Half D1/2CIF), NTSC 704x240(Half D1/2CIF)
PAL: 704x576(D1/4CIF), NTSC 704x480(D1/4CIF)

Frame Rate PAL: 25F/S/CH 1,3,5,12,25 and user-defined optional;

NTSC: 30F/S/CH 1,3,7,15,30 and user-defined optional.

Video Output Bit Rate 32kbps-2048kbps (14Mbyte/hour – 922Mbyte/hour)

Preview Resolution PAL: 720x576(D1), horizontal line 550, vertical line 450

NTSC: 720x480(D1), horizontal line 550, vertical line 400

Playback Resolution PAL: 352x288(CIF), horizontal line 300, vertical line 250

NTSC: 352x240(CIF), horizontal line 300, vertical line 220

Audio Audio Compression G.726 ADPCM

Input/Output
Sampling Rate

8KHz

Audio Channel Type Mono

Sampling Bit 16bit

22

Environmental Power Supply DC 12V 3A, position inside, negative outside

Operating Temp. 0C ~ +50C

Operating Humidity 10% ~ 90%RH

Power Consumption <12W (without HDD)

Dimensions 340 x 260 x 50mm (W x D x H)

Table VI 2 Main Functions

Main Functions

Operating Interface Multiple control methods: mouse, IR remote controller, front panel and GUI with

naviagation supported.
Recording status and alarm status can be displayed directly on desktop or front panel.

Record Five recording modes: Manual, Schedule, Motion Detection, Alarm and Motion

Detection & Alarm supported.
Selectable Record quality: Best, High, Mid, Low and User-defined.

Playback Play progress bar supported.

Multiple channel video/audio playback simultaneously.
Play, pause, stop, single frame forward, fast forward and backward (up to 4/9 when
playback is in 4 channels) supported.

Backup Multiple backup modes: USB disk, USB HDD, USB CD-RW and DVD-RW supported.

The output format can be H.264 RAW.

Network Ipv4, PPPoE client, DHCP client and TCP/UDP protocol supported.

Web client and Client Application Software are provided for remote configuration,
video browse, local recording, local and remote playback and remote PTZ control.
Network transmitting supports independent coding.
The time delay of LAN is less than 300ms.

Log Operation The log of operations are alarms will be saved automatically. User can directly play

the record files that have been recorded when the alarm events occur.

PTZ Control Multiple protocols: Pelco-P, Pelco-D, and Samsung etc.. supported.

Upgrades of protocols supported.
Multiple PTZ operations: Pan, Tilt, Zoom, Preset, Sequence, Track and Auxiliary
Switch supported.

Alarm Management 4 channel alarm input NO/NC supported.

Motion detection and alarm of video loss supported.
Trigger recording, linkage PTZ preset and Bee alarm supported.
The alarm information can be sent to web client or client application software through
the network.

Account
Management

Multi-accounts supported. Users can set and recover passwords, authentication
management.

Auxiliary Function Hardware watch dog supported. Device will be restarted if operations are not

responded to for 30 seconds or longer.

23

2 Methods of Calculating HDD Capacity

1) Calculate the maximum capacity of the built-in hard disk.

Timing Recording:

• Step 1: Calculate the maximum capacity of the hard disk needed in selected channel per hour, which
we will classify as Si(MByte) with i representing the channel number. With the bit rate of the channel
being classified as D (Kbit/s), the formula is as follows:
Si = (Dx3600) / (8x1024) = D x 0.439453125 MB

• Step 2: Confirm the storage length time, which we will classify as T hours. The total maximum
capacity of the hard disk needed in the selected channel for T hours is:
St = T x S1

• Step 3: Confirm the total numbers of the channels, set here as n. The total maxmimum capacity of
the hard disk needed, represented as Sc below is:
Sc = S1 + S2 + … + Sn

Alarm Recording:

• Suppose the rate of alarm is a%. The capacity of the hard disk needed in alarm recording (classified
here as Sa) is:
Sa = Sc x a%

2) Calculate the compression bit rate for recording T hours.

*Timing Recording

• Step 1: Support the capacity of the hard disk is S and the total numbers of channels is n. The
capacity of the hard disk needed per channel (known as Di) is:
Di = S / n

• Step 2: Support the total recording time is T. The capacity of the hard disk needed per hour per
channel (known as Dt) is:
Dt = Di / T

• Step 3: The bit rate of all the channels (known as Dc) is:
Dc = Dt x (8 x 1024) / 3600 = Dt x 2.2756 (Kbit/s)

*Alarm Recording
Step 1: The rate of alarm (known as a%), the capacity of the hard disk as S and the total numbers of the
channel as n. The capacity of the hard disk needed per channel is Di:
Di = (S/n) x a%
Step 2: With the time length of the recording (known as T (hours)), the capacity of the hard disk needed per
hour per channel (known as Dt) is:
Dt = Di / T
Step 3: The bit rate of all channels (known as Dc) is:
Dc = Dt x (8x1024) / 3600 = Dt x 2.2756 (Kbit/s)

24

3 Default Values

Table VI 4 Default Values

Menu Options in menu Default

System
Settings

LANGUAGE Multi-language Chinese

Video Standard PAL, NTSC, SECAM Auto Adjust

VGA Setting 800x600@60hz, 1024x768@60Hz,

1280x1024@60Hz, 1440x900@60Hz

800x600@60Hz

Time Format 12 Hours, 24 Hours Time Format

Time Setting Click into submenu screen Year-Month-Day-Hour:Minute-PM

DST Off, on, click into submenu screen Off

Password Setting Click into submenu screen Admin: 111111 User: 111111

HDD Overwrite On, off Reach the maximum number of

users

Add User Click into submenu screen Click into submenu screen

Delete User Click into submenu screen

Authority Change Click into submenu screen Admin

Preview Cruise Off, on Cruise time: 2,5,10,15,20 secs;

Cruise mode: 1,3,9

Device ID number 1 ~ 99 1

Menu time-out
setting

Off, 30 secs, 1 min, 5 min Off

Channel lock
setting

Click into submenu screen

Recourse
Distribution Mode

Click into submenu screen

Video
Settings

Record Schedule Click into submenu screen 24 Hours

Video Quality Best, High, Mid, Low Best

Record Frame
Rate

PAL: Full, 12, 6, 3, 1, User-Defined
NTSC: Full, 15, 7, 3, 1, User-Defined
SECAM: Full, 12, 6, 3, 1, User-Defined

Full

Record Source Video, Video & Audio Video & Audio

OSD Setting Channel name, Channel name and

timestamp, timestamp, none

Channel name and timestamp

Record
Resolution

CIF, Half D1, D1 CIF

Sub-code Frame rate and data bit user-defined:

Frame rate: 1~15fps
Date bit: 32~512kbps

On;
Frame rate: 5fps
Data bit: 96kbps

PTZ protocol

Pelco-P, Pelco-D, Samsung, Panasonic, Yaan,
Yiboer, Pelco-p_call98, vts, pelco-d_cg, pelco­d_lx, pelco-d_cf, pelco-d_mj, pelco-p_mj, pelco­d_hd, pelco-d_dt, pelco-d_jg, jy2000, pelco­d_dsx, delco-d_qg, pelco-d_fh, pelco-d_htz,
pelco-d_xz, pelco-d_pts, td500, clt-618, philips,
pelco-d_jg

Pelco-P

PTZ Baud rate 1200, 2400, 4800, 9600 2400

25

Video
Settings
(Cont...)

PTZ address Click into submenu Channel 1

Colour Settings Brightness, contrast, hue, saturation 6/6/8/8

Motion Detection Highest sensitivity, Normal sensitivity,

Low sensitivity

Normal sensitivity

Mosaic On, off, click into sub menu screen Off

Motion Detection
Event Handling

Record, zoom out, alarm out, buzzer,
upload, email

Record

Video Loss
Handling

Alarm out, sound, report to center,
email

Off

Channel Name
Settings

Click into the settings CH1/2/3/4/5/6/7/8

Network
Settings

Network Static IP, Dynamic Address of IP,

PPPoE

Static IP

IP Address Click into submenu screen 192.168.0.10

Subnet Mask Click into submenu screen 255.255.255.0

Gateway Click into submenu screen 192.168.0.1

HTTP Port Click into submenu screen 80

Command Port Click into submenu screen 5050

Media Port Click into submenu screen 6050

PPPoE Setting ON, OFF, Click into submenu screen Off

PPPoE Address Click into submenu screen 0.0.0.0

DNS Address Click into submenu screen 0.0.0.0

Dynamic Domain
Name

ON, OFF Off

Auto Register ON, OFF Off

File Sharing Click to select or deselect Off

Email Setting Click into submenu screen

Mobile Port Click into submenu screen 7050

UpnP Setting Off, on, Click into submenu screen Off

Dedicated Server Off, on, Click into submenu screen Off

FTP Setting Off, on, Click into submenu screen Off

IP white/black list Off, white list, black list, Click into

submenu screen

Off

Time
Synchronized

Off, on, Click into submenu screen Off

Alarm
Settings

Alarm Input Type N/O, N/C N/O

Event Handling Record, PTZ preset, zoom out, alarm

out, buzzer, upload, email

Trigger alarm output, buzzer and
email.

Alarm Setting Off, 1~10 ON

Alarm Zoom Out 1~10 seconds, OFF OFF

Abnormal Device Click into sub menu screen, alarm out,

buzzer, upload, email, FTP file upload

All

26

4 Introduction of Mobile Phone Monitoring

1) Configuration of server (DVR)

Setup device, type in user name and password to log in.
Shown as figure V1-3 below, click [Net] and then click [Next Page] to enter into the [Mobile Port] screen.

Fig VI-5 DVR sub-stream configuration Fig VI-6 DVR sub-stream settings

Shown as the figure V1-6 above to set [FPS] and [Bitrate], the frequently-used frame rate is 3fps, and data
bit is 128kbps.

Installation and running of client (mobile phone) procedures.

Versions supported client side are as follows:
English/Simplified Chinese/Traditional Chinese Client side of Symbian60 3rd Operation System;
English/Traditional Chinese client side of WinMobile5.0/6.0/6.1 Operation System;
iPhone mobile is supported
Note: We will use WinMobile6.0 as the example to show how to install and run the procedure.

Download Mobile phone client side
Enter into mobile phone system and type the IP address into the IE address column in the form of

http://xxx.xxx.xxx.xxx/download.html. Then press [Enter], the screen shown will be as figure VI-7 (overleaf)

shows. Select the corresponding client side software by using up and down on the mobile phone.

Fig VI-8 Main screen of mobile phone monitor software

After finishing installation, please select QQeye in the start-up menu.

27

Setting
Click [Setting] in Fig VI-8 and the screen will change to Fig VI-9 as shown below.
Type in the [Username] and [Password], which must correspond with the user name and password on the
DVR side. Type in the IP address in the [Server] column, then type in the [Port] for connection such as 7050.
Click [OK] to save and exit the screen.

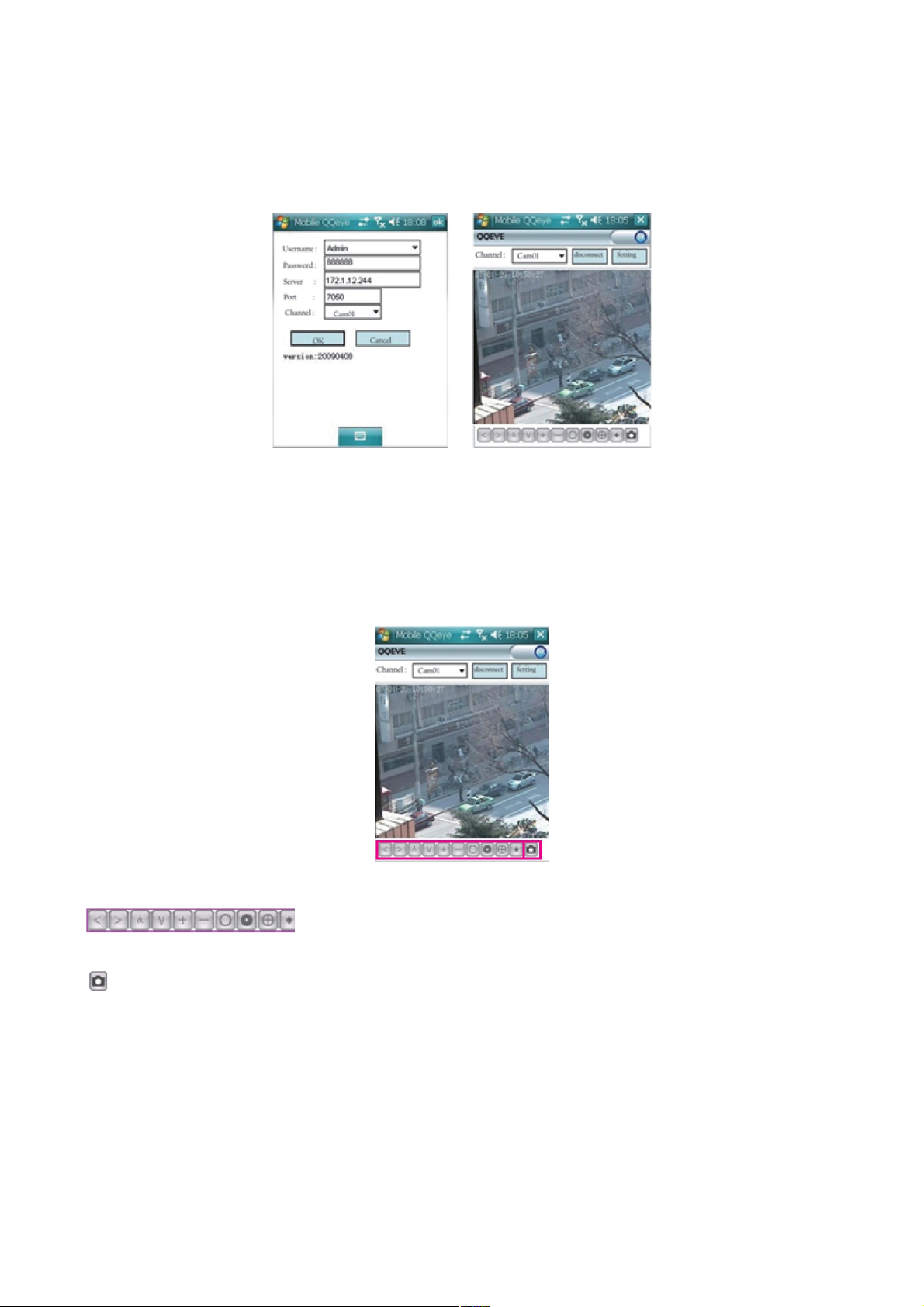

Fig VI-9 Mobile phone settings Fig VI-10 Mobile phone screen

Preview
Click [Connect] in the screen show as Fig VI-8, and Fig VI-10 will display as above, after several seconds of
buffer.
You can select the channel you want to preview by selecting the channel in the pull-down [Channel] menu, or
you can click [Disconnect] to stop the preview.

Operations

Fig 5-11 Button operations on mobile phone

all of these buttons are operated by PTZ.
From left to right, they are [Turn Left], [Turn Right], [Move up], [Move down], [Zoom out], [Zoom in], [Focus
away], [Focus close], Enlarge Iris, Narrow Iris.

is for picture capture.

Note: Thank you for using our product. The installation above is with the Windows Mobile operating system.
There may be some differences between different software versions and operation systems that may not be
noted here.

We encourage the use of a qualified installer to install this product around your household or office. The
installer/buyer take full responsibility of the installation of this product being safe and fully functional.

28
