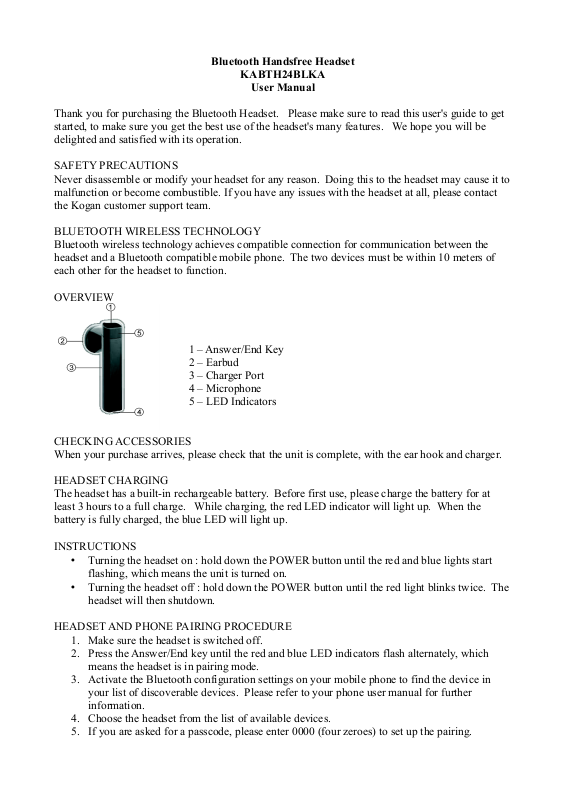

Bluetooth Handsfree Headset
KABTH24BLKA
User Manual
Thank you for purchasing the Bluetooth Headset. Please make sure to read this user's guide to get
started, to make sure you get the best use of the headset's many features. We hope you will be
delighted and satisfied with its operation.
SAFETY PRECAUTIONS
Never disassemble or modify your headset for any reason. Doing this to the headset may cause it to
malfunction or become combustible. If you have any issues with the headset at all, please contact
the Kogan customer support team.
BLUETOOTH WIRELESS TECHNOLOGY
Bluetooth wireless technology achieves compatible connection for communication between the
headset and a Bluetooth compatible mobile phone. The two devices must be within 10 meters of
each other for the headset to function.
OVERVIEW
1 – Answer/End Key
2 – Earbud
3 – Charger Port
4 – Microphone
5 – LED Indicators
CHECKING ACCESSORIES
When your purchase arrives, please check that the unit is complete, with the ear hook and charger.
HEADSET CHARGING
The headset has a built-in rechargeable battery. Before first use, please charge the battery for at
least 3 hours to a full charge. While charging, the red LED indicator will light up. When the
battery is fully charged, the blue LED will light up.
INSTRUCTIONS
• Turning the headset on : hold down the POWER button until the red and blue lights start
flashing, which means the unit is turned on.
• Turning the headset off : hold down the POWER button until the red light blinks twice. The
headset will then shutdown.
HEADSET AND PHONE PAIRING PROCEDURE
1. Make sure the headset is switched off.
2. Press the Answer/End key until the red and blue LED indicators flash alternately, which
means the headset is in pairing mode.
3. Activate the Bluetooth configuration settings on your mobile phone to find the device in
your list of discoverable devices. Please refer to your phone user manual for further
information.
4. Choose the headset from the list of available devices.
5. If you are asked for a passcode, please enter 0000 (four zeroes) to set up the pairing.
CALLS
When the headset is connected to the phone via Bluetooth, it will automatically be setup to receive
any phone calls.
ANSWERING THE CALLS
When the phone rings, either press the ANSWER/END key, or answer the call using the phone.
ENDING THE CALLS
At the end of the conversation, either press the ANSWER/END key, or end the call using the phone.
CARE AND MAINTENANCE
Do not submerge the headset in water.
Do not leave the headset in strong direct sunlight.
PRODUCT SPECIFICATIONS
• Bluetooth Specification version: V2.1+EDRclass2
• Operating Range: 10 metres
• Frequency Range: 2.4GHz – 2.48GHz
• Talk Time: Up to 3 hours
• Standby Time: Up to 100 hours
• Battery Type: Rechargeable lithium polymer battery
• General Charging Time: Up to 2 hours
• Dimension (LxWxH): 48 x 12 x 8mm
• Weight: 10g
INFORMATION ABOUT THE BATTERY
• Best performance of new batteries will be achieved after two to three complete cycles of
charge and discharge. The battery can be charged and discharged hundreds of times before
the battery life deteriorates.
• Please only use the supplied charger to charge the headset. When the headset has finished
charging, please disconnect it from the charger.
• Try to keep the battery fully charged.
• Do not dispose of the batteries in a fire.
• Please recycle the batteries at the end of the products life if possible.
