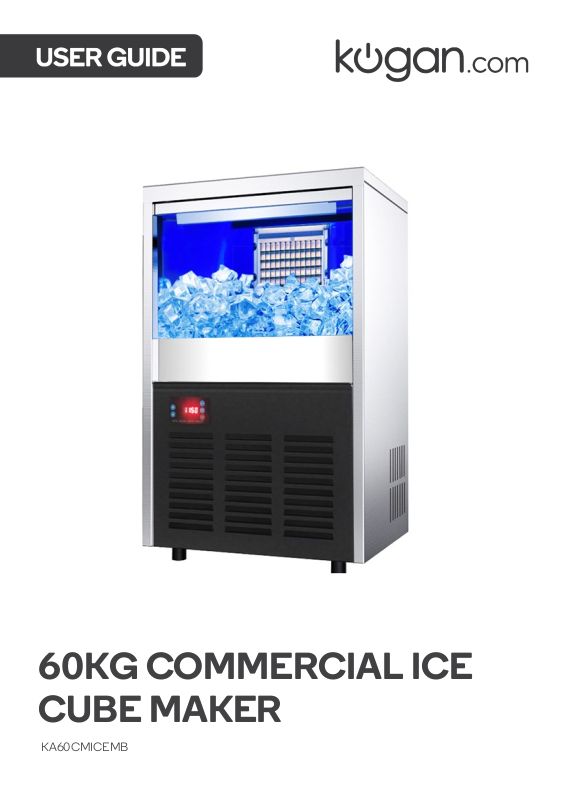

Page 1
60KG COMMERCIAL ICE
CUBE MAKER
KA60CMICEMB
Page 2
Safety & warnings 3
Components list 4
Overview 5
Installation 6
Operation 9
Cleaning & care 14
Troubleshooting 18
Notes 21
2
Page 3
Ensure to read all warnings and instructions in this user guide prior to first use. Retain for
future reference.
To avoid electric shock, do not allow water or any other liquid touch the plugs,
motors and any other electrical parts of the ice cube maker.
• Ensure all components are accounted for in the package. If any components are
missing, contact help.Kogan.com for assistance.
• Ensure the distance between the air vents of the ice cube maker and the wall is more
than 50cm.
• To prevent damage and water leakage, do not bend any of the pipes connected to
this ice cube maker.
WARNING
This ice cube maker should strictly be operated by professionals or other trained
personnel.
• Do not disassemble or repair the icemaker yourself. This should be done by
professionals.
• Any disassembly or repairs should be performed when the icemaker is turned off.
• For safety reasons, ensure the ice cube maker is securely connected and positioned
on the ground during use.
• Ensure the socket used to power the icemaker is working properly.
• The voltage required to power this icemaker is 198-242V, 50±1 Hz.
• Ensure the amount of power used is consistent with that specified on the icemaker
that the bias voltage is less than ± 10% of rated voltage. If the voltage used to power
the icemaker is ± 10% over the rated voltage, this may lead to damage to the
icemaker. An automatic voltage regulator may need to be used.
• Wiring must be done by professionals.
• Do not use flammable sprays or substances on or in the icemaker.
• When moving the ice maker, it should be carried at an angle of no more than 45°.
• Operating temperature: 10°C -38°C
• Operating humidity: Relativity humidity of ≤90%
• If wires need replacing, stop use immediately and contact help.Kogan.com.
• Before performing maintenance on the ice cube maker, ensure the power has been
switched off.
• Keep the ice cube maker away from heat sources (for examples, stoves, ovens,
heaters).
• Position the ice cube maker is a well-ventilated area.
• Keep the ice cube maker dry and clean at all times.
3
Page 4
COMPONENTS LIST
• Icemaker (x1)
• Ice shovel (x1)
• Drain hole blocker (x1 pre-installed in the water tank, x1 spare)
• Water filter (x1)
• Water filter bracket (x2)
• Filter connector (x2)
• Water tap connector (x1)
• Water tap connector seal (x1)
• Water supply valve connector (x1)
• Water supply valve connector seal (x1)
• 1.5m water supply pipe (x1)
• 0.5m water supply pipe (x1)
• User guide (x1)
4
Page 5
1 Air vent
2 Condenser
3 Fan
4 Cabinet components
5 Machine legs
6 Compressor
7 Electrical box
8 Chassis
9 Water supply valve
10 Rear panel
11 Spray water pipe
12 Evaporator
13 Retaining board
14 Icemaker sink
15 Water pump
16 Top panel
17 Door
5
Page 6
INSTALLATION
Open the package and move the icemaker to a well-ventilated grounded area. The
icemaker has an operating temperature of between 10°C - 38°C, and operating humidity of
≤90%.
Keep the distance between the air vents of the machine and the wall to be at least 50cm.
Do not place the icemaker near any heat sources (for example, stoves, ovens, heaters).
Ensure the water temperature and pressure are appropriate. For best results, it is
recommended the temperature of water from the inlet be 0.6°C - 32°C and the pressure be
0.138~0.552MPa.
Water should be drained using a sewer. Ensure the sewer that will be used is clean and
unblocked.
6
Page 7
Installation diagram
Note:
1 Tap 6 0.5m water supply pipe
2 Water tap connector seal 7 Water supply valve connector
3 Water tap connector 8 Water supply valve connector seal
4 1.5m water supply pipe 9 Water supply valve
5 Filter
1. Connecting the water supply pipe
• Take out the water supply pipes from accessory bag to connect to the tap and water
supply valve.
• Place the water tap connector seal (2) and water tap connector (3) onto the tap.
Slide through the end (with the steel balls) of the 1.5m water supply pipe (4). Hold the
steel ball end and secure it to the water tap connector (3).
• Connect the other end of the water supply pipe to the filter (5).
• Take the 1.5m water pipe (4) and connect one end to the filter (5). Twist and secure
the water supply valve connector (7) over the other end of the water pipe (4).
• Place the water supply valve connector seal (8) over the water supply valve (9) and
screw the 0.5m water supply pipe clockwise (6) to secure it to the water supply valve
(9).
• Check the connection for leaking. Tighten if necessary.
The filter may also be mounted to a wall using the included water filter brackets.
7
Page 8
2. Connecting the water discharge pipe
Note:
The water discharge pipe (740mm in length) comes pre-installed on the back of the
icemaker. Extend the pipe and connect it to the sewer.
To prevent the discharged water flowing back into the icemaker, ensure the highest
point of the discharge pipe is higher than the sewer.
3. Adjusting the legs
Adjust the two legs by twisting them until the icemaker is level. Screw down the two
adjustable legs into the nuts on the icemaker.
8
Page 9
Notes:
Notes:
1. Powering on
Switch on the power to the icemaker by pressing the power button on the display. Turn on
the tap and water supply valve. Fill the icemaker sink with water.
2. Water pressure balancing
Upon first use, the icemaker will then automatically go through a process using the water
supply, water pump and pre-installed drain valve to balance the water pressure in the
machine. This process will take around 5 minutes. Usually, the machine is connected to
the power source continually.
• If the main power switch is kept on the icemaker, this pressure balancing
process will occur after every 30 icemaking cycles.
• If the main power switch is turned off, this pressure balancing process will begin
every time the machine is first turned on and filled with water.
3. Icemaking
The water pump will start pumping water through the icemaker into the evaporator to
form the mould of the ice cubes. The condenser will pump refrigerant to cool the water
down to turn into ice. The sensor inside will detect when the water has frozen to ice, and
regulate the thickness of the ice cubes.
• The icemaker will take a few minutes after turning on to start up and prepare for
icemaking.
• For the fastest results, ensure the door is closed during the icemaking process.
• The fan will start and stop intermittently to regulate the condenser’s
temperature during the icemaking process.
• During first use, the icemaker may take longer to form ice cubes due to the
higher temperature in the water inlet.
9
Page 10
4. Ice release
Note:
Once the ice cubes are ready, the water pump will stop. The water supply valve will open
and any remaining water will go into the sink.
The condenser will then start a heating process to release the ice cubes from the mould.
This process will take around 2 minutes, following which the ice cubes will drop into the
cabinet.
The ice cubes will hit the sensor located the right side of the retaining board to signal for a
new icemaking cycle to begin. Water will then start pumping back into the icemaker to
make more ice.
After every four ice making cycles, ensure to drain the water out of the sink.
If the cabinet is full of ice cubes, ice cubes may become stuck between the retaining
board and evaporator, causing the retaining board to move away from its original
position and stop the machine from making ice.
Remove the stuck ice cubes to allow the retaining board to return to its original
position. The machine should resume icemaking.
Ice can also be made using the manual operation mode button on the display. Refer to the
“Display” section below for details.
10
Page 11
Display
Power
When the power is switched on, it turns the icemaker on/off.
• Press the button to turn on.
• Press and hold the button for 3 seconds to turn off.
Manual operation mode button
When the icemaker is turned on, it will operate in the standard automatic mode. However, if
users desire further adjustments, ice can made using this manual operation mode.
• Once the icemaker is switched on, press the button to enter cooling mode. The
cooling system within the icemaker will begin in preparation for icemaking.
• Press again to enter the icemaking mode. Water will begin to be pumped into the
icemaker to start forming ice.
• Press again to enter ice release mode. The completed ice will be slightly heated to
release out of the mould into the cabinet ready for collection.
• Press again to return to the cooling mode. If the cabinet is full, it will enter ice full
mode. The display will show a prompt to notify the cabinet is full.
Light /cleaning button
• Press and hold this button for 3 seconds to enter the cleaning mode. Water will start
cycling through the to clean the pipes and evaporator. This cleaning process will
automatically finish after 20 minutes.
• Unscrew the pre-installed sewerage cap at the back of the icemaker to drain out the
liquid. Once drained, screw the cap back on.
11
Page 12
• When the icemaker is turned on, press this button to turn the light inside the
Note:
icemaker on/off.
Pressing and holding the button for 3 seconds during the cleaning mode will stop the
icemaker cleaning. The icemaker will then turn off.
Increase / time button
• Press this button to enter the ice thickness adjustment setting. Every subsequent
press will increase the icemaking time by one minute. The longer the icemaking time,
the thicker the ice cube.
• Press and hold the button for 3 seconds to switch the display to show the countdown
for the next ice drop, or the amount of time the machine has been running in making
ice on any given occasion.
Decrease / condenser temperature button
• Press this button to enter the ice thickness adjustment setting. Every subsequent
press will decrease the icemaking time by one minute. The shorter the icemaking
time, the thinner the ice cube.
• Press and hold the button for 3 seconds to switch the display to show the
temperature of the condenser (displayed with “L”) or the water temperature
(displayed with “S”).
Scheduled start
This mode allows users to set a scheduled time for the icemaking to begin making ice.
• Ensure the icemaker is on standby (power switch on, icemaker is off).
• Press the increase/time button to enter the time settings. Press the increase/time
and decrease / condenser temperature buttons to adjust the scheduled start time.
The icemaker can be set to start between 1-18 hours from the time of setting.
• Press the power button to confirm the start time. From here, the display will show a
countdown leading to the scheduled start time.
12
Page 13
Refer to the table below for other display descriptions.
Note:
Display shows Description
P 00: Power on delay
CLE: Icemaker in cleaning mode
P x:xx Icemaker in cooling mode
• It will display the time remaining in this mode.
xx:xx Icemaker in icemaking mode
• It will display the time remaining in the icemaking mode.
During ice thickness adjustment
• Whilst flashing, it will display the adjusted icemaking time
H x:xx Icemaker in shedding mode
• It will display the time remaining in this mode.
FUL Icemaker is full. When ice is removed, the display will flash.
Time required for one icemaking cycle
Ambient temperature Time
10°C~20°C 12min~15min
20°C~32°C 15min~18min
32°C~35°C 18min~22min
35°C~43°C 22min~26min
There are other factors for example, humidity that will also affect the amount of time
needed for one cycle. The above table is only intended as a reference.
13
Page 14
Notes:
CLEANING & CARE
These steps should also be followed if the icemaker has not been used for an extended
period prior to use.
Before cleaning, remove any ice cubes from the cabinet. Ensure the main power and tap
are turned off.
• Clean the exterior and the interior cabinet with water. Neutral detergents (those
containing no alkaline and bleaches) may also be used with water.
• Wipe down the icemaker with a soft towel.
• Do not harshly spray (for example, using a pressure cleaner) the machine
directly.
• Do not use alkaline detergents, perfumed soap, lapping powder, boiling water,
banana oil and any other organic solvents to clean the icemaker.
14
Page 15
• Grasp and carefully pull the air vent off the front of the icemaker. Use a dust collector
Notes:
Note:
brush to clean the dust off the condenser.
• To avoid damage to the condenser, do not use iron or other metal tools to
remove the dust.
• It is recommended to clean the condenser every 3 months.
• Open the door and remove the spray water pipe. Open the cover and scrub all build-
up off every hole in the pipe until all holes are clear.
• Close the cover and insert the spray water pipe back into the icemaker.
The spray water pipe should be cleaned at least every 6 months.
Pipe
Hole
Cover
15
Page 16
• Screw off all pre-installed nuts from all nozzles on the pipes. Remove and clean the
Plate
plates that are sandwiched between nozzle and nut. Ensure the holes on each plate
are clear.
• After cleaning, secure the plates and nuts back onto the nozzle.
Nut
Nozzle
Pipe
• Unscrew the pre-installed cap off the drain valve and drain out all dirty water. Once
drained, screw the cap back onto the drain valve.
Automatic cleaning mode
In addition to manually cleaning the icemaker, users can press the “clean” button on the
electrical box whilst the icemaker is making ice to activate the automatic cleaning mode.
The icemaker’s refrigeration system will stop as it begins the cleaning process. The whole
process takes around 30 minutes.
Once complete, check the location of the float pre-installed inside the icemaker.
If the float is located close to the bottom, this is normal. The icemaker will then the water
pressure balancing process and the water level inside the icemaker will be regulated.
16
Page 17
Descaling
For the safe and efficient use, all pipes, valves, the evaporator, and water pump should be
descaled at an interval of at least every 3 months.
Pour food-grade descaling agent, diluted citric acid with a 20% concentration, or white
vinegar into the icemaker sink and activate the cleaning mode by either pressing and
holding down the Light / cleaning button on the display for 3 seconds.
Meanwhile, use a brush to clean and limescale on surfaces.
After the icemaker completes its cleaning, activate the cleaning mode three times using
clean water from the tap to flush out residue acids, ensure food safety and to prevent
corrosion damage to components.
Water filter
The water filter should be replaced regularly for proper hygiene and due to damage caused
by limescale build-up over time. If replacement is required, contact help.Kogan.com for
further assistance.
17
Page 18
TROUBLESHOOTING
Fault Analysis Solution
Icemaker is not
making ice
Power cord is not
plugged in
The retaining board is
stuck due to an ice
cube.
The connecting wire
of compressor’s
starter is loose
The capacitor of the
compressor is broken
Water level sensor is
broken
Water pump is broken
Interrupted water
supply
Low operating
temperature
Float in the upper
position
Ensure the power cord is securely connected.
Remove the ice cube and return the retaining
board to its original position.
Turn off the power and securely connect the
wire to the compressor.
Replacement required.
Contact help.Kogan.com for assistance.
Restart the icemaker after water supply
returns to normal.
Check that the lights on the electrical box are
flickering. Restart the icemaker.
There may be issues with the pre-installed
water level sensor, water pump or drain valve.
Contact help.Kogan.com for assistance.
Icemaker sink is
overflowing
No water flowing
into the icemaker
18
Water supply valve is
broken
Water level sensor is
broken
Water pump is broken
Replacement required.
Contact help.Kogan.com for assistance.
Page 19
Surface of the
condenser is covered
with dust
Clean the condenser.
Ice cubes are too
thin
Ice is not
dropping into the
cabinet
Fault code chart
Ambient temperature
is too high
Refrigerant is leaking
Fan motor is broken
Spray water pipe is
blocked
The sensor on the
retaining board is too
close
The sensor on the
retaining board is
broken.
Valves are not open
Ambient temperature
is too low
Stop use. The icemaker should only be used in
the permitted operating temperatures.
Stop use and seek advice from a professional.
Do not try to repair the icemaker yourself.
Replacement required.
Contact help.Kogan.com for assistance.
Clean the spray water pipe.
Adjust the screw of the sensor by turning it
right.
Replacement required. Contact
help.Kogan.com for assistance.
Stop use. The icemaker should only be used in
the permitted operating temperatures.
Display
shows
E01
Sensor on the retaining
board is not working.
Analysis Solution
• Check and remove any ice or foreign
material blocking the retaining board
from its original position.
• Return the retaining board its original
position.
• Contact help.Kogan.com for assistance.
19
Page 20
E02 Overheating due to multiple
icemaking cycles
E03 Ice not releasing • Check the ice thickness adjustment. The
E04 High temperature • Ensure there is at least 50cm clearance
E05
Water shortage
E07
Condenser sensor failure
E08 Water temperature sensor
failure
• Check the cooling system is working
properly.
• Check the pre-installed water
temperature sensor located on the float
in the water tank.
longer the time set, the longer it will take
for the ice to release.
• Try unplugging the power cord and
carefully take off the air vent. Check for
and remove any dust on the condenser.
from all walls and that there is good
ventilation around the icemaker.
• Ensure the operating temperature is
between 10-38°C.
• Try unplugging the power cord and
carefully take off the air vent. Check for
and remove any dust on the condenser.
• Check the connection to the water
supply pipe is secure and that the water
pressure is no lower than 0.012MPa.
• Check the water pump is operating
normally.
• Check all valves for limescale. Clean the
valves if needed. If replacements are
required, contact help.Kogan.com for
assistance.
• The water supply valve will open for 30
second intervals every 5 minutes. If the
water level sensor detects there is
enough water, the fault code will also
disappear.
Turn off the icemaker and check whether the
connection to the pre-installed condenser
sensor (located close to the filter) is loose,
turned off, or if the sensor circuit is
disconnected.
Turn off the icemaker and check whether the
connection to the pre-installed water
temperature sensor (located on the float of
the water tank) is loose, turned off, or if the
sensor circuit is disconnected.
20
Page 21
NOTES
21
Page 22
22
Page 23
23
Page 24
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
24
Loading...
