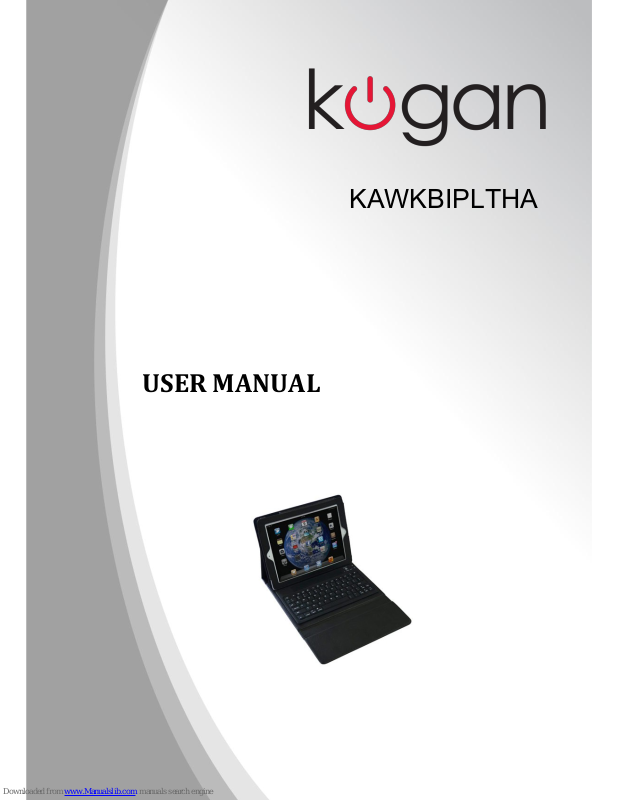

Page 1
KAWKBIPLTHA
USER MANUAL
Page 2
Bluetooth Keyboard for iPad
Packing Contents:
1. Wireless/ wired keyboard
2. USB Power Charging cable
1.0 Product Features:
1. Built-in wireless Bluetooth 3.0 keyboard.
2. Modern style designed for iPad.
3. ipad display stand for easy viewing.
4. Built-in Rechargeable lithium battery lasts for approximately 55 hours per charge.
5. Special [home] screen key for one touch access to variety of applications.
6. Light weight, quiet keystrokes, water-proof and dust-proof.
7. Energy saving keyboard sleep mode.
Bluetooth Keyboard Specification and Pairing Instruction
2.0 Keyboard Specification:
1. Bluetooth 3.0 interface standard
2. Operating Distance to 10 meters.
3. Modulation System: GFSK
4. Operation Voltage: 3.0-5.0V
5. Working Current: <5.0mA
6. Standby Current: 2.5Ma
7. Sleeping Current: 200Ua
8. Charging Current: ≥100Ma
9. Standby Time: 60days
10. Charging Time: 4-5hours
11. Lithium Battery Capacity: 160Ma
12. Uninterrupted Working Time: 55hours
13. Lithium Battery Life: 3 years
14. Lithium Battery Specifications: 45*16.5mm
15. Key Strength: 80±10g
16. Key life: 5 million strokes
17. Operating Temperature: -10 +55℃
Page 3
3.0 Bluetooth Keyboard Pairing
Step 1: Turn on the power toggle switch. The [power] and [Bluetooth] indicator light will be 5 seconds, then the
light will go off.
Step 2: Press on the [connect] button. The [Bluetooth] indicator light will be blinking, and the [power] indicator
will be on. The keyboard is now ready to be connected to iPad.
Step 3: Turn on and unlock iPad. Click on the iPad [settings] icon.
Step 4: On the settings menu, select item [General] to access [Bluetooth] settings. Click on [Bluetooth] to turn on
the connection. iPad will automatically search for a Bluetooth-enabled device.
Step 5: Wireless keyboard should be found. Click on the device to connect.
Step 6: Enter the password code as displayed on screen.
Step 7: Wireless keyboard connected successfully. [Power] indicator light will stay on until the keyboard is turned
off.
Special note:
The wireless keyboard can be connected to iPad, iPhone 3G, 3GS, 4G and iPod Touch that had installed iOS
4.0 or later. For other Bluetooth enabled device, please verify the Bluetooth standard & compatibility before
attempting to connect to the keyboard.
4.0 Charging
When the battery power is low, the [power] indicator light will start blinking, it is time to recharge the keyboard.
Step 1: Connected USB-B of the native USB power cable to the keyboard charging interface.
Step 2: Connect USB-A to the power adaptor or computer’s USB interface.
Step 3: The [charge] red indicator light will stay on when the keyboard is charging. Once it finished charging the
[charge] indicator light will turn off.
5.0 Energy Saving Sleep Mode
The keyboard will kick into sleep mode when it is inactive for 15 minutes, and the keyboard (power) indicator or
light will go off. To activate from sleep mode, just press any key and wait 3 seconds, the keyboard will come back
on.
6.0 Safety Caution
1.Keep the item away from sharp objects.
2.Do not play heavy object on top of the keyboard.
3.Do not Microwave the keyboard.
4.Do not force or distorted the keyboard.
5.Keep away from oil, chemical or any other organic liquid.
Page 4
7.0 Cleaning
Clean the silicon keyboard with water, rubbing alcohol or alcohol based disinfectant.
8.0 Troubleshooting
(A) Unable to connect
1. Make sure the power switch is on.
2. Make sure the keyboard is within the operating distance.
3. Make sure the battery is charged.
4. Make sure iPad Bluetooth setting is on.
5. Make sure wireless keyboard is connected to iPad
6. Make sure wireless keyboard has been paired with the iPad
(B) Unable to charge keyboard
1. Make sure the USB power cable is connected properly to the keyboard and the power source.
2. Make sure the wall charger is plug into the power outlet.
9.0 Special Keys description
Hold down Fn and combination with F1-F12
Then insert keys to the shift multimedia keys.
Mainly be used in the operation of iPad multimedia
Federal Communication commission Interference Statement
This equipment has been tested and found to comply
with the limits for a class B digital device
Pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses age and can radiate radio
frequency energy and. If not installed and used in accordance
with the instructions. May cause harmful interference
to radio or television reception. Which can be
determined by turning the equipment off and on.
This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this
device may not cause harmful interference, and (2) this device must accept any interference received. Including
interference that may cause undesired operation.
FCC Caution Any charge or modifications no expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
IMPORTANT NOTE
FCC Radiation Exposure Statement:
1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF exposure compliance.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
iPad, iPhone and iPod Touch are trademarks of Apple Inc
