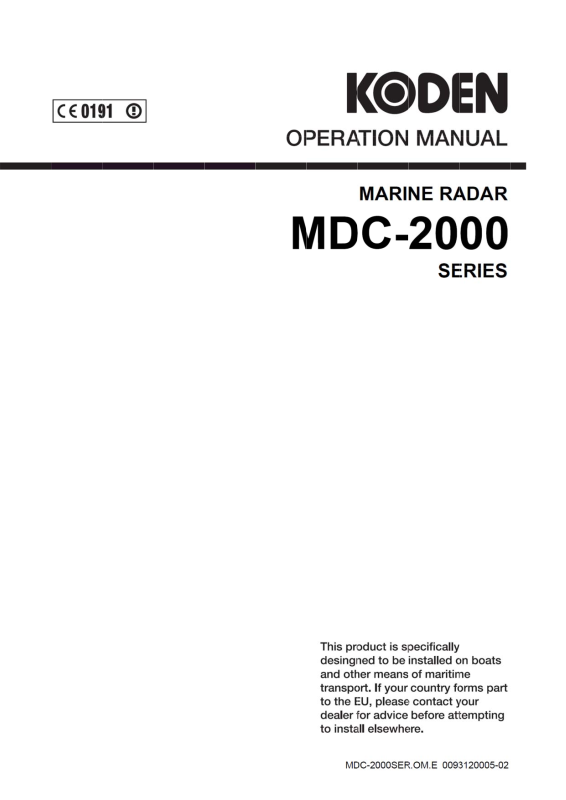

Koden MDC-2000 series Operation Manual

MDC-2000 Series Document Revision History

MDC-2000 Series Operation Manual

Doc No. 0093120005

Document Revision History

No. Doc. No / Rev. No. Revised Date

(Y/M/D)
0 0093120002-00 2010/04/05 First edition
1 0093120002-01 2010/05/12 Corrected chapter page
2 0093120002-02 2010/06/24 Full revision
3 0093120002-03 2010/07/13 Full revision
4 0093120002-04 2010/09/03 Chapter 2, Chapter 3, Chpter 5
5 0093120005-00 2010/10/15 Corrected document number and content
6 0093120005-01 2011/06/20 Chapter 2, Chapter 3, Chapter 5, Chapter 6
7 0093120005-02 2013/12/04 Chapter 2, Chapter 6
8
9

10

Revised Content

Document No. Revised Version Norm

When part of the document needs to be revised, the document has advanced revision number.
The document No. is indicated at the lower right side on the cover and at the left or right side of the
footer region of each page.

© 2010-2013 Koden Electronics Co., Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, translated in any from by any means without
the written permission of Koden Electronics Co., Ltd. The technical descriptions contained in this
publication are subject to change without notice. Koden assumes no responsibility for any errors,
incidentals or consequential damages caused by misinterpretation of the descriptions contained in this
publication.

0093120005-02 i

Important Notices MDC-2000 Series

Important Notices

 The re-use and transcription of Operation Manual (hereafter called this manual) needs permission

of our company. Our company prohibits the un-author ized re-use and transcription.

 If this manual is lost or damaged, consult our dealer or our company.
 The specification of our products and the content in this manual are subject to changed without

notice.

 In the explanation of this manual, the content displayed on the menu of product may be different,

depending on the situation. The keys and menus in the illustration may differ in physical font and
shape. And some parts may be omitted.

 Our company is not liable for damage and trouble arising from misunderstanding of the content

described in this manual.

 Our company is not liable for earthquake, lightning, fire for which our company is not responsible,

action by third party, other accident, customer’s unintended error/abuse and damage caused by
the use under other abnormal condition.

 Our company is not liable for damage of accompaniment (change/loss of memorized content, loss

of business profit, stop of business) arising from use or failure of our product.

 If the stored data is changed or lost, irrespective of any cause of trouble and damage, our

company is not liable for it.

 Our company is not liable for any damage arising from malfunction caused by combination of such

software and connected equipment that did not involve our company.

ii 0093120005-02

MDC-2000 Series For Your Safe Operation

For Your Safe Operation

Symbol used in this Operation Manual

This manual uses the following symbols. Understand the meaning of each symbol and implement the
maintenance and inspection.

Symbol Meaning

Mark for warning

This symbol denotes that there is a risk of death or serious injury when not
dealing with it correctly.

Mark for danger high voltage

This symbol denotes that there is a risk of death or serious injury caused

IMPORTANT

by electric shock when not dealing with it correctly.

Mark for caution

This symbol denotes that there is a risk of slight injury or damage of device
when not dealing with it correctly.

Mark for prohibition

This symbol denotes prohibition of the specified conduct. Description of
the prohibition is displayed near the mark.

Mark for important matters

This mark denotes that there is a possibility that data loss may interfere the
operation or that the expected result may not be obtained when the radar
is not dealt correctly.

Mark for reference

This mark shows the part to be referred to concerning this description.

0093120005-02 iii

For Your Safe Operation MDC-2000 Series

Caution Item on Equipment

Caution on a high voltage inside.

A high voltage, which may risk your life, is used. This high voltage
remains in the circuit after you have powered off switch. To prevent
touching the high voltage circuit inadvertently, the protective cover is
provided to the high voltage circuit and the high voltage caution label is
affixed. Ensure to power off switch for your safety and discharge the
electricity remaining in the capacitor before starting to check. An
engineer authorized by our company should inspect and maintain the
circuit.

Ensure to switch off the power in the boat.

If the power switch is inadvertently powered on during work, you will be
electrified. To prevent such accident from occurring, ensure to switch off
the power in the boat and the power of equipment. Furthermore, it is
safer to hang the caution tag with description of [Under Work] near the
power switch of equipment.

Caution on dust

Inhaling dust may cause A respiratory disease. When cleaning the inside
of equipment, be careful not to inhale dust. Wearing a safety mask is
recommended.

Caution on location of equipment

Do not install the equipment where it is excessively damp and suffers
from excessive water drops.

Caution on static electricity

The static electricity may be generated from the carpet on the floor i n the
cabin or clothes made of synthetic fiber. The static electricity may
destroy the electronic parts on the circuit board. Handle the circuit board,
taking the suitable anti-static mea su res.

iv 0093120005-02

MDC-2000 Series For Your Safe Operation

Caution Item on Handling

Caution on the rotating aerial

The radar antenna may start to rotate without notice. Please

Caution

stand clear from the antenna for your safety.

Caution on electromagnetic disturbance

The operating Antenna & Scanner unit radiates high-energy electromagnetic
wave. It may cause harmful effect for human body due to its continuous
irradiation. As International regulation says, electromagnetic waves less than

2

100 watt/m
medical devices such as heart pacemakers are sensitive even under the low
energy electromagnetic wave. Any personnel with such a device should keep
away from the electromagnetic wave generating position at all times.
Specified power density and distance from the radar (in accordance with the
provision as specified in IEC 60945)

Model
MDC-2041 4kW/ 2 feet (Radome antenna) 0.8m 2.54m
MDC-2040 4kW/ 3 feet (Open antenna) 0.9m 2.85m

MDC-2060 6kW/ 4 feet (Open antenna)

does not have a harmful effect on human bodies, but some kind of

Xmit power/Antenna length

4kW/ 4 feet (Open antenna)

100W/m2 10W/m2

1.01m 3.2m

1.09m 3.46m

6kW/ 6feet (Open antenna)

MDC-2010

12kW/ 4 feet (Open antenna)
12kW/ 6feet (Open antenna)

1.3m 4.10m

1.55m 4.89m

1.84m 5.81m

0093120005-02 v

For Your Safe Operation MDC-2000 Series

Do not disassemble or modify. It may lead to trouble, fire, smoking or
electric shock. In case of trouble, contact our dealer or our company.

In case of smoke or fire, switch off the power in the boat and the power of
equipment. It may cause fire, electric shock or damage.

Caution on the remaining high voltage.
A high voltage may remain in the capacitor for several minutes after you
have powered off. Before inspecting inside, wait at least 5 minutes after
powering off or discharging the remaining electricity in an appropriate
manner. Then, start the work.
The information displayed in this unit is not provided directly for your
navigation. For your navigation, be sure to see the specified material.

Use the specified fuse. If un-specified fuse is used, it may cause a fire,
smoke or damage.

Caution on Display unit

Do not push or scrub the surface of the Display unit with a pointed tip of a
hard matter (tool, tip of a pen, etc) Scars could be made.

Do not press the surface of the Display unit. Interference stripes or display
abnormality could occur.

Disposal of this radar

This radar shall be disposed according to the municipal regulations or rules.

vi 0093120005-02

MDC-2000 Series Contents

Contents

Document Revision History ....................... i

Important Notices ..................................... ii

For Your Safe Operation ......................... iii

Contents ................................................. vii

Introduction .............................................. x

System Configuration .............................. xi

Configuration of Equipment.................... xii

Chapter 1 Basic Operation...................... 1-1

1.1 How to read the radar screen .... 1-3

1.2 How to use the keys................... 1-4

1.3 Power On/Off ............................. 1-6

Power On ................................... 1-6

Power Off ................................... 1-6

Language Selection at Initial

Start-up ...................................... 1-6

1.4 Brilliance Adjustment.................. 1-6

Brightness Adjustment of LCD ... 1-6

1.12 Measuring the distance and

bearing between two points ..... 1-10

Measuring the distance and

bearing between two points ..... 1-10

1.13 Camera Display ....................... 1-10

How to connect a CCD

camera ..................................... 1-10

How to display the video of a

CCD camera ............................ 1-10

Chapter 2 How to use the menu ............. 2-1

2.1 How to operate the menu .......... 2-1

Display/Non-display of Menu ..... 2-1

Operation of Menu ..................... 2-1

2.2 FTC Adjustment ......................... 2-2

2.3 Setting of Display Mode ............. 2-2

H UP (Head Up) ......................... 2-2

N UP (North Up) ......................... 2-3

Brightness Adjustment of

Panel .......................................... 1-6

1.5 Transmission .............................. 1-6

Start of Transmission ................. 1-6

Stop of Transmission ................. 1-6

1.6 Switch-over of Range ................ 1-7

Change of Range ....................... 1-7

Change of Sub-screen Range ... 1-7

1.7 Gain Adjustment ......................... 1-7

Gain Adjustment ......................... 1-7

Adjustment of Sub-screen

Gain ........................................... 1-7

1.8 STC Adjustment ......................... 1-8

STC Adjustment ......................... 1-8

1.9 Use of [F1] and [F2] keys ........... 1-8

How to use [F1] and [F2] keys ... 1-8

1.10 Delete of Heading Line .............. 1-9

C UP (Course Up) ...................... 2-3

WPT UP (W aypoint Up) ............. 2-3

Relative Motion (RM) and Tru e

Motion (TM) ................................ 2-3

True Motion Reset ..................... 2-5

2.4 Display Select ............................ 2-5

PPI Display ................................ 2-5

PPI/PPI Display .......................... 2-5

Note on PPI/PPI Display ............ 2-6

PPI/NAV Display ........................ 2-6

Note on PPI/NAV Display ........... 2-6

2.5 Setting of OFF CENTER ............ 2-6

2.6 Setting of Enhance

(Enlarged Target) ....................... 2-6

2.7 Setting of Signal Process ........... 2-6

2.8 Setting of Pulse Width ................ 2-7

2.9 Trailing ....................................... 2-7

Delete of Heading Line .............. 1-9

1.11 Use of Crosshair Cursor ............ 1-9

0093120005-02 vii

Relative Display (R) ................... 2-7

True Display (T) ......................... 2-8

Contents MDC-2000 Series

2.10 EBL ............................................. 2-8

2.11 VRM ........................................... 2-8

2.12 Display Color .............................. 2-9

2.13 Crosshair Cursor Shape ............. 2-9

2.14 PI (Parallel Index Line) ............... 2-9

2.15 Bearing Mode ............................. 2-9

2.16 Vector ......................................... 2-9

2.17 Alarm ........................................ 2-10

IN Mode .................................... 2-10

OUT Mode ................................ 2-10

Setting of Alarm Range ............ 2-10

2.18 Sleep ........................................ 2-10

Operation during executing the

sleep ......................................... 2-11

2.19 AIS ............................................ 2-1 1

Setting of Symbol Display of

AIS ............................................ 2-11

Speed Unit .................................. 3-1

Temperature Unit ........................ 3-1

Depth Unit .................................. 3-1

Position Display .......................... 3-1

WPT Display ............................... 3-2

Rotation Speed ........................... 3-2

ALL PPI ...................................... 3-2

Guide .......................................... 3-2

Buzzer ........................................ 3-2

Motor Speed ............................... 3-2

N UP/S UP ................................. 3-2

Crosshair Cursor Display ........... 3-2

Radar Setting Display ................ 3-2

Menu Operation ......................... 3-2

3.3 Setting of Adjustment Items ....... 3-2

Bearing Setting ........................... 3-3

TX Delay Adjustment .................. 3-3

Setting of Detailed Information of

Designated Symbol Display ..... 2-11

Types and Meanings of AIS

Symbols .................................... 2-11

2.20 ATA ........................................... 2-12

Automatic Acquisition ............... 2-12

Manual Acquisition ................... 2-13

Target Level .............................. 2-13

Target Delete ............................ 2-13

Number of Acquisition .............. 2-13

Information Display .................. 2-13

Types and Meanings of ATA

Symbols .................................... 2-14

Chapter 3 How to use the system

menu ..................................... 3-1

3.1 Display of System Menu ............ 3-1

Display the System Menu .......... 3-1

Return to the normal menu ........ 3-1

3.2 Setting of Assist Items ................ 3-1

Range Rings .............................. 3-1

Range Unit ................................. 3-1

MBS ............................................ 3-3

STC Curve ................................. 3-4

Tune Select ................................ 3-5

Automatic Tuning ....................... 3-5

Manual Tune Adjustment............ 3-5

Pulse Width ................................ 3-5

Interference Rejection ................ 3-6

Echo Color Divide ...................... 3-6

Signal Select .............................. 3-6

Field of Angle ............................. 3-6

3.4 NMEA ......................................... 3-7

KGC-1 Setting (Connection with

the KODEN GPS compass) ....... 3-7

3.5 Preset ......................................... 3-7

F1/F2 Key Set ............................ 3-7

Select Range S/M/L ................... 3-7

Echo Color Set ........................... 3-7

Trail Color Set ............................ 3-7

Display Color Set ....................... 3-7

Language Select ........................ 3-7

NAV Display Select .................... 3-7

Camera Position Crrection ......... 3-7

viii 0093120005-02

MDC-2000 Series Contents

3.6 Maintenance .............................. 3-8

Display Unit ................................ 3-8

Antenna ...................................... 3-8

Panel Test .................................. 3-8

LCD Test .................................... 3-8

Operation Hours Reset .............. 3-8

TX Hours Reset ......................... 3-8

ALL Reset .................................. 3-8

System Program Renewal ......... 3-8

Chapter 4 Maintenance ........................... 4-1

4.1 Maintenance .............................. 4-1

4.1.1 Monthly Inspection ..................... 4-1

4.1.2 Yearly Inspection ........................ 4-2

4.2 Fuse Replacement ..................... 4-3

4.3 Consumables ............................. 4-3

4.4 Trouble Diagnosis ...................... 4-3

4.4.1 Information required for

Cable connection to the Display

unit ........................................... 5-14

Pin Assignment of Rear

Connector ................................ 5-15

Connection of DC power

cable ........................................ 5-16

Grounding ................................ 5-16

Connection of External Buzzer

and External Monitor ................ 5-16

Connection with the AIS

Receiver ................................... 5-17

Connection with the navigation

equipment ................................ 5-17

Connection of CCD Camera .... 5-18

5.6 List of Input/Output Sentence .. 5-18

Input Sentence ......................... 5-18

Output Sentence ...................... 5-18

requesting a repair ..................... 4-3

4.4.2 Error Display .............................. 4-3

4.4.3 Self-diagnostic Function ............ 4-4

4.4.4 Inspection at Each Location ....... 4-5

Chapter 5 Equipment .............................. 5-1

5.1 Antenna Installation ................... 5-1

Determining the location of

the installation ............................ 5-1

How to shift the antenna from an

obstacle ...................................... 5-2

Installation of Antenna ................ 5-3

Installation of Radome Antenna . 5-3

Setting of Open Antenna ............ 5-4

Installation of Antenna ................ 5-5

Cable Connection ...................... 5-7

5.2 Mutual Connection Diagram .... 5-10

5.3 Display Unit Installation ............ 5-11

Chapter 6 Attached Table ....................... 6-1

6.1 Menu Configuration.................... 6-1

6.2 Specifications ............................. 6-3

6.3 External View ............................. 6-4

Chapter 7 Principle of radar system ....... 7-1

7.1 What is the radar system? ......... 7-1

Side lobe .................................... 7-1

Beam width ................................ 7-1

7.2 Characteristics of radar radio

wave ........................................... 7-2

Target with less reflection .......... 7-2

Radar shadow ............................ 7-2

False image ............................... 7-2

7.3 Radar interference ..................... 7-4

Desktop Installation .................. 5-1 1

Flush-mount Installation ........... 5-12

5.4 Adjustment after Installation..... 5-13

5.5 Wiring ....................................... 5-14

0093120005-02 ix

Introduction MDC-2000 Series

Introduction

Thank for your purchase of KODEN color LCD marine radar MDC-2000 Series.
The quality and endurance of a unit is well considered. For the best performance, read this Operation

Manual and operate a unit correctly and safely.
The main features of this unit are as follows.

 The high performance radar equipped with 10.4 inch display can be used for professional use.
 In the true trail function, as moving targets such a s other ships are displayed being tailed and

stationary targets such as land are displayed being fixed, the moving t argets and fixed targets can
be easily discriminated.

 Two screen images of different ranges can be displayed. If you set a near distance screen and a far

distance, you can navigate properly and grasp a situation.

 The automatic tracking function (ATA) is provided. The maximum 50 targets can be tracked. The

current motion of other ships can be grasped in a vector and numeral so that it helps your ship to
navigate safely. (Optional)

 By connecting the AIS receiver, the gathered information such a s name, heading and speed of a

ship can be displayed. (Optional interface)

 With the adoption of a specific filter (AR coat), an image can be seen clearly, refusing sunshine. The

countermeasures against the reflection on the LCD screen and dew are provid ed.

 The RGB output for an external monitor is provided as standard equipment. The use of the external

monitor enables you to observe easily the radar screen at a location which is remote from a main
unit. (External monitor: Prepared by a customer)

 A video from a CCD camera can be displayed. The inside of a ship can be observed by a camera

installed at the engine room helps your ship navigate safely. (CCD camera: Prepared by a customer)
(CCD camera cable: Optional)

 With the adoption of the gain/STC rotary knob, the operability is enhanced.
 When flush-mounted, a unit can be installed or removed from the front of the unit.

x 0093120005-02

MDC-2000 Series System Configuration

System Configuration

Connection Diagram

MRD-104 Display unit

With mounting bracket and hard cover

RB715A/ RB716A/ RB717A/ RB718A

J7

Antenna-Scanner unit

Navigation equipment

KGC-1 or
Navigation equipment

J4

J5

J6

CCD camera

*Be sure to connect the KGC-1 to J5

Power 10.8 to 31.2VDC

Legend

Standard configuration
Option

Prepared by a user

J1

J2

External Monitor
External Buzzer

AIS Receiver

J3

Slave Display
MRD-XXX

0093120005-02 xi

Configuration of Equipment MDC-2000 Series

Configuration of Equipment

Standard Equipment Configuration List

No Name of item Type Remarks

1 Display unit

MRD-104

2 Hard cover

A30MB10250 390 g 1

3 DC power cable

CW-259-2M

With mounting
bracket and knobs

3-pin water
resistant connector
and one end plain

Weight/

Length

8.1 kg 1

2 m 1

Quantity

4 Fuse

F-1065-15A
Cylinder (ø 6.4x30)

5 Fuse

MF51NN250V5A
Cylinder (ø 5.2x20)

6 Fuse

F-7142-0.3A
Cylinder (ø5.2x20)

7 Connector

8 Operation Manual MDC-2000SER.OM.E English 1
9 Quick Reference MDC-2000SER.QR.E English 1

LTWBD-06FFA-L180

Normal fusion type
for main power

Normal fusion type
for motor power

Normal fusion type
for high voltage
power

6-pin water resistant
connector

1

1

1

1

xii 0093120005-02

MDC-2000 Series Configuration of Equipment

Types of Antenna-Scanner unit

No. Type

1 RB715A

2 RB716A with RW701A-03/04

Transmitting

Power

4kW Radome Interconnecting

4kW Open Interconnecting

Shape Remarks Weight/Length

cable, 10m*,
242J158055A-10M

cable, 10m*,
242J159098A-10M

10kg / 2ft

21kg / 3ft

22kg / 4ft

3 RB717A with RW701A-04/06

4 RB718A with RW701A-04/06

*Cables of 15m, 20m and 30m are available. (Optional)
**Cables of 10m, 20m and 30m are available. (Optional)

6kW Open Interconnecting

12kW Open Interconnecting

23kg / 4ft
cable, 15m**,
242J159098B-15M

25kg / 6ft

23kg / 4ft
cable, 15m**,
242J159098B-15M

25kg / 6ft

0093120005-02 xiii

Configuration of Equipment MDC-2000 Series

Optional List

No. Item Name Type Remarks Cable Length

1 GPS compass KGC-1 GPS/Heading

measuring
2 AIS interface board AIS-110 200 targets
3 Cable for AIS receiver CW -387-5M 8-pin water resistant

connector and one

end plain
4 ATA board MRE-340
5 Cable for external

monitor/external buzzer

6 Cable for slave display CW-561-10M 12-pin water

7 Power rectifier PS-010 With 2 pieces of 5A
8 AC power cable VV-2D8-3M Both ends plain 3m

9 Cable for navigation cable CW-373-5M 6-pin water resistant

10 CCD Camera cable CW-405-0.3M CCD camera cable 0.3m

CW-576-0.5M 10-pin water

resistant connector

and D-SUB

connector (female) +

Alarm out cable

resistant connectors

at both ends

fuse

connectors at both

ends

CW-376-5M 6-pin water resistant

connector and one

end plain

5m

0.5m

10m

5m

5m

xiv 0093120005-02

Chapter 1 Basic Operation MDC-2000 Series

f

f

2

5

,

A

r

Chapter 1 Basic Operation

The basic operation of this unit is as follows. For detailed explanation, refer to each item in this manual.

Press the [ ] to turn

1 .

1 .

on the power

1.3 Power On/O

BRILL

.

When [ST'BY] appears, press
the [STBY/TX] key to start
the transmission.

1.5 Transmission

.

Rotate the [STC] knob to adjust the sea surface reflection suppression effect.
The suppression fect becomes strong when rotating clockwise the knob and
becomes weak when rotating counterclockwise the knob.

This function reduces the gain at a near distance. If you turn clockwise the knob

・

djust properly to meet the weathe

too much

condition.

Example of STC adjustment :

: The suppression
is too weak.

The reflection from sea
surface is displayed.

desired objects may disappear.

The desired objects
are displayed.

.

: Optimum
suppression.

: The suppression
is too strong.

Some objects are
not displayed.

1.8 STC adjustment

1-1 0093120005-02

MDC-2000 Series Chapter 1 Basic Operation

Change the observation range with the [- RANGE +] key.

3.

When pressing the [+] key, the observation range expands.
When pressing the [-] key, the enlarged surrounding around own ship can be observed.
To make it easier to observe the range you desire, change the range.

Example of display :

Long range : Far distance Middle range : Middle distance

Short range : Near distance

Objects at far distance
can be covered.

1.6 Switch-over of range

Adjust the gain by rotating the [GAIN] knob.

4.

The gain becomes high when rotating clockwise the knob and becomes low when rotating
counterclockwise the knob.

When the observation range is narrow or targets are crowded, reduce the gain so that

࡮

targets can be easily seen.
When the observation range is wide, if the gain is increased, it is effective.

࡮

But, due to noise increase, small targets become hard to be seen.

Objects near own ship
can be easily confirmed.

Example of gain adjustment:

: Too high gain

Noise is also displayed. Desired targets are

1.7 Gain adjustment

: Optimum gain : Too low gain

displayed.

Some targets are not
displayed.

0093120005-02 1-2

Chapter 1 Basic Operation MDC-2000 Series

A

r

1.1 How to read the radar screen

Process

Enhance

larm

Trail

I

N

Off center

Pulse width

Range

Fixed marker interval

Display mode

Heading

Ship
speed

F2 key content

F1 key content

FTC

Interference
Rejection

PRC

Crosshai
cursor

VRM

EBL

OWN ship's position

1-3 0093120005-02

Cursor position

MDC-2000 Series Chapter 1 Basic Operation

1.2 How to use the keys

(1) (2)

(3)

(4)
(5)

(6)

(7)

(8)

(9)

(10)

Various adjustment items can be set by operating each key.

The menu is displayed by pressing the [MENU] key, and closes when pressing the [MENU] key again.

0093120005-02 1-4

Chapter 1 Basic Operation MDC-2000 Series

Number Key name Explanation

(1) [F1]* Recalls directly the preset menu item.

(2) [ENT] * Press: measures bearing of distance between two points.

Continuously pressing: Deletes the heading line. The crosshair cursor

moves to the own ship’s position.
The value in the menu is set. (Some of functions)

(3) CURSOR

[

], [ ]

[

], [ ]

(4) [F2] * Recall directly the preset menu item.

(5) [MENU] * Opens or closes the menu.

(6) [- RANGE+] Changes the range setup.

(7) [GAIN] * Rotate: Changes the gain.

(8) [STC] Rotate: Changes the STC.

(9) [STBY/TX] Starts or stops the transmission.

(10) [ ]* Push: Adjusts the brilliance and the brightness of the panel.

BRILL

* In case of pressing it during the CCD camera on, the display of the CCD camera becomes off.

When the alarm is functioning, the alarm stops by operating any key.

Selects the menu item.
Changes the content of set value.
Moves the crosshair cursor.

Push: Changes the gain adjustment of sub-screen (lower screen of

PPI/PPI) and the range.

In the PPI or PPI/NAV display, recall directly the preset menu

item.

Push: Display the video of a CCD camera.When the video of a CCD

camera is displayed, if you press it, the size of video changes.

When not connecting CCD camera, recall directly the preset

menu item.

Continuously pressing: Turns on or off the power.

1-5 0093120005-02

MDC-2000 Series Chapter 1 Basic Operation

1.3 Power On/ Off

BRILL

The [ ] key is used for both the power on/off
and the change of brilliance of the LCD & panel.

Power On

1 Press the [ ] key to turn on the power.

The start-up menu is displayed. During the
display of start-up menu, the memory is
automatically checked. If the check result is
correct, the radar image appears,and start
count down time for magnetron preheat.

Power Off

1 When turning off the power, keep pressing

the [ ] key until display [Turns off
power].

Caution

Language Selection at Initial Start-up

When turning on the power for the first time after
[ALL RESET], the [LANGUAGE] menu appears.

BRILL

BRILL

Re-entry of power shall be performed
after having passed for longer than 3
seconds after power-off.

1.4 Brilliance Adjustment

Brightness Adjustment of LCD

The brilliance of menu can be adjusted to make it
easier to see.

Setup: (1 to 10) (Initial value: 10)

1 Press the [ ] key briefly.
2 Press the [ ] and [ ] keys.

“1” is the darkest. “10” is the brightest.

LCD BRILL

10

3 Press the [MENU] key or [ENT] key to close

the menu.

Brightness Adjustment of Panel

The panel brightness can be adjusted,

Setup: (1 to 10) (Initial value: 10)

1 Press the [ ] key briefly.

When [LCD BRILL] appears, press the

BRILL

[ ] key again.

2 Select the level with the [ ] and [ ] keys.

“1” is the darkest. “10” is the brightest.

BRILL

BRILL

2 Select the language with [ ] and [ ] keys.

During display of [LANGUAGE] menu,
pressing the [
setup menu.
Pressing the [
[LANGUAGE] menu.

] key will return to the initial

] key will redisplay the

3 Press the [MENU] key to set the language.

PANEL BRILL

10

3 Press the [MENU] key or [ENT] key to close

the menu.

1.5 Transmission

Start of Transmission

After turning on the power, remaining time of
pre-heat is displayed in the center of the screen.
After 120 seconds, ST’BY appears in the center
of the screen and the unit becomes “STBY” state.
On the “STBY” state, when the [STBY/TX] key is
pressed, the unit starts the transmission.

Stop of Transmission

On the “TX” state, when the [STBY/TX] key is
pressed, the unit stops the transmission and
returns to the “STBY” mode.

0093120005-02 1-6

Chapter 1 Basic Operation MDC-2000 Series

Result picture after adjustment by [GAIN] knob

1.6 Switch-over of Range

The observation range can be changed.

Result picture after adjustment by [GAIN] knob

Land

Own ship

Change of Range

1 Press the [- RANGE +] key.

When pressing the [+] key, an image shrinks
but the observation range expands.
When pressing the [-] key, the observation
range becomes narrow but the enlarged
surroundings around own ship can be seen.

<Picture of too low gain>

Land

The value of the range is displayed at the
upper left side of the screen.

Change of Sub-screen Range

Change the range of the lower screen
(sub-screen) of the PPI/PPI menu.

For the PPI/PPI screen, refer to 2.4 Display

Select.

1 Press the [GAIN] knob.

When the [SUB-SCREEN GAIN] appears,
press the [GAIN] knob again.

2 Change the range of the sub-screen range

with the [

0.75

] and [ ] keys.

3 Press the [MENU] key or [ENT] key to close

the menu.

1.7 Gain Adjustment

Adjust the gain according to the distance range
and reflection from the sea surface/rain/snow to
observe an image easily.

Gain Adjustment

1 When rotating clockwise the [GAIN] knob,

the gain increases.
When rotating counterclockwise the [GAIN]
knob, the gain decreases.

● When the short distance or targets are

crowded, if the gain is reduced, the image

can be easily seen.

● When the long distance, if the gain is

increased, it is effective but due to increase of
noise, the image becomes hard to be seen.

Own ship

<Picture of adjusted gain>

Land

Own ship

<Picture of too much gain>

In the PPI/PPI menu, the gain of the upper
screen (main screen) changes when the [GAIN]
knob is adjusted.

Adjustment of Sub-screen Gain

Adjust the lower screen (sub-screen) in the
PPI/PPI menu.

For the PPI/PPI screen, refer to 2.4 Display

Select.

1 Press the [GAIN] knob.

When the [SUB-SCREEN RANGE] appears,
press the [GAIN] knob again.

2 Adjust the sub-screen gain with the [ ] and

[

] keys.
The gain increases when increasing the
numeral and decreases when decreasing
the numeral.

5.0

3 Press the [MENU] key or [ENT] key to close

the menu.

1-7 0093120005-02

MDC-2000 Series Chapter 1 Basic Operation

1.8 STC Adjustment

In the short distance menu, even if waves are
low and the sea surface is calm, an echo
reflected from the sea surface appears in the
image.
When waves become high, the sea surface
reflected echo covers around the center of the
image and make it harder to see targets.
Adjust the STC to suppress the reflection from
the sea surface so that the image becomes
visible easily.

STC Adjustment

1 When rotating clockwise the [STC] knob, the

reflection suppressing effect becomes
stronger.

● When not influenced by waves, rotate fully
counterclockwise the [STC] knob.

● This function reduces the gain at short
distance. If rotating clockwise the [STC] knob
too much, desired targets disappear.

Picture after adjustment with [STC] knob

Land

In the PPI/PPI menu, when rotating the [STC]
knob, the STC functions effective in both
displays.

1.9 Use of [F1] and [F2] keys

The following functions can be assigned to the
[F1] and [F2] keys.

● [FTC]

● [MODE]

● [DISPLAY SELECT]

● [OFF CENTER]

● [ENHANCE]

● [TRAIL TIME]

● [EBL]

● [VRM]

● [COLOR]

● [PI]

● [ALARM MODE]

● [ACQ]

● [DELETE]

● [POB]

● [TARGET]

● [OTHER SHIP]

● [PULSE]

● [PROCESS]

<Picture of too low STC>

<Picture with sea clutter>

<Picture of adjusted STC>

<Picture of too much STC>

Own ship

Land

Own ship

Land

Own ship

Refer to the F1/F2 keys set in 3.5 Preset.

The assigned function is displayed at the upper
right side of the screen.

How to use [F1] and [F2] keys

When pressing the [F1] / [F2] key, the assigned
function works.

Function Operation
FTC

Mode

Display Select

Off Center

Enhance

When pressing the [F1] / [F2] key, the
setup of FTC changes.
When pressing the [F1] / [F2] key, the
display mode changes.
When pressing the [F1] / [F2] key, the
display changes.
After pressing the [F1] / [F2] key, if [ ]
or [

] key is pressed, the ON/OFF
setup of the OFF CENTER changes.
After pressing the [
selected and moving the crosshair
cursor, if the [ENT] key is pressed, the
position of crosshair cursor is set as a
position of own ship.
When pressing the [F1] / [F2] key, the
setup of ENHANCE changes.

] key with ON

0093120005-02 1-8

Chapter 1 Basic Operation MDC-2000 Series

Trail Time

EBL

VRM

Color

PI (Parallel
Index Line)

Alarm Mode

Acquire*

Delete*

POB***

Target***

When pressing the [F1] / [F2] key, the
trail time changes.
The On/Off display of EBL is toggled
by pressing the [F1] / [F2] key.
Operate the EBL during display with
the [

] and [ ] keys.
The On/Off display of VRM is toggled
by pressing the [F1] / [F2] key.
Operate the VRM during display with
the [

] and [ ] keys.
When pressing the [F1] / [F2] key, the
display color changes.
After pressing the [F1] / [F2] key, the
display of parallel cursor changes to
the one side/both sides/OFF.
After pressing the [
side/both sides, change the interval
with the [
bearing with [
After pressing the [F1] / [F2] key, if the
[
mode changes to the IN/OUT/OFF.
When selecting the In/Out, if the [
key is pressed, the mode enters in the
alarm range set state.
When pressing the [F1] / [F2] key, a
target aligned with the crosshair cursor
is acquired.
In case of selecting [NUMBER] in the
menu, if the [F1] / [F2] key is pressed, the
numeral selection menu appears.
Select the number of the desired capture
to be released with [
press the [ENT] key to set it.
In case of selecting [CURSOR] in the
menu, if the [F1] / [F2] key is pressed, the
capture of a target aligned with the
crosshair cursor is released.
The position of own ship at the
moment when the [F1] / [F2] key is
pressed is stored as a POB position. In
the state that the POB position is
stored, if the [
after pressing the [F1] / [F2] key, the
setup of renewal/release of the POB
position can be changed.
The renewal or release of the PO
position can be performed with the
[ENT] key.
The position of crosshair cursor at the
moment when pressing the [F1] / [F2]
key is outputted to the external
terminal with the TLL sentence.

] / [ ] keys and then the

] or [ ] key is pressed, the alarm

] key to the one

] / [ ] keys.

]

] / [ ] keys and

] or [ ] key is pressed

B

Other Ship**

Pulse

Process

When pressing the [F1] / [F2] key, the
information of a target aligned with the
crosshair cursor is displayed in the
window.
When pressing the [F1] / [F2] key, the
pulse width changes.

When pressing the [F1] / [F2] key, the
process changes.

* The ATA board (optional) is required.
** The AIS interface board / cable (optional) or
ATA board (optional) is required.
*** Inputting the bearing, the latitude and
longitude data is required.

1.10 Delete of Heading Line

When a heading line overlaps over targets and it
is hard to see targets, the heading line can be
deleted.

Delete of Heading Line

1 When keep pressing the [ENT] key, the

heading line disappears. While pressing the
[ENT] key, heading line can be deleted.

Caution

For safety, it is not allowed that the
heading line remains deleted.

2 When releasing the [ENT] key, the heading

line appears again. At this moment, the
crosshair cursor moves to the own ship’s
position.

1.11 Use of Crosshair
Cursor

The crosshair cursor can move freely on the
radar screen. According to moving of the cursor,
the cursor position, distance and bearing from
own ship are displayed.

1 Press any of [ ], [ ], [ ] and [ ].

The crosshair cursor moves and the cursor
information is displayed.

1-9 0093120005-02

MDC-2000 Series Chapter 1 Basic Operation

1.13 Camera Display

The video of a CCD camera can be displayed on
the radar screen. (CCD camera: Prepared by a

crosshair cursor

customer)

How to connect a CCD camera

cursor position
cursor bearing

cursor distance

1.12 Measuring the
distance and bearing
between two points

The distance and bearing between two points,
you desire, can be measured, using the
crosshair cursor.

Measuring the distance and bearing
between two points

1 Move the crosshair cursor to one point

desired with the [

2 Press the [ENT] key to set it as an origin.
3 When moving the crosshair cursor with the

[

], [ ], [ ] and [ ] keys, the distance and
bearing from the origin to the position of the
crosshair cursor are displayed.

4 When pressing the [MENU] key, the 2-point

calculation is finished.

], [ ], [ ] and [ ] keys.

origin

crosshair cursor

35°24.334N

139°

0.903NM

45.831E

152.1°

cursor position

Bearing of the crosshair cursor

when viewed from the origin

1 Connect CW-405-0.3M cable (optional

cable) to the J6 in the rear connectors.

2 Connect a commercially available CCD

camera to the cable.

How to display the video of a CCD
camera

1

Press the [STC] knob.
The video of a CCD camera appears.

A split-screen display and a full screen

display are toggled by pressing the [STC]
knob.

2 When pressing the [ ] or [ ] key in the state

that a video of the CCD camera is displayed,
the display position of the video of the
camera video can be corrected.

3 When displaying the video of the CCD

camera, if a key other than the [STBY/TX]
[

] and [ ] keys is pressed, the video of the

CCD camera disappears.

When displaying the video of a CCD
camera, the display area of the radar

Caution

Caution

image is narrowed.
When set to [Full Screen Display], the
radar image is completely concealed.
When displaying the video of a CCD
camera, pay attention to the display
area.

When installing a CCD camera, orient
it correctly. When correctly installed,
the 90 degree-shifted video of a CCD
camera is displayed. Install a CCD
camera in a correct orientation so that
the video in a correct direction is
displayed.

Distance between the origin

and the crosshair cursor

0093120005-02 1-10

Chapter 2 How to use the menu MDC-2000 Series

A

A

A

Chapter 2 How to use the menu

2.1 How to operate the menu

Display/Non-display of Menu

1 Press the [MENU] key.

The displays of the menu and the
explanation of operation are displayed.

ECHO
TRAILS
DISPLAY

LARM

IS

TA

NEXT

FTC

MODE

DISPLAY SELECT

OFF CENTER
ENHANCE
PROCESS
PULSE

Cursor

Menu column

GUIDE

When [Operation Guide] is set to ON,
the explanation of operation appears.
See 3.2 Setting of Assist Items.

2 Press the [MENU] key, the display of the

menu and the explanation of operation
close.

Operation of Menu

1

When the menu is displayed, select a menu
name with the [
According to the selected menu, contents in
the setup items at the right side change.

ECHO

TRAILS

DISPLAY

ALARM
AIS

ATA
NEXT

TRAIL MODE

TRAIL TIME

TRAIL SHAPE

TRAIL LEVEL

] and [ ] keys.

Setting item column

OFF

H UP

PPI

OFF

OFF

OFF

RESO-P PRI

OFF

3MIN
STANDARD

7

RM

3 Select an item you desire to change with the

[

] and [ ] keys.

ECHO
TRAILS
DISPLAY

ALARM
AIS
ATA

NEXT

TRAIL MODE

TRAIL TIME

TRAIL SHAPE

TRAIL LEVEL

REL

3MIN
STANDARD

7

4 Press the [ ] key.

According to the selected item, the setup
menu appears.

TRAIL MODE

REL

TRUE

PI NUMBER

7

1 ~ 7

FIELD OF ANGLE

5

5.0

5 Change contents of setup with the [ ] and

[

] keys.

6 Press the [ ] key. Then, the cursor returns

to the setup item column.

7 To select another menu name, press the [ ]

key.
The cursor returns to the menu column.

8 Press the [MENU] key to close the menu.

Caution

Unless the AIS interface board is
equipped, you cannot operate the AIS
menu.

Unless the ATA board is equipped,
you cannot operate the ATA menu.

2 Press the [ ] key.

2-1

0093120005-02

MDC-2000 Series Chapter 2 How to use the menu

2.2 FTC Adjustment

When raining or snowing, due to reflection from
rain or snow, an object is hard to be seen.
By increasing the set value of FTC, the contour
of an object, which was concealed by an image
of rain or snow, appears. But, you may miss a
small object. (Normally, set the FTC to OFF.)

Setup: OFF, 1 to 8 (Initial value: OFF)

Result picture after adjustment by FTC

Land

Own ship

<Picture with rain clutter>

Land

Own ship

2.3 Setting of Display Mode

In the display mode, the bearing and the target
motion are displayed in combination.

Setup: H UP
C UP

TM, WPT UP RM (Initial value: H UP RM)

1 Press the [MENU] key.
2 Select [ECHO] → [MODE].
3 Change the setting of [MODE] with the [ ]

and [

4 Press the [MENU] key to close the menu.

Four bearing displays of [H UP], [N UP], [C UP]
and [WPT UP] are provided.
[NUP] and [SUP] can be swapped.

Refer to [N UP/S UP] in 3.2 Setting of Assist

Items.
Two types of display method “RM” and “TM”
are provided for the motion display.

● Entering the bearing data for C UP, N UP
“RM” is required.

● Entering the bearing, speed and
latitude/longitude data for C UP, N UP “TM” is
required.

RM, N UP RM, N UP TM, C UP RM,

] keys.

<Picture with rain reflex suppressed>

1 Press the [MENU] key.
2 Select [ECHO] → [FTC].
3 Change the setup of [FTC] with the [ ] and

[

] keys.

FTC

1

4 Press the [MENU] key to close the menu.

● Entering the WPT data for WPT UP is
required.

Your ship heading is assumed 45° in the
following description of each mode.

H UP (Head Up)

The H UP is the display mode to orient the
heading to the top of the screen.
In this mode, the heading is used as a reference
and the screen image, which is similar to the
visibility when navigating your ship, can be seen.
Therefore, this mode is suitable for watching
targets.

NORTH

HDG

Target 1

Own ship

Land

Target 2

0093120005-02 2-2

Chapter 2 How to use the menu MDC-2000 Series

N UP (North Up)

The N UP is the display mode to orient the true
north to the top of the screen.
Due to the true north oriented display, the screen
image can be easily compared with a chart with a
north oriented representation.

NORTH

Target 1

HDG

Own ship

Target 2

Land

When selecting the S UP (South Up), the true
south is oriented to the top of the screen.

C UP (Course Up)

The C UP is the display mode in which the
heading becomes the set course instantly when
[C UP] is selected and the set course is oriented
to the top of the screen.
When navigating your ship along the planned
course, use this mode. If your ship is off the
planned course, it visually shows the deviation
from the planned course.

NORTH

Target 1

Own ship

Land

045

0

0

0

HDG set as
the course

Target 2

WPT UP (Waypoint Up)

The WPT is the display mode to always orient
the WPT to the top of the screen.
When this mode is used in combination with the
course up function of the plotter, the
understandable image is available.

WPT BRG

NORTH

Target 1

Own ship

Land

045

0

0

0

HDG

Target 2

Relative Motion (RM) and True Motion (TM)

The relative (RM) motion mode indicates
motions of surrounding targets while fixing your
ship’s position at the center of the display.
As the own ship’s position is placed at the center
of the display, the fixed targets such as the land
move on the screen when the ship navigates.

The true (TM) motion indicates the motion of
targets with respect to the specified bearing.
Fixed targets, which do not move in any
directions, stay on the screen, and all moving
targets move on the screen.

No true motion [TM] is provided for

Caution

[H UP] mode as the constantly moving
heading is used as a reference.
The true motion [TM] is also not
provided for [WPT UP] which uses the
specified course as a reference.

NORTH

Target 1

Own ship

Land

Specified Course

045

0

0

0

Caution

HDG

Target 2

In [TM] mode, entering the data of the
bearing, speed and latitude/longitude
is required.

2-3

0093120005-02

MDC-2000 Series Chapter 2 How to use the menu

Relative motion (RM): The own ship is fixed

and other surrounding targets move
on the screen.
This is useful when monitoring the
surrounding situation based on your
own ship’s position.

Own ship

Land

Moving

Fixed

True motion (TM): Your ship moves

according to its speed and tidal
current on the screen.
Stationary targets are fixed on the
screen. It is useful when monitoring
your ship’s position with respect to
the fixed targets such as land.

Own ship

Land

Moving

Own ship

Moving

34%

66%

Fixed

OWN ship's position
relocatable area in TM

Center of display

0093120005-02 2-4

Chapter 2 How to use the menu MDC-2000 Series

True Motion Reset

When your ship exits from movable range of your
ship’s position, it moves to the opposite side
within the range.

NORTH

Own ship

Moving toward the stern

NORTH

PPI Display

The radar screen is displayed on the entire
display.

Land

Own ship

PPI/PPI Display

Two radar images are displayed in the upper
(main screen) and lower (sub-screen) halves of
the screen. The screen is switched every two
rotation of the antenna.
The images of two different ranges can be
displayed.

Own ship

2.4 Display Select

The display selection designates the
combination of the radar image to be displayed.

Setup: PPI, PPI/PPI, PPI/NAV (Initial value: PPI)

1 Press the [MENU] key
2 Select [ECHO] → [DISPLAY SELECT].
3 Change the setting of [DISPLAY SELECT]

with the [

DISPLAY SELECT

PPI

PPI / PPI

PPI / NAV

4 Press the [MENU] key to close the menu.

] and [ ] keys.

PPI/PPI Display

Land

Main screen

Sub-screen

Own ship

Land

Own ship

The range of the upper display (main screen)
can be changed with the [- RANGE +] key.
The gain of the upper display (main screen) can
be adjusted by rotating the [GAIN] knob.
The range of the lower display (sub-screen) can
be changed with the [

] and [ ] keys after
displaying [SUB-SCREEN RANGE] by pressing
the [GAIN] knob.
The gain of the lower display (sub-screen) can
be adjusted with the [

] and [ ] keys after
displaying [SUB-SCREEN GAIN] by pressing the
[GAIN] knob.
Other setting items are used in common in the
main screen and sub-screen.

2-5

0093120005-02

MDC-2000 Series Chapter 2 How to use the menu

Note on PPI/PPI Display

In the PPI/PPI display, to avoid risk, the following
functions do not work.

● TM (True Motion)

● Off center

● Trailing

● ATA (Optional)

The EBL, VRM and PI (parallel cursor) can be
displayed only in the main screen.

PPI/NAV Display

The radar image is displayed in the upper half of
the screen and the navigation data is displayed
in the lower half of the screen.
The content of the navigation data display can be
selected.

For the NAV Display Select, refer to [NAV

Display Select] in 3.5 Preset.

Note on PPI/NAV Display

In the PPI/NAV display, to avoid risk, the
following functions do not work.

● TM (True Motion)

● Off Center

2.5 Setting of OFF CENTER

When viewing widely in the heading, use this
function.

7 Press the [MENU] key to close the menu.

● The movable range is limited.

(See the movable range shown below.)

Own ship

34%

66%

● When [PPI/PPI] or [PPI/NAV] is selected in

[DISPLAY SELECT], the off-center cannot be
executed.

relocatable
area

Own ship

2.6 Setting of Enhance
(Enlarged Target)

If a target is too small to see, the target can be
enlarged to make it easier to see it.

Setup: OFF, 1, 2 (Initial value: OFF)

1 Press the [MENU] key
2 Select [ECHO] → [ENHANCE].
3 Change the setting of [ENHANCE] with the

[

] and [ ] keys.
The greater the numeral is, the larger the
target is enlarged.

Setup: OFF, ON (Initial value: OFF)

1 Press the [MENU] key
2 Select [ECHO] → [OFF CENTER].
3 Change the setting of [OFF CENTER] to

[ON] with the [
It moves to the off center position where the
own ship point is stored

OFF CENTER

OFF

ON

] and [ ] keys.

4 Press the [ ] key.
5 Move the crosshair cursor to the point you

desire to move your ship with the [
[

] [ ] keys.

], [ ],

6 Press the [ENT] key.

Own ship’s position moves to the position of
the crosshair cursor.

4 Press the [MENU] key to close the menu.

2.7 Setting of Signal Process

If the reflection from a target you desire to see is
unstable, the target is stabilized by rendering the
signal process.

Setup: OFF, ON (Initial value: OFF)

1 Press the [MENU] key,
2 Select [ECHO] → [PROCESS].
3 Change the setting of [PROCESS] with the

[

] and [ ] keys.

4 Press the [MENU] to close the menu.

0093120005-02 2-6

Chapter 2 How to use the menu MDC-2000 Series

2.8 Setting of Pulse Width

The short pulse width is suitable for target
crowded area. (The resolution is of high priority.)
The long pulse width is suitable for searching a
small target as the gain increases. (The gain is of
high priority.)

Setup: RESO-P PRI. GAIN PRI. (Initial value:
GAIN PRI.)

1 Press the [MENU] key.
2 Select [ECHO] → [PULSE].
3 Change the setting of [PULSE] with the [ ]

and [

] keys.

4 Press the [MENU] key to close the menu.

The setup of the pulse width is determined by the
range.
The setup of the present pulse width is displayed
at the left top side of the screen.

For pulse width adjustment, refer to [Pulse

Width] of 3.3 Setting of Adjustment Item.

2.9 Trailing

By leaving the trail of a target, the situation of the
moving target can be seen.

Relative Display (R)

The relative speed of a target with respect of own
ship is displayed as a trail.
This is used to watch a target which is
approaching to own ship. The trail of fixed target
such as land, if own ship is moving, will be drawn.

In the illustration below, own ship is moving east
at a certain speed and other ship 1 is moving
east at the identical speed. And other ship 2 is
moving west at the identical speed. After a
certain period of time, the trails of three ships are
drawn.

The relative speed of a target with respect to own
ship is drawn as a trail. Since the ship 2 is
moving in the opposite direction at the identical
speed, the speed derived by adding the ship 2
speed and own ship speed is drawn as a trail.
The land is drawn as a trail of own ship speed as
the land moves at the own ship speed.

< MODE [ N UP

NORTH

Other ship 1

Own ship

Land

RM ] >

Other ship 2

1 Press the [MENU] key,
2 Select [TRAILS] → [TRAIL MODE].
3 Change the setting of [TRAIL MODE] with

the [

] and [ ] keys.

4 Select [TRAILS] → [TRAIL TIME].
5 Change the setting of [TRAIL TIME] with the

[

] and [ ] keys.

6 Press the [MENU] to close the menu.

For the display method, the relative display (R)
and the true display (T) are provided.

When changing the range, display mode or
display select, the trail disappears.

Time passes

NORTH

Other ship 1

Own ship

Other ship 2

Land

2-7

0093120005-02

MDC-2000 Series Chapter 2 How to use the menu

True Display (T)

Irrespective of the motion of own ship, trails
representing the course and speed of moving
targets are drawn. This mode is used to monitor
the courses and speeds of moving targets.
The fixed target such as land is not drawn.

The trails of speeds of own ship, other ship 1 and
other ship 2 are drawn. No trail of the land is
drawn as it does not move.

NORTH

Other ship 1

Own ship

Land

NORTH

Other ship 1

Own ship

< MODE [ N UP

RM ] >

Other ship 2

Time passes

Other ship 2

2.10 EBL

This mode is used when measuring the bearing
from own ship to a target.

Setup: OFF, ON (Initial value: OFF)

1 Press the [MENU] key.
2 Select [DISPLAY] → [EBL].
3 Change the setting of [EBL] with the [ ] and

[

] keys.

EBL

OFF

ON

4 After selecting [ON], press the [ ] key. Then,

the EBL can be operated.
The EBL rotates clockwise with the [
and counterclockwise with the [

] key

] key.
The bearing indicated by the EBL is shown
at the lower left side of the display.

5 Press the [MENU] key to close the menu.

2.11 VRM

This mode is used when measuring a distance
from own ship to a target.

Setup: OFF, ON (Initial value: OFF)

Land

The length of the trail display is specified in
[TRAILS] → [TRAIL TIME].
The length is specified by a time, and “One
minute” indicates the trail of past one minute.
When selecting [OFF], the trail is not displayed.

The shape of trail display is specified in [TRAILS]
→ [TRAIL SHAPE].
When [STANDARD] is selected, the trail shape
of a target does not change as time goes.
When [DECREMENT] is selected, the shape of a
target becomes narrower as time goes.

The signal level of a target which is left as a trail
is specified in [TRAILS] → [TRAIL LEVEL].
By increasing the numeral, only trails of strongly
reflected targets can be displayed.
By decreasing the numeral, trails of weakly
reflected targets can be displayed.

1 Press the [MENU] key.
2 Select [DISPLAY] → [VRM].
3 Change the setting of [VRM] with the [ ]

and [

VRM

OFF

ON

] keys.

4 After selecting [ON], press [ ] key. Then,

the VRM can be operated.
The VRM moves in the far direction with the
[

] key and in the near direction with the [ ]
key.
The distance indicated by the VRM is shown
at the lower right side of the display.

5 Press the [MENU] key to close the menu.

0093120005-02 2-8

Chapter 2 How to use the menu MDC-2000 Series

2.12 Display Color

When the display is hard to see due to the
environment, changing the color of the display
makes it easier to see the contents.

Setup: STANDARD, DAY, NIGHT, USER SET
(Initial value: STANDARD)

1 Press the [MENU] key.
2 Select [DISPLAY] → [COLOR].
3 Change the setting of [COLOR] with the [ ]

and [
When selecting [DAY], the color of the entire
display changes so that it can be seen under

the direct sunlight.

When selecting [NIGHT], the display
changes to the color suitable for use at night.
When selecting [USER SET], the display
changes to the color user can set to
preference while STANDARD, DAY, NIGHT
remain unchanged.

] keys.

4 Press the [MENU] key to close the menu.

2.13 Crosshair Cursor Shape

The shape of the crosshair cursor can be
changed.
In [LONG], the vertical and horizontal lines of
crosshair cursor can be extended to the end of
display. It is suitable for grasping the relationship
between two remote points.
In [EBL + VRM], the crosshair cursor is the
combination of [EBL] + [VRM].
It is suitable for grasping the relationship
between own ship and the target.

Setup: STANDARD, LONG, EBL+VRM (Initial
value: STANDARD)

Setup: OFF, ONE SIDE, BOTH SIDES (Initial
value: OFF)

1 Press the [MENU] key.
2 Select [DISPLAY] → [PI].
3 Change the setting of [PI] with the [ ] and

[

] keys.

PI

OFF

ONE SIDE

BOTH SIDES

4 After selecting [ONE SIDE] or [BOTH

SIDES], press the [
cursor can be operated. The distance
between parallel lines can be changed with
the [

] and [ ] key and the bearing can be

changed with the [

] key. Then, the parallel

] and [ ] key.

5 Press the [MENU] key to close the menu.

Set a number of parallel lines in [DISPLAY]
→ [PI NUMBER].

2.15 Bearing Mode

This mode is used when changing the bearing
display mode of crosshair cursor and EBL.
One setting is the true bearing with the true north
set to 0°. The other setting is the relative bearing
with the heading set to 0°.

Setup: REL, TRUE (Initial value: REL)

● To display in the true bearing mode, entering

the bearing is required, using the optional
GPS compass or others.

1 Press the [MENU] key.

2 Select [DISPLAY] → [BRG TRUE/REL].
1 Press the [MENU] key.
2 Select [Display]  [Cursor Shape].
3 Change the setting of [Cursor Shape] with

the [

] and [ ] keys.

4 Press the [MENU] key to close the menu.

2.14 PI (Parallel Index Line)

The straight lines parallel with own ship are
displayed.

2-9

0093120005-02

3 Change the setting of [BRG TRUE/REL] with

the [

] and [ ] keys.

4 Press the [MENU] key to close the menu.

2.16 Vector

The vector means arrow that represents heading

and speeds of own ship and other ships.

The bearing indicated by the arrow denotes the

heading and the length of arrow denotes the

speed.

The length is specified by time “One minute”

MDC-2000 Series Chapter 2 How to use the menu

shows the positions of own ship and other ships
after one minute.

Setup: 0 to 60min (Initial value: 1min)

1 Press the [MENU] key.
2 Select [DISPLAY] → [VECTOR].
3 Change the setting of [Vector] with the [ ]

and [

] keys.

4 Press the [MENU] key to close the menu.

The bearing mode of the vector line is
specified in [DISPLAY] → [VECTOR
TRUE/REL].

2.17 Alarm

This mode is used when monitoring targets.
When targets enter in the set range or exit from
the set range, the buzzer notifies.
Two types [IN] and [OUT] are provided for the
alarm mode.

IN Mode

When a target enters within the specified range,
the alarm is issued.
This mode is used when watching targets which
are approaching to own ship.

OUT Mode

When a target exits from the specified range, the
alarm is issued.

Setting of Alarm Range

1

Press the [MENU] key.

2 Select [ALARM] → [ALARM MODE].
3 Change the setting of [ALARM MODE] with

the [

] and [ ] keys.

ALARM MODE

OFF

IN

OUT

4 After selecting [IN] or [OUT], press the [ ]

key. Then, the alarm range can be set.

5 Move the crosshair cursor to the center of

the alarm range with the [
keys.

], [ ], [ ] and [ ]

7 Change the distance direction with the [ ]

and [
and [

] keys and the bearing with the [ ]
] keys.

8 Press the [ENT] key. Then, the alarm range

is set.

9 Press the [MENU] key to close the menu.

The level of targets for alarm is set in [ALARM]
→ [DETECT LEVEL].
The alarm works when detecting the level higher
than the set level.

When [DETECT COUNT] is set, the alarm works
depending on the [ALARM MODE] setting.

[IN Mode]: The alarm works when targets enter
continuously into alarm area more than
[DETECT COUNT] value.

[OUT Mode]: The alarm works when targets
leave continuously from alarm area more than
[DETECT COUNT] value.

2.18 Sleep

The power OFF state and the transmitting state
are alternately repeated. This mode saves the
power consumption.
The sleep is used in combination with the
IN/OUT alarm.

For the setting of the alarm, refer to 2.17

Alarm.

Setup: OFF, 5MIN, 10MIN, 15MIN, (Initial value:
OFF)

1 Press the [MENU] key.
2 Select [ALARM] → [SLEEP].
3 Change the setting of [SLEEP] with the [ ]

and [

4 Press the [MENU] key to close the menu.

] keys.

6 Press the [ENT] key.

0093120005-02 2-10

Chapter 2 How to use the menu MDC-2000 Series

A

Operation during executing the sleep

During executing the sleep, the transmitting for
30 seconds is repeated at the interval of the set
time. If the IN/OUT of a target occurs during
transmitting, the buzzer beeps for alarm.

In case that the set time is set to 5 minutes, the
sleep works as follows.

Time 30 sec. 2 min.

30 sec.

Antenna Transmitting Power

OFF

LCD/Panel

illumination

ON OFF ON ON

2 min. 30 sec.

Power On

(Countdown)

Transmitting



Hereafter

repeated

5 minutes

2.19 AIS

By installing the optional AIS interface board, the
information on other ships, which are received by
the AIS receiver, can be displayed.

The other ship symbols of up to 100 ships can be
displayed.

Caution

Setting of Symbol Display of AIS

Press the [MENU] key.

1
2 Select [AIS] → [AIS].
3 Change the setting of [AIS] with the [ ] and

[

4 Press the [MENU] key to close the menu.

To change the region to display the other ship’s
symbol, set it in [AIS] → [LIMIT].
Only other ship’s symbols within the radius of the
set distance from own ship placed in center can
be displayed.

Setting of Detailed Information of
Designated Symbol Display

s the AIS is optional, the menu

becomes valid when the AIS interface
board is installed.

] keys.

1 Press the [MENU] key.

2 Select [AIS] → [INFO].

3 Change the setting with the [ ] and [ ]

keys.

4 Select [AIS] → [INFO NUMBER].

5 Select the number with the [ ] and [ ] keys.

6 Press the [MENU] key to close the menu.

Types and Meanings of AIS Symbols

In the AIS, the symbols are displayed, overlaying

them on other ships from which the information is

derived.

Normal Symbol Meanings

Sleep Display*

Alarm Symbol Meanings

*：

When active target gets out of the screen

and again into the screen, the target
automatically changes to sleep target.
(The above could be happend at the time of
target vessel moving out, RANGE shifting,
and OFF-CENTER shifting.)

**： To change from the sleep display to the

active display, after setting ON in [AIS] →
[INFO], change the number in [AIS] →
[INFO NUMBER].

Displays ships of which information
display is not performed.
Active Display**
Displays ships which are performing
the information display or after
performing it.
The dotted line denotes the speed and
the real line denotes the heading.
The line perpendicular to the heading
direction denotes the course direction.
Displays ATON (Aids to navigation)
and Base.

Displays ships while selecting the
detailed information display.
The detailed information display is
shown at the bottom of the display.

Displayed when the values are lower
than the set CPA and TCPA, and get
alarm.
Displays lost ships during tracking. In
case those ships are lost from the
sleep, the alarm does not sound and
they disappear from the screen.

The information display is set in [AIS] → [INFO],
[INFO NUMBER].
The other ship’s information of the designated
number is displayed at the bottom of the display.

2-11

0093120005-02

Or register [OTHER SHIP] to [F1] key or
[F2] key, and place crosshair cursor to the
target you would get the information and
press [F1] key or [F2] key.

MDC-2000 Series Chapter 2 How to use the menu

A

ATA

Warning

The accuracy of the data provided
by the AIS could be affected by the
following factors:

Degraded bearing data and
latitude/longitude from external sensor
devices cause erratic vectors. If any error
data fed from external sensor devices are
detected, the following data provided by the
AIS display will be also erratic.

- The CPA and TCPA value and Alarm.

- The target ship’s course and speed.

- The target ship’s bearing and distance.

2.20 ATA

To use the ATA, install the optional ATA board.
The ATA automatically tracks targets and stores
and displays their courses and speeds as
vectors.
Entering the heading bearing and ship speed are
required, using the optional GPS compass or
others.
After tracking, targets are displayed as a vector
of course and speed.
An object, which is acquired and tracked, is
called a target.

Caution

To activate ATA, the bearing and the speed
information of own ship needs to be input.
The bearing signal shall be such high speed and
highly accurate signals as from GPS COMPASS.
GPS bearing only tends not to be enough to
operate ATA normally.

s theATA is optional, the menu
becomes valid only when the
board is installed.

Warning

(1) Sea clutter and weather clutter such

(2) Poor receiver sensitivity may also

(3) Faulty azimuth synchronization could

(4) Degraded bearing and speed data fed

The accuracy of the auto tracking
function provided by the ATA could
be affected by the following factors:

as rain and snow may degrade the
ATA tracking capability. These clutter
components should be appropriately
reduced.

degrade the tracking capability.

be the cause of erratic vectors.

from external sensor devices also
cause erratic vectors.
If any of the errors stated above are
detected, the following data provided
by the ATA will be erratic.

- The CPA, TCPA value and Alarm.

- The target ship’s course and speed.

- The target ship’s bearing and
distance.

Automatic Acquisition

Targets entering in the preset range can be
automatically acquired.

1 Press the [MENU] key.
2 Select [ATA] → [AUTO DETECT AREA].
3 Change the setting of [AUTO DETECT

AREA] with the [

AUTO DETECT AREA

OFF

ON

] and [ ] keys.

4 After selecting ON, press the [ ] key. Then,

the automatic acquisition range can be set.

5 After moving the crosshair cursor to the

center of [AUTO DETECT AREA] with the
[

], [ ], [ ] and [ ] keys.

6 Press the [ENT] key.
7 Change the distance with the [ ] and [ ]

keys and bearing with the [

] and [ ] keys.

8 Press the [ENT] key. Then, the [AUTO

DETECT AREA] is set.

9 Press the [MENU] key to close the menu.

0093120005-02 2-12

Chapter 2 How to use the menu MDC-2000 Series

Manual Acquisition

Direct to acquire a target by designating a target
on the display.

1 Press the [MENU] key.
2 Select [ATA] → [ACQ].
3 Press the [ ] key.
4 Align the crosshair cursor with a target you

desire to acquire with the [
[

] keys.

], [ ], [ ] and

5 Press the [ENT] key. Then, the acquisition of

the designated target is started.

6 When acquiring several targets, repeat

steps 4 and 5.

7 Press the [MENU] key to close the menu.

Target Level

The signal level of a target to be
automatic/manual-acquisition is specified in
[ATA] → [ATA TGT LEVEL].
By increasing the numeral, a strongly reflected
target can be acquired.
By decreasing the numeral, a weakly reflected
target can be also acquired.

7 Press the [ENT] key. Then, the acquisition of

the designated target is released.

8 When releasing acquisition of several

targets, repeat steps 6 and 7.

9 Press the [MENU] key to close the menu

To release acquisition of all targets, execute
[ATA] → [ALL DELETE].

Number of Acquisition

A total number of targets to be acquired is 50
targets when combined in both
automatic/manual methods.
The number specified in [ATA] → [MAN ACQ
NUM] becomes a number of targets to be
manually acquired. And the rest becomes a
number of targets to be automatically acquired.

1 Press the [MENU] key.
2 Select [ATA] → [MAN ACQ NUM].
3 Change the setting of [MAN ACQ NUM] with

the [

] and [ ] keys.

4 Press the [MENU] key to close the menu

Information Display

Target Delete

Release the acquisition of a target.

1 Press the [MENU] key.
2 Select [ATA] → [DELETE].
3 Press the [ ] key.
4 Change the setting of [DELETE] with the [ ]

and [

] keys.

DELETE

NUMBER

CURSOR

5 After selecting [NUMBER] or [CURSOR],

press the [
designation or the cursor designation can be
set.

] key. Then, the number

6 ● In case of [MAN ACQ NUM], change the

number to be deleted with the [
[

] keys.

● In case of [CURSOR], align the crosshair
cursor with the target you desire to delete
with the [

], [ ], [ ] and [ ] keys.

] and

The information display is set in [ATA] → [INFO]
or [INFO NUMBER].
The target information of the designated number
is displayed at the bottom of the display.

1 Press the [MENU] key.
2 Select [ATA] → [INFO].
3 Change the setting with the [ ] and [ ]

keys.

4 Select [ATA] → [INFO NUMBER].
5 Select the number with the [ ] and [ ] keys.
6 Press the [MENU] key to close the menu

2-13

0093120005-02

MDC-2000 Series Chapter 2 How to use the menu

A

play

A

A

A

Types and Meanings of ATA Symbols

In the ATA, the symbols are displayed, overlaying on acquire-started targets.

Normal Symbol

larm Symbol

Displayed when setting the acquisition.

Displayed when in the stable tracking state.

Displayed when numeral-displayed after the stable
tracking state.

Dis

ed when the values are lower than the set

CPA and TCPA.

Displayed when targets become in the tracking
inability state.

fter displayed the alarm sounds.

fter 1 minute,
fter 5 seconds, both the display and the alarm

disappear.

Meanings

Meanings

NOTE:

The ATA vector and the AIS vector may differ in terms of the vector length and its direction. This is not a
fault. The ATA vector is developed based on the past target positions stored either by automatic
tracking (ATA). Meanwhile, the AIS vector is generated from the navigation data sent from the AIS
transponder. The ATA vector take a certain time until they are fully displayed, while the AIS vector is
displayed as soon as the AIS data is received from the AIS transponder and own GPS/SHIP
information.

0093120005-02 2-14

Chapter 3 How to use the system menu MDC-2000 Series

Chapter 3 How to use the system menu

3.1 Display of System Menu

There is a standard menu which is displayed for
the first time after pressing the [MENU] key and
following a system menu which is not frequently
required to change the setup.

● ASSIST

● ADJUST

● NMEA

● PRESET

● MAINTE

Display the system menu

1 Press the [MENU] key.
2 Select [Next] with the [ ] and [ ] keys.

ECHO
TRAILS
DISPLAY

ALARM
AIS
ATA
NEXT

ASSIST

ADJUST

NM EA

PRESET

MAINTE

3.2 Setting of Assist Items

In the supplement items of the system menu, to
use the radar effectively, the supplement
functions are set.

Range Rings

The fixed marker is displayed at the constant
distance from own ship’s position.
It is used as a scale to measure roughly the
distance of a target.

Setup: OFF, ON (Initial value: OFF)

Range Unit

Set the unit of distance (range, VRM distance).

Setup: NM, km, sm (Initial value: NM)

Speed Unit

Set the unit of speed.

3 Press the [ ] key.

The system menu appears.

PREV
ASSIST
ADJUST
NMEA
PRESET
MAINTE

RANGE RINGS
RANGE UNIT
SPEED UNIT
TEMP UNIT
DEPTH UNIT

WPT DISPLAY

NEXT

ON
NM
kn
C
m

OFF

Return to the normal menu

1 Select [Prev] with the [ ] and [ ] keys.
2 Press the [ ] key.

The normal menu appears.

Setup: kn, km/h, m/h (Initial value: kn)

Temperature Unit

Set the unit of water temperature.

Setup: °C, °F (Initial value: °C)

Depth Unit

The unit of water depth is set.

Setup: m, fm, l.fm, ft, J.fm (Initial value: m)

Position Display

The content of position informatin displayed at
the lower left of the display is set.

Setup: OFF, OWN Position, WPT position, POB
Position (Initial value: OWN Position)

3-1 0093120005-02

MDC-2000 Series Chapter 3 How to use the system menu

WPT Display

Select ON or OFF of the WPT icon (flag mark) to
be displayed on the radar screen.

Caution

Setup: OFF, ON (Initial value: ON)

Unless the WPT data is inputted from
the external source, no WPT icon is
displayed.

Rotation Speed

Set the rotation speed of the radar image by
inputting bearing data in the H UP mode or WPT
UP mode.

Setup: STANDARD, HIGH SPEED (Initial value:
HIGH SPEED)

ALL PPI

Select ON or OFF of the background of
numerical information displayed near the image
when the PPI display is selected.

Setup: OFF, ON (Initial value: ON)

N UP/S UP

Change the mode of the N UP or S UP of the
display mode.
The selected item can be selected in [ECHO] →
[MODE].

Setup: N UP, S UP (Initial value: N UP)

Crosshair Cursor Display

Set the indication methods of the crosshair
cursor.

When [OPERATING] is selected, crosshair
cursor is displayed on the radar screen only
when operated and disappears 30 seconds after
operation is stopped.

Setup: ALWAYS, OPERATING (Initial value:
ALWAYS)

Radar Setting Display

Set ON or OFF of the radar setting indication
status shown in upper portion of the screen.

When [OFF] is selected, the minimum
information required is only displayed on the
radar screen.

Guide

Select ON or OFF of the display of operation
guide when operating the menu.

Setup: OFF, ON (Initial value: ON)

Buzzer

Set ON or OFF of the buzzer sound.
The ON/OFF of external buzzer (optional) sound
is also set.

Setup: OFF, ON (Initial value: ON)

Motor Speed

Set the rotational speed of the antenna.
During the antenna rotation, the setting cannot
be changed.

Setup: OFF, ON (Initial value: OFF)

Setup: OFF, ON (Initial value: ON)

Menu Operation

Select the type of the operation methods in the
menu.

Setup: A, B (Initial value: A)

3.3 Setting of Adjustment
Items

In the adjustment items of the system menu,
when using the radar, the initial adjustment and
setup are performed. When setting the
adjustment item, set the screen brightness to
maximum.

For screen brilliance, refer to 1.4 Brilliance

Adjustment.

0093120005-02 3-2

Chapter 3 How to use the system menu MDC-2000 Series

Bearing Setting

Adjust the bearing of the radar image on the
screen.

Setup: -180.0 to +180.0 (Initial value: 0.0)

1 Press the [STBY/TX] key to start the

transmission.

2 Set the range of the display to more than

1nm with the [- RANGE +] key.

3 Press the [MENU] key.
4 Move to the system menu.

Refer to 3.1 Display of System Menu.

5 Select [ADJUST] → [BRG ADJ].
6 Change the setting of [BRG ADJ] with the

[

] and [ ] keys.
When increasing the numeral, the radar
image moves clockwise.
When decreasing the numeral, the radar
image moves counterclockwise.
Change the bearing so that the bearing of
the image of a target becomes the same
bearing as measured by the compass.

TX Delay Adjustment

By adjusting the delay time of the transmission,
match the distance of the target on the radar
screen with the distance of the actual target to
adjust precisely, select a nearest hard straight
object (pier) (within 100m). Adjust the
transmission delay time in the following
procedure.

Setup: 0 to 255 (Initial value: 27)

1 Press the [STBY/TX] key to start the

transmission.

2 Set the range of the display to more than

0.125nm with the [- RANGE +] key.

3 Press the [MENU] key.
4 Move to the system menu.

Refer to 3.1 Display of System Menu.

5 Select [ADJUST] → [TX DELAY ADJ].
6 Change the setting of [TX DELAY ADJ] with

the [ ] and [ ] keys.
When the echo reflected from the target
warps to near, decrease the value.
When the echo reflected from the target
warps to far, increase the value.
As illustrated below (Figure of center), adjust
so that the straight target is straightly

displayed on the screen.

MBS

Set the MBS to suppress and cancel the disc-like
transmission leak at the center of the image as
shown below.

Setup: 0 to 100 (Initial value: 20)

1 Press the [STBY/TX] key to start the

transmission.

2 Set the [GAIN] knob to 8, the [STC] knob to

0 and the [FTC] setting to [OFF].

3 Set the range of the display to 0.125nm with

the [- RANGE +] key.

4 Rotate the [STC] knob so that the disc-like

transmission leak is displayed at the
rotational center of the image.

5 Move to the system menu.

Refer to 3.1 Display of System Menu.

6 Select [ADJUST] → [MBS].
7 Change the setting of [MBS] with the [ ]

and [
Adjust while observing the disc-like
transmission leak.
When the transmission leak disappears, the
MBS is best adjusted.

] keys.

3-3 0093120005-02

MDC-2000 Series Chapter 3 How to use the system menu

range that can display the entire sea surface
reflected echo can be displayed.

3 Adjust the [STC] knob and stop it just before

the sea surface reflected echo completely
disappears (In the state that the sea surface
reflected echo is sparsely displayed.) As
shown in [Proper] below, when the sea
surface reflected echo from near to far
distance disappears evenly, the STC curve
set value is proper. As shown in [Large],
when the sea surface reflected echo at near
distance disappear first, or in [Small], when
the sea surface reflected echo at far
distance disappears first, it is necessary to
change the setting in the procedure
described in the following items.

STC Curve

Influence from the ocean surface reflection
depends on the installation height of
antenna.Please proceed with the following
sequence, when STC curve is modified.

Setup: 1 to 8 (Initial value: 4)

Note: Set the STC curve after the gain

setting. When setting the STC curve,
go out of the harbor and perform at
the location where the reflection
from sea surface is displayed on the
radar screen.

1 Set the [GAIN] knob to 8, the [STC] knob to

0 and the [ECHO] → [FTC] setting to [OFF].
Adjust so that the noise-like sea surface
reflected echo is displayed at the center of
the image as shown below.

4 Press the [MENU] key.
5 Move to the system menu.

Refer to 3.1 Display of System Menu.

6 Select [ADJUST] → [STC CURVE].
7 Change the setting of [STC CURVE] with the

[

] and [ ]
When the sea surface reflected echo at near
distance disappears first, decrease the
value.
When the sea surface reflected echo at far
distance disappears first, increase the value.

8 Adjust the [STC] knob again.

Adjust so that the sea surface reflected echo
from near to far distance disappears evenly

2 Press the [- RANGE +] key to select the

0093120005-02 3-4

as shown in the illustration [Correct] in step

3.

Chapter 3 How to use the system menu MDC-2000 Series

The STC curve set value is applied to all
ranges.

Note: The setting of STC characteristics

needs to be performed in the ocean.
However, when it is obliged to
perform in a harbor, set the STC
curve to [4].

Tune Select

Due to an operation environment change, tuning
of the transmission frequency with the reception
frequency may be detuned. If detuned, the gain
will decrease and it is hard to display the image
even if setting remains unchanged.

Setup: AUTO, MANUAL (Initial value: AUTO)

Automatic Tuning

For the best performance, when newly installing
or replacing the magnetron, the automatic tuning
should be adjusted.
Unless the auto tune is adjusted, the optimum
gain is not achieved.

Setup: 0 to 100 (Initial value: 31)

1 Press the [STBY/TX] key to start the

transmission.

2 Set the range of the display to more than

12nm with the [- RANGE +] key.
Find a large and stable target of more 6nm
(mountain or island) at farthest location as
possible.

3 Adjust by rotating the [GAIN] knob so that

the target is faintly visible.

4 Press the [MENU] key.
5 Move to the system menu.

Refer to 3.1 Display of System Menu.

6 Select [ADJUST] → [TUNE SELECT], and

then [AUTO].

7 Select [ADJUST] → [AUTO TUNE ADJ].
8 Change the setting of [AUTO TUNE ADJ]

with the [
Maximize the size of fixed target on the
screen. If the target becomes too large and
the best tuning point is lost, reduce the gain
with the [GAIN] knob once to make its size
small and maximize the target with the [
and [

] and [ ] keys.

]

] keys.

Manual Tune Adjustment

Due to a sudden environment change, the
automatic tuning may be detuned. In this case,
use the manual tune adjustment.

Setup: 0.0 to 100 (Initial value: 44.0)

1 Press the [STBY/TX] key to start the

transmission.

2 Set the range of the display to more than

12nm with the [- RANGE +] key.
Find a large and stable target of more than
6nm (mountain or island) at farthest location

3 Adjust by rotating the [GAIN] knob so that

the target is faintly visible.

4 Press the [MENU] key.
5 Move to the system menu.

Refer to 3.1 Display of System Menu.

6 Select [ADJUST] → [TUNE SELECT], and

then [MANUAL].

7 Select [ADJUST] → [MANUAL TUNE ADJ].
8 Change the setting of [MANUAL TUNE ADJ]

with the [
Maximize the size of fixed target on the
screen. If the target becomes too large and
the best tuning point is lost, reduce the gain
with the [GAIN] knob once to make its size
small and maximize the target with the [
and [

] and [ ] keys.

]

] keys.

Pulse Width

In [2.8 Setting of Pulse Width], [RESO-P PRI.] or
[GAIN PRI.] is selected. At this moment, the
pulse width (Displayed at the upper left of the
display.) can be changed.
This setting can be set for only the range (0.75 to

8).

Setup: SP, M1, M2, L1, L2

1 Press the [MENU] key.
2 Move the system menu.

Refer to 3.1 Display of System Menu.

3 Select [ADJUST] → [PULSE WIDTH].
4 Select the range in which the pulse width

adjustment is performed with the [
keys, and press the [

] key.

] and [ ]

3-5 0093120005-02

MDC-2000 Series Chapter 3 How to use the system menu

5 Change the setting of [Pulse Width

Adjustment] with the [

The content of the set value of [PULSE WIDTH]
is as follows.

] and [ ] keys.

M1 / M2

Pulse width at gain priority

Pulse width at resolution priority

The length of pulse width varies as shown below.

Short

SP  M1  M2  L1  L2

Interference Rejection

This feature is used to eliminate the radar
interference wave from other radars.
When radars having the same frequency band
as your radar are used near your ship, the
interference noise from transmission signals of
other radars appears on the radar screen.
Though the appearance of the interference is not
uniform, in most cases, this interference noise
pattern is spiral or a radiation form.
This unit can reduce the interference with the
interference rejection function.

Setup: OFF, 1, 2 (Initial value: 2)

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

3 Select [ADJUST] → [IR].
4 Change the setting of [IR] with the [ ] and

[

] keys.
The greater the numeral is the stronger the
interference rejection.
If the interference rejection effect is too
strong, it is hard to see small targets.
So be cautious not to set it stronger.

Long

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

3 Select [ADJUST] → [ECHO COLOR DIV].
4 Change the setting of [ECHO COLOR DIV]

with the [

[STANDARD]: Standard color
[DETAIL]: Displays many middle colors so

] and [ ] keys.

that the strength or weakness of
the echo can be discriminated.

Signal Select

Select the input signal of the image from antenna,
monitor and demo.

Setup: ANTENNA, MONITOR, DEMO (Initial
value: ANTENNA)

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

3 Select [ADJUST] → [SIGNAL SELECT].
4 Change the setting of [SIGNAL SELECT]

with the [

[ANTENNA]: In case that the input signal of the

[MONITOR]: In case that two units are

[DEMO]: The Fixed video is displayed.

] and [ ] keys.

image is antenna:

connected and used as a monitor

Field of Angle

Due to the installing position of the Display unit, if
it is hard to see the screen, it can be improved by
adjusting this setting.

Setup: 0 to 50 (Initial value: 0)

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

Echo Color Divide

The color of an image can be changed to make it
easier to see.

Setup: STANDARD, DETAIL (Initial value:
STANDARD)

0093120005-02 3-6

3 Select [ADJUST] → [FIELD OF ANGLE].
4 Change the setting of [FIELD OF ANGLE]

with the [
When increasing the numeral, the visibility
angle is widened.
However, if the field of angle is widened too
much, it is hard to see the image from front.

] and [ ] keys.

Chapter 3 How to use the system menu MDC-2000 Series

3.4 NMEA

In the NMEA item of the system menu, the
transmission speed of the external input/output
can be changed.

Match the transmission speed with that of the
external connection equipment.

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

3 Select [NMEA] → [CH1 (J4)] or [CH2 (J5)].

Select the connector of which the
transmission speed is changed.

4 Change the setting of transmission speed

with the [

5 Press the [ ] key to display the NMEA

monitoring menu.
If the external equipment is connected at the
correct transmission speed, the received
NMEA sentence is displayed.

For the NMEA sentence, refer to 5.6

KGC-1 Setting (Connection with the

] and [ ] keys.

List of Input/Output sentence.

3.5 Preset

In the Preset of the system menu, the radar is
customized.

F1/F2 Key Set

Select the function assigned to F1 and F2 keys.

Select Range S/M/L

Select the range to be set with the [- RANGE +]
key.

Echo Color Set

Set an arbitrary color to the video color.

Trail Color Set

Set an arbitrary color to the trail color.

Display Color Set

Set an arbitrary color to the color of cursor and
numerals.

KODEN GPS compass)

Incase KGC-1 is connected to CH2 (J5), the best
performance can be achieved by executing
[KGC-1 SETTING],

1 Press the [MENU] key.
2 Move to the system menu.

Refer to 3.1 Display of System Menu.

3 Select [NMEA] → [KGC-1 SETTING], and

press the [

] key.

4 Press the [ENT] key.
5 Select [Yes] with the [ ] and [ ] keys.
6 Press the [ENT] key.

Both the Display unit and the KGC-1 are properly
set.
The HDT, GGA and VTG signals are outputted
from the KGC-1, and baud rate is set to 38,400.

Language Select

Select the language used in the menu.

NAV Display Select

When [DISPLAY SELECT] is set to [PPI/NAV],
set the content to be displayed on the NAV
display.

Camera Position Correction

The CCD camera video displayed by pressing
the [STC] knob may be shifted.
By performing [CAMERA POSITION], the display
position of CCD camera video can be corrected
in the upper and lower directions.

3-7 0093120005-02

MDC-2000 Series Chapter 3 How to use the system menu

3.6 Maintenance

The self-diagnosis of the system menu is the
menu for maintenance. Normally, it is not used.
Perform the self-diagnosis of the Display unit and
the antenna.

Display Unit

The state of the Display unit is displayed.
The version of the system program is displayed.

Antenna

The state of the antenna is displayed.
The type of antenna connected and the state of
voltage are displayed.

Panel Test

Testing the operation block is performed.

LCD Test

Testing the LCD is performed.

Operation Hours Reset

The memorized operating hours are reset.

TX Hours Reset

The memorized transmitting time is reset.

All Reset

The internal memory is reset.
All of the set values are returned to the
factory-settings.

System Program Renewal

The system program is renewed from the
external equipment.

0093120005-02 3-8

Chapter 4 Maintenance MDC-2000 Series

Chapter 4 Maintenance

4.1 Maintenance

To operate the radar equipment in a good condition for a long period of time, perform the inspection and
cleaning periodically.

4.1.1 Monthly Inspection

Caution:

Do not turn on the power of the radar during
inspection.

(1) To protect the LCD and enhance the visibility, the acrylic filter is installed on the surface. If the

acrylic filter is dirty, an image cannot be clearly seen. If dirty, dip a soft cloth into a neutral
detergent, wring it lightly and wipe the filter surface lightly with the cloth. Do not use a dry cloth. If
done so, due to static electricity, the acrylic filter will attract dust.

thinner

Caution

solvent

(2) Check that the radiation surface of the antenna is not dirtied by soot. Dip a soft cloth into water or

soap water, wring lightly and wipe the antenna with the cloth. Check for damage and paint
sticking.

Note: Before performing the maintenance and inspection of the antenna, thread a string

through the hole of radome (upper) as illustrated below and hang it up.

String

A

Never use a thinner solvent. The filter surface will be
chemically decomposed, resulting in the loss of the
transparency.

A : Top View

Hole

Radome (lower)

String

Radome (upper)

4-1 0093120005-02

Fixing screw

MDC-2000 Series Chapter 4 Maintenance

r

4.1.2 Yearly Inspection

In case of Open antenna (RB716A, RB717A, RB718A), check the brush of the antenna drive motor
inspect every 2,000 hours of transmission. If the length is shorter than 6mm, replace it with a new one.

Press the [MENU] key and select [MAINTE]→ [DISPLAY UNIT], message of transmission time is
displayed.

approx. 6mm

Contacting surface

WARNING:

Before opening the cover of the antenna, be sure to turn off the
power of the radar equipment to avoid the electrocution.

Motor brush

ensure

(1) Loosen the fixing screws and remove the cover of the antenna at the bow side. The antenna drive

motor can be seen at the lower side in the cabinet.

(2) Referring to the illustration below, remove the motor brush with flat screw driver.

(3) Insert the screw driver in the groove of the brush and rotate it counterclockwise and slowly.

Be sure to replace both brushes at both sides.

(4) Insert new brushes and install the brushes in reverse steps.

Inside of Scanner unit

Inside of antenna cabinet

Motor

Motor brush

To remove the motor brush, turn it counterclockwise

Moto

Motor brush

Motor brushes

and slowly with the screwdriver.

0093120005-02 4-2

Chapter 4 Maintenance MDC-2000 Series

4.2 Fuse Replacement

WARNING

If the input voltage is too high, hyper-current flows or a trouble occurs inside, the fuse blows out.
The fuse is housed in the rear side of the Display unit.

Use the specified fuse. If a fuse other than the
specified one is used, it leads to a serious accident.

4.3 Consumables

This unit employs the magnetron which is the consumables and needs the replacement periodically.
The magnetron is housed in the Scanner unit. When it is hard to see an image at a far distance, the
magnetron may be deteriorated. In this case, replace the magnetron. When replacing, consult your
sales dealer.

Press the [MENU] key and select [MAINTE] → [DISPLAY UNIT], message of transmission time is

displayed.

Replacement target: Normally 3,000 hours

4.4 Trouble Diagnosis

In this chapter, for finding a troubled location on a ship, a simple troubleshooting is mentioned.

4.4.1 Information required for requesting a repair

Inform us of the following items.

(1) Name of ship, telephone number if the satellite communication system is equipped

(2) Type of equipment

(3) Manufacturing number of the equipment

(4) ROM version (Press the [MENU] key and select [MAINTE]→ [DISPLAY UNIT], message of ROM

version is displayed.)

(5) Port of next arrival, arrival schedule and dealer name

(6) Trouble situation and inspected result on a ship

4.4.2 Error Display

When a trouble occurs in the equipment or by miss-operation, the content of the troubles are displayed
on the radar screen. The error, alarm and warning are provided at the time of troubles. When a trouble
is confirmed in the radar, after recording the trouble classification, abnormal location and abnormal
content, press the [ENT] key. And then alarm and error display will disappear.

4-3 0093120005-02

MDC-2000 Series Chapter 4 Maintenance

Error Content

PRC

Error Display Causes

L/L NO SIGNAL

HDG NO SIGNAL

SPD NO SIGNAL

ANTENNA ERROR 1

ANTENNA ERROR 2
ANTENNA ERROR 3
ANTENNA ERROR 4
ANTENNA ERROR 5
ANTENNA ERROR 6
ANTENNA ERROR 7

The latitude and longitude is not entered.

The bearing signal is not entered.

The ship speed signal is not inputted.

The trigger signal is not inputted from the antenna.

The video signal is not inputted from the antenna.

The heading signal is not inputted from the antenna.

The auto tune is abnormal.

The transmission voltage (+250V) is abnormal.

The magnetron current is abnormal.

The heater voltage of the magnetron is abnormal.

4.4.3 Self-diagnostic Function

The self-diagnostic menu is provided in the equipment.

Referring to 3.6 Maintenance, check for the abnormality of the radar.

0093120005-02 4-4

Chapter 4 Maintenance MDC-2000 Series

4.4.4 Inspection at Each Location

After finishing the inspection by the self-diagnosis, according to the table, check each location of the
radar.

Trouble conditions Suspected causes of troubles Countermeasures

The radar cannot be
powered.

The radar can be
powered. But,
nothing is displayed
on the screen.

The screen is dark. The screen brightness adjustment

The character
information can be
displayed. But, the
image of the radar
cannot be displayed.

The target image is
different from the
actual one.

The image is weak. The set value of the gain is low. Rotate clockwise the [GAIN] knob to

Too much noise Detuned. Re-adjust.

The antenna does
not rotate.

The power cable is not connected. Connect the power cable and fix the

connector firmly.

The power voltage is out of the
specified range.

The main power fuse blew out. Replace the fuse with a new one.

The screen brightness adjustment
is set to the minimal value.

Defect of the LCD unit Request the repair.

Defect of the LCD drive circuit Request the repair.

is not properly performed

Defect of the backlight Request the repair.

The mutual connection cable is
not connected.

Detuned. Re-adjust.

Defect of the transmission
equipment

The heading is not correctly set. Set the heading.

The distance adjustment is not
properly set.

The setting defect of STC or FTC. Re-adjust.

Detuned. Re-adjust.

Defect of the magnetron or MIC
(front end)

The radar is not grounded. Connect the ground wire.

The power is not fed to the motor. Check the connection of the motor

The motor brush is worn. Replace the motor brush with a new

Use the appropriate power.

Adjust the brightness with the [ ]
key.

Adjust the brightness with the [ ]
key.

Connect correctly the mutual
connection cable.

Refer to Tune Select in 3.3 setting

of Adjustment Items.

Request the repair.

Refer to Bearing Setting in 3.3

Setting of Adjustment Items.

Set correctly the TX delay adjustment.

Refer to TX Delay in 3.3 Setting of

Adjustment Items.

display an image.

Refer to 1.8 STC Adjustment or

2.2 FTC Adjustment.

Refer to Tune Select in 3.3 Setting

of Adjustment Items.

Request the repair.

Refer to Tune Select in 3.3 Setting

of Adjustment Items.

power.

one.

BRILL

BRILL

4-5 0093120005-02

MDC-2000 Series Chapter 5 Installation

Chapter 5 Equipment

5.1 Antenna Installation

Determining the location of the installation

The search capability of the radar varies largely, depending on the position of the antenna installation.
The ideal installation position is the high place over the keel line where no obstacle surrounds. Actually,
though there are many limitations in a ship, determine the installation position, considering the
following items.

1. The antenna block should be over the line drawn between the bow and the stern, and should be
installed to a position where no obstacle to block the radiation path of the radar beam is present.

2. To avoid the electromagnetic wave interference with human bodies, install the antenna block
higher than the living space by 0.6m. However, if installed at the higher position, objects at the
near distance cannot be searched. Thus, when approaching to a pier, if the radar is used, you
must pay attention.
The higher the position of the antenna is, the stronger the reflection from the sea surface
becomes.

3. Keep the surface of the platform, where the antenna is installed, horizontal as possible to be
parallel with the sea surface.

4. Install the antenna lock in front of the large structure and exhaust chimney to avoid the blind
sector (inability angle of image search) on the screen and to prevent the opening of the antenna
from being dirtied by the engine exhaust.

5. Keep enough space for maintenance.

6. To prevent a blind or ghost from occurring in the heading, place the antenna towards the bow
rather than obstacles, keep it away from obstacles. And when installing the antenna on the mast,
place it in front of the mast. (If obstacles cannot be avoided due to limitation of structure, refer to
[How to shift the antenna from an obstacle] described later.

7. Keep away the antenna from other equipment’s antenna.
Keep a distance from antennas of a direction finder and a VHF transmitter-receiver as far as
possible.

8. Keep a distance for safety from the magnetic compass.

Safety Distance from Magnetic Compass

Type of Scanner Standard Compass Steering Compass

RB715A 2.0m 1.4m

RB716A 2.0m 1.4m

RB717A 1.4m 0.95m

RB718A 1.4m 0.95m

WARNING

0093120005-02 5-1

Install the antenna, keeping it away from wireless
equipment not to be interfered.

Chapter 5 Installation MDC-2000 Series

How to shift the antenna from an obstacle

1. How to shift the antenna from the keel line

By shifting the antenna from keel line to the starboard, the blind moves to the port and the visibility in
the heading can be secured. According to a distance to an obstacle, the distance to be shifted can be
derived from the formula below.

Distance to be shifted from the keel line
Diameter of an obstacle over the keel line
Distance to an obstacle

Antenna

Obstacle

Ls

R

D

Keel line

How to shift the antenna from the keel line

2. How to keep an angle of depression

To keep enough angle of depressionθ that is an angle between the horizontal and the observer’s line of
sight (In this case, it is not the observer but an antenna), elevate the antenna height. By making θ more
than 5°, the blind at the middle and long distances can be avoided.
An object below the line of sight cannot be detected.

Horizon

Line of sight

How to keep an angle of depression

5-2 0093120005-02

MDC-2000 Series Chapter 5 Installation

Installation of Antenna

After determining the location of the installation, install the antenna. When installing, if the bracket
shown below is available, the installation is easier. If not available, install the antenna directly on the
roof, paying attention to the air tube for drain at the bottom of the antenna.

Note: If the radar mast or installation bracket is warped more than 2mm, make it flat or adjust

by inserting spacers.

Do not use the edge as it causes a sump.

Bracket

Installation of Radome Antenna

Referring to the illustration below, make five (5) holes on the cradle and fix the bracket and the antenna
together with hexagon bolts. If the thickness of the bracket is 9 to 14mm, it can be installed with the
supplied bolts. If not within this range, prepare bolts shown on the table in the next page. To prevent the
looseness from occurring, fortify with the commercially available loose-preventive silicon sealing.
However, for preventing the looseness of the radome antenna, do not use the putty. The putty may
deteriorate chemically the plastic material of the radome.

(0.47)

170

(6.69)

65

(2.56)

HDG

214

(8.43)

Center

35

(1.38)

For air tube

(0.59)

4kW radome antenna

Drawing of Work for Installation Holes on the Bracket

0093120005-02 5-3

Unit: mm (inch)

Chapter 5 Installation MDC-2000 Series

)

A

Chassis
Radome (bottom)

Bracket

Flat washer

Spring washer

M10 hexagon bolt

Install with four bolts

Specification of bracket thickness-wise installation bolt (In case of Radome Antenna)

Thickness of bracket Bolt for fixing the antenna Material Remarks

1 to 4 mm (0.04 to 0.16 in) M10x15 (pitch 1.5mm) stainless

4 to 9 mm (0.16 to 0.35 in) M10x20 (pitch 1.5mm) stainless

Accessory

9 to 14mm (0.35 to 0.55 in) M10x25 (pitch 1.5mm) stainless Included in accessories

14 to 19 mm (0.55 to 0.75in) M10x30 (pitch 1.5mm) stainless

Setting of Open Antenna

As illustrated below, install the Scanner unit, facing the cut portion of the installation base toward the
stern. This makes it easier to perform the maintenance

1. Referring to the illustration below, make holes of 14mm diameter on the installation side of
platform.

2. Place the Scanner unit at the specified position and fix it with four 12mm stainless bolts included
in the installation material. If the thickness of the bracket is 9 to 14mm, the bracket can be
installed with the supplied bolts. If not within this range, prepare the bolts shown on the table in
the next page.

HDG

199

(7.83)

Antenna raotational radius

ntenna rotational radius

185

(7.28)

Opening for cable

(3.97)

Cut portion of antenna base

R500 (3 ft antenna)

R700 (4 ft antenna)

R1000(6 ft antenna

(0.55)

Unit: mm (inch)

5-4 0093120005-02

MDC-2000 Series Chapter 5 Installation

M12 bolt
Flat washer
Electric erosion preventive washer

Scanner installation foot
Electric erosion preventive washer

Installation base
Flat washer

Spring washer

M12 nut

Install with four bolts

Specification of bracket thickness-wise installation bolt (In case of Open Antenna)

Thickness of bracket Bolt for fixing the antenna Material Remarks

1 to 4 mm (0.04 to 0.16 in) M12x45 (pitch 1.5mm) stainless

4 to 9 mm (0.16 to 0.35 in) M12x50 (pitch 1.5mm) stainless

9 to 14mm (0.35 to 0.55 in) M12x55 (pitch 1.5mm) stainless Included in accessories

14 to 19 mm (0.55 to 0.75in) M12x60 (pitch 1.5mm) stainless

Installation of Antenna

1. Remove the protective cap covered on the output of the Scanner unit rotational shaft.

2. Remove four bolts tentatively fixed to the base of the Antenna and install the Scanner unit to the
rotating base. Match the direction of antenna radiation side (KODEN –mark side) with the
projection mark on the rotating base.

3. Fix the aerial with four bolts removed in step 2.

0093120005-02 5-5

Chapter 5 Installation MDC-2000 Series

A

Antenna radiatyion side (KODEN –mark side)

Remove
Protective cap

Rotating base

Projection mark

ntenna

Installation bolt

Rotating base

Flat washer

Spring washer

5-6 0093120005-02

MDC-2000 Series Chapter 5 Installation

Cable Connection

Radome Antenna 4kW (RB715A)

1. Confirm that the power of the Scanner unit is turned off.
Install the antenna cable to the connector J7 at the rear of the Display unit.

2. Remove the upper radome of the Scanner unit, lifting upward not to touch the aerial inside.
(4 pieces of fixing screw)

3. Peel off the tape fixing the aerial.

4. Remove the shield cover at the stern side. (4 pieces of fixing screw)

5. Remove the holder plate for fixing the cable and the rubber ring
Thread the cable through the leading opening
Insert the rubber ring from both sides of the Scanner unit, thread it through the holder plate and fix
it to the aerial with the screws.

6. Connect the 7-pin connector of the cable to X11 of the printed circuit board and the 9-pin
connector to X12 respectively.

7. Install the shield cover. At this moment, install the shield of the cable in the groove, using the
shield cover. But, be careful for the cable not to be caught by the unit and the cover.

8. Install the upper radome with caution not to touch the aerial. Orient the cover as shown in the
illustration below. 4 markings indicating the screw positions are marked on the upper and lower
radomes respectively. Install the radome, aligning these markings.

Aerial

Stern

Radome (bottom)

Internal shield

Circuit board

X11 (connect it here. )

Radome (bottom)

X12 (connect it here.)

Installation of 4kW radome antenna cable

0093120005-02 5-7

Chapter 5 Installation MDC-2000 Series

r

Open Antenna 4kW (RB716A)

1. Please make sure power supply of the Scanner unit is OFF.

2. Disassemble the front cover of the Scanner unit from the rear cover by loosening fixing bolts.

3. Remove the TR unit by disconnecting the connector X1 and X2 after loosening fixing bolts of the
TR unit. Please make sure magnetron does NOT touch metals.

4. Remove the cable holder plate and the rubber packing by loosening bolts at the bottom of the
Scanner unit box.

5. Antenna cable shall be taken into the Scanner unit box through the cable inlet hole.

6. Antenna cable shall be fixed as described in the illustration below, using the cable holder plate
and the rubber packing removed in 4. Shield braid terminal shall be fixed under the cable holder
plate together with lug terminal, after removing the edge portion of heat contraction tube of the
antenna cable.

7. Mount the TR unit after connecting the X1 and X2 connectors (removed in 3) by fixing bolts.

8. 7 pin connector shall be connected to X11 of the TR unit, 9 pin connector to X12.

9. Antenna cable shall be clamped onto the TR unit. Please make sure the antenna cable does NOT
touch magnetron lead wires.

10. The front and rear covers of the Scanner unit shall be fixed by fixing bolts.

4kW (RB716A）

Magnetron lead wire

X1

X2

X11

magnetron

X12

TR unit

Fixing bolt

cable clamp

cable clamp

X1

X11

Cut portion of Scanner unit base

Put the shield braid
under the cable holder plate
as short as possible.

Fixing bolt

Shield braid terminal

Cable holder plate

7-pins connecto

Shield braid

9-pins connector

Remove the heat contraction tube

Scanner unit

Antenna cable

Rubber packing

Cable inlet hole

TR unit

X2

X12

Make the height less than 5mm

5-8 0093120005-02

MDC-2000 Series Chapter 5 Installation

r

Open Antenna 6kW (RB717A), 12kW (RB718A)

1. Make sure power supply of the Scanner unit is OFF.

2. Disassemble the front cover of the Scanner unit from the rear cover by loosening fixing bolts.

3. Remove the TR unit by disconnecting the connector J3 and J4 after loosening fixing bolts of the
TR unit. Please make sure magnetron does NOT touch metals.

4. Remove the cable holder plate and the rubber packing by loosening bolts at the bottom of the
Scanner unit box.

5. Antenna cable shall be taken into the Scanner unit box through the cable inlet hole.

6. Antenna cable shall be fixed as described in the illustration below, using the cable holder plate
and the rubber packing removed in 4. Shield braid terminal shall be fixed under the cable holder
plate together with lug terminal, after removing the edge portion of heat contraction tube of the
antenna cable.

7. Mount the TR unit after connecting the J3 and J4 connectors (removed in 3) by fixing bolts.

8. 7 pin connector shall be connected to J2 of the TR unit, 9 pin connector to J1.

9. Antenna cable shall be clamped onto the TR unit. Please make sure the antenna cable does NOT
touch magnetron lead wires.

10. The front and rear covers of the Scanner unit shall be fixed by fixing bolts.

6kW (RB717A）/ 12kW (RB718A)

Magnetron lead wire

J2

J1

J3

J4

magnetron

TR unit

Fixing bolt

cable clamp

J2

J1

cable clamp

Cut portion of scanner unit base

Put the shield braid
under the cable holder plate
as short as possible.

Fixing bolt

Shield braid terminal

Cable holder plate

7-pins connecto

Shield braid

9-pins connector

Remove the heat contraction tube

Make the height less than 5mm

TR unit

J3

J4

Scanner unit

Antenna cable

Rubber packing

Cable inlet hole

0093120005-02 5-9

Chapter 5 Installation MDC-2000 Series

5.2 Mutual Connection Diagram

RB715A/RB716A:X11, RB717A/RB718A:J2

Remark Color of lead wire No. No. Color of lead wire Remark

+250 V VIOLET 1 1 VIOLET +250 V

NC - 2 2 BLUE +24V

GND YELLOW 3 3 ORANGE (wide cable) +12V

+40V RED (wide cable) 4 4 YELLOW GND

+40V YELLOW (wide cable) 5 5 Shied DAT-R

+40V-R GREEN (wide cable) 6 6 RED (coaxal cable) DAT

+40V-R BLUE (wide cable) 7 7 - NC

8 BROWN (coaxal cable) BP/SHF

RB715A/RB716A:X12, RB717A/RB718A:J1 9 Shied BP/SHF-R

Remark Color of lead wire No. 10 GRAY (coaxal cable) V/TRG

+24V BLUE 1 11 - NC

NC - 2 12 RED(wide cable) +40V

+12V ORANGE (wide cable) 3 13 YELLOW (wide cable) +40V

Antenna

Display unit

DAT-R Shied 4 14 Shied V/TRG-R

DAT RED (coaxal cable) 5 15 GREEN (wide cable) +40V-R

BP/SHF-R Shied 6 16 BLUE (wide cable) +40V-R

BP/SHF BROWN (coaxal cable) 7

V/TRG-R Shied 8

V/TRG GRAY (coaxal cable) 9

GND Terminal

GND Shied 1

5-10 0093120005-02

MDC-2000 Series Chapter 5 Installation

5.3 Display Unit Installation

The Display unit can be installed on the desktop or as flash mount.

Please install the Display unit to the following procedure.

In addition, please install the Display unit securing safety distance from the magnetic compass.

Safety Distance from Magnetic Compass

Standard Compass Steering Compass

1.2m 0.8m

Desk-top Installation

(1) Remove two knob bolts fixing the Display unit to the bracket.

(2) Remove the Display unit from the bracket and place it on the stable flat place.

(3) Place the bracket on the position where the Display unit will be installed and fix the bracket with

five 5 mm screws.

(4) Place the Display unit on the installation bracket and fix the Display unit with two knob bolts

removed in step 1.

Display unit

M5 screw (5pcs)

Installation bracket

Washer (2pcs)

Knob bolt (2pcs)

Unit: mm (inch)

0093120005-02 5-11

Chapter 5 Equipment MDC-2000 Series

Caution: When installing on the desktop, the maintenance space shown in the illustration

below is required for cable lay-out, plugging-in/out of connector, fuse replacement and
bolt tightening.

Unit: mm (inch)

Flush-mount Installation

(1) Make a square hole (308mm x 308mm) at the location to be installed.

(2) Turn counterclockwise the knob bolt fixing the Display unit to the mounting bracket to loosen it,

remove the Display unit from the bracket. The mounting bracket and knob bolt are no longer used.

(3) Remove four plastic screw covers, which are fitted on each corner of the display front face.

(4) Confirm that the unit matches with the square holes. If not matched, correct the square hole.

(5) Connect all of the connectors for power, Antenna and others to the main unit.

(6) Install the Display unit in the installing location (square hole) and fix it with four 4mm tapping

screws (or M4 pan-head screw). (Prepare 4mm screws suitable for thickness of installing
location.)

(7) Refit the coverings removed in step (3).

Corner guard cap (4pcs)

M4 screw (4pcs)

Display unit

5-12 0093120005-02

MDC-2000 Series Chapter 5 Equipment

Fixing holes for M4 screw (4pcs)

Work of fiush-mount instsllation hole

5.4 Adjustment after Installation

Before setup, confirm the following points to operate properly the equipment

Unit: mm (inch)

1. The ship’s power, to which the radar system is connected, should be the specified voltage.

2. No person should be present around the antenna and mast. The Display unit should bear the
placecard, describing the caution [Radar being adjusted, do not touch the Operation unit.]

After confirming the above items, be sure to perform the adjustments.
The adjustments after the installation are the following items in 3.3 Setting of Adjustment Items.

● BRG ADJ

● TX DELAY ADJ

● MBS

● AUTO TUNE ADJ

For the adjustments, refer to 3.3 Setting of Adjustment Items.

0093120005-02 5-13

Chapter 5 Equipment MDC-2000 Series

y

)

5.5 Wiring

Cable connection to the Display unit

Connect the power cable, antenna cable and cables of others to specified connectors of the Display
unit. If optional navigation equipment and CCD camera are provided, connect also the cables of these
equipments.

Display unit MRD-104

CW-561-10M

CW-387-5M

receiver

External

buzzer

To J 3

Slave

display

To J 2

AIS

To J 1

CW-576-0.5M

External

monitor

To J 4

CW-373-5M

Navigation
equipment

CW-376-5M

* Be sure to connect the KGC-1 to J5

To J 5

CW-373-5M

KGC-1 or
Navigation
equipment

To J 6

To P O WE R

CW-405-0.3M

CCD

camera

CW-376-5M

White

Black

+ - GND

10.8 to 31.2VDC

Legend

Standard configuration
Option
Prepared by a user

To J 7

CW-259-2M

Antenna-Scanner unit

Gra

242J158055A-10M (for RB715A)

GND

242J159098A-10M (for RB716A)

242J159098B-15M (for RB717A/

RB718A

5-14 0093120005-02

MDC-2000 Series Chapter 5 Equipment

Pin Assignment of Rear Connector

The pin assignment is viewed from the rear of the Display unit.

External monitor/External buzzer AIS Input

J1

1
2
3
4
5
6
7
8
9

10

J2

1
2
3
4
5
6
7
8

-

Slave display NMEA/IEC61162 Input/Output

J3

1
2
3
4
5
6
7
8
9

10
11
12

J4

+12V (Maximum 0.8A) can be
supplied for GPS-20A, etc.

1
2
3
4
5
6

NMEA/IEC61162 Input/Output CCD camera Input

1
2
3
4
5
6

J5

J6

1 Camera1 input
2 Camera1 GND
3 Not-used
4 Not-used
5 Not-used
6 Not-used
7 Not-used

Antenna-Scanner unit Power Input

J7

1 +250V 9 BP/SHF-R
2

+24V 10 V/TRIG
+12V 11 Un-connected

3
4

GND 12 +40V

5

DAT-R 13 +40V
DAT 14 V/TRIG-R

6
7

Un-connected 15 +40V-R

8

BP/SHF 16 +40V-R

1

2

3

0093120005-02 5-15

Chapter 5 Equipment MDC-2000 Series

Connection of DC power cable (CW-259-2M)

DC+(White)

DC- (Black)

To [POWER] port

To [POWER] connector

GND (Gray)

Grounding

● Use the large diameter cable for ground wire as possible.

● Connect the ground wire to the ground material at a shortest distance.

● When connecting the external equipment whose positive polarity is connected to the ground line,

do not connect the ground of the signal line to the cabinet ground.

Connection of External Buzzer and External Monitor (J1) (Prepared by a user)

When installing an external buzzer or external monitor (VGA monitor, analog RGB input), connect it via
CW-576-0.5M. For its wiring, refer to the illustration below.
After soldering, perform the waterproof and insulation treatment on the junction with a self-fusion tape.

Note: For the rated voltage of the buzzer, us e the same DC volt age of the ship’s power supply

to which the radar Display unit is connected.

Structure of CW-576-0.5M

To an external monitor
via CW-560-2M or the
equivalent

To an external

buzzer+ (White)

To an external buzzer

To an external

buzzer- (Black)

5-16 0093120005-02

MDC-2000 Series Chapter 5 Equipment

Connection with the AIS Receiver (J2) (Prepared by a user)

Use the CW-387-5M (Optional) when installing the AIS receiver. For connecting any equipment, one
end of the CW-387-5M is left un-treated. Prepare a connector suitable for the equipment you desire to
connect.
The connection cable (CW-387M-5M) consists of eight core wires and the shield wire around them. A
signal is inputted from the orange/red (AISIN+) and orange/black (AISIN-) wires.
For connection of the CW-387M-5M and AIS receiver, refer to the illustration below.
When cables are connected, please perform the waterproof and insulation treatment on the junction
with self-bonding tape or similar materials.

Structure of CW-387-5M

2 AISIN+ orange/red

AISIN+ (Orange )

AISIN- (Black)

3 AISIN- orange/black

Insulate other wires (including the shield wire)

To AIS receiver

Connection with the navigation equipment (J4, J5)

Two NMEA0183/IEC61162 input/output ports are provided. Connect the navigation equipment and the
external equipment such as KODEN made GPS sensor to them. The optional cable with connectors at
both ends is available. The CW-376-5M of which one end is left untreated is also available. Prepare a
cable suitable for the equipment you desire to connect.
The connection cable CW-376-5M consists of six core wires and the shield wire around them. A signal
is outputted from the white (NMEA TX+) and red (NMEA TX-) wires, and a signal is inputted from the
orange (NMEA RX+) and black (NMEA RX-) wires.
For wiring of CW-376-5M, refer to the illustration below.
When cables are connected, please perform the waterproof and insulation treatment on the junction
with self-bonding tape or similar materials.

Structure of CW-376-5M

GND(Blue)

Blue)

GND(

NMEA TX+(White)

NMEA TX-(Red)

NMEA RX+(Orange)

NMEA RX-(Black)

+12V OUTPUT

(Green)

* In only J3, +12V is outputted

To navigation equipment

Caution: Insulate the un-used lead wires by winding them with an insulation t ape not to

contact each other.

Connection of CCD Camera (J6) (Prepared by a user)

The optional product CW-405-0.3M is equipped with a RCA jack for connection to the CCD camera

0093120005-02 5-17

Chapter 5 Equipment MDC-2000 Series

(NTSC/PAL/SECAM), Connect the video output terminal (RCA plug (In most cases, yellow)) of your
CCD camera. Perform the waterproof treatment on the junction of the RCA terminal with a self-fusion
tape.

5.6 List of Input/Output Sentence

Input Sentence

The sentences shown on the table below can be received.
In NMEA0183 Ver.1.5, 2.0 and 3.0, inputting is possible.

Information Priority of Sentence

Latitude/Longitude GGA > RMC > RMA > GNS > GLL

Heading HDT > HDG > HDM > VHW > RMC > RMA > VTG

Ship speed RMC > RMA > VTG > VHW

WPT BEC > BWC > BWR > RMB

Cross Track Error RMB > XTE

Wind direction MWV > MWD

Wind speed MWV > MWD

RCA jack (Yellow)

Water depth DPT > DBT

Water temperature MTW

Output Sentence

The TTM and TLL sentences can be transmitted.

Outputting is performed in NMEA0183 Ver.2.0.,

Sentence Information

TTM* Target Information

TLL** Target Position

* To output the TTM sentence, the ATA board (optional) is required.

** To output the TLL sentence, the latitude and longitude data and the bearing signal data are

required.

5-18 0093120005-02

MDC-2000 Series Chapter 6 Attached Table

Chapter 6 Attached Table

6.1 Menu Configuration

0093120005-02 6-1

Chapter 6 Attached Table MDC-2000 Series

6-2 0093120005-02

MDC-2000 Series Chapter 6 Attached Table

6.2 Specifications

0093120005-02 6-3

Chapter 6 Attached Table MDC-2000 Series

6.3 External View

Unit: mm (inch)

6-4 0093120005-02

MDC-2000 Series Chapter 6 Attached Table

Dimension drawing of table installation

Fixing holes for M4 screw (4pcs)

(1/4) Dia 5Holes

Unit: mm (inch)

Dimension drawing of flush-mount installation

0093120005-02 6-5

Unit: mm (inch)

Chapter 6 Attached Table MDC-2000 Series

RB715A

Unit: mm (inch)

RB716A/ RB717A and RB718A with RW701A-03/04/06

Weight: 10kg

Unit: mm (inch)

Weight for RB716A: 21.5kg/ (RW701A-03): 22.5kg/ (RW701A-04)

RB717A/RB718A: 22.5kg/ (RW701A-04): 24.5kg/ (RW701A-06)

6-6 0093120005-02

MDC-2000 Series Chapter 7 Principle of radar system

p

Chapter 7 Principle of radar system

7.1 What is the radar system?

The radar system is a navigation device that transmits a very high frequency radio wave referred as
microwave from antenna. The radar then receives the radio wave reflected by target(s) (e.g. other ship,
buoy, island, etc) via the same antenna and converts the received radio wave to electronic signals and
sends these signals to the Display unit. The radar makes it possible to find objects (targets), such as
other ships, rocks or coastline, not seen by eyesight or in fog and allows ships to avoid these potential
hazards.
As the antenna transmits while rotating, it is possible to see the current surrounding situation around
your ship at a glance.
The microwave radiated from the radar is referred as pulse wave and transmitting and receiving of
these waves alternate. Up to thousands of pulse waves are transmitted and received during one 360
degree rotation.
The typical radar antenna is a parabolic type or slotted array and its performance is essential for good
radar performance. Some of factors affecting the quality of the target returns are the antenna beam
width and the side lobe level. The narrow beam width provides a high resolution for angular orientation
to distinguish objects and the low side lobe level reduces a false image effect.

Other
ship

Radar wave

Own
ship

Buoy

Other
shi

Antenna
(during
rotating)

Figure 7-1 What is Radar?

Radar display

Buoy

Side lobe

The main lobe means the strongest radiated beam sent from the specific antenna, and the other
weaker beams, are referred as side lobes. A side lobe level is a difference between the largest side
lobe level and main lobe level.

Main lobe

Side lobe level

Beam width

Side lobe

Antenna

Figure 7-2　Antenna pattern

Beam width

The antenna beam width is defined as the angle where the radiation power density is within a half of
the maximum power supply in the main lobe (also, referred as “half value width”).

0093120005-02 7-1

Chapter 7 Principle of radar system MDC-2000 Series

7.2 Characteristics of radar r adio wave

The radio wave propagates slightly along the ground (primarily line of sight). This characteristic varies
depending on the density of atmosphere but generally calculated according to the formula as shown
below, considering that the distance with radar sight D is about 6% longer than the distance with optical
sight.

D(NM)=2.22 X ( h1 + h2 )

≈

h1 : Antenna height (m)
h2 : Target height (m)

1

h

Earth

Sight line

Radar radio wave

h

2

Figure 7-3 Characteristics of radar radio wave

Target with less reflection

The strength of the reflected waves from a target varies depending on not only the distance from the
target, its height or size, but also (radar absorbing) material and shapes. A target with a low degree of
reflection or low incident angle, such as FRP and wooden is not reflected well. Therefore, care should
be taken that a FRP ship, a wooden ship or an object such as sand, a sandbar and muddy cay poor
radar targets.
Since the distance from the coastline, etc. to your ship on a radar image to be seen as longer than that
from the actual coastline, more caution should be used navigating around such objects.

Not see n

Seen

Coastline on ra dar imag e

Actual (not seen )
coastline

3

1
HU

Figure 7-4 E xample of targets hard to be reflected

Radar shadow

Since the radar radio wave propagates straightly, your ship’s chimney stack and mast close to the
antenna, a large ship or mountain can create blind spots for which the radar wave cannot penetrate. In
such cases, they may completely or partially hide targets and cast a long shadow.
Since the shadow your ship’s chimney stack or mast is known at the time of installation, proper
selection of the antenna location is required to reduce the shadow effect. Since targets less likely to be
in this shadow area than in open sea, an extra attention should be taken in shadow areas.

False image

An image that does not actually exist (false image) at sea may appear on the display.
The phenomenon that causes false echoes are categorized and be described as follows:

7-2 0093120005-02

MDC-2000 Series Chapter 7 Principle of radar system

e

● Virtual image

The image of a large physical object in a close proximity may appear in two different orientations. One
is a real image and the other is a false image caused by wave reflected on the chimney stack or the
mast, etc.
On the display, one image appears with a right distance and bearing, and another one appears in the
direction of chimney stack, mast, etc. These images may also be generated by being reflected multiple
times from the bridges and quays too.

Passage of direct
reflection

Mast, etc

Direction of virtual image

3

1
HU

Passage of
secondary
reflection

Figure 7-5 False image by virtual image

Real image

Virtual image

● Duplicate target images

When there is a big reflective surface nearby and perpendicular at a close distance (i.e. when your ship
is passed by a big ship, etc.) radio wave bounces repeatedly between your ship and the other ship.
Therefore, 2 to 4 images may appear at equal range in the direction of this target. The false image
generated by this multi-path reflection is referred as “double targets”. In this case, the closest target is
the real one.
Even if the double targets appear, if the distance and bearing between own ship and the reflective
target changes, the duplicate targets will disappear. Therefore, this false image can be easily
distinguished.

Own ship

Largevessel

3

1
HU

Real imag

Double image

Figure7-6 False image caused by double image

0093120005-02 7-3

Chapter 7 Principle of radar system MDC-2000 Series

● False image by sidelobe

The microwave beam radiated from the antenna has a side lobe in different direction than that of the
main beam. Since this side lobe is lower than that of main beam, the effect is negligible for targets at a
long range, but a close, strong reflecting target may cause false image in a circular arc shape.

If a large target such as land exists near your ship, a circular arc shaped
image may appear.

3

1

Main lobe

False image
by sidelobe

HU

Side lobe

Antenna

Figure 7-7 False image by sidelobe

Real image

● False image of a distant target caused by “duct”

Depending on a weather conditions, a duct occurs by the temperature inversion, etc.
In this case, the unusual propagation of the radio wave may reach distant targets out of radar range.
A target at more than the maximum range may appear as an image, and may be displayed as a false
image closer than an actual distance. This phenomenon is a result of the long range echo delay time
exceeds the transmission period, and is displayed as the echo in the next cycle.
When changing the range of a distance, if the distance of the target changes, it can be judged as a
false image.

7.3 Radar interference

When the radar with the same frequency band is used nearby, interference noise appears on a display.
Although appearance of interference is not constant, the shape is almost always swirling or radial. This
device features an interference rejection facility to reduce interference.

7-4 0093120005-02
