KODAK Pocket Wireless Pico Projector
User Manual
2.1"H | 2.1"W | 2.1"D (5.3 cm | 5.3 cm | 5.3 cm)
Please read all directions before using the product and retain this guide for reference.
CONTENTS
INTRODUCTION
1
FEATURES
2
BOX CONTENTS
3
SAFETY PRECAUTIONS
4
5
SETUP
A. CHARGING THE PROJECTOR
B. GENERAL SETUP
C. CONNECT AN HDMI® DEVICE
D. ENABLE YOUR COMPUTER FOR EXTERNAL DISPLAYS
6
OPERATION
A. PLAYING A MOVIE FILE
B. PLAYING A MUSIC FILE
C. PLAYING A PICTURE FILE
36
811
910
1011
1216
1213
1315
1516
3
6
7
8
9

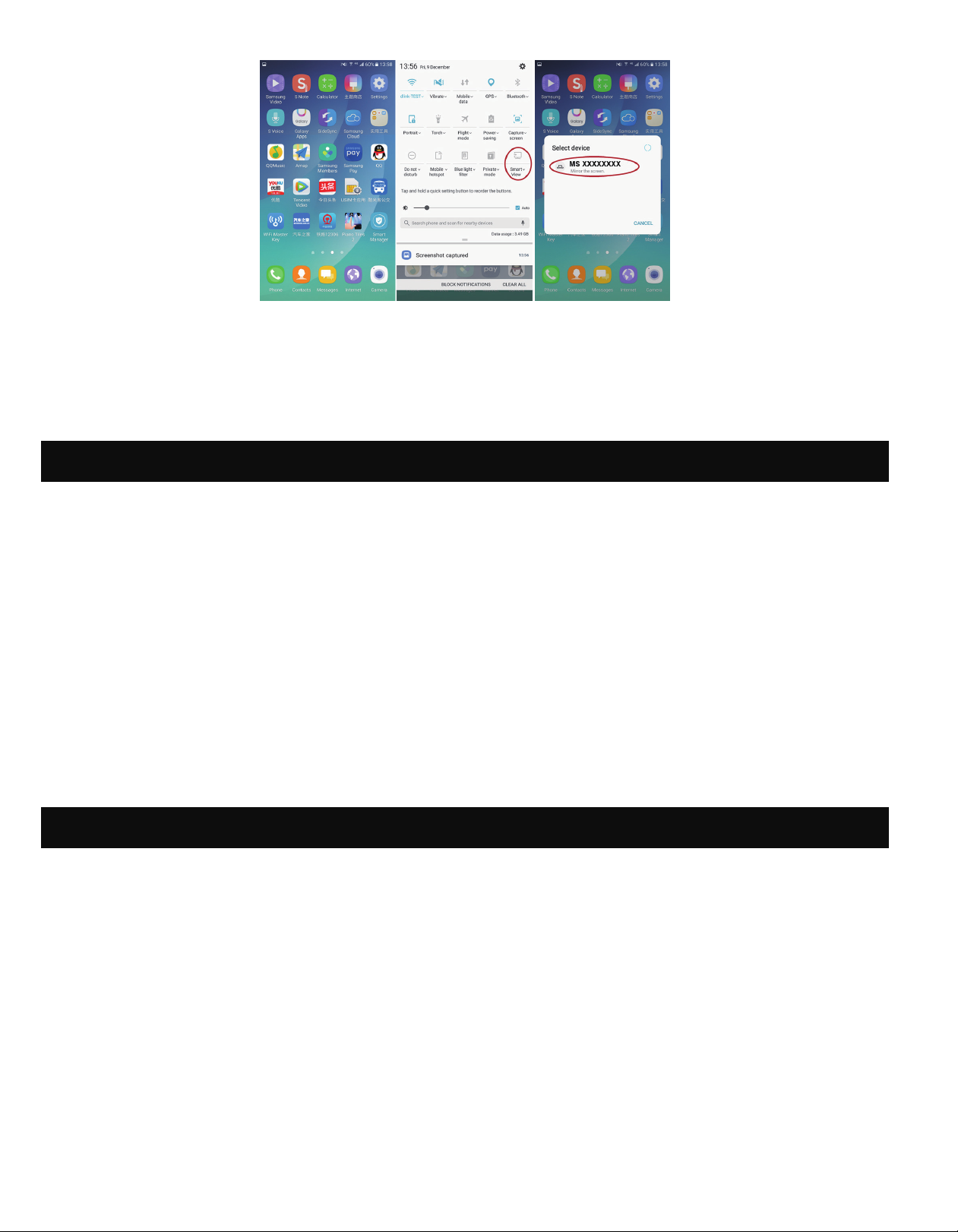

D. MIRRORING THE SCREEN OF A MOBILE DEVICE
7
CARE AND MAINTENANCE
8
TROUBLESHOOTING
9
DISPOSAL PRECAUTIONS
10
SPECIFICATION
11
FCC COMPLIANCE STATEMENT
12
CUSTOMER SERVICE CONTACT INFORMATION
13
WARRANTY
1719
19
1920
20
2021
21
22
2224
2
1. INTRODUCTION
Thank you for purchasing the KODAK Pocket Wireless Pico Projector. This User Guide is intended to
provide you with guidelines to ensure that operation of this product is safe and does not pose risk to
the user. Any use that does not conform to the guidelines described in this User Guide may void the
limited warranty.
Please read all directions before using the product and retain this guide for reference. This product is
intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions.
See warranty for details.
2. FEATURES
A. Focus Wheel
Turn the focus wheel to adjust the image focus of the projector.
B. Power/Exit Button
Press and hold this button for 5 seconds to turn the projector on or o. Press this button once to
return to the previous screen.
C. Volume – / Previous Button
Decreases the volume or moves to the previous option on the menu.
D. Volume + / Next Button
Increases the volume or moves to the next option on the menu.
E. Conirm Button
Selects the highlighted option on the menu.
F. Lens
Projects the video or image iles from your input device.
NOTE: Never touch the lens using your hands or any sharp object.
3
G. Air Vent
When the projector is in use, air will cycle through this vent.
NOTE: Always take care that the air vents are never blocked by paper, clothing, or any other
obstruction. Blocking the vents may result in overheating of the projector.
H. MicroSD™ Card Slot
This slot allows you to insert a microSD™ card (up to 64GB), allowing you to access your iles directly
from the projector.
I. DC Input
This port allows you to connect the DC power cord to the projector.
NOTE: the power adapter may become warm or hot while in use. Never cover or attempt to touch
the adapter while it is connected to a power source.
J. Mini HDMI® Input
This port is used to connect the HDMI® (High-Deinition Multimedia Interface) connector. It is
compatible with HD DVD, Blu-ray™, and other protected content playback.
K. Audio Output
This port allows you to connect an external speaker or headphones to the projector.
L. Power Indicator Light
Reference the chart below to understand your projector’s current status:
• Always take care that the replacement battery is the correct type. Risk of explosion.
• Only use the parts provided by the manufacturer.
LIGHT COLOR PRJECTOR IS ON PROJECTOR IS OFF
Red Charging Charging
Blue Working
NOTE: the battery capacity status will be displayed on the upper right corner of the projector’s main
screen.
The icon will appear on the upper right side of the screen when the power adapter is connected or
the battery is fully charged.
—
The will appear on the upper right side of the screen when the battery power is low. When this
happens, you should charge the projector.
4
Controller
A. Volume – Button
B. Volume + Button
C. Up/Down/Left/Right Buttons
D. OK Button
E. Menu Button
F. Exit Button
G. Rewind Button
H. Fast Forward Button
I. Previous Button
J. Next Button
K. Play/Pause Button
L. Stop Button
M. Mute Button

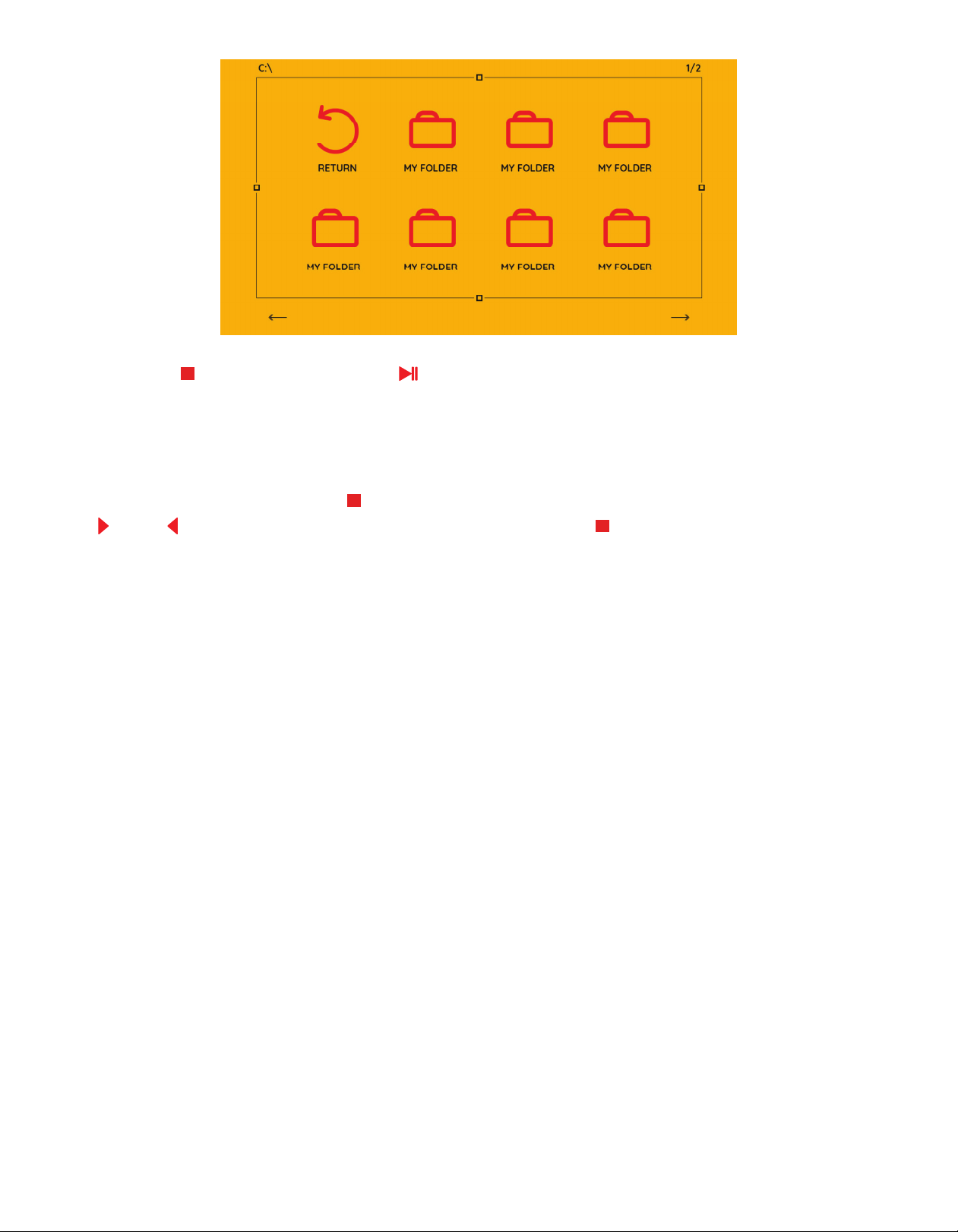

Main Menu
Movie
Accesses the video iles on your microSD™ card.
Music
Accesses the music iles on your microSD™ card.
Accesses the image iles on your microSD™ card.
Wi-Fi®
Allows you to connect to a mobile device via Wi-Fi®.
HDMI®
Connects the projector to an external device via the HDMI® cable.
5
Setup
Opens the settings menu, which includes the following options:
Language: the following languages are available
• English
• Spanish
• French
• Japanese
• Italian
• Dutch
• Portuguese
• Chinese
• German
Restore Default: restores the projector to factory settings
Power O
When this option is selected, you will be prompted “yes” or “no”. Select “yes” to power the projector o.
3. BOX CONTENTS
KODAK Pocket Wireless Pico Projector
HDMI® Cable
HDMI® Adapter
Power Cable
Power Adapter
Controller
Mini Tripod
Quick Start Guide
6
4. SAFETY PRECAUTIONS
When Using the Projector
• Refer to this user guide and take note of all safety precautions before using your projector.
• Do not place the projector on uneven or unstable surfaces.
• Do not use the projector in any place where it may come into contact with smoke. The residue from
smoke may cause build-up on critical parts of the projector, resulting in damage or
decreased performance.
• Do not use damaged power cords, accessories, and other parts with your projector.
• Keep all parts out of the reach of children.
• Do not block or place anything near the projector’s ventilation holes. Doing so may cause internal
heat build-up that can result in degraded picture quality and damage to the projector.
• Always ensure that the operating voltage of your projector matches the voltage of your
power source.
• Do not store your projector in high temperatures, in direct sunlight, or any place where it may
become wet or damp.
• Do not handle this product with wet or damp hands.
• Do not reach for the unit if it has fallen into water. Always unplug it irst.
• Do not use this product in a place where it may fall.
• When using for the irst time, ensure that the projector is plugged into a grounded wall socket.
• Never attempt to short-circuit the battery.
• Discontinue use if leakage is found.
When Servicing or Replacing Parts
• Never attempt to disassemble this product. There are no user serviceable parts.
• Do not attempt to remove or disassemble the battery. This will increase the risk of ire or
chemical burns.
• Always take care that the replacement battery is the correct type. There is a risk of explosion.
• Only use the parts provided by the manufacturer.
7
5. SETUP
Before using your projector, check that all parts listed in the Box Contents section of this manual are
present. For best results, we recommend mounting the projector on the included tripod.
5A. CHARGE THE PROJECTOR
A. Connect the power cable to the power adapter.
B. Plug the power cord into an outlet or other
power source.
C. Plug the power adapter into the projector’s
DC input.
D. You may now use the projector.
E. While plugged in, the projector’s battery will
automatically charge. It is recommended that
you allow the projector to charge for at least 4
hours before using it in battery mode for the
irst time.
NOTE1: When the projector is charging, the power indicator light will glow red, regardless of whether it
is powered on or o. When the projector is on, but not charging, or is fully charged, the power indicator
light will glow blue.
NOTE2: You may charge the projector with any power adapter that uses a micro USB plug.
AC Power Cord Requirements
Ensure that the correct AC plug type is used, according to your location. If the power cord included
with your projector does not match your local power source, contact your sales dealer.
NOTE: It is recommended that your video source device uses a grounded plug. This will prevent signal
interference from voltage luctuations. When using the included power adapter, a two-pronged plug is
required.
Australia and
Mainland China
8
USA, Canada,
and Taiwan
Continental
Europe
UK Japan Sweden
