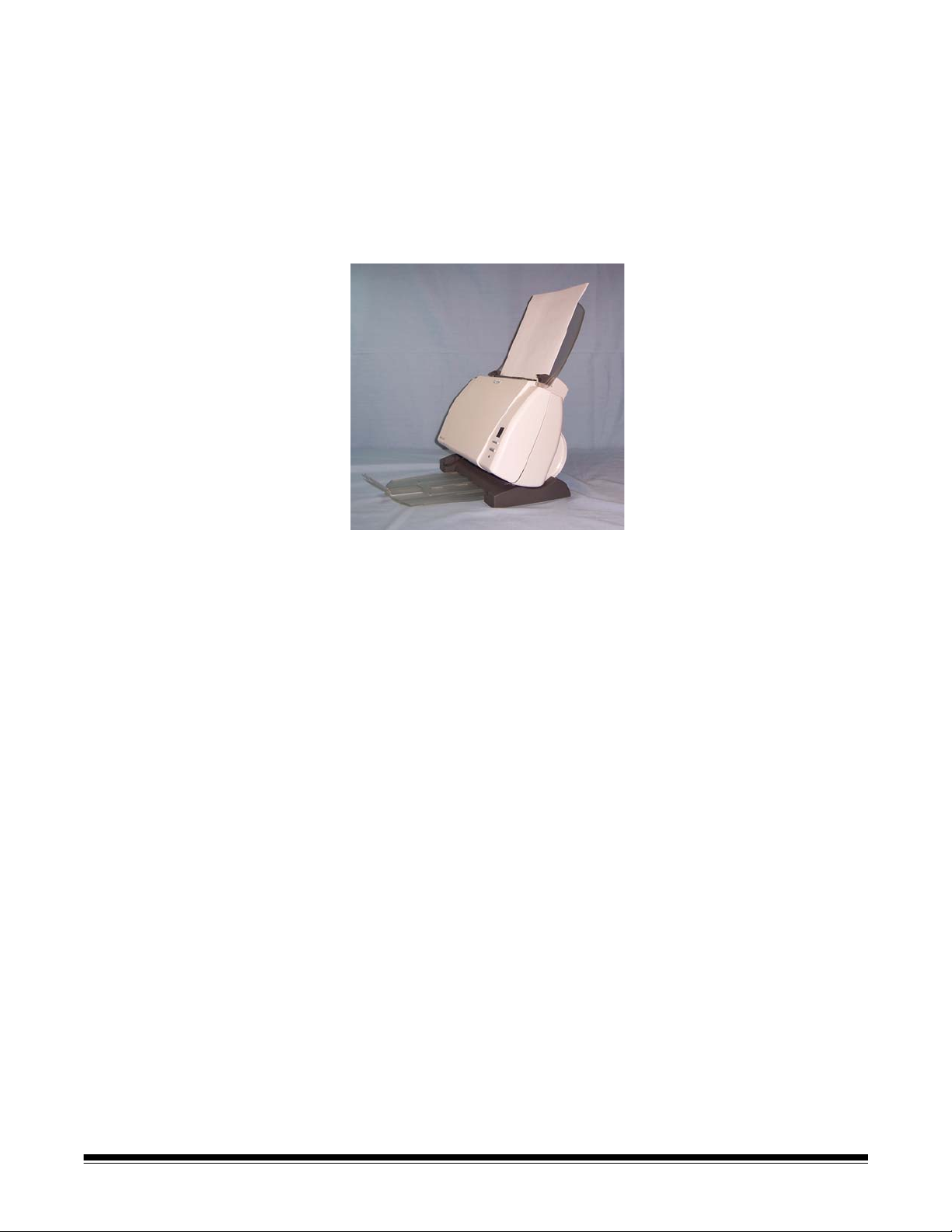

Kodak i1200 User Manual

i1200/i1300 Series Scanners

User’s Guide

A-61560

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Scanner features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

User precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety and regulatory agency approvals . . . . . . . . . . . . . . . . . . . . . . . . 4

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

European Union. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Acoustic emission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

EMC statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Japan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

What’s in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Kodak Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting the power cord to the scanner . . . . . . . . . . . . . . . . . . . . . . .11

Connecting the USB cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Attaching the output tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning on the scanner and finalizing Kodak Driver Software

installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing application software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Scanner components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Locking the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3 Using the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Turning the scanner on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Scanner positions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Tilting the scanner body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Adjusting the output tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adjusting the input tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Adjusting the side guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Start and stop scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Document preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Verifying your scanner installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Viewing test images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Understanding your scanning environment . . . . . . . . . . . . . . . . . . . . . . . . 26

Application software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Smart Touch functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Configuration dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Scan To settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Scan As settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Configuring function numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Smart touch Edit window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using function numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Scanning your documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Automatic feeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Manual feeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

A-61560 June 2006 i

4 Image Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Starting the Scan Validation Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Scan Validation Tool dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the TWAIN datasource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Terminology and features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

How do I begin? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Selecting Image settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Selecting Device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The main Kodak Scanner window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

The Image Settings window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Preview window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Toolbar icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

General tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Size tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Adjustments tab: black and white . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Adjustments tab: color or grayscale. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Enhancements tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Advanced options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Content Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setting up automatic color detection - Example 1 . . . . . . . . . . . . . . . . . 62

Setting up multiple images for each side of a document - Example 2. . 64

Using different settings for each side of a document - Example 3. . . . . 65

Images for each side of a document - Example 4 . . . . . . . . . . . . . . . . . 66

The Device Settings window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

General tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Multifeed tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

The Diagnostics window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

General diagnostics tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Debug tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Logs tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Using the ISIS Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

The main ISIS Driver window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Main tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Layout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Image Processing tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Scanner tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Auto Color Detect tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Adjustments tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Dropout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Log tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

About tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Defining the Scan area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Scan Area dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Cleaning the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Opening the scanner cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Cleaning the rollers and transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Cleaning or replacing the separation module . . . . . . . . . . . . . . . . . . . . 91

Replacing the separation module tires . . . . . . . . . . . . . . . . . . . . . . . . . 93

Cleaning or replacing the feed module . . . . . . . . . . . . . . . . . . . . . . . . . 95

Replacing the tires on the feed module . . . . . . . . . . . . . . . . . . . . . . . . . 97

Vacuuming the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Cleaning the imaging area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Supplies and consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

ii A-61560 June 2006

6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Indicator lights and error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Clearing a document jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Error code listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Appendix A Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Appendix B Feature Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Appendix C Warranty - US and Canada only . . . . . . . . . . . . . . . . . . . . . . 109

Limited warranty on Kodak Scanners. . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Warranty exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Installation Warning and Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

How to obtain limited warranty service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Packaging and shipping guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Return procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Customer responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Warranty Service descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

On-site service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

AUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Depot service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Important restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Contacting Kodak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

A-61560 June 2006 iii

1 Introduction

The Kodak i1200/i1300 Series Scanners are compact document
scanners perfect for workgroups and other decentralized applications.
All scanner models have a tilt feature that allows you to tilt the scanner
body and position the input and output trays in a variety of angles to
meet your scanning needs. In addition, the tilt feature allows scanning
in tight spaces when space is limited and stores easily when not in use.
Also included with each model is smart touch functionality which allows
you to send your documents to email, print or various applications with
a touch of a button. The i1200/i1300 Scanners also can support the
optional A4 tethered flatbed accessory.

The following models are available:

Kodak i1210 Scanner — a simplex scanner which provides scanning
at up to 30 pages per minute in color, grayscale or black and white at
200 dpi.

Kodak i1220 Scanner — a duplex scanner which provides scanning at
up to 30 pages per minute in color, grayscale or black and white at 200
dpi.

Kodak i1310 Scanner — a simplex scanner which provides color
scanning at up to 30 pages per minute and black and white and
grayscale scanning at up to 60 pages per minute at 200 dpi.

Kodak i1320 Scanner — a duplex scanner which provides color
scanning at up to 30 pages per minute and black and white and
grayscale scanning at up to 60 pages per minute at 200 dpi.

For support of most document scanning software applications, a
TWAIN datasource and ISIS Driver are included with the Kodak i1200/
i1300 Series Scanners. These drivers provide all of the innovative
image processing you can expect from Kodak.

This User’s Guide provides information and procedures for the Kodak
i1200/i1300 Series Scanners. The information in this guide is for use
with all scanner models unless otherwise noted.

A-61560 June 2006 1

Scanner features • Lightweight and portable

• Small, compact size

• Tilt-A-Scan feature provides a vertical position for ad-hoc scanning in
a compact footprint and tilt positions for production scanning

• Smart touch functionality allows you to send documents to file, email,
printers, fax printers or desktop applications that support TIFF, JPEG,
RTF, PDF and searchable PDF

• Scans up to 1500 pages per day using the i1200 Series Scanners or
3000 pages per day using the i1300 Series Scanners

• Scans up to
document feeder or as small at 50 x 63 mm / 2.0 x 2.5 inches

• An optional A4 tethered flatbed accessory provides added scanning
capability for exception documents and easily connects and
disconnects to the scanner

• Choose color, black and white, grayscale, simultaneous black and
white and grayscale, or simultaneous black and white and color

• Multi-feed detection including ultrasonic technology

• Easy cleaning and maintenance

• Easily replaceable feed and separation modules

• Optical resolutions at 600 dpi (1200 dpi using the flatbed)

• Output resolutions from 75 to 1200 dpi

• Advanced software image processing including: automatically detect
and straighten, iThresholding, ATP, auto orientation, background
color smoothing, add or remove borders, auto color detect and
searchable PDF output

• High speed USB 2.0 interface

• Energy star compliant

21.6 x 86 cm / 8.5 x 34 inches using the automatic

2 A-61560 June 2006

Safety information CAUTION: The scanner and power supply must only be used

indoors in a dry location.

• When placing the scanner, make sure that the electrical power outlet
is located within 1.52 metres (5 feet) of the scanner and is easily
accessible.

• Material Safety Data Sheets (MSDS) for chemical products are
available on the Kodak website at: www.kodak.com/go/msds. When
accessing the MSDSs from the website, you will be required to
provide the catalog number of the consumable you want the Material
Safety Data Sheet for. See the section entitled, “Supplies and
consumables” later in this guide for supplies and catalog numbers.

User precautions Users and their employer need to observe the common sense

precautions applicable to the operation of any machinery. These
include, but are not limited to, the following:

• Do not wear loose clothing, unbuttoned sleeves, etc.

• Do not wear loose jewelry, bracelets, bulky rings, long necklaces, etc.

• Hair should be kept short, using a hair net if needed, or by tying long
hair up in a bundle.

• Remove all loose objects from the area that could be drawn into the
machine.

• Follow the recommended Kodak cleaning procedures. Do not use air,
liquid or gas spray cleaners. These cleaners only displace the dust,
dirt or debris to another location within the scanner, which could
cause the scanner to malfunction.

Supervisors should review their practices and make the compliance
with these precautions a part of the job description for the operator of
the Kodak i1200/i1300 Series Scanners and any other mechanical
devices.

A-61560 June 2006 3

Safety and regulatory agency approvals

The Kodak i1200/i1300 Series Scanners conform to applicable national
and international product safety and electronic emission regulatory
requirements. This includes, but is not limited to, the following:

Country or Region Safety Approval Safety Mark Electromagnetic Compatibility EMC Mark

Australia/New
Zealand

Canada CAN/CSA-C22.2 No.

60950-1

China GB4943 CCC

European Union

EN 60950-1

International IEC 60950-1

Japan VCCI Class B VCCI

Tai wan CNS 14336 BSMI CNS 13438 Class B BSMI

United States UL 60950-1 c TUV us CFR 47 Part 15 Subpart B

c TUV us Canada ICES - 003 Issue 3 Class B

“S&E”

CE

TUV GS

AS/NZS CISPR 22 Class B C-Tick

GB 9254 Class B

GB 17625.1 Harmonics

EN 55022

ITE Emissions Class B

EN61000-3-2

Powerline harmonics

EN 61000-3-3 Flicker

EN 55024 ITE Immunity

CISPR 22 Class B

FCC Class B

CCC

“S&E”

CE

FCC

Environmental information

• The Kodak i1200/i1300 Series Scanners are designed to meet
worldwide environmental requirements.

• Guidelines are available for the disposal of consumable items that
are replaced during maintenance or service; follow local regulations
or contact Kodak locally for more information.

• For disposal or recycling information, contact your local authorities or,
in the USA, visit the Electronics Industry Alliance website:
www.eiae.org.

• The product packaging is recyclable.

• Parts are designed for reuse or recycling.

• The Kodak i1200/i1300 Series Scanners are Energy Star compliant
and is shipped from the factory with the default time set to 15
minutes.

European Union This symbol indicates that when the last user wishes to discard this

product, it must be sent to appropriate facilities for recovery and
recycling. Please contact your local Kodak representative or refer to
www.kodak.com/go/recycle for additional information on the collection
and recovery programs available for this product.

4 A-61560 June 2006

Power system Power system connection

This product is also designed for Norwegian IT power system with
phase-to-phase voltage 230V.

Netzanschluß

Das Gerät ist auch für die Verwendung im norwegischen IT­Stromsystem mit einer Leiterspannung von 230 V geeignet.

Connexion aux systèmes d’alimentation électrique

Ce produit est également conçu pour les systèmes norvégiens
d’alimentation électrique informatique, dont la tension par phase est de
230 V.

Acoustic emission Maschinenlärminformationsverordnung – 3, GSGV

Der arbeitsplatzbezogene Emissionswert beträgt <70 db(A).

[Machine Noise Information Ordinance — 3, GSGV
The operator-position noise emission value is <70 dB(A).]

EMC statements

United States This equipment has been tested and found to comply with the limits for

a Class B digital device pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
additional suggestions.

Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment. Where shielded interface cables have been provided
with the product or specified additional components or accessories
elsewhere defined to be used with the installation of the product, they
must be used in order to ensure compliance with FCC regulation.

A-61560 June 2006 5

Korea

As this equipment has obtained EMC registration for household use, it
can be used in any area including residential areas.

Japan This is a Class B product based on the standard of the Voluntary

Control Council for interference by information Technology Equipment
(VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the
equipment according to the instruction manual.

6 A-61560 June 2006

2 Getting Started

What’s in the box Before you begin open the box and check the contents:

• Kodak i1210 or i1220 Scanner or Kodak i1310 or i1320 Scanner

• Output tray

• USB 2.0 cable

• Power supply

• AC power cord bundles

• Sample Cleaning Kit

• Welcome Folio which includes:

- Bundled installation and application CDs

- Registration sheets

- Printed User’s Guide, English

- Service Contact sheets

- Quick Installation Guide

-Quick Tips Guide

- Miscellaneous flyers

Kodak provides these applications with Kodak i1200/i1300 Scanners:

• Kodak Capture Software, Lite installs in minutes and helps
automate your capture workflow for maximum performance. It allows
scanning, viewing, and storing of images in standard image file
formats (TIFF, JPEG, and PDF), for practically any workgroup
application.

• Nuance ScanSoft PaperPort 10 Software is an easy way to turn
piles of paper and photos into organized digital PDF files that you can
quickly find, use and share. PaperPort provides a unique visual
desktop that displays small thumbnails of your documents for fast
browsing of what you need. End the frustration of looking for paper or
digital documents by searching for words inside your files with the

exclusive All-in-One Search
knowing that important documents and photos will never be lost.
PaperPort is perfect for your home or small office and all your related
documents.

• Nuance ScanSoft OmniPage Pro 14 Software will help you reach
new levels of productivity by eliminating retyping. Precision OCR
technology, advanced layout analysis and powerful editing tools allow
you to quickly turn paper and PDF files into editable electronic
documents that look just like the original — complete with text, tables
and graphics. Robust new tools enable you to turn text documents
into audio books and add digital signatures to your electronic
documents. Save time and money like never before with the world’s
most powerful document conversion application.

™

. Save time and have the security of

A-61560 June 2006 7

System requirements Following is the minimum recommended system configuration to run

Kodak i1200/i1300 Series Scanners.

• Recommended PC configuration:

- For documents up to 356 mm (14 in.) long up to 400 dpi: Pentium
IV, 3.2 GHz processor, 512 MB RAM

- For documents up to 660 mm (26 in.) long up to 400 dpi: Pentium
IV, 3.2 GHz processor, 1 GB RAM

- For longer documents/higher resolutions: Pentium IV, 3.2 GHz
processor, 3 GB RAM

• USB port 2.0 (compatible with USB 1.1 but at slower speeds)

• Microsoft Windows XP SP2, (supports USB 2.0); Windows XP 64-bit
edition and Windows 2000 Professional (supports USB 2.0)

• 100 MB free hard disk space

• CD-ROM drive

Installing the scanner Install the scanner in the following order:

1. Install the Kodak Driver Software on the PC.

2. Connect the power cord to the scanner.

Installing the Kodak Driver Software

3. Connect the USB cable between your scanner and PC.

4. Attach the output tray.

5. Turn on scanner power and finalize the Kodak Driver Software

installation.

6. Verify your scanner installation (see Chapter 3).

7. Install other supplied capture applications (See Chapter 3).

Install the driver software before connecting the scanner to your PC.

1. Insert the installation CD in the CD-ROM drive. The installation

program starts automatically.

NOTES:

• If the CD does not start automatically, open the My Computer
icon on your desktop. Double-click the icon for your CD-ROM
drive, then double-click on Setup.exe.

• The i1200 and i1300 Series Scanners have separate installation
CDs. If you have both scanners in your environment, be sure to
use the correct installation CD.

2. Select Install Scanner Software.

8 A-61560 June 2006

3. The Kodak i1200/i1300 Series Scanner Installation window will be
displayed.

NOTE: This window may or may not be displayed depending upon what

was previously installed on your computer.

4. Click Yes. The Welcome window will be displayed.

5. Click Next.

A-61560 June 2006 9

The Software License Agreement window will be displayed.

6. After reading the agreement, click I Agree to continue. The
installation will start.

7. When the installation is complete, the Installation Completed
window will be displayed.

8. Click Finish.

10 A-61560 June 2006

Connecting the power cord to the scanner

Use only the power supply that was provided with the Kodak i1200/
i1300 Series Scanner. Do not substitute another power supply model or
another manufacturer’s power supply.

After the drivers have been installed, connect the power supply and
power cord to the scanner. Make sure that the power outlet is located
within 1.52 metres (5 feet) of the scanner and is easily accessible.

1. Select the appropriate AC power cord for your region from the
supply of power cords packed with your scanner.

2. Attach the power cord for your power type to the power supply.

3. Plug the output power cord from the power supply into the power
port on the scanner.

4. Plug the other end of the power cord into the wall outlet.

A-61560 June 2006 11

Connecting the USB cable

IMPORTANT: If you have not installed the Kodak Driver Software,

do that now before proceeding.

The USB cable supplied with your scanner has two different ends.

A

1. Attach the B end of the USB cable to the scanner USB port, located
on the back of the scanner.

2. Attach the A end of the USB cable to the proper USB port on your
PC.

B

Attaching the output tray • Slide the output tray underneath the scanner platform along the

center guide.

NOTE: The output tray can be placed in a variety of positions to meet

your scanning needs. See the section entitled, “Adjusting the
output tray” in Chapter 3 for more information.

12 A-61560 June 2006

Turning on the scanner and finalizing Kodak Driver Software installation

When the USB cable and power connections have been made, and the
Kodak Software Drivers have been properly installed, the installation
will be complete when the scanner is turned on.

1. Use the power switch on the back of the scanner to turn the scanner
on (I).

When you turn on the scanner, the scanner goes through an
initialization process. When it is finished and ready to scan, the LED
indicator will stop flashing and stay green.

NOTES:

• The following windows are based on Windows XP. However,
depending on the computer operating system you are using,
these windows may be different.

• If a flatbed is attached, the New Hardware window may be
displayed once for the scanner and once for the flatbed.

Your operating system will now auto detect the scanner.

2. Click Next. Kodak has successfully tested the i1200/i1300 Series
Scanners with Windows XP.

A-61560 June 2006 13

The Found New Hardware window will be displayed.

3. Click Finish.

Installing application software

The Kodak Scan Validation Tool is available on the CDs packed with
your scanner. Refer the section entitled, “Verifying your scanner
installation” in Chapter 3 for installation instructions and use.

Other scanning applications are also provided on the CDs packed with
your scanner (e.g., Kodak Capture Software Lite, Nuance ScanSoft
PaperPort 10 Software, Nuance ScanSoft OmniPage Pro 14 Software).
You may also use other capture applications not provided with the
scanner. See the User Guides provided with these applications for
instructions on how to install and use the software.

14 A-61560 June 2006

Scanner components Front view

Scanner

cover

Tilt

release

button

Output tray

Input

tray

Output tray

extension

Scanner cover

release lever

Function

window

Scroll

button

Start

button

LED

indicator

Scanner cover — provides access to the internal components of the
scanner, such as the imaging area and the feed and separation
modules.

Tilt release button — press this button to tilt the scanner body into a
different position.

Output tray extension — slide this extension out when scanning
documents longer than 8.5 x 11 inches (A4).

Output tray — collects the scanned documents.

Indicator LED light — illuminates or flashes indicating scanner status.

• Steady green: ready to scan

• Flashing green: waiting/Energy Star; scanning/busy

NOTE: The Start button, Scroll button and Function window are used

with the smart touch functionality.

Start button — launches the selected application that is associated
with the displayed number in the function window.

Scroll button — allows you to select or scroll through predefined
functions or applications for scanning.

Function window — displays 0 through 9. These numbers correspond
to a predefined function of your choice. E will be displayed if an error is
encountered.

Scanner cover release lever (not shown in illustration above) — opens
the scanner to allow access to the paper path for cleaning or clearing a
document jam.

Input tray — holds up to 50 documents (20 lb./75 g/m

2

) in place.

A-61560 June 2006 15

Paper present

sensor

Feed module

cover

Inside view

Side guides

Feed

Module

Rollers

Separation

Module

Separation module

release lever

Gap release

lever

Scanner cover

release lever

Side guides — slide the guides back and forth to accommodate the
size of documents you are scanning.

Paper Present sensor — detects the presence of documents in the
input tray.

Feed module cover — this cover needs to be removed when cleaning
or replacing the feed module or feed module tires.

Separation module release lever — push the release lever down to
remove the separation module for cleaning or replacement.

Gap release lever — allows you to manually adjust the space between
the feed module and separation module for documents that require
special handling.

Scanner cover release lever — opens the scanner to allow access to
the paper path for cleaning or clearing a document jam.

Feed module and Separation module — provides smooth document
feeding and separation of various sizes, thicknesses and textures of
documents.

Rollers — provides smooth document feeding of various sizes,
thicknesses and textures of documents.

16 A-61560 June 2006

Back view

Power switch

Power port USB port

Flatbed port

Security
lock port

Power switch — turns the scanner on and off.

Power port — connects the power cord to the scanner.

USB port — connects the scanner to the PC.

Flatbed port — connects the optional tethered flatbed accessory to the

scanner.

Security lock port — connects a security lock to the scanner.

Locking the scanner A security lock port is available if you want to secure your scanner. You

can purchase a standard security lock (as shown below) at an office
supply store.

1. Insert the lock into the back of the scanner and turn the key to lock
the scanner in place.

2. Use the looped end of the cable to secure the cable and scanner to
a stationary place.

A-61560 June 2006 17

3 Using the Scanner

Turning the scanner on and off

• Press the button on the back of the scanner to turn the scanner on (I)

or off (O).

After you turn on the scanner, wait for it to complete the self-test. When
the scanner is connected to the host PC and the self-test completes,
the green indicator light will remain on and constant and the function
window will display “1”.

If the scanner is not connected to the host PC and the self-test
completes, the red indicator will be on and the function window will be
blank.

Scanner positions The Kodak i1200 and i1300 Series Scanners are equipped with a tilt

feature which allows the scanner to be used in two positions.
Depending upon your scanning needs, you can tilt the scanner body
and position the input and output trays. The tilt feature also allows
scanning in tight spaces when space is limited and stores easily when
not in use. The following illustrations show the angles the scanner can
be placed in. Simply press the tilt release button and tilt the scanner
body into a 25- or 65-degree angle.

25-degree angle

18 A-61560 June 2006

65-degree angle

In addition to tilting the scanner body, the input and output trays can be
adjusted to provide even more scanning flexibility. See the following
sections for information on adjusting the input and output trays.

Tilting the scanner body

IMPORTANT: When using the tilt feature, be sure the scanner cover is

closed.

• Press the Tilt release button and rotate the scanner body into the

desired position.

A-61560 June 2006 19

Adjusting the output

The output tray can be adjusted in several positions.

tray

To remove the output tray from it’s current position:

• Press down on the release tabs and pull it out of position.

• The output tray can be positioned so it lies flat or you can angle it so

the back of the output tray is higher. Align the tabs on the output tray
with the slots on the scanner to lock the output tray in place.

• An extender is available to accommodate long documents. Pull this

extender out to the longest position when scanning documents
longer than 14 inches.

• The end stop can be opened at various angles to accommodate your

scanning needs.

20 A-61560 June 2006

• The output tray can be pushed all the way in or removed. This

position is desirable when space is limited and you are scanning
small documents.

Adjusting the input tray

You can scan documents with the input tray open or closed. Feed
documents with the input tray open if you are scanning a batch of
documents. Remember you can tilt the scanner body to a more upright
position to save working space.

Input tray - open position Input tray - closed position

If space is limited and you want to close the input tray, you can easily
feed documents one at a time.

NOTE: The scanner cover cannot be opened when the input tray is

closed.

A-61560 June 2006 21

Adjusting the side guides

The side guides can be moved in or out to accommodate document
size. Adjust the side guides slightly wider than the documents you are
scanning.

Start and stop scanning

Before you start scanning, make sure the scanner is on and ready for
operation, which is indicated by the green indicator light being on and
constant.

Scanning is controlled by software developed for your application. To
start and stop scanning, refer to the documentation provided with your
application software.

NOTE: Be sure that the documents in the input tray are centered in the

tray and in the path of the paper present sensor.

22 A-61560 June 2006

Document preparation

• A batch of documents to be fed into the scanner must be arranged so

the leading edges of all documents are aligned and centered in the
input tray; this allows the feeder to introduce documents into the
scanner one at a time.

• Staples and paper clips on documents may damage the scanner and

documents. Damage resulting from scanning documents with
staples, paper clips or other metallic objects are not covered by
warranty. Remove all staples and paper clips before scanning.

• Documents should be in good condition.

Paper Types: Bond, Laser, Inkjet, Offset

NOTE: Chemically coated papers may cause excessive wear/swelling

of the rollers.

Paper inks: All inks on the paper must be dry before scanning is
started. This includes: Standard offset printing, Inkjet printer, Thermal
transfer, Handwriting inks.

Correction Fluids: Liquid Paper®, Tipp-Ex®, Wite-out®, and other
similar correction fluids should be dry before scanning is started.

Paper Weights: 34 g/m

Maximum Document Size:

• Automatic Document Feeder — 215 x 863 mm (8.5 x 34 in.)

• Flatbed — 215 x 297 mm (8.5 x 11.69 in.)

Minimum Document Size: 63.5 x 50 mm (2.5 x 2 in.)

2

to 413 g/m2 (9 to 110 lbs.)

A-61560 June 2006 23

Verifying your scanner installation

Kodak provides a test application called the Kodak Scan Validation
Tool. This section describes how to use this tool to perform a basic scan

function which includes feeding paper and viewing captured images on
your PC.

The following steps help you to verify that your scanner installation was
successful. If this procedure is successful, you will be ready to use your
scanner. If it is not successful, go back and review the installation
procedures outlined in the section entitled, “Installing the scanner” in
Chapter 2.

Before you begin, be sure the scanner is on and ready to scan.

1. Select Start>Programs>Kodak>Document Imaging>Scan
Validation Tool.

The Scan Validation Tool dialog box will be displayed.

2. Select TWAIN for the Driver Types and Kodak Scanner i12XX/
i13XX as the Driver. The Scan Validation Tool dialog box will be
displayed.

3. Click the Scanner icon.

24 A-61560 June 2006

The main Kodak Scanner window will be displayed.

NOTE: When you access the main Kodak Scanner window, refer to

Chapter 4, Image Processing for more information on how to get
started using the TWAIN datasource or ISIS driver.

4. Select Defaults. A confirmation message, Reset all values to
factory defaults will be displayed.

5. Click OK. This resets the software to the factory-installed default
settings. The factory default settings are set to capture color
images.

6. Place some test documents into the input tray of the scanner.

7. Click the Start button on the Scan Validation Tool dialog box. The
documents will be scanned and displayed in the Scan Validation
Tool window. Be sure that one of the window display icons is
selected, otherwise the scanned image will not be visible.

Window
display icons

NOTE: If the scanner is in lamp saver mode, a message will be

displayed that the lamps need sufficient time to warm up.

After the images have been displayed, your scanner installation

verification is completed.

8. Click the Close box to exit the Scan Validation Tool.

A-61560 June 2006 25

Viewing test images The images you scanned can be found in the TWAIN folder on the C

drive. Files will be named using the following naming convention:
image0000001A.jpg is a front image; image0000001B.jpg is a back
image. Double-click on this file to open and view the captured image.

Because factory default settings were used, the image quality may not
be optimized to meet your needs. To learn more about image
processing features, see Chapter 4, Image Processing, or refer to your
capture application documentation.

When testing has been completed, delete the test images.

Understanding your scanning environment

Now that your scanner is installed and tested, you are ready to select
your production capture application. A capture application is a graphical
user interface used to scan and organize electronic images. Some
scanning applications are available on the CDs packed with your
scanner. Capture applications will use either the ISIS driver or TWAIN
datasource which are provided with your scanner as part of the Kodak
Scanner Driver Software installation. The TWAIN datasource or ISIS
driver links the scanner to your capture application.

Capture Application

Driver: ISIS or TWAIN

Kodak Scanner

Kodak Scanner — scans and creates an electronic image of your
paper documents.

Scan Validation Tool — is the test application which allows access to
all the features of the scanner and is a good way to verify that the
scanner is working properly.

Capture application — receives and processes electronic images,
allows you to set up image processing parameters and can provide
access to the TWAIN datasource or ISIS driver graphical user interface.

ISIS driver or TWAIN datasource — links the capture application to
the scanner and provides a way to organize your image processing
parameters.

Application software You may also use other capture applications. See the User’s Guide

provided with these applications for instructions on how to use the
software.

26 A-61560 June 2006

Smart touch functionality

Smart touch functionality allows you to assign commonly performed
scanning tasks with the numbers (1 through 9) displayed in the function
window on the scanner. Predefined tasks are installed with the scanner,
however, you can configure smart touch to handle the tasks that are
most important to you. You can perform any of the tasks that you use
frequently by pressing the Start button on the scanner or by selecting
the function from the smart touch function listing. Nine different
functions can be assigned and performed.

After the scanner, software drivers, and application software are
properly installed and the PC has been restarted, a Scanner icon will be
displayed on the system tray.

NOTE: If the Scanner icon indicates that the scanner is not ready, turn

the scanner off, and then on again.

• Click on the Scanner icon on the system tray to display the smart

touch function listing. This list displays the currently configured
functions.

Function listing — click on one of the functions to run the assigned
task.

Configure — select Configure to change the task assigned to a
function.

About — displays the version number and information about smart
touch.

A-61560 June 2006 27

Remove Icon — displays the Remove Icon dialog box.

When you click Yes, you will close smart touch and remove the smart
touch icon from the system tray.

The software will restart automatically the next time Windows start ups
or if you scan documents using the Start button on the scanner.

The software can be started manually by selecting
Start>Programs>Kodak>Document Imaging>i1310,i1320 (or i1210,
i1220)>Smart touch.

Configuration dialog box The Configuration dialog box allows you to change the tasks associated

with each of the 9 function numbers.

When you select Configure from the function listing, the Configuration
dialog box will be displayed.

Task shortcut — select the function (1 through 9) that you want to
modify.

Rename — displays the Rename dialog box which allows you to enter
a new name for the Task shortcut.

28 A-61560 June 2006

Scan To settings Destination — allows you to select one of the following options:

• File: creates an electronic file from the scanned documents and

saves it in the location specified in the Folder path.

• Application: creates an electronic file from the scanned documents

and launches the application program for the saved file. For example,
if your system is set up to use Adobe Reader to read PDF files, the
saved file will be opened using Adobe Reader.

• E-mail: creates an electronic file from the scanned documents and

launches your default E-mail program with the saved file included as
an attachment.

• Printer/Fax Printer: sends the scanned documents to the printer or

fax printer.

NOTE: If you select Printer/Fax Printer, the Scan To options

change.

- Display settings prior to printing: if selected, the Print dialog

box will be displayed after the document(s) are scanned, allowing
you to select the printer and set the print options. The Print dialog
box will be displayed each time the function is run.

- Settings: displays the Print dialog box allowing you to select a

different printer or different set of print options for this function.
These settings will be saved and used by default each time the
function is run. This option is not available if Display settings

prior to printing is checked.

Edit images prior to saving/emailing/printing: if selected, the

scanned images will be displayed in an Edit window to allow for editing.

File Type — select one of these options based on how you want to
save or send the scanned image(s). Available formats are:

• PDF: Adobe PDF files (Portable Document Files) look exactly like

original documents and preserve the fonts, images, graphics and
layout of the source files regardless of the application and platform
used to create it.

• PDF - Searchable: same as a PDF file with the addition of full text

search features for locating words.

• RTF (Rich Text Format): is a document file format developed by

Microsoft to allow easy portability from one PC to another regardless
of the operating system that is running on the PC.

A-61560 June 2006 29

• JPEG/TIFF - Single page: if you are scanning documents with

multiple pages or sides, each page or side is saved as a separate
JPEG or TIFF file.

• TIFF - Multi-page: combines all the scanned images into a single

TIFF file.

Settings button — if you select PDF - Searchable or RTF as the File
Type, the OCR Setup dialog box will be displayed.

• Select the language for the searchable PDF or RTF file and click OK.

Folder: enter the folder name where you want to save the scanned
images or click Browse to locate the folder.

File Name Prefix: when images are scanned, they are automatically
assigned a unique file name. For example, if you choose to scan your
documents as PDF files, the software automatically assigns the date
and sequence number for each image: 2006-04-27(1).pdf (for the first
PDF file created), 2006-04-27(2) for the second PDF file created, etc. If
you want to add a prefix to the file name, it will be attached to the
beginning of each file name. For example, if you want the word Invoice
before the file name, enter “Invoice” in the File name prefix field. The
files will be named: Invoice2006-04-27(1); Invoice2006-04-27(20), etc.

30 A-61560 June 2006

Scan As settings Settings Shortcut — displays the name of a group of scanner settings

currently defined for use by the Kodak Scanner. This named group of
scanner settings is called a shortcut and is described in more detail in
Chapter 4.

Display settings prior to scanning: if selected, the Kodak Scanner
window will be displayed before the document(s) are scanned, allowing
you to select the scanner Settings Shortcut. The Kodak Scanner
window will be displayed each time the function is run.

Settings: displays the Kodak Scanner window allowing you to select a
different scanner Settings Shortcut for this function. The new Settings
Shortcut will be saved and used by default each time the function is run.
This option is not available if Display settings prior to scanning is
checked.

OK — closes the Configuration dialog box. If you made changes in the
Configuration dialog box and you did not save your changes, a
message will be displayed.

Cancel — closes the Configuration dialog box without saving any
unapplied changes.

Apply — saves any changes made on the Configuration dialog box.

A-61560 June 2006 31

Configuring function numbers

1. Click the smart touch icon on the system tray to display the smart
touch function listing and select Configure.

The Configuration dialog box will be displayed.

2. Select the Task shortcut you want to configure from the Tas k
Shortcut drop-down list.

3. If you want to rename the Task Shortcut, click Rename. The
Rename dialog box will be displayed.

• Enter the desired name and click OK.

4. Select the desired destination from the Destination drop-down list.

5. Select the desired file type from the File Type drop-down list. This
determines the file type of the electronic file to be created.

32 A-61560 June 2006

6. By default your documents will be stored within your “My
Documents” folder. If you want to change it, enter the folder name or
click Browse to select a different folder.

7. If desired, add a file name prefix by entering the text in the File
name prefix field.

8. If desired, select a different scanner Settings Shortcut based on the
type of document you are scanning by selecting the Settings button
on the Kodak Scanner window.

9. If you want to change your scanner Settings Shortcut before
scanning, check Display settings prior to scanning from the
smart touch Configuration dialog box.

10.Click Apply.

11. Modify other function numbers by repeating Steps 2 and 10.

12.When finished, click OK.

A-61560 June 2006 33

Smart touch Edit window The smart touch Edit window allows you to view the scanned images

before sending them to the final destination. As documents are
scanned, the images will be displayed in the Edit window.

From this window you can perform common editing tasks such as,
rotating and deleting blank pages, etc. When finished, click Done to
send the images to the final destination.

To enable this Edit window, select the Edit images prior to sending
check box on the Configuration dialog box for the function you are
configuring.

34 A-61560 June 2006

These icons are available on the Edit window. To use a tool, click on the
icon and apply it to the desired image.

Start — allows you to scan additional documents and append
them to the current images.

Stop — cancels the scanning of documents.

Magnifier— magnifies a portion of the image. Press and hold

the left mouse button inside an image to magnify it. Drag the tool
across the image to magnify different areas of the image.

Pan — allows you to move the image freely around the window.
Use this tool when the entire image is not visible in the display
window, for example after zooming in.

Rotate 90 — rotates the image 90 degrees to the right.

Rotate 180 — rotates the image 180 degrees to the right.

Rotate 270 — rotates the image 270 degrees to the right.

Delete — deletes the selected image. A confirmation dialog box

will be displayed before the image is deleted.

Select Region — allows a rectangular region to be drawn in
each image. Use this tool with the Crop and Blank tools. Click on
the icon in the lower left corner of an image to remove (deselect)
the region.

Crop — crops the image, keeping only the portion of the image
inside the region. A confirmation dialog box will be displayed
before the image is cropped.

Blank — replaces the portion of the image inside the region with
a white background. A confirmation dialog box will be displayed
before the image is modified.

More Editing Tools — these are tools and shortcuts to get
different views of the images, including tools to zoom in and
zoom out. Normally the shortcuts (or hotkeys) would be used for
these tools.

Done — click this icon when you have finished viewing or editing
the images and you want to send them to the selected
destination.

A-61560 June 2006 35

Using function numbers When you have assigned the function numbers, they can be easily

launched by using the Start button on the scanner or from the smart
touch function listing.

Launching from the scanner:

1. Use the arrow button to scroll through the function numbers and
select the desired function.

2. Press the Start button. The task associated with the selected
function number will be run.

Launching from the smart touch function listing:

1. Display the function listing from the smart touch icon on the system
tray.

2. Select the function number you want to run.

36 A-61560 June 2006

Scanning your

Standard paper size documents should feed easily through the scanner.

documents

• If you have a Kodak i1210 or i1310 Scanner or are scanning one-

sided documents only, place the documents you want to scan into the
input tray of the scanner. The documents should be placed with the
side you want to scan facing the input tray.

• If you have a Kodak i1220 or i1320 Scanner or are scanning two-

sided documents, place the documents in the input tray with the front
side of the documents facing the input tray.

A-61560 June 2006 37

Automatic feeding To scan a batch of documents, follow the guidelines for size, type,

quantity, etc., in the “Document preparation” section.

IMPORTANT: Staples and paper clips in documents may damage the

scanner. Remove all staples and paper clips before
scanning.

1. Align the leading edges of the stacked documents.

2. Position the leading edge of the documents centered and facing the
back of the scanner, as shown.

3. Adjust the input tray side guides.

4. Adjust the output tray position, if necessary.

5. Pull out the output tray extender, if necessary.

6. Start scanning.

Manual feeding Follow the guidelines for document size, type, weight, quantity, etc.

Position the leading edge of the document you want to scan in the input
tray with the side you want to scan facing the input tray, then start
scanning.

38 A-61560 June 2006

4 Image Processing

Overview This chapter introduces concepts that may be new to many users. The

Kodak i1200/i1300 Series Scanners provide the ability to process
scanned images to improve their quality. Using these features the
scanner can sometimes make the scanned image look better than the
original document. Basic image processing concepts are reviewed in
this chapter to help you take advantage of these powerful features.

Image processing refers to several separate features of the scanner
that allow you to automatically adjust each image in a certain way that
may improve the resulting images. Common examples of image
processing features are correcting any skew in the fed document,
cutting the edges of the image off to remove any unneeded border or
cleaning up extraneous “noise” on the image. This can be done
automatically so you can get better images with a minimum amount of
rework.

The information that follows describes the image processing features
by walking you through the Scan Validation Tool. The same options
should be available on the user interface of the software application you
are using (i.e., Kodak Capture Software).

Starting the Scan Validation Tool

1. Select Start>Programs>Kodak>Document Imaging>Scan
Validation Tool.

2. Select TWAIN (or ISIS) for the Driver Type and the Kodak Scanner
i1200/i1300 Scanner as the Driver. The Scan Validation Tool dialog

box will be displayed.

A-61560 June 2006 39

Scan Validation Tool dialog box

The Scan Validation Tool (SVT) is a diagnostic application that Kodak
provides with most Kodak Scanners. The SVT user interface allows
access to all the features of the scanner and is a good way to verify that
the scanner is working properly. The Scan Validation Tool allows you to
verify scanner functionality using both the TWAIN datasource and the
ISIS driver.

Displays the user interface
for the selected driver.

Enables the scanner

Allows you to select
the directory to store
scanned images and
their file names. Only
available when Save
Images to Files is selected.

Disables the scanner

Closes the image viewer

(no images will be

displayed)

Enables to scanner
to feed one page

Displays one
image at a time

Displays the
License Key
window

Displays four
images at a time

Displays eight
images at a time

Displays two
images at a time

Display Every  enter the sampling rate of the images you want to
display while scanning. For example, to see every image, enter a value

th

of 1. To see every 10

image, enter a value of 10.

Last File  displays the full path and file name for the last stored
image.

Total  displays the total number of images scanned during the current
Scan Validation Tool session.

• To access the TWAIN datasource (or ISIS driver), double-click the

Scanner icon on the Scan Validation Tool dialog box to access the
Kodak Scanner window.

40 A-61560 June 2006

Using the TWAIN datasource

The TWAIN datasource is software that communicates with your
scanner. It is provided by Kodak with the i1200/i1300 Scanners. Many
scanning applications support the TWAIN standard and this datasource
can be used to interface with these applications.

This section provides descriptions of the scanner features using options
on the TWAIN datasource tabs. If you are using the TWAIN datasource,
follow the procedures in this section to set up your scanner. If you are
using the ISIS driver, see the section entitled, “Using the ISIS driver”
later in this chapter.

For the purpose of this manual, all displayed dialog boxes assume the
features available on the Kodak i1220 or i1320 Scanner (duplex
scanner). If you have a Kodak i1210 or i1310 Scanner (simplex
scanner) all options are limited to one-sided scanning only.

Terminology and features

Throughout this manual the terms “dual stream” and “automatic color
detection” are used. On the new TWAIN datasource interface dual

stream refers to Multiple; and automatic color detection refers to One­based on document content. Both of these options can be configured

on the Advanced and Content Settings tabs.

If you have used previous scanners from Kodak, you may be familiar
with many of the image processing features already. With the new
graphical user interface in the TWAIN datasource, some of the names
of those features have changed. Refer to Appendix B, Feature Map for
a cross reference of old feature names with new feature names.

How do I begin? First you need to select a Settings Shortcut you want to use from the

main Kodak Scanner window. Each Settings Shortcut is separately
named and contains the scanner settings needed to do a certain
scanning job. For additional flexibility, Settings Shortcuts also include
device settings, like Energy Star and transport time-outs. By default, the
i1200 and i1300 Series Scanners come with predefined Settings
Shortcuts for the most common scanner tasks. Using these Settings
Shortcuts can save you time and makes it easy to be productive. For
example, if you want to scan color business documents and convert
them to a JPEG file, all you need to do is choose the Settings Shortcut
that is configured with the settings that best meet your scanning needs.

You can alter and create Settings Shortcuts for your specific scanning
needs. In order to create your own custom Settings Shortcut, select one
of the default Settings Shortcuts to use as a template, make your
desired changes to the settings and then save the Settings Shortcut
with a name that is meaningful to you. You cannot modify the default
Setting Shortcuts.

A-61560 June 2006 41

Most of the options you’ll want to set are available on these two
windows:

• Image Settings: clicking the Settings button on the main Kodak

Scanner window, displays the Image Settings window. From this
window you can set your image processing parameters by using the
General, Size, Adjustments and Enhancements tab. You can also
access the Device settings, by clicking the Device button or the
Advanced settings by clicking the Advanced button.

• Device Settings: the Device button is located on the Image Settings

window. When you select Device, you will have access to the
General and Multifeed tabs. From the Device Settings window, you
can also access Diagnostics.

The procedures that follow describe how to configure a customized
Setting Shortcut. Complete descriptions of the features and options on
the Kodak Scanner window and tabs are found in the section entitled,
“The main Kodak Scanner window”.

NOTE: Settings Shortcuts can sometimes be overridden by your

scanning application. If this happens, the Shortcut you call will
appear in the main Kodak Scanner window in italics with the
word <Changed> next to it. This is normal behavior for an
application that does not use Settings Shortcuts and downloads
its preferred individual settings to the scanner first and then
provides access to the TWAIN datasource.

Selecting Image settings From the main Kodak Scanner window:

1. Select a predefined Setting Shortcut from the Settings Shortcuts list
box. Choose a Setting Shortcut that describes as closely as
possible the image output you desire.

2. Determine if you want to capture an electronic image of the front of

42 A-61560 June 2006

2. Determine if you want to capture an electronic image of the front of
your document, back of your document or both sides of your
document and make the selection from the Input Document is drop-
down list. Options are:

• Two Sided — captures both sides of the document

• One Sided-Front — captures the front side only

• One Sided-Back — captures the back side only

3. Place one or two representative documents in the input tray of the
scanner.

NOTE: When scanning one side of a document or if you are using

an i1210 or i1310 Scanner, be sure to place the side of the
document to be scanned facing the input tray.

4. If you want to see what your selected image processing options will
look like and make on-screen changes, click Preview to review and
adjust the image.

This only needs to be done if you want to make interactive
adjustments to your selected image processing options.

5. If you are satisfied with your selected image processing options,
reload your document if necessary and click Scan.

• If the images are acceptable, the image processing settings are
fine and you do not need to click the Settings button to alter any
values in the General, Size, Adjustments or Enhancements tabs.

• If the images are not acceptable, you can either select a different
predefined Setting Shortcut that more closely describes your
desired output or you can continue to work with the Setting
Shortcut you have selected by reviewing each setting on the
General, Size, Adjustments and Enhancements tabs and make
the appropriate changes. When you make any changes, repeat
Steps 3 - 5 to until you get the desired results.

6. If you made any changes to a predefined Setting Shortcut, click
Save As on the main Kodak Scanner window. The Save As dialog
box will be displayed.

7. Enter a new Setting Shortcut name that is meaningful to you and
click Save. You have now created and saved a custom Setting
Shortcut which can be used for your scanning operations.

A-61560 June 2006 43

Selecting Device settings 1. Select the Setting Shortcut that you just created.

2. Select Settings to access the Image Settings window.

3. Select Device. The Device Settings window will be displayed.

4. Before making any adjustments, click through the tabs on the
Device Settings window to get familiar with features that are
available. See the section entitled “The Device Settings window” for
information about these features.

5. Determine which features you want to use when scanning and
select the appropriate tab.

6. On each tab, select the appropriate options or action you want the
scanner to perform.

7. When finished:

• Click Home to return to the main Kodak Scanner window and

click Save to save your selections to your custom Setting
Shortcut, or

• Click Image to return to the Image Settings window if you need to

make additional changes.

44 A-61560 June 2006

The main Kodak Scanner window

The main Kodak Scanner window displays the image processing
Setting Shortcuts for your scanner. You can use the predefined Setting
Shortcuts or set up a custom Setting Shortcut for your scanning needs.

Setting Shortcuts — provides a listing of the Setting Shortcuts
currently set up.

• Default — this Setting Shortcut contains the system default settings.

Use the default Setting Shortcut as a starting point for a customized
Setting Shortcut.

Input document is — provides a listing of the types of documents you
are scanning.

• One Sided - Front: select when scanning one-sided documents that

are placed in the input tray face down.

• One Sided - Back: select when scanning one-sided documents that

are placed in the input tray face up.

• Two Sided: select when scanning two-sided documents, documents

can be placed in the input tray facing you or the input tray.

A-61560 June 2006 45

Save — saves any changes made on the current Setting Shortcut.

NOTE: If you have made changes to an existing Setting Shortcut and

have not saved your changes, it will be displayed in italics on
the main window.

Save As — displays the Save As dialog box allowing you to save your
current settings with a Setting Shortcut name that is meaningful to you.

Delete — deletes the selected Setting Shortcut.

Rename — allows you to rename the selected Setting Shortcut.

NOTE: When a factory-set Setting Shortcut is selected (i.e., Defaults),

Delete and Rename are not available.

Move Up — moves the selected Setting Shortcut up one position in the

Settings Shortcut list. When you move a Setting Shortcut, it will stay in
that position until you move it again.

Move Down — moves the selected Setting Shortcut down one position
in the Settings Shortcut list. When you move a Setting Shortcut, it will
stay in that position until you move it again.

Settings — displays the Image Settings window. From this window you
can set your image processing parameters by using the General, Size,
Adjustments and Enhancements tabs. You can also access the Device
settings by clicking the Device button.

Preview — when you are creating a Setting Shortcut, the Preview
window displays the scanned image and shows any adjustments you
make to the settings.

OK — saves your changes.

Cancel — closes the main Kodak Scanner window without saving any

changes. If you have made changes to a Setting Shortcut and have not
saved the changes, a message will be displayed notifying you that
there are unsaved changes.

46 A-61560 June 2006

The Image Settings window

The Image Settings window allows you to define image processing
values that can be applied to your scanner. The Image Settings window
includes four tabs: General, Size, Adjustments, and Enhancements.
The options available on each tab are dependent upon the selection
you make from the Scan As drop-down list on the General tab.

Side — the Side drop-down box is located above each of the main tabs
on the main Kodak Scanner window. This drop-down box shows you
which side of the document the scanner settings will be applied to. For
i1220 and i1320 Scanners the Side drop-down box is grayed out and
the image settings will be applied to both sides. If you want different
settings for each side of your document, select the Different Settings
per side checkbox on the Advanced tab. Selecting that checkbox will
enable the Side drop-down box. For more information see the section
entitled, “Advanced options” later in the chapter.

Preview window The Preview window is a powerful tool used when creating a Setting

Shortcut that, in most cases, allows you to see and interactively change
the results your image processing choices have on a sample document.
You can do this without rescanning the document, making the
adjustment process quick and easy. Once you have adjusted your
Setting Shortcut to display your scanned document the way you want it,
you can save the Setting Shortcut and access those same image and
devices settings for any scanning job you need. Use the Preview
window with your difficult documents to quickly and easily find the
optimal group of settings needed to create the best images. The
Preview window is displayed as part of the Image Settings window for
each of its tabs (General, Size, Adjustments, Enhancements).

NOTE: If you choose Document: Manually Select on the Size tab, the

Preview window can also be used to draw cropping frames.

A-61560 June 2006 47

Toolbar icons Following is a description of the toolbar icons.

Zooms in on a portion of the image. Press and hold the left
mouse button inside an image to magnify it. Drag the tool across
the image to magnify different areas of the image.

Zooms out on a portion of the image. Press and hold the left
mouse button inside an image to reduce it.

Rotate outline — rotates the outline 90 degrees if the rotated
outline fits in the scanner’s maximum width.

Center outline — adjusts the X origin of the outline such that
the outline is centered within the scanner’s maximum width.

Select the Preview image quality you want displayed.

Normal: displays acceptable image quality at a lower resolution.
High: displays the most accurate representation of the actual

image. That image that is displayed in the Preview window is a
good representation of what the final image will look like.

Select the unit of measurement for the Preview grid. Options
are: Inches, Centimeters and Pixels.

48 A-61560 June 2006

General tab The General tab allows you to define several image processing values

that can be applied to your scanner.

Scan as — select one of the following options:

• Color (24-bit): if you want your electronic image to be in color.

• Grayscale (8-bit): if you want your electronic image to have a range

of varying shades of gray from black to white.

• Black and white (1-bit): if you want your electronic image to

represent all elements of your document in black and white.

NOTE: The Scan As option is not available when Multiple Images

per Side or One based on document content is being
used. These options already imply a combination of two of
the Scan As options.

Document type — select one of the following based on the documents
you are scanning:

• Text with Graphics: the documents contain a mix of text, business

graphics (bar graphs, pie charts, etc.) and line art.

• Text: the documents contain mostly text.

• Photographs: the documents contain mostly photos.

Media type — select one of the following options based on the texture/
weight of the paper you are scanning. Available options are: Plain
Paper, Thin Paper, Glossy Paper, Card Stock, Magazine.

Resolution or dots per inch (dpi) — indicates the scanning resolution,
which largely determines the quality of the scanned image. The greater
the resolution, the better the reproduction. However, scanning at a
higher resolution also increases scanning time and file size. The
industry standard is 200 dpi (about 8 pixels/mm). Available resolutions
are: 75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi.

Compression — squeezes the file to decrease the total size. Black
and white images are normally compressed using a CCITT standard
called Group IV, often used in conjunction with TIFF files. Color and
grayscale images are often compressed using JPEG techniques.

Quality — if you choose JPEG compression, select one of the quality
options:

• Draft: smallest file size with draft image quality

• Good: larger file size with good image quality

• Better: larger file size with better image quality

• Best: larger file size with the best image quality

• Superior: largest file size with superior image quality

A-61560 June 2006 49

Size tab The Size tab allows you to define values relating to the image output

(i.e., cropping values, paper size, etc.).

Document

• Automatically Detect and Straighten: when a document(s) is fed

into the transport, this option will automatically straighten and crop
the image to the edge of the document. (This option is referred to as
automatic cropping and deskew on previous Kodak Scanners. For a
complete list on how our older products map to new features and
names for our new products, see the Feature Map in Appendix B.)

• Automatically Detect: when a document(s) is fed into the transport,

this option will automatically crop the image to the edge of the
document but does not straighten the image. (This option is
sometimes referred to as automatic cropping.)

• Manually Detect: allows you to define the area to be imaged. Use

this option for batches of same-sized documents. (This option is
sometimes referred to as fixed cropping.)


• Entire document: returns the entire document as the image.

• Part of the document: allows you to select a portion of the scanned

document to return as the image.

50 A-61560 June 2006

Outline — enter the Origin and Size values. You can enter the desired
values in the fields or use the arrow keys to define the desired area.
The Preview window will show image dimensions and placement as
you change the values. This option is only available when you select a

Document option which allows an Image selection of Part of
Document.

• Origin (x, y): the distance from the left end of the scanner to the left

edge of the scanning area (x) and the distance from the top of the
Detect and Straightened document to the top of the image (y).

• Size (w, h): the width and height of the scanning area.

• Angle: automatically calculates the Origin values based on the

document size selected. This is the angle of the outline.

• Predefined sizes: select a different paper size by using the drop-

down list.

Use the bounding box on the Preview window to adjust or move the
image dimensions and placement.

Border

• Remove: eliminates any residual black border on the image edges.

In order to achieve this, there is a possibility that a small amount of
image data may be lost.

• Add: allows you to add a fixed amount of border to the left, right, top

and bottom edge of the image.

Post-scan rotation options:

• 90, 180, 270 degrees — sometimes “portrait” documents are fed into

the scanner in “landscape” orientation. When this happens, the
image must be rotated to view the original portrait orientation. This
may be accomplished in the scanner by selecting 90°, 180° or 270°.

• Automatic based on content — when selected, images will be

rotated to their proper orientation, if needed.

• None — no rotation will be done.

A-61560 June 2006 51

Adjustments tab: black and white

The options available depend on the Scan As selection you made on
the General tab. The following options are based on a Scan As
selection of Black and White.

Conversion quality — these settings effect the black and white image.
Available options are Best, Normal and Draft. These options are
applied to grayscale scanned images and outputs a black and white
electronic image. The strength of the Best and Normal options lie in the
ability to separate the foreground information from the background
information even when the background color or shading varies, and the
foreground information varies in color quality and darkness. Different
types of documents may be scanned using the same image processing
parameters and results in excellent scanned images. For scanning jobs
where it is still needed, Draft is still available.

• Best (iThresholding): the scanner dynamically evaluates each

document to determine the optimal threshold value to produce the
highest quality image. This allows scanning of mixed document sets
with varying quality (i.e., faint text, shaded backgrounds, color
backgrounds) to be scanned using a single setting thus reducing the
need for document sorting. When using Best, only Contrast can be
adjusted.

• Normal (ATP): separates the foreground information in an image

(i.e., text, graphics, lines, etc.) from the background information (i.e.,
white or non-white paper background). When using Normal,
Threshold and Contrast can be adjusted.

• Draft (Fixed): used for black and white and other high contrast

documents. If Draft is selected, only Threshold can be adjusted.

52 A-61560 June 2006

Contrast — adjusts the difference between black and white, thereby
making an image sharper or softer. The difference between black and
white is small with a low contrast setting so the image is softer. With a
high-contrast setting, the difference between black and white is large,
so the image is clearer. Contrast values range from -50 to 50. The
default is 0.

Threshold — controls the level at which a pixel is considered black or
white (1 bit/pixel). A low threshold value produces a lighter image, and
can be used to subdue backgrounds and subtle, unneeded information.
A high threshold value produces a darker image, and can be used to
help pick up light information. Threshold values range from 0 to 255.
The default is 90.

Threshold: 50 Threshold: 127

Filters - Noise

• Lone Pixel: reduces random noise on black and white images by

converting a single black pixel surrounded by white to white or by
converting a single white pixel surrounded by black to black.

• Majority Rule: sets the central pixel value in a matrix according to

the majority of white or black pixels in a matrix.

No Noise Filter Used Lone Pixel

A-61560 June 2006 53

Filters - Image

• Halftone Removal: enhances images containing dot matrix text and/

or images with shaded or colored backgrounds using halftone
screens, and effectively eliminates noise caused by the halftone
screen.

Invert Colors — defines whether the image should be stored in black
on a white background or white on a black background. The default is

black on a white background. If you want the image to be stored as
white on black background, check this option.

54 A-61560 June 2006

Adjustments tab: color or grayscale

The options available depend on the Scan As selection you made on
the General tab. The following options are based on a Scan As
selection of Color or Grayscale.

Brightness — changes the amount of white in the color or grayscale
image.

Contrast — makes the image sharper or softer.

Red — changes the amount of red in the color image. Does not apply

to grayscale images.

Green — changes the amount of green in the color image. Does not
apply to grayscale images.

Blue — changes the amount of blue in the color image. Does not apply
to grayscale images.

• Adjust these settings by dragging the slider bar to the left or right,

entering a value in the text box or using the up/down arrows. While
each setting may effect the underlying gamma table, Brightness and
Contrast are the options that provide the widest range of changes.

Background Smoothing — use this option when you are scanning
documents or forms with a background color(s). Background
Smoothing produces images with a more uniform color. This option
improves image quality and reduces file size.

• Method: select one of the following:

- None - no background smoothing will be done.

- Automatic - background smoothing is applied to the actual color.

- Change to White - identifies the background color and substitutes
that color with white.

A-61560 June 2006 55

• Apply to: available if you select the Change to White option.

- Predominant - smooths the predominant background color to
white.

- Neutral - smooths just the neutral color to white; will also smooth
two additional background colors to a uniform color.

- All - smooths up to three background colors to white.

• Aggressiveness: select a value to increase or decrease the effect.

Preview button — displays the scanned image in the Preview window
so you can see the effect of the changes you are making on the
Adjustments tab.

Enhancements tab The options on the Enhancements tab are available based upon your

Scan As selection on the General tab.

Image Edge Fill — fills the edges of a scanned image by covering the

area in Black or White, as selected from the Color drop-down list.
Image Edge Fill is performed after all other image processing options
have been applied.

Select All sides match to fill in an equal amount on all sides, or select
a value in the Top, Left, Right and/or Bottom area(s) from each side of
the scanned image to be filled.

When using this option, be careful not to enter a value too large as it
could fill in image data that you want to keep.

56 A-61560 June 2006

Blank Image Detection — use the arrows to select the image size
before which an image is determined to be blank. Images with sizes
less than the size number you select (ranges from 1 to 1000 KB) will
not be created. If you use this option, you must specify a blank image
size for each image type (black and white, grayscale and color) you
want to delete. The default is none, which means you keep all images.

Color Dropout — used to eliminate a form's background so that a
document management system may automatically - through OCR
(Optical Character Recognition) and ICR (Intelligent Character
Recognition) technology - read pertinent data without interference from
the lines and boxes of the form. Kodak Scanners can drop out either
red, green or blue. Color Dropout options are only available when
Black and White or Grayscale is selected from the Scan As drop-
down list on the General tab.

• Color: select the desired dropout color.

A-61560 June 2006 57

Advanced options The Advanced button is located at the top of the Image Settings

window next to the Side drop-down box.

When you select the three dots (...) button, the Advanced tab will be
displayed. Multiple, One - based on document content, and
configuring different settings for each side can all be set up using the
Advanced tab.

Input document is — select Two Side d , One sided - Front, or One
sided - Back depending on what side(s) you want to configure.

Different settings per side — by default, the settings you select in the

TWAIN datasource apply to both sides of the image. Check this option
if you want you to select different image processing settings for each
side of the document you are scanning. For example, if you want the
front side to be color and the rear side to be black and white, first make
sure that you have selected the Two Sided option from the Input
Document is drop-down list, then select the Different Settings per side
checkbox.

58 A-61560 June 2006

Once you have done this, the Side drop-down list on the Image
Settings window will no longer be grayed out and you can select
different settings for each side. Now that you have enabled Different
settings per side, your initial selections will apply only to the front side
of the document you are scanning. After you have made your
selections for the front side, use the Side drop-down list to select the
back side and then make the settings you want to apply to the back.

NOTE: The Different settings per side option is only available for

Kodak i1220 and i1320 Scanners.

Images per side — indicates how many images the scanner will create
for a side.

Images to Configure — by selecting One - based on document
content as the value in the Images per side drop-down box, you are

indicating that you want the scanner to automatically detect if the
document is color or black and white, and generate the image that
matches your selections. Refer to the examples later in this section to
see how to configure this.

Use the up and down arrows to select the order the images will be
delivered by the scanner to the scanning application.

Icons:

Adds an image type.

Allows you to change the image type.

Deletes the selected image type.

Done— returns you to the main Kodak Scanners window.

A-61560 June 2006 59

Content Settings tab The options on the Content Settings tab can be used for either single

stream or dual stream jobs.

Side — determines which side the Sensitivity settings are applied to.
This option is only available if Different settings per side is checked
on the Advanced tab.

Sensitivity — options are: Low, Medium, High, and Custom

.

• Low: documents requiring only a small amount of color to be saved
as color or grayscale images. Used for capturing documents that are
primarily black text with small logos, or contain small amounts of
highlighted text or small colorful photos.

• Medium: documents requiring more color, as compared with the Low
option, before they are saved as color or grayscale images.

• High: documents requiring more color, as compared with the Medium
option, before they will be saved as color or grayscale images. Used
for distinguishing documents containing medium- to large-size
colorful photos from plain black text. Photos with neutral colors may
require adjustments to the Color Threshold or Color Amount values in
order to be captured correctly.

60 A-61560 June 2006

• Custom: allows you to manually adjust the Color amount and/or
Color threshold.

NOTE: When setting Sensitivity values, it is suggested that you start

with the Medium option and scan a typical job set. If too
many documents were returned as color/grayscale vs. black
and white, then change to the High option and re-run the job.
If too few documents were returned as color/grayscale vs.
black and white, then change to the Low option and re-run
the job. If none of these options provide the desired result,
select Custom to manually adjust Color Amount and/or Color
Threshold. Custom also allows access to the Learn mode
which provides a method for the scanner to analyze
documents and recommend settings.

Color amount — the amount of color that needs to be present in a
document before it will be saved as either color or grayscale. As the
value of Color Amount increases, more color pixels are required. Valid
values are 1 to 200.

Color threshold — the color threshold or saturation (i.e., pale blue vs.
dark blue) at which a given color will be included in the color amount
calculation. A higher value indicates that a more intense color is
required. Valid values are 0 to 100.

Learn — if you select Custom, the Learn option is available.

1. Click Learn.

2. Place at least 5 representative color documents in the input tray and

click OK. These documents will be scanned and analyzed and the
recommended color amount will be calculated for you.

The Color Amount and Color Threshold sliders will be updated
automatically.

NOTE: These settings were calculated based on the representative

color documents scanned. If these values do not provide the
desired results with your job set, you may need to manually
adjust the Color Threshold.

A-61560 June 2006 61

Setting up automatic
color detection ­Example 1

In this example, let’s assume you want to configure a two-sided
document stream of mixed color business documents and want the
scanner to output either a color or a black and white image for each
side of a document based on the scanner detecting the amount of color
in each image. To configure this correctly do the following:

1. Click Advanced on the Image Settings window to display the

Advanced tab.

2. Select Two Sided from the Input document is drop-down box.

3. Make sure that the Different settings per side checkbox is not

checked.

4. Select One – based on document content from the Images per

side drop-down box. The Images to Configure area will now be
displayed on the Advanced tab and will contain a Color image item
and a Black and White image item. The Content Settings tab will
also be displayed.

5. If you want a grayscale image to be delivered instead of a color

image when enough color is detected in the document, click the
Change icon and select Grayscale.

6. Click the Content Settings tab. Unless you have selected the

Different Settings per side checkbox in Step 3, the Side drop-down
box on the Content Settings tab will read Both and be grayed out.

7. Click on the Sensitivity drop-down box and select the sensitivity you

want the scanner to use when looking for color in each document.
Low is the default, and will produce the fewest color images in the
document stream, while Medium and High will increase the number
of color documents produced. When finished, the Advanced tab will
look like this:

62 A-61560 June 2006

and the Content Settings tab will look like this:

8. Click Done to return to the Image Settings window.

9. If you look on the Image Settings window, the Side drop-down box

will now have two entries: Both: Color (24 bit) and Both: Black
and White (1bit). Select one side and adjust the settings on the rest
of the tabs of the Image Settings window (General, Size,
Adjustments and Enhancements).

10.Then select the other side and make the appropriate selections for

that type of image. You may want to scan a test document using the
Preview window while you make these changes.

11. Save your Setting Shortcut and scan your test documents using the

Setting Shortcut you just set up. Review the resulting images to
determine if the scanner is detecting and outputting color
documents the way you want them. If you need to improve the
results, repeats Step 7-10, (changing the sensitivity setting), until
the get the results you want.

A-61560 June 2006 63

Setting up multiple
images for each side of a
document (dual stream) ­Example 2

In this example, let’s assume you want to configure a two-sided
document stream of mixed color business documents and want the
scanner to output both a color and a black and white image for each
side of a document.

1. Click Advanced on the Image Settings window to display the

Advanced tab.

2. Select Two Sided from the Input document is drop-down box.

3. Make sure that the Different settings per side checkbox is not

checked.

4. Select Multiple from the Images per side drop-down box. The

Images to Configure area will now be displayed on the Advanced
tab and will contain a Color image item.

5. If you want a grayscale image to be delivered instead of a color

image when enough color is detected in the document, click the
Change icon and select Grayscale.

6. Click the Add button to add an image stream. Choose Black and

White. A black and white image item is now added to the Image to
Configure area on the Advanced tab.

7. The scanner will produce two images for each side of the page, but

in the order they are listed in the Images to Configure area. The first
image to be delivered by the scanner to the scanning application is
listed on the top and the second is listed on the bottom. If you need
to change the order for your application, click the Move up or Move
down arrows on the side of the Images to Configure area. When
finished the Advanced tab will look like this:

8. Click Done.

64 A-61560 June 2006

9. If you look on the Image Settings window, the Side drop-down box

will now have two entries: Both: Color (24 bit) and Both: Black
and White (1bit). Select one side and adjust the settings on the rest
of the tabs of the Image Settings window (General, Size,
Adjustments and Enhancements).

10.Then select the other side and make the appropriate selections for

that type of image. You may want to scan a test document using the
Preview window while you make these changes.

11. Save your Setting Shortcut and scan your test documents using the

Setting Shortcut you just set up. Review the resulting images to
determine if the scanner is detecting and outputting color
documents the way you want them. If you need to improve the
results, repeat the steps above until the get the results you want.

Using different settings for each side of a document - Example 3

By default, image settings you select using the TWAIN datasource are
applied to both sides of a two-sided document. For more advanced or
complex needs, you may need to have different configurations for each
side of the document. By clicking the Different settings per side
checkbox, the Front and Back selections in the Side drop-down box on
the Image Settings window are available.

A-61560 June 2006 65

Images for each side of a
document (dual-stream) ­Example 4

In this example, let’s assume you want to configure a two-sided
document stream of business documents that have color on the front of
the document but the rear side is fine in black and white.

1. Click Advanced on the Image Settings window to display the

Advanced tab.

2. Select Two Sided from the Input document is drop-down box.

3. Check the Different settings per side checkbox.

4. Select One from the Images per side drop-down box.

5. Click Done to return to the Image Settings window.

6. If you look on the Image Settings window, the Side drop-down box

now has two entries: Front and Back. Select the Front side and
make sure the Scan As drop-down box on the General tab is set to
Color (24 bit). Make any other adjustments to the front side settings
on the rest of the tabs on the Image Settings window (General, Size,
Adjustments and Enhancements). You may want to scan a
challenging test document using the Preview window while you
make these changes so you can see the effect they have.

7. Select the Back side and make sure the Scan As drop-down box on

the General tab is set to Black and White (1 bit). Make any other
adjustments to the back side settings on the rest of the tabs of the
Image Settings window. You may want to scan a challenging test
document using the Preview window while you make these
changes.

8. Save your Setting Shortcut and scan your test documents using the

Setting Shortcut you just set up. Review the resulting images to
determine if the scanner is detecting and outputting color
documents the way you want them. If you need to improve the
results, repeat the steps above until the get the results you want.

NOTE: Other options may appear in the Images per side drop-down list.

These options are available to provide compatibility with certain
specialized scanning applications and normally are not used.
Do not use these options unless instructed to by Kodak
personnel.

66 A-61560 June 2006

The Device Settings window

The Device button is located on the Image Settings window. When you
select Device, the General and Multifeed tabs are displayed. From the
Device Settings window, you can also access Diagnostics.

General tab The General tab allows you to set scanner-specific transport control

options.

Paper Source — select the desired paper source.

• Automatic: looks for paper in the document feeder first. If there are

no documents in the input tray, the scanner will look for a document
on the flatbed.

• Document Feeder: when you are scanning documents from the
input tray.

• Flatbed: when you are scanning documents using the flatbed.

Power Saver — allows you to set the amount of time the scanner will
remain inactive before the scanner goes into an idle state. You can turn
the Power Saver option off or set a time up to 60 minutes. The default is
15 minutes.

Document Feeder

• Timeout: if you enable this option, you can set the amount of time the
scanner will wait (1 to 300 seconds) after the last document enters
the transport before the scanner initiates the action you selected
when the timeout occurs.

Diagnostics — provides access to the Diagnostics tab.

A-61560 June 2006 67

Multifeed tab Multifeed detection aids in document processing by detecting

documents that may go through the feeder overlapped.

Sensitivity — controls how aggressively the scanner will work to
determine if more than one document is fed into the transport. Multi­feeds are triggered by detecting air gaps between documents. This
allows multi-feed detection to be used with job sets containing
documents with mixed thicknesses. You may set the Multi-Feed
Detection to High, Medium or Low sensitivity. If you select None, no
multifeed detection will occur.

• Low: least aggressive setting and is less likely to detect labels, poor
quality, thick or wrinkled documents as multi-fed documents.

• Medium: use Medium sensitivity if your application has varying
document thickness or labels attached to the document. Depending
on the label material, most documents with labels should not be
detected as a multi-fed document.

• High: most aggressive setting. This is a good setting to use if all
documents are similar in thickness to 20-lb. Bond paper.

Length Detection — choose the minimum length of the document that
can be scanned with a multi-feed being detected. A value of 0 indicates
no length detection. Length detection can be used when scanning
same-size documents. The maximum value is 33.5 inches.

68 A-61560 June 2006

Action When Detected — select what action you want the scanner to
take when a multi-feed occurs. With all options, the error condition will
be logged and if you have enabled a sound via the Play sound on PC
option, the scanner will make the selected sound.

• Stop Scanning: when an overlap or multifeed is detected, the
scanner automatically stops scanning and clears the paper path.
Verify that the paper path has been cleared and restart the scan
session from the scanning application.

• Stop Scanning - leave paper in path: when an overlap or multifeed
is detected, the scanner automatically stops scanning. Clear any
documents from the paper path and restart the scan session from the
scanning application.

• Continue Scanning: when an overlap or multifeed is detected, the
scanner will make a sound (if enabled) and continue to scan.

Play sound on PC — check this option if you want the scanner to
make a sound when a multi-feed is detected. You can click the Browse
button to select the desired .wav file.

A-61560 June 2006 69

The Diagnostics window

The Diagnostics button is located on the Device Settings window.
When you select Diagnostics, you will have access to the General,
Debug and Logs tabs.

When finished viewing or making a change on one of these tabs, you
can click the Done button and return to the Device Settings window.

General diagnostics tab The General tab allows you to perform a scanner test and provides the

scanner time. While similar to the test that the scanner goes through
during power-on, this test is more extensive. If you have an optional A4
flatbed accessory attached, the Device drop-down box in the upper left
corner of the window will be enabled. You can choose either the

Document Feeder or Flatbed test.

Tests

• Scanner — similar to, but more extensive than, a power-on self test,
clicking this button will put the device through a series of checks to
determine that all the scanner hardware is working.

• Count only — check this box if you want to count the number of
documents entering the scanner transport without actually sending
the images to a scanning application.

Scanner Time

• Actual (GMT): displays the Greenwich Mean Time.

• Corresponding local time: displays the local time.

• Refresh icon : redisplays the current scanner time.

70 A-61560 June 2006

Debug tab The Debug tab allows you to store the communications between the

scanner and a scanning application to a file that can be reviewed later.
In addition, the resulting images (both before and after image
processing has been done) can be saved as well.

Logging — saves the communications between the scanner and a
scanning application to a file for later review. Click the drop-down box to
select from Off (the default), On or Custom. It is suggested that you do
not use the Custom setting, unless directed to do so by Kodak support
personnel.

Flag — by default, this is 1. Leave the flag at 1 unless instructed to use
another value by Kodak support personnel.

Filter — captures only those items in the scanner to the application
communication stream desired and filters out anything else. Options
are x, y and z.

Images - Received from the Scanner — normally, it is not necessary
to save the images received from the scanner before your selected
image processing options are applied. Use this checkbox when
instructed by Kodak support personnel.

• Save: click this checkbox to save raw images from the scanner
(before image processing is applied).

• File prefix: use a relevant file prefix to more easily find and sort the
saved images. Raw is the default.

• Held in memory: determines the number of images to save before
the images are overwritten. Normally, only one or two are needed.
Adjust as necessary.

A-61560 June 2006 71

Images - Sent To application

• Save: click this checkbox to save final images from the scanner (after
image processing is applied).

• File prefix: use a relevant file prefix to more easily find and sort the
saved images. Img is the default.

Delete — deletes any images that have been saved from previous jobs.

Logs tab The Logs tab allows you to view scanner hardware information, general

information or the stored communications between the scanner and a
scanning application. The later option requires that Logging be turned
on in the Debug tab of the Device Settings window. To view a particular
log, click the drop-down box in the upper left-hand corner and select a
log type. By default, only the General and Operator logs are displayed.

Save As icon — if you want to save the logs you see on the Logs
tab for later viewing outside of the TWAIN datasource, click the Save as
icon in the upper right-hand corner. If you enabled saving raw and final
images on the Debug tab, those images will also be saved with the logs
in a file.

72 A-61560 June 2006

Using the ISIS Driver The ISIS Driver is software that communicates with the scanner. This

driver is created and maintained by EMC Captiva and is provided with
the scanner by Kodak. Many scanning applications support ISIS drivers
and this driver can be used to interface with them.

This section provides descriptions of the options on the tabs of the main
ISIS Driver window and how to set these options.

For the purpose of this manual, all displayed windows assume the
features available on the Kodak i1220/i1320 Scanners. If you have a
Kodak i1210 or i1310 Scanner, all options are limited to one-sided
scanning only.

See the section entitled, “Starting the Scan Validation Tool” earlier in
this chapter to access the main ISIS Driver window.

The main ISIS Driver window

The main ISIS Driver window provides a set of 9 tabs. You can select
each of these tabs and make any choices necessary to meet your
scanning needs. The buttons on the bottom of the window apply to all
the tabs.

Default  when you select Default, the values will be reset to the
factory defaults.

Copy  this function is only available when scanning two-sided
documents. The Copy button provides a convenient way to set up the
color, grayscale or black and white image settings on one side and
transfer them to the other. For example, if you highlight and set up
Front Image #1, you can use the Copy button to duplicate those
settings for Back Image #2.

OK  saves the values set on all tabs.

Cancel  closes the window without saving any changes.

A-61560 June 2006 73

Main tab The Main tab provides the following options:

Image Mode

Camera — the selections in the Camera box list the available sides

(front and back) of an image where you can define individual image
processing values. Options include: Front Image #1, Front Image #2,
Back Image #1 and Back Image #2.

The Kodak Scanner drivers allow you to control the camera settings
independently. Some settings apply only to black and white images,
others apply to color/grayscale images. By selecting the appropriate
camera and image mode, you can control the scanner’s output.

Mode — provides the following options:

• Black and white: if you want your electronic image to represent all
elements of your document in black and white.

• Grayscale: if you want your electronic image to have a range of
varying shades of gray from black to white.

• Color: if you want your electronic image to be in color.

• Auto Detect Grayscale: sets auto color detect for grayscale. See
the section entitled, “Auto Color Detect tab” for more information.

• Auto Detect Color: sets auto color detect for color. See the section
entitled, “Auto Color Detect tab” for more information.

Dots per inch (dpi) or resolution  indicates the scanning resolution,
which largely determines the quality of the scanned image. The greater
the resolution, the better the reproduction. However, scanning at a
higher resolution also increases scanning time and file size.

Choose a resolution value from the drop-down list. The default is 200
dpi. Available resolutions are: 75, 100, 150, 200, 240, 300, 400, 600
and 1200 dpi.

74 A-61560 June 2006

Cropping  allows you to capture a portion of the document being
scanned. All cropping options can be used with color/grayscale and
black and white images. Front and Back cropping are independent,
however, for dual stream scanning, color/grayscale and black and white
cropping must be the same per side. Only one cropping option can be
assigned per image. Select one of the following options:

• Automatic: dynamically adjusts the cropping window for different
document sizes based on the edges of the image.

• Aggressive: eliminates any residual black border on any image
edges. In order to achieve this, there is a possibility that a small
amount of image data from the edge of the document may be lost.

• Fixed to Transport: (used for batches of same-sized documents)
allows you to define the area to be imaged. Fixed to Transport
cropping is used in conjunction with paper size and page layout and
assumes you are center-feeding your documents. If you are not using
center feeding, you must select the Layout tab to define your scan
area. See the section entitled “Layout tab” later in this chapter.

• Relative to Document: (zone processing): (used for batches of
same-sized documents) — zone processing is a floating fixed crop
window (the zone) located relative to the upper left corner of a
document. It allows you to select an area on the document to be
delivered in either color/grayscale or black and white format (a
separate window for both black and white and color/grayscale may
be defined). Different parameters may be selected for both the front
and back of the image.

This option may be used in conjunction with Automatic cropping
where a separate color/grayscale or black and white area to be
saved is desired. It is useful in applications where a photograph,
signature, embossment or seal appears in a consistent area for an
application (you may want that small area in color/grayscale and the
rest in black and white). To define a zone, select the Layout tab.

Binarization — these options work on grayscale images and outputs a
black and white electronic image. Their strength lies in the ability to
separate the foreground information from the background information
even when the background color or shading varies, and the foreground
information varies in color quality and darkness. Different types of
documents may be scanned using the same image processing
parameters and results in excellent scanned images.

• iThresholding: allows the scanner to dynamically evaluate each
document to determine the optimal threshold value to produce the
highest quality image. This allows scanning of mixed document sets
with varying quality (i.e., faint text, shaded backgrounds, color
backgrounds) to be scanned using a single setting thus reducing the
need for document sorting. When using iThresholding, only Contrast
can be adjusted.

• Fixed Processing (FP): used for black and white and other high
contrast documents. If Fixed Processing is selected, only Brightness
can be adjusted.

A-61560 June 2006 75

• Adaptive Thresholding (ATP): separates the foreground
information in an image (i.e., text, graphics, lines, etc.) from the
background information (i.e., white or non-white paper background).
When using Adaptive Thresholding, Brightness and Contrast can be
adjusted.

Brightness — changes the amount of white in the color and grayscale
image. Use the slider to select a value from 0 to 255. The default is 90.

Brightness: 50 Brightness: 127

Contrast  adjusts the difference between black and white, thereby

making an image sharper or softer.

The difference between black and white is small with a low contrast
setting, so the image is softer. With a high contrast setting, the
difference between black and white is large, so the image is clearer.
Select a contrast value from 1 to 100. The default is 50.

Contrast 1

Contrast 60

Contrast 100

76 A-61560 June 2006

Layout tab The Layout tab provides these options:

Page Orientation — allows you to select the way you place your
documents in the scanner, Top First, Bottom First, Left first or Right
first. When using the Kodak i1200/i1300 Scanners, select Top First.

Image Orientation

• Automatic: if you select Automatic, the Page Orientation options

are not available.

• Portrait: displays the image orientation in the shape of a
conventional portrait, where height is greater than width.

• Landscape: displays the image orientation in the shape of a
conventional landscape painting, where width is greater than height.

Page size  the default page size is set when a scanner is first
selected. You can choose a different page size using the drop-down list
box.

Scan Area — displays the Scan Area dialog box. The Scan Area
options are only available for images when the cropping option is Fixed
to Transport or Relative to Document. See the section entitled
“Defining the scan area” later in the chapter for more information.

A-61560 June 2006 77

Image Processing tab The Image Processing tab displays the Image Mode and Mode

information that was previously described. Refer to the section entitled
“The main ISIS Driver tab” earlier in this chapter for descriptions.

Document Type - select one of the following based upon the
documents you are scanning:

• Text: when the documents you want to scan contain mostly text.

• Text with Graphics: when the documents you want to scan contain a
mix of text, business graphics (bar graphs, pie charts, etc.) and line
art.

• Photographs: when the documents you want to scan are comprised
mainly of photos.

• Text with Photographs: when the documents you want to scan
contain a mix of text and photos.

Media type — select one of the following options based upon the
texture/weight of the paper you are scanning. Available options are:
Plain Paper, Thin Paper, Glossy Paper, Card Stock, Magazine.

Options

• Deskew  automatically straightens a document within ±0.3
degrees of the leading edge of the document. Deskew can detect up
to a 45-degree skew and correct up to a 24-degree angle at 200 dpi
or a 10-degree skew angle at 300 dpi. This option is not available
when Fixed to Transport or Relative to Document is selected.

NOTE: To prevent data loss, the document must have all four

corners within the image path.

• Halftone Removal  enhances images containing dot matrix text
and/or images with shaded or colored backgrounds using halftone
screens and effectively eliminates noise caused by the halftone
screen.

78 A-61560 June 2006

• Invert Image  defines whether the image should be stored in black
on a white background or white on a black background. The default is
Black on White. If you want white on a black background, check this
option.

Black on White White on Black

• Add Border — allows you to add a fixed amount of border to the left,
right, top and bottom edge of the image.

Noise Filter — occasionally small dots or specks appear in the
background of a scanned image. These specks increase file
compression size and usually contain no image information. Using the
Noise Filter on documents containing very fine detail (e.g., the dot on
an "i" in 4-point type) may cause information to be lost. It is
recommended that you do not use the Noise Filter when scanning
documents with text smaller than 7-point type.

Noise Filter can be used with black and white images only and is Front/
Back independent. Choose None, Lone Pixel or Majority Rule.

• Lone Pixel: reduces random noise on black and white images by
converting a single black pixel surrounded by white to white or by
converting a single white pixel surrounded by black to black.

• Majority Rule: sets the central pixel value in a matrix according to
the majority of white or black pixels in a matrix.

No Noise Filter Used Lone Pixel

A-61560 June 2006 79

JPEG (Joint Photographic Editor Group) Quality — this group
developed and lent their name to a file compression standard for color
and grayscale images that is widely used by scanners, digital cameras
and software applications. On Microsoft Windows-based systems, a file
with the extension .jpg has normally been compressed using this
standard. JPEG compression offers a JPEG quality of Draft, Good,
Better, Best and Superior.

• Draft: smallest file size with draft image quality.

• Good: larger file size with good image quality.

• Better: larger file size with better image quality.

• Best: larger file size with the best image quality.

• Superior: largest file size with superior image quality.

Scanner tab The Scanner tab provides the following options.

Paper Source — select the desired paper source:

• ADF: if you are scanning documents from the input tray.

• Flatbed: if you are scanning documents using the flatbed.

Transport timeout — allows you to set the amount of time the scanner
will wait after the last document enters the transport before the
transport timeout action is taken. You can specify a time delay setting
from 1 to 300 seconds.

Energy Star — allows you to set the amount of time the scanner will
remain inactive before the scanner goes into an idle state. Choices are:
0 to 60 minutes.

80 A-61560 June 2006

Blank image detection — select the image size (KB), below which an
image is determined to be blank. Images with sizes less than the
number you select will not be created. If you use this option, you must
specify a blank image size for each image type (Binary, Gray and
Color) you want to delete. If you do not make an entry in these fields,
all images are kept.

Multi-feed Detection options
Length Detection  this option can be enabled or disabled. The

default is disabled. If enabled, select the maximum length of the
document that can be scanned without a multi-feed being detected.
Length detection is used when scanning same-sized documents to
check for overlap. For example, if you are scanning 8.5 x 11-inch (A4)
documents in portrait mode, enter a value of 11.25 inches (28.57 cm) in
the Maximum Length field. The maximum value is 13.99 inches (35.56
cm).

• Auto Set: automatically sets the maximum length value to .50-inch
(1.27 cm) greater than the length of the currently selected page size.

Ultrasonic Detection — check this option to set multi-feed detection.
Sensitivity — controls how aggressively the scanner will work to

determine if more than one document is fed into the transport. Multi­feeds are triggered by detecting air gaps between documents. This
allows multi-feed detection to be used with job sets containing
documents with mixed thicknesses. You may set the Multi-Feed
Detection to High, Medium or Low sensitivity.

• Low: the least aggressive setting and is less likely to detect labels,
poor quality, thick or wrinkled documents as multi-fed documents.

• Medium: use Medium sensitivity if your application has varying
document thickness or labels attached to the document. Depending
on the label material, most documents with labels should not be
detected as a multi-fed document.

• High: the most aggressive setting. This is a good setting to use if all
documents are similar in thickness to 20-lb. Bond paper.

Action — select an option of how you want to the scanner to perform if
it detects a multi-fed document.

• Beep and continue: if selected, the scanner will beep, display and
log the condition but continue to operate.

• End of Job: if selected, the scanner log the condition and stop the
feeder and transport (the scanner will be disabled).

Alarm - select this option if you want the scanner to make a sound
when a multi-feed is detected. You can click the Speaker icon to
display the Open dialog box. From the Open dialog box, select the
desired .wav file and click OK.

Calibrate — the Kodak i1200/i1300 Scanners automatically calibrate.
This option is available if a Kodak representative directs you to calibrate
the scanner using this option.

A-61560 June 2006 81

Auto Color Detect tab The Auto Color Detect tab provides the following options.

Color Content — options are None, Low, Medium, High, and Custom

• Low: documents require only a small amount of color to be saved as
color or grayscale images. Used for capturing documents that are
primarily black text with small logos, or contain small amounts of
highlighted text or small colorful photos.

• Medium: documents require more color, as compared with the Low
option, before they are saved as color or grayscale images.

• High: documents require more color, as compared with the Medium
option, before they will be saved as color or grayscale images. Used
for distinguishing documents containing medium- to large-size
colorful photos from plain black text. Photos with neutral colors may
require adjustments to the Color Threshold or Color Amount values in
order to be captured correctly.

.

82 A-61560 June 2006

• Custom: makes the Color Amount and/or Color Threshold options
available.

NOTE: When setting Auto Color Detect values, it is suggested that

you start with the Medium option and scan a typical job set. If
too many documents were returned as color/grayscale vs.
black and white, then change to the High option and re-run
the job. If too few documents were returned as color/
grayscale vs. black and white, then change to the Low option
and re-run the job. If none of these options provide the
desired result, select Custom option to manually adjust Color
Amount and/or Color Threshold.

Color Amount: the amount of color that needs to be present in a
document before it will be saved as either color or grayscale. As the
value of Color Amount increases, more color pixels are required. Valid
values are 1 to 200.

Color Threshold: the color threshold or intensity (i.e., pale blue vs.
dark blue) at which a given color will be included in the color amount
calculation. A higher value indicates that a more intense color is
required. Valid values are 0 to 100.

Learn — if Low, Medium and High options do not give you the desired
results, use the Learn option.

1. Click Learn and follow the prompts.

2. Place at least 5 representative color documents in the input tray and

click OK. These documents will be analyzed and the recommended
color amount will be calculated for you.

3. Write down the Color Amount and Color Threshold values that

are displayed in the dialog box as these are the settings you will be
required to use in your application.

NOTE: These settings were calculated based on the representative

color documents scanned. If these values do not provide the
desired results with your production job set, you may need to
manually adjust the Color Threshold.

A-61560 June 2006 83

Adjustments tab The Adjustments tab provides the following options.

Color Adjustment

Red — changes the amount of red in the color image.

Green — changes the amount of green in the color image.

Blue — changes the amount of blue in the color image.

• Adjust these settings by dragging the slider bar to the left or right,
entering a value in the text box or using the up/down arrows.

84 A-61560 June 2006

Background Smoothing — use this option when you are scanning
documents or forms with a colored background. Background
Smoothing produces images with a uniform color. The benefit of using
this option is improved image quality and reduced file size.

• Background: select one of the following:

- None - no background smoothing will be done.

- Automatic - background smoothing is applied to the actual color.

- Change to White - identifies the background color and substitutes
that color with white.

• Apply to: select one of the following options:

- Predominant - smooths the predominant background color to
white.

- Neutral - smooths just the neutral color to white and two additional
background colors.

- All - smooths up to three background colors to white.

• Aggressiveness - select a value to increase or decrease the effect.

Image Edge Fill — fills the edges of a scanned image by covering the
area with the color selected in the Color drop-down list. Image Edge Fill
is performed after all other image processing options have been
applied.

Frame Mode — fills in an equal amount of the selected color from the
Image Edge Fill drop-down list on all sides of the image, or you can
select a value in the Top, Left, Right and/or Bottom area(s) from each
side of the scanned image to be filled.

When using this option, be careful not to enter a value too large as it
could fill in image data that you want to keep.

A-61560 June 2006 85

Dropout tab The Dropout tab displays the Image Mode and Mode information that

was previously described. Refer to the section entitled, “The main ISIS
Driver tab” earlier in this chapter for descriptions.

Electronic color dropout is used to eliminate a form’s background so
that a document management system may automatically — through
OCR (Optical Character Recognition) and ICR (Intelligent Character
Recognition) technology — read pertinent data without interference
from the lines and boxes of the form. You can select the desired
dropout color, and alter the filter threshold and background.

Enable Dropout Color  the i1200/i1300 Series Scanners can drop
out red, green or blue. None is the default.

86 A-61560 June 2006

Log tab The Log tab provides a listing of any errors that have been

encountered.

You can either save this information to a file by clicking the Save icon,
or print the displayed information.

About tab Displays information about your scanner and driver.

A-61560 June 2006 87

Defining the Scan area The Scan Area dialog box is only available for images when the

Cropping option selected on the Layout tab is either Fixed to
Transport or Relative to Document.

To access the Scan Area dialog box, select Scan Area on the Layout
tab.

NOTE: Select the side and image to be defined by highlighting Front

Image #1, Front Image #2, etc. based on the cropping option
selected for each of these in the main ISIS Driver window. The
scan areas defined for all camera selections are independent.

88 A-61560 June 2006

Scan Area dialog box The Scan Area dialog box allows you to define the amount of image

data which is returned to the host. The area can be defined in Pixels,
Inches or Centimeters.

The Scan Area dialog box is only available when Fixed to Transport or
Relative to Document is selected on the Scanner Settings dialog box.

Page Size  the default paper size is set when a scanner is first

selected. You can choose a different paper size using the drop-down
list box.

NOTE: Page Size and Page Layout selections also appear on the

Layout tab. If you make a change on the Scan Area dialog box,
the same selections appear on the Layout tab and vice versa.

The Page Layout area allows you to select either Portrait or
Landscape.

• Portrait will display the image orientation in the shape of a
conventional portrait, where height is greater than width.

• Landscape will display the image orientation in the shape of a
conventional landscape painting, where width is greater than height.

• Snap  causes the dimensions of the Area box to be controlled in
fixed 1/8-inch increments. This option is not available in Pixels mode

Area

• X: the distance from the left end of the scanner to the left-edge of the
scanning area.

• Y: the position from the top end of the document to the top end of the
scanning area.

• Width: the width of the scanning area.

• Height: the height of the scanning area.

Units — select whether you want the area to be defined in Pixels,
Inches or Centimeters.

A-61560 June 2006 89

5 Maintenance

Cleaning the scanner Your scanner needs to be cleaned periodically. If your documents do

not feed easily, if several documents feed at the same time or if streaks
appear on your images, it is time to clean your scanner. The section
entitled, “Supplies and consumables” at the end of this chapter
provides a listing of the supplies required to clean your scanner.

IMPORTANT: Use only non-flammable cleaners such as those provided

through Kodak Parts Services. Do not use household
cleaners and solvents.

Do not use cleaners in confined areas, use with adequate

ventilation.

Do not use cleaners on hot surfaces. Allow surfaces to

cool to ambient temperature before use.

Opening the scanner cover

• Press the scanner cover release lever and pull the scanner cover
down.

• When you finish cleaning the scanner or replacing a part, close the
scanner cover.

NOTE: The scanner cover cannot be opened when the input tray is in

the closed position. The photo above shows the input tray has
been removed. To remove the input tray, gently push the input
tray to the right or left to release the pin from the slot, and lift the
input tray out of position.

IMPORTANT: Only use the tilt feature when the scanner cover is

closed.

90 A-61560 June 2006

Cleaning the rollers and transport

1. With a roller cleaning pad, wipe the feed rollers from side to side.

Rotate the feed rollers to clean the entire surface.

IMPORTANT: The roller cleaning pad contains sodium lauryl ether

sulfate which can cause eye irritation. Refer to the MSDS
for more information.

2. Dry the rollers with a lint-free cloth.

Cleaning or replacing the separation module

The separation module should be removed from the scanner for best
cleaning results.

NOTE: When removing or cleaning the separation module, it may be

easier to access the separation module if you remove the input
tray. To remove the input tray, gently push the input tray to the
left or right to release the pin from the slot, and lift it out of
position.

1. Push the separation module release lever down and lift the

separation module up and out of position.

A-61560 June 2006 91

2. Manually rotate and wipe the separation module tires with a roller

cleaning pad.

3. Inspect the separation module.

If the separation module tires show signs of wear or damage,
replace the tires or the separation module. See the next section for
procedures.

4. Insert the separation module by aligning the pins and placing it into

position.

92 A-61560 June 2006

Replacing the separation module tires

The i1200/i1300 Series Scanners use high quality tires that were
engineered to provide the ultimate in feeding reliability across the
broadest range of document types, sizes and thicknesses. When the
scanner is used in a normal office operating environment, the transport
and tires are cleaned using approved cleaning solutions on a regular
basis and the documents scanned are high quality 20 lb. bond office
paper, the tires can last up to 200,000 scans on the separation module
and 500,000 scans on the feed module. More difficult paper types,
challenging operating environments, less frequent cleaning or cleaning
the tires with alcohol or other strong solvents will cause reduced tire life.
Paper types such as carbon paper and newsprint are particularly
difficult and consistently making these documents a significant portion
of your workload will certainly shorten tire life. When you notice
degradation of feeder performance, multiple feeds, stoppages, etc., that
are not resolved by following the cleaning procedures described in this
chapter, you will need to change the tires.

NOTE: Tire life and performance will vary based on your unique

document set.

1. Remove the separation module.

2. Holding onto the separation module, rotate the release lever back

so you can access the separation roller.

A-61560 June 2006 93

NOTE: Use caution as the separation module is spring-loaded and

will snap back if you do not hold it in place.

3. Remove the separation roller from the separation module housing.

4. Remove each tire by sliding the tire off the core.

5. Install each new tire by gently pulling it over the core.

6. Replace the separation roller in the separation roller housing. Be

sure the separation roller snaps into place.

7. Reinstall the separation module.

94 A-61560 June 2006

Cleaning or replacing the feed module

Degradation of feeder performance, multiple feeds, stoppages, etc.
indicate a need to change the feed module. Certain paper types such
as carbonless paper or newsprint, or failure to clean regularly, and/or
use of non-recommended cleaning solvents (do not clean with alcohol)
can shorten the feed module life.

For additional feed modules, see the section entitled, “Supplies and
consumables” later in this chapter.

NOTE: The paper present sensor is located to the right of the feed

module. Be careful not to damage the paper present sensor
when removing or cleaning around the feed module.

1. Push against the raised edge of the feed module cover and lift it up

and out of position.

A-61560 June 2006 95

2. Rotate the feed module upward and push it to the left to lift it out of

position.

3. Manually rotate and wipe the feed module tires with a roller cleaning

pad.

4. Inspect the feed module.

If the feed module tires show signs of wear or damage, replace the
tires or the feed module. See the next section for procedures.

5. Using a vacuum or cleaning pad, remove dust and debris from the

feed module area.

96 A-61560 June 2006
