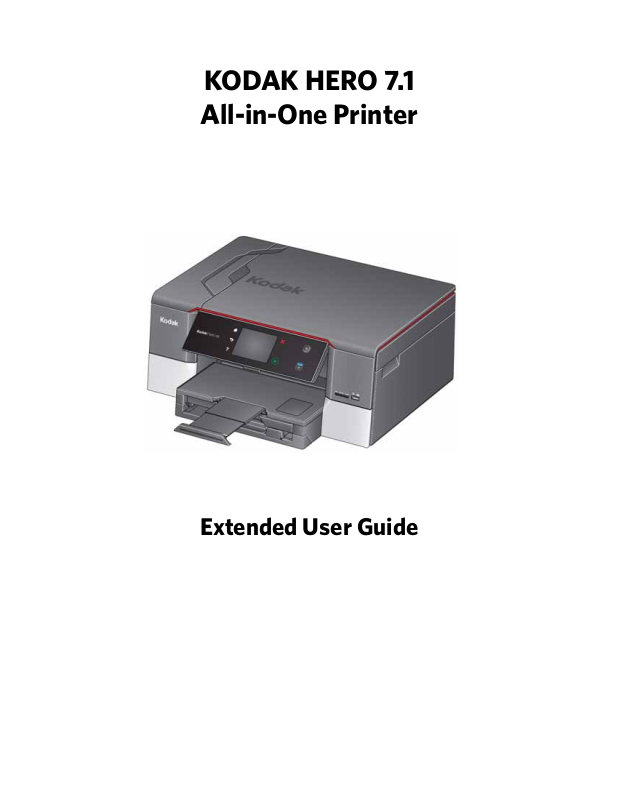

KODAK HERO 7.1
All-in-One Printer
Extended User Guide
Page 2
Eastman Kodak Company
Rochester, NY 14650
© Eastman Kodak Company, 2011
Kodak, EasyShare, Hero, and Perfect Touch are trademarks of Eastman Kodak Company.
Specifications subject to change without notice.
P/N 1K5928
July 2011
Page 3
Table of contents
1 Printer Overview
Components.......................................................................................................................................................................1
Control panel.....................................................................................................................................................................2
Using the LCD touch screen .........................................................................................................................................3
Home Screen Menu ..................................................................................................................................................3
Home Screen Status Icons ......................................................................................................................................4
Home Center Software ..................................................................................................................................................6
Ordering supplies.............................................................................................................................................................7
Configuring printer settings ..........................................................................................................................................8
2 Networking Your Printer
Connecting to a wireless network ...............................................................................................................................9
Before you connect ...................................................................................................................................................9
Connecting to a wireless network using the Wi-Fi Setup Wizard..............................................................10
Setting up an IP Address........................................................................................................................................ 13
Viewing the network configuration.....................................................................................................................14
Printing the network configuration .....................................................................................................................14
Installing your printer on additional computers on the network................................................................. 15
Connecting to another KODAK All-in-One Printer ........................................................................................ 15
Connecting to an Ethernet network ..........................................................................................................................16
Adding a wireless network connection to a USB-connected computer.......................................................... 17
Changing from USB to a wireless connection .................................................................................................. 17
Changing from USB to an Ethernet connection ............................................................................................... 18
3 Online Printer Management Tool
Accessing the Online Printer Management Tool .................................................................................................20
Using the Online Printer Management Tool........................................................................................................... 21
Configuring printer settings .................................................................................................................................. 21
Changing the printer name .................................................................................................................................. 22
Setting up Scan To Email .......................................................................................................................................23
Setting up Scan To Network Folder ................................................................................................................... 29
Adding a GOOGLE Cloud Print Account...........................................................................................................33
Adding a KODAK Email Print Service Account .............................................................................................. 36
Changing printer settings for copying and printing ........................................................................................37
4 Handling Paper
Paper types.....................................................................................................................................................................40
Paper sizes.......................................................................................................................................................................41
Envelope sizes................................................................................................................................................................ 42
Loading paper ................................................................................................................................................................ 43
Loading paper in the main paper tray................................................................................................................ 43
Loading the photo paper tray ..............................................................................................................................46
Loading envelopes..................................................................................................................................................48
www.kodak.com/go/aiosupport i
Page 4
Table of contents
5 Printing
Manually selecting paper trays................................................................................................................................. 50
Printing documents ........................................................................................................................................................51
Printing two-sided documents..............................................................................................................................51
Printing forms from the control panel................................................................................................................53
Printing pictures............................................................................................................................................................ 54
Viewing pictures on a memory card or USB-connected device................................................................. 54
Printing from a memory card or USB-connected device...............................................................................55
Printing from a wireless device ..................................................................................................................................62
Transferring pictures to a computer.........................................................................................................................62
Transferring pictures to a computer with WINDOWS OS...........................................................................62
Transferring pictures to a computer with MAC OS .......................................................................................63
6 Mobile Printing
Printing from an iPhone, iPad, or iPod Touch ........................................................................................................ 64
Printing from a BLACKBERRY Device ..................................................................................................................... 64
Printing from an ANDROID OS Device....................................................................................................................65
7 Copying
Copying a document.................................................................................................................................................... 66
Using the default settings to copy a document.............................................................................................. 66
Adjusting the settings and copying a document.............................................................................................67
Changing the number of copies of a document ............................................................................................. 69
Enlarging or reducing the size of a copy........................................................................................................... 70
Darkening or lightening a copy .............................................................................................................................71
Copying a photo.............................................................................................................................................................72
Using the default settings to copy a photo.......................................................................................................72
Adjusting the settings and copying a photo.....................................................................................................73
Changing the number of copies of a photo.......................................................................................................75
Enlarging or reducing the size of a copy of a photo........................................................................................76
Darkening or lightening a copy of a photo........................................................................................................77
8 Scanning
Before you begin scanning ..........................................................................................................................................78
Changing the scan settings for scanning from the control panel ...............................................................79
Scanning from the control panel................................................................................................................................ 81
Scanning to a computer.........................................................................................................................................82
Scanning to a memory card or USB flash drive............................................................................................... 84
Scanning to email ................................................................................................................................................... 86
Scanning to network folder...................................................................................................................................87
Scanning from the computer ..................................................................................................................................... 88
Scanning multiple pictures simultaneously..................................................................................................... 89
Scanning from the Online Printer Management Tool ......................................................................................... 90
9 Maintaining Your Printer
ii www.kodak.com/go/aiosupport
Page 5
Table of contents
General care and cleaning ........................................................................................................................................... 91
Cleaning the scanner glass and document backing....................................................................................... 92
Replacing ink cartridges ..............................................................................................................................................94
Replacing the printhead .............................................................................................................................................. 97
Updating the software and printer firmware........................................................................................................ 101
Updating if your printer is connected to a computer with WINDOWS OS ........................................... 101
Updating if your printer is connected to a computer with MAC OS....................................................... 102
Monitoring and adjusting printer performance .................................................................................................. 102
Checking ink levels............................................................................................................................................... 102
Checking paper levels...........................................................................................................................................103
Resetting factory defaults ...................................................................................................................................103
10 Troubleshooting
Basic troubleshooting ................................................................................................................................................ 104
Getting help on the Web........................................................................................................................................... 106
Status lights.................................................................................................................................................................. 107
Power status light................................................................................................................................................. 107
Wi-Fi status light .................................................................................................................................................. 107
11 Product and Safety Specifications
Features and Specifications ..................................................................................................................................... 108
Print Performance................................................................................................................................................. 108
Photo Printing Features....................................................................................................................................... 108
Copy document features .................................................................................................................................... 109
Copy photo features ............................................................................................................................................ 109
Scanning features ................................................................................................................................................. 109
Main paper tray .................................................................................................................................................... 109
Photo paper tray ................................................................................................................................................... 110
Output paper tray ................................................................................................................................................. 110
Ink cartridges .......................................................................................................................................................... 110
Connectivity............................................................................................................................................................ 110
Software support .................................................................................................................................................... 111
Digital image sources ............................................................................................................................................ 111
Physical specifications .......................................................................................................................................... 111
Warranty...................................................................................................................................................................112
System requirements.............................................................................................................................................112
Safety information ........................................................................................................................................................115
LCD touch screen safety.......................................................................................................................................116
Ink cartridge safety.................................................................................................................................................116
Regulatory Compliance ...............................................................................................................................................117
FCC Statement ........................................................................................................................................................117
Canadian Statements ............................................................................................................................................118
European Compliance Statement.......................................................................................................................118
German compliance statement ..........................................................................................................................118
www.kodak.com/go/aiosupport iii
Page 6
REACH Article 33 Declarations..........................................................................................................................119
Power Supply Information....................................................................................................................................119
Waste Electrical and Electronic Equipment Labeling ...................................................................................119
ENERGY STAR® Qualified..........................................................................................................................................119
Warranty Information ................................................................................................................................................120
Declaration of Conformity..........................................................................................................................................121
iv www.kodak.com/go/aiosupport
Page 7
1
1
2
4
5
6
7
89
10
11
12
13
15
16
17
14
18
3
Printer Overview
Components
This printer lets you print, copy, and scan pictures and documents. In addition, this
printer supports networking, letting you access the printer over a wireless (Wi-Fi) or
Ethernet network.
1 Control panel 10 Output tray extender with paper stop
2 Power cord port 11 Output tray
3 USB port 12 Scanner glass
4 Ethernet port 13 Scanner lid
5 Duplexer/rear-access cleanout cover 14 Front paper-edge guides
6 Access door 15 Main paper tray
7 Printhead with ink cartridges installed 16 Paper tray extender
8 Front USB port 17 Left paper-edge guides
9 MS SD/HC MMC Card slot 18 Photo paper tray
www.kodak.com/go/aiosupport 1
Page 8
Printer Overview
1
2
3
4
5
6
7
8
Control panel
Feature Description
1 LCD touch screen Displays pictures, messages, and menus
2 Cancel button Stops the current operation and returns to the previous menu, and closes
the Help screen
3 Power button Turns the printer on or off
4Wi-Fi connectivity
LED
5 Start button Begins copying, scanning, printing, maintenance tasks, and file transfer
6 Help button Displays context-sensitive help
7 Back button Displays the previous screen or the next highest screen in the menu
8 Home button Displays the main menu
When lit, signals that the printer is connected to a wireless (Wi-Fi)
network; blinks when searching for an available Wi-Fi network
hierarchy
2 www.kodak.com/go/aiosupport
Page 9
Using the LCD touch screen
Home Screen Menu
Feature Icon Displays...
KODAK HERO 7.1 All-in-One Printer
Copy Document settings and options
Copy Photo settings and options
View and Print Photos options and
settings
List of scan to options: Scan to
Computer, Memory, USB Flash Drive,
Email, and Network Folder. Touching a
scan-to option displays settings for
that option.
The list of forms that you can print
from the control panel.
Network settings
Printer settings
www.kodak.com/go/aiosupport 3
Page 10
Printer Overview
Paper Levels Ink Levels Wi-Fi Status
Feature Icon Displays...
Cloud Printing options
Maintenance options
IMPORTANT: Use only your finger to touch the screen; other objects can damage the
surface.
• To select a feature, touch the icon.
• To view the features, use the scroll bar:
– Touch an arrow to scroll in that direction.
– Touch the scroll bar to move to a different location.
Home Screen Status Icons
Three status icons appear on the Home Screen:
• Touch the Paper or Ink Levels status icons to see information regarding those
items.
• Touch the Wi-Fi icon to open the Networking Menu.
•Touch
OK or (back) to dismiss the screen.
4 www.kodak.com/go/aiosupport
Page 11
KODAK HERO 7.1 All-in-One Printer
If an item requires attention, the attention graphic appears on the corresponding
status icon. For example, if the level of black ink is low, the attention graphic appears
on the ink icon:
Touch the icon to display instructions.
Touch
OK to return to the Home Screen.
www.kodak.com/go/aiosupport 5
Page 12
Printer Overview
Home Center Software
KODAK Home Center Software is installed with your KODAK All-in-One Printer
Software, unless you choose otherwise. The Home Center icon will appear on your
desktop.
NOTE: You can choose to install the KODAK AiO Printer Software Essentials, which
include the drivers and Printer Tools only.
On a computer with WINDOWS Operating System (OS), you can use Home Center
Software to:
• browse, crop, enhance, and edit pictures
• print and scan
• make 3D pictures (from picture pairs taken to create 3D pictures)
• print from video
• send images to or print images from KODAK Gallery
• send images to or print images from FACEBOOK Social Network, FLICKR,
PHOTOBUCKET, PICASA, SMILEBOX Photo Management Systems, and
GOOGLE Docs
•configure your printer
• install new network printers
• upgrade to the latest printer software and firmware
• order supplies
• access the KODAK Tips and Projects Center
• access the Online Printer Management Tool
On a computer with MAC OS, you can use Home Center Software to:
•scan
•configure your printer
• upgrade to the latest printer software and firmware
• order supplies
• see the status of your printer
• access the Online Printer Management Tool
6 www.kodak.com/go/aiosupport
Page 13
Ordering supplies
You can order ink cartridges, paper, and accessories online. An Internet connection
is required.
To order supplies directly from Home Center Software:
1. Open Home Center Software.
2. Select
3. Select the item(s) you want to buy, then follow the on-screen instructions.
To order supplies from the Web:
•Ink: www.kodak.com/go/printingsupplies
•Paper: www.kodak.com/go/inkjetpaper
Order Supplies (on a computer with WINDOWS OS) or select the To o l s
tab, then click
KODAK HERO 7.1 All-in-One Printer
Order Supplies (on a computer with MAC OS).
www.kodak.com/go/aiosupport 7
Page 14
Printer Overview
Configuring printer settings
NOTE: When you first power on the printer, the LCD prompts you to select the
Language and Country/Region.
To set or change basic printer settings:
1. Press .
2. Touch , then touch
3. Touch the following settings:
Date and Time
•
– Touch or to select Ye a r , Month, Day, Hour, or Minute.
Touch each setting to change the values; touch when you are done.
NOTE: You can also synchronize the printer date and time to your computer using
Home Center Software.
Button Sounds
•
–Touch
Ti m e to L o w P o w er
•
To conserve energy, you can set your printer to go into a low-power mode after
a set amount of time.
– Touch the time to low power (select from 1 to 4 hours in 0.5 hour
increments). After the time to low power, the printer enters a low-power
(sleep) mode.
Tag g e d I m a ge s P ri nting
•
–Touch
Language
•
– Touch or to scroll through the languages, then touch a selection.
Country/Region
•
– Touch or to scroll through the countries or regions, then touch a
selection.
Reset All Settings (see Resetting factory defaults, page 103)
•
NOTE: Resetting factory defaults does not change the date and time, language,
country/region, or network settings.
On, Off, Soft, or Loud to set.
On or Off to set.
Printer Settings.
Printer Info
•
– Touch to display the version of firmware currently running on your printer.
Features Demonstration
•
– This feature is typically used by retailers to demonstrate the printer’s
features.
4. Press to return to the Home Screen.
8 www.kodak.com/go/aiosupport
Page 15
2
Networking Your Printer
This section explains how to configure or change your network settings.
Connecting to a wireless network
To connect your printer to an 802.11 wireless (Wi-Fi) network, use the following
procedures.
Before you connect
You need:
• a wireless router.
• to determine whether your wireless router supports Wi-Fi Protected Setup
(WPS).
NOTE: If you have specific questions about your router, see your router
manufacturer’s documentation for more information.
www.kodak.com/go/aiosupport 9
Page 16
Networking Your Printer
Connecting to a wireless network using the Wi-Fi Setup Wizard
You can use the Wi-Fi Setup Wizard on the printer to connect to your wireless
network. Use the procedure that is appropriate for your network setup.
Connecting to a non-WPS wireless router
To connect to your wireless network, you need to know the network name, also
called the Service Set Identifier (SSID). You can obtain your network name from the
wireless router. See the manufacturer's documentation for more information.
If you have enabled security on your network, you also need to know the security
string, which may be a Wired Equivalent Privacy (WEP) or a Wi-Fi Protected Access
(WPA/WPA 2) passphrase.
Record your network information using the correct uppercase and lowercase letters.
Network Name (SSID): _______________________________________
Security String (case-sensitive): ____________________________
1. Press .
2. Touch , then touch
3. Touch
NOTE: The Wi-Fi radio turns on automatically when you select Wi-Fi Setup Wizard.
Wi-Fi Setup Wizard.
Network Settings.
The Wi-Fi connectivity LED blinks as the printer searches for available wireless
networks within range, then displays the list in order of signal strength. For
example:
If there are additional networks that can be shown on the LCD, touch or
to view them.
10 www.kodak.com/go/aiosupport
Page 17
KODAK HERO 7.1 All-in-One Printer
4. Touch your network name.
If you don’t see your network in the list, or you want to change your network,
touch
Rescan for Wireless Networks.
NOTE: If the name of your network is not listed, make sure your wireless router
is turned on and within range.
5. If your network requires a password, use the LCD keyboard to enter your
Security String. The Security String is case-sensitive. When you are finished,
touch
OK.
6. When the confirmation message appears, touch
OK.
When the printer is successfully connected, the Wi-Fi connectivity LED will stop
blinking and remain lit.
The printer with a wireless connection is listed as the name of the printer plus a
number (for example, KodakHERO7.1+0229)
7. If you haven’t installed the KODAK All-in-One Printer Software:
a. Go to www.kodak.com/go/aiodownloads.
b. In the results list, click the link for KODAK All-in-One Printer Software for
your computer’s operating system.
c. Follow the on-screen instructions.
www.kodak.com/go/aiosupport 11
Page 18
Networking Your Printer
Connecting to a WPS wireless router
If your router supports Wi-Fi Protected Setup (WPS), use WPS Connect. WPS lets
you configure your printer for a wireless network by pressing buttons or entering a
PIN.
To connect to a network using WPS:
1. Press .
2. Touch , then touch
3. Touch
Wi-Fi Setup Wizard.
NOTE: The Wi-Fi radio turns on automatically when you select Wi-Fi Setup Wizard.
Network Settings.
4. Touch
WPS Connect.
5. Select one of two methods of connecting:
IMPORTANT: Before you make a selection on the printer, make sure you know where the
router's push button is, or where to enter the generated PIN. If necessary,
consult your Internet Service Provider or router device manufacturer’s
documentation for more information.
Push Button Configuration Generate WPS PIN
NOTE: You will have two minutes to
press or select the WPS button. It
may be a button on the device or
a virtual button in the device’s
software.
a To u c h Push Button Configuration.
b Press or select the WPS button for
your wireless router.
a To u c h Generate WPS PIN.
b In your wireless router’s software,
locate the PIN screen.
c Enter the PIN you received on the
LCD into the PIN screen, then
follow the router’s instructions.
d To u c h OK on the control panel.
c To u c h OK on the control panel.
12 www.kodak.com/go/aiosupport
Page 19
6. When the confirmation message appears, touch OK.
When the printer is successfully connected, the Wi-Fi connectivity LED stops
blinking and remains lit.
The printer with a wireless connection is listed as the name of the printer plus a
number (for example, KodakHERO7.1+0229).
7. If you haven’t installed the KODAK All-in-One Printer Software:
a. Go to www.kodak.com/go/aiodownloads.
b. In the results list, click the link for KODAK All-in-One Printer Software for
c. Follow the on-screen instructions.
Setting up an IP Address
IMPORTANT: You should only need to set up an IP Address for your printer if you are
To set up your IP Address on the printer:
KODAK HERO 7.1 All-in-One Printer
your computer’s operating system.
having a problem connecting your printer to a wireless network. Typically, it
is not necessary to set up an IP Address. This procedure is for advanced
users who know how to obtain the IP Address for the printer.
1. Press .
2. Touch , then touch
3. Touch
4. Touch
Advanced IP Address Setup.
Ye s to continue.
Network Settings.
5. Touch one of the following:
Dynamic (DHCP)
•
Manual (Static)
•
6. If you selected Manual (Static), you are prompted to enter an IP Address, a
Subnet Mask, a Gateway Address, and a DNS Server address. Touch
OK after
each entry. Use the LCD keyboard to enter each digit of the numbers.
Consult your Internet Service Provider or network administrator for more
information.
www.kodak.com/go/aiosupport 13
Page 20
Networking Your Printer
Viewing the network configuration
To view the network configuration and verify that you are connected to your wireless
network:
1. Press .
2. Touch , then touch
3. Touch
The wireless or Ethernet network settings appear on the LCD, including:
•Printer Hostname
• Connection
• Speed
• IP Address
• IP Address Type
• Network Subnet
• Connected Network SSID
•Security
• Authentication
• Channel
•Region
• Radio (on/off)
• MAC Address
When the printer is connected to your network, you will see the network name
and the word CONNECTED.
4. To scroll through the information, touch .
5. When you are done viewing your configuration, touch
View Network Configuration.
Network Settings.
OK.
Printing the network configuration
To print the current network configuration:
1. Load plain paper into the printer. (See Loading paper in the main paper tray,
page 43.)
2. Press .
3. Touch , then touch
4. Touch
14 www.kodak.com/go/aiosupport
Print Network Configuration.
Network Settings.
Page 21
KODAK HERO 7.1 All-in-One Printer
Installing your printer on additional computers on the network
To add your printer to another computer(s) on your network, install the KODAK
All-in-One Printer Software on each computer.
1. Go to www.kodak.com/go/aiodownloads.
2. In the results list, click the link for KODAK All-in-One Printer Software for your
computer’s operating system.
3. Follow the on-screen instructions.
Connecting to another KODAK All-in-One Printer
If you are connecting to a newer model printer (for example, you have an ESP 7250
Printer and now you are adding a HERO 7.1 Printer), you must install the KODAK
All-in-One Printer Software for the newer model.
NOTE: When you install the new software, the printer driver for the ESP 7250
Printer will be uninstalled, and updates for the ESP 7250 Printer will be
installed in addition to the driver for the HERO 7.1 Printer.
On a computer with WINDOWS OS:
1. Select Start > All Programs > Kodak > KODAK Printer Network Setup Utility.
• If your wireless printer (example: KodakHERO7.1+0229)
a. Select
No, my printer is not listed, then click Next.
is not listed:
b.From the drop-down list, select your printer.
c. Select
Network - Wireless/ Wi-Fi, then click Next.
When your printer is detected, driver installation begins.
• If your wireless printer (example: KodakHERO7.1+0229)
is listed:
a. Select the printer that is connected to your network.
b. Select
Yes, my printer is listed, then click Next.
When your printer is detected, driver installation begins.
2. When driver installation is complete, click
On a computer with MAC OS:
Done.
1. Select Apple > System Preferences.
2. Under Hardware, select
3. Click
+ in the dialog box.
Print & Fax or Print & Scan.
4. Select your printer from the list.
5. Click
Add, if required.
www.kodak.com/go/aiosupport 15
Page 22
Networking Your Printer
Connecting to an Ethernet network
Before you connect, you need:
• an Ethernet network that includes a router, switch, or hub with an Ethernet port.
• a Category 5 (or higher) Ethernet cable.
• to temporarily disable your firewall until the printer is successfully installed and
communicating.
To connect to an Ethernet network:
1. Connect the Ethernet cable to the Ethernet port on the back of the printer.
2. Connect the other end of the Ethernet cable to an available Ethernet port on
your router, switch, or hub.
3. If you haven’t installed the KODAK All-in-One Printer Software:
a. Go to www.kodak.com/go/aiodownloads.
b. In the results list, click the link for KODAK All-in-One Software for your
computer’s operating system.
c. Follow the on-screen instructions.
16 www.kodak.com/go/aiosupport
Page 23
KODAK HERO 7.1 All-in-One Printer
Adding a wireless network connection to a USB-connected computer
You can change the way you connect to your printer at any time.
Changing from USB to a wireless connection
To change the printer connection type from USB to a wireless (Wi-Fi) network:
If your printer is connected to a computer with WINDOWS OS:
1. Disconnect the USB cable from your printer and computer.
2. If you have not already done so, connect your printer to your wireless network.
See Connecting to a wireless network, page 9.
3. On your computer, disable any firewall you have installed until you have
successfully completed the installation.
4. Select
• If your wireless printer (example: Kodak HERO 7.1+0229)
• If your wireless printer (example: Kodak HERO 7.1+0229)
5. When driver installation is complete, click
Start > All Programs > Kodak > KODAK Printer Network Setup Utility.
is not listed:
a. Select
b.Select your printer from the list, then click
c. Select
No, my printer is not listed, then click Next.
Next.
Network - Wireless/Wi-Fi, then click Next.
When your printer is detected, driver installation begins.
is listed:
a. Select the printer that is connected to your network.
b. Select
Yes, my printer is listed, then click Next.
When your printer is detected, driver installation begins.
Done.
The printer with a wireless connection is listed as the name of the printer plus a
number (for example, Kodak HERO 7.1+0229).
If your printer is connected to a computer with MAC OS:
1. Disconnect the USB cable from your printer and computer.
2. If you have not already done so, connect your printer to your wireless network.
See Connecting to a wireless network, page 9.
3. Select
4. Under Hardware, select
5. Click
Apple > System Preferences.
Print & Fax or Print & Scan.
+ in the dialog box.
6. Select your printer from the list.
7. Clic k
Add, if required.
The printer with a wireless connection is listed as the name of the printer plus a
number (for example, Kodak HERO 7.1+0229).
www.kodak.com/go/aiosupport 17
Page 24
Networking Your Printer
Changing from USB to an Ethernet connection
Before you connect, you need:
• an Ethernet network that includes a router, switch, or hub with an Ethernet port.
• a Category 5 (or higher) Ethernet cable.
• to temporarily disable your firewall until the printer is successfully installed and
communicating.
To change from a USB connection to an Ethernet network connection:
1. Disconnect the USB cable from your printer and computer.
2. Connect the Ethernet cable to the Ethernet port on the back of the printer.
3. Connect the other end of the Ethernet cable to an available Ethernet port on
your router, switch, or hub.
If your printer is connected to a computer with WINDOWS OS:
1. Select Start > All Programs > Kodak > KODAK Printer Network Setup Utility.
2. Select
3. Select
4. Select
No, my printer is not listed, then click Next.
HERO 7.1 from the printer drop-down list.
Network - Ethernet cable, then click Next.
The Printer Setup Utility searches for your printer and connects automatically.
5. Click
If your printer is connected to a computer with MAC OS:
Done.
1. Select Apple > System Preferences.
2. Under Hardware, select
3. Click
+ in the dialog box.
Print & Fax or Print & Scan.
4. Select your printer from the list.
5. Click
Add, if required.
18 www.kodak.com/go/aiosupport
Page 25
3
Online Printer Management Tool
The KODAK Online Printer Management Tool lets you access your printer through
an Internet browser (such as, INTERNET EXPLORER, FIREFOX, SAFARI, CHROME)
on any computer that is on the same network as your printer.
IMPORTANT: Your computer and your printer must be on the same wireless or
Ethernet network. The Online Printer Management Tool is not available if
your printer is connected to a computer with a USB cable.
With the Online Printer Management Tool, you can:
• view printer status
• configure (or change) printer settings
• create Scan to Email and Scan to Network Folder profiles (that you can access
from the printer control panel)
• add entries to the Email Address book
• set up accounts for GOOGLE Cloud Print and KODAK Email Print Service
www.kodak.com/go/aiosupport 19
Page 26
Online Printer Management Tool
Accessing the Online Printer Management Tool
Access the Online Printer Management Tool in one of the ways described below.
Directly from Home Center Software v7.x or higher:
1. Open Home Center Software.
2. Select Printer Tools on a computer with WINDOWS OS, or Tools on a computer
with MAC OS.
3. Under Tools, select Online Printer Management.
The Online Printer Management Tool will open.
On any printer-supported computer:
1. Get the IP Address of your wirelessly connected printer:
a. On your printer control panel, press .
b. Touch , then touch Network Settings.
c. Touch View Network Configuration, then touch until you see your printer
IP Address in the format xxx.xxx.xxx.xxx. (See Viewing the network
configuration, page 14).
NOTE: To print the Network Configuration, touch
Configuration. A Test Page prints, including the IP Address in the format
xxx.xxx.xxx.xxx.
OK, then touch Print Network
2. On your computer, open your preferred Internet browser (such as, INTERNET
EXPLORER, FIREFOX, SAFARI, CHROME).
3. Type the printer IP Address in the browser address (URL) bar, then press Enter.
The Online Printer Management Tool will open in the browser window.
20 www.kodak.com/go/aiosupport
Page 27
Using the Online Printer Management Tool
Configuring printer settings
Change the standby time, volume of the button sound, date and time, or reset the
setting to the factory defaults.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Device.
4. Select General, Date & Time, or Reset, and make any necessary changes.
KODAK HERO 7.1 All-in-One Printer
5. Click Save.
www.kodak.com/go/aiosupport 21
Page 28
Online Printer Management Tool
Changing the printer name
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the
3. Select
4. Highlight the text in the
click
Network tab.
General, then Friendly name, if necessary.
Friendly name field and type the name you want, then
Save.
22 www.kodak.com/go/aiosupport
Page 29
Setting up Scan To Email
When you scan with your printer, you can send the scans directly from the printer to
an email recipient. To do so, you must first set up a profile for yourself, and define the
email address(es) to which you want to send scans.
Adding an outgoing email profile
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Scan To Email > Email Profile.
KODAK HERO 7.1 All-in-One Printer
4. Click Add New Outgoing Email Profile.
www.kodak.com/go/aiosupport 23
Page 30
Online Printer Management Tool
5. In the Profile Name field, type a name that has meaning to you; for example,
your initials and your email provider, such as LR Hotmail or LR Gmail.
This name will appear on the printer control panel when you start a scan to be
sent through email.
6. In the From Email Address field, type your email address.
Although the email will be sent from the printer, any replies will go to this email
address.
24 www.kodak.com/go/aiosupport
Page 31
KODAK HERO 7.1 All-in-One Printer

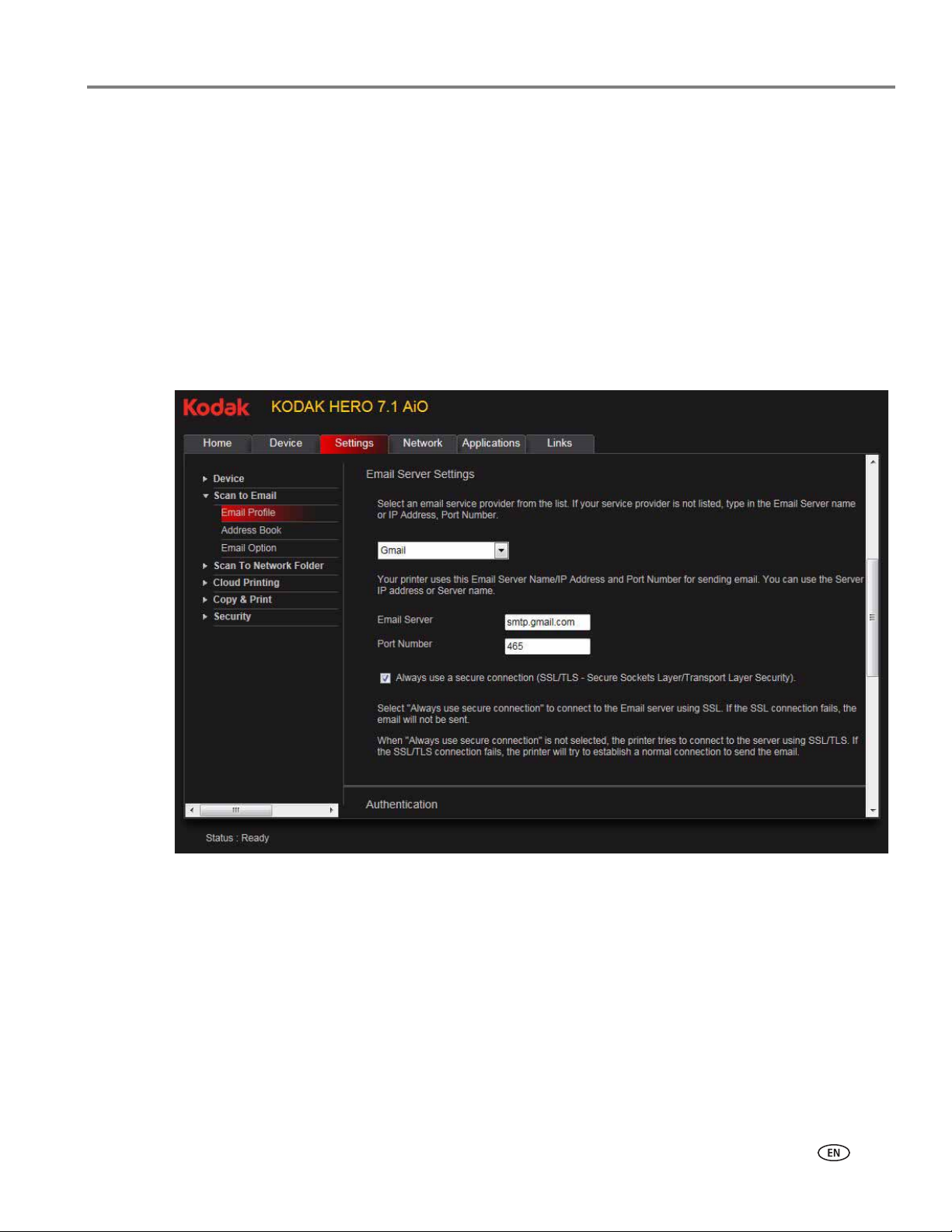

7. Under Email Server Settings, enter your email service provider.
• If your email service provider is Gmail, Yahoo, AOL, or Hotmail, select your
services from the drop-down menu. The Email Service and Port Number fields
fill in automatically.
• If your email service provider is not in the drop-down menu:
a. Type the email server name or IP Address of your email service provider in
the Email Server field.
b.Type the port number of your email server in the Port Number field.
NOTE: Locate this information in the email account properties fields in your
email application.
8. If your mail server supports secure connection mode, select the Always use
secure connection check box.
9. If your email server requires authentication for sending emails:
a. Select the The email server requires authentication for outgoing email
check box.
b. Type the User ID and Password for your email account.
www.kodak.com/go/aiosupport 25
Page 32
Online Printer Management Tool
10. If you want to limit who uses your profile (that appears on the printer LCD) to
send scans:
a. Select the Enable Access PIN check box.
b. Type a 4-digit numeric PIN (your choice). You will need to enter this PIN each
time you access your profile when scanning to an email address.
11. If you want a copy of all email messages, select the Copy sender for all email
messages sent from the printer check box.
12. Click Test Profile to confirm that the printer can access your account.
• If the printer can access your account, “Test profile: Successful” appears.
Click
• If the printer cannot access your account, “Test Profile: Failed” appears.
Click OK, then make changes to your profile.

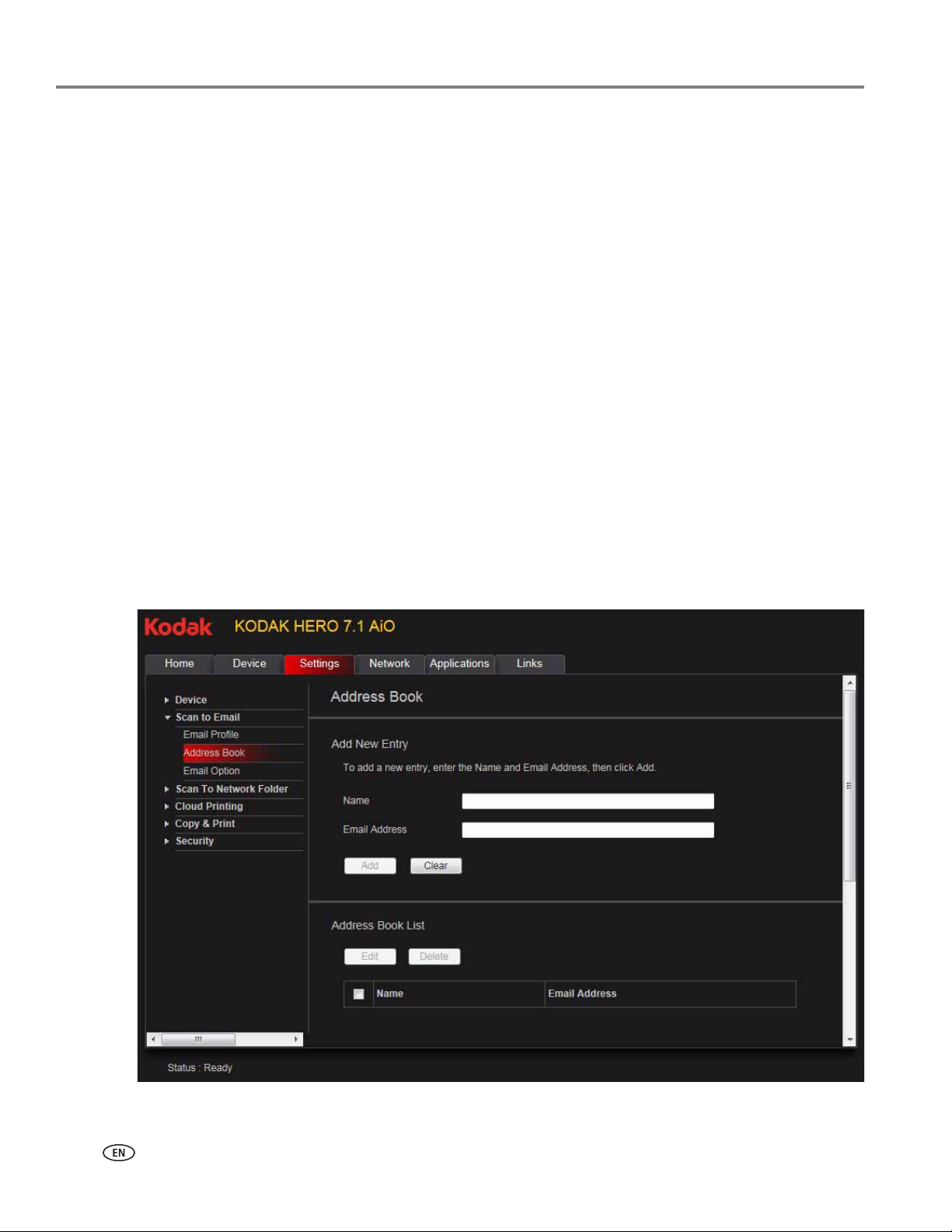

Setting up the email address book
Enter email addresses of people to whom you want to send scans by email.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Scan To Email > Address Book.
OK.
26 www.kodak.com/go/aiosupport
Page 33
4. For each person:
a. Type the person’s Name.
b. Type the person’s Email Address.
c. Click Add.
5. When you are finished adding email addresses, click
Setting options for scan to email
When you send a scan to an email address, the printer uses defaults — subject line,
body, and scan settings — that you set up under email options.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Scan To Email > Email Option.

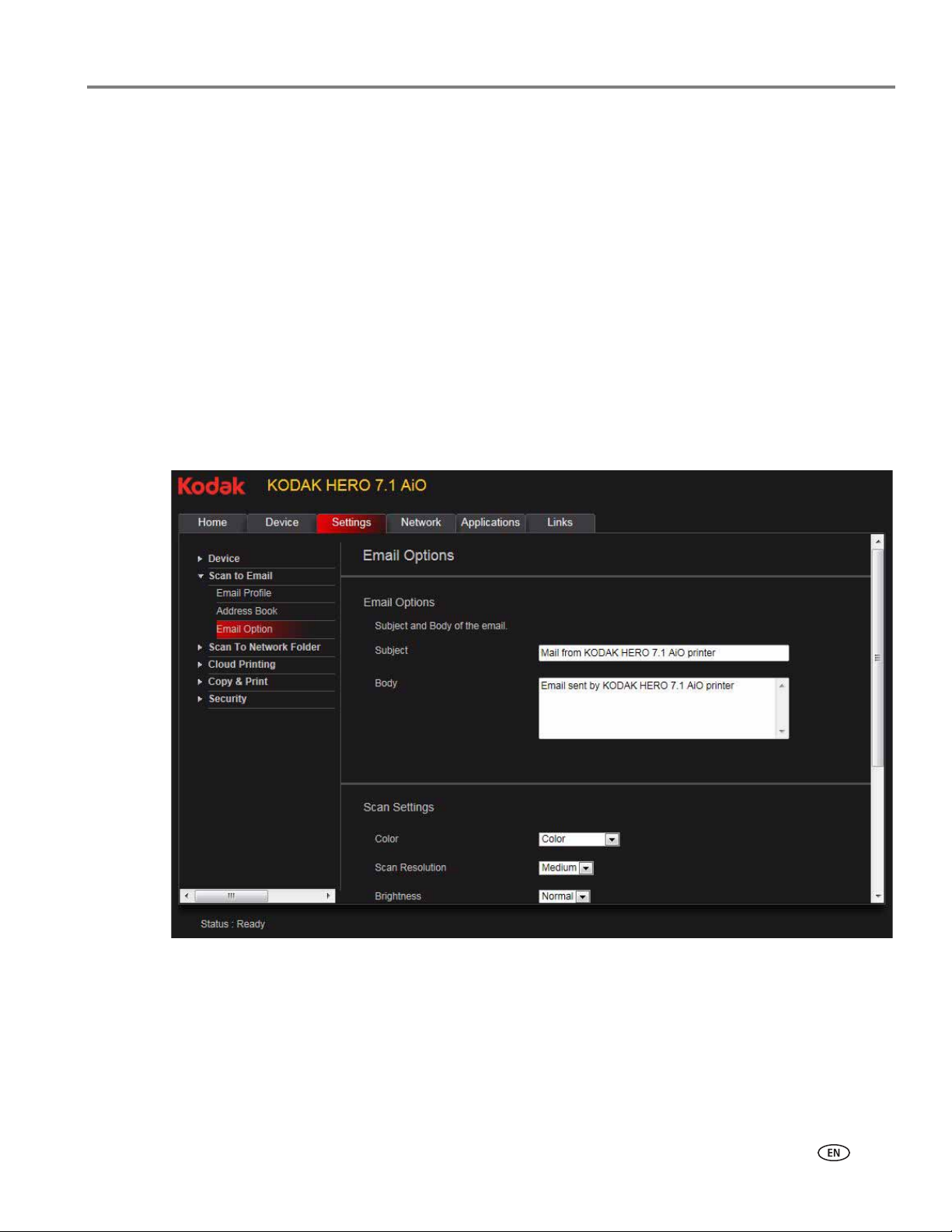

KODAK HERO 7.1 All-in-One Printer
OK.
4. Select and replace the default subject line and body text, if necessary.
This subject line and body text will be included with every scan you send to
an email address.
www.kodak.com/go/aiosupport 27
Page 34
Online Printer Management Tool

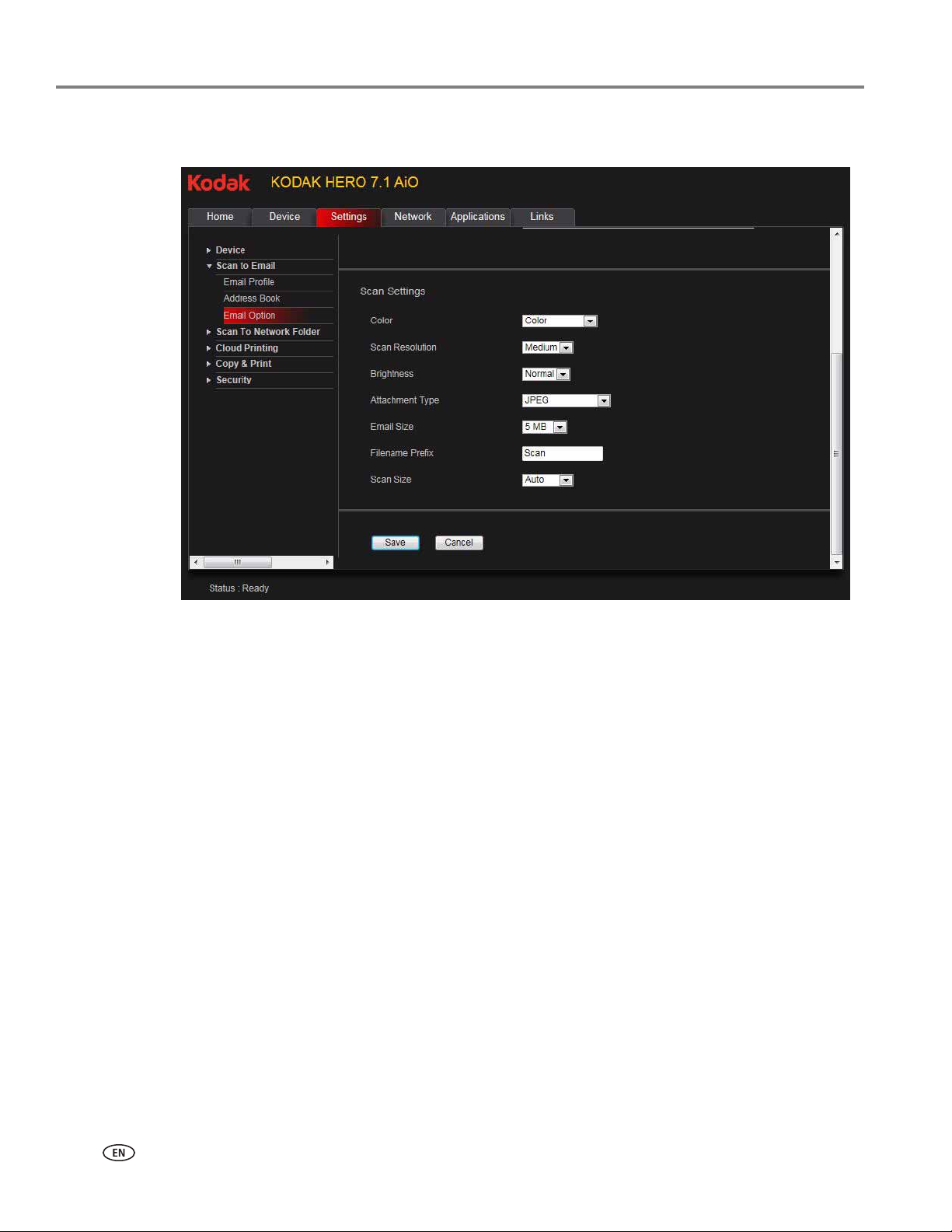

5. Select the scan settings that will be used for all scans sent to email:
NOTE: You can enter a Filename Prefix of your choice.
6. Click Save, then click OK.
You can now send a scan to an email address from the control panel. See Scanning
from the control panel, page 81.
28 www.kodak.com/go/aiosupport
Page 35
Setting up Scan To Network Folder
You can scan documents or photos directly to a file in a shared folder on your
network.
Before you create a network folder profile
You must identify or create a network shared folder on a computer connected to the
same network as your printer before you can create a network folder profile. Note
the network name of the folder, including the path information, and the name of the
computer where it is located.
To learn more about sharing folders, see the information in the links below.
• For computers with WINDOWS XP OS, see
www.microsoft.com/windowsxp/using/networking/maintain/share.mspx
• For computers with WINDOWS VISTA OS, see
technet.microsoft.com/en-us/library/bb727037.aspx
• For computers with WINDOWS 7 OS, see
windows.microsoft.com/en-US/windows7/File-sharing-essentials
• For computers with MAC OS 10.4, see
docs.info.apple.com/article.html?path=Mac/10.4/en/mh1161.html
• For computers with MAC OS 10.5 or later, see support.apple.com/kb/ht1549
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 29
Page 36
Online Printer Management Tool
Adding a network folder profile
To add a network folder profile that you can access from the control panel:
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.

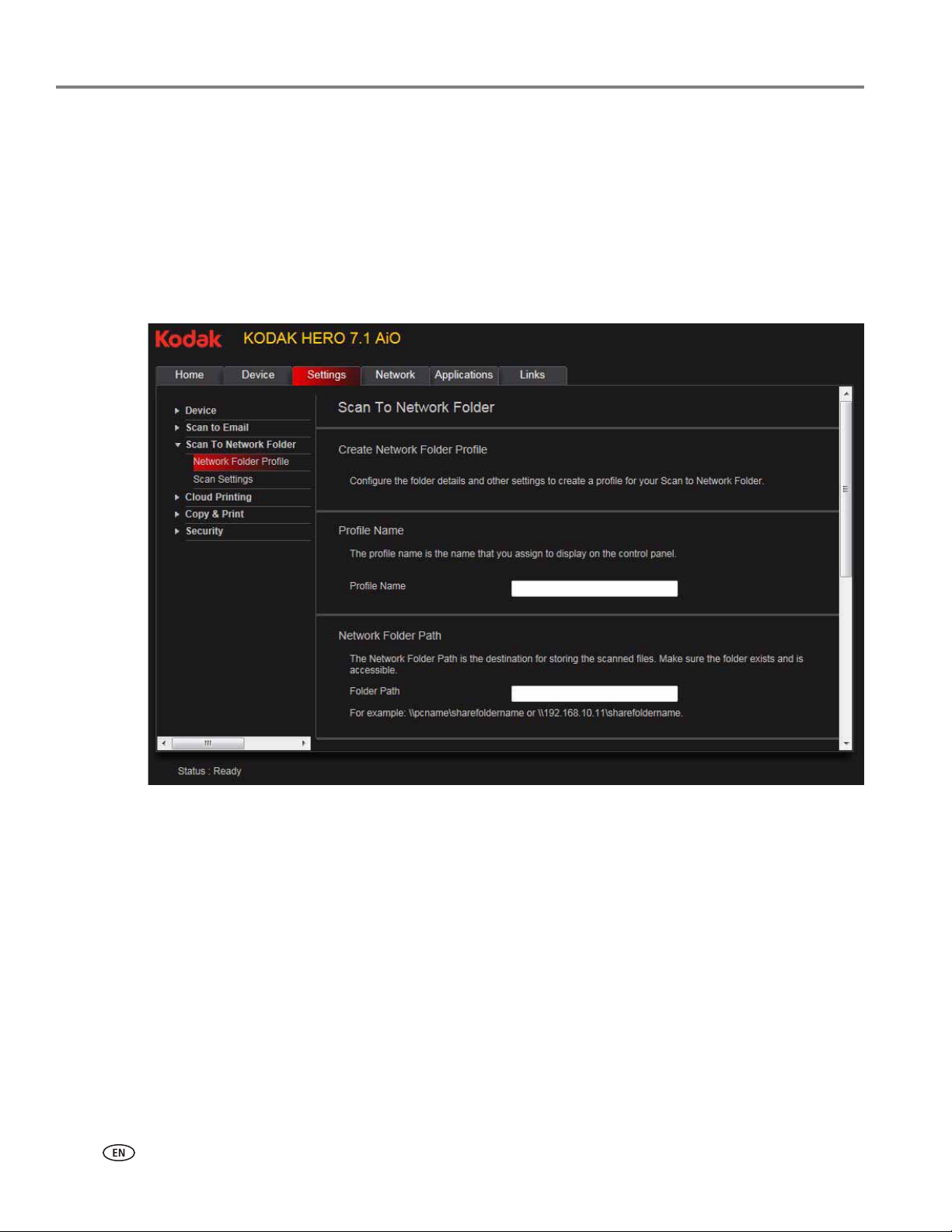

3. Select Scan To Network Folder > Network Folder Profile.
4. Click Add New Network Folder Profile.
30 www.kodak.com/go/aiosupport
Page 37

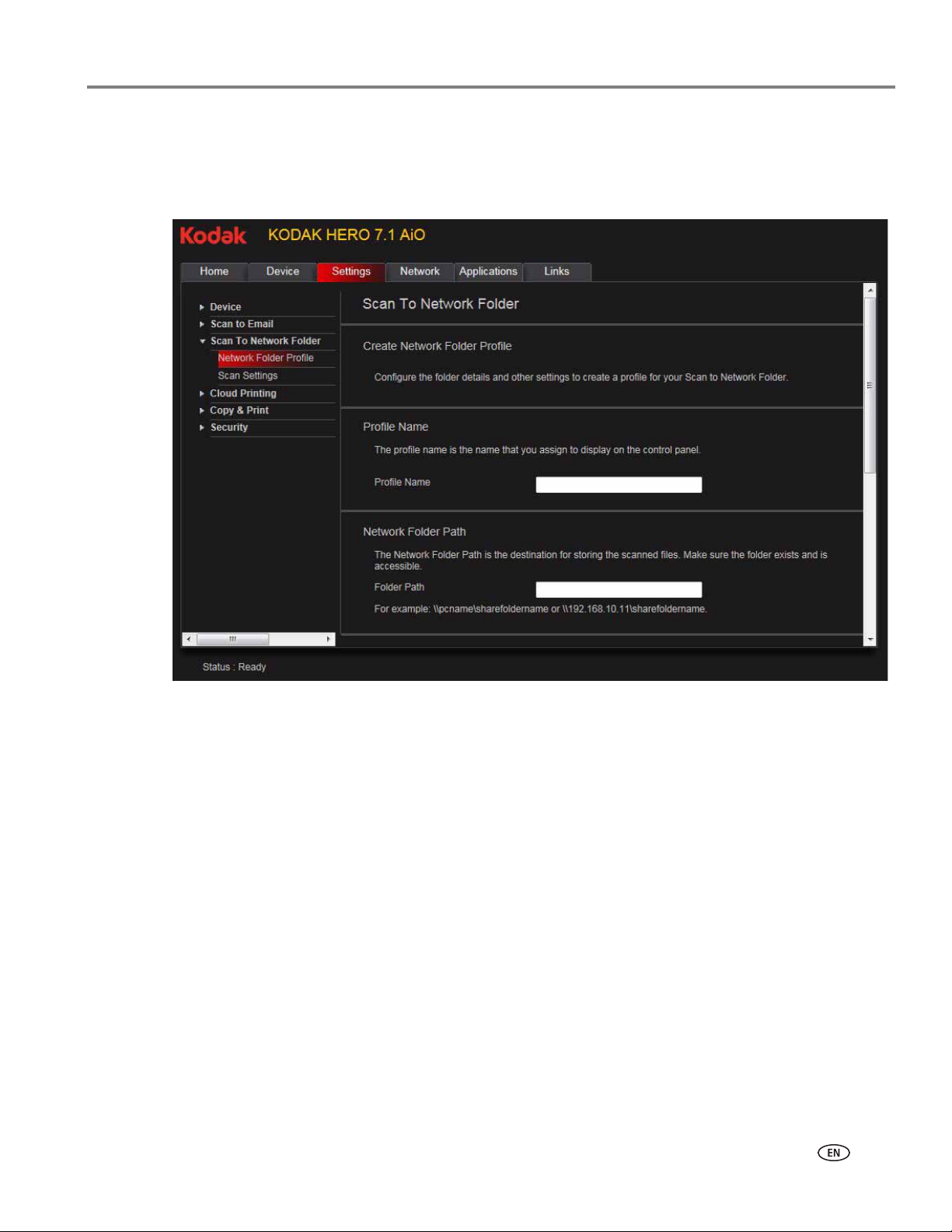

5. Type:
Profile Name
•
• Folder Path
KODAK HERO 7.1 All-in-One Printer
6. If the computer where the folder is located requires authentication to access its
shared folders, type the network login User Name and Password.
7. If you want to limit who uses your profile to scan documents to your network
folder:
a. Select the
b. Type a 4-digit numeric
Enable Access PIN check box.
PIN (your choice). You will need to enter this PIN each
time you access your profile when scanning to a network folder.
8. Click Test Profile to confirm that the printer can access the network folder.
• If the printer can access the network folder, “Test profile: Successful” appears.
OK.
Click
• If the printer cannot access the network folder, “Test Profile: Failed” appears.
Click OK, then make changes to the network folder profile.
You are now ready to scan a document or photo to your network folder from the
control panel. See Scanning from the control panel, page 81.
www.kodak.com/go/aiosupport 31
Page 38
Online Printer Management Tool
Setting scan settings for scan to network folder
When you send a scan to a network folder, the printer uses defaults that you set up
under scan settings.
1. Select
Scan To Network Folder > Scan Settings.

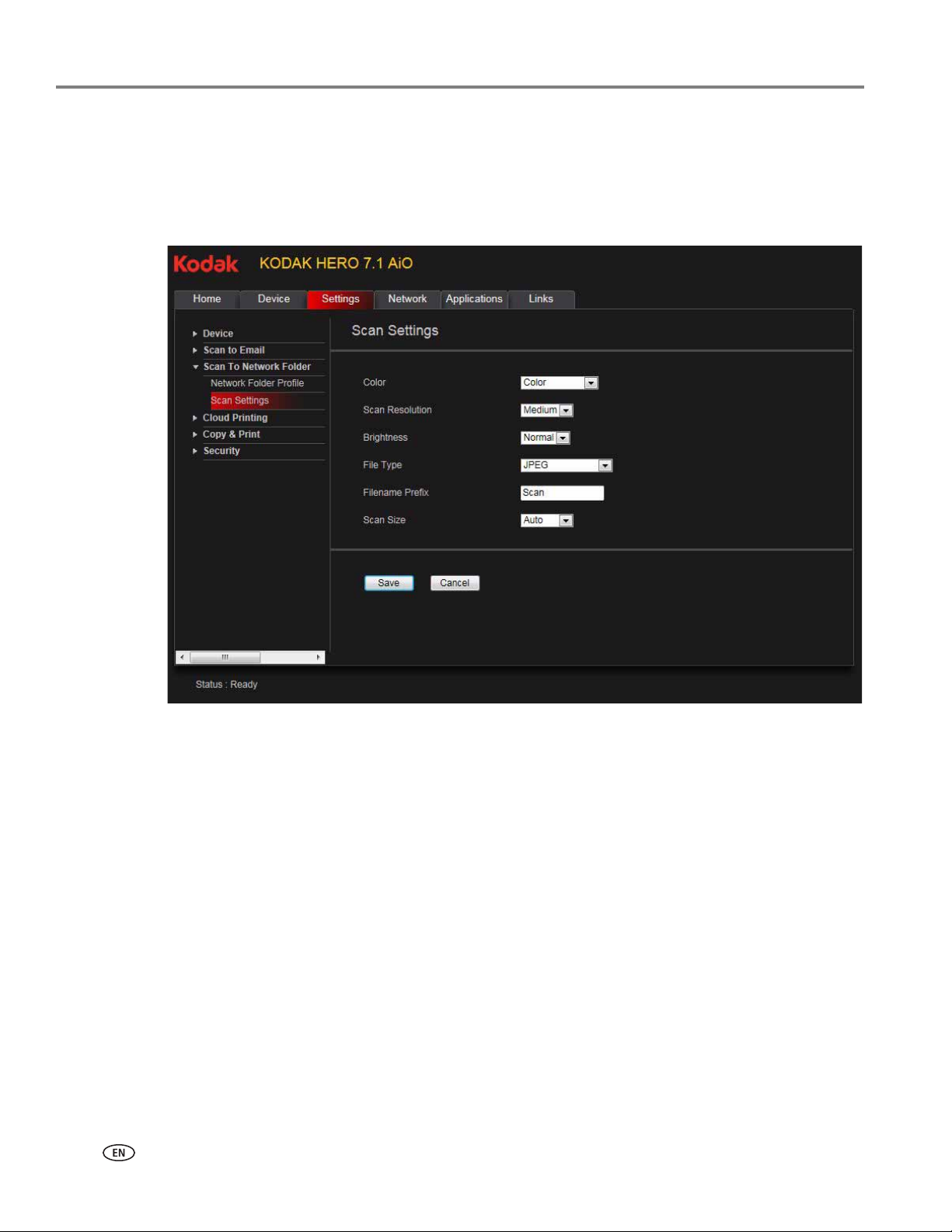

2. Select the scan settings that will be used for all scans sent to a network folder.
NOTE: You can enter a Filename of your choice.
3. Click
Save.
You can now send a scan to a network folder from the printer control panel. See
Scanning from the control panel, page 81.
32 www.kodak.com/go/aiosupport
Page 39
Adding a GOOGLE Cloud Print Account
Your printer lets you print from anywhere in the world using your smartphone,
tablet, or computer that uses GOOGLE Cloud Print enabled apps. You must register
your printer with a GOOGLE Account to enable this feature.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Cloud Printing > Google Cloud Print.
4. Click Register Printer.
5. In the Printer Description field, type a name that has meaning for you; for
example, your initials and your location, such as LR Home or LR Office.
The Friendly Name field is automatically filled in with the printer model number
as it appears in the driver. You can change your printer name at any time (see
Changing the printer name, page 22).
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 33
Page 40
Online Printer Management Tool
6. If you use a Proxy server to connect to your network:
7. Clic k Register Printer.
a. Select the Proxy Setup check box.
b. In the HTTP Proxy field, type the Proxy server URL.
34 www.kodak.com/go/aiosupport
Page 41
KODAK HERO 7.1 All-in-One Printer
8. Click Claim Printer Now.

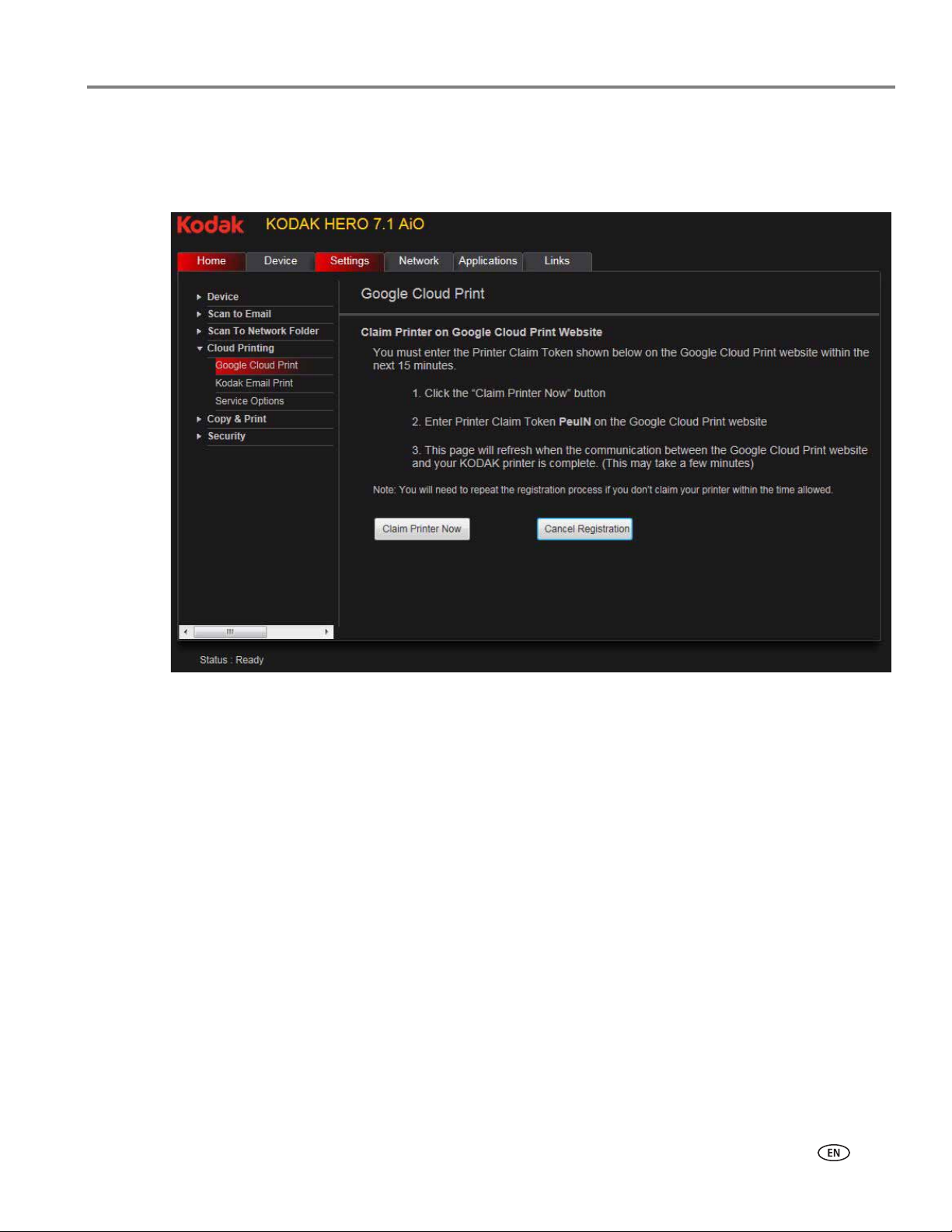

You will be redirected to the GOOGLE Cloud Print Web site. There is no need to
manually enter the Printer Claim Token. Your printer will register automatically.
Editing a GOOGLE Cloud Print Account
Once you have successfully created an account with Google, you can make edits to
various fields.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Cloud Printing > Google Cloud Print.
4. Click Edit Settings.
5. Make the changes you want in the appropriate fields, then click Save.
www.kodak.com/go/aiosupport 35
Page 42
Online Printer Management Tool
Adding a KODAK Email Print Service Account
KODAK Email Print Service lets you send emails and attachments to your printer
using any email account. You must sign in with the account you used to set up
GOOGLE Cloud Print (see Adding a GOOGLE Cloud Print Account, page 33).
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Cloud Printing > KODAK Email Print.
4. Click Get Email Address for KODAK Printer.
You will be redirected to the KODAK Web site. Follow the instructions to set up
the printer email address.
5. When you are given a printer email address, test the email by clicking Print Test
Page using KODAK Email Print Service.
6. You must sign in with the account used for GOOGLE Cloud Printing before you
can use your printer email address with other devices.
a. Click Sign in with Google.
b. Click Allow, then click the plus sign next to Manage your printers.
c. Select the printer you want the KODAK Email Print Service to send emails to,
then click Enable.
7. Clic k Send Test Email to Google Account.
If you want to control who can send emails to your KODAK Printer email address:
8.
a. Next to Access Control, click Edit.
b. Select Control who can send email to KODAK Printer Email Address.
c. To add a specific email address, click Add new email, type the email address
into the field, then click Add.
d. To allow all emails from a specific domain, click Add new domain, type the
domain name into the field, then click Add.
e. To edit your email address and domain settings, click Edit/Delete.
9. To import your printer email address into your Smartphone contacts, snap the
MICROSOFT Tag that is on the KODAK Email Print Service tab in the Online
Printer Management Tool.
36 www.kodak.com/go/aiosupport
Page 43
Changing printer settings for copying and printing
You can change the default printer settings for copying documents and photos, and
for printing photos.

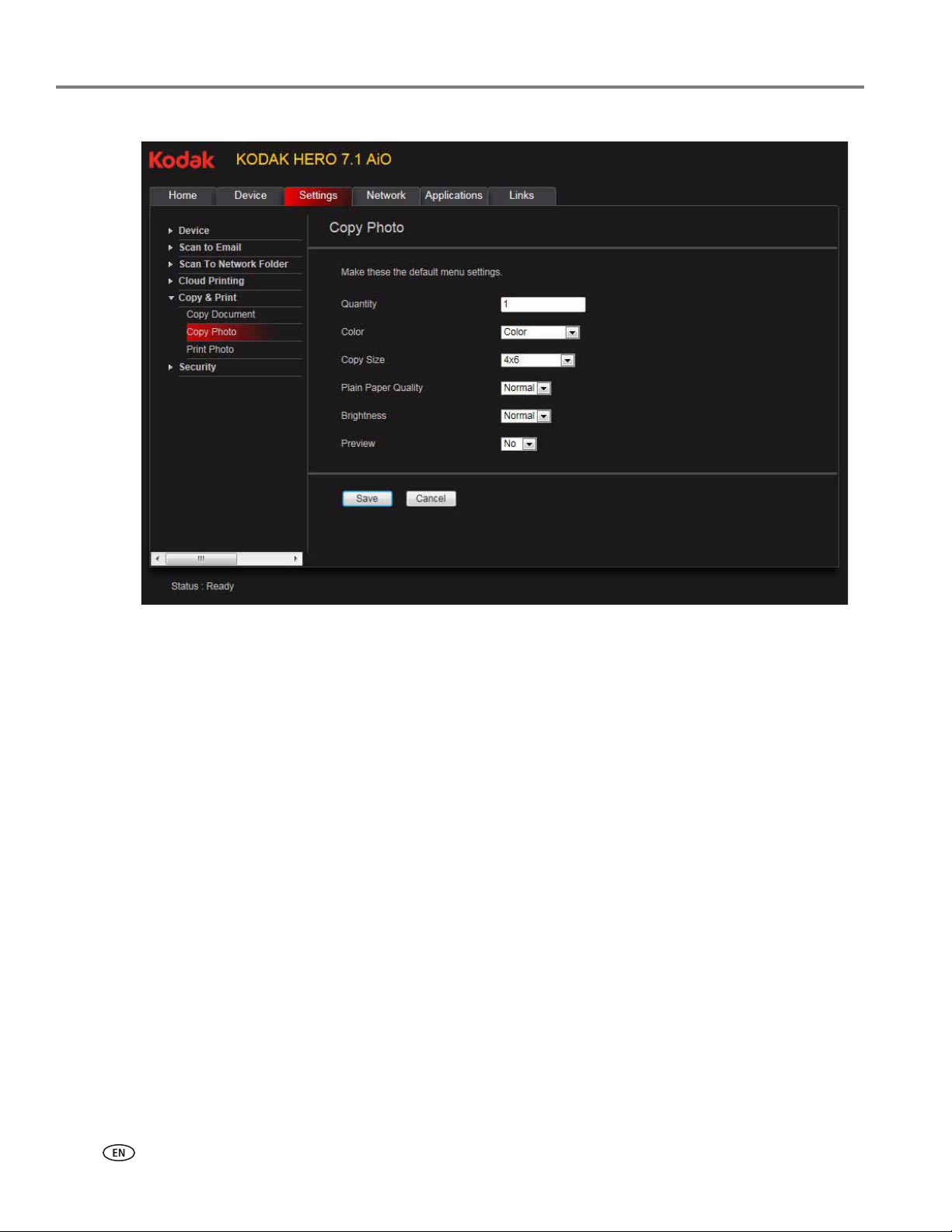

Changing Copy Document and Copy Photo settings
To change the default printer settings for copying documents:
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.

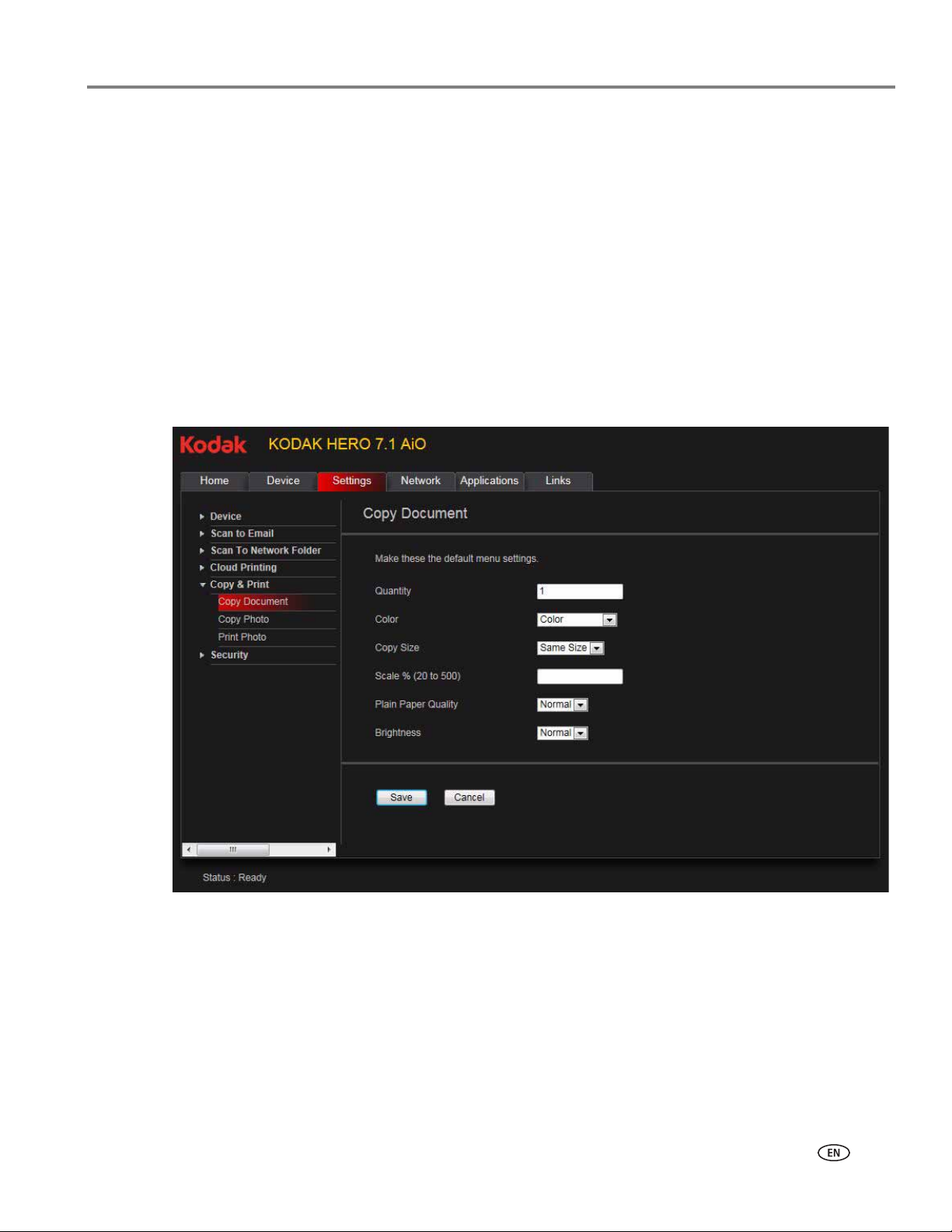

3. Select Copy & Print > Copy Documents or
4. Make the changes you want in the appropriate fields, then click Save.
KODAK HERO 7.1 All-in-One Printer
Copy Photo.
www.kodak.com/go/aiosupport 37
Page 44
Online Printer Management Tool
38 www.kodak.com/go/aiosupport
Page 45

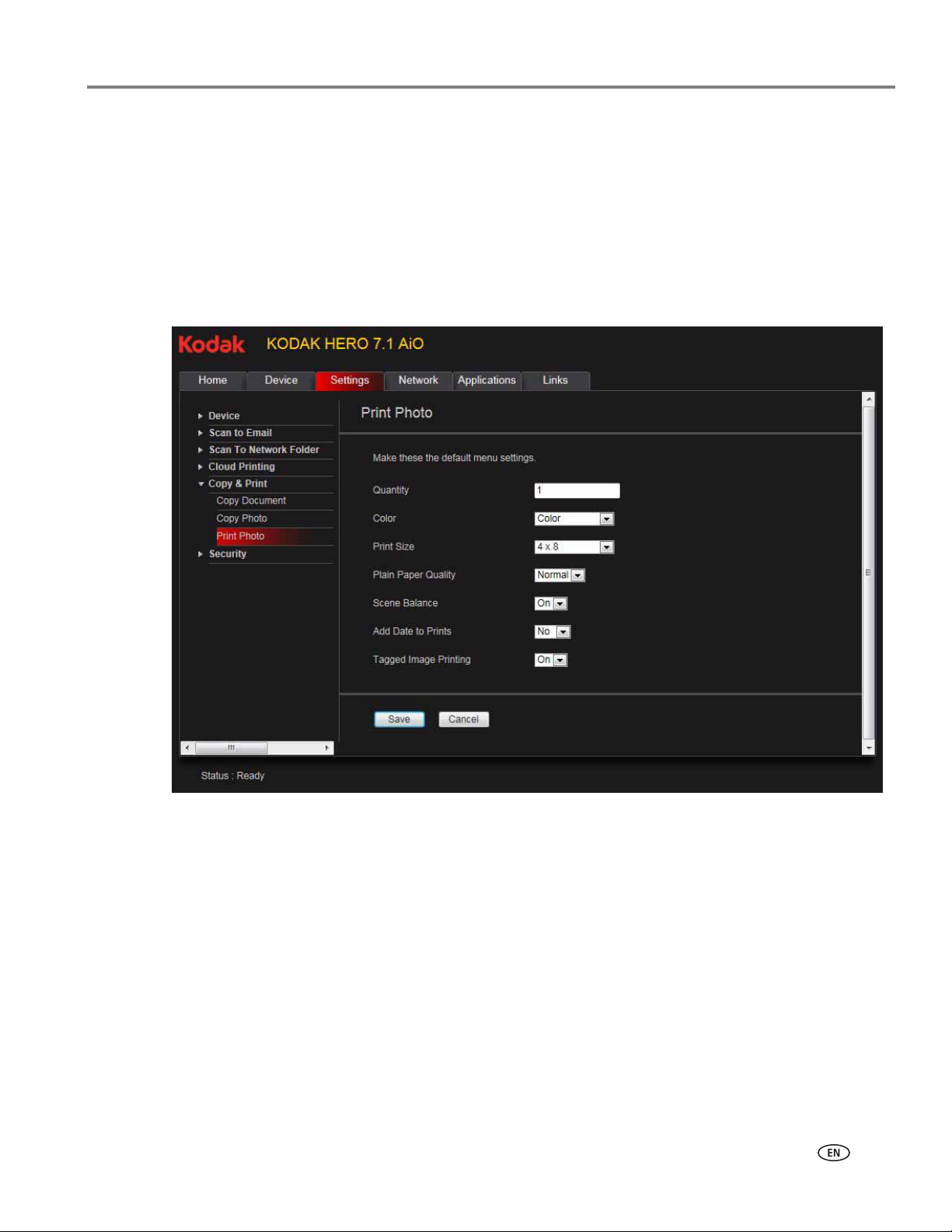

Changing Print Photo settings
To change the default printer settings for printing photos:
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the Settings tab.
3. Select Copy & Print > Print Photo.
4. Make the changes you want in the appropriate fields, then click Save.
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 39
Page 46
4
Handling Paper
Paper types
For the best document printing results, use KODAK Document Papers or a paper
with the COLORLOK Technology logo on the package. Use only paper that is
designed for inkjet printers.
For the best photo printing results, use KODAK Photo Papers, which are optimized to
work with KODAK All-in-One Printers, or photo papers designed for use on
pigment-based inkjet printers.
When handling photo paper:
• Hold the paper by the edges; avoid placing your fingerprints on it.
• Do not touch the glossy side of photo paper.
• Store paper flat, away from direct sunlight and heat.
You can use:
• Plain paper — 16 to 24 lb / 60 to 90 gsm
• Photo paper — 7 to 12 mils / 290 gsm, maximum
• Card stock — 110 lb / 200 gsm, maximum
• Envelopes — 20 to 24 lb / 75 to 90 gsm
• Transparencies — all commercially available inkjet varieties (with white stripe
on short edge)
• Labels — all commercially available inkjet varieties on 8.5 x 11-in. or A4 sheets
www.kodak.com/go/aiosupport 40
Page 47

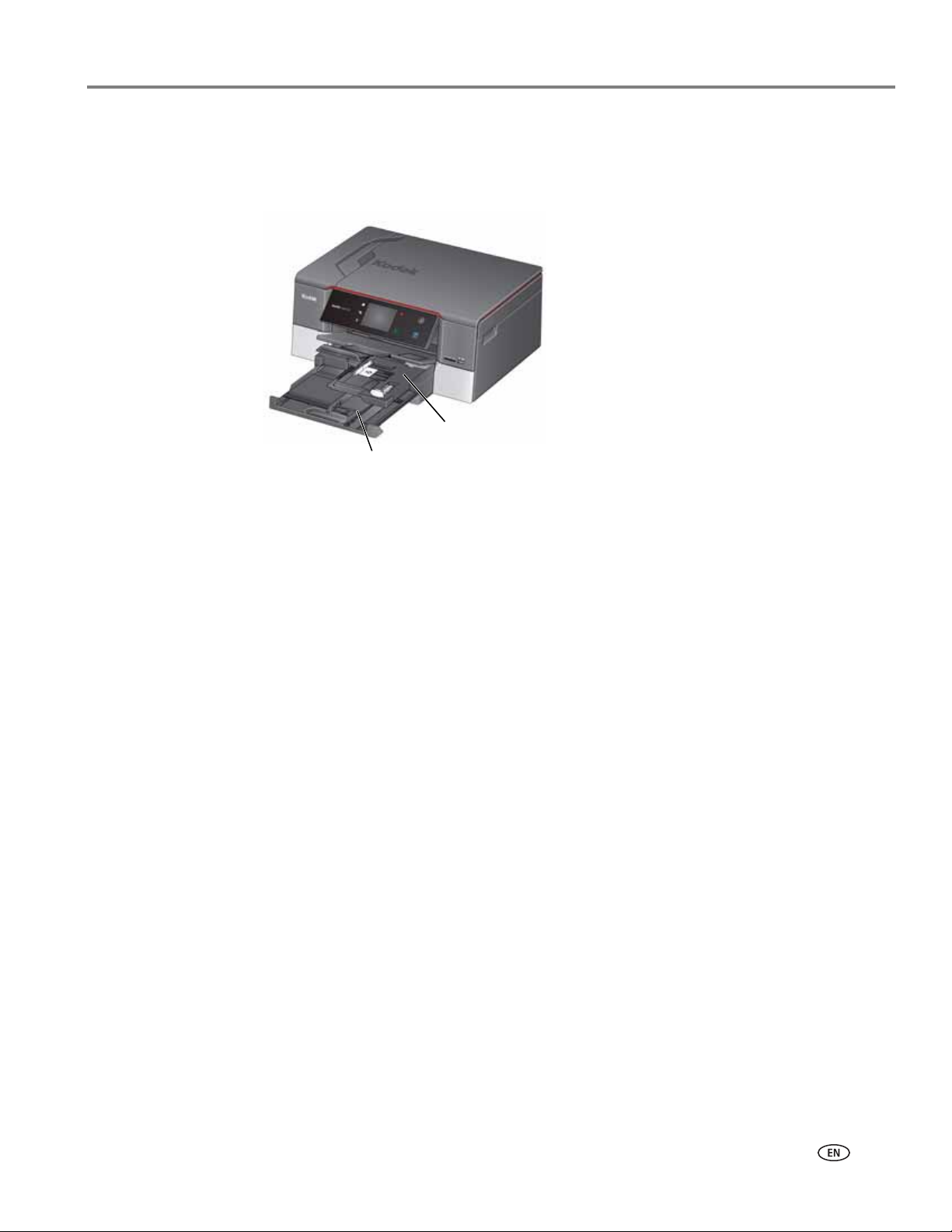

Paper sizes
Main (bottom) paper tray
Photo (top) paper tray
KODAK HERO 7.1 All-in-One Printer
This printer has two paper trays, which accept different paper sizes.
The main (bottom) paper tray accepts the following paper sizes:
• 4 x 6 in. / 10 x 15 cm
• 4 x 7 in. / 10 x 18 cm
• 4 x 12 in. / 10 x 31 cm
• 5 x 7 in. / 13 x 18 cm
• 7.3 x 8.5 in / 18 x 22 cm
• 8 x 10 in. / 20 x 25 cm
• 8.5 x 11 in. / 22 x 28 cm
• 8.5 x 14 in. / 22 x 36 cm
US Executive (7.3 x 10.5 in. / 18 x 27 cm)
•
• A4 (8.3 x 11.7 in. / 21 x 30 cm)
• A5 (5.8 x 8.3 in. / 15 x 21 cm)
• A6 (4.1 x 5.8 in. / 11 x 15 cm)
• B5 (6.9 x 9.8 in. / 18 x 25 cm)
The photo (top) paper tray accepts the following paper sizes:
• 4 x 6 in. / 10 x 15 cm
• 4 x 7 in. / 10 x 18 cm
• 5 x 7 in. / 13 x 18 cm
• A6 (4.1 x 5.8 in. / 11 x 15 cm)
NOTE: Do not load paper smaller than 4 x 6 in. / 10 x 15 cm in either paper tray.
www.kodak.com/go/aiosupport 41
Page 48
Handling Paper
Envelope sizes
The printer accepts the following envelope sizes (in the main paper tray):
• C5 (6.4 x 9 in. / 16 x 23 cm)
• C6 (4.5 x 6.4 in. / 11.5 x 16 cm)
• DL (4.3 x 8.7 in. / 11 x 22 cm)
• US #7¾ (3.9 x 7.5 in. / 10 x 19 cm)
• US #9 (3.9 x 8.9 in. / 10 x 23 cm)
• US #10 (4.1 x 9.5 in. / 11 x 24 cm)
IMPORTANT: Do not load envelopes with cutout or clear windows.
42 www.kodak.com/go/aiosupport
Page 49

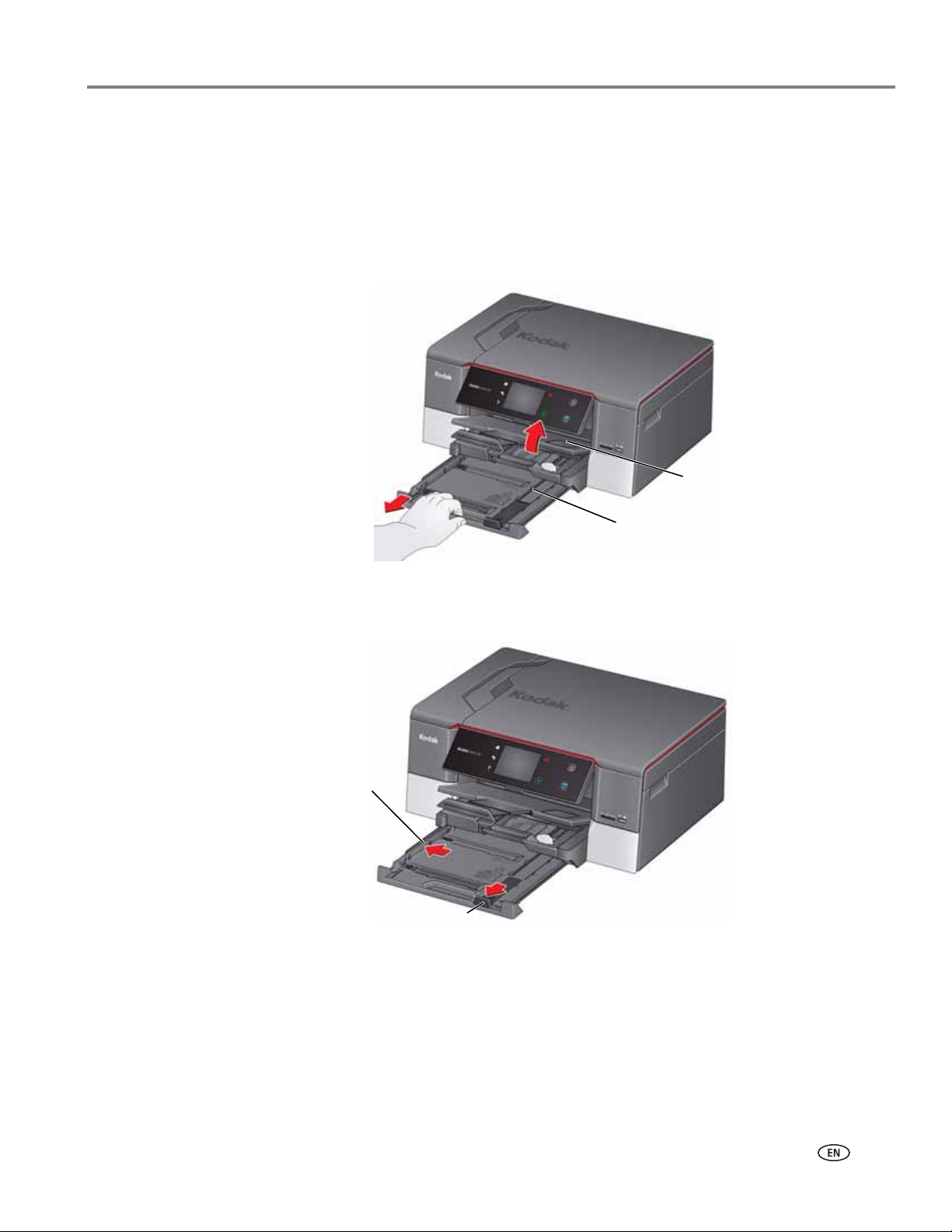

Loading paper
Main paper tray
Output tray
Left paperedge guide
Front paper-edge guide
Loading paper in the main paper tray
The main (bottom) paper tray capacity is 100 sheets of plain paper.
1. Raise the output tray, and pull out the main paper tray.
KODAK HERO 7.1 All-in-One Printer
2. Make sure the left paper-edge guide is to the far left.
3. Move the front paper-edge guide forward.
www.kodak.com/go/aiosupport 43
Page 50
Handling Paper

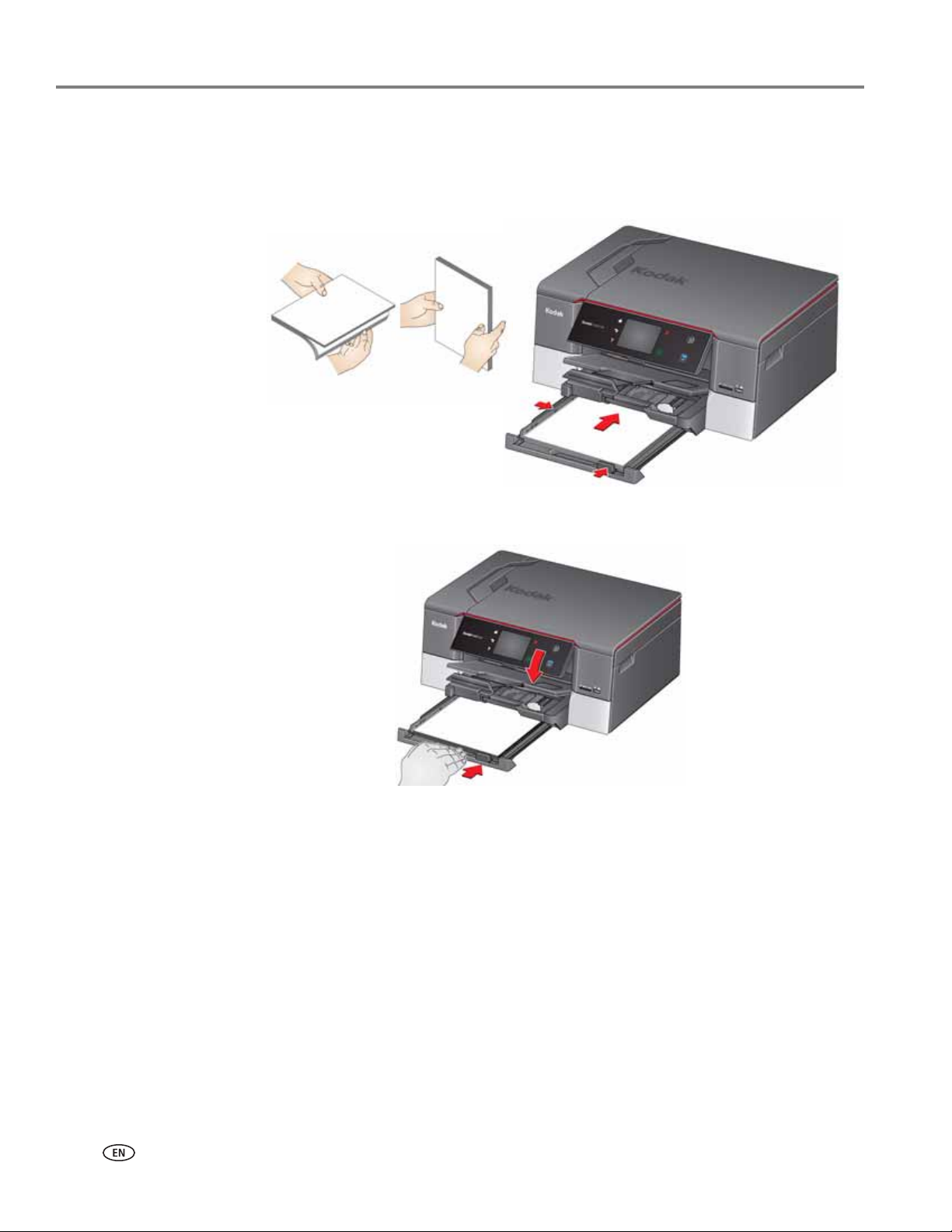

4. Fan and stack the paper, then insert it into the tray.
5. Move the paper forward until it stops.
6. Move both the left and front paper-edge guides until they touch the paper.
7. Push in the main paper tray until it clicks into place, and lower the output tray.
44 www.kodak.com/go/aiosupport
Page 51
KODAK HERO 7.1 All-in-One Printer

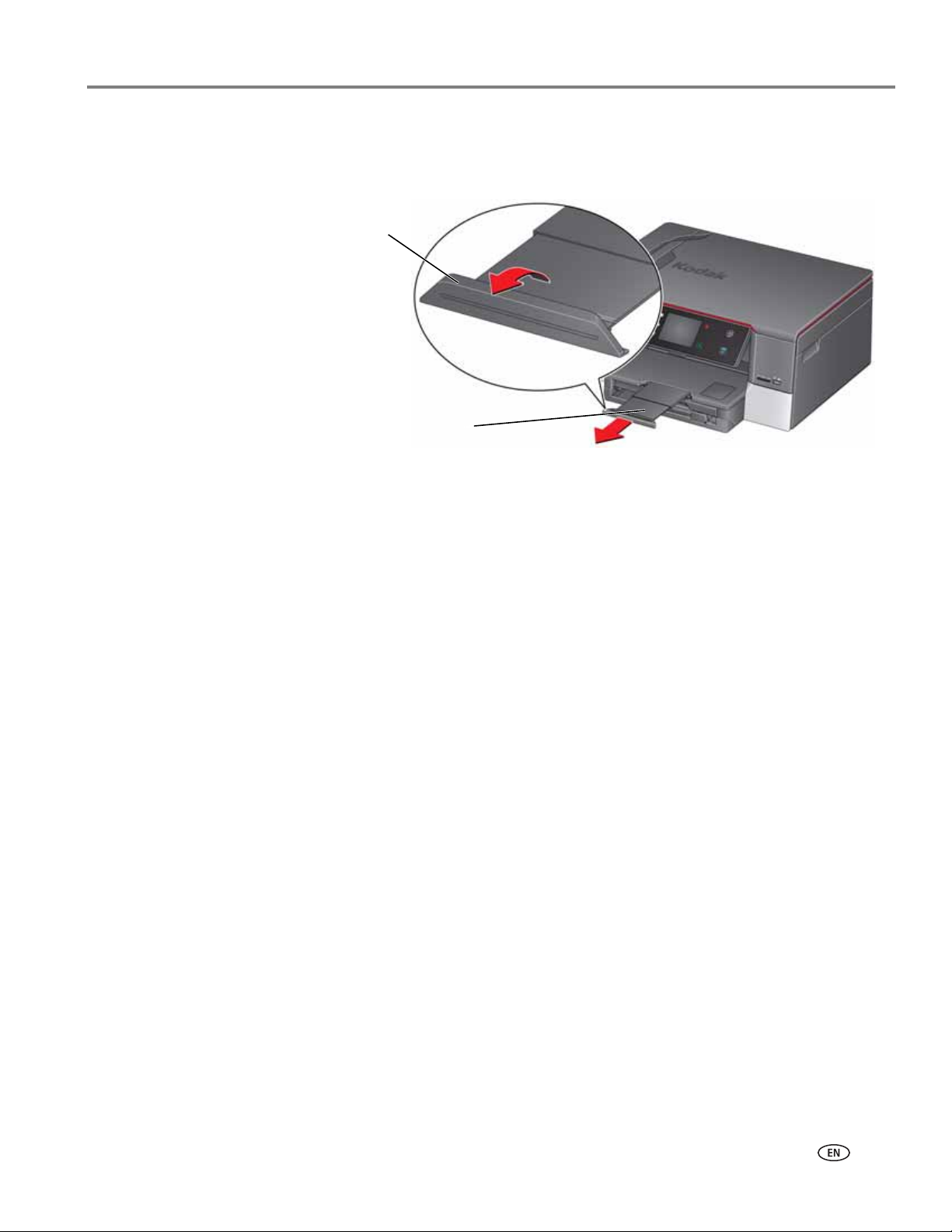

Output tray extender
Paper stop
8. Pull out the output tray extender until it is fully extended.
9. Lift the paper stop.
NOTES:
• You can also load photo paper as small as 4 x 6 in. / 10 x 15 cm in the main
paper tray.
• To load legal-size paper, pull out the output tray extender until it is fully
extended, but do not lift the paper stop.
www.kodak.com/go/aiosupport 45
Page 52
Handling Paper

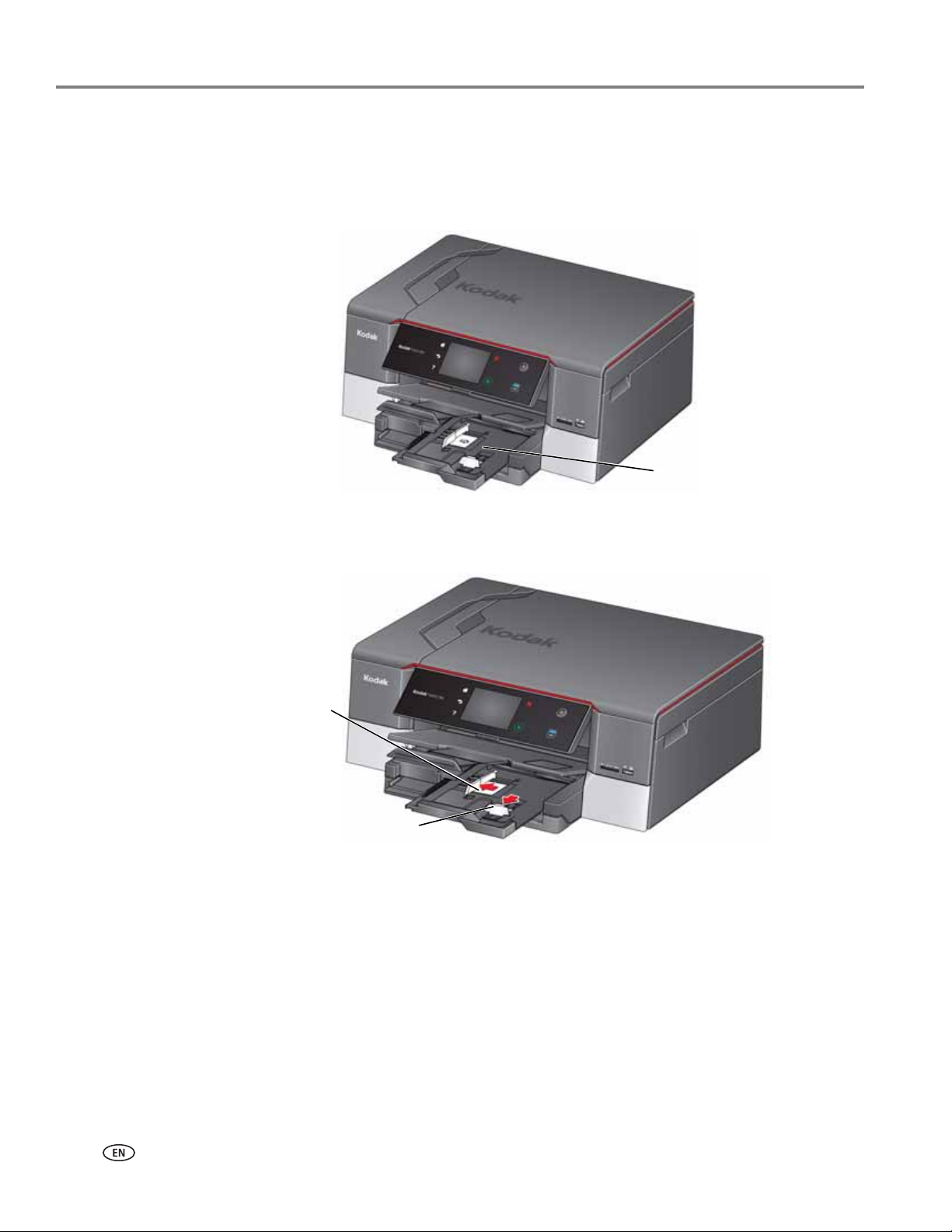

Photo paper tray
Left paperedge guide
Front paper-edge guide
Loading the photo paper tray
The photo (top) paper tray capacity is 40 sheets of photo paper.
1. Raise the output tray, and pull out the photo paper tray.
2. Move the left paper-edge guide to the far left.
3. Move the front paper-edge guide forward.
46 www.kodak.com/go/aiosupport
Page 53
KODAK HERO 7.1 All-in-One Printer

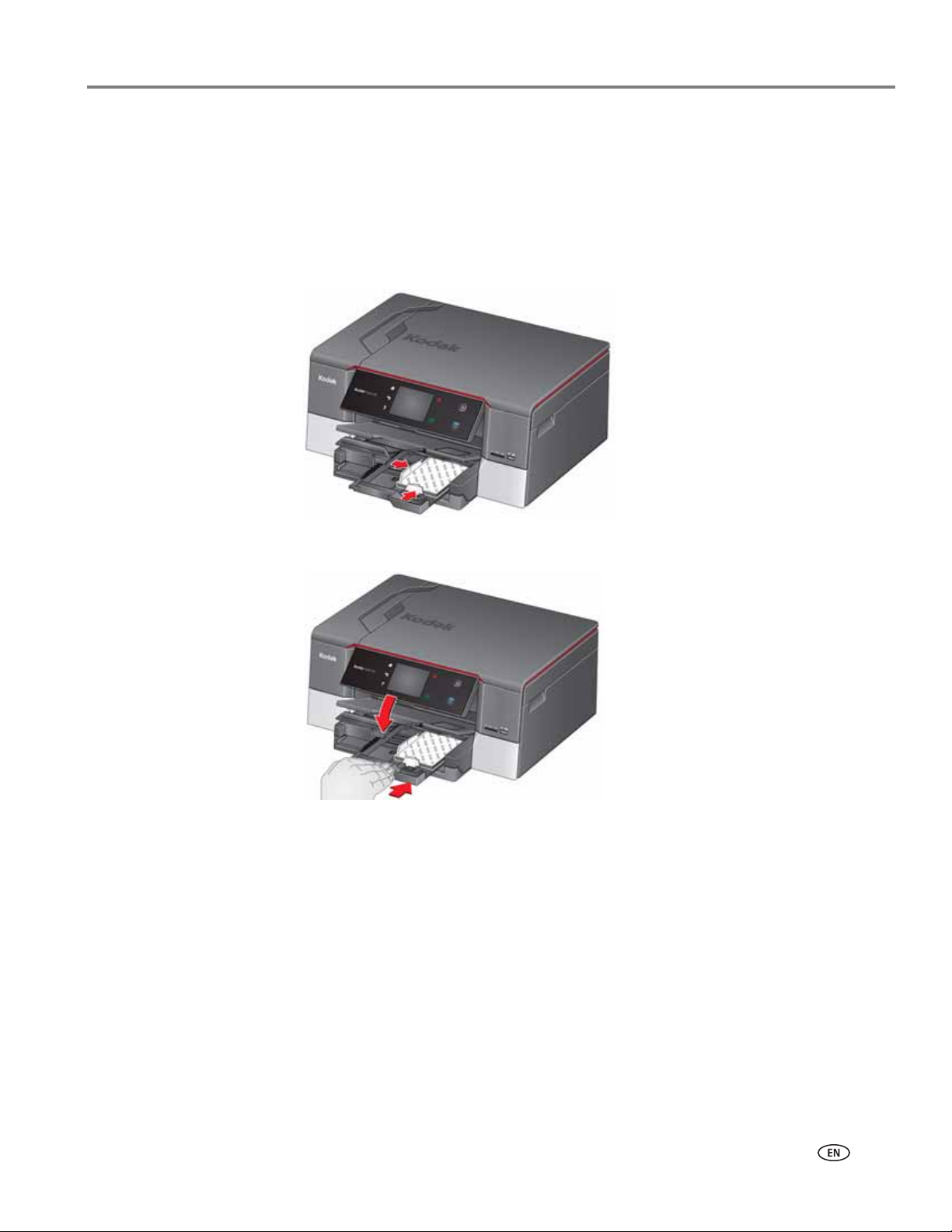

4. Insert photo paper (short side first) into the tray up against the right side of the
tray with the
IMPORTANT: If the photo paper is loaded the wrong way, the ink on your pictures will be
logo side facing up and the glossy side down.
wet and the image quality will be affected.
5. Move the paper forward until it stops.
6. Move both the left and front paper-edge guides until they touch the paper.
7. Push in the photo paper tray until it clicks into place, and lower the output tray.
www.kodak.com/go/aiosupport 47
Page 54
Handling Paper

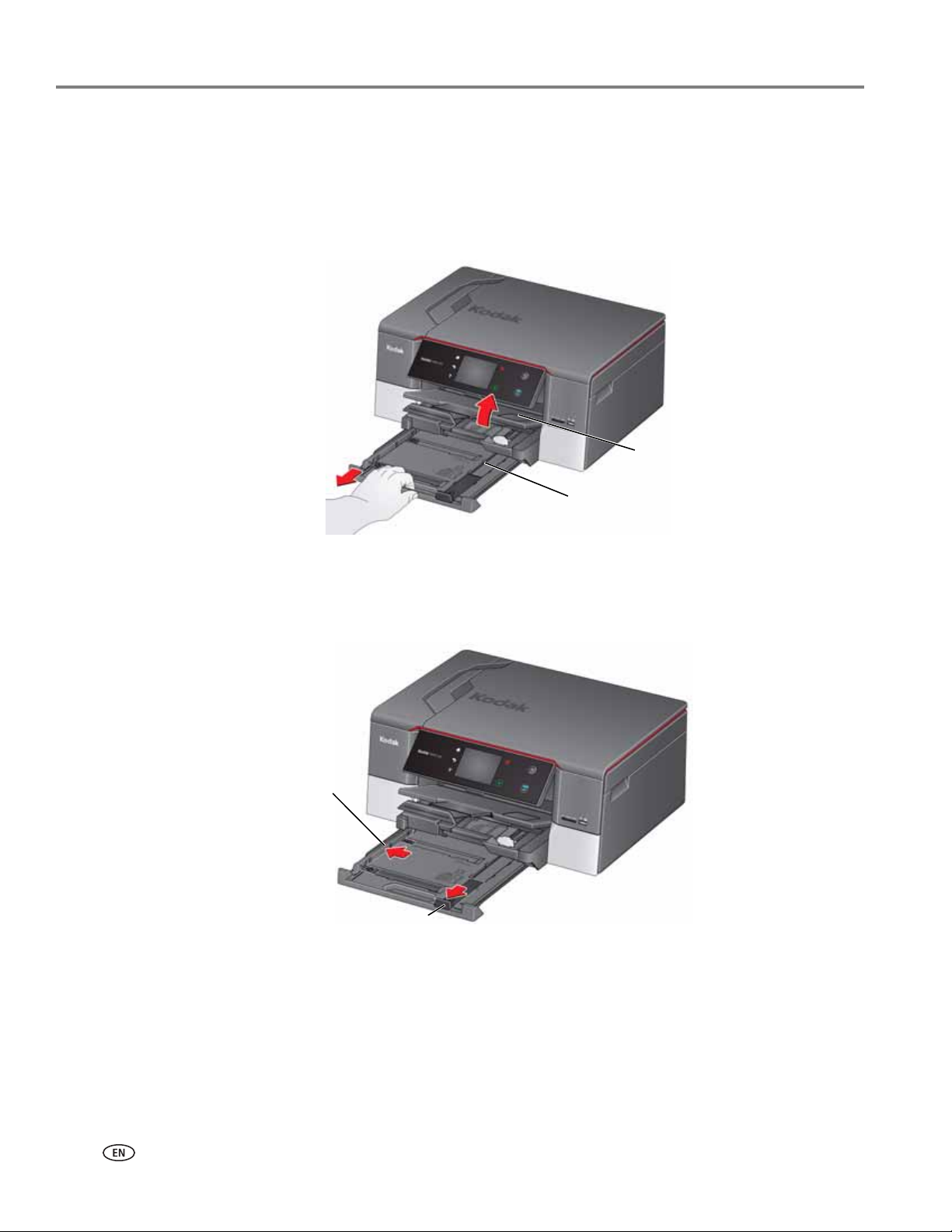

Main paper tray
Output tray
Left paperedge guide
Front paper-edge guide
Loading envelopes
The main paper tray capacity is 20 envelopes.
IMPORTANT: Do not load envelopes with cutout or clear windows.
1. Raise the output tray, and pull out the main paper tray.
2. Remove any paper from the tray.
3. Make sure the left paper-edge guide is to the far left.
4. Move the front paper-edge guide forward.
48 www.kodak.com/go/aiosupport
Page 55
KODAK HERO 7.1 All-in-One Printer

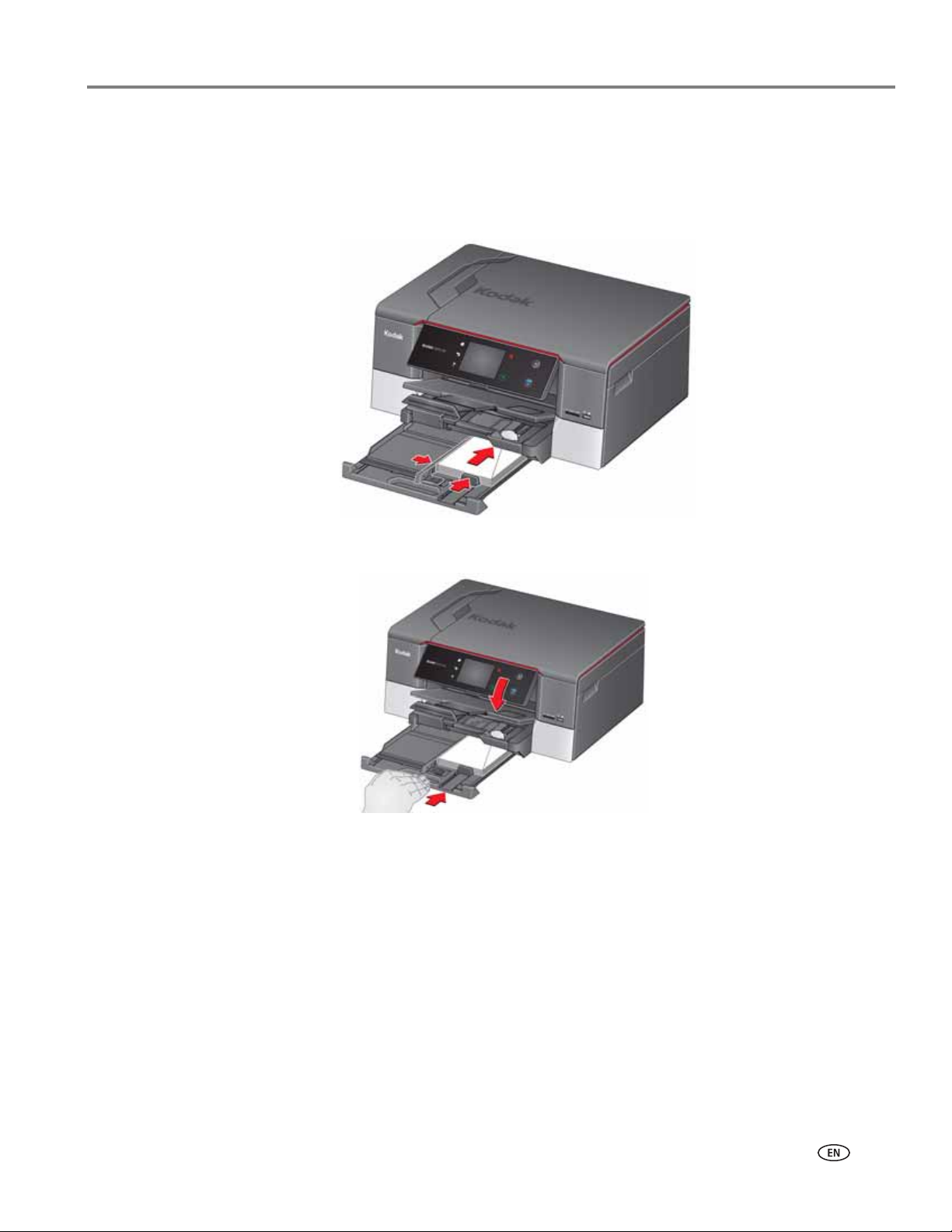

5. Insert the envelopes into the tray with the flap up and against the right side of
the tray.
6. Move the envelopes forward until they stop.
7. Move both the left and front paper-edge guides until they touch the envelopes.
8. Push in the paper tray until it clicks into place, and lower the output tray.
www.kodak.com/go/aiosupport 49
Page 56
5
Printing
Print documents and lab-quality pictures on your printer.
Manually selecting paper trays
The printer has two paper trays. When you print documents, the printer
automatically selects paper from the main (bottom) paper tray. When you print
photos, the printer automatically selects paper from the photo (top) paper tray.
To manually select a paper tray when printing from a computer with WINDOWS OS:
1. Open the document you want to print, then select
2. In the Print dialog box, make sure that
Properties.
click
3. Select the
list, select
4. Click
5. Click
To manually select a paper tray when printing from a computer with MAC OS:
1. Open the document you want to print, then select
2. In the Print dialog box, make sure that
selected.
3. From the
4. From the
5. Click
To manually select a paper tray when printing from the control panel:
1. Press .
2. Touch , then touch
3. Touch
NOTE: The Top Tray is the default when printing pictures.
4. Touch
5. Press (Start) to print.
General tab, then in the Paper settings field from the Tra y drop-down
To p t r a y or Bottom tray.
OK to close the Properties dialog box.
OK to begin printing.
Copies & Pages drop-down list, select Printer Options.
Paper Tray drop-down list, select Top tray or Bottom tray.
Print.
Copy Photo or View and Print Photos.
Options, then touch and touch Tray Selection.
Bottom Tray to select.
KODAK HERO 7.1 AiO is selected, then
Eastman Kodak Company HERO 7.1 AiO is
File > Print.
File > Print.
50 www.kodak.com/go/aiosupport
Page 57
Printing documents
To print a document from your computer:
1. Open the document.
2. Select
3. In the Print dialog box, select your KODAK Printer.
4. Choose the pages to print, number of copies, etc, then click
with WINDOWS OS) or
Printing two-sided documents
You can print two-sided documents automatically with the built-in duplexer or
manually by rotating and reloading the paper after the first side is printed.
Automatic two-sided printing
The duplexer can print two-sided documents automatically on plain paper in
standard sizes:
• letter (8.5 x 11 in. / 22 x 28 cm)
• A4 (8.3 x 11.7 in. / 21 x 30 cm)
• B5 (6.9 x 9.8 in. / 18 x 25 cm)
NOTE: The paper width must be 3.9 to 8.5 in. / 10 to 22 cm. The paper length must
File > Print.
be 7 to 11.7 in. / 18 to 30 cm.
KODAK HERO 7.1 All-in-One Printer
OK (on a computer
Print (on a computer with MAC OS).
The duplexer cannot print:
• borderless prints
•poster layout
Automatic two-sided printing from a computer with WINDOWS OS
To print two-sided documents from a computer with WINDOWS OS using the
duplexer:
1. Load plain paper into the paper tray.
2. Open the document you want to print, then select
3. In the Print dialog box, make sure that
with a wireless connection have a 4-digit number added to the end of the
name), then click
4. Select the
5. In the Two-sided printing field, select
NOTE: You can also select automatic two-sided printing from the
the
6. Under “Flip on:”, select
Layout tab.
Job settings field.
Properties.
Long edge or Short edge, then click OK.
KODAK HERO 7.1 AiO is selected (printers
Automatic.
File > Print.
General tab under
www.kodak.com/go/aiosupport 51
Page 58
Printing
7. Clic k OK to start the print request.
Automatic two-sided printing from a computer with MAC OS
To print two-sided documents from a computer with MAC OS using the duplexer:
1. Load plain paper into the paper tray.
2. Open the document you want to print, then select
3. In the Print dialog box, make sure that
4. In the
5. In the
6. Click
Manual two-sided printing
You can print two-sided documents on any size paper that the printer accepts (see
Paper sizes, page 41) when you rotate the paper manually.
File > Print.
Eastman Kodak Company HERO 7.1 AiO is
selected (printers with a wireless connection have a 4-digit number added to
the end of the name).
Copies & Pages drop-down list, select Layout.
Tw o -S i d ed drop-down list, select either Long-Edge binding or Short-Edge
binding
.
Print.
IMPORTANT: Two-sided printing can only be done on media that can absorb ink on both
sides, such as plain paper or two-sided photo paper. Do not print two-sided
on bar-coded photo paper (the bar code is on the back side).
Manual two-sided printing from a computer with WINDOWS OS
To print two-sided documents from a computer with WINDOWS OS:
1. Load paper into the paper tray.
2. Open the document you want to print, then select
3. In the Print dialog box, make sure that
KODAK HERO 7.1 AiO is selected (printers
File > Print.
with a wireless connection have a 4-digit number added to the end of the
name), then click
4. Select the
Layout tab.
5. In the Two-sided printing field, select
NOTE: You can also select manual two-sided printing from the
Job settings field.
the
6. Under “Flip on:”, select
7. Clic k
OK to start the print request.
Properties.
Manual, then click OK.
General tab under
Long edge or Short edge, then click OK.
8. When a message appears on your computer and control panel, remove the
printed pages from the output tray, then follow the instructions on the control
panel.
9. Press on the control panel.
52 www.kodak.com/go/aiosupport
Page 59
Manual two-sided printing from a computer with MAC OS
To print two-sided documents from a computer with MAC OS:
1. Load paper into the paper tray.
2. Open the document you want to print, then select
3. In the Print dialog box, make sure that
selected (printers with a wireless connection have a 4-digit number added to
the end of the name).
4. In the Print dialog box, select the
5. Click
Print.
6. When the even pages have finished printing, follow the instructions on the
control panel to reload the printed pages in the paper input tray.
7. Press on the control panel to print the odd numbered pages.
Printing forms from the control panel
You can print the following forms from the control panel:
• Graph paper
•Wide ruled
• Narrow ruled
• Grocery list
•Reminder list
• Tic-tac-toe
• Sheet music (portrait)
• Sheet music (landscape)
KODAK HERO 7.1 All-in-One Printer
File > Print.
Eastman Kodak Company HERO 7.1 AiO is
two-sided check box.
To p r i nt a f o r m:
1. Press .
2. Touch , then touch
Forms.
3. Touch a form type to select it.
4. Use the LCD keyboard to type a quantity, then touch
5. Press on the control panel.
www.kodak.com/go/aiosupport 53
OK.
Page 60
Printing
Printing pictures
You can print pictures with your all-in-one printer from:
• A memory card inserted into a memory card slot
• A storage device (such as a flash drive) or camera connected to the front USB
• An iPhone, iPod touch, iPad, BLACKBERRY Device, or an ANDROID OS Device
You can also print pictures using Home Center Software from your computer with
WINDOWS OS. Home Center Software lets you edit and enhance your pictures
quickly. Open Home Center Software, select
on-screen instructions.
On a computer with either MAC OS or WINDOWS OS, you can print pictures from
KODAK EASYSHARE Software or any picture-editing or photo-management
software.
port with a USB cable
(may not be available with all models). For information, go to
www.kodak.com/go/mobile.
Edit and Print Pictures, then follow the
Viewing pictures on a memory card or USB-connected device
When you insert a memory card into the card slot on your printer, or connect a USB
Device to the front USB port, touch
the pictures.
Finding pictures on a memory card or USB-connected device
Your printer can help you locate pictures on a memory card or USB-connected
device by the date the picture was taken or last saved.
To locate pictures:
1. Insert the memory card into the memory card slot or connect the USB device to
the USB port.
2. Touch Find Photo.
3. Touch
4. Touch
Ye a r , Month, and Day to select a specific year, month, or day.
OK to view the pictures.
View Photos and touch or to scroll through
54 www.kodak.com/go/aiosupport
Page 61
Printing from a memory card or USB-connected device
You can print pictures from the following cards or USB-connected devices:
MS SD/HC MMC Card slot Front USB port
KODAK HERO 7.1 All-in-One Printer
• MULTIMEDIA Card
(MMC)
• SECURE DIGITAL (SD)
Card
• SECURE DIGITAL High
Capacity (SDHC)
Card
• Variations of the
memory cards above
that require an
adapter (for example,
MEMORY STICK Duo,
miniSD, microSD, and
T-Flash)
IMPORTANT: If you use a memory card with an adapter, make sure you insert and remove
• PICTBRIDGE
Technology enabled
camera
• Flash drive
• MSC Cameras
(cameras as USB
storage device)
the adapter and the memory card as a unit; do not remove the memory card
while leaving the adapter in the printer.
www.kodak.com/go/aiosupport 55
Page 62
Printing

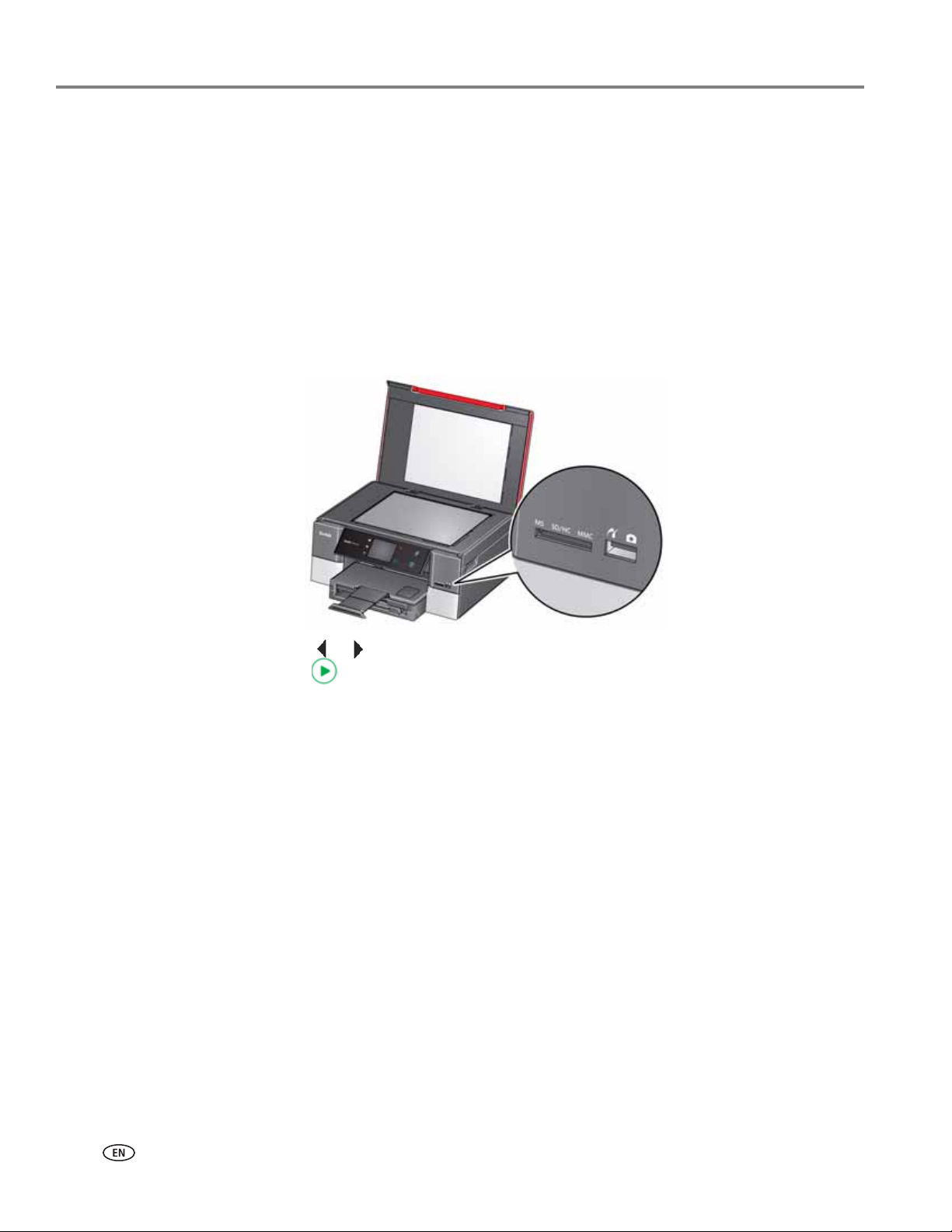

Using default settings to print a picture
Unless you change the default settings, the default for printing pictures is one
4 x 6 in. / 10 x 15 cm picture. (To change the default settings, see Save as Defaults,
page 58.)
To print a picture from a memory card or USB-connected device using the default
settings:
1. Insert the memory card into the appropriate slot, or connect the digital camera
or portable drive to the front USB port, then touch
IMPORTANT: Use only one slot or port at a time.
View Photos.
2. Touch or to locate the picture you want to print.
3. Press to begin printing.
The printer prints a single 4 x 6 in. / 10 x 15 cm picture.
IMPORTANT: To prevent loss of data from your memory card, do not remove it from the
printer while printing.
56 www.kodak.com/go/aiosupport
Page 63

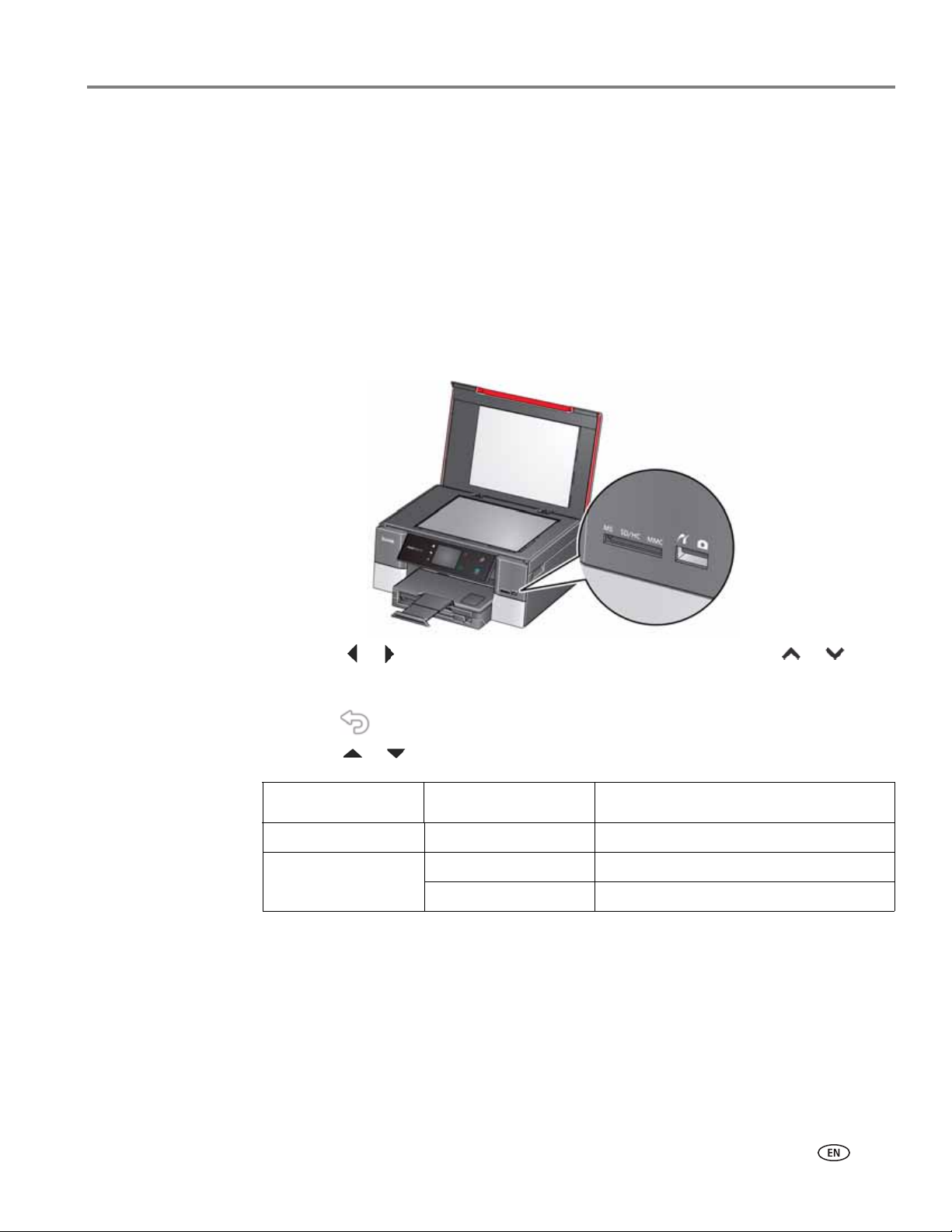

Changing the settings and printing pictures
You can change the print photos options for an individual picture or group of
pictures, or you can change the settings and save them as the default.
To print a picture or pictures using settings other than the default settings:
1. Load photo paper with the logo side facing up (see Loading the photo paper tray,
page 46), and move the paper edge guides until they touch the paper.
2. Insert the memory card into the appropriate slot, or connect the digital camera
or portable drive to the front USB port, then touch
IMPORTANT: Use only one slot or port at a time.
KODAK HERO 7.1 All-in-One Printer
View Photos.
3. Touch or to locate the picture you want to print, then touch or to
select a quantity.
4. Repeat step 2 for each picture you want to print.
5. Press .
6. Touch or and touch the setting you want to change.
Print Photos Option Settings Description
Quantity 1 (default) to 99 The number of copies that print.
Color Color (default) Prints full color.
Black & White Prints black and white (gray scale).
www.kodak.com/go/aiosupport 57
Page 64
Printing
Print Photos Option Settings Description
Print Size 4 x 6 (default)
4 x 7
5 x 7
If the bottom tray is
selected, the following
choices also appear:
4 x 8
4 x 12
8 x 10
8.5 x 11 or A4
Tray Selection Top Tray (default) Picture prints on the paper in the top
Bottom Tray Picture prints on the paper in the
Quality
Scene Balance On (default) / Off Adjusts the image brightness to correct
Best (default) The printer detects when you load photo
If the selected print size is smaller than
the paper in the paper tray, the printer
automatically arranges the pictures to
best fit the paper size.
tray.
bottom tray.
paper and sets Best quality
automatically.
for underexposure and reduces the
variation in contrast in different areas of
the picture.
Add Date to Prints No (default) / Yes Prints the date the picture was taken or
last edited in a corner of the print.
Tran s f e r A ll t o P C
Save as Defaults
No (default) / Yes
Your printer and computer must be
connected with a USB cable.
To transfer all the pictures on the
memory card to your computer, press
on the control panel.
To save settings as the new default,
touch
Ye s .
NOTE: You can also adjust the print photo options using the Online Printer
Management Tool. When viewing the tool in your browser (see Accessing
the Online Printer Management Tool, page 20), select the
select
Copy & Print > Print Photo.
Settings tab, then
7. When you have finished changing settings, press to begin printing.
IMPORTANT: To prevent loss of data from your memory card, camera, or portable drive,
do not remove it from the printer while printing.
58 www.kodak.com/go/aiosupport
Page 65

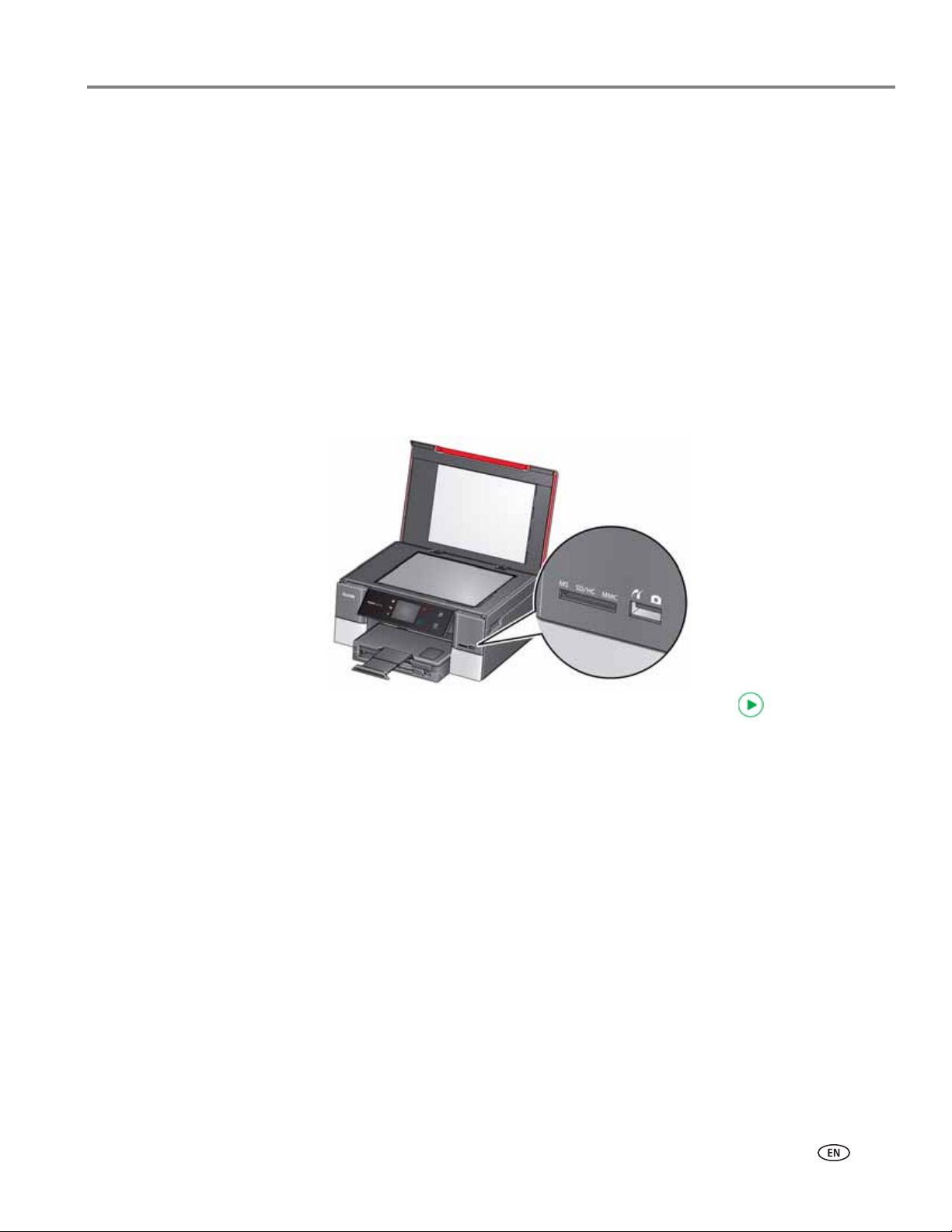

Printing tagged pictures
Some digital cameras let you tag (or “mark”) pictures on the memory card for
printing. This creates a tag that is recognized by the printer. If you choose to print
tagged pictures, they will be printed according to the default settings on your printer
(unless otherwise specified by the tag from the camera).
NOTE: Refer to your camera user guide to determine whether your camera supports
To print tagged pictures:
NOTE: Make sure Tagged Images Printing is On (see Configuring printer settings,
KODAK HERO 7.1 All-in-One Printer
tagged pictures (may also be called “marked” or “DPOF”) functionality.
page 8).
1. Insert the memory card or a connect a camera to the front USB port.
2. When the “Print tagged images?” message appears, press .
www.kodak.com/go/aiosupport 59
Page 66
Printing

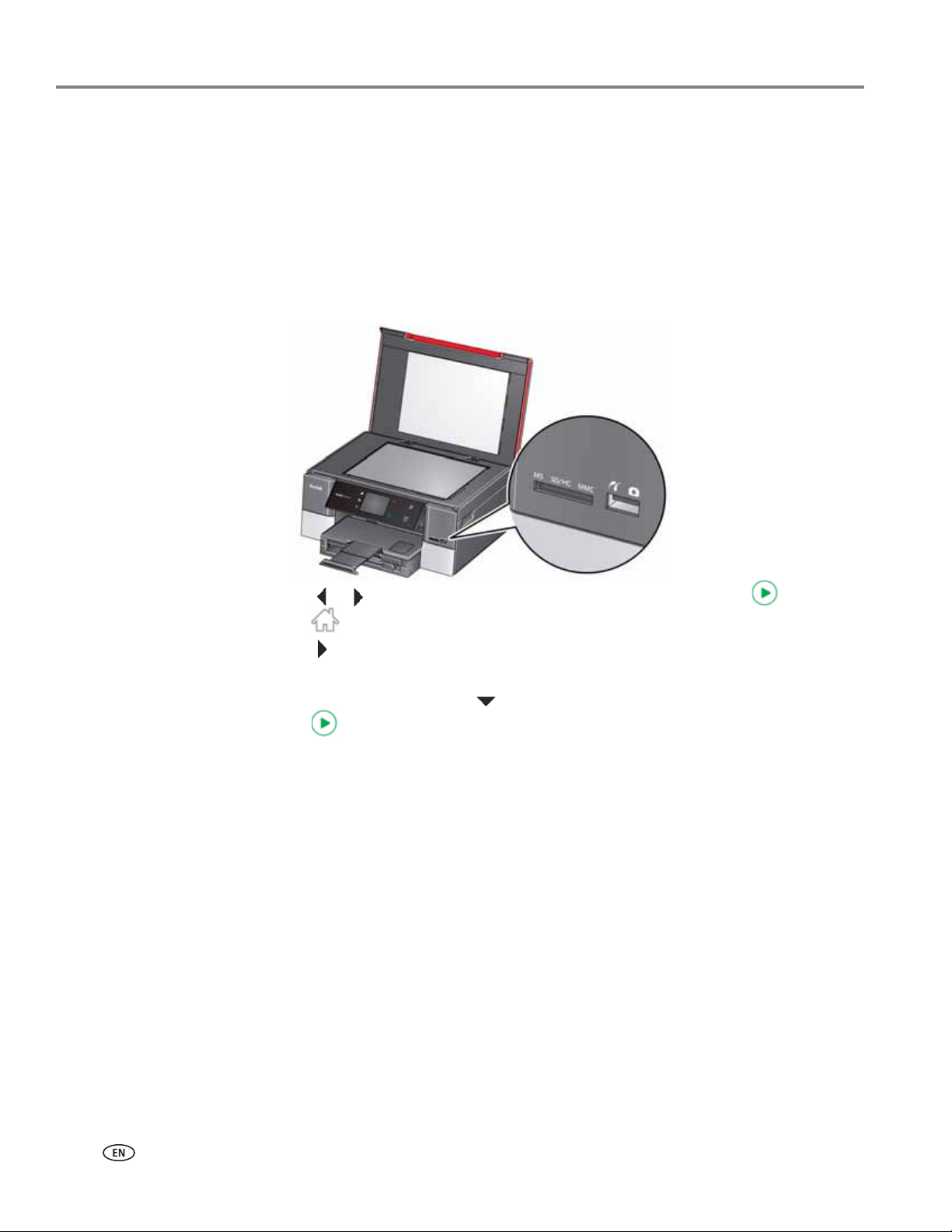

Printing panoramic pictures
To print a panoramic picture, load 4 x 12 in. / 10 x 31 cm paper, or 8.5 x 11 in. / 22 x
28 cm or A4 paper in the main paper tray.
1. Insert the memory card into the memory card slot, or connect a camera or
storage device (such as a flash drive) to the front USB port, then touch
Photos
IMPORTANT: Use only one slot or port at a time.
View
.
2. Touch or to locate the picture you want to print, then press .
3. Press .
4. Touch , then touch
5. Touch
6. Touch
Options, Tray Selection, then Bottom Tray.
Print Size, then touch and touch 4 x 12 to select.
View and Print Photos.
7. Pre s s to begin p r inting.
IMPORTANT: To prevent loss of data from your memory card, camera, or portable drive,
do not remove it from the printer while printing.
60 www.kodak.com/go/aiosupport
Page 67

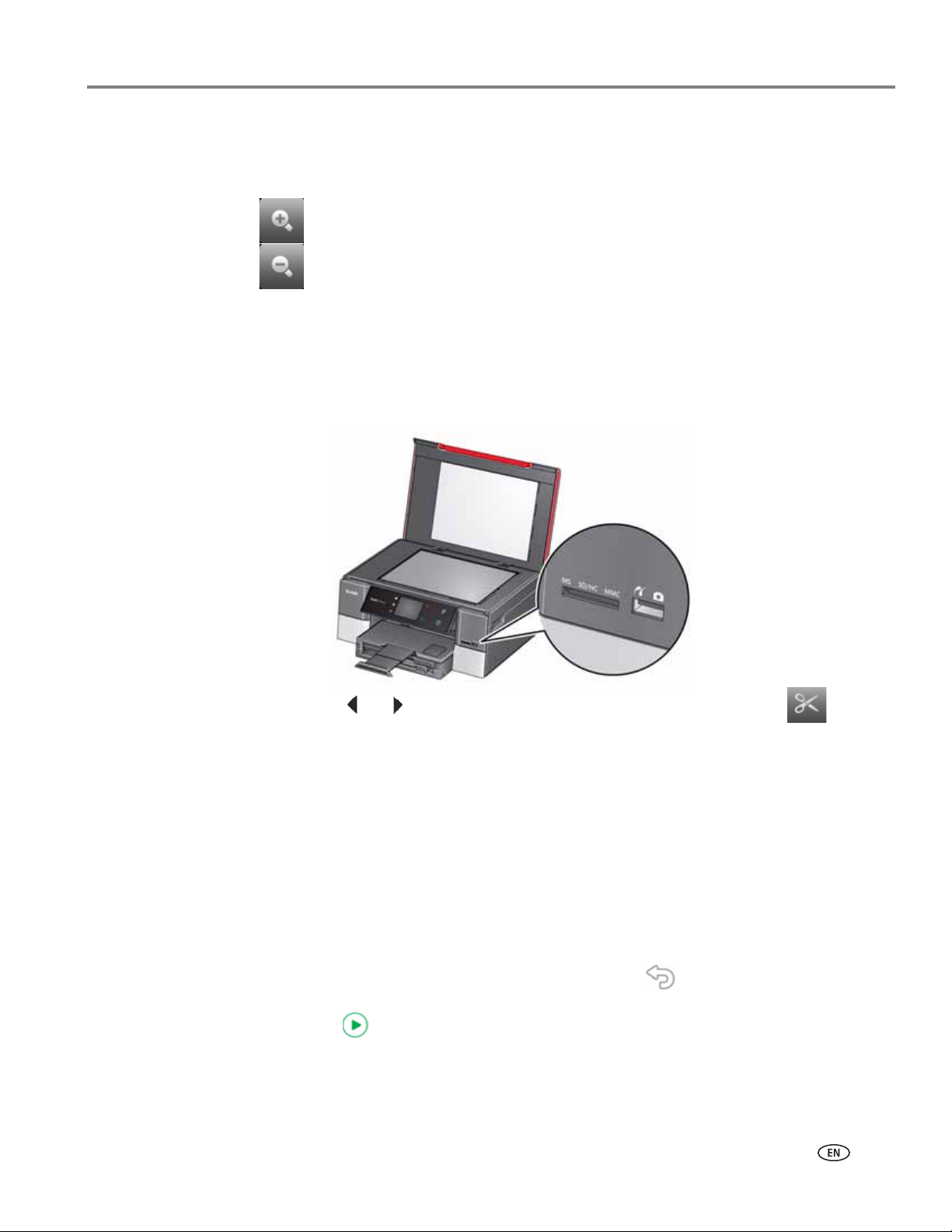

Zooming and cropping pictures
Use the zoom buttons to select a portion of your picture for printing.
To zoom and crop a picture:
1. Insert the memory card into the appropriate slot, or connect the digital camera
or portable drive to the front USB port, then touch
IMPORTANT: Use only one slot or port at a time.
KODAK HERO 7.1 All-in-One Printer
View Photos.
2. Touch or to locate the picture you want to crop, then touch .
3. Press
Zoom + to enlarge the picture. A red box shows the area that will be
printed.
NOTE: You can press
0.25 up to a magnification of 5X. Press
Zoom + repeatedly to enlarge the picture in increments of
Zoom – to decrease the magnification
in increments of 0.25 down to 1X.
4. Use the navigation buttons to move the picture on the LCD up, down, left, or
right. Only the part of the picture in the red box will print. The crop window
matches the aspect ratio of the selected output print size.
NOTE: Zooming and cropping does not change the saved picture on the memory
card.
5. When you are satisfied with the picture, press . The picture appears in the
original view with a red box around the portion of the picture that will print.
6. Press to begin printing.
www.kodak.com/go/aiosupport 61
Page 68
Printing
Printing from a wireless device
You can print pictures wirelessly at the touch of a button from:
• iPhone (iOS 3.0 or later)
• iPod touch (2nd generation)
•iPad
• BLACKBERRY Device (software v4.5 or later)
• a device running ANDROID OS v2.0 or later
For more information, see Mobile Printing, page 64.
Transferring pictures to a computer
You can transfer your pictures from a memory card or USB-connected device in the
printer to your computer. To transfer these files, the printer
your computer with a USB cable, and Home Center Software must be installed on
your computer.
NOTE: If you have large video files or a large number of pictures (400 or more), we
recommend that you use a memory card reader attached directly to your
computer to transfer them.
must be connected to
Transferring pictures to a computer with WINDOWS OS
1. Insert the memory card into the memory card slot on the printer.
2. Touch
3. Touch
4. Press .
5. If your computer is connected to a wireless network and with a USB cable, select
the USB-connected printer (no number after the printer name).
6. Follow the on-screen instructions on your computer.
NOTE: You can adjust the Photo print settings using the Online Printer
Options.
Transfer All to PC.
Management Tool. When viewing the tool in your browser (see Accessing
the Online Printer Management Tool, page 20), select the
select
Copy & Print > Print Photo.
Settings tab, then
62 www.kodak.com/go/aiosupport
Page 69
Transferring pictures to a computer with MAC OS
1. Insert the memory card into the memory card slot on the printer.
2. Touch
3. Touch
4. Press .
5. If your computer is connected to a wireless network and with a USB cable, select
the USB-connected printer (no number after the printer name).
6. Use iPhoto or Image Capture on your computer to complete the transfer.
NOTE: You can adjust the Photo print settings using the Online Printer
Options.
Transfer All to PC.
Management Tool. When viewing the tool in your browser (see Accessing
the Online Printer Management Tool, page 20), select the
select
Copy & Print > Print Photo.
KODAK HERO 7.1 All-in-One Printer
Settings tab, then
www.kodak.com/go/aiosupport 63
Page 70
6
Mobile Printing
You can print pictures wirelessly with your all-in-one printer from:
• An iPhone / iPad / iPod Touch (may not be available with all models);
for information, go to www.kodak.com/go/picflick.
• BLACKBERRY Devices; for information, go to www.kodak.com/go/blackberry.
• ANDROID OS Devices; for information, go to www.kodak.com/go/android.
Download the KODAK Pic Flick App from the App Store directly from your device.
Follow the procedure for your device.
Printing from an iPhone, iPad, or iPod Touch
IMPORTANT: Compatible with iPhone, iPad, and iPod Touch (2nd generation). Requires
iOS 3.0 or later.
1. Make sure your device is connected to the same Wi-Fi network as your printer.
2. Open the KODAK Pic Flick application on your device.
3. Select the picture(s) you want to print, then select Choose Device.
4. Select your KODAK All-in-One Printer from the list of available devices.
5. Select Send.
Printing from a BLACKBERRY Device
1. Make sure your BLACKBERRY Device is connected to the same Wi-Fi network
as your printer.
2. Open the KODAK Pic Flick application on your smartphone.
3. Select the picture(s) you want to print.
4. Press the Menu key.
5. Select Print.
6. Select your KODAK All-in-One Printer from the list of available devices.
NOTE: It may take a few minutes for the printer to appear in the Available
Printers list.
7. Select the print size and enter the number of copies.
8. Select Print.
www.kodak.com/go/aiosupport 64
Page 71
Printing from an ANDROID OS Device
1. Make sure your device is connected to the same Wi-Fi network as your printer.
2. Open the KODAK Pic Flick application on your phone.
3. Select the picture(s) you want to print.
4. Select View/Edit to edit the picture(s), or go to the next step.
a. Press and hold the screen to enter the edit mode.
b. Rotate, move, pan, zoom, or crop the picture.
5. Press
6. Choose the print size.
7. S el ect Back.
8. Select Send.
Select Device, then select your KODAK All-in-One Printer.
KODAK OFFICE HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 65
Page 72
7
Copying
You can copy documents and photographs with your all-in-one printer. The printer
produces high-quality color or black-and-white copies on a variety of paper types
(see Paper types, page 40).
Copying a document
You can copy a document using the default settings, or you can make adjustments to
the quantity, size, quality, and brightness of your copies. When you copy a
document, the printer will always use paper from the main (bottom) paper tray.
Using the default settings to copy a document
The default settings are either the factory default settings (see Resetting factory
defaults, page 103), or defaults that you have set on the printer (see Save as
defaults, page 68).
To copy a document using the current default settings:

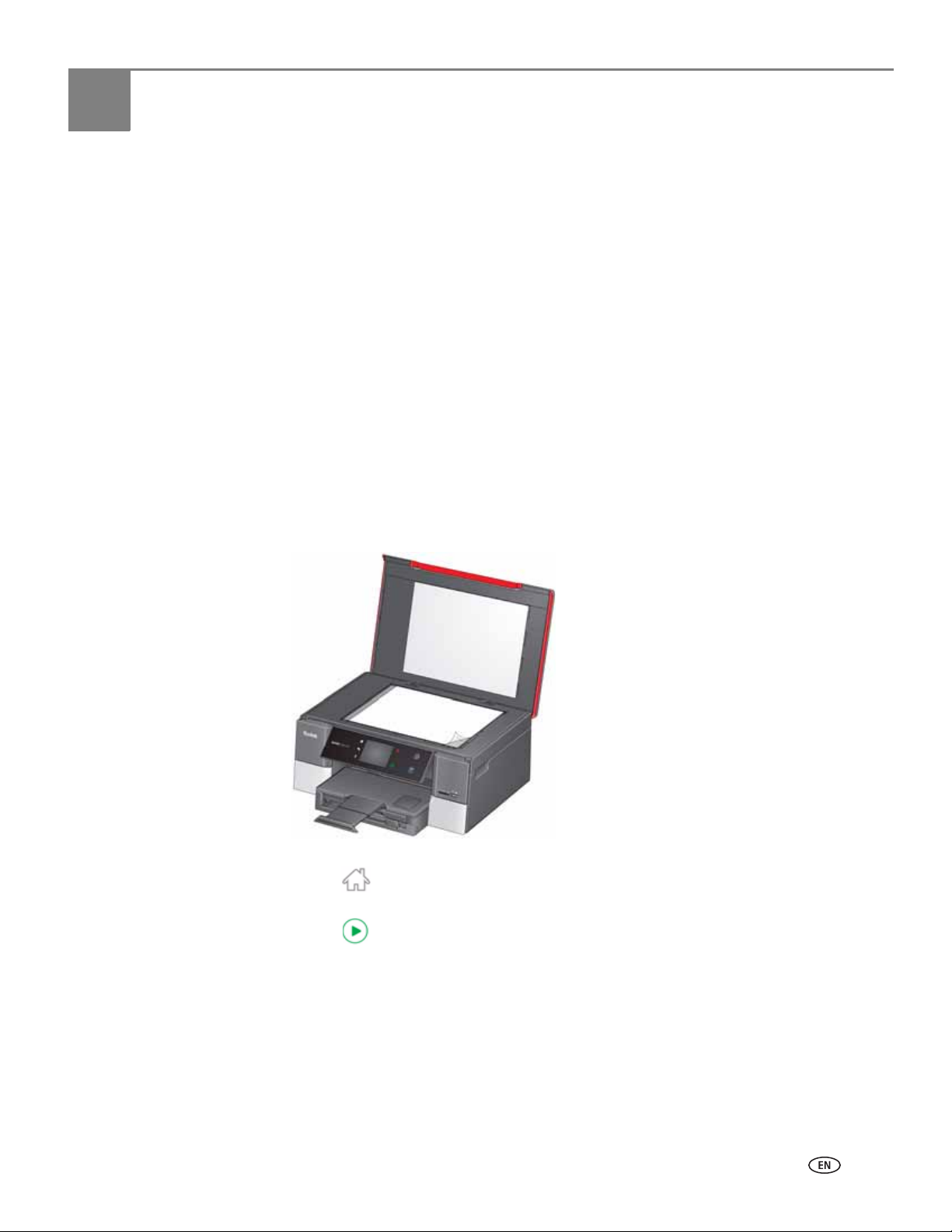

1. Lift the scanner lid, and place the document face down in the right-front corner
of the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Press to begin copying.
Copy Document.
www.kodak.com/go/aiosupport 66
Page 73
Adjusting the settings and copying a document
1. Lift the scanner lid, and place the document face down in the right-front corner
of the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch or , then touch the setting you want to change.
Copy Document, then touch Options.
KODAK HERO 7.1 All-in-One Printer
Copy Document
Option
Quantity 1 (default) to 99 The number of copies that print.
Color Mode Color (default) Prints full color.
Copy Size Same Size
Lighter/Darker Normal,
Setting Description
Black & White Prints black and white (gray scale).
The copy is the same size as the
(default)
Fit to Page The printer detects the size of the
Choose Percentage Reduces to 20% or enlarges to 500%
− 3 to +3
(Normal is default)
original.
original on the scanner glass and the
size of the paper in the paper tray, and
automatically reduces or enlarges the
original so that the copy fits on the
paper.
of the original size.
Lightens or darkens the copy.
Normal is no change from the original;
− 3 is the darkest; +3 is the lightest.
www.kodak.com/go/aiosupport 67
Page 74
Copying
Copy Document
Option
Quality Normal
Save as defaults No / Yes To save settings as the new default,
Setting Description
Good quality output; prints faster than
(default)
Best The highest quality, but the slowest
Draft The fastest print speed, but the lowest
Best.
print speed; eliminates the banding
effect that sometimes occurs when
printing Draft or Normal.
quality.
Ye s .
touch
6. Press to begin copying.
68 www.kodak.com/go/aiosupport
Page 75
Changing the number of copies of a document

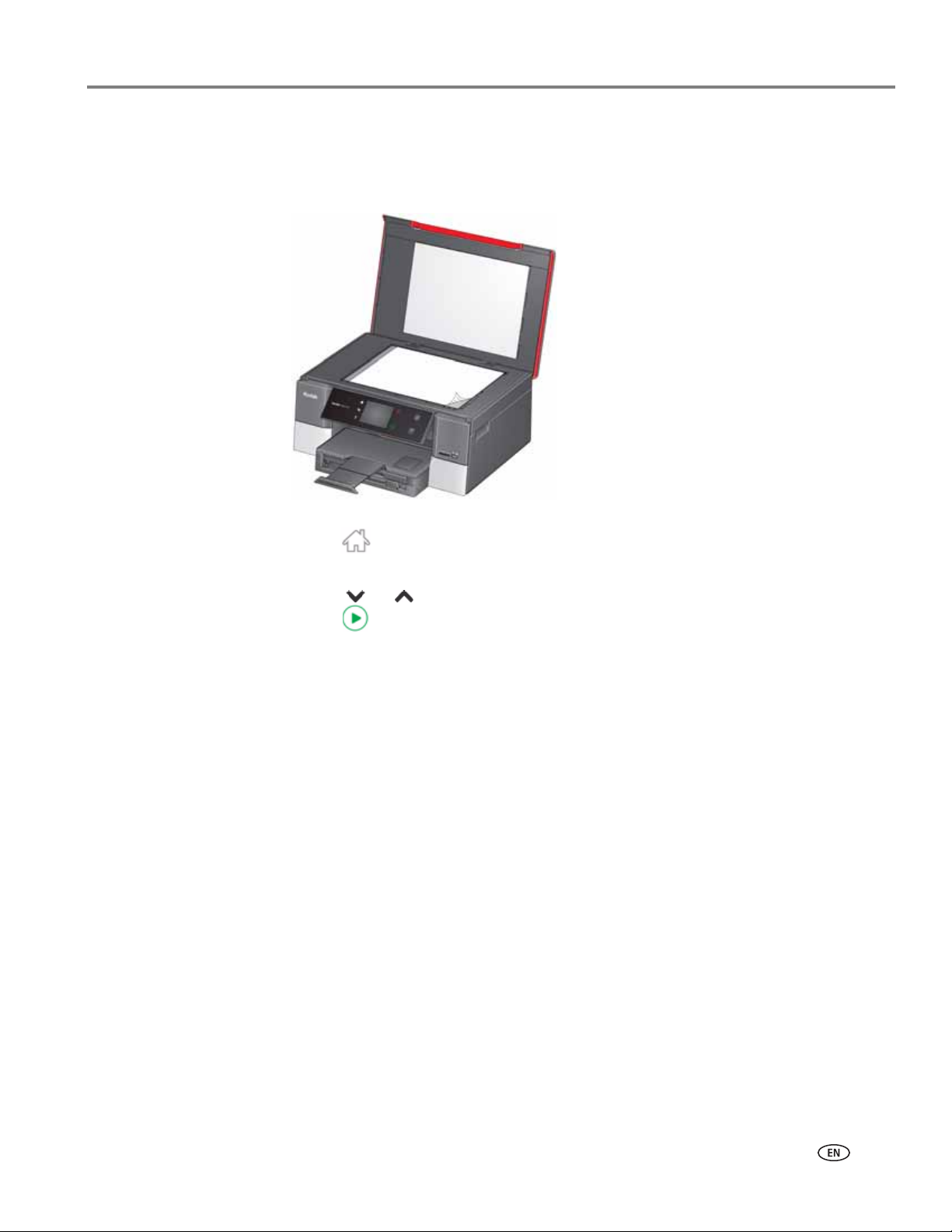

1. Lift the scanner lid, and place the document face down in the right-front corner
of the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch or to select a number.
6. Press to begin copying.
Copy Document.
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 69
Page 76
Copying
Enlarging or reducing the size of a copy

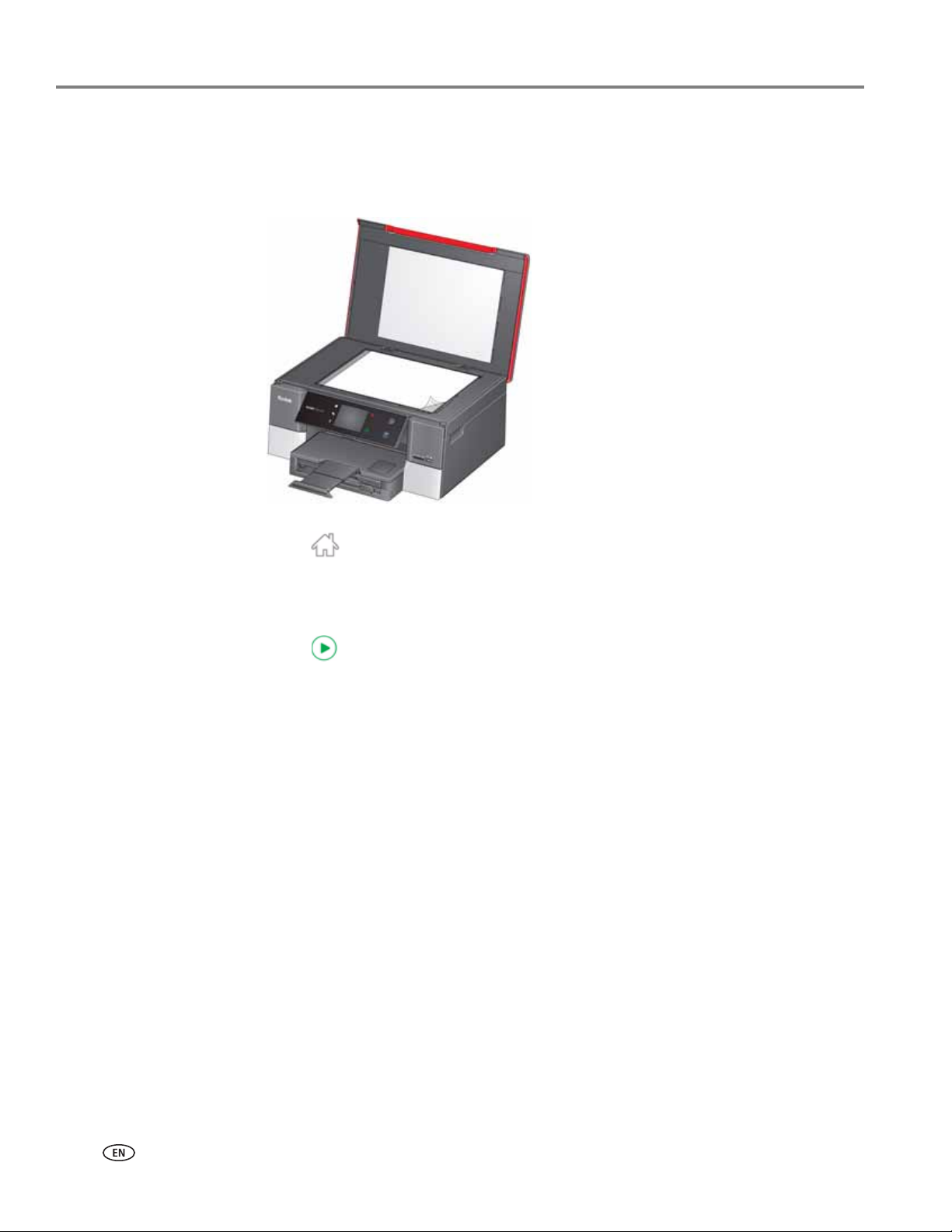

1. Lift the scanner lid, and place the document face down in the right-front corner
of the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch
6. Touch an enlargement or reduction selection.
7. Press to begin copying.
Copy Document, then touch Options.
Copy Size.
70 www.kodak.com/go/aiosupport
Page 77

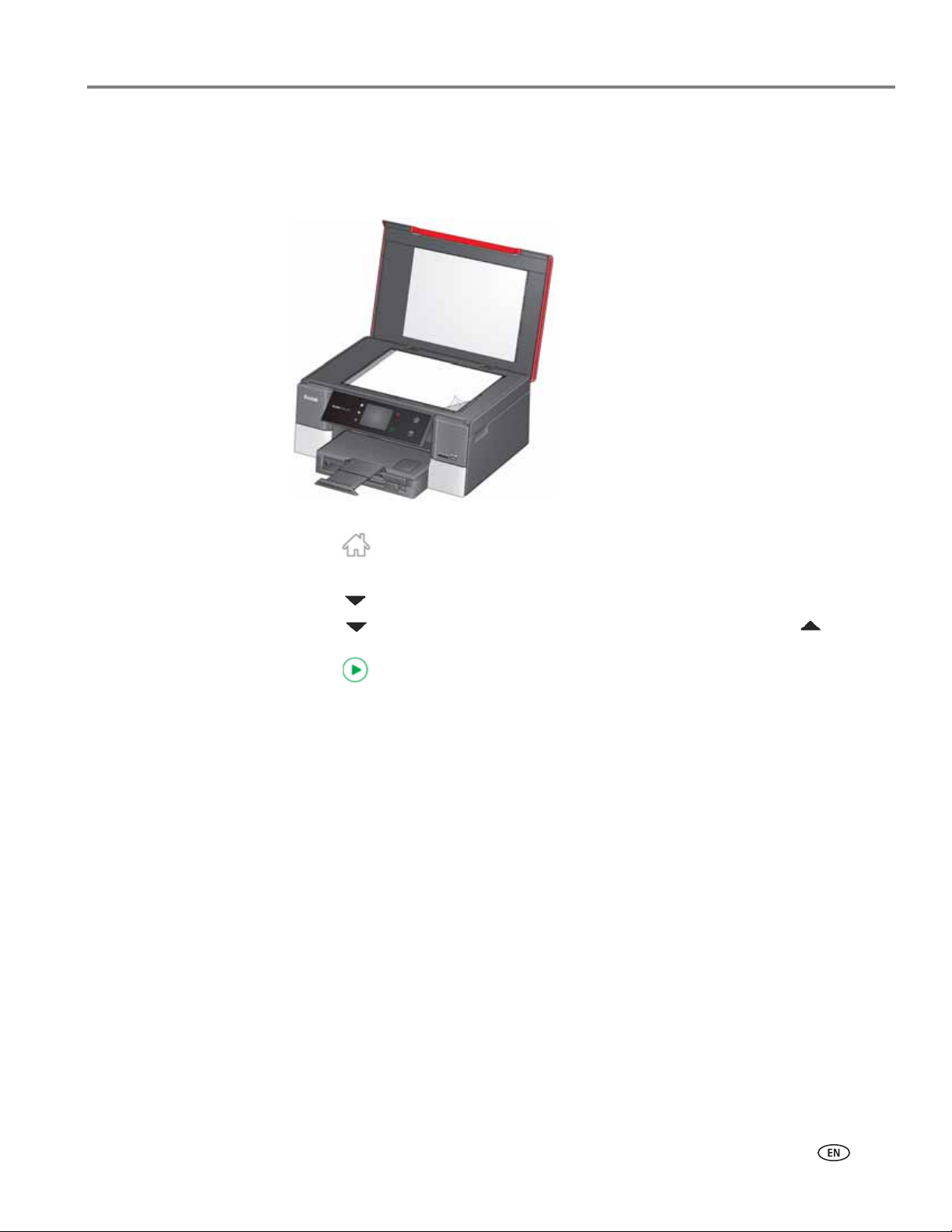

Darkening or lightening a copy
1. Lift the scanner lid, and place the document face down in the right-front corner
of the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch , then touch
6. Touch to select a number below zero for a darker copy, or press to select
a number above zero for a lighter copy.
7. Pre s s to begin c opying .
Copy Document, then touch Options.
KODAK HERO 7.1 All-in-One Printer
Lighter/Darker.
www.kodak.com/go/aiosupport 71
Page 78
Copying
Copying a photo
You can copy a photo using the default settings, or you can make adjustments to the
quantity, size, quality, and brightness of your copies. When you copy a photo, the
printer will use paper from the top paper tray, unless you specify otherwise.

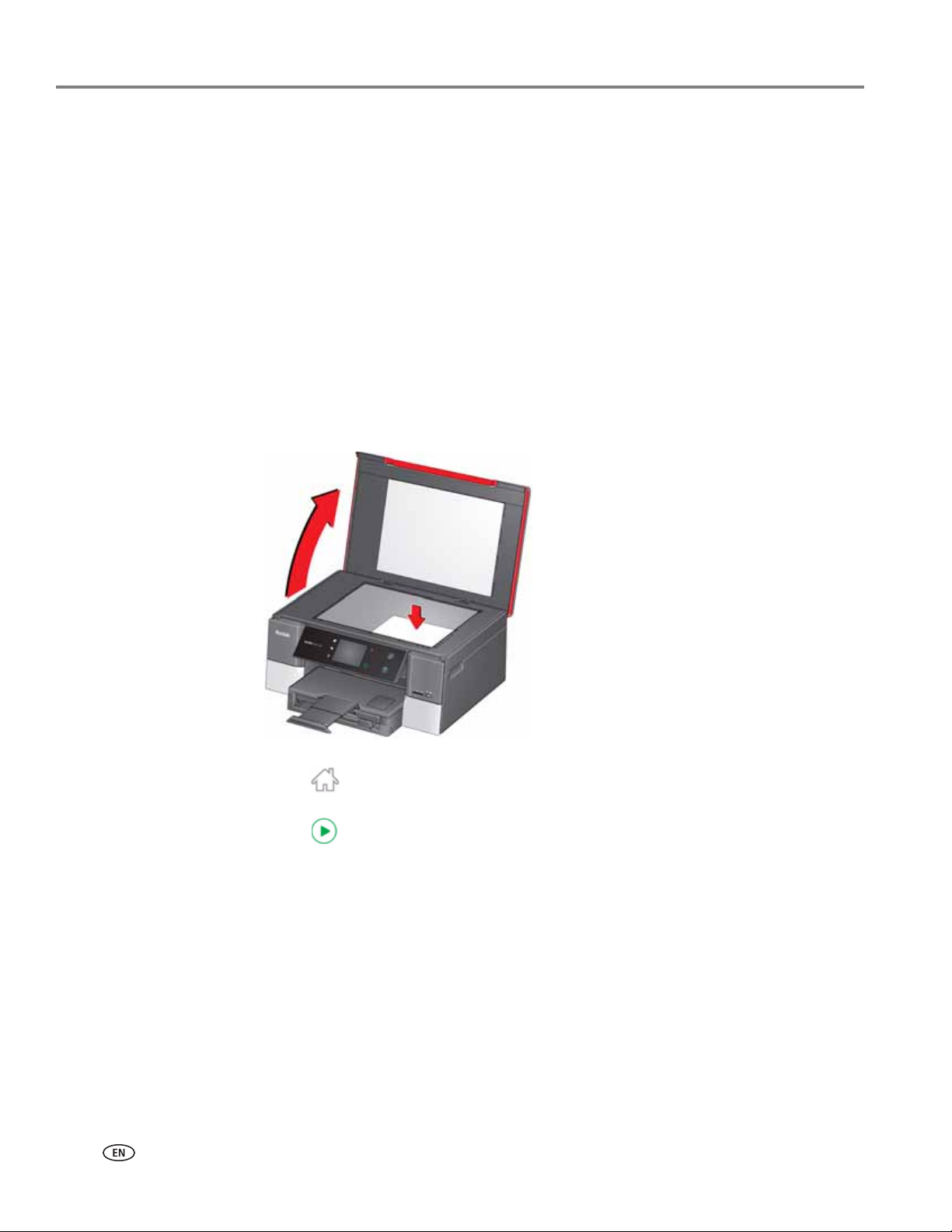

Using the default settings to copy a photo
The default settings are either the factory default settings (see Resetting factory
defaults, page 103), or defaults that you have set on the printer (see Save as
Defaults, page 74).
To copy a photo using the current default settings:
1. Lift the scanner lid, and place the photo face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Press to begin copying.
72 www.kodak.com/go/aiosupport
Copy Photo.
Page 79

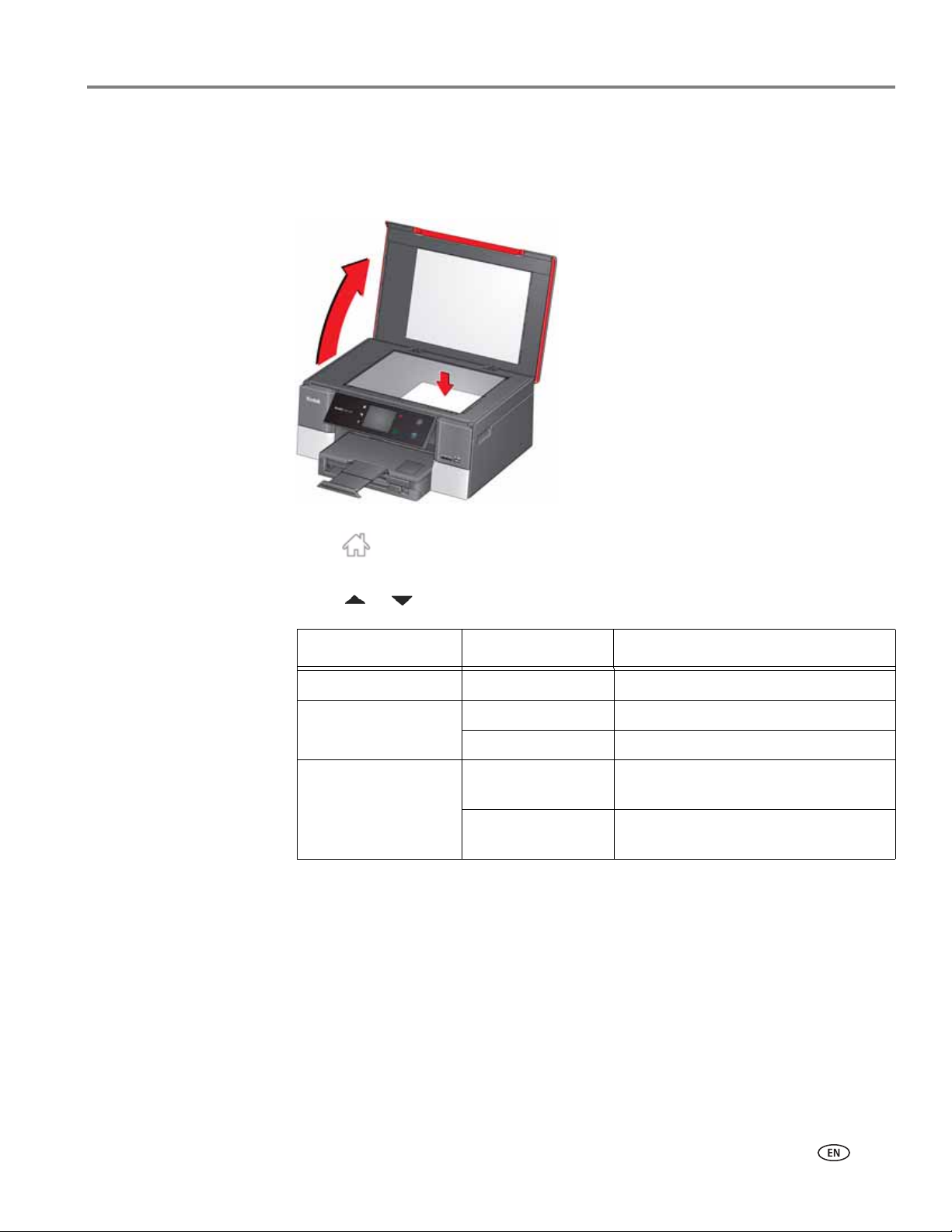

Adjusting the settings and copying a photo
1. Lift the scanner lid, and place the photo face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch or , then touch the setting you want to change.
Copy Photo, then touch Options.
KODAK HERO 7.1 All-in-One Printer
Copy Photo Option Setting Description
Quantity
Color Mode Color (default) Prints full color.
Tray Selection Top Tray (default) Copy is made on the paper in the top
1 (default) to 99 The number of copies that print.
Black & White Prints black and white (gray scale).
tray.
Bottom Tray Copy is made on the paper in the
bottom tray.
www.kodak.com/go/aiosupport 73
Page 80
Copying
Copy Photo Option Setting Description
Copy Size 2 x 3
3.5 x 5
4 x 6 (default)
4 x 7
5 x 7
If the bottom tray is
selected, the
following choices
also appear:
4 x 8
4 x 12
8 x 10
8.5 x 11 or A4
Lighter/Darker Normal,
(Normal is default)
Quality
(available only if
bottom tray is
selected)
Normal
(default)
Best (when the top
tray is selected)
− 3 to +3
The printer enlarges or reduces the
original to make it the copy size you
select.
If the selected copy size is smaller
than the paper in the paper tray, the
printer automatically arranges the
pictures to best fit the paper size.
Lightens or darkens the copy.
Normal is no change from the original;
− 3 is the darkest; +3 is the lightest.
Good quality output; prints faster than
Best.
The printer detects photo paper in the
paper tray and sets Best quality
automatically.
Draft The fastest print speed, but the lowest
quality.
Save as Defaults No / Yes To save settings as the new default
touch
Ye s .
6. Press to begin copying.
74 www.kodak.com/go/aiosupport
Page 81
Changing the number of copies of a photo
1. Lift the scanner lid, and place the photo face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch or to select a number.
6. Press to begin copying.
Copy Photo.
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 75
Page 82
Copying

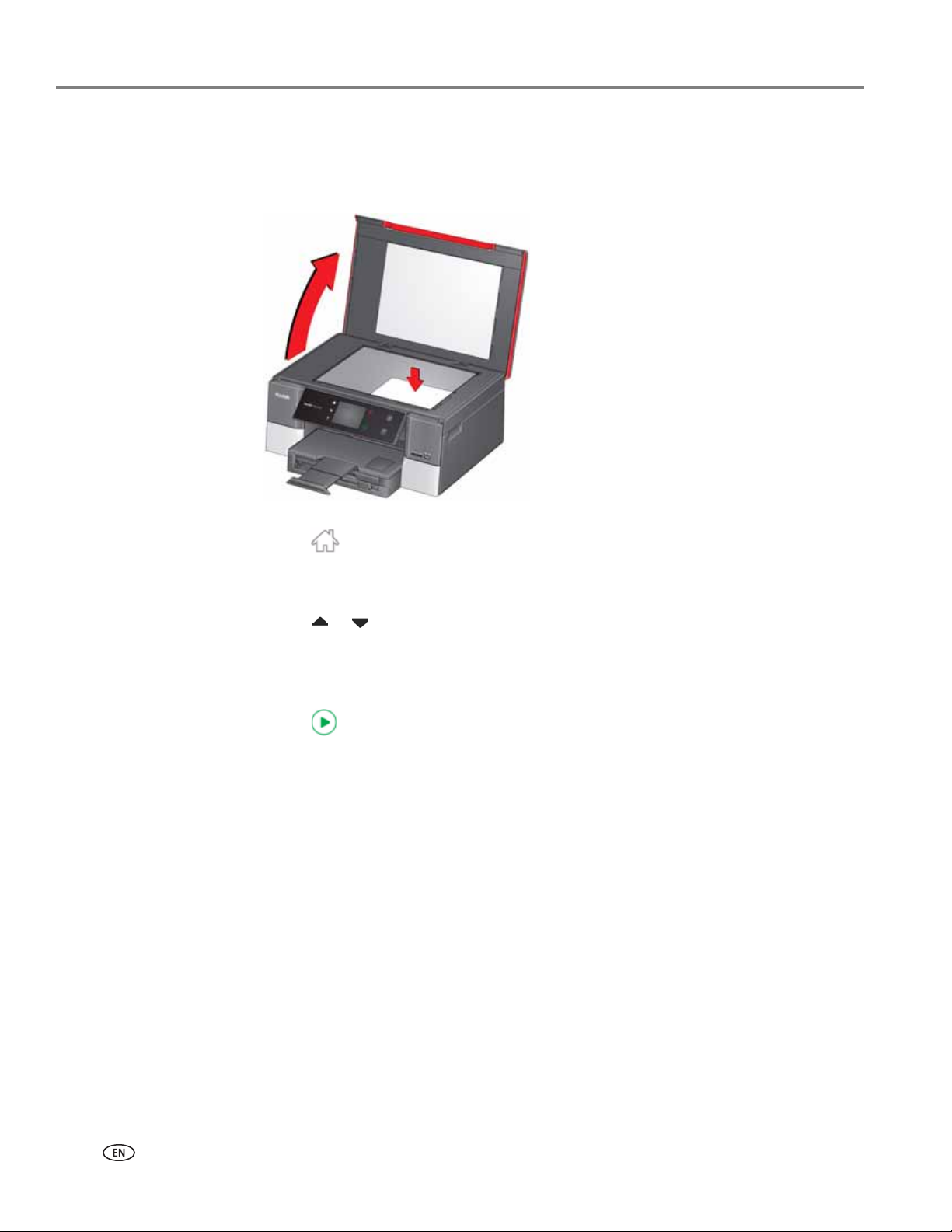

Enlarging or reducing the size of a copy of a photo
1. Lift the scanner lid, and place the photo face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch
6. Touch or , then touch a size selection.
NOTE: If you select a copy size larger than 5 x 7 in. / 13 x 18 cm, touch
Copy Photo, then touch Options.
Copy Size.
Selection
, then select Bottom Tray. Make sure that the paper in the bottom
tray is the size and type (plain paper, photo paper, etc) that you want.
Tr ay
7. Press to begin copying.
76 www.kodak.com/go/aiosupport
Page 83
Darkening or lightening a copy of a photo
1. Lift the scanner lid, and place the photo face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Press .
4. Touch
5. Touch , then touch
6. Touch to select a number below zero for a darker copy, or touch to select
a number above zero for a lighter copy.
7. Pre s s to begin c opying .
Copy Photo, then touch Options.
KODAK HERO 7.1 All-in-One Printer
Lighter/Darker.
www.kodak.com/go/aiosupport 77
Page 84
8
Scanning
Scanning digitizes documents and pictures, and sends the digital files to your
computer, memory card, email, network folder, or USB flash drive.
To scan to a computer, the Home Center Software must be installed on that
computer, unless you are using the Online Printer Management Tool. (See Scanning
from the Online Printer Management Tool, page 90.)
When you scan, the digital file can:
• open in Home Center Software (when Home Center Software is loaded and the
printer is connected to a computer with WINDOWS OS).
• open in a third-party scanner software.
• be saved in a format and location that you determine (see Changing the scan
settings for scanning from the control panel, page 79).
Scanning from a software program on the computer (such as Home Center
Software) gives you more options, but you can also scan from the printer control
panel.
Before you begin scanning
If you are scanning to a computer, make sure that the printer is connected to a
computer using a USB cable, Ethernet cable, or wireless network (see Networking
Yo u r P ri n t e r, pa g e 9 ).
If you want to scan to an email address or to a shared network folder, you need to:
• make sure the printer is connected to a computer using a wireless or Ethernet
connection.
• set up a profile using the Online Printer Management Tool (see Setting up Scan
To E mai l , p a g e 2 3 and Setting up Scan To Network Folder, page 29).
78 www.kodak.com/go/aiosupport
Page 85
KODAK HERO 7.1 All-in-One Printer
Changing the scan settings for scanning from the control panel
If you want to adjust settings that the printer uses, do so before you scan from the
printer control panel.
NOTE: These settings do not apply to Scan to Email or Scan to Network Folder. To
change scan settings for scanning to email or to network folder, see Setting
options for scan to email, page 27, or Setting scan settings for scan to
network folder, page 32.
1. Open Home Center Software, then open the
To o l s (MAC OS) window.
Printer Tools (WINDOWS OS) or
NOTE: To get to Printer Tools without Home Center Software (WINDOWS OS
only), select
2. Under the Tools heading, select
Start > All Programs > Kodak > KODAK AiO Printer Tools.
Printer Scan Settings.
3. Adjust settings for scanning documents and pictures:
a. To select a program that your scanned images or documents will appear in
when you scan from the printer control panel:
(1) Select the
General tab.
(2) Under the Program List heading, click next to the currently selected
program.
(3) From the list, select the program in which you want the scanned files to
open.
b. To adjust settings for scanning documents, select the
Document tab, then
select an option for each setting:
Setting Options
File format .pdf
.rtf (available only when connected to a computer
with WINDOWS OS)
.tif
.jpg
.bmp (available only when connected to a computer
with MAC OS)
Resolution (dpi) 75
150
200
300
File Save Prompt for File Name and Location
Automatically Save-specify:
• Base name; by default, scanned files are named
“scan1”, “scan2”, and so on.
• Location (folder) where the scanned files will be
saved
www.kodak.com/go/aiosupport 79
Page 86
Scanning
c. To adjust settings for scanning pictures, select the Picture tab, then select an
option for each setting:
Setting Options
File format .jpg
.bmp
.tif
Resolution (dpi) 75
150
200
300
600
Quality
Automatically Detect
Pictures (when connected
to a computer with
WINDOWS OS) or Auto
Crop (when connected to a
computer with MAC OS)
File Save Prompt for File Name and Location
When connected to a computer with WINDOWS
OS:
•Best for E-mail
•Normal
•High
•Maximum
When connected to a computer with MAC OS,
a slider bar with:
•Least
•Medium
•Best
When selected, multiple pictures placed on the
scanner glass are saved as separate files.
Automatically Save - specify:
• Base name; by default, scanned files are names
“scan1”, “scan2”, and so on.
• Location (folder) where the scanned files will be
saved
NOTE: Before you save a scanned file in Home Center Software, you can
preview, crop, and sharpen the image, and adjust the color. On a computer with
WINDOWS OS, see the Home Center Software Help (? icon) for instructions.
80 www.kodak.com/go/aiosupport
Page 87
4. When you are finished making selections, click OK on the bottom right of the
Printer Scan Settings window.
5. Close the Printer Tools window.
Scanning from the control panel
When you scan a document or picture(s) from the control panel, you have the
following options:
• Scan to Computer - scans to a file or to Home Center Software on your
computer
• Scan to Memory Card - scans to a memory card in the memory card slot
• Scan to USB Flash Drive - scans to a flash drive attached to the front USB port
*
• Scan to Email
you set up in the Online Printer Management Tool
• Scan to Network Folder* - scans to a shared network folder that you designated
in the Online Printer Management Tool
*
Before you can use these options, you must set up Scan to Email (see Setting up
Scan To Email, page 23) and Scan to Network Folder (see Setting up Scan To
Network Folder, page 29) from the Online Printer Management Tool.
- scans to an email address that you select from the Email Profile
KODAK HERO 7.1 All-in-One Printer
www.kodak.com/go/aiosupport 81
Page 88
Scanning
Scanning to a computer
To scan to a computer:
1. Lift the scanner lid, and place the original face down in the right-front corner of
the scanner glass, then close the lid.
2. Close the lid.
3. Press .
4. Touch
5. Touch
Scan.
Scan to Computer or Wi-Fi Computer, then touch the setting/option you
want to change.
Scan
Option
Scan To USB-connected
Scan What Document
Settings
Computer
(default)
Name of computer
(only if a computer is
connected by
wireless or Ethernet
network)
(default)
Description
The scanned file is sent to the USB-connected
computer.
The scanned file is sent to the computer on the
wireless or Ethernet network.
Sets the scan settings for scanning a document
(see Changing the scan settings for scanning
from the control panel, page 79).
82 www.kodak.com/go/aiosupport
Sets the scan settings for scanning a picture
(see Changing the scan settings for scanning
from the control panel, page 79).
Page 89
KODAK HERO 7.1 All-in-One Printer
Scan
Option
Scan Action
Save as
Defaults
Settings
File
(default)
Application
(available only when
Home Center
Software is installed
on computer)
No / Yes To save the settings as the new default, press
Description
Sends the scanned file in the format and to the
location on your computer that you designate.
Sends the scanned file to Home Center
Software.
OK. With Ye s selected, press OK.
6. Press to begin scanning.
The scanned file appears at the destination you specified.
7. When the message “Scan complete” appears, touch
OK.
www.kodak.com/go/aiosupport 83
Page 90
Scanning
Scanning to a memory card or USB flash drive
To scan to a memory card or USB flash drive:

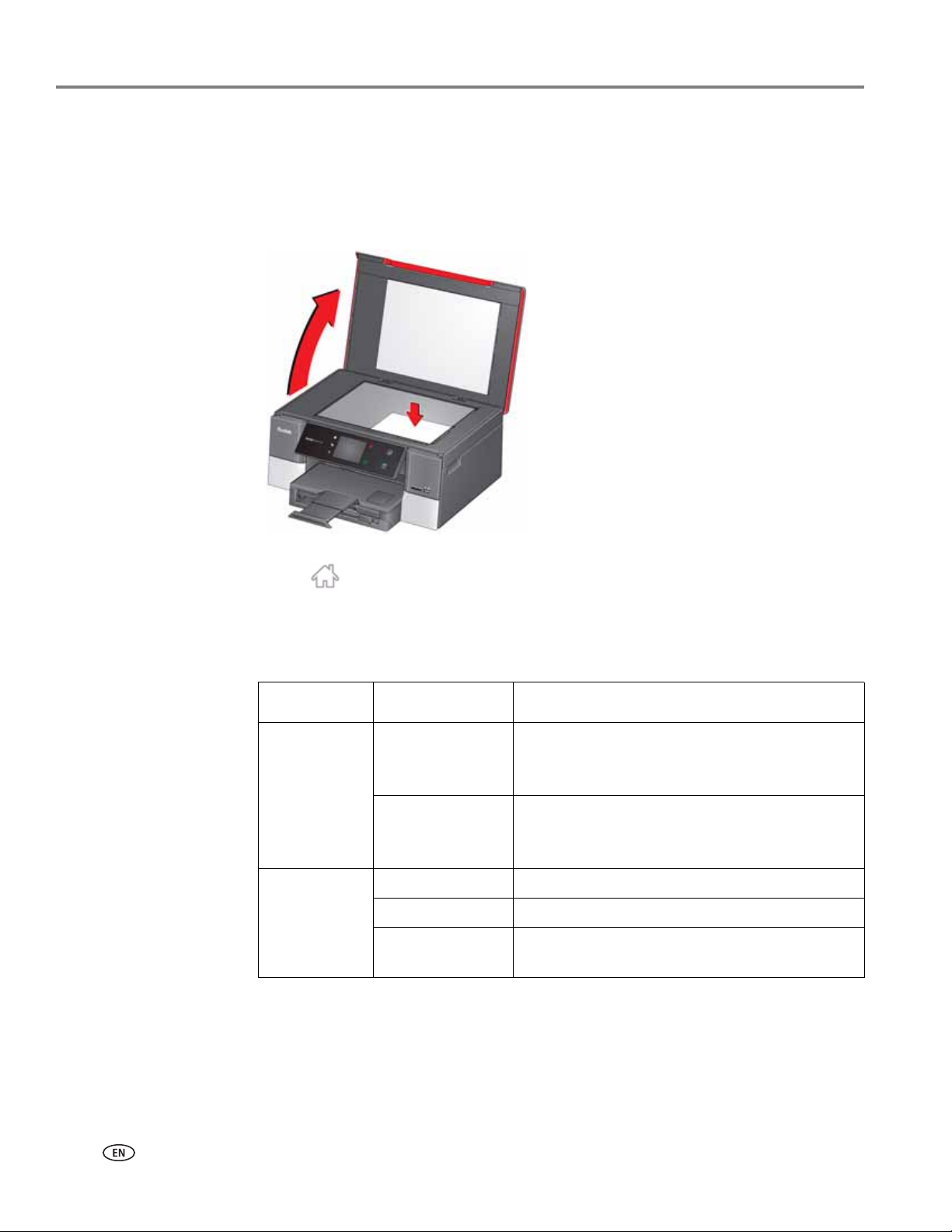

1. Lift the scanner lid, and place the original face down in the right-front corner of
the scanner glass, then close the lid.
2. Close the lid.
3. Press .
4. Touch
5. Touch
Scan.
Memory Card or USB Flash Drive, then touch the setting/option you want
to change.
Scan Option Settings Description
Scan What Photo
(default)
Document
File Type JPG (default) The scanned file is saved as a JPG.
Single-page PDF The scanned file is saved as a single-page PDF.
Multi-page PDF The scanned file is saved as a multiple-page
Sets the scan settings for scanning a picture
(see Changing the scan settings for scanning
from the control panel, page 79).
Sets the scan settings for scanning a document
(see Changing the scan settings for scanning
from the control panel, page 79).
PDF.
84 www.kodak.com/go/aiosupport
Page 91
KODAK HERO 7.1 All-in-One Printer
Scan Option Settings Description
Scan Size Auto (default)
2 x 3
3.5 x 5
4 x 6
4 x 7
4 x 8
5 x 7
4 x 12
8 x 10
8.5 x 11
A4
8.5 x 14
Save as
Defaults
No / Yes To save the settings as the new default, press
Determines the size that is scanned.
OK. With Ye s selected, press OK.
6. Press to begin scanning.
The scanned file appears at the destination you specified.
7. When the message “Scan complete” appears, touch
OK.
www.kodak.com/go/aiosupport 85
Page 92
Scanning
Scanning to email
You can scan your original and immediately send the scanned file by email to one or
more recipients directly from the printer.
NOTE: You must first use the Online Printer Management Tool to set up scanning to
email options (see Setting up Scan To Email, page 23).

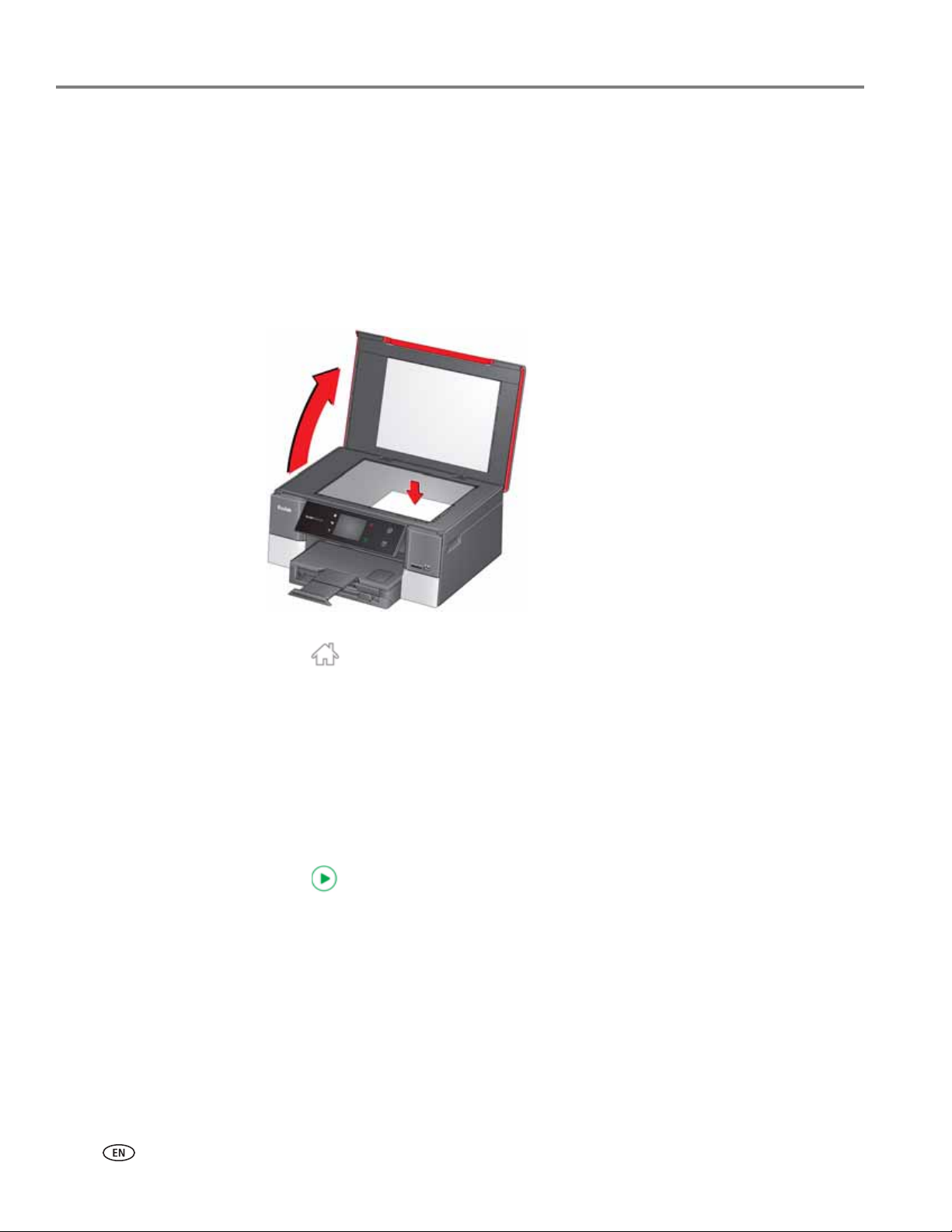

1. Lift the scanner lid, and place the original face down in the right-front corner of
the scanner glass, then close the lid.
2. Close the lid.
3. Press .
4. Touch
Scan.
5. Touch Email.
6. Select an outgoing email profile (the person from whom the email with the scan
attachment is sent), then press OK.
7. If necessary, enter the 4-digit PIN number (see page 26), select Done, then
press OK.
8. Select an email recipient, then press OK.
9. Repeat step 8 for each recipient.
10. Press to begin scanning.
The scanned file appears at the destination you specified.
11. When the message “Scan complete” appears, touch
OK.
86 www.kodak.com/go/aiosupport
Page 93
Scanning to network folder
You can scan your original and immediately send the scanned file to a network folder
directly from the printer.
NOTE: You must first use the Online Printer Management Tool to set up scanning to
network folder options (see Setting up Scan To Network Folder, page 29).

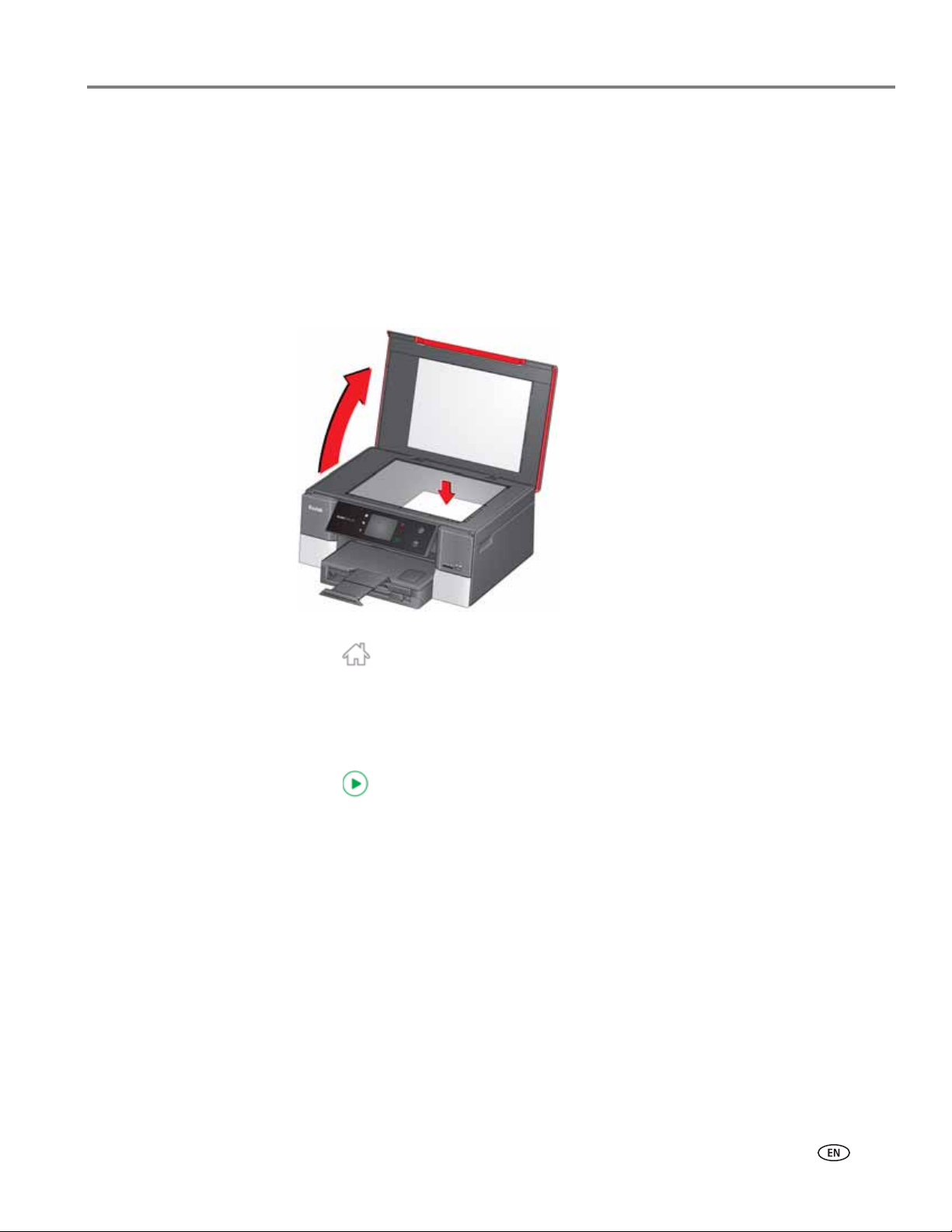

1. Lift the scanner lid, and place the original face down in the right-front corner of
the scanner glass, then close the lid.
KODAK HERO 7.1 All-in-One Printer
2. Close the lid.
3. Press .
4. Touch
Scan.
5. Touch Scan to Network Folder.
6. Touch Sharing folder.
7. If necessary, enter the 4-digit PIN number (see page 31), then touch
8. Press to begin scanning.
The scanned file appears at the destination you specified.
9. When the message “Scan complete” appears, touch
OK.
OK.
www.kodak.com/go/aiosupport 87
Page 94
Scanning
Scanning from the computer

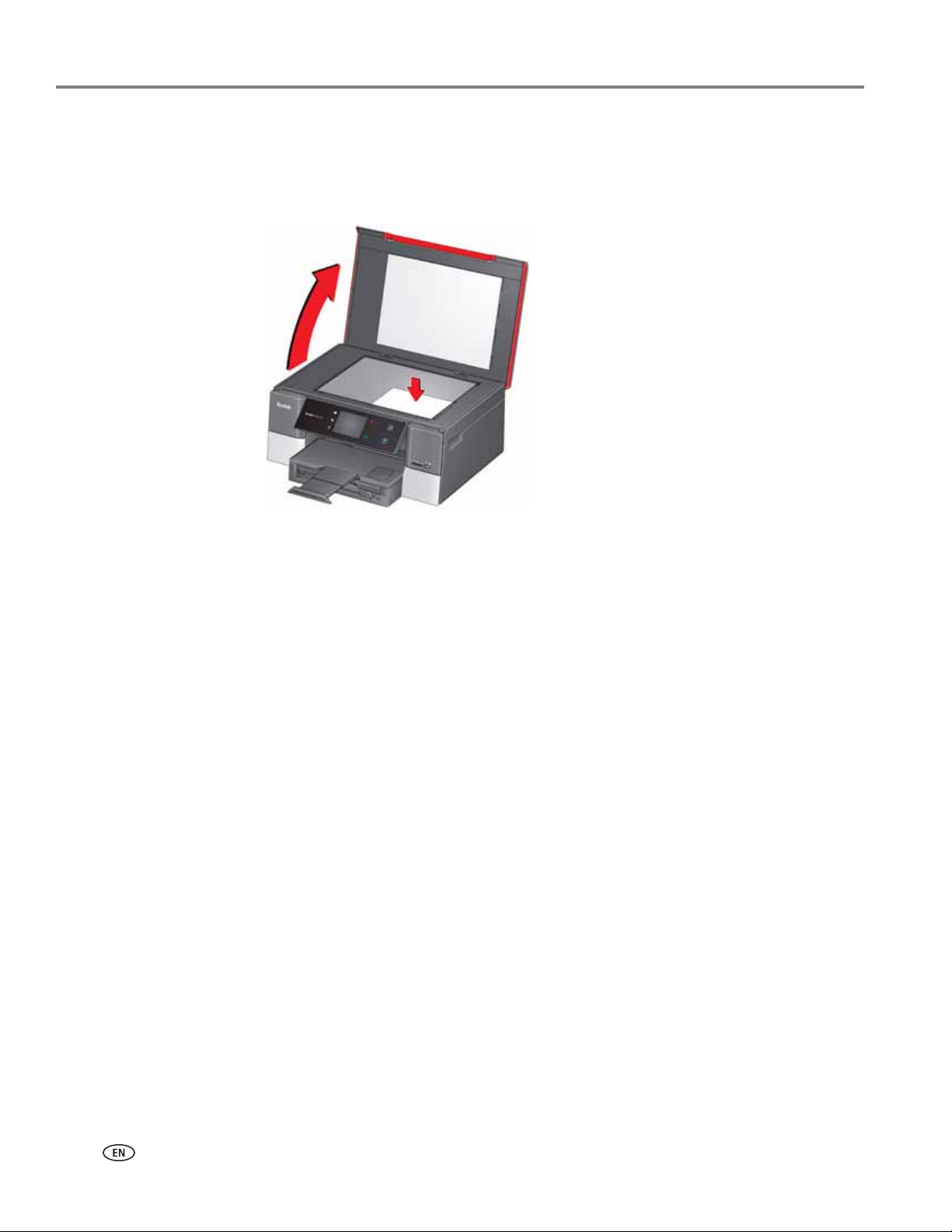

1. Lift the scanner lid, and place the original face down in the right-front corner of
the scanner glass.
2. Close the lid.
3. Open Home Center Software, then:
• On a computer with WINDOWS OS, select Scan Documents and Pictures,
then follow the on-screen instructions.
• On a computer with MAC OS, select the
then follow the on-screen instructions.
NOTE: If you are not using Home Center Software, open a program that allows you
to scan, then follow the instructions.
To o l s tab, click Scan Application,
88 www.kodak.com/go/aiosupport
Page 95
KODAK HERO 7.1 All-in-One Printer
Scanning multiple pictures simultaneously
Using Home Center Software, you can scan multiple pictures simultaneously and
save them as separate files.
When scanning multiple pictures, leave space between the pictures so that the
printer can detect the individual pictures. Any pictures that overlap are interpreted
as a single picture.
Scanning multiple pictures when connected to a computer with WINDOWS OS
To scan multiple pictures simultaneously, and save them as separate files:
1. Lift the scanner lid, and place the pictures face down on the glass, leaving space
between the pictures.
2. Close the lid.
3. Open Home Center Software, then select
4. Select
5. Select
Printer Scan Settings, then select the Picture tab.
Automatically Detect Pictures, if it is not selected, then click OK.
6. Click the Home icon in the top right corner, then select
Pictures
7. Make sure that
.
Picture is selected and Collage - Combine all pictures is cleared,
then follow the on-screen instructions.
NOTE: Click Help (
? icon) for additional instructions.
Printer Tools.
Scan Documents and
Scanning multiple pictures when connected to a computer with MAC OS
To scan multiple pictures simultaneously, and save them as separate files:
1. Lift the scanner lid, and place the pictures face down on the glass, leaving space
between the pictures.
2. Close the lid.
3. Open Home Center Software, then select your printer.
4. Select the
5. Click
6. Select
7. S el ect
8. Click
NOTE: Click Help (
To o l s tab.
Scan Application.
Color Picture or Black and White Picture.
Automatically detect multiple pictures, if it is not selected.
Preview or Scan All, and follow the on-screen instructions.
? icon) for additional instructions.
www.kodak.com/go/aiosupport 89
Page 96
Scanning

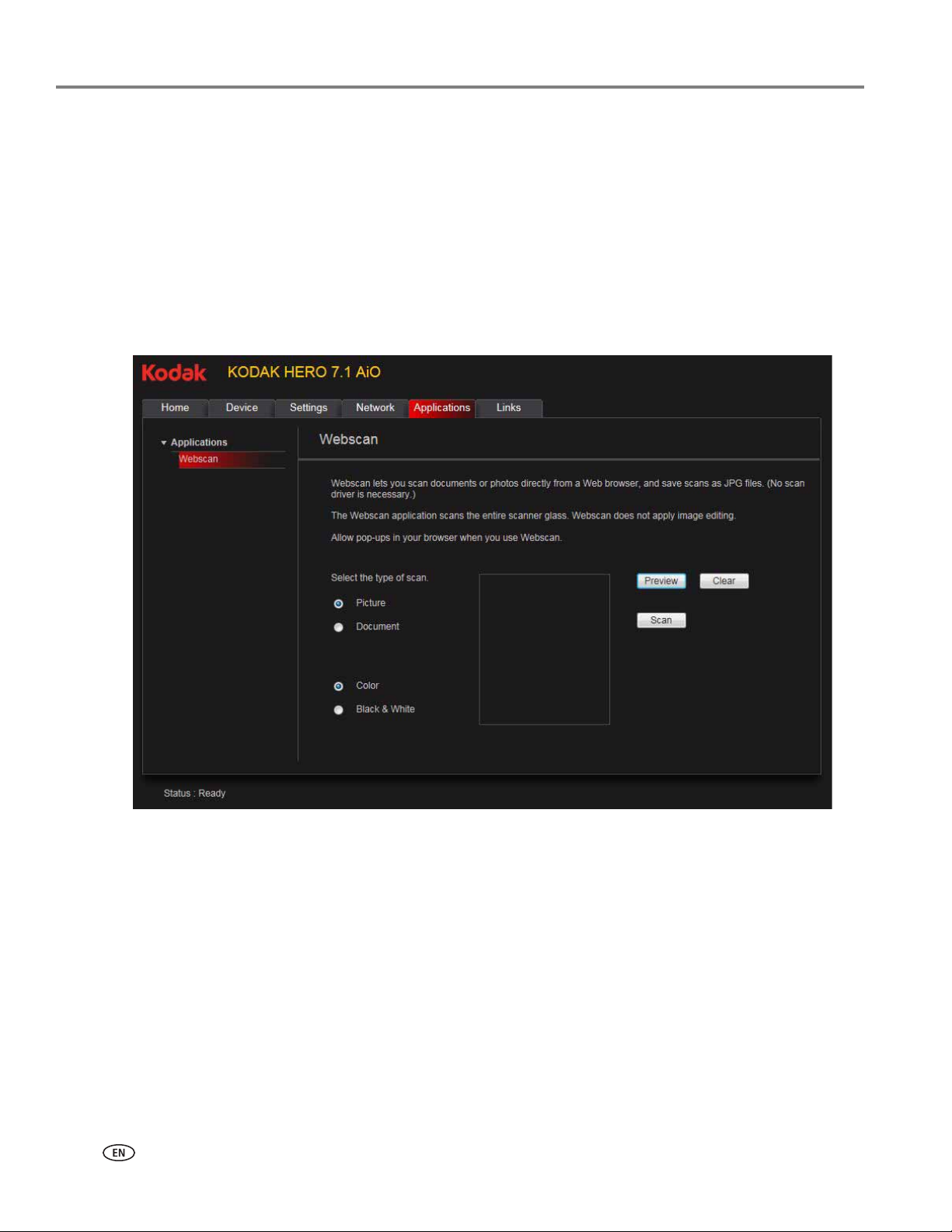

Scanning from the Online Printer Management Tool
You can use an Internet browser to initiate a scan from the Online Printer
Management Tool on a computer that is connected to the same network as the
printer.
1. Open the Online Printer Management Tool (see Accessing the Online Printer
Management Tool, page 20).
2. Select the
3. Select
Applications tab.
Applications > Webscan.
4. Select the type of scan you want, and place the original on the scanner glass.
5. Click
6. When you are satisfied with the preview, click
7. In the new browser window, select
90 www.kodak.com/go/aiosupport
Preview to see what will be scanned.
• If needed, click
in a new browser window.
image on your computer.
Clear to reposition the original.
File > Save As to save the file as a JPEG
Scan. The scanned file will display
Page 97
9
CAUTION:
Maintaining Your Printer
Your printer requires little maintenance. However, Kodak recommends cleaning the
scanner glass and lid regularly to remove dust and fingerprints, which affect the
quality and accuracy of scanning and copying.
Except while cleaning the printer, keep the printer plugged into an AC power outlet.
If you use a power strip, don't turn off the power strip. (The printer does not
necessarily have to be turned on, but should be plugged in.)
Keep the printhead and ink cartridges in the printer at all times to help prevent
damage to the printhead.
For recycling and/or disposal information, contact your local authorities. In the US,
go to the Electronics Industry Alliance at www.eia.org or go to
www.kodak.com/go/recycle.
General care and cleaning
Always disconnect the power to the printer before cleaning it. Do not use
harsh or abrasive cleaners on any part of the printer.
• To clean the printer, wipe the outside with a clean, dry cloth.
• Keep the surrounding area vacuumed and litter-free.
• Protect the printer from tobacco smoke, dust, and liquid spills.
• Do not place objects on the printer.
• Keep the paper tray free of dust, dirt, and other foreign objects.
• Keep the printer supplies away from direct sunlight and out of high-temperature
environments.
• Do not allow chemicals to come into contact with the printer.
www.kodak.com/go/aiosupport 91
Page 98
Maintaining Your Printer
CAUTION:
Document backing
Scanner glass

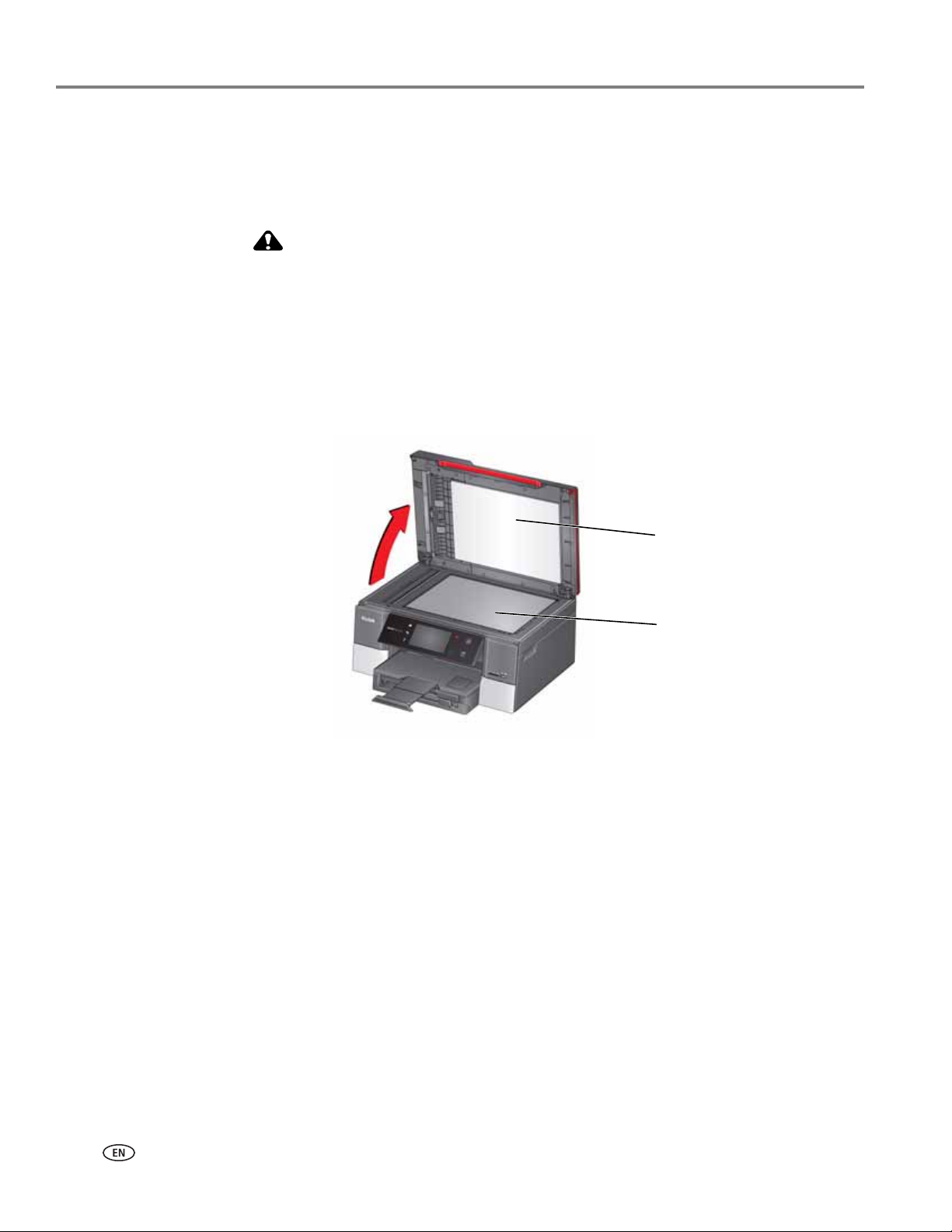

Cleaning the scanner glass and document backing
The scanner glass can get smudged and minor debris can accumulate on the white
document backing under the scanner lid. Periodically clean the scanner glass and
document backing.
Do not use harsh or abrasive cleaners on any part of the printer.
Do not spray liquid directly on the glass.
Do not use paper-based wipes on the document backing as they can
scratch it.
1. Turn off the printer and unplug it from the power outlet.
2. Lift the scanner lid.
92 www.kodak.com/go/aiosupport
Page 99
KODAK HERO 7.1 All-in-One Printer

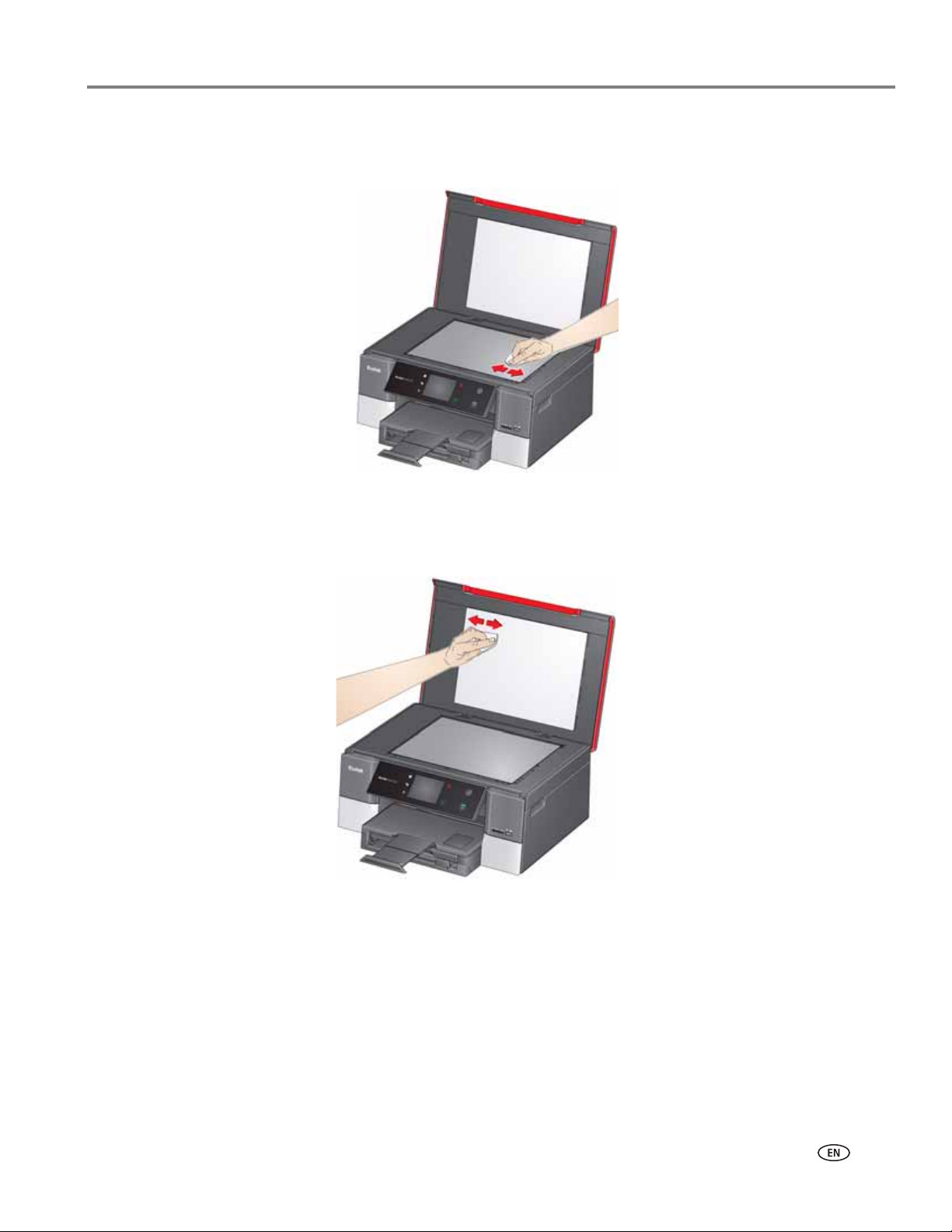

3. Wipe the glass with a soft cloth or sponge, slightly moistened with a
nonabrasive glass cleaner.
4. Dry the glass with a lint-free cloth.
5. Gently clean the document backing with a soft cloth or sponge, slightly
moistened with mild soap and warm water.
6. Dry the document backing with a chamois or soft, lint-free cloth.
NOTE: If the document backing needs further cleaning, use isopropyl (rubbing)
alcohol on a soft cloth, then wipe thoroughly with a cloth moistened with
water to remove any residual alcohol.
7. When you finish cleaning, plug in the printer.
www.kodak.com/go/aiosupport 93
Page 100
Maintaining Your Printer
Color ink cartridge
Printhead
Black
ink cartridge

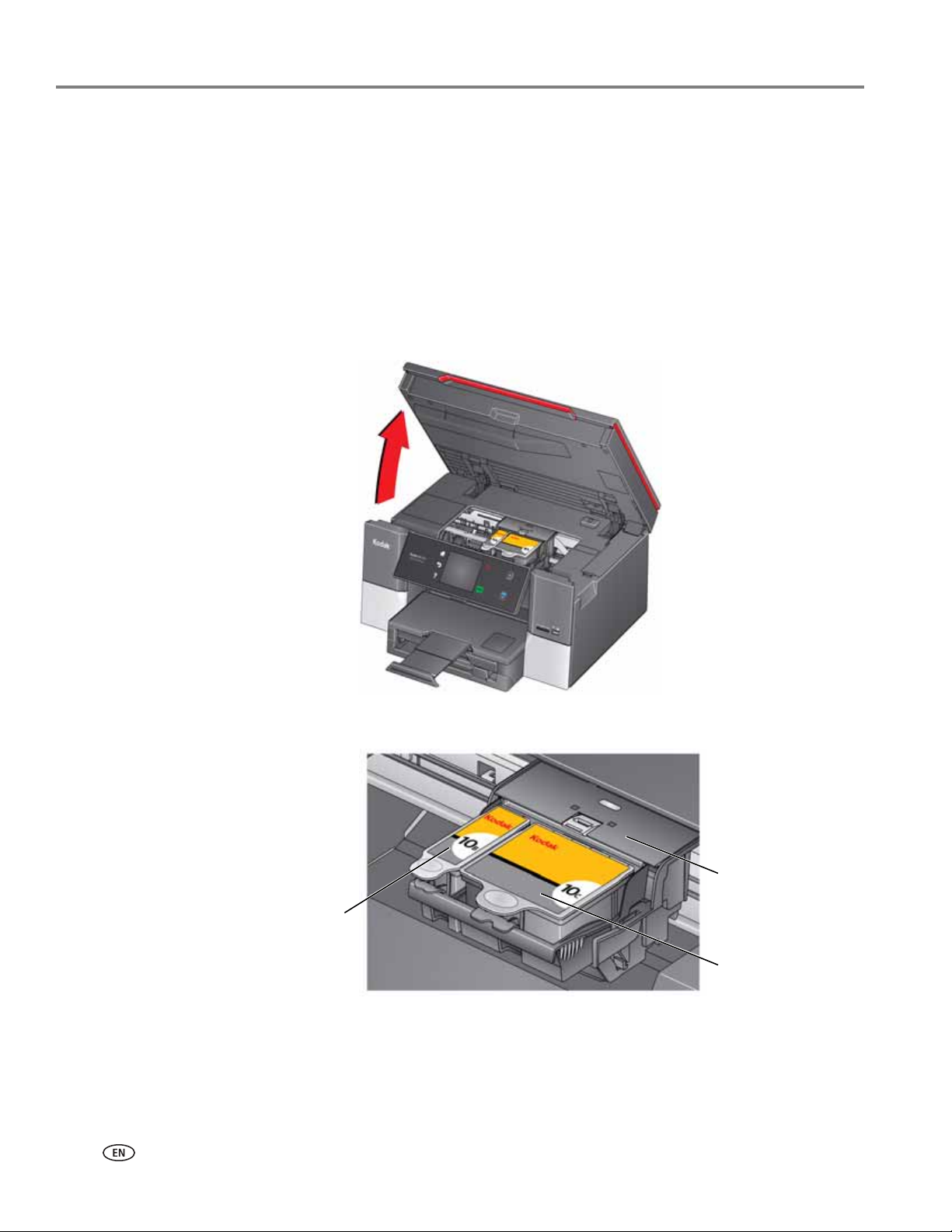

Replacing ink cartridges
Your printer uses black and color ink cartridges. You can check the approximate ink
levels on the LCD (see Checking ink levels, page 102) or in Home Center Software.
When an ink cartridge is out of ink, the control panel displays a message stating that
the black or color ink cartridge needs replacing.
IMPORTANT: Do not use non-Kodak brand or refilled ink cartridges.
1. Make sure the printer is on.
2. Lift the access door, and wait for the carriage to move to the access position.
94 www.kodak.com/go/aiosupport
The ink cartridges are located in the printhead.
Loading...
