Page 1

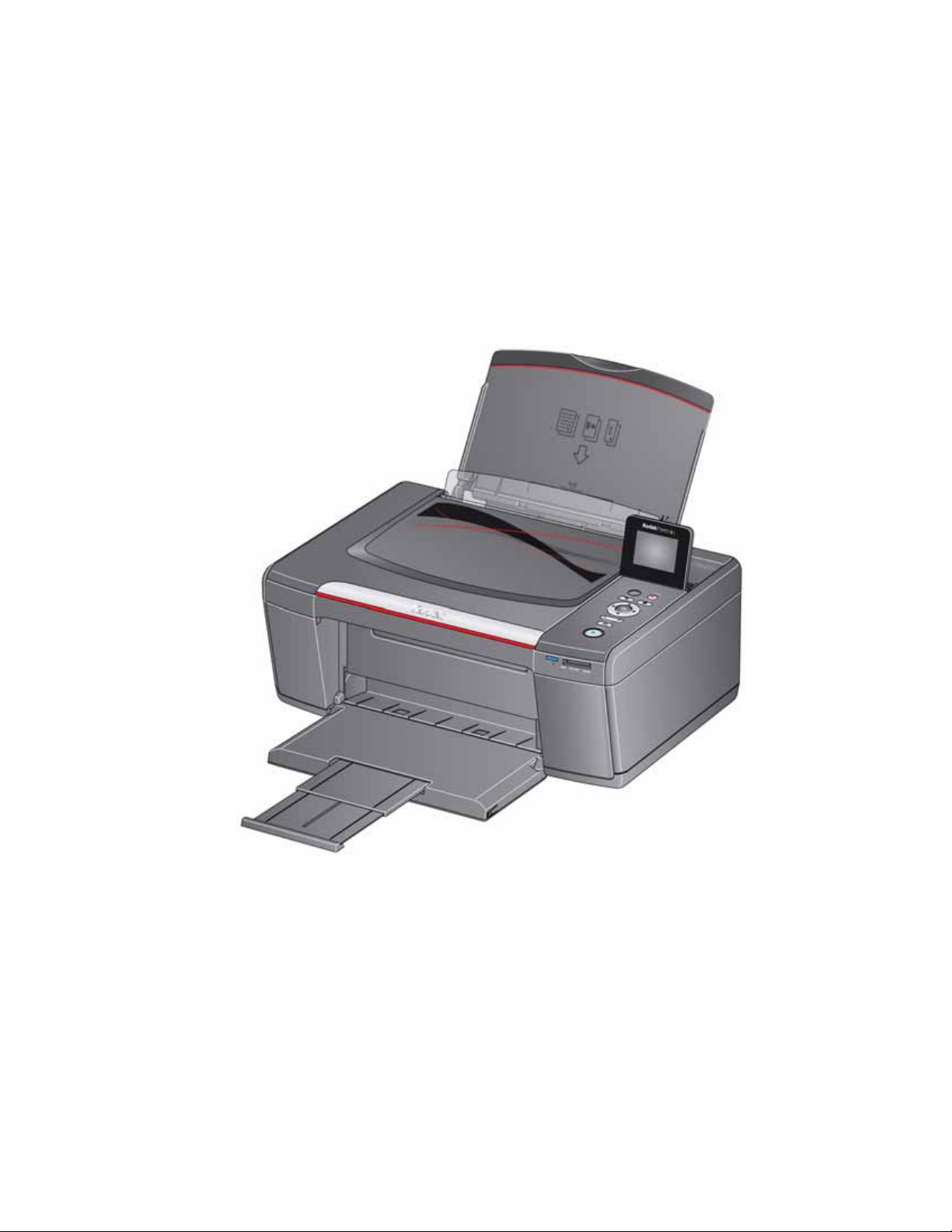

KODAK HERO 3.1

All-in-One Printer

Extended User Guide

Page 2

Eastman Kodak Company

Rochester, NY 14650

Kodak, EasyShare, ESP, Hero, and Perfect Touch are trademarks of Eastman Kodak Company.

Specifications subject to change without notice.

September 2011

Page 3

1 Printer Overview

Components.......................................................................................................................................................................1

Control panel..................................................................................................................................................................... 2

Home Center Software ..................................................................................................................................................3

Ordering supplies.............................................................................................................................................................4

Configuring printer settings ..........................................................................................................................................5

2 Networking Your Printer

Connecting to a wireless network ...............................................................................................................................6

Before you connect ...................................................................................................................................................6

Connecting to a wireless network using the Wi-Fi Setup Wizard................................................................7

Using the LCD keyboard........................................................................................................................................10

Setting up an IP Address........................................................................................................................................10

Viewing the network configuration...................................................................................................................... 11

Printing the network configuration ..................................................................................................................... 12

Installing your printer on additional computers on the network................................................................. 12

Connecting to another KODAK All-in-One Printer ........................................................................................ 12

Adding a wireless network connection to a USB-connected computer.......................................................... 13

Changing from USB to a wireless connection .................................................................................................. 13

3 Online Printer Management Tool

Accessing the Online Printer Management Tool ..................................................................................................16

Using the Online Printer Management Tool........................................................................................................... 17

Adding a GOOGLE Cloud Print Account........................................................................................................... 17

Adding a KODAK Email Print Service Account ..............................................................................................20

4 Handling Paper

Paper types...................................................................................................................................................................... 21

Paper sizes....................................................................................................................................................................... 21

Envelope sizes................................................................................................................................................................ 22

Loading paper ................................................................................................................................................................ 22

Loading plain paper................................................................................................................................................ 22

Loading photo paper ............................................................................................................................................. 25

Loading envelopes.................................................................................................................................................. 27

5 Printing

Printing documents ...................................................................................................................................................... 29

Printing two-sided documents............................................................................................................................ 29

Printing forms from the control panel ............................................................................................................... 30

Printing pictures ............................................................................................................................................................. 31

Viewing pictures on a memory card................................................................................................................... 31

Printing from a memory card................................................................................................................................32

Using default settings to print a picture ............................................................................................................32

Changing the settings and printing pictures.....................................................................................................33

Printing panoramic pictures................................................................................................................................. 36

www.kodak.com/go/aiosupport i

Page 4

Printing tagged pictures.........................................................................................................................................37

Zooming and cropping pictures...........................................................................................................................38

Printing from a wireless device ..................................................................................................................................39

Transferring pictures to a computer.........................................................................................................................39

Transferring pictures to a computer with WINDOWS OS...........................................................................39

Transferring pictures to a computer with MAC OS ......................................................................................40

6 Mobile Printing

Printing from an iPhone, iPad, or iPod touch Device ............................................................................................ 41

Printing from a BLACKBERRY Device ...................................................................................................................... 41

Printing from an ANDROID OS Device................................................................................................................... 42

7 Copying

Copying a document.................................................................................................................................................... 43

Using the default settings to copy a document.............................................................................................. 43

Adjusting the settings and copying a document............................................................................................44

Changing the number of copies of a document .............................................................................................46

Enlarging or reducing a document ..................................................................................................................... 47

Darkening or lightening a document ................................................................................................................. 48

Copying a photo............................................................................................................................................................ 49

Using the default settings to copy a photo...................................................................................................... 49

Adjusting the settings and copying a photo.................................................................................................... 50

Changing the number of copies of a photo.......................................................................................................52

Enlarging or reducing a photo ..............................................................................................................................53

Darkening or lightening a photo ......................................................................................................................... 54

8 Scanning

Before you begin scanning ..........................................................................................................................................55

Changing the scan settings for scanning from the printer control panel..................................................56

Scanning from the control panel................................................................................................................................58

Scanning to a computer.........................................................................................................................................58

Scanning to a Memory Card................................................................................................................................ 60

Scanning from the computer ......................................................................................................................................62

Scanning multiple pictures simultaneously......................................................................................................63

9 Maintaining Your Printer

General care and cleaning.......................................................................................................................................... 64

Cleaning the scanner glass and document backing .......................................................................................65

Replacing ink cartridges...............................................................................................................................................67

Replacing the printhead .............................................................................................................................................. 70

Updating the software and printer firmware......................................................................................................... 74

Updating if your printer is connected to a computer with WINDOWS OS ............................................ 74

Updating if your printer is connected to a computer with MAC OS..........................................................75

Monitoring and adjusting printer performance .....................................................................................................75

Checking ink levels..................................................................................................................................................75

ii www.kodak.com/go/aiosupport

Page 5

KODAK HERO 3.1 All-in-One Printer

Resetting factory defaults .................................................................................................................................... 76

10 Troubleshooting

Basic troubleshooting .................................................................................................................................................. 77

Getting help on the Web............................................................................................................................................. 79

Status lights....................................................................................................................................................................80

Power light................................................................................................................................................................80

Wi-Fi connectivity LED .........................................................................................................................................80

11 Product and Safety Specifications

Specifications and features ......................................................................................................................................... 81

Print performance....................................................................................................................................................81

Photo printing features........................................................................................................................................... 81

Copy document features ....................................................................................................................................... 81

Copy photo features .............................................................................................................................................. 82

Scanning features ................................................................................................................................................... 82

Paper input tray features ...................................................................................................................................... 82

Ink cartridges ........................................................................................................................................................... 82

Connectivity............................................................................................................................................................. 83

Software support .................................................................................................................................................... 83

Physical specifications .......................................................................................................................................... 83

Warranty................................................................................................................................................................... 83

System requirements.............................................................................................................................................84

Safety information ........................................................................................................................................................ 86

Regulatory compliance................................................................................................................................................ 88

FCC statement ........................................................................................................................................................88

Canadian statements.............................................................................................................................................89

European compliance statement........................................................................................................................ 89

German compliance statement ..........................................................................................................................89

REACH Article 33 declarations...........................................................................................................................90

Waste electrical and electronic equipment labeling.....................................................................................90

ENERGY STAR® Qualified All-in-One Printer .......................................................................................................90

Warranty Information................................................................................................................................................... 91

Declaration of Conformity.......................................................................................................................................... 92

www.kodak.com/go/aiosupport iii

Page 6

3 5

Printer Overview

Components

This printer lets you print, copy, and scan pictures and documents. In addition, this printer supports networking, letting you access the printer over a wireless (Wi-Fi) network.

1 Left paper-edge guide* 8 Memory card slot

2 Paper guard 9 Access door

3 Paper input tray 10 Printhead with ink cartridges installed

4 Scanner glass 11 USB port

5 Scanner lid 12 Power cord port

6 Control panel 13 Paper output tray extender

7 Wi-Fi connectivity LED 14 Paper output tray

Right paper-edge guide not shown

www.kodak.com/go/aiosupport 1

Page 7

Control panel

KODAK HERO 3.1 All-in-One Printer

Feature Description

1 LCD Displays pictures, messages, and menus; lifts for easy viewing

2 Cancel button Stops the current operation and returns to the menu

3 Home button Displays the main menu

4 Navigation buttons Used to navigate menus and scroll through pictures

5 Rotate button Changes the orientation of the displayed picture

6 Start button Begins copying, scanning, printing, maintenance tasks, and

file transfer

7 Zoom buttons Enlarge or reduce the size of the displayed picture on the LCD

8 OK button Selects a menu item and allows you to continue with the

current operation

9 Back button Displays the next higher level screen in the menu structure

10 Power button Turns the printer on or off

www.kodak.com/go/aiosupport 2

Page 8

Printer Overview

Home Center Software

KODAK Home Center Software is installed with your KODAK All-in-One Printer Software, unless you choose otherwise. The Home Center icon will appear on your desktop.

NOTE: You can choose to install the KODAK AiO Printer Software Essentials, which

includes the drivers and Printer Tools only.

On a computer with WINDOWS Operating System (OS), you can use Home Center Software to:

• browse, crop, enhance, and edit pictures

• print and scan

• make 3D pictures (from picture pairs taken to create 3D pictures)

• print from video

• send images to or print images from KODAK Gallery

• send images to or print images from FACEBOOK Social Network, FLICKR, PHOTOBUCKET, PICASA, or SMILEBOX Photo Management Systems, and GOOGLE Docs

•configure your printer

• install new network printers

• upgrade to the latest printer software and firmware

• order supplies

• access the KODAK Tips and Projects Center

• see the status of your printer

• access the KODAK Online Printer Management Tool

On a computer with MAC OS, you can use Home Center Software to:

•scan

•configure your printer

• upgrade to the latest printer software and firmware

• order supplies

• see the status of your printer

• access the KODAK Online Printer Management Tool

3 www.kodak.com/go/aiosupport

Page 9

Ordering supplies

You can order ink cartridges, paper, and accessories online. An Internet connection is required.

To order supplies directly from Home Center Software:

1. Open Home Center Software.

2. Select

3. Select the item(s) you want to buy, then follow the on-screen instructions.

To order supplies from the Web:

•Ink: www.kodak.com/go/printingsupplies

•Paper: www.kodak.com/go/inkjetpaper

Order Supplies (on a computer with WINDOWS OS) or select the To o l s

tab, then click

KODAK HERO 3.1 All-in-One Printer

Order Supplies (on a computer with MAC OS).

www.kodak.com/go/aiosupport 4

Page 10

Printer Overview

Configuring printer settings

To set or change basic printer settings:

1. Press Home.

2. Press to select Printer Settings, then press OK.

3. Press to select one of the following settings:

• Date and Time

–Press OK, then press to select Ye a r , Month, Day, Hour, or Minute. – Press or to change the values; press OK when you are done making

changes.

–Press Back to go back to the Printer Settings menu.

• Ti me to Lo w Po we r

To conserve energy, your printer will enter a low power (sleep) mode after being idle for a default delay time of 1 hour. You can increase the delay time to low power. Increasing the delay time may result in reduced energy savings.

– Press to change the time to energy-saving sleep mode (select from 1 to

4 hours in 0.5 hour increments).

• Tagged Images Printing (see Printing tagged pictures, page 37)

– Press to select Off or On.

• Language

–Press OK, press to select a language, then press OK.

• Country/Region

–Press OK, press to select a country or region, then press OK.

• Reset All Settings (see Resetting factory defaults, page 76)

NOTE: Resetting factory defaults does not change the date and time,

language, country/region, or network settings.

• Printer Info

–Press OK to view the Firmware Version number; press OK when you are

done.

4. Press Back to return to the Main Menu.

5 www.kodak.com/go/aiosupport

Page 11

Networking Your Printer

This section explains how to configure your wireless network settings.

Connecting to a wireless network

To connect your printer to an 802.11b/g/n wireless (Wi-Fi) network, refer to the following information.

Before you connect

You need:

• a wireless router.

• to determine whether your wireless router supports Wi-Fi Protected Setup (WPS).

NOTE: If you have specific questions about your router, see your router

manufacturer’s documentation for more information.

6 www.kodak.com/go/aiosupport

Page 12

Networking Your Printer

Connecting to a wireless network using the Wi-Fi Setup Wizard

You can use the Wi-Fi Setup Wizard on the printer to connect to your wireless network. Use the procedure that is appropriate for your network setup.

Connecting to a non-WPS wireless router

To connect your printer to your wireless network, you need to know the network name, also called the Service Set Identifier (SSID). You can obtain your network name from the wireless router. See the manufacturer’s documentation for more information.

If you have enabled security on your network, you also need to know the security string, which may be a Wired Equivalent Privacy (WEP) or a Wi-Fi Protected Access (WPA/WPA2) passphrase.

Record your network information using the correct uppercase and lowercase letters.

Network Name (SSID): _______________________________________

Security String (case-sensitive): ________________________________

1. Press Home.

2. Press to select Network Settings, then press OK.

3. With Wi-Fi Setup Wizard selected, press OK. NOTE: The Wi-Fi radio turns on automatically when you select Wi-Fi Setup

Wizard.

The Wi-Fi connectivity LED blinks as the printer searches for available wireless networks within range, then displays the list in order of signal strength. For example:

If there are more networks than can be shown on the LCD, a (page down) symbol appears in the bottom right of the display.

7 www.kodak.com/go/aiosupport

Page 13

4. If the name of your network is:

Listed Not listed

KODAK HERO 3.1 All-in-One Printer

Press to select your network, then press OK

Make sure your wireless router is turned on and within range. If your wireless router does not

broadcast its SSID (network name):

1. Press to select Unlisted Network, then press OK.

2. Use the LCD keyboard (see Using the LCD

keyboard, page 10) to enter your network name.

3. Select WEP or WPA/WPA2 as required for your network's security setup, then press OK.

NOTE: If the name of your network is still not listed,

or your want to change your network, press

to select

then press

Rescan for Wireless Networks,

OK.

5. If your network has security enabled, use the LCD keyboard (see Using the LCD

keyboard, page 10) to enter your security string.

6. When the confirmation message appears, press

OK.

When the printer is successfully connected, the Wi-Fi connectivity LED stops blinking and remains lit.

The printer with a wireless connection is listed as the name of the printer plus a number (for example, KodakHERO3.1+1133).

7. If you haven’t installed the KODAK All-in-One Printer Software: a. Go to www.kodak.com/go/aiodownloads. b. In the results list, click the link for KODAK All-in-One Printer Software for

your computer operating system.

c. Follow the on-screen instructions.

www.kodak.com/go/aiosupport 8

Page 14

Networking Your Printer

Connecting to a WPS wireless router

If your router supports Wi-Fi Protected Setup (WPS), you can use WPS Connect. WPS lets you configure your printer for a wireless network by pressing buttons or entering a PIN.

To connect to a network using WPS:

1. Press Home.

2. Press to select Network Settings, then press OK.

3. With Wi-Fi Setup Wizard selected, press OK. NOTE: The Wi-Fi radio turns on automatically when you select Wi-Fi Setup

Wizard.

4. With WPS Connect selected, press OK.

5. Select one of two methods of connecting:

IMPORTANT: Before you press OK on the printer, make sure you know where the

router's push button is, or where to enter the generated PIN. If necessary, consult your Internet service provider or router device manufacturer’s documentation for more information.

Pressing a button Entering a PIN

NOTE: You will have two minutes to

press or select the WPS button. It may be a button on the device or a virtual button in the device’s software.

a. With Push Button Configuration

selected, press OK.

b. Press or select the WPS button for

your wireless router.

a. Press to select Generate

WPS PIN, then press OK.

b. In your wireless router’s software,

locate the PIN screen.

c. Enter the PIN you received on the

LCD into the PIN screen.

6. When the confirmation message appears, press OK. When the printer is successfully connected, the Wi-Fi LED will stop blinking and

remain lit.

7. If you haven’t yet installed the KODAK All-in-One Printer Software: a. Go to www.kodak.com/go/aiodownloads. b. In the results list, click the link for KODAK All-in-One Printer Software for

either WINDOWS or MACINTOSH Operating System, depending on your computer’s operating system.

c. Follow the on-screen instructions to install the software.

9 www.kodak.com/go/aiosupport

Page 15

Using the LCD keyboard

When you need to enter letters or numbers, a keyboard appears on the LCD.

Setting up an IP Address

IMPORTANT: You should only need to set up an IP Address for your printer if you are

KODAK HERO 3.1 All-in-One Printer

On the control panel, press , , or to select the letters and numbers, using the correct uppercase and lowercase letters. Press OK after each character. When you are done, select DONE, then press OK.

having a problem with connecting to your network. Typically, it is not necessary to set up an IP Address. This procedure is for advanced users who know how to obtain the IP Address for the printer.

All IP Address entries have the following format: 000.000.000.000. If an address or subnet mask has only one or two characters between the periods, include one or two leading zeros in front of that number. For example:

The address as it may appear in your documentation

149.89.138.149 149.089.138.149

149.2.40.149 149.002.040.149

How to enter the address in the printer menu

www.kodak.com/go/aiosupport 10

Page 16

Networking Your Printer

To set up your IP Address on the printer:

1. Press Home.

2. Press to select Network Settings, then press OK.

3. Press to select Advanced IP Address Setup, then press OK.

4. Press OK again to continue.

5. Select one of the following, then press OK:

• Dynamic (DHCP)

• Manual (Static)

6. If you selected Manual (Static), you are prompted to enter an IP Address, a Subnet Mask, a Gateway Address, and a DNS Server address. Press OK after each entry. Use the navigation buttons to enter each digit of the numbers.

Consult your Internet service provider or network administrator for more information.

Viewing the network configuration

To view the network configuration and verify that you are connected to your wireless network:

1. Press Home.

2. Press to select Network Settings, then press OK.

3. Press to select View Network Configuration, then press OK. The wireless or Ethernet network settings appear on the LCD, including:

•Printer Hostname

• Connection

• Speed

• IP Address

• IP Address Type

• Network Subnet

• Connected Network SSID

• Access Point MAC address

•Security

• Authentication

• Channel

•Region

• Radio (on/off)

• Wi-Fi Firmware Version

• MAC Address If the printer is connected to your network, you will see the network name and

the word CONNECTED.

11 www.kodak.com/go/aiosupport

Page 17

KODAK HERO 3.1 All-in-One Printer

4. To scroll through the information, press .

5. When you are done, press OK.

Printing the network configuration

To print the current network configuration:

1. Load plain paper into the printer. (See Loading plain paper, page 22.)

2. Press Home.

3. Press to select Network Settings, then press OK.

4. Press to select Print Network Configuration, then press OK.

Installing your printer on additional computers on the network

To add your printer to another computer(s) on your network, install the KODAK All-in-One Printer Software on each computer.

1. Go to www.kodak.com/go/aiodownloads.

2. In the results list, click the link for KODAK All-in-One Printer Software for your computer operating system.

3. Follow the on-screen instructions.

Connecting to another KODAK All-in-One Printer

If you are connecting to a newer model printer (for example, you have an ESP 7 printer and now you are adding a HERO 3.1 printer), you must install the software for the newer model.

NOTE: When you install the new software, the printer driver for the ESP 7 printer

will be uninstalled, and an upgraded driver for the ESP 7 printer will be installed in addition to the driver for the HERO 3.1 printer.

On a computer with WINDOWS OS:

1. Select Start > All Programs > Kodak > Kodak Printer Setup Utility.

• If your wireless printer (example: KodakHERO3.1+0034) is not listed:

a. Select No, my printer is not listed, then click Next. b. From the drop-down list, select your printer, then click c. Select Network - Wireless/Wi-Fi, then click Next.

When your printer is detected, driver installation begins.

• If your wireless printer (example: KodakHERO3.1+0034) is listed:

a. Select the printer that is connected to your network, then click b. Select Yes, my printer is listed, then click Next.

When your printer is detected, driver installation begins.

2. When driver installation is complete, click Done.

Next.

www.kodak.com/go/aiosupport 12

Page 18

Networking Your Printer

On a computer with MAC OS:

1. Select Apple > System Preferences.

2. Under Hardware, select Print & Fax or

3. Click + in the dialog box.

4. Select your printer from the list.

5. Click

Add, if required.

Print & Scan.

Adding a wireless network connection to a USB-connected computer

You can change the way you connect to your printer at any time.

Changing from USB to a wireless connection

To change the printer connection type from USB to a wireless (Wi-Fi) network:

If your printer is connected to a computer with WINDOWS OS:

1. Disconnect the USB cable from your printer and computer.

2. If you have not already done so, connect your printer to your wireless network. See Connecting to a wireless network, page 6.

3. On your computer, disable any firewall you have installed until you have successfully connected your printer.

4. Select Start > All Programs > Kodak > Kodak Printer Setup Utility.

• If your wireless printer (example: KodakHERO3.1+0034) is not listed:

a. Select No, my printer is not listed, then click Next. b. Select your printer from the list, then click c. Select Network - Wireless/Wi-Fi, then click Next.

When your printer is detected, driver installation begins.

• If your wireless printer (example: KodakHERO3.1+0034) is listed:

a. Select the printer that is connected to your network, then click b. Select Yes, my printer is listed, then click Next.

When your printer is detected, driver installation begins.

5. When driver installation is complete, click Done.

Next.

The printer with a wireless connection is listed as the name of the printer plus a number (for example, KodakHERO3.1+0034).

13 www.kodak.com/go/aiosupport

Page 19

KODAK HERO 3.1 All-in-One Printer

If your printer is connected to a computer with MAC OS:

1. Disconnect the USB cable from your printer and computer.

2. If you have not already done so, connect your printer to your wireless network. See Connecting to a wireless network, page 6.

3. Select Apple > System Preferences.

4. Under Hardware, select Print & Fax or

Print & Scan.

5. Click + in the dialog box.

6. Select your printer from the list.

7. C lic k

Add, if required.

The printer with a wireless connection is listed as the name of the printer plus a number (for example, KodakHERO3.1+0034).

www.kodak.com/go/aiosupport 14

Page 20

Online Printer Management Tool

The Online Printer Management Tool lets you access your printer through an Internet browser (such as, INTERNET EXPLORER, FIREFOX, SAFARI, CHROME) on any computer that is on the same network as your printer.

IMPORTANT: Your computer and your printer must be on the same wireless network. The

Online Printer Management Tool is not available if your printer is connected to a computer with a USB cable.

With the Online Printer Management Tool, you can:

• view printer status

• set up accounts for GOOGLE Cloud Print and KODAK Email Print Service

www.kodak.com/go/aiosupport 15

Page 21

Accessing the Online Printer Management Tool

Access the Online Printer Management Tool in one of the ways described below.

Directly from Home Center Software v7.x or higher:

1. Open Home Center Software.

2. Select Printer Tools on a computer with WINDOWS OS, or Tools on a computer with MAC OS.

3. Under To o l s , select Online Printer Management. The Online Printer Management Tool opens.

On any printer-supported computer:

1. Get the IP Address of your wirelessly connected printer: a. On your printer control panel, press Home. b. Press to select Network Settings, then press c. Press to select View Network Configuration, then press

NOTE: If you prefer a printout, press to select Print Network Configuration, then

OK. A Test Page prints, including the IP Address in the format

press xxx.xxx.xxx.xxx.

KODAK HERO 3.1 All-in-One Printer

OK.

d. Press to see the IP Address in the format xxx.xxx.xxx.xxx. (See Viewing the

network configuration, page 11).

2. On your computer, open your preferred Internet browser (such as, INTERNET EXPLORER, FIREFOX, SAFARI, CHROME).

3. Type the printer IP Address in the browser address (URL) bar, then press Enter. The Online Printer Management Tool opens.

www.kodak.com/go/aiosupport 16

Page 22

Online Printer Management Tool

Using the Online Printer Management Tool

Adding a GOOGLE Cloud Print Account

Your printer lets you print from anywhere in the world from your smartphone, tablet, or computer that uses GOOGLE Cloud Print enabled apps. You must register your printer with a GOOGLE Account to enable this feature.

1. Open the Online Printer Management Tool in a browser (see Accessing the

Online Printer Management Tool, page 16).

2. Select the Settings tab.

3. Select Cloud Printing > Google Cloud Print.

4. Click Register Printer.

5. In the Printer Description field, type a name that has meaning for you; for example, your initials and your location, such as LR Home or LR Office.

The Friendly Name field is automatically filled in with the printer model number as it appears in the driver.

17 www.kodak.com/go/aiosupport

Page 23

KODAK HERO 3.1 All-in-One Printer

6. If you use a Proxy server to connect to your network: a. Select the Proxy Setup check box. b. In the HTTP Proxy field, type the Proxy server URL.

7. C lic k Register Printer.

www.kodak.com/go/aiosupport 18

Page 24

Online Printer Management Tool

8. Click Claim Printer Now. You will be redirected to the GOOGLE Cloud Print Web site. There is no need to

manually enter the Printer Claim Token. Your printer will register automatically.

Editing a GOOGLE Cloud Print Account

Once you have successfully registered your printer with Google, you can make edits to various fields.

1. Open the Online Printer Management Tool (see Accessing the Online Printer

Management Tool, page 16).

2. Select the Settings tab.

3. Select Cloud Printing > Google Cloud Print.

4. Click Edit Settings.

5. Make the changes you want in the appropriate fields, then click Save.

19 www.kodak.com/go/aiosupport

Page 25

Adding a KODAK Email Print Service Account

KODAK Email Print Service lets you send emails and attachments to your printer using any email account. You must sign in with the account you used to set up GOOGLE Cloud Print (see Adding a GOOGLE Cloud Print Account, page 17).

1. Open the Online Printer Management Tool (see Accessing the Online Printer

Management Tool, page 16).

2. Select the Settings tab.

3. Select Cloud Printing > Kodak Email Print Service.

4. Click Get Printer Email Address. You will be redirected to the KODAK Web site. Follow the instructions to set up

the printer email address. When the email is set up, a test page will print.

5. You must sign in with the account used for GOOGLE Cloud Printing before you can use your printer email address with other devices.

a. Click Sign in with Google. b. Click Allow, then click the plus sign next to Manage your printers. c. Select the printer you want the KODAK Email Print Service to send emails to,

then click Enable.

6. Click Send Test Email to Google Account. If you want to limit who can send emails to your KODAK Printer email address:

7. a. Next to Access Control, click Edit. b. Select Control who can send email to KODAK Printer Email Address. c. To add a specific email address, click Add new email, type the email address

into the field, then click Add.

d. To allow all emails from a specific domain, click Add new domain, type the

domain name into the field, then click Add.

e. To edit your email address and domain settings, click Edit/Delete.

8. To import your printer email address into your smartphone contacts, snap the MICROSOFT Tag that is on the KODAK Email Print Service tab in the Online Printer Management Tool.

KODAK HERO 3.1 All-in-One Printer

www.kodak.com/go/aiosupport 20

Page 26

Handling Paper

Paper types

For the best document printing results, use KODAK Document Papers or a paper with the COLORLOK Technology logo on the package. Use only paper that is designed for inkjet printers.

For the best photo printing results, use KODAK Photo Papers, which are optimized to work with KODAK All-in-One Printers, or photo papers designed for use on pigment-based inkjet printers.

When handling photo paper:

• Hold the paper by the edges; avoid placing your fingerprints on it.

• Do not touch the glossy side of photo paper.

• Store paper flat, away from direct sunlight and heat.

You can use:

• Plain paper — 16 to 24 lb / 60 to 90 gsm

• Photo paper — up to 12 mils

• Card stock — 110 lb / 200 gsm, max

• Envelopes — most standard types

• Transparencies — inkjet variety with white stripe on short edge

• Labels — all commercially available inkjet varieties on 8.5 x 11-in. or A4 sheets

• Iron-on transfers — all commercially available inkjet varieties on 8.5 x 11-in. or A4 sheets

Paper sizes

The printer accepts the following paper sizes:

• 4 x 6 in. / 10 x 15 cm

• 4 x 7 in. / 10 x 18 cm

• 4 x 8 in. / 10 x 20 cm

• 4 x 12 in. / 10 x 31 cm

• 5 x 7 in. / 13 x 18 cm

• 7.3 x 8.5 in. / 18 x 22 cm

• 7.3 x 10.5 in. / 18 x 27 cm

• 8 x 10 in. / 20 x 25 cm

• 8.5 x 11 in. / 22 x 28 cm

• 8.5 x 14 in. / 22 x 36 cm

• A4 (8.3 x 11.7 in. / 21 x 30 cm)

• A5 (5.8 x 8.3 in. / 15 x 21 cm)

• A6 (4.1 x 5.8 in. / 11 x 15 cm)

• B5 (6.9 x 9.8 in. / 18 x 25 cm)

NOTE: Do not load paper smaller than 4 x 6 in. / 10 x 15 cm.

www.kodak.com/go/aiosupport 21

Page 27

Envelope sizes

Loading paper

Loading plain paper

KODAK HERO 3.1 All-in-One Printer

The printer accepts the following envelope sizes:

• C5 (6.7 x 9 in. / 16 x 23 cm)

• C6 (4.5 x 6.4 in. / 11 x 16 cm)

• DL (4.3 x 8.7 in. / 11 x 22 cm)

• US #7¾ (3.9 x 7.5 in. / 10 x 19 cm)

• US #9 (3.9 x 8.9 in. / 10 x 23 cm)

• US #10 (4.1 x 9.5 in. / 11 x 24 cm)

IMPORTANT: Do not load envelopes with cutout or clear windows.

The paper input tray capacity is 100 sheets of plain paper.

1. Lift the paper input tray.

www.kodak.com/go/aiosupport 22

Page 28

Handling Paper

Paper output tray extender

2. Open the paper output tray, then pull out the extender until it is fully extended.

3. Make sure the left and right paper-edge guides are in the far left and far right positions, then insert the paper into the paper input tray.

23 www.kodak.com/go/aiosupport

Page 29

KODAK HERO 3.1 All-in-One Printer

4. Fan and stack the paper.

5. Move the paper-edge guides until they touch the paper.

www.kodak.com/go/aiosupport 24

Page 30

Handling Paper

Paper output tray extender

Loading photo paper

The paper input tray capacity is 20 sheets of photo paper.

1. Lift the paper input tray.

2. Open the paper output tray, then pull out the extender until it is fully extended.

25 www.kodak.com/go/aiosupport

Page 31

KODAK HERO 3.1 All-in-One Printer

3. Make sure the left and right paper-edge guides are in the far left and far right positions.

4. Fan and stack the photo paper, then insert it (short side first) into the center of the paper input tray with the

you

IMPORTANT: Always load the paper short side first. The printer automatically detects

logo side toward the tray and the glossy side toward

the orientation of the picture, whether it’s portrait or landscape, and prints accordingly. If the photo paper is loaded in the wrong direction, the image will be cut off and the paper may jam. If the paper is loaded with the wrong side up, the image quality will be affected.

5. Move the paper-edge guides until they touch the paper.

www.kodak.com/go/aiosupport 26

Page 32

Handling Paper

Paper output tray extender

Loading envelopes

The paper input tray capacity is 20 envelopes.

IMPORTANT: Do not load envelopes with cutout or clear windows.

1. Insert the envelope(s) into the paper input tray with the flap toward the tray and the top of the envelope against the right side of the tray.

2. Lift the paper input tray.

3. Open the paper output tray, then pull out the extender until it is fully extended.

27 www.kodak.com/go/aiosupport

Page 33

KODAK HERO 3.1 All-in-One Printer

4. Make sure the left and right paper-edge guides are in the far left and far right positions.

5. Move the paper-edge guides until they touch the envelope(s).

www.kodak.com/go/aiosupport 28

Page 34

Printing

Print documents and lab-quality pictures on your printer.

Printing documents

To print a document:

1. Open the document on your computer.

2. Select File > Print.

3. In the Print dialog box, select your KODAK Printer.

4. Choose the pages to print, number of copies, etc, then click OK (on a computer with WINDOWS OS) or Print (on a computer with MAC OS).

Printing two-sided documents

You can print two-sided documents on any size paper that the printer accepts when you rotate the paper manually (see Paper sizes, page 21).

IMPORTANT: You can print two-sided documents on media that can absorb ink on both

sides, such as plain paper or two-sided photo paper. You cannot print two-sided documents on bar-coded photo paper (the bar code is on the back side).

Printing two-sided documents from a computer with WINDOWS OS

To print two-sided documents from a computer with WINDOWS OS:

1. Load paper into the paper input tray.

2. Open the document you want to print, then select File > Print.

3. In the Print dialog box, make sure that connection, click Properties.

4. Select the Layout tab.

5. In the Two-sided printing field, select Manual, then click OK.

NOTE: You can also select manual two-sided printing from the General tab under

the Job settings field.

6. Under “Flip on:”, select Long edge or Short edge, then click OK.

7. When a message appears on your computer and control panel, remove the printed pages from the paper output tray.

8. Press Start on the control panel.

KodakHERO3.1+XXXX, where XXXX is a number) is selected, then

KODAK HERO 3.1 AiO (or for a wireless

29 www.kodak.com/go/aiosupport

Page 35

Printing two-sided documents from a computer with MAC OS

To print two-sided documents from a computer with MAC OS:

1. Load paper into the paper input tray.

2. Open the document you want to print, then select File > Print.

3. In the Print dialog box, make sure that Eastman Kodak Company KODAK HERO

3.1 AiO (or for a wireless connection, KodakHERO3.1+XXXX, where XXXX is a number) is selected.

4. In the Print dialog box, select the two-sided check box.

5. Click Print.

6. When the even pages have finished printing, follow the instructions on the control panel to reload the printed pages in the paper input tray.

7. P re ss Start on the control panel to print the odd numbered pages.

Printing forms from the control panel

You can print the following forms from the control panel:

• Graph paper

•Wide ruled

• Narrow ruled

• Grocery list

•Reminder list

• Tic-tac-toe

• Sheet music (portrait)

• Sheet music (landscape)

KODAK HERO 3.1 All-in-One Printer

To p r in t a f or m :

1. Press Home.

2. Press to select Printable Forms, then press OK.

3. Press to select a form.

4. Press or to select a quantity, then press OK.

5. Press Start.

www.kodak.com/go/aiosupport 30

Page 36

Printing

Printing pictures

You can print pictures with your all-in-one printer from:

• A memory card inserted into a memory card slot

• An iPhone, iPod touch, iPad, BLACKBERRY Device, or an ANDROID OS Device (may not be available with all models). For information, go to

www.kodak.com/go/mobileprinting.

You can also print pictures using Home Center Software from your computer with WINDOWS OS. Home Center Software lets you edit and enhance your pictures quickly. Open Home Center Software, select Edit and Print Pictures, then follow the on-screen instructions.

On a computer with either MAC OS or WINDOWS OS, you can print pictures from KODAK EASYSHARE Software or any picture-editing or photo-management software.

Viewing pictures on a memory card

When you insert a memory card into the card slot on your printer, press to select

View and Print Photo

or to scroll through the pictures.

s, then press

Finding pictures on a memory card

Your printer can help you locate pictures on a memory card by the date the picture was taken or last saved.

To locate pictures:

1. Insert the memory card into the memory card slot.

2. Press to select Find Photos, then press OK.

3. Press to select Ye a r , Month, and Day, then press or to set the values. The number of photos found for the date you specified appears under the menu

name.

4. Press OK to view the pictures.

31 www.kodak.com/go/aiosupport

Page 37

Printing from a memory card

You can print pictures from the following cards:

The memory card slot on your printer accepts the following memory cards:

•SD Card

• SDHC Card

• MMC Card

• MEMORY STICK

• Variations of the memory cards listed above that require an adapter (for example, MEMORY STICK Duo, miniSD, and microSD)

IMPORTANT: If you use a memory card with an adapter, make sure you insert and remove

the adapter and the memory card as a unit; do not remove the memory card while leaving the adapter in the printer.

Using default settings to print a picture

1. Load photo paper (short side first) into the center of the paper input tray with

glossy side toward you (see Loading photo paper, page 25), and move the

the paper-edge guides until they touch the paper.

KODAK HERO 3.1 All-in-One Printer

IMPORTANT: Always load the paper short side first. The printer automatically detects

www.kodak.com/go/aiosupport 32

Page 38

Printing

memory card slot

2. Insert the memory card into the memory card slot, then press to select View Photos, then press OK.

3. Press or to display the picture you want to print.

4. Press Start to begin printing. The printer prints one 4 x 6 in. / 10 x 15 cm picture.

IMPORTANT: To prevent loss of data from your memory card, do not remove it from the

printer while printing.

Changing the settings and printing pictures

You can change the print photos options for an individual picture or group of pictures, or you can change the settings and save them as the default.

To print a picture or pictures using settings other than the default settings:

1. Load photo paper (

glossy side toward you (see Loading photo paper, page 25), and move the

the paper-edge guides until they touch the paper.

short side first) into the center of the paper input tray with

33 www.kodak.com/go/aiosupport

Page 39

KODAK HERO 3.1 All-in-One Printer

memory card slot

Insert the memory card into the memory card slot. A picture appears on the LCD

3. Press or to select the picture you want to print, then press OK.

4. Repeat step 3 for each picture you want to print.

5. Press Back for Print Photos Options.

6. Press to select an option (see table below), then press or to change the setting.

Print Photos Option Settings Description

View Photos -- Scroll through the pictures on the

memory card; press picture for printing; press Back to display the Print Photos Options menu.

Find Photos -- Press

Transfer All to PC -- To transfer all the pictures on the

Quantity 1 (default) to 99

Color Color (default) Prints full color.

Black & White Prints black and white (grayscale).

OK, then select a year, month,

and/or day to view photos by date that they were taken; press OK to view the photo(s); press Back to display the Print Photos Options menu.

memory card to your computer, press

OK then Start. (Your printer and

computer must be connected with a USB cable.)

The number of copies that print

OK to select the

www.kodak.com/go/aiosupport 34

Page 40

Printing

Print Photos Option Settings Description

Print Size

Plain Paper Quality Normal (default) Good quality output; prints faster than

Photo Paper Quality Auto

2 x 3

3.5 x 5 4 x 6 (default)

4 x 7

4 x 8 5 x 7

4 x 12

8 x 10

8.5 x 11 or A4

Best The highest quality, but the slowest

Draft The fastest print speed, but the lowest

(default)

If the selected copy size is smaller than the paper in the paper input tray, the printer automatically arranges the pictures to best fit the paper size.

Best.

print speed.

quality.

The printer detects photo paper in the paper input tray and sets Best quality automatically.

Scene Balance On (default)

Off

Add Date to Prints No (default)

Ye s

Save as Defaults No / Yes

Adjusts the image brightness to correct for underexposure and reduces the variation in contrast in different areas of the picture.

Prints the date of the picture(s) (the date the picture was taken or last edited) in a corner of the print.

To save the settings as the new default, press OK. With Ye s selected, press OK.

7. When you have finished changing settings, press Start to begin printing.

IMPORTANT: To prevent loss of data from your memory card, do not remove it from the

printer while printing.

35 www.kodak.com/go/aiosupport

Page 41

Printing panoramic pictures

memory card slot

To print a panoramic picture, load 4 x 12 in. / 10 x 31 cm paper, or US letter or A4 paper in the paper input tray.

1. Insert the memory card into the memory card slot.

KODAK HERO 3.1 All-in-One Printer

2. Press or to select the panoramic picture you want to print, then press OK.

3. Press Back for Print Photos Options.

4. Press to select Print Size, then press to select 4 x 12.

5. Press Start.

IMPORTANT: To prevent loss of data from your memory card, do not remove it from the

printer while printing.

www.kodak.com/go/aiosupport 36

Page 42

Printing

memory card slot

Printing tagged pictures

Some digital cameras let you tag (or “mark”) pictures on the memory card for printing. This creates a tag that is recognized by the printer. If you choose to print tagged pictures, they will be printed according to the default settings on your printer (unless otherwise specified by the tag from the camera).

NOTE: Refer to your camera user guide to determine whether your camera supports

To print tagged pictures:

tagged (also “marked” or “DPOF”) functionality.

1. Load photo paper (

glossy side toward you (see Loading photo paper, page 25), and move the

the

short side first) into the center of the paper input tray with

paper-edge guides until they touch the paper.

2. Insert the memory card into the memory card slot.

3. When the “Print tagged images?” message appears, press Start.

37 www.kodak.com/go/aiosupport

Page 43

Zooming and cropping pictures

memory card slot

Use the zoom buttons to select a portion of your picture for printing.

To zoom and crop a picture:

1. Insert the memory card into the memory card slot.

KODAK HERO 3.1 All-in-One Printer

2. Press or to select the picture you want to crop, then press OK.

3. Press

Zoom + to enlarge the picture on the LCD. A red box shows the area that

will be printed.

NOTE: You can press

0.25 up to a magnification of 5X. Press

Zoom + repeatedly to enlarge the picture in increments of

Zoom – to decrease the magnification

in increments of 0.25 down to 1X.

4. Press the Rotate button to rotate the crop box, if desired.

IMPORTANT: Always load the paper short side first. The printer automatically detects

5. Use the navigation buttons , , , and to move the picture on the LCD up, down, left, or right. Only the part of the picture in the red box will print. The crop window matches the aspect ratio of the selected output print size.

NOTE: Zooming and cropping does not change the saved picture on the memory

card.

6. When you are satisfied with the picture, press

OK. The picture appears in the

original view with a red box around the portion of the picture that will print.

7. P re ss

Start to begin printing.

www.kodak.com/go/aiosupport 38

Page 44

Printing

Printing from a wireless device

You can print pictures wirelessly at the touch of a button from:

• iPhone (iOS 3.0 or later)

• iPod touch (2nd generation)

•iPad

• BLACKBERRY Device (software v4.5 or later)

• a device running ANDROID OS v2.0 or later

For more information, see Mobile Printing, page 41.

Transferring pictures to a computer

You can transfer your image files from a memory card in the printer to your computer. To transfer these files, the printer must be connected to your computer with a USB cable.

NOTE: If you have large video files or a large number of pictures (400 or more), we

recommend that you transfer them using a memory card reader attached directly to your computer.

Transferring pictures to a computer with WINDOWS OS

1. Insert the memory card into the memory card slot on the printer.

2. Press Back.

3. Press to select View and Print Photos, then press OK.

4. Press to select Transfer All to PC, then press OK.

5. Press Start.

6. If your computer is connected to a wireless network and with a USB cable, select the USB-connected printer (no number after the printer name).

7. Follow the on-screen instructions on your computer.

39 www.kodak.com/go/aiosupport

Page 45

Transferring pictures to a computer with MAC OS

1. Insert the memory card into the memory card slot on the printer.

2. Press Back.

3. Press to select Vi ew and Print P h o t o s , then press OK.

4. Press to select Transfer All to PC, then press OK.

5. Press Start.

6. If your computer is connected to a wireless network and with a USB cable, select the USB.

7. Use iPhoto or Image Capture on your computer to complete the transfer.

KODAK HERO 3.1 All-in-One Printer

www.kodak.com/go/aiosupport 40

Page 46

Mobile Printing

Wirelessly print pictures with your all-in-one printer from:

• An iPhone / iPad / iPod touch (may not be available with all models); for information, go to www.kodak.com/go/picflick.

• BLACKBERRY Devices; for information, go to www.kodak.com/go/blackberry.

• ANDROID OS Devices; for information, go to www.kodak.com/go/android.

Download the KODAK Pic Flick App from the App Store directly from your device, then choose one of the following procedures.

Printing from an iPhone, iPad, or iPod touch Device

IMPORTANT: Compatible with iPhone, iPad, and iPod touch (2nd generation). Requires

iOS 3.0 or later.

1. Make sure your device is connected to the same Wi-Fi network as your printer.

2. Open the KODAK Pic Flick application on your device.

3. Select the picture(s) you want to print, then select Choose Device.

4. Select your KODAK All-in-One Printer from the list of available devices. NOTE: It may take a few minutes for the printer to appear in the Available

Printers list.

5. Select Send.

Printing from a BLACKBERRY Device

1. Make sure your BLACKBERRY Device is connected to the same Wi-Fi network as your printer.

2. Open the KODAK Pic Flick application on your smartphone.

3. Select the picture(s) you want to print.

4. Press the Menu key.

5. Select Print.

6. Select your KODAK All-in-One Printer from the list of available devices. NOTE: It may take a few minutes for the printer to appear in the Available

Printers list.

7. Select the print size and enter the number of copies.

8. Select Print.

www.kodak.com/go/aiosupport 41

Page 47

Printing from an ANDROID OS Device

1. Make sure your device is connected to the same Wi-Fi network as your printer.

2. Open the KODAK Pic Flick application on your device.

3. Select the picture(s) you want to print.

4. Select View/ Edit to edit the picture, or go to the next step. a. Press and hold the screen to enter the edit mode. b. Rotate, move, pan, zoom, or crop the picture.

5. Press

6. Choose the print size.

7. S el ec t Back, then select

Select Device, then select your KODAK All-in-One Printer.

NOTE: It may take a few minutes for the printer to appear in the Available

Printers list.

Send.

KODAK OFFICE HERO 3.1 All-in-One Printer

www.kodak.com/go/aiosupport 42

Page 48

Copying

You can copy documents and pictures with your all-in-one printer. The printer produces high–quality color or black-and-white copies on a variety of paper types (see Paper types, page 21).

Copying a document

You can copy a document using the default settings, or you can adjust the quantity, size, quality, and brightness of your copies.

Using the default settings to copy a document

The default settings are either the factory default settings (see Resetting factory

defaults, page 76), or defaults that you have set on the printer (see Save as Defaults, page 45).

To copy a document using the current default settings:

1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass.

2. Close the lid.

3. Press Home.

4. Press Start to begin copying.

www.kodak.com/go/aiosupport 43

Page 49

Adjusting the settings and copying a document

To copy a document using settings other than the default settings:

1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press Home.

4. With Copy Document selected, press OK.

5. Press to select an option, then press or to change the setting.

Copy Document

Option

Quantity 1 (default) to 99 The number of copies that print.

Color Color (default) Prints full color.

Copy Size Same Size

Setting Description

Black & White Prints black and white (grayscale).

The copy is the same size as the

(default)

Fit to Page The printer detects the size of the

original.

original on the scanner glass and the size of the paper in the paper input tray, and automatically reduces or enlarges the original so that the copy fits on the paper.

20% to 500% Reduces down to 20% or enlarges up

to 500% of the original size.

www.kodak.com/go/aiosupport 44

Page 50

Copying

Copy Document

Option

Plain Paper Quality Normal

Photo Paper Quality Auto.

Brightness Normal (default)

Setting Description

Good quality output; prints faster than

(default)

Best The highest quality, but the slowest

Draft The fastest print speed, but the lowest

(default)

− 3 to +3

Best.

print speed.

quality.

The printer detects photo paper in the paper input tray and sets Best quality automatically.

Lightens or darkens the copy. Normal is no change from the original;

− 3 is the darkest; +3 is the lightest.

Save as Defaults No / Yes To save the settings as the new

default, press OK. With Ye s selected, press OK.

6. Press Start to begin copying.

45 www.kodak.com/go/aiosupport

Page 51

Changing the number of copies of a document

To change the number of copies:

1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press

4. With

5. Press

Home.

Copy Document selected, press or to select a number.

Start to begin copying.

www.kodak.com/go/aiosupport 46

Page 52

Copying

Enlarging or reducing a document

To enlarge or reduce the size of the copy:

1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass.

2. Close the lid.

3. Press Home.

4. With Copy Document selected, press OK.

5. Press to select Copy Size.

6. Press or to select an enlargement or reduction.

7. P re ss Start to begin copying.

47 www.kodak.com/go/aiosupport

Page 53

Darkening or lightening a document

1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press Home.

4. With Copy Document selected, press OK.

5. Press to select Brightness.

6. Press to select a number below zero for a darker copy, or press to select a number above zero for a lighter copy.

7. P re ss Start to begin copying.

www.kodak.com/go/aiosupport 48

Page 54

Copying

Copying a photo

You can copy a photo using the default settings, or you can adjust the quantity, size, quality, and brightness of your copies.

Using the default settings to copy a photo

The default settings are either the factory default settings (see Resetting factory

defaults, page 76), or defaults that you have set on the printer (see Save as Defaults, page 51).

To copy a photo using the current default settings:

1. Load photo paper into the printer (see Loading photo paper, page 25).

2. Lift the scanner lid, and place the photo face down in the right-front corner of the scanner glass.

3. Close the lid.

4. Press Home.

5. Press to select Copy Photo.

6. Press Start to begin copying.

49 www.kodak.com/go/aiosupport

Page 55

Adjusting the settings and copying a photo

To copy a photo using settings other than the default settings:

1. Lift the scanner lid, and place the photo face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press Home.

4. Press to select Copy Photo, then press OK.

5. Press to select an option, then press or to change the setting.

Copy Photo Option Setting Description

Quantity 1 (default) to 99 The number of copies that print.

Color Color (default) Prints full color.

Black & White Prints black and white (grayscale).

Copy Size 2 x 3

3.5 x 5 4 x 6 (default)

4 x 7

4 x 8 5 x 7

4 x 12

8 x 10

8.5 x 11 or A4

The printer detects the size of the original on the scanner glass and the size of the paper in the paper input tray, and automatically reduces or enlarges the original so that the copy fits on the paper.

www.kodak.com/go/aiosupport 50

Page 56

Copying

Copy Photo Option Setting Description

Plain Paper Quality Normal

(default)

Best The highest quality, but the slowest

Draft The fastest print speed, but the lowest

Photo Paper Quality Auto.

(default)

Brightness Normal (default)

− 3 to +3

Good quality output; prints faster than Best.

print speed.

quality.

The printer detects photo paper in the paper input tray and sets Best quality automatically.

Lightens or darkens the copy. Normal is no change from the original;

− 3 is the darkest; +3 is the lightest.

Preview No (default)

Ye s

Save as Defaults No / Yes To save the settings as the new default,

To see a preview of the photo on the LCD, select Ye s .

press OK. With Ye s selected, press OK.

6. When you have finished changing settings, press Start to begin copying.

51 www.kodak.com/go/aiosupport

Page 57

Changing the number of copies of a photo

To change the number of copies:

1. Lift the scanner lid, and place the photo face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press Home.

4. Press to select Copy Photo, then press OK.

5. Make sure Quantity is selected.

6. Press or to select a number.

7. P re ss Start to begin copying.

www.kodak.com/go/aiosupport 52

Page 58

Copying

Enlarging or reducing a photo

To enlarge or reduce the size of the copy:

1. Lift the scanner lid, and place the photo face down in the right-front corner of the scanner glass.

2. Close the lid.

3. Press Home.

4. Press to select Copy Photo, then press OK.

5. Press to select Copy Size. NOTE: Make sure that the paper loaded in the paper input tray is at least as wide

as the Copy Size selected, or you will get a wrong paper size error. Also, if the loaded paper is not as long as the Copy Size selected, the output picture will be cut off without any warning.

6. Press or to select the copy size.

7. P re ss Start to begin copying.

53 www.kodak.com/go/aiosupport

Page 59

Darkening or lightening a photo

To darken or lighten the copy:

1. Lift the scanner lid, and place the photo face down in the right-front corner of the scanner glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Press Home.

4. Press to select Copy Photo, then press OK.

5. Press to select Brightness.

6. Press to select a number below zero for a darker copy, or press to select a number above zero for a lighter copy.

7. P re ss Start to begin copying.

www.kodak.com/go/aiosupport 54

Page 60

Scanning

Scanning digitizes documents and pictures, and sends the digital files to your computer or memory card.

When you scan, the digital file can:

• open in Home Center Software (when Home Center Software is loaded and the printer is connected to a computer with WINDOWS OS)

• open in a third-party scanner software

• be saved in a format and location that you determine (see Changing the scan

settings for scanning from the printer control panel, page 56)

Scanning from a software program on the computer (such as Home Center Software) gives you more options, but you can also scan from the printer control panel.

Before you begin scanning

If you are scanning to a computer, make sure that the printer is connected to a computer using a USB 2.0 cable or wireless network (see Networking Your Printer,

page 6). If you plan to scan directly from the printer control panel, you may change

the settings as described below.

55 www.kodak.com/go/aiosupport

Page 61

KODAK HERO 3.1 All-in-One Printer

Changing the scan settings for scanning from the printer control panel

If you want to adjust the scan settings that the printer uses, do so before you scan from the printer control panel.

1. Open Home Center Software, then open the Printer Tools (WINDOWS OS) or Tools (MAC OS) window.

NOTE: To get to Printer Tools without Home Center Software (WINDOWS OS

only), select

2. Under the Tools heading, select Printer Scan Settings.

3. Adjust settings for scanning documents and pictures: a. To select a program that scanned images or documents will appear in when

you scan from the printer control panel: (1) Select the General tab.

(2) Under the Program List heading, click next to the currently selected

program.

(3) From the drop-down list, select the program in which you want the

scanned files to open.

b. To adjust settings for scanning documents, select the Document tab, then

select an option for each setting:

Start > All Programs > Kodak > KODAK AiO Printer Tools.

Setting Options

File format .pdf

.rtf (available only when connected to a computer

with WINDOWS OS)

.tif .jpg

.bmp (available only when connected to a computer

with MAC OS)

Resolution (dpi) 75

150 200 300

File Save Prompt for File Name and Location

Automatically Save - specify:

• Base name; by default, scanned files are named “scan1”, “scan2”, and so on.

• Location (folder) where the scanned files will be saved

www.kodak.com/go/aiosupport 56

Page 62

Scanning

c. To adjust settings for scanning pictures, select the Picture tab, then select an

option for each setting:

Setting Options

Scan As Color

Black and white

File format .jpg

.bmp .tif

Resolution (dpi) 75

150 200

300

600

Quality

Automatically Detect Pictures (when connected to a computer with WINDOWS OS) or Auto Crop (when connected to a computer with MAC OS)

File Save Prompt for File Name and Location

When connected to a computer with WINDOWS OS:

•Best for E-mail

•Normal

•High

•Maximum When connected to a computer with MAC OS,

a slider bar with:

•Least

•Medium

•Best

When selected, multiple pictures placed on the scanner glass are saved as separate files.

Automatically Save - specify:

• Base name; by default, scanned files are named “scan1”, “scan2”, and so on

• Location (folder) where the scanned files will be saved

NOTE: Before you save a scanned file in Home Center Software, you can

preview, crop, and sharpen the image, and adjust the color. On a computer with WINDOWS OS, see the Home Center Software Help (? icon) for instructions.

57 www.kodak.com/go/aiosupport

Page 63

4. When you are finished making selections, click OK on the bottom right of the Printer Scan Settings window.

5. Close the Printer Tools window.

Scanning from the control panel

When you scan a document or picture(s) from the control panel, you have the following options:

• Scan to Computer - scans to a file or to Home Center Software on your computer

• Scan to Memory Card - scans to a memory card in the memory card slot

Scanning to a computer

To scan to a computer:

1. Lift the scanner lid, and place the document or picture face down on the glass, then close the lid.

KODAK HERO 3.1 All-in-One Printer

2. Press to select Scan, then press

3. Select Scan to Computer, then press OK.

www.kodak.com/go/aiosupport 58

OK.

Page 64

Scanning

4. Press to select an option, then press or to change the setting.

Scan

Option

Settings

Description

Scan To USB-connected

Computer (default)

Name of computer

(only if a computer is connected by wireless or Ethernet network)

Scan What Document

(default)


Destination

File (default)

Application

(available only when Home Center Software is installed on computer)

The scanned file is sent to the USB-connected computer.

The scanned file is sent to the computer on the wireless or Ethernet network.

Sets the scan settings for scanning a document (see Changing the scan settings for scanning

from the printer control panel, page 56).

Sets the scan settings for scanning a picture (see Changing the scan settings for scanning

from the printer control panel, page 56).

Sends the scanned file in the format and to the location on your computer that you designate.

Sends the scanned file to Home Center Software.

Save as Defaults

No / Yes To save the settings as the new default, press

OK. With Ye s selected, press OK.

5. Press Start. The scanned file appears at the destination you specified.

59 www.kodak.com/go/aiosupport

Page 65

Scanning to a Memory Card

To scan to a memory card:

1. Lift the scanner lid, and place the document or picture face down on the glass, then close the lid.

KODAK HERO 3.1 All-in-One Printer

2. Press to select Scan, then press

3. Press to select Scan to Memory Card, then press

OK.

4. Press to select an option, then press or to change the setting.

Scan Option Settings Description

Scan What Photo

(default)

Document

Scan Size Auto (default)

2 x 3

3.5 x 5 4 x 6 4 x 7 4 x 8 5 x 7 4 x 12 8 x 10

8.5 x 11 A4

8.5 x 14

Sets the scan settings for scanning a picture (see Changing the scan settings for scanning

from the printer control panel, page 56).

Sets the scan settings for scanning a document (see Changing the scan settings for scanning

from the printer control panel, page 56).

Determines the size that is scanned.

www.kodak.com/go/aiosupport 60

Page 66

Scanning

Scan Option Settings Description

Save as Defaults

No / Yes To save the settings as the new default, press

OK. With Ye s selected, press OK.

5. Press Start. The scanned file appears at the destination you specified.

61 www.kodak.com/go/aiosupport

Page 67

Scanning from the computer

1. Lift the scanner lid, and place the document or picture face down in the right-front corner of the glass.

KODAK HERO 3.1 All-in-One Printer

2. Close the lid.

3. Open Home Center Software.

• On a computer with WINDOWS OS, double-click Scan Documents and

Pictures, then follow the on-screen instructions.

• On a computer with MAC OS, select the To o l s tab, click Scan Application,

then follow the on-screen instructions.

NOTE: If you are not using Home Center Software, open a program that allows you

to scan, then follow the instructions.

www.kodak.com/go/aiosupport 62

Page 68

Scanning

Scanning multiple pictures simultaneously

Using Home Center Software, you can scan multiple pictures simultaneously and save them as separate files.

When scanning multiple pictures, leave space between the pictures so that the printer can detect the separate pictures. Any pictures that overlap are interpreted as a single picture.

Scanning multiple pictures when connected to a computer with WINDOWS OS

To scan multiple pictures simultaneously, and save them as separate files:

1. Lift the scanner lid, and place the pictures face down on the glass, leaving space between the pictures.

2. Close the lid.

3. Open Home Center Software, then select Printer Tools.

4. Click Printer Scan Settings, then select the Picture tab.

5. Select Automatically Detect Pictures, if it is not selected, then click OK.

6. Click the Home icon in the top right corner, then select Scan Documents and Pictures.

7. Make sure that Picture is selected and Collage - Combine all pictures is cleared, then follow the on-screen instructions.

NOTE: Click the Help (? icon) for additional instructions.

Scanning multiple pictures when connected to a computer with MAC OS

To scan multiple pictures simultaneously, and save them as separate files:

1. Lift the scanner lid, and place the pictures face down on the glass, leaving space between the pictures.

2. Close the lid.

3. Open Home Center Software, then select your printer.

4. Select the To o l s tab.

5. Click Scan Application.

6. Select Color Picture or Black and White Picture.

7. S el ec t Automatically detect multiple pictures, if it is not selected.

8. Click Preview or Scan All, then follow the on-screen instructions.

NOTE: Click the Help (? icon) for additional instructions.

63 www.kodak.com/go/aiosupport

Page 69

CAUTION:

Maintaining Your Printer

Your printer requires little maintenance. However, Kodak recommends cleaning the scanner glass and lid regularly to remove dust and fingerprints, which affect the quality and accuracy of scanning and copying.

Except while cleaning the printer, keep the printer plugged into an AC power outlet. If you use a power strip, don't turn off the power strip. (The printer does not need to be turned on but should be plugged in.)

Keep the printhead and ink cartridges in the printer at all times to help prevent damage to the printhead.

For recycling and/or disposal information, contact your local authorities. In the US, go to the Electronics Industry Alliance at www.eia.org or go to

www.kodak.com/go/recycle.

General care and cleaning

Always disconnect the power to the printer before cleaning it. Do not use harsh or abrasive cleaners on any part of the printer.

• To clean the printer, wipe the outside with a clean, dry cloth.

• Keep the surrounding area vacuumed and litter-free.

• Protect the printer from tobacco smoke, dust, and liquid spills.

• Do not place objects on the printer.

• Keep the paper trays free of dust, dirt, and other foreign objects.

• Keep the printer supplies away from direct sunlight and out of high-temperature environments.

• Do not allow chemicals to come into contact with the printer.

www.kodak.com/go/aiosupport 64

Page 70

Maintaining Your Printer

CAUTION:

Document backing

Scanner glass

Cleaning the scanner glass and document backing

The scanner glass can get smudged and minor debris can accumulate on the white document backing under the scanner lid. Periodically clean the scanner glass and document backing.

Do not use harsh or abrasive cleaners on any part of the printer. Do not spray liquid directly on the glass. Do not use paper-based wipes on the document backing as they can scratch it.

1. Turn off the printer and unplug it from the power outlet.

2. Lift the scanner lid.

65 www.kodak.com/go/aiosupport

Page 71

KODAK HERO 3.1 All-in-One Printer

3. Wipe the glass with a soft cloth or sponge, slightly moistened with a nonabrasive glass cleaner.

4. Dry the glass with a lint-free cloth.

5. Gently clean the document backing with a soft cloth or sponge, slightly moistened with mild soap and warm water.

6. Dry the document backing with a chamois or lint-free cloth. NOTE: If the document backing needs further cleaning, use isopropyl (rubbing)

alcohol on a soft cloth, then wipe thoroughly with a cloth moistened with water to remove any residual alcohol.

7. When you finish cleaning, plug in the printer.

www.kodak.com/go/aiosupport 66

Page 72

Maintaining Your Printer

Black ink cartridge

Color ink cartridge

Printhead

Replacing ink cartridges

Your printer uses both black and color ink cartridges. You can check the approximate ink levels on the LCD (see Checking ink levels, page 75) or in Home Center Software. When an ink cartridge is out of ink, the printer LCD displays a message stating that the black or color ink cartridge needs replacing.

IMPORTANT: Do not use non-Kodak brand or refilled ink cartridges.

To replace an ink cartridge:

1. Make sure your printer is on.

2. Lift the access door, and wait for the carriage to move to the access position.

67 www.kodak.com/go/aiosupport

The ink cartridges are located in the printhead.

Page 73

3. Pinch the tab on the ink cartridge.

4. Lift the ink cartridge out of the printhead.

KODAK HERO 3.1 All-in-One Printer

5. Remove the new ink cartridge from its bag.

IMPORTANT: To prevent the printhead from drying out, insert the ink cartridge into the

printhead immediately.

www.kodak.com/go/aiosupport 68

Page 74

Maintaining Your Printer

6. Remove the cap.

7. Insert the ink cartridge into the printhead.

8. Press down on the ink cartridge tab until you hear a click.

9. Close the access door.

69 www.kodak.com/go/aiosupport

Page 75

Replacing the printhead

IMPORTANT: Replacing the printhead is not a regular maintenance procedure. Replace

To replace the printhead:

1. Make sure your printer is on.

2. Lift the access door, and wait for the carriage to move to the access position.

KODAK HERO 3.1 All-in-One Printer

the printhead only if you receive a new printhead from Kodak.

3. Remove both ink cartridges and set them aside.

www.kodak.com/go/aiosupport 70

Page 76

Maintaining Your Printer

CAUTION:

4. Unlatch the used printhead by lifting the button in the center of the carriage.

5. Lift the used printhead out of the carriage.

6. Remove the new printhead from its bag.

Do not touch the copper contacts on the printhead, as doing so may damage the printhead.

71 www.kodak.com/go/aiosupport

Page 77

7. Remove the protective cap from the printhead.

8. Place the new printhead into the carriage.

KODAK HERO 3.1 All-in-One Printer

9. Push firmly against the target label of the printhead until you hear a loud snap.

www.kodak.com/go/aiosupport 72

Page 78

Maintaining Your Printer

10. Insert the black ink cartridge into the printhead.

11. Press down on the ink cartridge until you hear a click.

12. Repeat steps 10 - 11 for the color ink cartridge.

13. Close the access door. The printer detects the new printhead. Follow the instructions on the control

panel to calibrate your printer.

73 www.kodak.com/go/aiosupport

Page 79

KODAK HERO 3.1 All-in-One Printer

Updating the software and printer firmware

Using the latest software and firmware helps ensure optimal performance of your printer.

NOTE: Firmware is the software that runs on your printer.

Although there is an automatic background check for software and firmware updates when your computer is connected to the Internet, you may update manually using the following procedure.

Updating if your printer is connected to a computer with WINDOWS OS

To update the software:

1. Make sure that your computer is connected to the Internet.

2. Open Home Center Software, then select Printer Tools.

NOTE: If you do not have Home Center Software, select

Kodak > KODAK AiO Printer Tools.

3. Under Printer Resources, click Check for Software Updates to check whether software updates are available.

4. If there are updates, click Next and follow the on-screen instructions.

Start > All Programs >

To u pd at e t he fi r m wa r e:

1. Make sure that your computer is connected to the Internet.

2. Connect the printer to the computer with a USB cable or wirelessly (if not currently connected).

3. Open Home Center Software, then select Printer Tools.

4. Make sure that KODAKHERO3.1+xxxx - Connecte Connected) appears in the lower left corner of the Printer Tools window.

NOTE: If KODAKHERO3.1+xxxx - Connected does not appear in the lower left

corner, click Select, click Refresh List and choose your printer from the list; click OK and follow the on-screen instructions.

5. Under Printer Resources, click Check for Printer (Firmware) Updates.

6. If there are updates, click Next and follow the on-screen instructions.

IMPORTANT: Do not turn off or disconnect your printer or your computer during the

update. Doing so may cause the printer to become inoperable. If the printer is connected wirelessly, make sure you have a stable connection when you perform the update. During the upgrade, your printer will restart. Wait for the message, “Update complete! You may now use your Kodak Printer” to appear on your computer.

d (or a similar name with

www.kodak.com/go/aiosupport 74

Page 80

Maintaining Your Printer

Updating if your printer is connected to a computer with MAC OS

To update the software:

1. Make sure that your computer is connected to the Internet.

2. Open Home Center Software.

3. Select the To o l s tab.

4. Click Check for Software Updates.

5. If there are updates, follow the on-screen instructions.

To u pda te t he f ir mwa re :

1. Make sure that your computer is connected to the Internet.

2. Connect the printer to the computer with a USB cable or wirelessly (if not currently connected).

3. Open Home Center Software.

4. Select the To o l s tab.

5. Click Check for Printer (Firmware) Updates.

6. If there are updates, follow the on-screen instructions.

IMPORTANT: Do not turn off or unplug your printer or your computer during the update.

Doing so may cause the printer to become inoperable. Your printer will restart during the upgrade.

Monitoring and adjusting printer performance

From the control panel, you can perform tasks to help keep the printer functioning well.

Checking ink levels

To check the ink levels:

1. Press Home.

2. Press to select Maintenance, then press OK.

3. With Check Ink Levels selected, press OK. The LCD shows approximate levels of ink in the cartridges so you know when it’s

time to order replacement cartridges. NOTE: You can order ink cartridges online. Go to

www.kodak.com/go/printingsupplies.

75 www.kodak.com/go/aiosupport

Page 81

Resetting factory defaults

To reset defaults to the factory default settings:

1. Press Home.

2. Press to select Printer Settings, then press OK.

3. Press to select Reset All Settings, then press OK.

4. When you see the message, “This will reset printer settings to factory defaults,” press OK.

NOTE: Resetting factory defaults does not change the date and time, language,

KODAK HERO 3.1 All-in-One Printer

country/region, or network settings.

www.kodak.com/go/aiosupport 76

Page 82

Troubleshooting

Basic troubleshooting

If you experience a problem with your printer, restarting it will sometimes fix the program. Turn off your printer, wait five seconds, then turn on your printer.

If you are still experiencing a problem, use the following information to troubleshoot your printer.

Problem Possible Solutions

Printer does not power on

Printer not detected

• Make sure you are using the power cord that came with your printer.

• Make sure the power cord is connected to the AC adapter, it is plugged into an outlet or power strip, and that the LED on the AC adapter is lit.

• Make sure that the power cord is securely connected to the power cord port in the back of the printer.

• Make sure your printer is plugged in and turned on.

• If you are using a USB cable, make sure that:

– it is a USB 2.0 high-speed cable. – it is connected to both your printer and your computer. – you restart the computer if the USB cable was disconnected from the printer

then reconnected, or if power to the printer was interrupted.

• If you are using a wireless connection, make sure that:

– the Wi-Fi connectivity LED on the printer is glowing steadily. – the printer is connected to your wireless network.

To check: a. On the printer, press Home. b. Press to select Network Settings, then press OK. c. Press to select View Network Configuration, then press OK.

Make sure that the Active Connection Type is Wi-Fi, and that the IP Address

is not 0.0.0.0. – your router is transmitting data. – the firewall (excluding WINDOWS Firewall) is allowing the services needed for

your printer.

For more information, go to www.kodak.com/go/inkjetnetworking.

Wireless connectivity

Carriage jam

77 www.kodak.com/go/aiosupport

For wireless connectivity issues, go to

• Open the access door and clear any obstructions.

• Make sure the printhead and ink cartridges are installed correctly. (The printhead and ink cartridges are installed correctly when you hear them click into place.)

www.kodak.com/go/inkjetnetworking.

Page 83

Problem Possible Solutions

KODAK HERO 3.1 All-in-One Printer

Print quality

Ink cartridge

Paper jam

• For best results, use paper with the COLORLOK Technology logo on the package.

• Make sure the paper is loaded correctly. See Loading paper, page 22.

• Clean the printhead:

– Press Home. – Press to select Maintenance, then press OK. – Press to select Clean Printhead, then press OK.

• Calibrate the printer: – Press Home. – Press to select Maintenance, then press OK. – Press to select Calibrate Printer, then press OK.

• For more information, go to www.kodak.com/go/hero3_1support, then type the

problem in the search field.

• Make sure KODAK Ink Cartridge(s) are installed. Do not use non-Kodak brand or

refilled ink cartridges.

• Remove, then install the cartridges again. Make sure the cartridges click into place.

• Open the access door and gently remove any paper from inside the printer.

• Make sure the paper in the tray is free of tears or creases.

• Make sure you do not overload the paper input tray.

For more information, go to www.kodak.com/go/hero3_1support, then type jam in the search field.

Error

codes/message or other problems you cannot resolve

•Go to www.kodak.com/go/hero3_1support, then type your error code or message. If you need to contact Kodak (see www.kodak.com/go/contact), have the following

information available:

• Kodak Service Number (located inside the printer when you open the access door)

• Printer model number (located on the control panel)

• Computer model, operating system, and version of Home Center Software

• Exact wording of any error message(s) and the error code

www.kodak.com/go/aiosupport 78

Page 84

Troubleshooting

Getting help on the Web

For more troubleshooting information:

Get help with wireless networking. www.kodak.com/go/inkjetnetworking

Search our knowledge base of Questions and Answers.

Download the latest firmware and software for optimal printer performance.

Get help with problems you cannot resolve. Contact Kodak at www.kodak.com/go/contact and have the

www.kodak.com/go/hero3_1support

www.kodak.com/go/hero3_1downloads

following information available:

– Kodak Service Number (located inside the printer when you

open the access door) – Printer model number (located on the control panel) – Computer model, operating system, and version of Home

Center Software

79 www.kodak.com/go/aiosupport

Page 85

Status lights

Power light

KODAK HERO 3.1 All-in-One Printer

The status lights indicate the condition of the printer. There are two status lights on the printer: one on the on/off button that indicates power, the other indicates Wi-Fi status.

Power light What it means

Off

Blinking

Wi-Fi connectivity LED

Wi-Fi connectivity LED What it means

Off The Wi-Fi radio is either turned off or is turned on but not

Blinks continuously The Wi-Fi radio is turned on, and the printer is searching for

• The printer is turned off.

– Press the on/off button to turn on power.

• The printer does not have power.

– Make sure that the power cord is plugged into the

back of the printer and into an electrical outlet, and that the electrical outlet has power.

•The printer is busy. – Wait for the printer to finish the task.

•The printer is ready.

connected to a wireless network.

available wireless networks within range.

Blinks intermittently The Wi-Fi radio is turned on and the printer cannot find any

available wireless networks within range, or the Wi-Fi radio connection has been interrupted, or is too weak to send signals to and from the printer.

To find and connect to an available wireless network within range, press OK, turn the Wi-Fi radio off, and run the Wi-Fi Setup Wizard (see Connecting to a wireless network,

page 6).

On The Wi-Fi radio is turned on, and there is a working

connection between the printer and a wireless network.

www.kodak.com/go/aiosupport 80

Page 86

Product and Safety Specifications

The following specifications are subject to change without notice.

Specifications and features

Print performance

ISO/IEC 24374 ESAT 6.8 ipm

ISO/IEC 24374 ESAT 4.1 ipm

Print technology Continuous-tone, thermal inkjet

Print quality modes Draft, Normal, and Best on plain paper

Best on photo paper

Photo printing features

Quantity 1 to 99

Print sizes 2 x 3 in. / 5 x 8 cm

3.5 x 5 in. / 9 x 13 cm 4 x 6 in. / 10 x 15 cm 4 x 7 in. / 10 x 18 cm 4 x 8 in. / 10 x 20 cm 4 x 12 in. / 10 x 30 cm (Panoramic) 5 x 7 in. / 13 x 18 cm 8 x 10 in. / 20 x 25 cm US Letter - 8.5 x 11 in. / 22 x 28 cm A4 - 8.3 x 11.7 in. / 21 x 30 cm

Quality Best, Normal, Draft modes on plain paper

Auto-detect media Auto-detect plain paper and photo papers

Image enhancement KODAK PERFECT TOUCH Technology with Home Center

Add date to prints No (default), Yes

Scene balance On (default), Off

Copy document features

Quantity 1 to 99 copies

Copy sizes Same Size, Fit-to-Page, 20% to 500%

Plain paper quality Best, Normal, Draft

Brightness

Best on photo paper

Optimize image quality for KODAK Photo Papers with barcode

Software

Color Black and white or color

− 3 to + 3

81 www.kodak.com/go/aiosupport

Page 87

Copy photo features

KODAK HERO 3.1 All-in-One Printer

Color Black and white or color

Quantity 1 to 99 copies

Copy sizes 2 x 3 in. / 5 x 8 cm

Quality Automatic

Brightness

Scanning features

Scanner type Contact Image Sensor (CIS)

Maximum scan size 8.5 x 11.7 in. / 22 x 30 cm

Resolution and

Bit Depth

Functions Segmentation scanning

Paper input tray features

Paper capacity 100 sheets of 20 lb plain paper

Tray s ize 4 x 6 in. to 8.5 x 14 in. / 10 x 15 cm to 22 x 36 cm

− 3 to + 3

Supports native scan resolution of 2400 dpi Scans at 8 bits per channel, with 3-color scans at 24 bits/pixel

Auto-destination OCR Auto picture detection

20 sheets of photo paper, up to 12 mil (290 gsm) 20 envelopes

Ink cartridges

Ink handling 2-cartridge, 4-ink system

Ink life 1-year warranty from date of purchase

www.kodak.com/go/aiosupport 82

Page 88

Product and Safety Specifications

Connectivity

Protocols supported USB 2.0 High Speed; DPOF

Devices supported WINDOWS OS-based and MACINTOSH Computers, memory

Image Formats supported Image printing supports JPEG (EXIF v2.2); does not support

Protocols supported USB 2.0 High Speed (for connection to computer only), DPOF

cards (SD, MS/Duo, MMC, SDHC)

progressive JPEG format

(Tagged image printing)

Wi-Fi Technology

supported

Software support

Application support Third-party image management applications; optical character

Media support Plain paper, photo paper, envelopes, greeting cards, labels,

Scanner support TWAIN and WIA, WIA2 (VISTA OS and WINDOWS 7), ICA

Update support Software and firmware updates available through Web support

Physical specifications

Storage Dimensions 6.8. x 16.5 x 12.3 in. / 173 x 419 x 312 mm [H × W × D]

Operating Dimensions 11.9. x 16.5. x 19.8 in. / 302 x 419 x 503 mm [H × W× D]

802.11b/g/n, WPA/WPA2, and WPS

reader (OCR) support for documents

transparencies, and iron-on transfers

(MAC OS), including segmentation scanning

Power Input: 100–240 V AC, 50–60 Hz

The printer shall only be used with a switching adapter.

Output: 36 V DC at 0.5 A

Wei ght 6.6 kg (14.5 lb) with power supply, printhead, and ink cartridges

Operating range 5°C (41°F) to 35°C (95°F), 15 to 85% RH

Full image quality

environmental range

Energy efficiency ENERGY STAR® Qualified All-in-One Printer

15°C (59°F) to 30°C (86°F), and 20 to 80% RH.

Warranty

Printer One year from purchase (with proof of purchase)

Printhead One year from purchase (with proof of purchase)

83 www.kodak.com/go/aiosupport

Page 89

System requirements

Computer with WINDOWS OS

KODAK HERO 3.1 All-in-One Printer

Minimum

Operating system

Available hard disk space

Removable drive

Computer with MAC OS

Operating system MAC OS X 10.5 or later

Available hard disk space 200 MB available

WINDOWS 7, VISTA, or XP (SP2 or later)

INTEL CELERON Processor

CPU

Clock speed

Memory

Interface

Clock speed 1.2 GHz

Memory 512 MB RAM

1.2 GHz

512 MB RAM

500 MB available

USB 2.0 High Speed

CD-ROM

Minimum

CPU PowerPC G4, G5, or INTEL-based MAC

Removable drive CD-ROM

Paper types supported

Transparencies All commercially available inkjet varieties (with a white stripe

Iron-on transfers All commercially available inkjet varieties on 8.5 x 11 in. and A4

Interface USB 2.0 High Speed

Plain paper 16 to 24 lb (60 to 90 gsm)

Photo paper Up to 12 mil (290 gsm)

Card stock 110 lb index max (200 gsm)

Envelopes 20 to 24 lb (75 to 90 gsm)

on short edge)

Labels All commercially available inkjet varieties on 8.5 x 11 in. and A4

size sheets

www.kodak.com/go/aiosupport 84

Page 90

Product and Safety Specifications

Paper sizes supported

Plain paper

A4 (8.3 x 11.7 in. / 21 x 30 cm)

A5 (5.8 x 8.3 in. / 15 x 21 cm.)

A6 (4.1 x 5.8 in. / 11 x 15 cm) B5 (6.9 x 9.8 in. / 18 x 25 cm)

US Executive (7.3 x 10.5 in. / 18 x 27 cm)

US Letter (8.5 x 11 in. / 22 x 28 cm) US Legal (8.5 x 14 in. / 22 x 36 cm)

Custom sizes from 4 to 8.5 in. / 10 to 22 cm wide and 6 to 14 in. / 15 to 36 cm long

Labels A4 (8.3 x 11.7 in. / 21 x 30 cm)

US Letter (8.5 x 11 in. / 22 x 28 cm)

Index card stock 4 x 6 in. / 10 x 15 cm cards

5 x 7 in. / 13 x 18 cm index cards

Iron-on transfers A4 (8.3 x 11.7 in. / 21 x 30 cm)

US Letter (8.5 x 11 in. / 22 x 28 cm)

Envelopes C5 (6.7 x 9 in. / 16 x 23 cm)

C6 (4.5 x 6.4 in. / 11 x 16 cm) DL (designated long) (11 x 22 cm / 4.3 x 8.7 in.)

US #7¾ (3.9 x 7.5 in. / 10 x 19 cm)

US #9 (3.9 x 8.9 in. / 10 x 23 cm) US #10 (4.1 x 9.5 in / 10.5 x 24 cm)

Photos 4 x 6 in. / 10 x 15 cm

4 x 7 in. / 10 x 18 cm

4 x 8 in. / 10 x 20 cm

4 x 12 in. / 10 x 31 cm 5 x 7 in. / 13 x 18 cm

7 x 10 in. / 18 x 25 cm

8 x 10 in. / 20 x 25 cm US Letter (8.5 x 11 in. / 22 x 28 cm)

A4 (8.3 x 11.7 in. / 21 x 30 cm)

85 www.kodak.com/go/aiosupport

Page 91

Safety information

KODAK HERO 3.1 All-in-One Printers are Class 1 LED Products.

• Always follow all warnings and instructions marked on the product.

• Use only the power source indicated on the product regulatory label.

• Use only the power cord that comes with the product (or an approved power cord greater or equal to H05W-F, 3G, 0.75mm cause fire and/or shock. Do not use the included power cord with any other equipment.

• If you do not use this product for a long period of time, unplug it from the electrical outlet.

• Always turn this product off by using the On/Off button. Wait until the On/Off button stops flashing before removing the power plug from the outlet.

• Do not allow the power cord to become damaged or frayed.

• If you need to use an extension cord with this product, make sure that the ampere rating of the product does not exceed the ampere rating of the extension cord.

• Place the product on a flat, stable surface that extends beyond the product’s base in all directions. This product will not operate properly if tilted or at an angle.

• When storing or transporting this product, do not tilt or stand it on its side. Never turn this product upside down (ink can leak out of the product).

• Avoid placing this product in an environment that is subject to rapid changes in temperature or humidity, mechanical shocks, vibration, or dust. Do not place near radiators, heating vents, or in direct sunlight.

• Leave enough room around this product for sufficient ventilation. Do not block this product’s covers or openings, or insert any objects through slots

•

• Do not use aerosol products inside or around this product.

• Do not spill any liquid on this product.

• Do not attempt to repair or service this product.

• If the power cord or plug is damaged, if any liquid has been spilled onto the product, if the product has been dropped or the case damaged, if the product does not operate normally or exhibits a major change in performance level, unplug this product and contact Kodak at www.kodak.com/go/contact.

KODAK HERO 3.1 All-in-One Printer

). Using another power cord may

www.kodak.com/go/aiosupport 86

Page 92

Product and Safety Specifications

LCD screen safety

• Use only a dry, soft cloth to clean the LCD screen. Do not use any liquid or chemical cleaners.

• If the LCD screen is damaged, contact Kodak immediately. If any of the solution from the display gets on your hands, wash them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush your eyes immediately with water. If any discomfort or change in vision persists after washing, seek medical attention immediately.

Ink cartridge safety

• Keep all ink cartridges out of the reach of children.

• If ink gets on your skin, wash with soap and water. If ink gets into your eyes, flush immediately with water. If any discomfort or change in vision persists after washing, seek medical attention immediately.

• For Material Safety Data Sheets (MSDS) on inks, go to

www.kodak.com/go/MSDS.

NOTE: You will need the Catalog number from the ink package.

87 www.kodak.com/go/aiosupport

Page 93

Regulatory compliance

CAUTION:

FCC statement

The United States Federal Communications Commission (in CFR 47 Part 15.105) has specified that the following notice be brought to the attention of the users of this product:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

KODAK HERO 3.1 All-in-One Printer

Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this product not expressly approved by Eastman Kodak Company might cause harmful interference and void the FCC authorization to operate this product.

The radiated energy from this product is well below the FCC radio frequency exposure limits. Nevertheless, the product shall be used in such a manner that the potential for human contact during normal operation is minimized. This product and any attached external antenna, if supported, shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC exposure limits, human proximity shall not be less than 20 cm (8 inches) during normal operation.

www.kodak.com/go/aiosupport 88

Page 94

Product and Safety Specifications

CAUTION:

Canadian statements

This product meets the applicable Industry Canada technical specifications.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Industry Canada (IC) Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your person.

European compliance statement

Hereby, Kodak declares that this wireless KODAK All-in-One Printer is in compliance with the essential requirements and other relevant provisions of

Directive 1999/5/EC.

German compliance statement

This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view.

Das Gerät ist nicht für die Benutzung im unmittelbaren Gesichtsfeld am Bildschirmarbeitsplatz vorgesehen. Um störende Reflexionen am Bildschirmarbeitsplatz zu vermeiden, darf dieses Produkt nicht im unmittelbaren Gesichtsfeld platziert verden.

Noise emissions for this equipment do not exceed 70 dBa.

This equipment is not intended for use in the workplace in accordance with BildscharbV regulations.

“Das Gerät ist nicht für die Benutzung am Bildschirmarbeitsplatz gemäß BildscharbV vorgesehen.”

89 www.kodak.com/go/aiosupport

Page 95

REACH Article 33 declarations

Go to www.kodak.com/go/REACH for information about the presence of substances included on the candidate list according to article 59(1) of Regulation (EC) No. 1907/2006 (REACH).

Waste electrical and electronic equipment labeling

In the European Union, do not discard this product as unsorted municipal waste. Contact your local authorities or go to www.kodak.com/go/recycle for recycling program information.

KODAK HERO 3.1 All-in-One Printer

ENERGY STAR® Qualified All-in-One Printer

To conserve energy, this printer will enter a reduced power (sleep) mode automatically after 1 hour. You can adjust the delay time (in 0.5 hour increments) up to 4 hours. Increasing the delay time may result in reduced energy savings.

ENERGY STAR and the ENERGY STAR mark are registered U.S. service marks. As an ENERGY STAR partner, Kodak has determined that this product meets ENERGY STAR Guidelines for energy efficiency. For more information on the ENERGY STAR program, see www.energystar.gov.

www.kodak.com/go/aiosupport 90

Page 96

Product and Safety Specifications

Warranty Information

Limited Warranty

Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.

Limited Warranty Coverage

Warranty service is only available from within the country where the Products were originally purchased. You may be required to send Products, at your expense, to the authorized service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak together with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under this warranty. If replacement parts are used in making repairs, those parts may be remanufactured or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichever is longer.

Limitations

This warranty does not cover circumstances beyond Kodak’s control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak’s operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty. KODAK MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY FOR THIS PRODUCT, AND DISCLAIMS THE IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law. The option of repair, replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services or claims of your customers for such damages resulting from the purchase, use or failure of the Product), regardless of cause, or for breach of any written or implied warranty is expressly disclaimed.

Yo ur Ri g h t s

Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction. Your statutory rights are not affected.

Outside the United States and Canada

In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists

beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.

91 www.kodak.com/go/aiosupport

Page 97

Declaration of Conformity

See www.kodak.com/go/declarationofconformity.

KODAK HERO 3.1 All-in-One Printer

www.kodak.com/go/aiosupport 92

Kodak HERO 3.1 User Manual

Table of contents

Printer Overview

Components

Control panel

Home Center Software

Ordering supplies

Configuring printer settings

Networking Your Printer

Connecting to a wireless network

Before you connect

Connecting to a wireless network using the Wi-Fi Setup Wizard

Connecting to a non-WPS wireless router

Connecting to a WPS wireless router

Using the LCD keyboard

Setting up an IP Address

Viewing the network configuration

Printing the network configuration

Installing your printer on additional computers on the network

Connecting to another KODAK All-in-One Printer

Adding a wireless network connection to a USB-connected computer

Changing from USB to a wireless connection

Online Printer Management Tool

Accessing the Online Printer Management Tool

Using the Online Printer Management Tool

Adding a GOOGLE Cloud Print Account

Editing a GOOGLE Cloud Print Account

Adding a KODAK Email Print Service Account

Handling Paper

Paper types

Paper sizes

Envelope sizes

Loading paper

Loading plain paper

Loading photo paper

Loading envelopes

Printing

Printing documents

Printing two-sided documents

Printing forms from the control panel

Printing pictures

Viewing pictures on a memory card

Finding pictures on a memory card

Printing from a memory card

Using default settings to print a picture

Changing the settings and printing pictures

Printing panoramic pictures

Printing tagged pictures

Zooming and cropping pictures

Printing from a wireless device

Transferring pictures to a computer

Transferring pictures to a computer with WINDOWS OS

Transferring pictures to a computer with MAC OS

Mobile Printing

Printing from an iPhone, iPad, or iPod touch Device

Printing from a BLACKBERRY Device

Printing from an ANDROID OS Device

Copying

Copying a document

Using the default settings to copy a document

Adjusting the settings and copying a document

Changing the number of copies of a document

Enlarging or reducing a document

Darkening or lightening a document

Copying a photo

Using the default settings to copy a photo

Adjusting the settings and copying a photo

Changing the number of copies of a photo

Enlarging or reducing a photo

Darkening or lightening a photo

Scanning

Before you begin scanning

Changing the scan settings for scanning from the printer control panel

Scanning from the control panel

Scanning to a computer

Scanning to a Memory Card

Scanning from the computer

Scanning multiple pictures simultaneously

Scanning multiple pictures when connected to a computer with WINDOWS OS

Scanning multiple pictures when connected to a computer with MAC OS
