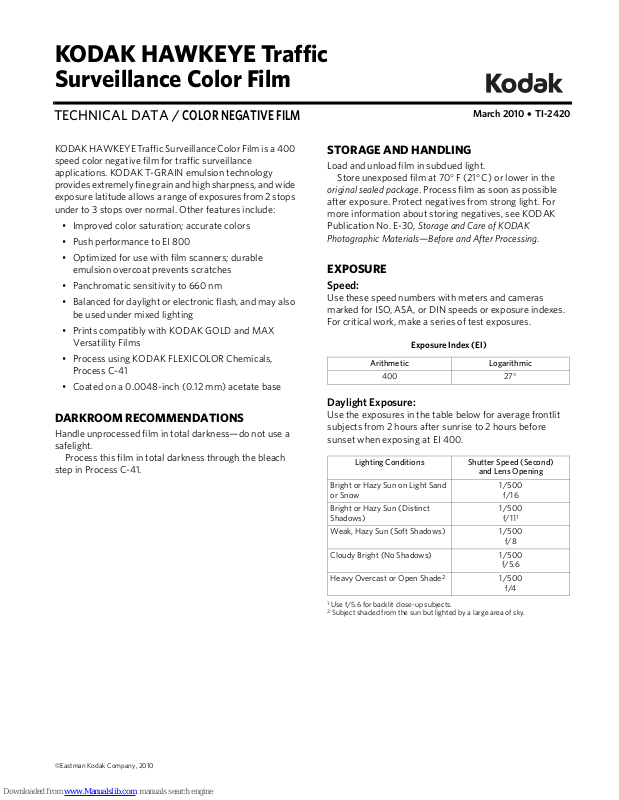

KODAK HAWKEYE Traffic
Surveillance Color Film

TECHNICAL DATA /

COLOR NEGATIVE FILM

KODAK HAWKEYE Traffic Surveillance Color Film is a 400
speed color negative film for traffic surveillance
applications. KODAK T-GRAIN emulsion technology
provides extremely fine grain and high sharpness, and wide
exposure latitude allows a range of exposures from 2 stops
under to 3 stops over normal. Other features include:

• Improved color saturation; accurate colors

• Push performance to EI 800

• Optimized for use with film scanners; durable
emulsion overcoat prevents scratches

• Panchromatic sensitivity to 660 nm

• Balanced for daylight or electronic flash, and may also
be used under mixed lighting

• Prints compatibly with KODAK GOLD and MAX
Versatility Films

• Process using KODAK FLEXICOLOR Chemicals,
Process C-41

• Coated on a 0.0048-inch (0.12 mm) acetate base

DARKROOM RECOMMENDATIONS

Handle unprocessed film in total darkness—do not use a
safelight.

Process this film in total darkness through the bleach

step in Process C-41.

March 2010 • TI-2420

STORAGE AND HANDLING

Load and unload film in subdued light.

Store unexposed film at 70° F (21° C) or lower in the
original sealed package. Process film as soon as possible
after exposure. Protect negatives from strong light. For
more information about storing negatives, see KODAK
Publication No. E-30, Storage and Care of KODAK
Photographic Materials—Before and After Processing.

EXPOSURE

Speed:

Use these speed numbers with meters and cameras
marked for ISO, ASA, or DIN speeds or exposure indexes.
For critical work, make a series of test exposures.

Exposure Index (EI)

Arithmetic Logarithmic

400 27°

Daylight Exposure:

Use the exposures in the table below for average frontlit
subjects from 2 hours after sunrise to 2 hours before
sunset when exposing at EI 400.

Lighting Conditions Shutter Speed (Second)

Bright or Hazy Sun on Light Sand
or Snow

Bright or Hazy Sun (Distinct
Shadows)

Weak, Hazy Sun (Soft Shadows) 1/500

Cloudy Bright (No Shadows) 1/500

Heavy Overcast or Open Shade

1

Use f/5.6 for backlit close-up subjects.

2

Subject shaded from the sun but lighted by a large area of sky.

2

and Lens Opening

1/500

f/16

1/500

1

f/11

f/8

f/5.6

1/500

f/4

©Eastman Kodak Company, 2010

Electronic Flash:

Use the guide numbers in the table below as starting-point
recommendations for your equipment. To determine the
lens opening, divide the guide number by the
flash-to-subject distance.

Unit Output

1

BCPS = beam candlepower seconds

1

(BCPS)

350 85/26

500 100/30

700 120/36

1000 140/42

1400 170/50

2000 200/60

2800 240/70

4000 280/85

5600 340/100

8000 400/120

Guide Number

Distances in Feet/Metres

Filters

For light sources other than daylight, use the filtration and
exposure compensation in the table below.

Light Source

Photolamp (3400 K) No. 80B + 1 2/3 stops

Tungsten (3200 K) No. 80A + 2 stops

KODAK WRATTEN

Gelatin Filter

Exposure

Adjustment

Fluorescent and High Intensity Discharge Light:

Though this film is tolerant of mixed-lighting situations, for
best color results under uniform fluorescent or
high-intensity discharge sources, use the exposure and
filter recommendations given below. These
recommendations are starting points.

Actual filtration may vary between lamps and lamp
manufacturers. Depending on the specific source,
additional filtration or special printing may be required to
achieve best results.

To avoid the brightness and color variations that occur
during a single alternating-current cycle, use exposure
times of 1/60 second or longer with fluorescent lamps;
with high-intensity lamps, use exposure times of 1/125
second or longer.

Fluorescent Light Source

Fluorescent Lamp Type KODAK Color

"Daylight" 40R + 2/3 stop

White 20C + 30M + 1 stop

Warm White 40B + 1 stop

Warm White Deluxe 30B + 30C + 1 1/3 stops

Cool White 30M + 2/3 stop

Cool White Deluxe 20C + 10M + 2/3 stop

Average fluorescent, or
unknown lamp

Compensating

Filter(s)

10C + 20M + 2/3 stop

Exposure

Adjustment

Note: Do not change the film speed setting when metering
through a filter. Metering through filters may affect light
meter accuracy; see the meter manual (or camera manual
for built-in meters) for specific information.

High-Intensity Discharge Lamp Source

High-Intensity Discharge

Lamp Type

High Pressure Sodium Vapor 70B + 50C + 3 stops

Metal Halide 10R + 20M + 2/3 stop

Mercury Vapor with Phosphor 20R + 20M + 2/3 stop

Mercury Vapor w/o Phosphor
(clear envelope)

KODAK Color

Compensating

Filter(s)

80R + 1 2/3 stops

Exposure

Adjustment

Reciprocity

Compensation for reciprocity failure is not necessary for
exposures of 1/10,000 second to 10 seconds. Exposures
longer than 10 seconds may require exposure
compensation and/or filtration, and should be tested for
the application.
