 Installing the software

Before connecting any cables, install the software
that was included with your camera. Follow the
on-screen instructions.

After installing the software, return to this user guide.

 Loading and charging the battery

1

Turn OFF the camera.
Connect a KODAK USB Cable, Model U-8.

2

Battery Charging light:

• Blinking: charging

• Steady: finished

ENGLISH

KLIC-7001 battery

See the Extended user guide www.kodak.com/go/m340support

www.kodak.com/go/m340support 1

urg_00948.book Page 2 Wednesday, October 8, 2008 12:02 PM

ENGLISH

Using other charging accessories

First, turn OFF the camera. The charging light blinks during charging and stays steady
when the battery is fully charged.

KODAK 5V AC Adapter

(May be sold separately.)

KODAK USB Cable and a
USB c

Ensure that the USB cable is
connected
port and the computer is
turned on (not in sleep mode).

omputer port

to a powered USB

See the Extended user guide www.kodak.com/go/m340support

Purchase accessories www.kodak.com/go/m340accessories

2 www.kodak.com/go/easysharecenter

urg_00948.book Page 3 Wednesday, October 8, 2008 12:02 PM

 Turning on the camera

Press the Power button.

 Setting the language and date/time

Language:

to change.

OK

to accept.

ENGLISH

OK (press)

See the Extended user guide www.kodak.com/go/m340support

www.kodak.com/go/m340support 3

Date/Time:

At the prompt, press OK.

to change current field.
for previous/next field.

OK

to accept.

urg_00948.book Page 4 Wednesday, October 8, 2008 12:02 PM

ENGLISH

 Taking a picture

Turn the Mode dial to Smart Capture.

1

Compose the picture.

Press the Shutter button halfway to focus and set exposure.

2

When the framing marks turn green, press the Shutter
button completely down.

Framing marks

To learn more about Smart Capture and other modes, see page 11.

See the Extended user guide www.kodak.com/go/m340support

4 www.kodak.com/go/easysharecenter

urg_00948.book Page 5 Wednesday, October 8, 2008 12:02 PM

 Reviewing pictures/videos

Press the Review
button to enter/exit Review.

View previous/next picture/video.

OK

Play a video.

ENGLISH

Review

See the Extended user guide www.kodak.com/go/m340support

www.kodak.com/go/m340support 5

urg_00948.book Page 6 Wednesday, October 8, 2008 12:02 PM

ENGLISH

 Transferring pictures/videos

Turn on the camera.1

2

Connect a KODAK USB Cable, Model U-8.

See the Extended user guide www.kodak.com/go/m340support

Purchase accessories www.kodak.com/go/m340accessories

6 www.kodak.com/go/easysharecenter

urg_00948.book Page 7 Wednesday, October 8, 2008 12:02 PM

 Getting help from your camera

You want the most from your camera. You want to understand:

■ What it can do for you

■ And how to take the best possible pictures and videos

Great news!

Your camera offers a built-in Help system. It describes every setting for every menu
choice. If you learn nothing else about your camera, learn how to use on-camera Help.
Because the more you know your camera, the more confident you become.

ENGLISH

Press the Menu button, then

1

highlight a menu choice.

Press the Info

2

Scroll through a Help topic

See the Extended user guide www.kodak.com/go/m340support

www.kodak.com/go/m340support 7

button.

urg_00948.book Page 8 Wednesday, October 8, 2008 12:02 PM

ENGLISH

 Keep learning about your camera!

Congratulations!

You have:

• set up your camera

• taken pictures

• transferred pictures to your computer

Keep learning!

Finish reading this book, so you can take and share your best pictures!

Visit www.kodak.com/go/m340support:

• the extended user guide

• interactive troubleshooting and repairs

• interactive tutorials

• FAQs

• downloads

• accessories

• printing information

• product registration

See the Extended user guide www.kodak.com/go/m340support

8 www.kodak.com/go/easysharecenter

urg_00948.book Page 9 Wednesday, October 8, 2008 12:02 PM

Front View

1

9

8

2

3

ENGLISH

4

5

6

7

1 Shutter button 6 Lens/Lens cover

2 Mode dial 7 DC-In (5V)

3 Power button 8 Flash

4 Flash button 9 Microphone

5 Self-timer light

www.kodak.com/go/m340support 9

urg_00948.book Page 10 Wednesday, October 8, 2008 12:02 PM

ENGLISH

Back View

1

2

3

4

5

6

11

10

7

8

9

optional

1 LCD 7 Strap post

2 Ready/Battery Charging light 8 Share button

3 Delete, Menu, Info, Review buttons 9 Battery, SD/SDHC Card compartment

4 Zoom (Telephoto/Wide Angle) button 10 Speaker

5 USB/AV Out 11 Tripod socket

6 , OK button

10 www.kodak.com/go/easysharecenter

urg_00948.book Page 11 Wednesday, October 8, 2008 12:02 PM

1 Doing more with your camera

Mode dial

Use this mode For

General picture taking—offers excelle

Smart Capture

Program

Blur Reduction

Sport

use. You can choose the best picture size and aspect ratio for your
needs—just press the Menu

Advanced picture taking—allows access to manual settings.

Reducing blur caused by camera shake or subject motion.

Action pictures.

Turn the Mode dial to the mode that best suits your
subjects and surroundings.

nt image quality and ease of

button and choose Picture Size.

Panorama

Scene

Video

www.kodak.com/go/m340support 11

“Stitching” up to 3 pictures into a panoramic scene.

Point-and-shoot simplicity when taking pictures in practically any
situation (see page 12

Capturing video with sound (see page 12).

).

urg_00948.book Page 12 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

Taking a video

1 Turn the Mode dial to Video .

2 Press the Shutter

then release it. To stop recordi

button completely down,

ng, press and release

the Shutter button again.

To review and work with videos, see page 19.

Using Scene (SCN) modes

Choose a Scene mode—for great pictures in practically any situation.

1 T

urn the Mode dial to SCN.

ress to view scene mode descriptions.

2 P

If the mode description turns off before you finish reading it, press OK.

3 Press OK to choose a Scene mode.

SCN mode For

Portrait Full-frame portraits of people.

Landscape Distant scenes.

Close-up Close range. Use available light instead of flash, if possible.

Flower Close-ups of flowers or other small subjects in bright light.

Sunset Subjects at dusk.

12 www.kodak.com/go/easysharecenter

urg_00948.book Page 13 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

SCN mode For

Backlight Subjects that are in shadow or “backlit” (when light is behind the

subject).

Candle Light Subjects illuminated by candle light.

Children Action pictures of children in bright light.

Manner/
Museum

Quiet occasions, like a wedding or lecture. Flash and sound are
disabled. Place the camera on a steady surface or tripod.

Text Documents. Place the camera on a steady surface or tripod.

Beach Bright beach scenes.

Snow Bright snow scenes.

Fireworks Fireworks. Place the camera on a steady surface or tripod.

Self­Portrait

Close-ups of yourself. Assures proper focus and minimizes red
eye.

Night Portrait Reduces red eye of people in night scenes or low-light conditions.

Night Landscape Distant scenery at night. Flash does not fire.

High ISO People indoors, in low-light scenes.

www.kodak.com/go/m340support 13

urg_00948.book Page 14 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

Using the optical zoom

1 Use the LCD to frame your subject.

2 T

o zoom in, press Telephoto (T).

To zoom out, press Wide Angle (W).

3 T

ake the picture.

Using digital zoom

Use digital zoom to get up to 5X magnification beyond optical zoom. (Digital zoom is
not available in Smart Capture mode.) Press Telephoto (T) until the slider is at the
maximum optical zoom range. Release Telephoto (T), then press it again.

NOTE: You may notice decreased image quality when using digital zoom. The slider pauses and turns red

when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.

14 www.kodak.com/go/easysharecenter

urg_00948.book Page 15 Wednesday, October 8, 2008 12:02 PM

Using the flash

Press the flash button repeatedly
to scroll through flash modes.

The current flash mode is shown in the LCD status area.

Flash modes Flash fires

Doing more with your camera

Auto When the lighting conditions require it.

Fill (Flash On) Every time you take a picture, regardless of the lighting

conditions. Use when the subject is in shadow or is
“backlit” (when the light is behind the subject).

NOTE: (Not available in Smart Capture mode.)

Red Eye

Your camera can correct
red-eye using 2
methods. To choose a
red eye setting, use the
Setup menu.

Off Never

Preflash A preflash fires, shrinking the eye pupil, before the

picture is taken.

Digital
Correction

A preflash does not fire; the camera corrects red eye.

www.kodak.com/go/m340support 15

urg_00948.book Page 16 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

Using shortcuts

Your camera has a clean, uncluttered interface. For quick access to the most popular
capture and review functions:

1 P

ress the Info button.

The shortcuts appear.

2 Press to access functions like Exposure Compensation, Self-timer, and Auto

focus. (You’ll see different funct

ress to choose a setting.

3 P

To hide the shortcuts again, press .

Shortcuts

ions in different modes.)

Press to
show/hide
shortcuts.

16 www.kodak.com/go/easysharecenter

urg_00948.book Page 17 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

Using the menu button to change settings

IMPORTANT:

Your camera offers a built-in Help system. To get the most from your camera,

see page 7.

You can change settings to get the best results from your camera.
NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you

change modes or turn off the camera.

1 Press the Menu button.

ress to highlight a tab:

2 P

■ Capture/Video for the most common picture- and video-taking settings

■ Setup for other camera settings

3 P

ress to highlight a setting, then press OK.

4 High

light an option, then press OK.

www.kodak.com/go/m340support 17

urg_00948.book Page 18 Wednesday, October 8, 2008 12:02 PM

Doing more with your camera

Understanding the picture-taking icons

Focus mode
Self timer

Exposure compensation

Flash mode

Capture mode

Tag na me

Pictures/time remaining

Zoom slider

Battery level
Date stamp

18 www.kodak.com/go/easysharecenter

urg_00948.book Page 19 Wednesday, October 8, 2008 12:02 PM

2 Working with pictures/videos

Deleting pictures/videos

1 Press the Review button.

2 P

ress for previous/next picture/video.

3 P

ress the Delete button.

4 F

ollow the screen prompts.

Viewing pictures as thumbnails

1 Press the Review button.

2 Press the Wide

pictures/videos as thumbnails. (Press it again to see
more, smaller thumbnails.)

To view all pictures/videos, highlight the All tab.
To sort by favorites, date, or tagged pictures/videos,
press and highlight the appropriate tab.

3 To see a single picture/video, press to highlight it. Then press the Telephoto

(T) button.

■ Press the Shutter button halfway down to return to Capture mode.

www.kodak.com/go/m340support 19

Angle (W) button to view

t

urg_00948.book Page 20 Wednesday, October 8, 2008 12:02 PM

Working with pictures/videos

Understanding the review icons

Video duration

Select picture

Print tag/number of prin
Protected

Email tag

Picture/Video number

Shortcuts*

Add text tag

View multi-up

Play video

Upload tag

Favorite tag
Text tag name

* For more about shortcuts, see page 16.

Battery level

Date stamp

20 www.kodak.com/go/easysharecenter

urg_00948.book Page 21 Wednesday, October 8, 2008 12:02 PM

3 Share your stories!

A thousand ways to tell a story...

and each begins with a picture.

How do you tell yours?

Prints

• 4 x 6 pictures

• Enlargements, posters

• Collages

• Photo books

Photo gifts

• Cards

• Calendars

• Mugs

• Ties

• Shirts

Digitally

• EASYSHARE Digital Picture Frame

• HDTV devices

• Email

...and much more!

www.kodak.com/go/m340support 21

urg_00948.book Page 22 Wednesday, October 8, 2008 12:02 PM

Share your stories!

Pictures start here!

1 2

Load
KODAK
EASYSHARE
Software.

Pictures become stories here!

At home Online At a local photo retailer

3

Transfer
pictures
to your
computer.

Take pictures.

KODAK All-in-One
Inkjet Printers

www.kodak.com/go/tips

22 www.kodak.com/go/easysharecenter

KODAK Picture Kiosk

urg_00948.book Page 23 Wednesday, October 8, 2008 12:02 PM

4 Solving camera problems

Camera problems

Status Solution

Camera does not
turn on or off

Camera buttons and
controls do not function

Flash does not fire ■ Check the flash setting, and change as needed (see page 15).

■ Make sure the battery is charged and installed correctly (see

page 1).

NOTE: The flash does not fire in all modes.

In Review, a blue or
black screen is
displayed instead of
a picture

Memory card is almost
or entirely full

You cannot take a

■ Transfer

■ Take another picture.

■ Transfer the pictures to the computer (see page 6).

■ Delete pictures from the card or insert a new card.

■ Turn the camera off, then on again.

■ Depress the Shutter button all the way (see page 4).

■ Insert a new or charged battery (see page 1).

all

pictures to the computer (see page 6).

■ Memory is full. Transfer pictures to the computer (see page 6),

www.kodak.com/go/m340support 23

delete pictures (see page 19), or insert another card.

urg_00948.book Page 24 Wednesday, October 8, 2008 12:02 PM

5 Appendix

CAUTION:

Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to
qualified service personnel. KODAK AC Adapters and Battery Chargers are intended for indoor
use only. The use of controls, adjustments, or procedures other than those specified herein may
result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not
touch the glass or liquid. Contact Kodak customer support.

he use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For

■ T

approved accessories, visit www.kodak.com/go/accessories.

se only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer

■ U

manufacturer if you have questions.

f using this product in an airplane, observe all instructions of the airline.

■ I

■ When re

ollow all warnings and instructions supplied by the battery manufacturer.

■ F

■ Use onl

eep batteries out of the reach of children.

■ K

■ Do not al

discharge energy, become hot, or leak.

■ Do n

■ Rem

battery fluid leaks inside the product, contact Kodak customer support.

■ In the

local health provider. For additional health-related information, contact your local Kodak customer support.

■ Dispos

■ Do not c

For more information on batteries, see www.kodak.com/go/batterytypes.

moving the battery, allow it to cool; it may be hot.

y batteries approved for this product to avoid risk of explosion.

low batteries to touch metal objects, including coins. Otherwise, a battery may short circuit,

ot disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.

ove the battery when the product is stored for an extended period of time. In the unlikely event that

unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your

e of batteries according to local and national regulations. Visit www.kodak.com/go/kes.

harge non-rechargeable batteries.

24 www.kodak.com/go/easysharecenter

urg_00948.book Page 25 Wednesday, October 8, 2008 12:02 PM

Appendix

Limited Warranty

Kodak warrants Kodak consumer electronic products and acce
from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain
the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.

Limited warranty coverage

Warranty service is only available from within the country where the products were originally purchased. You may

uired to ship products, at your expense, to the authorized service facility for the country where the products

be req
were purchased. Kodak will repair or replace products if they fail to function properly during the warranty period,
subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any
necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a product, Kodak will, at
its option, refund the purchase price paid for the product provided the product has been returned to Kodak along
with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies
under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may
contain remanufactured materials. If it is necessary to replace the entire product, it may be replaced with a
remanufactured product. remanufactured products, parts and materials are warranted for the remaining warranty
term of the original product, or 90 days after the date of repair or replacement, whichever is longer.

Limitations

This warranty does not cover circumstances beyond Kodak’s control. This warranty does not apply when failure is

to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with

due
incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak’s operation,
maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or
claims made after the duration of this warranty. Kodak makes no other express or implied warranty for

this product, and disclaims the implied warranties of merchantability and fitness for a particular
purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the

implied warranty will be one year from the purchase date or such longer period as required by law. The option of
repair, replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the
cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or
profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or
claims of your customers for such damages resulting from the purchase, use, or failure of the product), regardless
of cause or for breach of any written or implied warranty is expressly disclaimed.

Your rights

Some states or jurisdictions do not allow exclusion or limit
above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.

ssories (“products”), excluding batteries, to be free

ation of incidental or consequential damages, so the

www.kodak.com/go/m340support 25

urg_00948.book Page 26 Wednesday, October 8, 2008 12:02 PM

Appendix

Outside the United States and Canada

In countries other than the United States and Canada, the te
Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or
liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by
negligence or other act.

FCC compliance and advisory

KODAK EASYSHARE M340 Digital Camera

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the
equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the
receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be used with the installation of
the product, they must be used in order to ensure compliance with FCC regulation.

rms and conditions of this warranty may be different.

Canadian DOC statement

DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Ca

nada.

26 www.kodak.com/go/easysharecenter

urg_00948.book Page 27 Wednesday, October 8, 2008 12:02 PM

Appendix

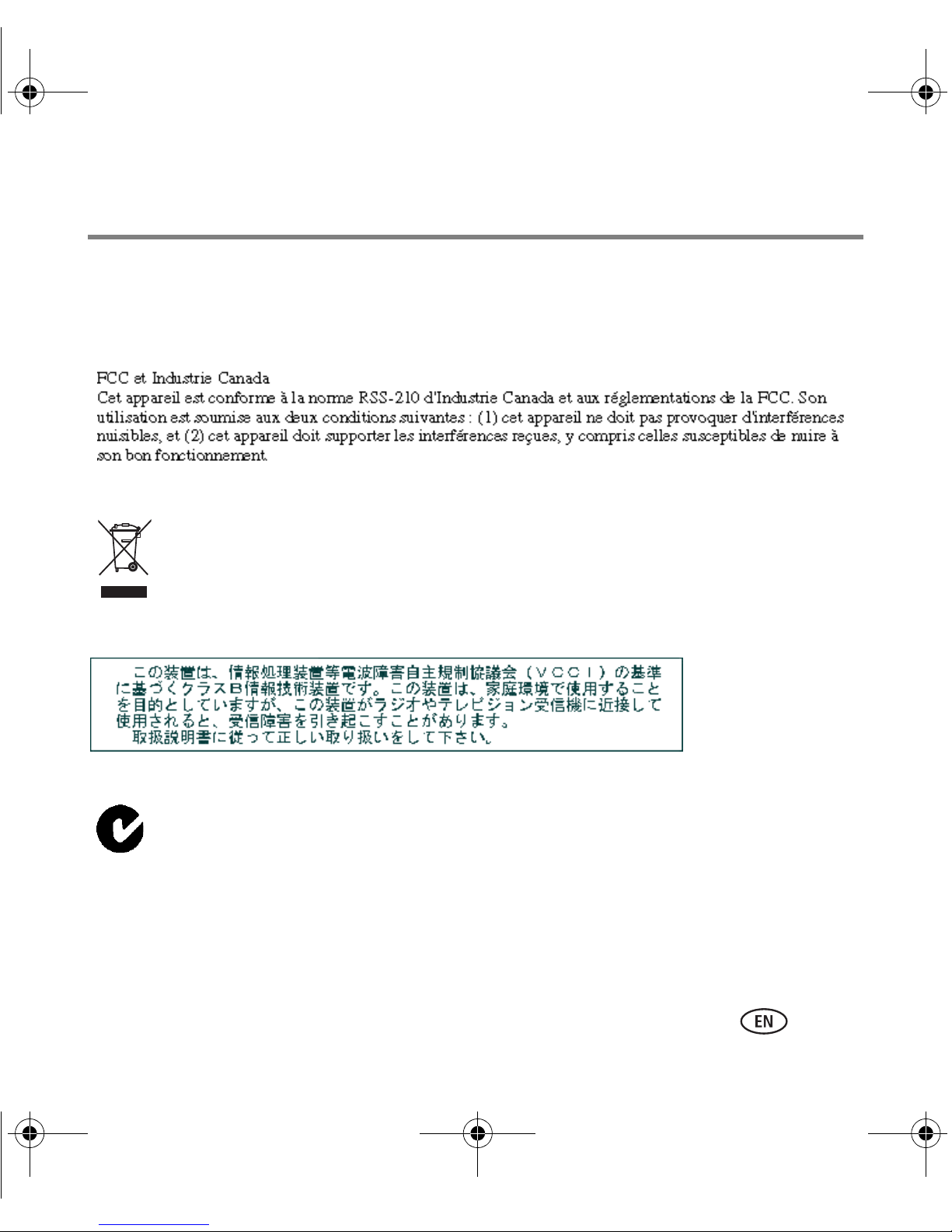

FCC and Industry Canada

This device complies with Industry Canada RSS-210 and FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Waste Electrical and Electronic Equipment labeling

In Europe: For human/environmental protection, it is your responsibility
equipment at a collection facility established for this purpose (
waste). For more information, conta
authorities; or visit www.kodak.com/go/recycle.

VCCI Class B ITE

Australian C-Tick

N137

to dispose of this

separate from municipal

ct your retailer, collection facility, or appropriate local

www.kodak.com/go/m340support 27

urg_00948.book Page 28 Wednesday, October 8, 2008 12:02 PM

Appendix

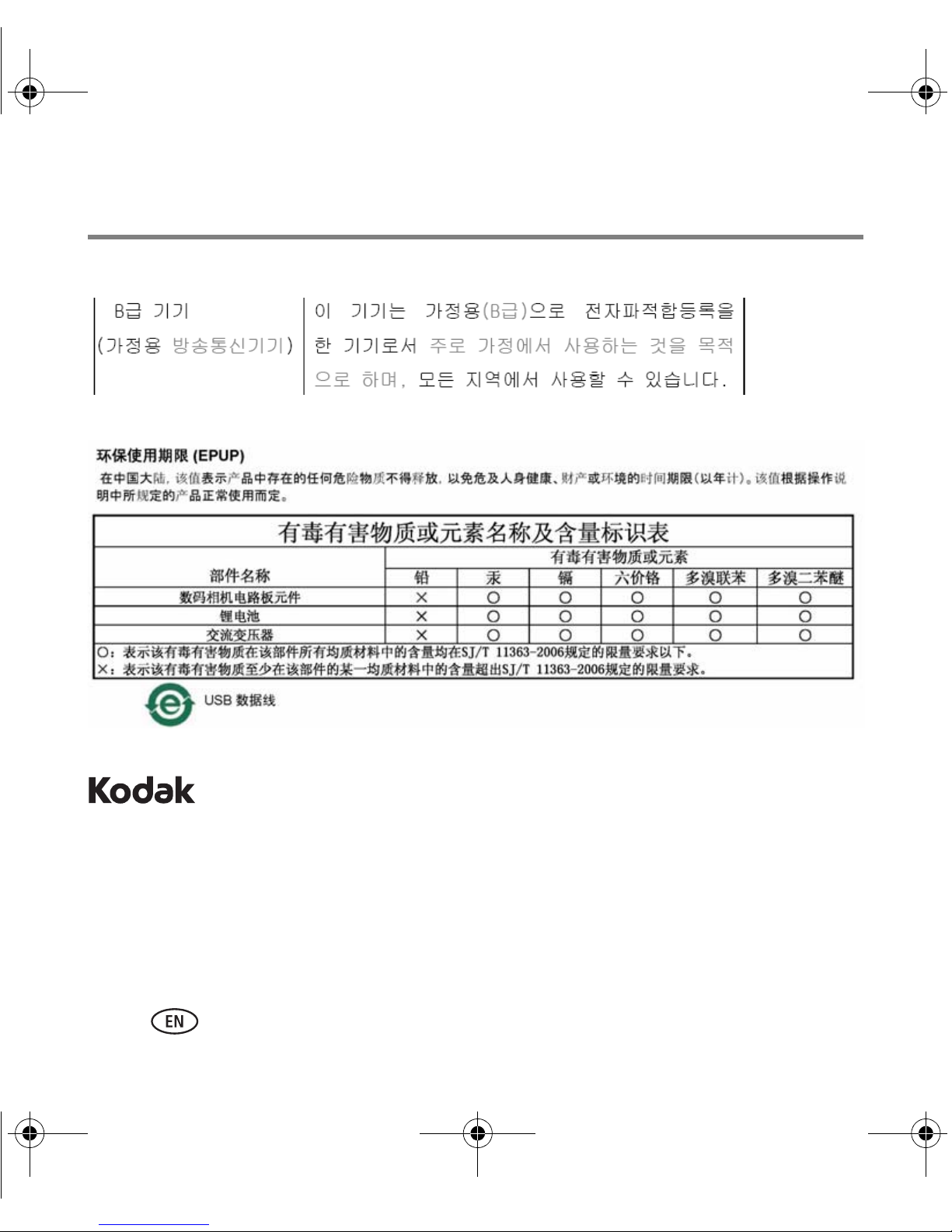

Korean Class B ITE

China RoHS

Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2008
Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.

4F8439_en

28 www.kodak.com/go/easysharecenter
