KODAK EASYSHARE
LS420 Digital Camera
User’s Guide
Visit Kodak on the World Wide Web at www.kodak.com
Eastman Kodak Company
343 State Street
Rochester, New York 14650
© Eastman Kodak Company, 2002
Kodak and EasyShare are trademarks of Eastman Kodak Company. Eastman
Kodak Company is an authorized licensee of the MMCA logo servicemark. SD
logo is a trademark used under license by Eastman Kodak Company.
P/N 6B5951
Front View
Product Over view
1 2
1 Shutter button
2 Flash/Print button
3 On/Off switch
4 Viewfinder lens
3
4
5
6
8 79
5 Microphone
6 Lens with built-in cover
7 Light sensor
8 Self Timer light
9 Flash unit
i
Back View
12
11
Produ c t Ove rvie w
3
2
1
8
9
10
5
4
6
7
1 Viewfinder
2 Ready light
3 On/Off switch, Power light
5 Shutter button
ii
7 LCD
8 Menu button
9 Joystick/Select button
10 Mode dial4 Flash/Print button
11 Audio/Video out
12 Strap post6 Card/Battery door
Product Over view
Mode Dial and Joystick/Select Button
Mode dial Joystick/Select button
. Press to Select
. Move
iii
Bottom View
Chapter
1 Dock connector
2 Tripod socket
iv
1 2
Table of Contents
1 Getting Started ...................................................................1
What Can I Do With My Camera?............................................1
What Can I Do With My Digital Pictures and Videos? ......1
Package Contents......................................................................2
Loading the Camera Battery................................................ 3
Mode Dial Settings...................................................................3
Turning the Camera On and Off ............................................ 4
Setting the Clock...................................................................... 5
Checking the Battery Level....................................................6
Battery-Saving Features.......................................................6
Checking Camera Status.........................................................7
Inserting an MMC/SD Card....................................................8
Choosing Internal Memory or MMC/SD Card....................9
2 Taking Pictures ..................................................................11
Taking a Picture.........................................................................11
Reviewing/Deleting the Picture Just Taken......................12
Using the Digital Zoom...........................................................13
Using the Flash.........................................................................14
Setting Picture Quality..........................................................15
Putting Yourself in the Picture............................................16
Placing the Date on Pictures ............................................... 17
v
3 Taking Videos ....................................................................19
Taking a Video............................................................................19
Reviewing/Deleting the Video Just Taken ........................20
Putting Yourself in the Video ............................................... 21
Setting Video Quality ............................................................ 22
Displaying the Date/Time on Videos..................................23
Setting Video Length.............................................................24
4 Reviewing Pictures and Videos ................................... 25
Navigating Through Pictures and Videos.........................25
Deleting Pictures and Videos..............................................26
Magnifying Pictures ...............................................................26
Protecting Pictures and Videos From Deletion............. 27
Selecting Pictures for Printing...........................................28
Running a Slide Show.............................................................29
Copying Pictures and Videos................................................31
5 Customizing Your Camera Settings .........................33
Adjusting LCD Brightness...................................................33
Setting Video Out...................................................................34
Selecting a Language ............................................................35
Viewing Camera Information ................................................35
Formatting Memory or MMC/SD Card............................ 36
vi
6 Installing the Software ................................................ 37
Computer System Requirements.......................................37
Software Included With Your Camera ..............................39
MACINTOSH OS X Notice.....................................................40
Install the Software ..............................................................40
7 Using the EASYSHARE LS420 Camera Dock ........ 41
Connecting the Dock................................................................41
Charging the Battery ............................................................ 42
Transferring Pictures and Videos......................................43
Working With Your Pictures................................................. 44
KODAK Camera Connection Software Help....................44
Printing Your Pictures ..........................................................45
8 Troubleshooting Problems ............................................47
Troubleshooting—Camera....................................................47
Troubleshooting—Camera Dock .........................................57
9 Getting Help ....................................................................59
Software Help..........................................................................59
Kodak Online Services...........................................................59
Kodak Fax Support ................................................................59
Telephone Customer Support .............................................60
vii
10 Appendix ..........................................................................63
Camera Specifications......................................................... 63
Camera Dock Specifications ...............................................65
Original Factory Settings—Camera................................66
File Storage Capacities .......................................................66
Tips, Safety, Maintenance ...................................................67
Using the Battery..................................................................68
Locating Pictures on an MMC/SD Card.......................... 69
Picture File Naming Conventions........................................70
Regulatory Information...........................................................71
viii
1 Getting Started
Congratulations on your purchase of the KODAK EASYSHARE LS420 Digital
Camera—the camera that lets you take pictures with 2.1 megapixel resolution
and capture videos with sound.
What Can I Do With My Camera?
Capture Still Pictures —Enjoy point-and-shoot operation with flash,
self-timer, and zoom features.
Capture Videos with Sound —Capture videos as QUICKTIME movies.
Review —Display, protect, and delete pictures and videos. Magnify
pictures, and select pictures for printing.
Set Up —Customize your camera functions.
What Can I Do With My Digital Pictures and Videos?
Install the software on the KODAK Software CD, then:
Transfer—transfer your pictures and videos to your computer.
Share—e-mail your pictures and videos to friends and family.
Print—print pictures on your home printer or take your optional MMC/SD
(MULTIMEDIA/Secure Digital) card to your local photo retailer for
professional printing.
Have fun!—add special effects to your pictures, make a custom slide show,
fix red-eye, crop, rotate, and much more.
1
Package Contents
1
5
4
1 Camera Dock with AC adapter
2
2 Lithium-Ion battery
3
3 Camera with strap
4 Video cable
5 USB cable
6 Camera case, User’s Guide, Quick Start
Chapter 1
Guide, and Software CD (not shown. In
some countries, the User’s Guide is
provided on a CD instead of in printed
form.)
2
Chapter 1
Loading the Camera Battery
1 Open the camera battery door.
Battery
lock
2 Orient the battery as shown on the inside of
3 Push the battery all the way in so that the
4 Close the battery door.
NOTE: The battery must be charged before
Mode Dial Settings
Mode
dial
the battery door. Insert the battery at an
angle so that the battery lock moves out of
the battery path.
battery lock holds the battery in place.
using. (See page 42.)
Still —take pictures and change
picture-taking options
Video —take videos and change
video-taking options
Review —view and work with your
pictures and videos on the LCD
Setup —customize camera functions
3
Chapter 1
Turning the Camera On and Off
On/Off
Ready
light
Joystick/Select button:
. Move
. Press to Select
switch,
Power
light
Slide the On/Off switch to the On position.
The Power light blinks 3 times. The ready
light blinks green while the camera
performs a self-check. When the ready
light glows steady green (and the Mode
dial is set to Still or Video ), the
camera is ready to take pictures or
videos.
In Still and Video modes, a live view and a
status bar appear on the LCD.
To turn live view on or off, press the Select
button.
To turn off the camera, slide the On/Off
switch to the Off position.
The camera completes operations that are
in process.
4
Chapter 1
Built-in Lens Cover
The lens has a built-in cover that protects it from dust and scratches. The cover
opens when the camera is turned on and closes when the camera is turned off.
Setting the Clock
The Date & Time Set screen is displayed the first time you turn on the camera.
To set date and time after that:
1 Turn the camera on and turn the Mode dial
to Setup .
2 Move the joystick to highlight Date/
Time Set , then press the Select button.
The date format is YYYY/MM/DD. The time
is displayed in a 24-hour format.
3 Move the joystick to adjust the date
Mode Joystick/
Select buttondial
and time settings. Move the joystick to
move through the fields.
4 Press the Select button to accept the
changes.
5 Press the Menu button to turn off the menu.
The setting remains until you change it.
5
Chapter 1
Checking the Battery Level
Before using the camera, turn it on and check the status bar.
No battery symbol—battery is charged.
Low —recharge battery soon.
Exhausted (blinking) —Recharge the battery; it is too weak to
power the camera. The ready light blinks red for five seconds, then the camera
turns off.
Extended use of these features can shorten battery life:
m Using the LCD as the viewfinder (see page 11 and page 19)
m Reviewing pictures and videos on the LCD (see page 25)
m Using the flash
Battery-Saving Features
The LCD or camera turn off when the camera has been inactive.
Mode If no activity, LCD
turns off after:
Still, Video - LCD On 1 minute 8 minutes
Still, Video - LCD Off 8 minutes
Still, Video - Menu On 1 minute 8 minutes
Still, Video - QuickView on 5 seconds 8 minutes
Review - Normal 1 minute 8 minutes
Review - Slide show 1 minute after slide
show ends
Setup - Normal 1 minute 8 minutes
6
If no activity, camera
turns off after:
8 minutes
Chapter 1
y
Checking Camera Status
To check which camera settings are active, turn the Mode dial to Still or
Video , then turn on the camera.
Status Bar Icons
Self Timer Flash
mode
Best
Good
Quality Pictures
remaining
Internal memory
Card
Memor
Storage location
Screen Icons
Magnification Date stamp Low battery Exhausted battery
(blinking)
7
Chapter 1
Inserting an MMC/SD Card
Optional MMC/SD cards provide removable, reusable storage for pictures and
videos.
CAUTION:
The card can only be inserted one way; forcing it may
damage the camera or card.
Do not insert or remove a card when the green ready light
is blinking; doing so may damage your pictures, card, or
camera.
To insert an MMC/SD card:
1 Turn off the camera.
2 Open the card door.
3 Orient the card as shown.
4 Push the card into the slot to seat the
connector. (To remove the card, push it in,
then release it. When the card is partially
ejected, pull it out.)
5 Close the door.
Notched corner of card
See page 66 for storage capacities. Purchase KODAK MULTIMEDIACARDS and
KODAK SD Cards on our Web site at http://www.kodak.com/go/accessories.
8
Chapter 1
Choosing Internal Memory or MMC/SD Card
The camera offers two options for storing pictures and videos:
Internal Memory—store pictures and videos in the 8 MB internal memory.
MMC/SD Card—store as many pictures as you like, depending on the size of
the card. Purchase cards on our Web site at
http://www.kodak.com/go/accessories. For storage capacities, see page 66.
You can capture pictures and videos on a card, then copy your favorites into
internal memory (see page 31).
Changing Your Storage Location Setting
Use the Image Storage menu, available in all positions on the Mode dial, to
change the setting.
1 Turn on the camera.
2 Press the Menu button.
3 Move the joystick to highlight Image Storage .
4 Press the Select button.
5 Highlight an option, then press the Select
button:
Auto (default)—the camera uses the card
if one is installed in the camera. If no card is
installed, the camera uses internal memory.
Internal Memory—the camera always
Menu button
6 Highlight Continue, then press the Select button again.
The camera changes storage locations. The setting remains until you
change it and applies to all camera functions.
7 Press the Menu button to turn off the menu.
uses internal memory, even if a card is
installed.
9
Chapter 1
Checking Your Storage Setting
In Still and Video modes, the storage location icon that is displayed in the
status bar indicates the camera’s storage location.
Storage location
setting
1 Turn the Mode dial to Still or
Video .
2 Move the joystick and check the storage
location icon in the status bar.
—Memory Card
—Internal Memory
Checking Your Picture’s Location
In Review mode, the storage location icon that is displayed with a picture
indicates the location of the picture or video, not the camera setting.
Picture or video
location
Turn the Mode dial to Review .
The storage location icon indicates the
specific location of the picture or video.
—Picture is stored on a card
—Picture is stored in internal memory
10
2 Taking Pictures
Use the Still setting to take pictures or to customize picture-taking settings.
Before you take a picture, make sure your picture storage location is set the
way you want it (see page 9).
Taking a Picture
Viewfinder
Ready
light
Select
button
CAUTION:
Do not insert or remove a card when the green ready light
is blinking. Doing so may damage your pictures, card, or
camera.
1 Turn the Mode dial to Still .
2 Use the LCD to frame your subject. (If you
need to conserve battery power, press the
Select button to turn off the LCD. Then use
the Viewfinder to frame your subject.)
3 Press the Shutter button half-way to set the
exposure, then completely down to take the
picture.
The ready light blinks green while the
picture is saved.
The ready light blinks yellow while the
flash is recharging.
11
Chapter 2
Reviewing/Deleting the Picture Just Taken
After you take a picture, the LCD displays that picture for approximately 5
seconds. While the picture is displayed, you can:
m Review it. If you take no action, the picture is saved. To redisplay a picture
after 5 seconds, move the joystick .
m Delete it:
1 While the picture and are displayed,
move the joystick .
The Delete Picture? screen appears.
2 Highlight Yes, then press the Select button.
The picture is deleted.
To turn the QuickView feature on or off in Still mode:
1 Turn the Mode dial to Still , then press
the Menu button.
2 Highlight the QuickView menu , then
press the Select button.
3 Highlight an option, then press the Select
button.
4 Press the Menu button to turn off the menu.
12
Chapter 2
Using the Digital Zoom
The Digital Zoom provides up to 3X magnification of your pictures. You may
notice a decrease in printed image quality when using Digital Zoom.
1 Turn the Mode dial to Still . Use the LCD
to frame your subject.
2 Move the joystick to begin zooming.
Keep the button pressed for continuous
magnification, or release it at any point.
The LCD displays the zoomed image and
the magnification level.
3 Press the shutter button.
4 Move the joystick to zoom out and to
turn off Digital Zoom.
NOTE: Digital Zoom is automatically turned off when the Mode dial is changed,
the camera is turned off, or when the camera enters Sleep mode.
13
Chapter 2
Using the Flash
When you take pictures at night, indoors, or outdoors in heavy shadows, your
use the flash. The camera flash is effective when you are 2.5 to 8.2 feet (0.75 to
2.5 m) from your subject.
Press the button repeatedly to scroll
through the flash options.
The flash icon that is displayed on the LCD
Status Bar (see page 7) is the active option.
Auto Flash—flash fires when the lighting conditions require it.
Off—flash never fires.
Fill—flash fires every time you take a picture, regardless of the
lighting conditions.
Night Shot—flash fires every time you take a picture,
regardless of the lighting conditions. In dark scenes, the shutter
speed is set to 1/2 second to capture close and background
subjects.
Red-eye—flash fires once so the subject’s eyes become
accustomed to the flash, then fires again when the picture is
taken. The Red-eye option remains in effect until you change it.
NOTE: All flash options (except Red-eye) revert to Auto when the camera is
turned off.
14
Chapter 2
Setting Picture Quality
Use the Quality setting to select a picture resolution:
1 Turn the Mode dial to Still , then press
the Menu button.
2 Highlight Quality , then press the
Select button.
3 Highlight an option:
FPO
4 Press the Select button.
5 Press the Menu button to turn off the menu screen.
This setting remains until you change it.
Best (1752 x 1168)—for larger print
sizes; produces higher picture resolution,
more detail, and larger file sizes.
When Best Quality is set, two stars are
displayed on the LCD status bar.
Good (876 x 584)—for smaller print
sizes, e-mailing, or screen display; pictures
are lower resolution and file sizes are
smaller.
When Good Quality is set, one star is
displayed on the LCD status bar.
15
Chapter 2
Putting Yourself in the Picture
The Self Timer creates a 10-second delay between the time you press the
Shutter button and the time the picture is taken. This setting is ideal when you
want to include yourself in the picture.
Turn on the Self Timer:
1 Turn the Mode dial to Still , then press
the Menu button.
2 Highlight Self Timer , then press the
Select button.
3 Highlight On, then press the Select button.
4 Press the Menu button to turn off the menu
screen.
Take the picture:
Self Timer light
1 Place the camera on a flat surface or use a
tripod.
2 Compose the picture, then press the Shutter
button all the way down.
The red Self Timer light, located on the
front of the camera, blinks for 10 seconds
before the picture is taken.
The Self Timer feature turns off after you
take the pictures.
16
Chapter 2
Placing the Date on Pictures
Use the Date Stamp setting to imprint the date on your pictures.
1 Make sure the camera clock is set to the correct date (page 5).
2 Turn the Mode dial to Still , then press the Menu button.
3 Highlight Date Stamp , then press the Select button.
4 Highlight an option:
yyyy/mm/dd (2002/01/01)
mm/dd/yyyy
dd/mm/yyyy
5 Press the Select button.
6 Press the Menu button to turn off the menu.
The current date is printed in the bottom
right corner of new pictures. This setting
remains until you change it.
17
3 Taking Videos
Use the Video setting to take videos or to customize video-taking settings.
Before you take a video, make sure your picture storage location is set the way
you want it (see page 9).
Taking a Video
1 Turn the Mode dial to Video .
A live image, the status bar, and the
recording time available appear in the
LCD. (To turn the status bar on or off,
move the joystick .)
2 Frame your subject on the LCD. (If you need
to conserve battery power, press the Select
Select
button
m Press and release —press the Shutter button completely down and
release within 2 seconds. Press the Shutter button again to stop recording.
m Press and hold—continue pressing and holding the Shutter button
completely down. Release the Shutter button to stop recording.
The ready light blinks green while the camera is recording. Recording
stops if you reach the specified video length interval (see page 24) or
when the current storage location is full.
NOTE: See page 66 for video storage capacities.
button to turn off the LCD. Then use the
Viewfinder to frame your subject.)
3 Press the Shutter button half-way until the
ready light glows green, then either:
19
Chapter 3

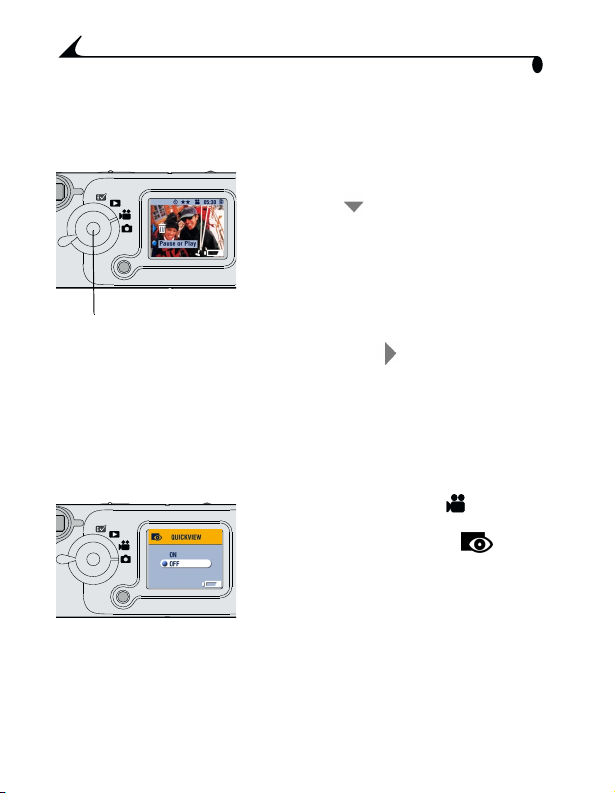

Reviewing/Deleting the Video Just Taken
After you take a video, the LCD displays the first frame of the video for
approximately 5 seconds. While the frame is displayed, you can:
m Take no action; the video is saved. To
redisplay the frame after 5 seconds, move
the joystick .
m Play the video: Press the Select button.
NOTE: Sound is recorded during a video, but
not played on the camera. When a video
is transferred to a computer or played
Joystick/ Select
button
To turn the QuickView feature on or off in Video mode:
on a television, audio accompanies it.
m Delete the video:
1 Move the joystick .
The Delete Video? screen appears.
2 Highlight Yes, then press the Select button.
The video is deleted from the camera.
1 Turn the Mode dial to Video , then press
the Menu button.
2 Highlight the QuickView menu , then
press the Select button.
3 Highlight an option, then press the Select
button.
4 Press the Menu button to turn off the menu.
20
Chapter 3
Putting Yourself in the Video
The Self Timer creates a 10-second delay between the time you press the
Shutter button and the time video recording begins. This setting is ideal when
you want to include yourself in the video.
Turn on the Self Timer:
1 Turn the Mode dial to Video , then press
the Menu button.
2 Highlight Self Timer , then press the
Select button.
3 Highlight On, then press the Select button.
Select
button
Menu
button
4 Press the Menu button to turn off the menu.
Take the video:
1 Place the camera on a flat surface or use a
tripod.
2 Compose the scene, then press the Shutter
button.
The red Self Timer light blinks for 10
seconds, then stays on while the video is
recording.
3 To stop recording, press the Shutter button.
The Self Timer turns off after you take the
video.
21
Chapter 3
Setting Video Quality
Use the Video Quality setting to select a video resolution.
1 Turn the Mode dial to Video , then press
the Menu button.
2 Highlight Video Quality , then press the
Select button.
3 Highlight an option:
Best (320 x 240)—for more detail. Good
for display on a television or computer
Select
button
Menu
button
4 Press the Select button.
5 Press the Menu button to turn off the menu.
This setting remains until you change it.
NOTE: Some older MMC/SD cards are not able to record video at Best Quality.
To resolve this situation, change the Quality setting to Good or change
the storage location to internal memory (see page 9).
monitor. Produces higher resolution and
larger file sizes.
When Best Quality is set, two stars are
displayed on the LCD status bar.
Good (160 x 120)—for e-mailing or LCD
display; conserves storage space. Produces
lower resolution and smaller file sizes.
When Good Quality is set, one star is
displayed on the LCD status bar.
22
Chapter 3

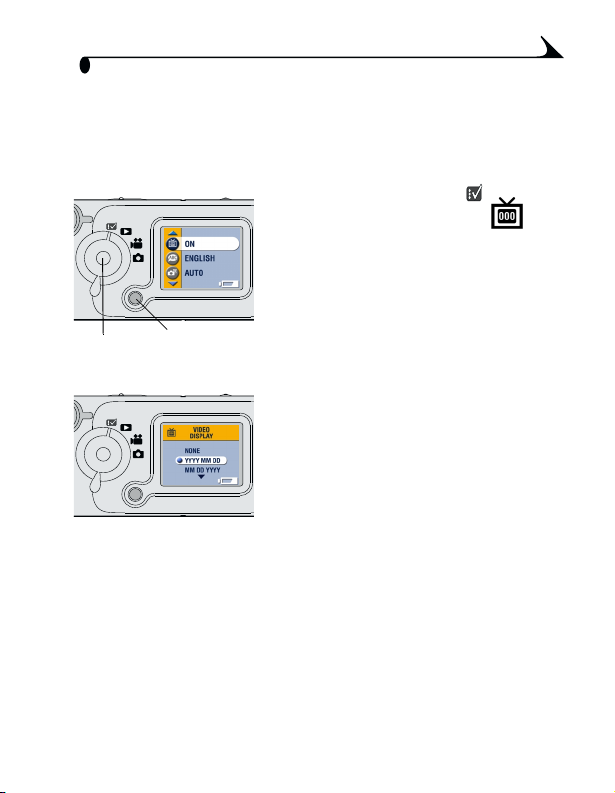

Displaying the Date/Time on Videos
To display the video capture date and time for the first five seconds of the video
playback:
1 Make sure the camera clock is set to the correct date (page 5).
2 Turn the Mode dial to Setup .
3 Highlight Video Playback Display , then
press the Select button.
Select
button
Menu
button
4 Highlight an option, then press the Select
button.
5 Press the Menu button to turn off the menu.
23
Chapter 3
Setting Video Length
You can specify a recording time limit. Use the Video Length setting to conserve
space or to set all videos to the same length.
1 Turn the Mode dial to Video , then press
the Menu button.
2 Highlight Video Length , then press the
Select button.
3 Highlight an option:
Unlimited (default)—records until you
stop recording or until the current storage
Select
button
Menu
button
4 Press the Select button.
5 Press the Menu button to turn off the menu.
This setting remains until you change it.
NOTE: If the current storage location does not have enough space to record for
the specified time, the ready light turns red when you turn off the menu.
A memory full message appears if you attempt to take a video.
See page 66 for video storage capacities.
location is full.
5, 15, or 30 Seconds—records for the
specified time or until the current storage
location is full.
24
4 Reviewing Pictures and
Videos
Use the Review setting to display and work with pictures and videos that
are stored in internal memory or on a card.
Navigating Through Pictures and Videos
1 Turn the Mode dial to Review .
The camera displays the last picture or
video that was taken or reviewed.
2 Move the joystick to scroll backward
or forward through pictures and videos. For
fast scrolling, press and hold the joystick.
Joystick/ Select
button
The icons displayed with the picture or video indicate applied features:
Print order Protect Frame number Picture Location
Date Stamp Low battery Exhausted battery (blinking)
When you release the joystick, the current
picture or video is displayed on the LCD.
Internal memory
Card
25
Chapter 4
Deleting Pictures and Videos

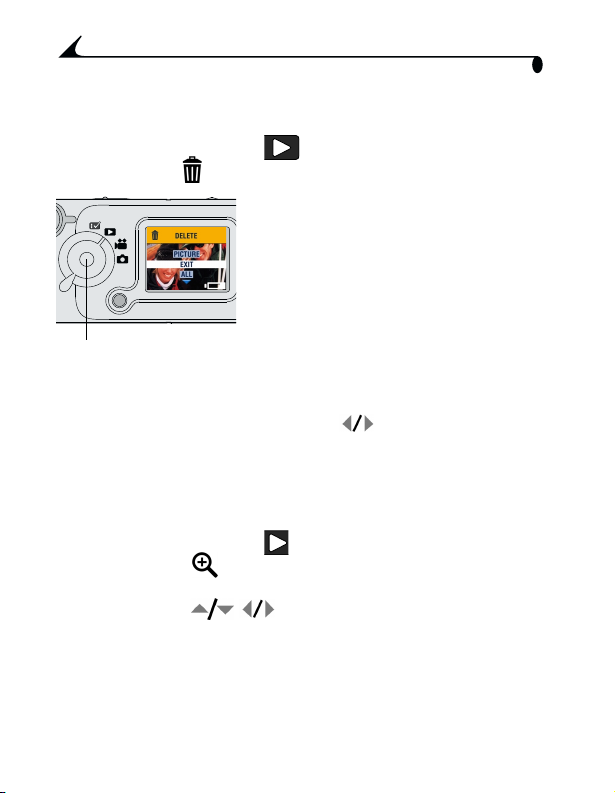

Use the Delete feature to delete one or all pictures and videos.
1 Turn the Mode dial to Review , then press the Menu button.
2 Highlight Delete , then press the Select button.
3 Highlight an option:
PICTURE or VIDEO—deletes the
displayed picture or video.
EXIT—returns to the Review menu.
ALL—deletes pictures and videos on the
card or in internal memory, depending on
your storage location setting.
Select button
NOTE: Protected pictures and videos cannot be
deleted; remove protection before
deleting (page 27).
4 Press the Select button.
5 To stay in Delete mode, move the joystick to scroll to different
pictures and videos. To exit Delete mode, press the Menu button.
Magnifying Pictures
Use the Magnify feature to zoom in to different areas of the picture.
1 Turn the Mode dial to Review , then press the Menu button.
2 Highlight Magnify , then press the Select button.
The picture is displayed at 2X magnification; the menus disappear.
3 Move the joystick to navigate to different parts of the picture.
4 Press the Select button to redisplay the picture at the original size.
5 Press the Menu button to turn off the menu.
26
Chapter 4
Protecting Pictures and Videos From Deletion
Use the Protect feature to prevent specific pictures and videos from being
deleted.
CAUTION:
Formatting internal memory or a card deletes all
(including protected) pictures and videos.
To protect a picture or video:
1 Turn the Mode dial to Review , then
locate the picture or video to protect.
2 Press the Menu button.
3 Highlight Protect , then press the Select
button.
The picture or video is protected and
cannot be deleted. The Protect icon
appears with the protected picture or
video whenever it is displayed.
4 To remove protection, press the Select
button again.
5 Press the Menu button to turn off the menu.
27
Chapter 4
Selecting Pictures for Printing
Use the Print Order feature to select specific pictures on a card for printing.
When you insert the card into a printer equipped with an MMC/SD card reader,
the selected pictures are printed.
Creating a Print Order
Flash/Print button
1 Turn the Mode dial to Review . Locate a
desired picture, then press the Flash/Print
button.
2 Highlight an option:
CURRENT PICTURE—selects the
currently displayed picture for printing.
ALL PICTURES—selects all pictures on
the card for printing.
CANCEL PRINT ORDER—cancels the
entire print order from the card.
EXIT—returns to the previous menu.
3 Press the Select button and follow the on-
screen directions.
When the # Copies message appears,
move the joystick to select the
desired number of copies (0-99). Zero
cancels the order for that picture.
The Print Order icon appears with
the ordered pictures.
Printing Your Order
Insert the card containing the Print Order into a direct-print-enabled printer.
Refer to the User’s Guide provided with your printer for further directions.
28
Chapter 4
Running a Slide Show
Use the Slide Show feature to sequentially display your pictures and videos on
the camera LCD, on a television screen, or on any external display device
equipped with a video input (such as a computer monitor or digital projector).
NOTE: Ensure that the Video Out setting is correctly set to NTSC or PAL (see
page 34).
To run the slide show on a television:
1 Connect the video cable from the video-out
port on the camera to the video-in port on
the television. (Refer to your television
Video
out
2 Proceed with the next section, Starting the Slide Show.
Starting the Slide Show
1 Turn the Mode dial to Review , then press the Menu button.
2 Highlight Slide Show , then press the Select button.
User’s Guide for details on video-in setup.)
The camera LCD turns off; the television
screen acts as the camera display.
3 Highlight Begin Show, then press the Select
button.
Each picture and video is displayed once,
in the order in which you took them.
Then the camera returns to the Menu
screen.
4 To cancel the Slide Show, press the Select button.
NOTE: If you connect or disconnect the video cable while a slide show is
running, the slide show stops.
29
Chapter 4

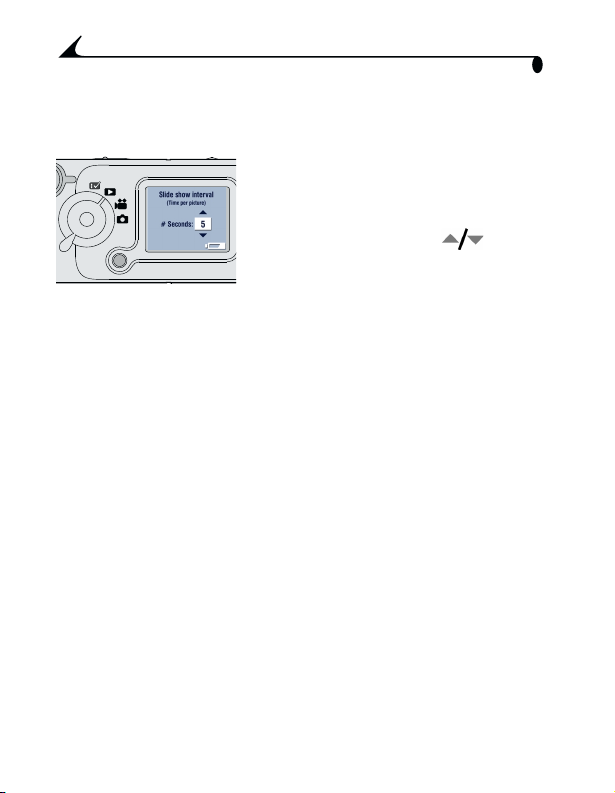

Changing the Display Interval
The factory interval setting displays each picture for 5 seconds. You can
increase the display interval to up to 60 seconds.
1 On the Slide Show menu, highlight Interval,
then press the Select button.
2 Select a display interval.
To scroll through the seconds quickly,
press and hold the joystick .
3 Press the Select button.
The interval setting remains until you
change it.
30
Chapter 4
Copying Pictures and Videos
You can copy pictures and videos from a card to internal memory or from
internal memory to a card.
Before you copy, make sure that:
m A card is inserted in the camera.
m The camera’s picture storage location is set to the location from which you
are copying. See Choosing Internal Memory or MMC/SD Card, page 9.
Copy pictures or videos:
1 Turn the Mode dial to Review and press the Menu button.
2 Highlight Copy , then press the Select button.
3 Highlight an option:
PICTURE or VIDEO—copies the current
picture.
EXIT—returns to the Copy screen.
ALL—copies all pictures from your
selected storage location to the other
location.
4 Press the Select button.
A progress bar monitors the copy process until copy is complete. (For
information on picture numbering, see page 70.)
NOTE: Pictures and videos are copied, not moved. To remove the pictures and
videos from the original location after they are copied, delete them (see
page 26). Protection settings are not copied. To apply protection to a
picture or video, see page 27.
31
5 Customizing Your Camera
Settings
Use Setup to customize camera settings according to your preferences.
Adjusting LCD Brightness
You can adjust the LCD brightness to make the display easier to see.
1 Turn the Mode dial to Setup .
2 Highlight Display Brightness , then press the Select button.
3 Move the joystick to scroll through
the brightness settings.
The available brightness settings are -2.0 to
+2.0 in 0.5 increments. The camera default
is 0.0.
The screen previews the changes as you
scroll through the settings.
4 Press the Select button.
The highlighted setting is applied. This
setting remains until you change it.
33
Chapter 5
Setting Video Out
The Video Out feature lets you match the camera’s video signal to the standard
for your geographical location. Video Out must be set correctly to run a slide
show on a television or other external device.
1 Turn the Mode dial to Setup .
2 Highlight Video Out , then press the
Select button.
3 Highlight an option:
NTSC—used in most countries except
those in Europe. The United States and
Japan use NTSC.
PAL—used in European countries.
4 Press the Select button to accept the change
and return to the Setup menu.
This setting remains until you change it.
34
Chapter 5

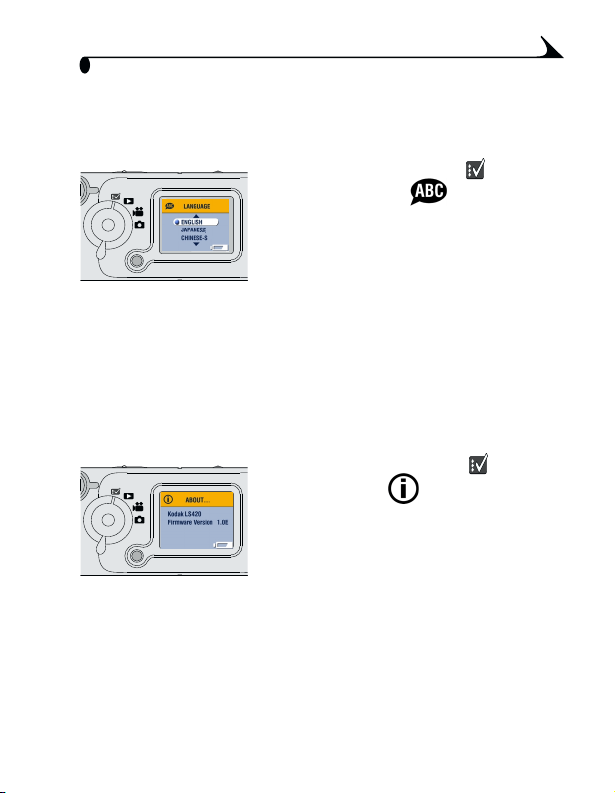

Selecting a Language
The Language feature lets you display menus and screen messages in different
languages.
1 Turn the Mode dial to Setup .
2 Highlight Language , then press the
Select button.
3 Highlight an option.
4 Press the Select button to accept the
changes and return to the Setup menu.
The screen text is displayed in the selected
language. This setting remains until you
change it.
Viewing Camera Information
The About this Camera feature displays information that is helpful if you need
to call for service on your camera.
1 Turn the Mode dial to Setup .
2 Highlight About , then press the Select
button.
The camera information is view-only and
includes the camera model and the
current firmware version.
3 To exit About, press the Select button.
35
Chapter 5

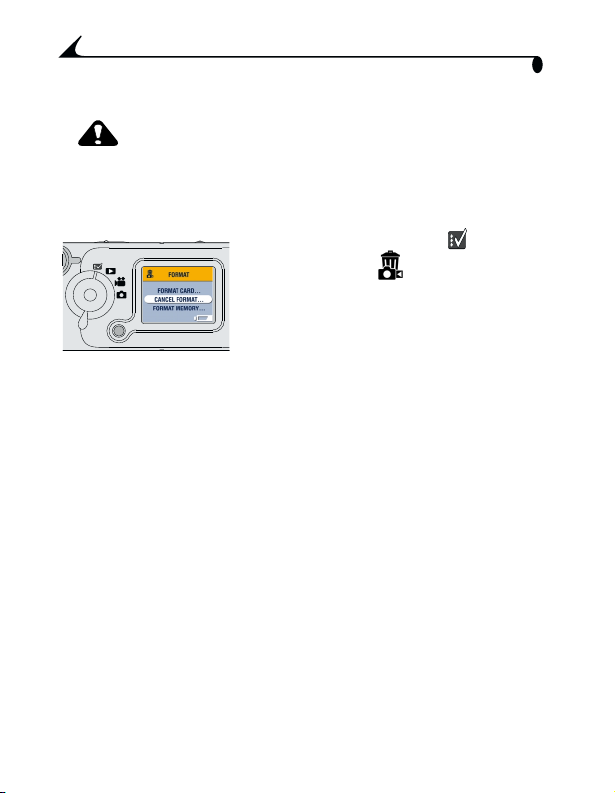

Formatting Memory or MMC/SD Card
CAUTION:
Formatting deletes all pictures and videos. Removing a
card during formatting may damage the card. Once
formatting begins, it is completed even if you turn off the
camera or change the Mode dial position.
1 Turn the Mode dial to Setup .
2 Highlight Format , then press the Select
button.
3 Highlight an option:
FORMAT CARD—deletes e veryth ing on the
card and reformats the card for use in the
camera.
CANCEL FORMAT—exits without making
a change.
FORMAT MEMORY—deletes everything in
internal memory.
4 Press the Select button.
5 Highlight Continue Format, then press the
Select button.
When the formatting is complete, the
Setup menu is redisplayed.
36
6 Installing the Software
CAUTION:
Install the software from the KODAK Software CD before
connecting the camera or dock to the computer. Failure to
do so may cause the software to load incorrectly.
Computer System Requirements
For acceptable transfer and editing, we recommend these minimum
requirements:
WINDOWS-Based System Requirements
m Personal computer designed for WINDOWS 98, 98SE, ME, 2000, or XP
m 200 MHz processor
m RAM:
m 48 MB minimum (96 MB recommended) for WINDOWS 98, 98SE,
ME
m 64 MB minimum (128 MB recommended) for WINDOWS 2000, XP
m 720 MB of available hard disk space
m CD-ROM drive
m Available USB port or MMC/SD card reader
m Color monitor with a minimum resolution of 800 x 600 pixels; High Color
(16-bit) or True Color (24-bit) recommended
37
Chapter 6
MACINTOSH System Requirements
m POWERPC-based MACINTOSH computer
m MACINTOSH OS 8.6, 9.x, X
m 64 MB of available RAM
m 100 MB of available hard disk space
m CD-ROM drive
m Built-in USB port or MMC/SD card reader
m Color monitor with a minimum resolution of 800 x 600 pixels; (thousands
or millions of colors recommended)
38
Chapter 6
Software Included With Your Camera
The KODAK Software CD contains the following applications that let you access,
transfer, and have fun with your digital pictures. For details on using the
applications, refer to the Help supplied with each application.
KODAK Picture Transfer Software
Automatically transfer your pictures from the camera to the computer,
organize, and rename your picture files if you wish. See page 41 for more
information.
KODAK Software
After you have transferred your pictures to your computer, use KODAK
Software to:
m View and share your pictures.
m Add special effects, make a custom slide show, fix red-eye, crop and rotate,
and much more.
m E-mail your pictures to friends and family.
KODAK Camera Connection Software
KODAK Camera Connection Software displays the camera as a removable drive
on your desktop. Access the pictures in your camera as you would the contents
of any removable drive to transfer, copy, move, rename, or delete the pictures.
For more information, see page 44.
QUICKTIME Software
QUICKTIME lets you play back the portable slide show (KODAK Picture Road
Show) that you create in KODAK Software. For more information, refer to the
QUICKTIME Help.
39
Chapter 6
MACINTOSH OS X Notice
OS X ships with an image capture application that provides the functionality of
KODAK Camera Connection Software and KODAK Picture Transfer Software. Do
not install KODAK Camera Connection Software or KODAK Picture
Transfer Software; they are unnecessary and will not function if installed on
OS X.
You may wish to install KODAK Software for picture viewing, editing, and
sharing. Picture Software installs and runs with OS X in Classic mode.
Install the Software
1 Before you begin, close all software applications.
2 Place the KODAK Software CD into the CD-ROM drive.
3 Load the software:
On a WINDOWS-based computer—if the first install window does not
appear, choose Run from the Start menu and type the drive letter that
contains the CD followed by \setup.exe. For example: d:\setup.exe
On a MACINTOSH computer—on the install window, click Continue.
(For OS X, see MACINTOSH OS X Notice.)
4 Follow the on-screen instructions to install the software. If prompted,
restart the computer when the installation is complete.
m To install all applications on the CD, select Typical when prompted.
m To choose the applications you wish to install, select Custom when
prompted. See page 39 for a description of the applications that are
included on the CD.
NOTE: When prompted, take a few minutes to electronically register your
camera and software. This lets you receive information regarding
software updates and registers some of the products included with the
camera. You must be connected to your Internet service provider to
register electronically.
40
7 Using the EASYSHARE
LS420 Camera Dock
The KODAK EASYSHARE LS420 Camera Dock makes it easy to transfer your
pictures to the computer. In addition, the dock is a rapid battery charger for
the KODAK Rechargeable Li-Ion Battery and supplies power to the camera.
To keep the battery charged, store your camera in the dock whenever you are
not using it.
CAUTION:
Install the software from the KODAK Software CD before
connecting the camera or dock to the computer. Failure to
do so may cause the software to load incorrectly.
Connecting the Dock
NOTE: Do not connect to the computer if the camera is in the dock.
1 Plug the labeled end of the USB cable
into the USB port on your computer.
If the computer port is not labeled, see your
computer User’s Guide.
2 Plug the other end of the USB cable into the
USB connector on the back of the dock.
3 Plug the AC adapter into the back of the
dock and into a power outlet.
Leave the dock connected to the computer to transfer pictures, charge the
battery, and provide power to the camera.
41
Chapter 7
Charging the Battery
The battery is not charged at the factory.
1 Make sure the battery is installed in the
camera. Turn off the camera.

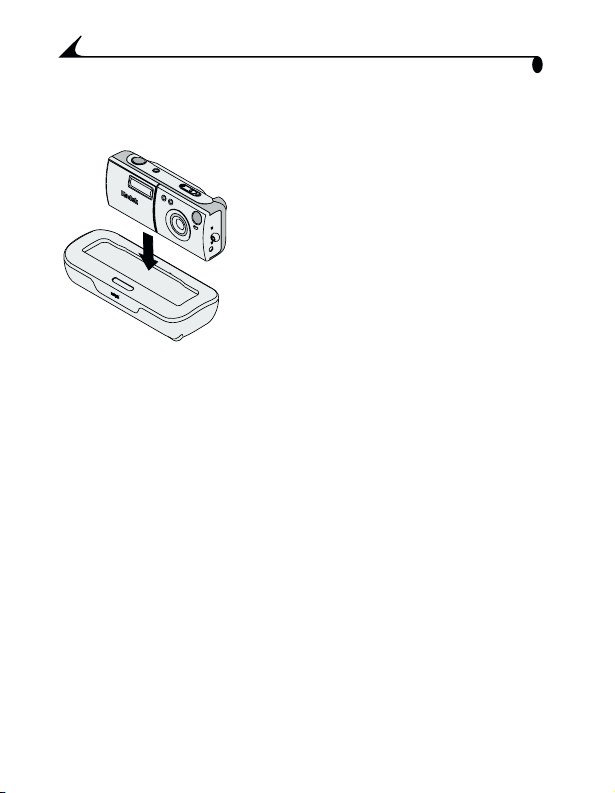

2 Place the camera straight down into the
dock. Charging begins after a few seconds.
m The dock light glows red while
m Full charging takes about 3 hours. After
m Charging stops if you turn on the
charging, then glows green when the
battery is fully charged.
the battery is fully charged, the dock
senses battery power and resumes
charging whenever necessary. Under
these conditions, there is no red light
while charging.
camera. If the camera is docked and
inactive for 8 minutes, it automatically
turns off (and charging resumes).
42
Chapter 7
Transferring Pictures and Videos
To transfer pictures from your camera to your computer:
1 Place the camera in the dock.
2 Push the Connect button.
The dock light blinks green while the
connection to the computer is active.
KODAK Picture Transfer Software
Connect
NOTE: You can also use a KODAK SD/MULTIMEDIA Card Reader-Writer to
transfer your pictures and videos. See your KODAK retail dealer or visit
our Web site at http://www.kodak.com/go/accessories.
transfers your pictures and videos.
KODAK Software opens so you can work
with your pictures on your computer. For
further details, see page 44.
When your pictures are transferred, leave
the camera in the dock. The Dock
monitors battery power and charges
when necessary.
43
Chapter 7
Working With Your Pictures
When your pictures are transferred, KODAK Picture Transfer Software closes
and KODAK Software opens.
In the KODAK Software window, click the thumbnail of the picture with which
you would like to work. The picture appears in the main window. Click the
Help button (?) for details on how to:
m Add special effects, make a custom slide show, fix red-eye, crop and rotate
m E-mail to family and friends
m Print to your personal printer
KODAK Camera Connection Software Help
For detailed information on using Camera Connection Software, refer to the
Help:
On a WINDOWS computer—right-click the camera icon in the My
Computer window, then select Camera Help.
On a MACINTOSH system—on the Finder menu bar, choose Camera
Camera Help.
→
44
Chapter 7
Printing Your Pictures
Choose your favorite method to enjoy long-lasting prints of your digital
pictures.
From KODAK Software
m Print to your home printer with KODAK Premium Picture Paper.
From a Card
m Use the Print Order feature (page 28) to print from a card to a direct-print-
enabled printer.
m Take your card to your local photo retailer for printing.
45
8 Troubleshooting Problems
There may be times when you have questions about using your camera or
Camera Dock.
Additional technical information is available in the ReadMe file located on the
KODAK Software CD. For updates to Troubleshooting information, visit our
Web site at http://www.kodak.com/go/ls420support.
Troubleshooting—Camera
MMC/SD Card
Problem Cause Solution
The camera does not
recognize your
MMC/SD Card.
An MMC card holds
only 5 seconds of
video in Best mode.
The camera freezes
up when a card is
inserted or removed.
The card may be
corrupt.
No car d is insert ed
in camera.
Data on the SD
card is encrypted.
The SD card is
locked internally.
The write speed of
some older cards
is not adequate.
Camera detects an
error.
Reformat the card (page 36).
Caution: Formatting deletes all
pictures from the card.
Insert a card.
Decrypt the card using your
computer or use another card.
Unlock the card using your
computer or use another card.
Replace the card or use internal
memory.
Turn the camera off, then back
on. Make sure the camera is off
when inserting or removing a
card.
47
Chapter 8
Camera Communications
Problem Cause Solution
Pictures and videos
are not transferred
from the camera to
the computer.
There is a problem with
the configuration of the
USB port on your
computer.
Some Advanced Power
Management utilities on
laptops can turn off
ports to save battery life.
The USB cable is not
securely connected.
Software is not installed. Install the software
Too many applications
are running on your
computer.
The Battery Monitor or
similar software runs
constantly.
See the following file on the
KODAK Software CD:
USB.html
Or, visit http://
www.kodak.com/go/
picsoftdownload and click
Service and Support.
See the Power Management
section of your laptop user’s
guide to disable this feature.
Connect the cable to the
Camera Dock and computer
ports (page 41).
(page 40).
Disconnect the Camera
Dock. Close all software
applications, reconnect the
Camera Dock, and try again.
Close that software before
starting the KODAK Software.
48
Chapter 8
Camera
Problem Cause Solution
The Shutter button
does not work.
Part of the picture
is missing.
The camera is not
turned on.
The camera is
processing a picture; the
ready light is blinking.
The card or internal
memory is full.
Mode dial is not in the
Still or Video position.
Something was blocking
the lens when the
picture was taken.
Your eye or the picture
was not centered
correctly in the
viewfinder.
Turn on the camera
(page 4).
Wait until the light stops
blinking before attempting
to take another picture.
Transfer pictures to your
computer (page 43), delete
pictures from the camera
(page 26), switch storage
locations (page 9), or inse rt
a card with available
memory.
Turn Mode dial to the Still or
Video position.
Keep hands, fingers, or other
objects away from the lens
when taking pictures.
Leave space around subject
when centering picture in
viewfinder or use the LCD.
49
Chapter 8
Camera
Problem Cause Solution
In Review mode,
you do not see a
picture on the LCD
or do not see the
picture you
expected.
A picture is too
dark.
The camera does
not turn on.
The camera may not be
accessing the correct
storage location.
The flash is not on or did
not function.
The subject is too far
away for the flash to have
an effect.
The subject is in front of
a bright light (backlit).
The battery is not
properly installed.
The battery is not
charged.
Check the picture storage
location setting (page 9 ).
Turn on the flash (page 14).
Move so there is no more
than 8.2 feet (2.5 m)
between the camera and the
subject.
Change your position so the
light is not behind the
subject or use Fill flash.
Remove and reinstall the
battery (page 3).
Recharge the battery
(page 42).
50
Chapter 8
Camera
Problem Cause Solution
A picture is too
light.
Stored pictures are
damaged.
The Pictures
Remain ing number
does not decrease
after taking a
picture.
The flash is not needed. Change to Auto Flash
The subject was too
close when the flash was
used.
The card was removed
when the ready light was
blinking.
The picture does not
take up sufficient space
to decrease the picture
remaining number.
(page 14).
Move so there is at least 2.6
feet (0.8 m) between the
camera and the subject.
Make sure the ready light is
not blinking before
removing the card.
The camera is operating
normally. Continue taking
pictures.
51
Chapter 8
Camera
Problem Cause Solution
A picture is not
clear.
A slide show does
not run on external
video device.
Video sound does
not play in Review
mode.
A slide show does
not run on LCD
screen.
The lens is dirty. Clean the lens (page 67).
The subject was too
close when taking
picture.
The subject or the
camera moved while the
picture was taken.
The subject was too far
away for the flash to be
effective.
Flash mode is set to Off
or Night Shot.
The Video Out setting is
incorrect.
The ex ternal devi ce is set
incorrectly.
The camera does not
have a speaker.
The camera may not be
accessing the correct
storage location.
Move so there is at least 2.6
feet (0.8 m) between the
camera and the subject.
Hold the camera steady
while taking the picture.
Move so there is no more
than 8.2 feet (2.5 m)
between the camera and the
subject.
When using these modes,
use tripod (or change to
Auto flash mode).
Adjust the camera Video Out
setting (NTSC or PAL,
page 34).
Refer to the external device’s
user’s guide.
When the video is
transferred to a computer or
connected to a television,
audio accompanies the
video.
Check the picture storage
location setting (page 9 ).
52
Chapter 8
Camera Ready Light
The ready light glows steady green when the camera is on and
ready to take a picture.
Problem Cause Solution
The Ready light does
not turn on and the
camera does not
work.
The camera is not
turned on.
The battery is
exhausted.
Turn on the camera
(page 4).
Recharge the battery
(page 3).
The Ready light blinks
red.
The Ready light glows
steady red.
The Ready light blinks
green.
The Ready light blinks
yellow.
The battery is low. Recharge the battery
The camera’s
internal memory or
card is full.
A picture is being
processed and saved
to the camera.
The flash is not
charged.
Auto Exposure is not
locked.
(page 3).
Transfer pictures to your
computer (page 43), delete
pictures from the camera
(page 26), switch storage
locations (page 9), or insert
a card with available
memory.
Wait. Resume picture taking
when t he light st ops blinking.
Wait. Resume picture taking
when the light stops blinking
and turns green.
Release the Shutter button
and recompose the picture.
53
Chapter 8
LCD Messages
Message Cause Solution
No images to display No pictures are in the
Memory card requires
formatting
Memory card cannot
be read (Please format
the card or insert
another card)
Internal memory
requires formatting
Internal memory
cannot be read (Please
format internal
memory)
No memory card, Files
not copied
Not enough space to
copy files
current storage
location.
The card is corrupted,
or formatted for
another digital camera.
The camera’s internal
memory is corrupted.
There is no card in the
camera. Your pictures
were not copied.
There is not enough
space in the location
you are copying to
(internal memory or
the card).
Change your picture
storage location setting
(page 9).
Insert a new card
(page 8)or format the card
(page 36).
Format the internal
memory (page 36).
Insert a card (page 8).
Delete pictures from the
location you are copying to
(page 26), or insert a new
card.
54
Chapter 8
LCD Messages
Message Cause Solution
Date/T ime entry screen
appears automatically
Camera may need
service #xxx
High camera
temperature. Camera
will be turned off.
Memory card is full There is no more space
Internal memory is full There is no more space
This is the first time you
turned on the camera;
or the battery has been
removed for an
extended period of
time; or the battery is
exhausted.
A camera error has
occurred.
The internal
temperature of the
camera is too high for
the camera to operate.
The ready light glows
red and the camera will
turn off in five seconds.
on the card in the
camera.
on the camera’s
internal memory.
Reset the clock (page 5 ).
Turn off the camera, then
turn it back on. If the error
message is still displayed,
call for service (page 60).
Leave the camera off for
several minutes, then turn
it back on.
If the message reappears,
repeat the sequence above
until the message does not
appear.
Delete pictures from the
card (page 26), insert a
new card, or change
storage location to internal
memory (page 9).
Delete pictures from the
interna l memory (page 26)
or change storage location
to Auto and insert card
(page 9).
55
Chapter 8
LCD Messages
Message Cause Solution
Unrecognized file
format
Card is write protected
internally
Card is locked. (Insert
new card.)
Card is protected.
(Reset switch on
card.)
Card is unusable.
(Insert new card.)
The camera cannot
read the picture format.
Access lock was added
using software.
Lock switch on side of
card is in Locked
position.
Card voltage must
range between 3.0 and
3.6 volts.
Transfer the unreadable
picture to the computer
(page 43), or delete the
picture (page 26).
Use software to remove
lock; cannot be removed by
the camera.
Slide lock switch to remove
write protection.
Replace the card.
56
Chapter 8
Troubleshooting—Camera Dock
Camera Dock
Problem Cause Solution
Pictures are not
transferred to the
computer
The AC adapter or
USB cable is not
securely
connected.
Software is not
installed.
Too many
applications are
running on your
computer.
The camera was
removed from the
Camera Dock
during picture
transfer.
The Connect
button was not
pressed.
Check the connections (page 41).
Install the software (page 40).
Close all software applications
and try again.
Replace the camera on the
Camera Dock and press the
Connect button.
Press the Connect button.
57
Chapter 8
Camera Dock indicator light
Light Status Cause Solution
The light glows
steady green
The light glows
steady red
The light blinks
green
The light blinks red The battery is
The camera is
docked.
The camera Dock
is charging
battery.
The connection
(USB) between
the computer and
the Camera Dock
is active.
installed
incorrectly.
The battery or
connector pins
are damaged.
The camera and
battery have been
exposed to very
high or low
temperatures.
The camera and Camera Dock are
operating normally.
Reinstall the battery
(page 3).
Check for damage.
Slowly return the camera and
battery to room temperature.
58
9 Getting Help
If you need help with your camera or Camera Dock, it is available from a
number of resources:
m Troubleshooting—Camera, page 47
m Software application Help
m Product information by fax
m Place of purchase
m World Wide Web
m Technical support
Software Help
Help with any software application packaged with your camera can be obtained
from the Help provided with the application.
Kodak Online Services
World Wide Web http://www.kodak.com
(click Service and Support)
Kodak Fax Support
m U.S. and Canada
m Europe
1-800-508-1531
44-0-131-458-6962
59
Chapter 9
Telephone Customer Support
If you have questions concerning the operation of the software or camera, you
may speak directly to a customer support representative.
Before You Call
Before you call to speak to a customer support representative, please have the
camera connected to your computer, be at your computer, and have the
following information available:
Operating system__________________________________________
Processor speed (MHz) _____________________________________
Computer model __________________________________________
Amount of memory (MB) ____________________________________
Exact error message you received_______________________________
Version of installation CD____________________________________
Camera serial number______________________________________
Telephone Numbers
m U.S.—call toll free, 1-800-235-6325, between the hours of 9:00 a.m. and
8:00 p.m. (Eastern Standard Time) Monday through Friday.
m Canada—call toll free, 1-800-465-6325, between the hours of 9:00 a.m.
and 8:00 p.m. (Eastern Standard Time) Monday through Friday.
m Europe—call the Kodak Digital Imaging Support Centre toll number
associated with your location, or the U.K. toll line,
44-0-131-458-6714, between the hours of 09.00 and 17.00 (GMT/CET)
Monday through Friday.
60
Chapter 9
Outside U.S. and Canada—calls are charged at National Rate.
m
Australia 1800 147 701
Austria/Osterreich 0179 567 357
Belgium/Belgique 02 713 14 45
China 8008206027
Denmark/Danmark 3 848 71 30
Ireland/Eire 01 407 3054
Finland/Suomi 0800 1 17056
France 01 55 1740 77
Germany/Deutschland 069 5007 0035
Greece 0080044125605
Hong Kong 800901514
Italy/Italia 02 696 33452
Japan 81 3 5644 5500
Korea 0798 631 0024
Netherlands/Nederland 020 346 9372
New Zealand 0800 440 786
Norway/Norge 23 16 21 33
Portugal 021 415 4125
Spain/Espana 91 749 76 53
Sweden/Sverige 08 587 704 21
Switzerland/Schweiz/Suisse 01 838 53 51
Taiwan 0080861008
UK 0870 2430270
61
Chapter 9
International Toll Line +44 131 4586714
International Toll Fax Number +44 131 4586962
For the most up-to-date listings, visit: http://www.kodak.com/US/en/digital/
contacts/DAIInternationalContacts.shtml
62
10Appendix
Camera Specifications
Camera Specifications
Color 24-bit, millions of colors
Communication with
computer
Dimensions Width
Exposure control Automatic
Flash Modes Auto, Fill, Red-eye, Night Shot, Off
ISO Automatic (100, 140, 200)
LCD 1.6 inch (40.6 mm), color, 55,000 pixels
USB Via Dock only
4.3 inches (109 mm)
Depth
Height
Weight 5.64 oz. (160 g) with battery and card
Range 2.6 to 8.2 feet (0.8 to 2.5 m)
Charging
Time
1.1 inches (28.5 mm)
1.8 inches (45.5 mm)
5 seconds with charged battery
Preview rate: 19.1 fps
63
Chapter 10
Camera Specifications
Lens Type Optical quality glass, 4 element
Maximum
Aperture
Focal
Length
Focus
Distance
Operating Temperature 32 to 104
Picture file format, still JPEG (EXIF)
Picture storage 8 MB internal; SD Card or MMC
Pixel resolution 2.1 MP Best Quality—1752 x 1168 pixels
Video resolution Best Quality—320 x 240 pixels, 19.1 fps
Power Li-Ion, 3.7V, 1000mAh (included)
Self Timer 10 seconds
Tripod socket Yes
Video Out NTSC or PAL selectable
Viewfinder Inverse-Galilean
White balance Automatic
Zoom (still capture) 3X Digital zoom
Fixed: f/3.9
38 mm (equivalent to 35mm camera)
2.6 feet (0.8 m) to infinity, fixed focus
° F (0 to 40° C)
Good Quality—876 x 584 pixels
Good Quality—160 x 120 pixels, 19.1 fps
64
Chapter 10
Camera Dock Specifications
Camera Dock Specifications
Communication
with computer
Dimensions Width
Indicator light Green and red LED indicates operating/
Input voltage 4.9 - 5.25V DC
USB
5.4 inches (137 mm)
Depth
Height
Weight 2.8 oz. (80 g)
2.5 inches (57 mm)
1.3 inches (33.5 mm)
charging
65
Chapter 10
Original Factory Settings—Camera
Feature Factory Setting
Flash Auto
Picture Storage Location Auto
Quality Best
QuickView On
Brightness 0.0
Video Out NTSC
Date/Time 2002/01/01; 12:00
Language English
File Storage Capacities
File sizes can vary. You may be able to store more or fewer pictures and videos.
Purchase cards on our Web site at http://www.kodak.com/go/accessories.
Number of pictures Minutes/seconds of video
Best
Quality
8 MB memory 12 49 35 sec. 1 min. 30 sec.
16 MB MMC/SD 24 98 1 min. 10 sec. 3 min.
32 MB MMC/SD 48 196 2 min. 20 sec. 6 min.
64 MB MMC/SD 96 392 4 min. 40 sec. 12 min.
128 MB MMC/SD 192 784 9 min. 20 sec. 24 min.
192 MB MMC/SD 295 1185 14 min. 36 min.
Good
Quality
Best Quality Good Quality
66
Chapter 10
Tips, Safety, Maintenance
m Always follow basic safety precautions. Refer to the “Important Safety
Instructions” booklet packed with your camera.
CAUTION:
Ensure that the AC adapter is plugged directly into an
electrical outlet or resting flat on the floor, a desk, etc. The
adapter should never hang so that it is suspended. Failure
may cause damage to the cord and connections.
m Do not allow any chemicals, such as suntan lotion, to come into contact
with the painted surface of the camera.
m If the camera has been subjected to inclement weather or you suspect
water has gotten inside the camera, turn off the camera and remove the
battery and card. Allow all components to air-dry for at least 24 hours
before using the camera again.
m Clean the lens and LCD:
1 Blow gently on the lens or LCD to remove dust and dirt.
2 Moisten the lens or LCD by breathing lightly on it.
3 Wipe the lens or LCD gently with a soft, lint-free cloth or an untreated
lens-cleaning tissue.
Do not use cleaning solutions unless they are designed specifically for
camera lenses. Do not wipe the camera lens or LCD with chemically
treated eyeglass lens tissue. It may scratch the lens.
m Clean the outside of the camera by wiping with a clean, dry cloth. Never use
harsh or abrasive cleaners or organic solvents on the camera or any of its
parts.
67
Chapter 10
Using the Battery
m Your camera uses 1 KODAK Rechargeable Li-Ion Battery. This battery can
be purchased on our Web site at http://www.kodak.com/go/accessories.
m Do not touch the battery terminals with metallic objects.
m Do not place the battery on or near fires, stoves, or other high-temperature
locations. Do not place the battery in direct sunshine, or use or store the
battery inside cars in hot weather. Doing so may cause the battery to
generate heat, explode, or ignite. Using the battery in this manner may also
result in a loss of performance and shortened life expectancy.
m Immediately discontinue use of the battery if, while using, charging, or
storing the battery, the battery emits an unusual smell, feels hot, changes
color, changes shape, or appears abnormal in any other way. Contact your
sales location or Kodak if any of these problems are observed.
m It is important to use only a Kodak-specified (5V DC) AC adapter with your
camera dock. Using a different adapter or one with a different voltage
could damage your camera and battery.
m Use care when replacing the battery in the camera. If the battery is
incorrectly replaced, there is a danger of explosion. Replace the battery
only with the same or equivalent type recommended by the manufacturer.
m Do not recharge the battery for longer periods of time than specified. Do
not continue charging the battery if it does not recharge within the
specified charging time. Doing so may cause the battery to become hot,
explode, or ignite.
m Remove the battery when the camera is stored for extended periods of
time. Store the battery in a dry cool place and attach the cap.
m Always follow your battery manufacturer’s directions fully. Do not attempt
to disassemble, short circuit, or subject the battery to high temperature or
fire.
m When using your camera on battery power, we recommend you limit
continuous LCD Preview or Review to less than 10-minutes per session.
68
Chapter 10
When disposing of batteries, follow the manufacturer’s instructions and
m
any local and national regulations. Kodak suggests customers take
advantage of any community battery recycling programs that may exist in
your area. Contact your local waste remover or recycler for details.
m Read and follow all warnings and instructions supplied by the battery
manufacturer. Keep all batteries out of the reach of children. Do not allow
children to remove the battery from the charger or the digital camera.
m Discard used battery according to the manufacturer’s instructions and all
applicable local and national regulations. Utilize established community
battery recycling programs where they are available.
m In the unlikely event that battery fluid leaks onto your skin, contact Kodak
Health, Safety, and Environment Information at 1-716-722-5151 in the U.S.
In the unlikely event that battery fluid leaks inside the camera, U.S.
customers can contact the Kodak Information Center (KIC) at 1-800-242-
2424. Customers outside the U.S. can contact their local Kodak Customer
Service representative.
m When removing the battery, allow it to cool before touching, since the
battery may be hot.
Locating Pictures on an MMC/SD Card
Pictures and videos stored on a KODAK MMC/SD Card use a standard agreed
upon by many camera manufacturers. This lets you use the card in different
cameras. If you use a card reader to retrieve your files, the following
description of the card file structure may be helpful:
MISC folder—contains the Print Order file created when you use the Print
Order feature.
SYSTEM folder—used for updating camera firmware.
DCIM folder—root level folder, contains the 100LS420 folder. Each time you
turn on the camera or insert a different card, any empty folders within the
DCIM folder are removed.
100LS420 subfolder—contains all the pictures taken when a card is
inserted in the camera and the storage location is set to Auto.
69
Chapter 10
Picture File Naming Conventions
The camera maintains separate and sequential numbering sequences for the
pictures on a card (DCF compliant). Pictures are named DCP_nnnn.JPG, and
are numbered in the order in which they are taken. The first picture is named
DCP_0001.JPG; the highest number allowed is DCP_9999.JPG.
File Naming Conventions on a Card
m When a card contains a picture named DCP_9999.JPG in the
\DCIM\100LS420 folder, subsequent pictures appear in a new folder
(\DCIM\101LS420), beginning with picture DCP_0001.JPG.
m Even if you transfer pictures to the computer or delete pictures from the
camera, the camera continues to use consecutive numbers for all
subsequent pictures. For example, if the last picture taken was
DCP_0007.JPG and you delete it, the next picture you take is named
DCP_0008.JPG.
m When you insert a different card into your camera, the next picture number
is defined by incrementing the higher of the last picture taken by the
camera, or the highest existing picture number in the folder.
m If you use the card in a camera other than the EASYSHARE LS420 camera,
and that camera manufacturer adheres to the DCF file structure standard,
the \DCIM folder contains a folder named by that camera. For more
information, refer to the documentation that accompanied that camera.
70
Chapter 10
Regulatory Information
FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference,
and 2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase
the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is
connected; 4) consult the dealer or an experienced radio/TV technician for
additional suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Where shielded interface cables have been provided with the product or
specified additional components or accessories elsewhere defined to be used
with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
71
Chapter 10
Canadian DOC Statement
DOC Class B Compliance—This digital apparatus does not exceed the Class
B limits for radio noise emissions from digital apparatus set out in the radio
interference regulations of the Canadian Department of Communications.
Obervation des normes-Class B—Le présent appareil numérique n’émet
pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de la Classe B prescrites dans les règlements sur le brouillage
radioélectrique édictés par le Ministère des Communications du Canada.
Japanese VCCI Statement
72
Index
A
about
camera information 35
AC adapter
Caution 67
installing 41
adjusting
LCD brightness 33
picture quality 15
resolution 15, 22
video quality 22
audio 20, 52
auto shutoff 6
automatic
flash 14
powerdown 6
printing 28
B
battery
charging 42
checking power level 6
guidelines 68
loading 3
low or exhausted 6
safety 67
tips 68
brightness, LCD 33
button
flash 14
Flash/Print 28
menu 9
select 4
C
camera
charging battery 42
cleaning 67
connecting problems 48
information, viewing 35
internal memory 9
maintenance 67
original factory settings 66
picture, video storage
location 9
problems 49
safety 67
specifications 63
status icons 7
transferring pictures 43
turning on and off 4
73
Index
Camera Connection Software
about 39
online help 44
Camera Dock
charging battery 42
power connection 41
specifications 65
transferring pictures 43
USB connection 41
using 41
Canadian compliance 72
caring for your camera 67
changing picture, video location
9
charging battery 42
checking location setting 10
checking picture location 10
cleaning camera, lens 67
clock, setting 5
communication problems 48
compliance
Canadian 72
FCC 71
computer
running a slide show 29
system requirements 37
connect Camera Dock 41
copy pictures
card to memory 31
memory to card 31
to computer 43
customer support numbers 60
customizing camera settings 33
D
date
imprinting on pictures 17
imprinting on videos 23
setting 5
DCIM folder, MMC/SD Card 69
defaults, original settings 66
deleting
from internal memory 26
from MMC/SD Card 26
last picture 12
last video 20
protecting pictures, videos
from 27
digital zoom 13
display brightness, adjusting 33
display problems 49
displaying slide show 29
Dock, Camera 41
downloading pictures 43
74
Index
E
editing pictures 44
error messages 54
F
fax numbers, support 59
FCC compliance 71
file names
on MMC/SD Card 70
flash
auto 14
fill 14
red-eye 14
using 14
Flash/Print button 28
folders, MMC/SD Card 69
formatting
internal memory 36
MMC/SD Card 36
G
guidelines, battery 68
H
help
online service 59
online, software 44
telephone support 60
troubleshooting camera 47
troubleshooting Camera
Dock 57
I
image storage menu 9
information
camera, viewing 35
installing
battery 3
MMC/SD Card 8
software 40
internal memory
formatting 36
picture location 9
setting picture, video
location 9
storage capacity 66
K
KODAK software
Camera Connection 39
getting help 59
installing 40
Picture 39
Picture Transfer 39
L
language, setting 35
75
Index
LCD
adjusting brightness 33
battery symbol 6
error messages 54
picture location icon 7
status bar 7
viewing pictures on 25
lens, cleaning 67
light
Camera Dock 58
ready, camera 4, 53
self-timer, camera 16, 21
loading
battery 3
MMC/SD Card 8
software 40
M
MACINTOSH
installing software on 40
system requirements 38
magnify picture 26
maintenance, camera 67
memory
internal or card 9
storage location setting 9
menu button 9
menus
image storage, setting 9
overview 3
MISC folder, MMC/SD Card 69
MMC/SD Card
file name conventions 70
file structure 69
formatting 36
inserting 8
picture location 9
problems 47
setting picture, video
location 9
storage capacities 66
mode dial
settings and menus 3
monitor, requirements 37
N
NTSC, video out setting 34
O
overview, camera menus 3
P
PAL, video out setting 34
Picture Software
about 39
editing pictures 44
76
Index
Picture Transfer Software
about 39
pictures
checking location 10
copying 31
date imprint 17
deleting 26
editing 44
file naming 70
locating on MMC/SD Card 70
magnifying 26
printing 45
protecting 27
quality, setting 15
reviewing 25
selecting for printing 28
storage capacity 66
taking 11
transferring to computer 43
using on computer 44
viewing 25
pictures, videos
storage location 9
power
Camera Dock 42
checking battery 6
turning camera on 4
powerdown, automatic 6
print orders 28
printing
from an MMC/SD Card 45
from Picture Software 45
with print orders 28
protecting pictures, videos 27
Q
quality, setting 15, 22
QUICKTIME software 39
QuickView 12, 20
R
ReadMe file 47
ready light
camera on 4
status 53
red-eye, flash 14
regulatory information 71, 72
requirements
MACINTOSH system 38
WINDOWS-based system 37
resolution, setting 15, 22
review mode, using 25
reviewing pictures
deleting 26
for printing 28
magnify 26
on LCD 25
slide show 29
77
Index
reviewing pictures, videos
protecting 27
running slide show 29
S
safety 67
select button 4
self-timer
pictures 16
videos 21
service and support
fax numbers 59
Kodak web site 59
telephone numbers 60
setting
clock 5
date and time 5
flash 14
language 35
LCD brightness 33
mode dial menus 3
NTSC 34
PAL 34
picture quality 15
picture, video storage
location 9
resolution 15, 22
self-timer 16, 21
video length 24
video out 34
video quality 22
setup mode, using 33
shutoff, auto 6
shutter
problems 49
self-timer delay 16, 21
sleep mode 6
slide show
problems 52
running 29
software
getting help 59
included with camera 39
installing 40
KODAK Camera Connection
39
KODAK Picture 39
KODAK Picture Transfer 39
QUICKTIME 39
sound 20, 52
specifications
camera 63
Camera Dock 65
MACINTOSH system 38
WINDOWS-based system 37
78
Index
status
bar 7
camera 7
picture storage location 10
screen icons 7
still mode, using 11
storage capacity, memory 66
System folder, MMC/SD Card 69
system requirements
MACINTOSH 38
WINDOWS 37
T
taking pictures
general 11
telephone support 60
television, slide show 29
time, setting 5
timer, shutter delay 16, 21
tips
battery guidelines 68
maintenance 67
ReadMe file 47
safety 67
transferring pictures to
computer 43
troubleshooting problems
camera 49
camera communications 48
Camera Dock 57
camera ready light 53
LCD messages 54
MMC/SD Card 47
turning camera on and off 4
U
using
battery 68
Camera Dock 41
V
video mode, using 19
video out, setting 34
videos
date imprint 23
protecting 27
quality, setting 22
setting length 24
taking 19
viewing
camera information 35
viewing picture
after taking 12, 25
from internal memory 25
magnified 26
on MMC/SD Card 25
viewing video, after taking 20
79
W
web site, Kodak 59
WINDOWS
installing software 40
system requirements 37
Z
zoom, digital 13
Index
80
Loading...
