Using the Brightness and Contrast Control
This Reference Guide provides information and procedures for the
Brightness and Contrast Control.
Kodak provides a set of default color tables with the scanner. These
tables are bundled and installed with the Scan Validation Tool (SVT).
A color table is a file that can be downloaded to the scanner which
contains the information required for the scanner to output the desired
representation of your color document.
If the default color tables do not meet your specific needs, this tool may
be used to create your own custom color table. This custom color table
can then be downloaded to the scanner and used in production.
The color table to be used for front and rear images are set
independently. When scanning, only one color table can be applied to
each image (front or back). You can use the same color table for both
the front and the back, or use one color table for the front and one color
table for the back.
Use the Scan Validation Tool or your own application to download a
color table to the scanner.
For more information regarding the Brightness and Contrast Control,
see Appendix A, Color Concepts.
IMPORTANT:
• The Brightness and Contrast Control is not color management
software. The output from the Brightness and Contrast Control
cannot be used to modify monitors or printers. It is only intended to
modify the color image as produced by the scanner.
• Images created using a custom color table created using a specific
monitor may appear differently when viewed or printed on other
monitors or printers.
• Images used in this Reference Guide are for concept purposes only
and do not represent the expected image quality.
• Creation, use and management of any custom color table is your
responsibility. Kodak provides no support beyond verifying scanner
functionality using Kodak default color tables.
A-61506 September 2006 1
Before you begin Before using the Brightness and Contrast Control, it is highly
recommended that you review the information below.
• The Kodak Scan Validation Tool must be installed. This installation
includes the TWAIN Datasource and the Kodak default color tables.
Both the Scan Validation Tool and the TWAIN Datasource are
required to run the Brightness and Contrast Control.
• Be sure your scanner is in good working order, cleaned and
calibrated. Refer to your User’s Guide for maintenance procedures.
• Verify that your scanner is capable of receiving custom color tables
created using the Brightness and Contrast Control. If not, you should
select the appropriate table from the default color tables provided by
Kodak for your scanner. You cannot use the Brightness and
Contrast Control to modify the default color tables. See the chart
below to determine if your scanner has this functionality.
Scanners Serial
Kodak i800 Series
Scanners
Kodak i1860 Scanner
Kodak i600, i200, i100
Series Scanners
Kodak i30 and i40
Scanners
Number
12273100 and
higher
all Not applicable
all Not applicable
Minimum
Firmware
Version
2.0.11 Image Processing
Upgrade Kit
Upgrade Kit / for Kodak
i800 Series Scanners
(for serial numbers
below 12273100)
CAT No. 106 7974
• Before you create a custom color table, it is recommended that you
scan a representative group of documents and run these documents
with each of the Kodak default color tables. Analyze these images to
determine if any of the default color tables meet your needs. If not,
you may want to choose the color table which is closest to meeting
your needs. This default color table would be a good table to use as a
starting point to create your custom color table.
• When scanning color images, the following settings, in addition to
color tables, will effect perceived image quality, resolution, color
sharpening, JPEG compression (Good, Better, Best). Do not change
the value of these settings when comparing color image results using
the Kodak default color tables.
• When using Brightness and Contrast Control to create your own color
tables, be sure to select the same resolution (DPI) you used when
evaluating the sample images with the Kodak default color tables.
Resolution is selected using the DPI option from the File menu.
2 A-61506 September 2006
Supporting documentation
Kodak i800 Series Scanners
• Image Processing Guide for Kodak i800 Series Scanners, A-61510
• Installation Planning Guide for Kodak i800 Series Scanners, A-61176
• User’s Guide for Kodak i800 Series Scanners, A-61169
Kodak i1860 Scanner
• Image Processing Guide for the Kodak i1860 Scanner, A-61580
• Installation Planning Guide for the Kodak i1860 Scanner, A-61578
• User’s Guide for the Kodak i1860 Scanner, A-61555
Kodak i600 Series Scanners
• Image Processing Guide for Kodak i600 Series Scanners, A-61504
• User’s Guide for Kodak i600 Series Scanners, A-61500
• Quick Tips Guide for Kodak i600 Series Scanners, A-61501
Kodak i200 Series Scanners
• User’s Guide for the Kodak i200 Series Scanners, A-61167
Kodak i100 Series Scanners
• User’s Guide for the Kodak i100 Series Scanners, A-61514
• Image Processing Guide for Kodak i100 Series Scanners, A-61517
• Quick Tips Guide for Kodak i100 Series Scanners, A-61515
Kodak i30 and i40 Scanners
• User’s Guide for the Kodak i30 and i40 Scanners, A-61512
• Quick Tips Guide for Kodak i30 and i40 Scanners, A-61526
System requirements The PC which will be used to scan images must meet the system
requirements for the scanner as documented in the Installation
Planning Guide or User’s Guide for your scanner.
• Operating systems — Windows 98SE, Windows Me, Windows
2000, Windows XP, Windows NT (for Kodak i800 Series Scanners
only)
• TWAIN Datasource
Installation procedures
To install:
• Be sure you are logged into an account with ADMIN privileges.
• Insert the CD in the CD drive.
- If you have Auto-run enabled, the installation will begin
automatically.
- If not, navigate to the setup.exe file on the CD to launch the
installation.
A-61506 September 2006 3
The main window Following is a description of the menu options on the Brightness and
Contrast Control main window. See the section entitled, “Using the
Brightness and Contrast Control” for procedures on how to use this
software.
File menu The File menu provides the following options:
Open Image — displays the Open Image File dialog box, which allows
you to open a previously saved uncorrected image from this
application. Only TIFF files can be opened with this application.
Save Uncorrected Image — displays the Save Image File dialog box,
which allows you to save the uncorrected image to disk as a color TIFF
file with a .tif extension. When Save Uncorrected Image is selected, it
saves the image which was captured using the Acquire option. This
image represents an image with the null color table.
Save Corrected Image — displays the Save Image File dialog box,
which allows you to save the corrected image to disk as a color TIFF or
JPEG file. When Save Corrected Image is selected, it saves the image
that is displayed on the right-side of the main window. This image
represents what the scanner will produce when using any color table
created with this image.
Acquire — used to scan and capture the starting null table image.
Select TWAIN Source — displays the Select Source dialog box which
allows you to choose the TWAIN Source for the scanner you will be
using.
DPI — allows you to select the resolution for the color image you will
acquire from the scanner.
Exit — closes the application.
4 A-61506 September 2006
View menu The View menu provides the following options:
Zoom 1/4 — displays the image at one quarter of the original size.
Zoom 1/2 — displays the image at one half of the original size.
Zoom 1:1 — displays the image at the original size.
Zoom 2:1 — displays the image at twice the original size.
Zoom 4:1 — displays the image at four times the original size.
Toolbar — displays/hides the toolbar. The toolbar buttons correspond
to commonly used menu options.
Icon Description
Open Image — displays the Open Image File dialog box, which
allows you to open a previously saved image from this
application.
Load Color Tables — displays the Open Color Table dialog box,
which allows you to open the color table you want to use.
Save Color Tables — displays the Save Color Table dialog box,
which allows you to save the custom color table which, when
used, will render an image that matches the image currently
displayed on the right-side of the main window. The color table
will be saved with an .ekct extension.
Save Uncorrected Image — displays the Save Image File
dialog box, which allows you to save the uncorrected image to
disk as a color TIFF file with a .tif extension.
Zoom 1/4 — displays the image at one quarter of the original
size.
Zoom 1/2 — displays the image at one half of the original size.
Zoom 1:1 — displays the image at the original size.
A-61506 September 2006 5
Icon Description
Zoom 2:1 — displays the image at twice the original size.
Zoom 4:1 — displays the image at four times the original size.
Brightness/Contrast Tool — displays the Brightness and
Contrast dialog box which allows you to adjust the brightness
and contrast values while comparing the original image (on the
left) to the result (on the right).
Help — displays the Brightness and Contrast Control software
version number.
Status bar — displays the X and Y coordinates of the current location
within the displayed image, the RGB values, the name of the color table
currently being applied to the original image (displayed on the left side
of the main window) and the scanner used to acquire the starting
original.
Using RGB values will help you to compare and analyze images.
6 A-61506 September 2006
Color Tables menu The Color Tables menu provides the following options:
Null — when selected, will load the Null color table into the Brightness
and Contrast Control.

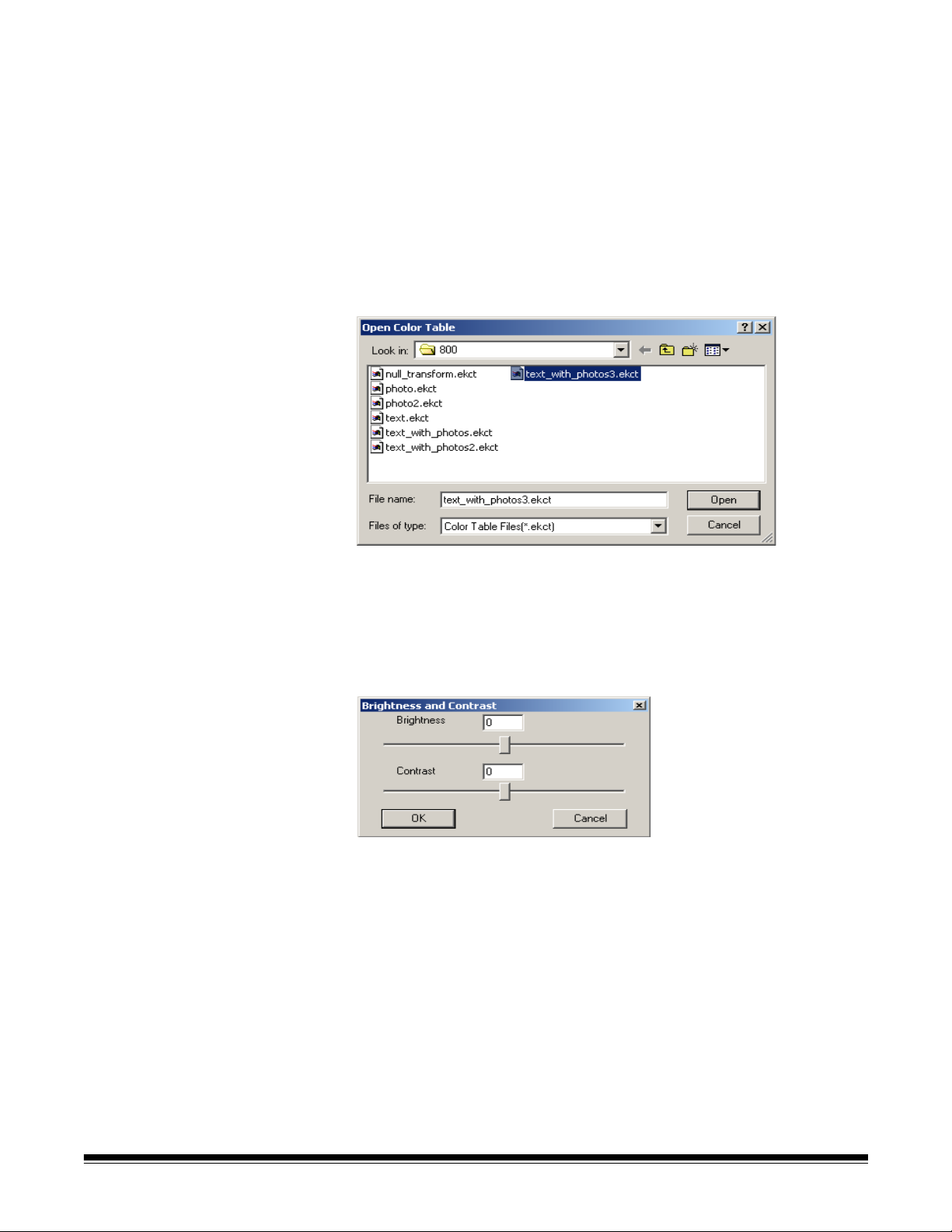

Load... — displays the Open Color Table dialog box which allows you
to select the color table you want to use.
Save... — displays the Save Color Table dialog box, which allows you
to save the custom color table which, when used, will render an image
that matches the image currently displayed on the right-side of the
Brightness and Contrast Control main window. The color table will be
saved with an .ekct extension.
Install to TWAIN... — places a copy of the custom color table into the
default directory used by the TWAIN Datasource
(C:\“windows”\twain_32\kodak\kds_“scanner”\ColorTables\”scanner”).
Install to ISIS... — places a copy of the custom color table into the
default directory used by the ISIS Device Driver
(C:\”windows”\pixtran\ColorTbl\“scanner”).
Delete... — displays the Delete Color Table dialog box which allows
you to delete custom color tables from your hard drive.
Delete from TWAIN... — deletes the custom color table from the
default directory used by the TWAIN Datasource
(C:\“windows”\twain_32\kodak\kds_“scanner”\ColorTables\”scanner”).
Delete from ISIS... — deletes the custom color table from the default
directory used by the ISIS Device Driver
(C:\”windows”\pixtran\ColorTbl\“scanner”).
NOTE: Using any Delete option permanently deletes the selected file
from your hard drive and cannot be retrieved from the recycle
bin. Once deleted, this file cannot be restored using this tool.
A-61506 September 2006 7
Loading...
