Introduction
The KODAK i80 Scanner has an automatic document feeder and a flatbed
platen to accommodate a wide range of general purpose, departmental, and
office capture needs.
Before you install and operate your i80 Scanner, take a few minutes to read
through this guide. It contains information about installing, operating, and
maintaining your scanner.
What’s in the box • KODAK i80 Scanner
• Output tray
• Power supply
• AC power cords for U.S., U.K., EUR, AUS, China
• Replacement snap-in feed modules (4)
• Shipping switch unlocki ng ins tr uc ti ons
• KODAK i80 Scanner User’s Guide (English only; user’s guides in other
languages in .pdf format are located on the Installation CD)
• CDs (4)
• Read Me Now
• Capture Software information
• Registration/warranty information sheet
A-61195 July 2003 1
Scanning specifications
Acceptable paper sizes You can use the i80 Scanner to scan documents that have a paper weight
between 50 and 105 g (14 and 28 lb.) and that are within the following sizes:
In the ADF (automatic document feeder)
• 94 x 140 mm (3.7 x 5.5 in.) minimum
• 216 x 356 mm (8.5 x 14 in.) maximum
On the flatbed
• up to A4 size (8.3 x 11.7 in.)
Document types to avoid in the ADF
Do not use the ADF (automatic document feeder) to scan the document types
listed below. Instead, use the flatbed to scan documents that cannot be fed by
the ADF.
• Paper with clips or staples attached
• Paper with wet or damp ink
• Paper with inconsistent thickness, such as envelopes
• Paper with wrinkles, curls, folds, or tears
• Tracing paper
• Carbonless paper
• Items other than paper, such as cloth, metal, or OHP film
• Notched paper
• Paper with an odd (non-rectangular) shape
• Paper weights less than 50 g (14 lb.) or greater than 105 g (28 lb.)
2 A-61195 July 2003
Safety precautions • Use only the power supply that was provided with the scanner (Sino-
American model SA60-24).
IMPORTANT : Do not substitute another power supply model or another
manufacturer’s power supply.
• Be sure to use the proper AC power source.
• Avoid the danger of electric shock. Only use the scanner and power supply
indoors in a dry location.
• Do not install the scanner in a humid or dusty area.
User precautions Users and their employer need to observe the common sense precautions
applicable to the operation of any machinery. These include, but are not limited
to, the following:
• Do not wear loose clothing, unbuttoned sleeves, etc.
• Do not wear loose jewelry, bracelets, bulky rings, long necklaces, etc.
• Hair should be kept short, using a hair net if needed or by tying long hair up
in a bun.
• Remove all loose objects from the area that could be drawn into
the machine.
• Take sufficient breaks to maintain mental alertness.
Supervisors should review their practices and make the compliance with
these precautions a part of the job description for the operator of the
i80 Scanner and any other mechanical devices.
A-61195 July 2003 3
Safety and regulatory agency approvals
The i80 Scanner conforms to all applicable national and international product
safety and electronic emission regulatory requirements. This includes, but is
not limited to, the following:
• Underwriters Laboratories Inc. listing to UL 60950 Third Edition
• Underwriters Laboratories Inc. listing to CAN/CSA C22.2 No. 60950-00
Third Edition
• TUV Rheinland of North America approval to EN60950
• CFR 47 Part 15, Subpart B (FCC Class B)
• Canadian ICES003 Class B
• CE Mark (Europe)
• CISPR22 Class B
• EN55022 Class B
• EN55024
• EN61000-3-2
• EN61000-3-3
• AS/NZS 3548 C-Tick Mark (Australia)
•VCCI Class B
• Taiwan CNS 13438 Class B
• China CCC
Environmental information
• The i80 Scanner is designed to meet worldwide environmental requirements.
• Guidelines are available for the disposal of consumable items that are
replaced during maintenance or service; follow local regulations or contact
Kodak locally for more information.
• The product packaging is recyclable.
• The i80 Scanner is Energy Star compliant.
Power system This equipment was designed for connection to IT Power Systems.
4 A-61195 July 2003
Electromagnetic compliance statements
For the United States This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For Japan This is a Class B product based on the standard of the Voluntary Control
Council for Interference from Information Technology Equipment (VCCI).
If this is used near a radio or television receiver in a domestic environment,
it may cause radio interference. Install and use the equipment according to
the instruction manual.
Acoustic emission Operator position sound pressure levels (L
• Standby: < 46 dB(A)
• Full system: < 58 dB(A)
• Instantaneous peak values t 130 dB(C): None
A-61195 July 2003 5
pA
):
Installation
Unpack the scanner carefully and check the contents. If any items are missing
or damaged, contact your authorized dealer immediately.
Site specifications Place the scanner:
• in a clean area with temperature and relative humidity typical of an
office environment.
IMPORTANT : Only use the scanner and power supply indoors in a
dry location.
• in a location out of direct sunlight.
IMPORTANT : Direct exposure to sun or excessive heat may cause damage
to the unit.
• on a stable, level work surface capable of supporting 8 kg (17.6 lb.).
Tilted or uneven surfaces may cause mechanical or paper-feeding
problems.
• within 1.52 metres (5 feet) of an easily accessible electrical power outlet
- Keep the scanner box and packing materials for shipping purposes.
6 A-61195 July 2003
Shipping switch The scanner has a shipping switch that locks the carrier mechanism to avoid
causing damage during transportation.
• Unlock the shipping switch before you connect the cord and cable and
before you power up the scanner.
• Lock the shipping switch before moving the scanner to a new location.
Unlocking the scanner 1. Place the scanner in an upright position on its front.
2. Unlock the scanner by moving the shipping switch (located on the bottom
of the scanner) down into the unlocked position.
Shipping switch
3. Place the scanner back in its normal position.
Locking the scanner 1. Make sure that the scanner is off.
2. Raise the flatbed cover to reveal the flatbed platen and scanning unit.
3. Turn on the scanner.
The scanning unit begins moving.
4. Wait until the scanning unit has moved to the end (opposite the
scanner ADF).
5. Turn the scanner off after the scanning unit has finished moving.
6. Place the scanner in an upright position on its front.
7. Lock the scanner by moving the shipping switch (located on the bottom of
the scanner) up to the locked position.
8. Place the scanner back in its normal position.
A-61195 July 2003 7
Making connections Connect the power cord and SCSI signal cable as shown below. Several
power cords are supplied with the scanner. Use only the cord required for
your type of power. Dispose of the unneeded power cords properly.
Use only the power supply that was provided with the scanner.
CAUTION:The power supply must only be used indoors in a dry location.
IMPORTANT : Do not substitute another power supply model or another
manufact urer’s power su pply.
1. Attach the power supply to the power input on the back of the scanner.
2. Attach the power cord for your power type to the power supply.
3. Plug the power cord into a power outlet.
NOTE: Make sure that the power outlet is located within 1.52 metres (5 feet)
of the scanner and is easily accessible.
4. Attach a SCSI cable to the SCSI port.
NOTE: There are two SCSI ports on the scanner. You can use either a DB25
(male) or a 50-pin Amphenol connector to connect to the scanner.
Power switch
Power supply input
SCSI ports
SCSI cable connector
Power supply
5. Attach the other end of the SCSI cable to your PC.
8 A-61195 July 2003
SCSI interface device ID
When there are several devices on a SCSI chain, you may need to adjust the
SCSI ID selector on the scanner. This selector assigns a specific device ID
to the scanner. If the assignment conflicts with an existing SCSI device, select
a new ID.
NOTE: The factory SCSI ID setting for the scanner is 6. SCSI ID 0 is usually
assigned to an internal hard disk drive and 7, 8, and 9 are not in
actual use. The scanner will not operate properly if the SCSI ID is
set to 7, 8, or 9.
• Using a suitable tool, turn the SCSI ID selector switch until the arrow points
to the desired ID number.
SCSI ID selector
SCSI terminator switch
Setting the SCSI terminator
A-61195 July 2003 9
The scanner comes with a built-in SCSI terminator. The terminator ON/OFF
switch is located on the scanner between the SCSI cable connectors.
• If the scanner is the only or the last device in a SCSI chain, place the
terminator switch in the ON position.
• If the scanner is to be located between the computer and another SCSI
device, place the terminator switch in the OFF position.
Adjusting the trays There are two trays on the scanner: the ADF input tray for loading documents
to be scanned through the automatic document feeder and the output tray
which receives scanned documents from the ADF.
ADF input tray 1. Lift the ADF input tray to about a 45° angle.
2. Pull the ADF input tray wire leg down.
3. Place the wire leg on top of the clips on the flatbed cover.
Wire leg
Clips
4. Press down slightly on the ADF input tray to snap the wire leg into the clips.
ADF input tray
5. Pull the ADF input tray extension wire out to the desired length.
ADF input tray extension wire
ADF input tray
10 A-61195 July 2003
Output tray 1. Hold the output tray at about a 30° angle.
2. Insert the three tabs on the output tray into the three slots on the ADF.
Output tray
3. Release the output tray.
4. Make sure that the output tray is firmly attached to the ADF.
5. Pull the output tray extension wire out to the desired length.
ADF
Slots
Tabs
Powering up the scanner
Make sure that you press the I/O power switch on the back of the scanner and
not the SCSI terminator switch (which has an ON/OFF label under it) when you
want to turn the scanner on or off. The scanner must be on and its self-test
completed before you power up the PC.
IMPORTANT: Before you power up the scanner, make sure that there are no
documents in the ADF or on the flatbed platen.
Turning on the scanner • Press the side of the power switch that is marked “I” to turn on the scanner.
The power light on the ADF illuminates. If it does not, check the
power source.
Turning off the scanner • Press the side of the power switch that is marked “O” to turn off the scanner.
Indicator lights There are three indicator lights on the ADF.
POWER (green)—illuminates after you turn on the scanner.
READY (green)—illuminates when the scanner is ready to scan.
ERROR (red)—illuminates or flashes when there is an error condition.
A-61195 July 2003 11
System Requirements and Software Installation
Following is the minimum system configuration to run the i80 Scanner.
NOTE: The actual performance of the system depends on the scanning
application, choice of scanning parameters, and the host computer
configuration. If the scanner is not performing at the optimal speed,
using a faster PC and/or more RAM may be necessary to obtain the
rated throughput.
• IBM PC (or compatible) with a Pentium III 1.0 GHz processor
• Microsoft Windows 98, Windows NT 4.0, Windows 2000,
Windows Millennium Edition (Me), or Windows XP
• 100 MB of available hard disk space (200 MB is recommended)
• 128 MB of RAM
• Monitor (VGA)
•Mouse
• CD-ROM drive
Installing the scanner drivers
12 A-61195 July 2003
1. Start your PC and Windows application.
2. Insert the i80 Scanner Installation CD that contains the device drivers in
your CD-ROM drive.
NOTE: If the CD does not start automatically, click on the Start button and
choose Run, then type d:\driver\setup.exe (where “d” is the letter of
your CD-ROM drive). Click on the OK button.
3. Follow the instructions on the screen to complete the driver installation.
Scanning Your Documents
Loading documents Make sure that the scanner is on and has completed its self-test before you
turn on the PC to begin scanning. See the section entitled “Scanning
specifications” for information about the sizes and types of documents that
you can scan.
Using the ADF Use the ADF to feed multiple documents automatically in a batch.
1. Fan documents before loading to prevent paper jams.
2. Place the documents face down under the balance wire in the ADF input
tray, with the leading edges in the auto feeder entrance.
3. Adjust the left and right guides until they are snug against the
document sides.
Original document
ADF input tray
Left guide
Right guide
Balance wire
Using the flatbed Use the flatbed to scan documents that cannot be scanned using the ADF.
1. Place the document face down on the glass platen.
2. Position the document with the upper right corner aligned with the
reference mark.
Flatbed cover
Reference mark
Original document
Glass platen
Reference frame
A-61195 July 2003 13
Scanning with TWAIN or ISIS
1. Open your scanning application.
2. Pull down the File menu and choose Select Source or Select Scanner.
NOTE: If the Select Source or Select Scanner command is not available on
the File menu, see your application’s user’s guide to determine how
the application link is used.
A dialog box with a list of scanning sources appears.
3. Select yo ur Kodak scanner model.
You need to select the source only once, unless you want to choose
another scanner.
4. Place the document to be scanned in the ADF or on the flatbed
glass platen.
5. Pull down the File menu and choose Acquire.
A dialog box containing scanning features appears. (The TWAIN dialog
box is shown below.)
6. Select a scanning method on the Scan Method drop-down menu.
7. Select a scanning mode on the Image Type drop-down menu.
8. Select a scanning resolution on the Resolution drop-down menu.
9. Select the settings for the scanning features (e.g., Sharpen, Descreen,
etc.) that you want to use.
NOTE: Refer to the driver feature descriptions in the following section,
“Making the most of your scanned images.”
10. Click on the Preview button to preview your document(s).
11. Click on the Scan (TWAIN) or OK (ISIS) button scan your document(s).
14 A-61195 July 2003
Making the Most of Your Scanned Images
The features in the TWAIN and ISIS dialog boxes are described in this section.
Note that not all features are available at all times. The availability of some
features may depend on the scanner model or other feature selections.
Scan Method
Select how you want to scan on the Scan Method drop-down menu.
TWAIN
Simplex/One-page—select this
setting to use the automatic
document feeder (ADF) to scan
one side of a document at a time.
Simplex/Multi-page—select this
setting to use the automatic
document feeder (ADF) to scan
one side of a document at a time
in a batch of documents.
Flatbed—select this setting to use
the flatbed to scan one side of a
document at a time.
Duplex/One-page—selec t this
setting to use the automatic
document feeder (ADF) to scan
both sides of one document at
atime.
Duplex/Multi-page—select this
setting to use the automatic
document feeder (ADF) to scan
both sides of documents in a batch
of documents.
Simplex—select this setting to
use the automatic document
feeder (ADF) to scan one side
of a document at a time in a batch
of documents.
Flatbed—select this setting to use
the flatbed to scan one side of a
document at a time.
Duplex—select this setting to
use the automatic document
feeder (ADF) to scan both
sides of documents in a batch
of documents.
ISIS
A-61195 July 2003 15
Image Type
Select the mode you want to use for your scans on the Image Type dropdown menu.
Black and White—the image appears in black and white with no intermediate
shades of gray. That means that each pixel of the image is either 100% black
or 100% white.
Choose Black and White if you are scanning text or pen and ink drawings.
Since only one bit of black or white information is required per pixel, the
file size of a Black and White image is only about 1/24 the size of a 24-Bit
Color image.
Halftone—a halftone is a picture like that which is usually seen in a
newspaper or magazine. Since a halftone is a type of black-and-white
image, the file size of a halftone image is only about 1/24 the size of a 24-Bit
Color image.
Halftone simulates grayscale by using varying dot sizes. If you view a halftone
image at a certain distance, it looks much like a grayscale image, but the file
size is smaller.
When you select Halftone, a submenu appears that allows you to select a
halftone pattern.
8-Bit Gray—a single-channel image consists of at least 256 shades of gray.
An 8-bit scanner produces a grayscale image with 1024 shades of gray
between pure black and pure white. Choose this option if you are scanning
black-and-white photographs.
With 8 bits of color information per pixel, the file size of an image is eight times
larger than a Black and White image and 1/3 the size of a 24-Bit Color ima ge.
8-Bit Color—an 8-Bit Color image provides 256 color hues in the image.
The file size of a 256 color image is 1/3 the size of a 24-Bit Color image
(TWAIN only).
24-Bit Color—a 24-Bit Color image consists of three 8-bit color channels. The
red, green, and blue channels are mixed together to create a combination of
one billion colors which give a more true-to-life quality to the image. Choose
24-Bit Color if you are scanning color photos.
16 A-61195 July 2003
Resolution
Resolution or dots per inch (dpi) indicates the scanning resolution, which
largely determines the quality of the scanned image. The greater the
resolution, the better the reproduction will be.
However, scanning at a higher resolution also increases scanning time and file
size. Therefore, up to a certain dpi level, the resolution will not be visually
improved, but the file size will be larger.
Tips
An A4-size color image scanned at 300 dpi in 24-Bit Color mode is
approximately 25 MB in size. A higher resolution (usually over 600 dpi) is
recommended only when you need to scan a small area in 24-Bit Color mode.
Refer to the following table to choose the best image resolution for use with
your application.
Brightness
Contrast
Scanner Settings
Application
File, Fax, E-mail
Document
View, Copy, Edit
Color Picture
OCR*
Document
* OCR (Optical Character Recognition): the process of converting an image to a
text format.
The Brightness option allows you to adjust the image brightness, making it
lighter or darker. Select a brightness setting from -100 to 100 by dragging the
Brightness sliding control bar. The default is “0.” The smaller the number,
the darker the image. Scan the document and check the brightness.
A darker setting is recommended for blurred character documents. With a
brighter setting, background noise in a color document disappears.
The Contrast option sets the image contrast by adjusting the difference
between black and white, thereby making an image sharper or softer. Select a
contrast setting from -100 to 100 by dragging the Contrast sliding control bar.
The default is “0.” Scan the document and check the contrast.
In a low-contrast setting, the difference between black and white is small, so
the image is softer. In a high-contrast setting, the difference between black
and white is large, so the image is clearer.
Image Type Resolution (dpi)
Black and White 200
24-Bit Color 100
Black and White 300
A-61195 July 2003 17
Enhancing your
images
These features allow you to improve or enhance the appearance of
scanned images.
Invert
Mirror
Preview Auto-Area
Click on the Invert button to reverse the brightness and color in the image.
For black-and-white images, black areas will be white and white areas will be
black. For color images, inverting the image will cause each pixel to be
changed into its complementary color.
Click on the Mirror button to reverse the image (create a mirror image).
Clicking on this button automatically crops the preview scan area to the
previewed document. This will then be the cropping area for all of the
scanned documents.
Click on the arrows at the lower right side of the Preview box to view
the front and rear scanned images.
NOTE: The arrows appear in the dialog box only when a duplex scanning
method has been selected.
Using Preview Auto-Area on batches of mixed-size documents is not
recommended because cropping is not performed separately on each
document in the batch.
If Black and White is selected on the Image Type drop-down menu,
documents may be cropped to the document content when using
Preview Auto-Area.
Paper Size
Units
18 A-61195 July 2003
Select a size on the Paper Size list of frequently used scan sizes, including
business card, 5 x 3 in., 6 x 4 in., Letter, Legal, B5, A5, A4, or your current
scan area to perform an immediate selection of your scan size.
The Units button indicates the measuring system that is in use (Inch, Cm,
or Pixel).
Descreen
Click on the Descreen button to access a drop-down menu that allows you to
specify the type of document you are scanning in order to eliminate the moiré
pattern* commonly found in printed matter. You can specify Newspaper,
Magazine, or Catalog.
* Moiré pattern : an unde sirabl e pat tern resulti ng from th e incor rect screen ang le of the
overprinting halftone.
Sharpen
Color Adjustment
Auto Level
Advanced Settings
Click on the Sharpen button to access a drop-down menu that allows you to
specify a level to sharpen the scanned image. You can specify a Sharpen
setting of Light, More, Heavy, or Extra Heavy.
Click on the Color Adjustment button to enable the button for the
Hue / Saturation / Lightness feature.
NOTE: The Advanced Settings button must be enabled in order to use
the Hue / Saturation / Lightness feature.
Click on the Auto Level button to add shadow to reveal more details in
an image.
Click on the Advanced Settings button to view the advanced settings buttons
for Highlight / Shadow, Curves, Color Balance, Hue / Saturation / Lightness,
Color Drop-out, and Custom Settings (six buttons on the right side of the
dialog box).
A-61195 July 2003 19
Highlight / Shadow
This feature is available when 8-Bit Gray, 8-Bit Color, or 24-Bit Col or is
selected on the Image Type drop-down menu. Highlight refers the lightest
point in a scanned image; shadow refers the darkest point.
Click on the Highlight / Shadow button to access the Highlight / Shadow
Levels dialog box. You can type values in the text boxes or you can place the
mouse cursor on the arrow at the bottom of the box, hold down the right
mouse button, and drag the arrow to specify the values you want.
(S = Shadow, G = Gamma, H = Highlight)
Use the Highlight and Shadow settings together to extend the range of color
and reveal more details in a color image.
20 A-61195 July 2003
Curves
Click on the Curves button to access a dialog box appears that allows you to
adjust the midtone of the image without losing details in the lightest and
darkest areas.
Select the Curve or the Line button on the bottom right of the Curves
dialog box, depending on whether you want a curved or an angled setting.
Place the mouse cursor over the line, click the right mouse button, and drag
the line to set a curve.
A-61195 July 2003 21
Color Balance
Click on the Color Balance button to access a dialog box appears that
allows you to adjust the color of the image so that it comes close to that of
the original.
The default parameters are used to adjust the image. You can type values in
the Color Levels text boxes or you can drag the sliding arrow under the color.
Hue / Saturation / Lightness
Click on this button to access a dialog box that allows you to adjust the hue,
saturation, and lightness of an image.
Hue—specify a value in the Hue text box or click and drag the sliding arrow
under the box to adjust the hue up to 360°.
Saturation—specify a value in the Saturation text box or click and drag
the sliding arrow under the box to adjust the saturation level of the color.
The level of saturation indicates whether the color is pale or rich.
Lightness—specify a value in the Lightness text box or click and drag
the sliding arrow under the box to adjust the color strength.
NOTE: Click on the Color Adjustment button to enable the
Hue / Saturation / Lightness button.
22 A-61195 July 2003
Color Drop-out
This feature is available when Black and White, Halftone, or 8-Bit Gray is
selected on the Image Type drop-down menu. Click on the Color Drop-out
button to access a dialog box that allows you to choose to remove the R
(Red), G (Green), or B (Blue) color channel while scanning.
For example, if your image contains red text or a red background, choose
R channel (red) to remove the red text or red background.
This feature is applicable only for black-and-white and grayscale images.
Make sure that you have selected a black-and-white or grayscale image type
(on the Image Type drop-down menu) when you use this option.
Tip
Increasing the brightness after removing one of the color channels will make
the image clearer.
Custom Settings
A-61195 July 2003 23
Click on the Custom Settings button to access a dialog box where you
can save your scan and configuration settings, select a black or white
scanning background, and specify an overscan value.
There are three tabs in the Custom settings dialog box: Scan Settings,
Configuration Settings, and Preference.
Scan Settings The Scan Settings tab in the Custom Settings dialog box allows you to save
your scanning feature settings in a file, load an existing file, or delete an
existing file.
Saving a scan settings file T ype a name for your settings in the File Name text box and click on the Save
button. Your settings will be saved and the file name will appear in the list box.
Using a scan settings file You can use an existing settings file. Right-click on the file name for the
settings you want to use and click on the Load button. The settings in the file
will automatically be specified in the scanning features dialog box.
Deleting a scan settings file Right-click on a file name and press the Delete button on the computer
keyboard to delete the file. You cannot delete the default scan settings file
default.av2.
24 A-61195 July 2003
Configuration Settings The Configuration Settings tab in the Custom Settings dialog box allows you to
customize some special settings.
Energy Saving Mode—check the Enable box to enable automatic lamp shutoff. Specify a time delay of 1 to 60 minutes in the Minutes box. This is the
amount of time that the scanner will wait before shutting off the lamps after the
last scan operation. Click on the Apply button to save the changes.
Hint Setting—check the Show Hints box if you want to have flags showing
feature names appear when you place the mouse cursor on features in the
dialog box. Click on the Apply button to save the changes.
A-61195 July 2003 25

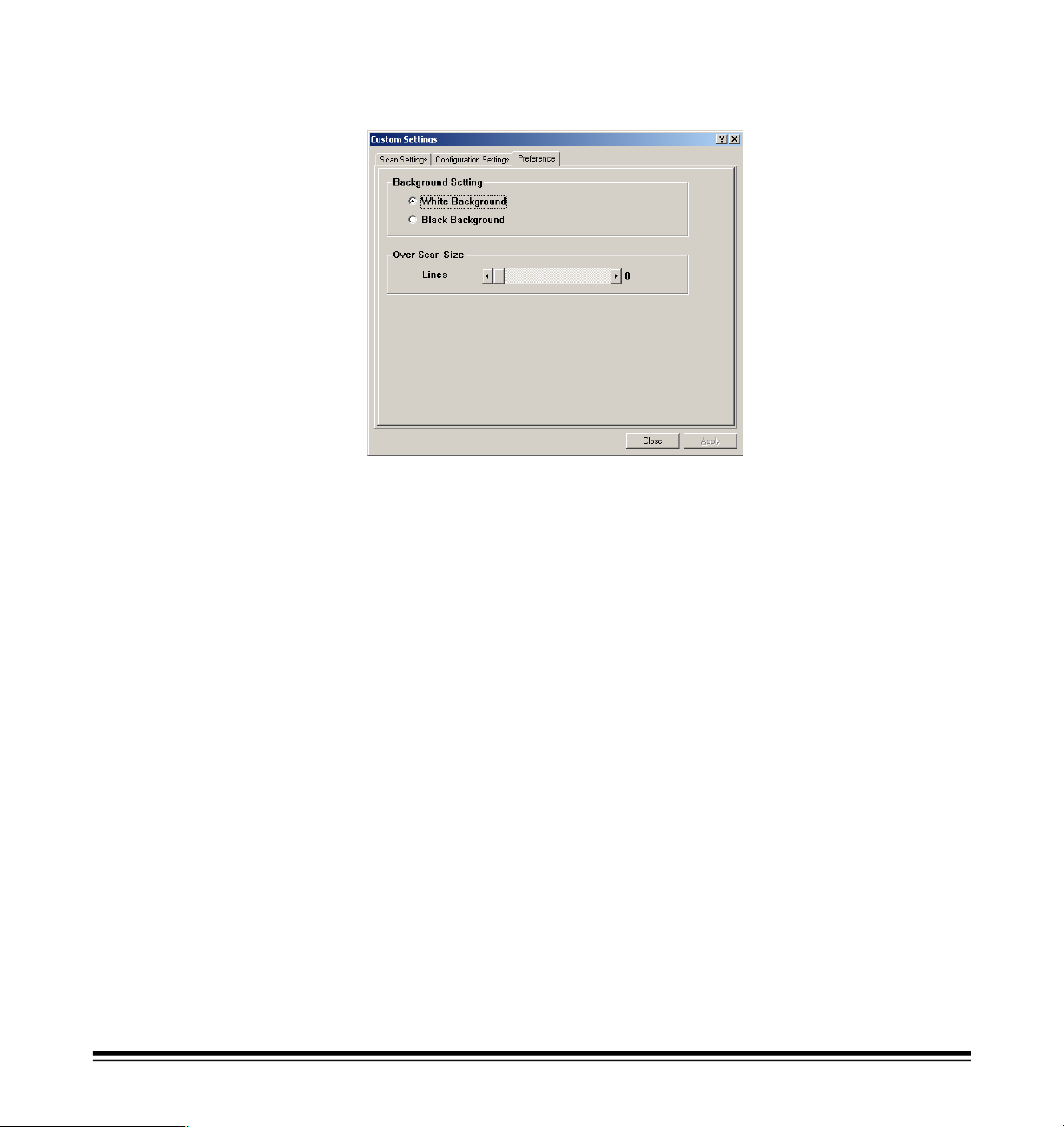

Preference The Preference tab in the Custom Settings dialog box allows you to select the
scanning background and an overscan parameter.
Background Setting—allows you to specify the background against which
you wish to scan. Scanning against a black background allows you to use
deskew and auto-crop functions in downstream software such as KODAK
Capture Software.
Over Scan Size—allows you to add a specified number of lines before
and after the edge of the image to reduce the possibility of corner clipping
on skewed images. This function allows you to use deskew and auto-crop
functions in downstream software such as KODAK Capture Software.
Drag the Lines sliding control bar to specify an overscan number from 0-118.
The default is “0.” The maximum width of an overscan image is 216 mm
(8.5 in.).
26 A-61195 July 2003
Other tools In addition to the image enhancement options, the dialog box contains the
items described below.
Width
Height
Size
Lock scale
Information
Shows the current image width. Enter a custom value in the Width box.
NOTE: If you manually change the width value with Lock scale enabled, the
value in the Height box will automatically change proportionally.
Shows the current image height. Enter a custom value in the Height box.
NOTE: If you manually change the height value with Lock scale enabled, the
value in the Width box will automatically change proportionally.
Shows the current file size of the scanned image.
Click on the Lock scale button to enable lock scaling, which keeps the
scanning width and height proportional to the paper size selected in the
Paper Size setting.
When Lock scale is enabled and you manually change the value in the
Width box, the value in the Height box will automatically change
proportionally, and vice versa.
Click on the Information button to access information about the scanner
and driver.
A-61195 July 2003 27
Starting the final scan The buttons shown below allow you to begin scanning or to exit the job.
Preview
Zoom View
Scan (TWA IN)
OK (ISIS)
Exit
Click on the Preview button to scan a document so you can review the
scanned image. This allows you to specify an area to be scanned and any
scanning feature settings to be used for future scans. When a scanning
feature is changed and applied, the Preview image is updated for a real-time
view of the change.
You can define the area to be scanned by dragging the cursor lines with
the mouse.
Click on the arrows at the lower right side of the Preview box to view the
front and rear scanned images.
NOTE: The arrows appear in the dialog box only when a duplex scanning
method has been selected.
Click on the Zoom View button to view a selected area.
Click on the Scan (TWAIN) or OK (ISIS) button to scan the area with the
specified parameters.
You can define the area to be scanned by dragging the cursor lines with
the mouse.
Click on the Exit button to cancel the current job.
28 A-61195 July 2003
Maintenance
The scanner is designed to be maintenance free. However, it must be cleaned
occasionally to ensure optimum image quality and performance. Clean the
scanner when it does not feed documents smoothly or if multiple-sheet
feeding occurs.
For best scanner performance, clean the glass scanning areas and the feed
module and rollers at least once per week. Use only these cleaning materials:
• Kodak Digital Science Roller Cleaning Pads (CAT. No. 853-5981)
• Staticide Wipes for KODAK Scanners (CAT. No. 896-5519)
IMPORTANT: Staticide Wipes contain isopropanol which can cause eye
irritation and dry skin. Wash your hands with soap and water
after performing maintenance procedures.
Use of other cleaning materials could damage your scanner.
Opening the ADF 1. Grasp the ADF with one hand.
ADF
2. Lift up the ADF to open it.
The feed module, scanning glass areas, and feed rollers are visible.
A-61195 July 2003 29
Cleaning the glass scanning areas
1. Open the flatbed cover and the ADF.
Flatbed cover
ADF
Glass areas
2. Wipe the flatbed platen glass with a fresh Staticide Wipe.
3. Wipe the flatbed platen glass with a dry Staticide Wipe.
4. Wipe the scanning glass in the ADF with a fresh Staticide Wipe.
Wipe from one side to the other.
5. Wipe the scanning glass in the ADF with a dry Staticide Wipe.
6. Close the ADF and flatbed cover.
The scanner is now ready for use.
30 A-61195 July 2003
Cleaning the ADF The feed module and the feed rollers in the ADF may become contaminated
with ink, toner, and paper dust. This can cause document feeding problems.
1. Open the ADF.
ADF
Feed module
Feed rollers
2. Wipe the feed module with a fresh Roller Cleaning Pad.
3. Wipe the feed module with a dry Roller Cleaning Pad.
4. Wipe the feed rollers with a fresh Roller Cleaning Pad from side to side
and top to bottom.
Rotate the rollers by hand as you clean them. Be careful not to snag or
damage the springs.
5. Wipe the feed rollers with a dry Roller Cleaning Pad from side to side and
top to bottom.
Rotate the rollers by hand as you dry them. Be careful not to snag or
damage the springs.
6. Close the ADF.
The scanner is now ready for use.
A-61195 July 2003 31
Replacing the feed module
After approximately 100,000 pages have been scanned through the ADF, the
separation pad on the feed module may become worn and cause document
feeding problems. In this case, you should replace the feed module.
Four replacement feed modules are included with your scanner. To order more
feed modules, consult your dealer (order KODAK Feed Module for Scanners
i50/i60/i80; CAT. No. 162-3362).

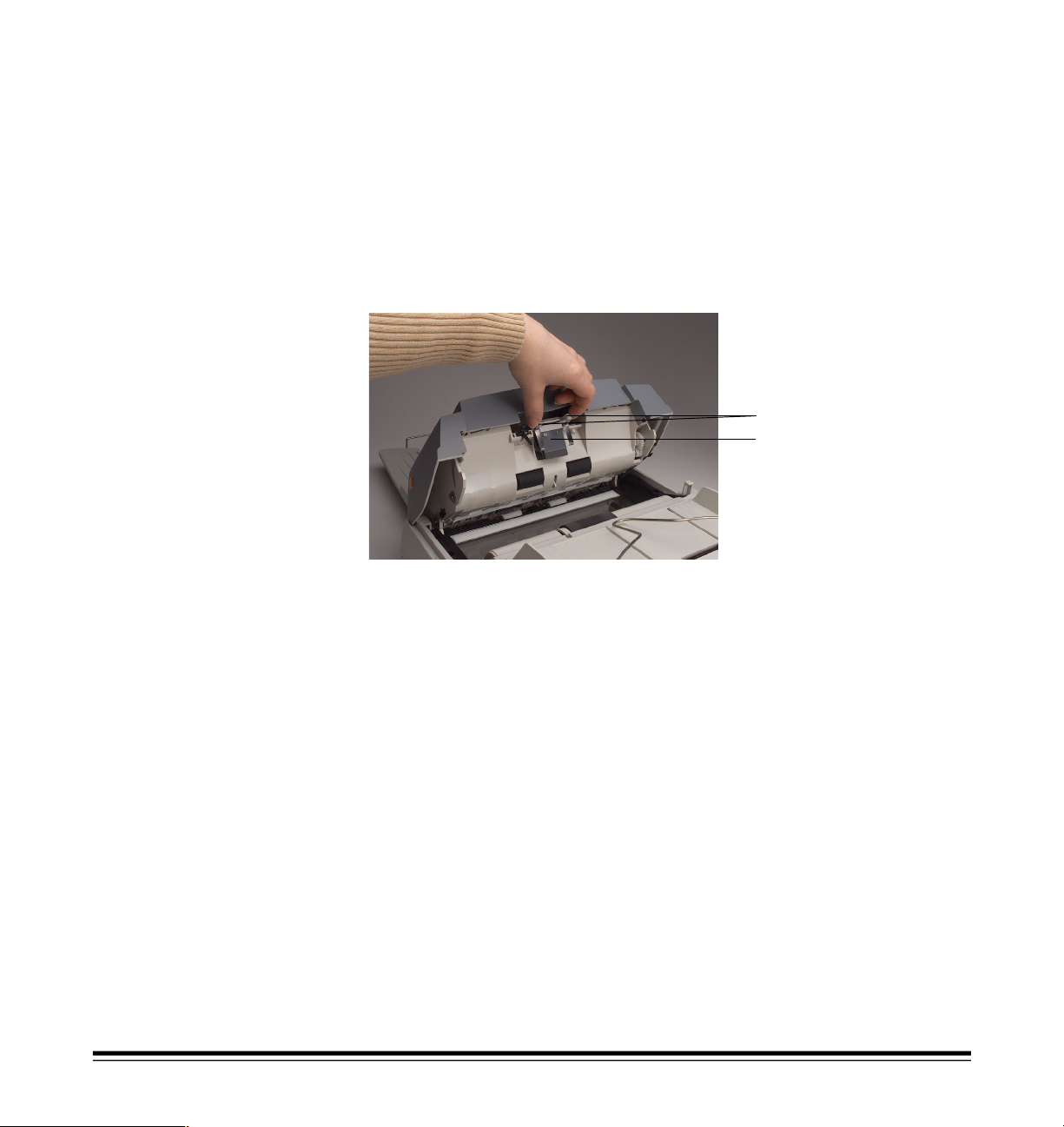

1. Open the ADF.
2. Remove the feed module by squeezing the side tabs on the module and
pulling it out.
Side tabs
Feed module
3. Insert a new feed module.
4. Slide the feed module into position until it clicks into place.
5. Close the ADF.
The scanner is now ready for use.
32 A-61195 July 2003
Troubleshooting
Problem Solution
The scanner automatically performs a simple self-test each time it is powered
up. This helps spot major system errors in the scanner itself. When the selftest is initiated, the READY light flashes. When the self-test has completed and
no error has occurred, the READY light is steadily illuminated.
Occasionally, you may experience a problem with your scanner. In many
cases, you can easily fix the problem yourself. Refer to the following chart for
some common problems and their solutions.
The light indicates that the scanner is ready,
but the scanner does not respond to the
scan command from the host computer.
The red error light is illuminated or is flashing
after the scanner’s power cycle.
The red error light is illumin ate d
while scanning.
Paper becomes jammed during scanning. • Open the ADF and pull out the jammed paper. Close the ADF.
More than one sheet of paper was fed into
the scanner (a multifeed).
Paper becomes skewed in the scanner. • Check the feed roller condition. Clean the rollers, if necessary.
When the scanner is powered up, it
makes noise and does not come to the
READY state.
You can specify an image from the scanner,
but the scanner or computer crashes
when scanning.
• Verify that the cable is plugged in, then invoke the scan command
again. If there is still no response, reset the scanner by turning it
off, then on again. Reboot the host computer.
• Verify that the driver is correctly installed.
• The scanner self-test has failed. Reset the scanner by turning it
off, then on again. If the problem persists, contact service.
• The scanner has jammed or a multifeed has been detected.
• There is a hardware problem. Reset the scanner by turning it off,
then on again. If the problem persists, contact service.
• Flatten document corners and edges. Fan the paper before you
load it in the ADF input tray.
• Check the feed roller condition. Clean the rollers, if necessary.
• Use the paper guides when feeding documents.
• The shipping switch was not unlocked. Unlock it.
• The scanne r is not locat ed on a level surface. This may caus e the
scanner to function improperly.
• Verify that the cable is plugged in.
• Only two SCSI terminators can be connected to the SCSI daisy
chain: one is at the end of the SCSI device and the other is
already in the host adapter.
A-61195 July 2003 33
Problem Solution
When the scanner is powered up, the lamp
does not light.
The scanned image is too dark. •Modify the Curves setting to 2.2 and 1.8 for your printer and
The scanned lines of Black and White
images seem much thicker than those of
the original.
The color image quality is not acceptable Color image quality is highly subjective. Here are some things to
• The lamp has burned out. Contact service. Lamp life is about
15,000 hours.
• If the power light on the ADF is flashing, the power adapter
is malfunctioning or the main board has short-circuited.
Contact service.
monitor, respectively.
• Use the Brightness setting to get a brighter image.
• Use the Brightness or Threshold setting to adjust Black and
White images.
consider when scanning in color:
• The differing color gamuts of capture, display, and output
devices can affect color perception. Computer monitor displays
and printer output can vary from model to model and from
manufacturer to manufacturer. An image may be acceptable
on one monitor and unacceptable on another.
• Area lighting (fluorescen t, natur al, inca nde sc en t) ca n affect
color perception.
• The appearance of a colored area within an image can be
perceived differently, based on what surrounds it.
• The characteristics and condition of a document can have an
impact on color consistency.
• Color requirements may differ between environments (e.g., in a
business document environment, images are generally viewed
on a monitor, whereas in a “print on demand” environment,
scanned images are printed.)
• Make sure that the ADF and the glass areas are clean
before scanning.
34 A-61195 July 2003
Getting service If you believe that your scanner needs service, go to the web site at
www.kodak.com/go/docimaging. There you can find out how best to
obtain service for your scanner.
Equipment disposal The i80 Scanner contains lead in the circuit board and mercury in the lamp.
Disposal of these materials may be regulated due to environmental
considerations. For disposal or recycling information, please contact your local
authorities or visit the Electronics Industry Alliance web site at www.eiae.org.
Scanner supplies Order scanner supplies from your dealer.
Item Catalog Number
KODAK Feed Module for Scanners i50/i60/i80 162-3362
Staticide Wipes for KODAK Scanners 896-5519
Kodak Digital Science Roller Cleaning Pads 853-5981
A-61195 July 2003 35
Specifications
Scanner type ADF/flatbed desktop duplex color scanner
Optical resolution 600 dpi
Scanning output 24-bit (RGB) color, 8-bit grayscale, or 1-bit bitonal
Light source Cold cathode fluorescent lamp
ADF capacity 75 sheets of 16 lb. bond or 50 sheets of 20 lb. bond
ADF scanning speed 35 ppm (200 dpi, B&W mode, ADF)
27 ppm (200 dpi, grayscale mode, ADF)
20 ppm (150 dpi, color mode, ADF)
NOTE: Results may vary depending on your scanning application and
computer processor speed.
Scan area ADF 94 x 140 mm (3.7 x 5.5 in.) minimum
216 x 356 mm (8.5 x 14 in.) maximum
Flatbed up to A4 size (8.3 x 11.7 in.)
Electrical requirements Voltage 100-240V
Frequency 50 to 60 Hz
Scanner power Voltage / Current: 24 Vdc / 2.0 A, max.
Power source Sino-American model SA60-24 (provided with the scanner)
IMPORTANT : Do not substitute another power supply model or another
manufacturer’s power supply.
Power consumption < 48 watts
Host connection Interface SCSI-2
SCSI Ports 1 - 50 contact receptacle (Amphenol-style)
1 - DB25-style female, 25 socket
Termination internal/external (switch selectable)
Operating temperature 5 to 35 °C
Storage temperature -40 to 60 °C
Humidity 20 to 80% RH
Dimensions Without output tray: 567 x 350 x 199 mm (22.3 x 13.8 x 7.8 in.)
With output tray: 833 x 350 x 199 mm (32.8 x 13.8 x 7.8 in.)
Weight 7.2 kg (15.9 lb.)
All specifications are subject to change without notice.
36 A-61195 July 2003
EASTMAN KODAK COMPANY
Rochester, New York 14650
www.kodak.com/go/docimaging
Kodak is a trademark of
Eastman Kodak Company.
A-61195 7/2003
©Eastman Kodak Company, 2003
Loading...
