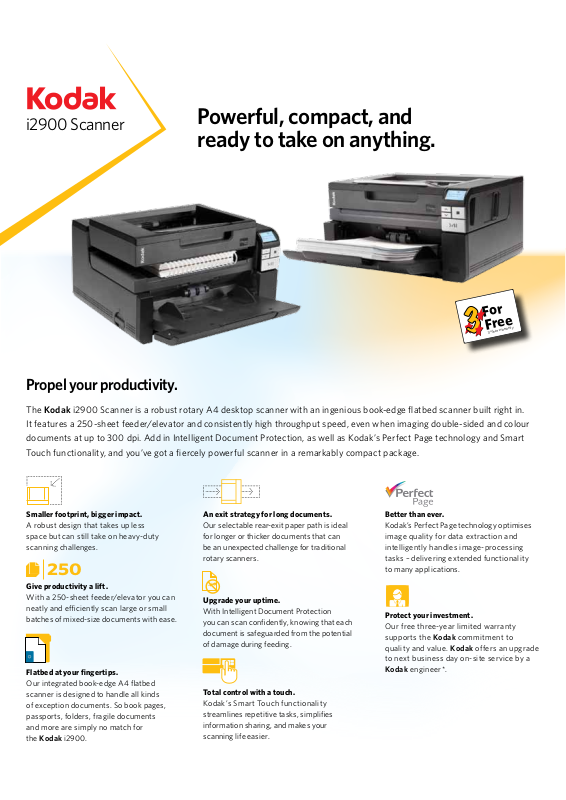

Kodak 1140219 Datasheet

i2900 Scanner

For

Free

3-Year warranty

Powerful, compact, and

Scanners

ready to take on anything.

Propel your productivity.

The Kodak i2900 Scanner is a robust rotary A4 desktop scanner with an ingenious book-edge flatbed scanner built right in.

It features a 250-sheet feeder/elevator and consistently high throughput speed, even when imaging double-sided and colour

documents at up to 300 dpi. Add in Intelligent Document Protection, as well as Kodak’s Perfect Page technology and Smart

Touch functionality, and you’ve got a fiercely powerful scanner in a remarkably compact package.

Smaller footprint, bigger impact.

A robust design that takes up less
space but can still take on heavy-duty
scanning challenges.

250

Give productivity a lift.

With a 250-sheet feeder/elevator you can
neatly and eciently scan large or small
batches of mixed-size documents with ease.

Flatbed at your fingertips.

Our integrated book-edge A4 flatbed
scanner is designed to handle all kinds
of exception documents. So book pages,
passports, folders, fragile documents
and more are simply no match for
the Kodak i2900.

An exit strategy for long documents.

Our selectable rear-exit paper path is ideal
for longer or thicker documents that can
be an unexpected challenge for traditional
rotary scanners.

Upgrade your uptime.

With Intelligent Document Protection
you can scan confidently, knowing that each
document is safeguarded from the potential
of damage during feeding.

Total control with a touch.

Kodak’s Smart Touch functionality
streamlines repetitive tasks, simplifies
information sharing, and makes your
scanning life easier.

Better than ever.

Kodak’s Perfect Page technology optimises
image quality for data extraction and
intelligently handles image-processing
tasks – delivering extended functionality
to many applications.

Protect your investment.

Our free three-year limited warranty
supports the Kodak commitment to
quality and value. Kodak offers an upgrade
to next business day on-site service by a
Kodak engineer*.

i2900 Scanner

Technical specifications

Recommended Daily Volume ADF: Up to 10,000 pages pe r day

Throughput Speeds
(portrait, letter/A4 size,
black and white/greyscale/colour)

Flatbed Support Integrated A4 size flatbed scanner (book-edge)

Scanning Technology (ADF) Dual CCD;

Illumination Dual LED

Operator Control Panel Graphical LCD display with four operator control buttons

Optical Resolution 600 dpi

Output Resolution 100 / 150 / 200 / 240 / 300 / 40 0 / 600 / 1200 dpi

Max. / Min. Document Width Auto-fe ed: 21 5 mm / 63.5 mm

Max. / Min. Document Length Auto-feed: 863.6 mm / 63. 5 mm

Paper Thickness and Weight 34-413 g/m

Feeder/Elevator Up to 250 sheets of 80 g/m

Paper Path Options Documents can exit into th e front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected

Document Sensing Ultrasonic multi-feed detection; Intelligent Document Protection

Connectivity USB 2.0 (compatible with USB 3 .0-supported PC s); USB 3.0 cable included

Software Support Fully supported by Kodak Capture Pro S oftware and Kodak Asset Management Software

Imaging Features Perfect Page Scanning; iThresholding; adaptive threshold processing; deskew; autocrop; relative cropping; aggressive cropping;

File Format Outputs Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF

Limited Warranty Three years (Advance Unit Replacement); optional n ext business day on-site service*

Accessories (Optional)

Electrical Requirements 100-240 V (International); 50-60 Hz

Power Consumption O  mode: <0.5 watts; Running : <75 watts; Sleep mode: <4. 5 watts

Environmental Factors Energ y Star qualified scanners

Acoustical Noise (operator position
sound pressure level)

Recommended PC Configuration Intel Core 2 Duo, 2.66 GHz each core (or equivalent), 3 GB R AM

Supported Operating Systems Windows XP SP3 (32-bit an d 64-bit), Windows Vista SP2 (32-bit and 64-bit), Windows 7 SP1 (32-bit and 6 4-bit),

Approvals and Product Certifications AS/NZ S CISPR 22:2009 + A1:2010 Class B (C-Tick Mar k), CAN/CSA-C2 2.2 No. 60 950-1-07 (C-UL Mark), Ca nada ICES- 003 Issue 5 (Class

Consumables Available Roller cleaning pads, Staticide wipes, consumables kit (includes feed module, separation module, separatio n pad, front transpor t

Dimensions Weight: 15.8 kg Depth: 371 mm with input tray closed

Integrated A4 size fl atbed: 100 pages per day

Up to 60 ppm/120 ipm at 200 dpi and 300 dpi

(Throughput speeds may vary depending on your choice of driver, application software, operating syste m, and PC.)

Greyscale output bit depth is 256 levels (8-bit); colour capture bit depth is 48 bits (16 x 3); colour output bit depth is 24 bits (8 x 3)

Hand-feed: 215 mm / 50 mm

Hand-feed: 863.6 mm / 50 mm (rear exit only)
Long document m ode: 4.1 meters maximum length
(The scanner supports continuous scanning mode but will segment the image)

2

paper

2

paper

Bundled TWA IN, ISIS, and WIA drivers; Kodak Capture Desktop Software; Smart Touch (Linux SANE and TWA IN drivers available from
www.kodak.com/go/scanonlinux)

electronic colour dropout; dual stream scanning; interactive colour, brightness and contrast adjustment; automatic orientation;
automatic colour detection; intelligent background colour smoothing; intelligent image edge fill; image merge; content-based blank page
detection; streak filtering; image hole fill; sharpness filter; auto brightness

Kodak A3 Size Flatbed Acces sory (available June 2013)
Kodak document imprinting accessory (rear-side, post-scan imprinting of up to 40 alphanumeric characters, with 9 imprinting positions)

Operating temperature: 15-35° C
Operating humidity: 15% to 76% RH

O or Rea dy mode: 27 dB(A)
Operating mode: <59 dB(A)

Windows 8 (32-bit and 64-bit), Linux (for details see www.kodak.com/go/scanonlinux)

B), GB4943.1:2011, GB 9254:200 8 (Class B), GB 17625 .1:2003 Harmonics (CCC “S&E” M ark), EN 55022:2010 ITE Emissions (Class B), EN
61000 -3-3 Flicker, EN 55024:201 0 ITE Immunity (CE Mark), EN 60950 -1:2006 + A11, A12, A1 (T UV GS Mark), IEC 60 950-1, CISP R 22:2008
(Class B), VCCI V3/20 12.04 (Class B), CNS 13438:2006 (Class B), CNS 14336-1 (BSMI Mark ), UL 60950-1:07 (UL Mark), CFR 47 Part 15
Subpart B (FCC Class B), Argentina S-Mark

rollers)

Width: 4 31. 8 mm Height: 237.5 mm

*There may be Geographical limitations to the availability of Service. For full details please contact your reseller of Kodak
products or your local Service&Support organisation. Kodak enables customers to capture and use valuable information from
electronic and paper documents. Our document imaging solutions include award-winning scanners and capture software, and
industry-leading service and support. From small oces to global operations, Kodak has the right solution to feed your business
the information it needs.

To learn more:

Visit www.kodak.com/go/i2900
Produced using Kodak Technologies.

For further information, please see how to contact us at:
http://www.kodak.com/go/dicontact

©Kodak, 2013. Kodak is a trademark of Kodak. DoldeMedien_5_13

Subject to technical change without notice.

CAT No. WE-EN 020
